Jagdtiger with Liam Mahoneys Idler cranks

[Chang]

Replace stock's Idler wheel's cranks by Liam Mahoney's upgrade parts received last week.

With stock's part , the idler wheel already touch the rear bottom of sponson.

1-6 JT-106.JPG (210.01 KiB) Viewed 3271 times

With Liam Mahoney's Idler cranks , the Idler wheel does not touch the rear bottom of the sponson by about 0.8cm.

1-6 JT-122.JPG (137.8 KiB) Viewed 3271 times

Side View.

1-6 JT-121.JPG (88.51 KiB) Viewed 3271 times

Left hand side view from rear.

1-6 JT-120.JPG (96.52 KiB) Viewed 3271 times

Right hand side view from rear.

1-6 JT-123.JPG (106.13 KiB) Viewed 3271 times

At the end , allow me to remind one thing :
The hole's diameter of the stock's part is 5mm, locked by M5x12mm countersunk screw;
Liam Mahoney's part is 6mm , need locked by M6x12 or 15mm countersunk screw.

Need M6x12mm countersunk screw instead of M5x12mm one.

1-6 JT-124-2.JPG (108.53 KiB) Viewed 3271 times

L C

[David Brady]

Hi Chang,

I didn't realize the idler wheel can touch the rear bottom of sponson, I'm assuming this is at max adjustment.

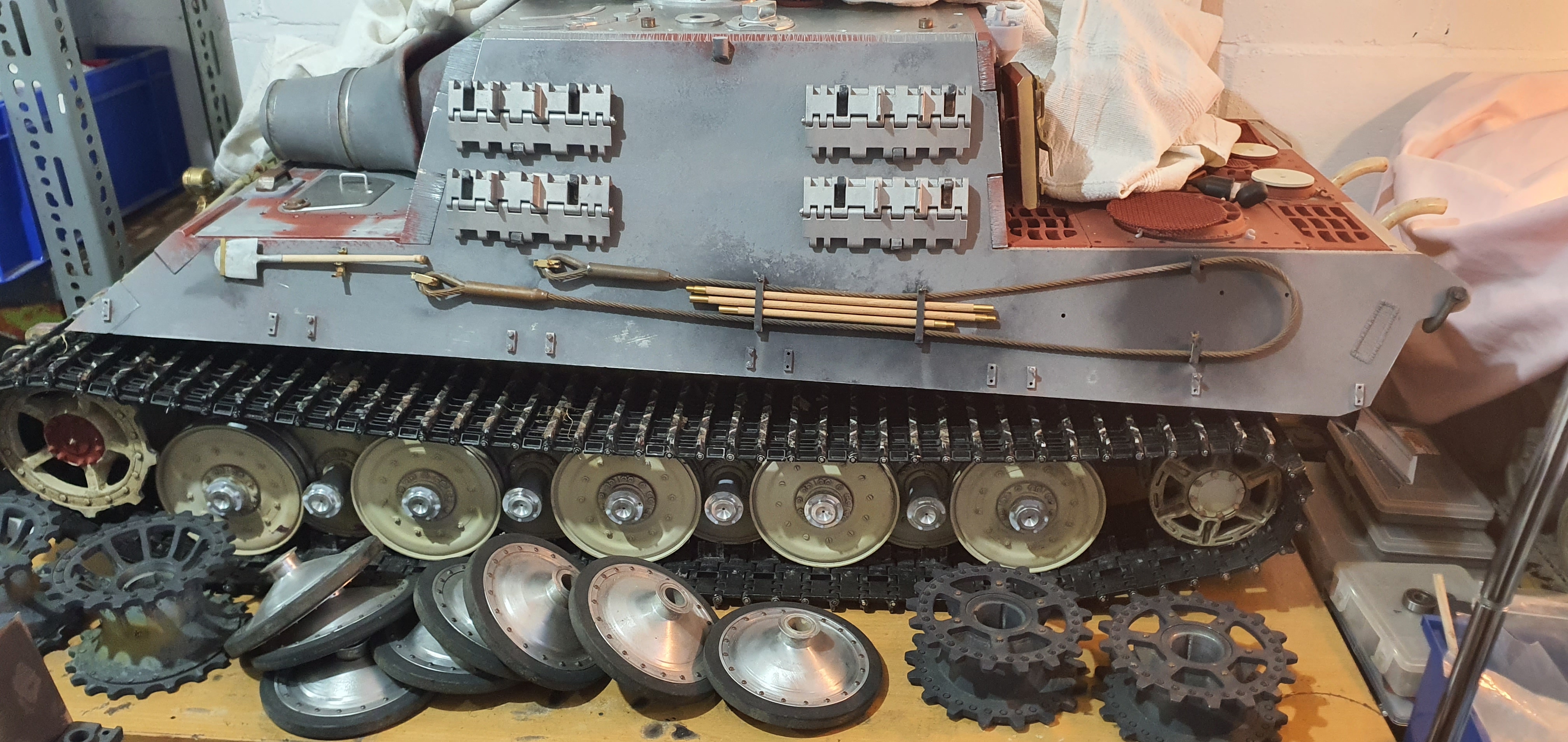

A picture of mine

Cheers

[Chang]

Hi Chang,

I didn't realize the idler wheel can touch the rear bottom of sponson, I'm assuming this is at max adjustment.

Cheers

Hi David,

With standard 48 link pairs of each track and 35 degrees of suspension angle , my JT's Idler wheel is that high. If you reduced the number of the track link pairs and / or < 35 degree , it won't be so I think.

[David Brady]

Thanks Chang, I think mine has less then 48 link pairs.

Mine look a little tight, but might stretch a little with running

Cheers

[Chang]

Yours are looks better David.
In the future , I will take out one pair of link after several sit-in running.

L C

[Jerry Carducci]

Good information. I have Liam's cranks; have yet to fit them to my King Tiger (as well as for my JagdTiger). I also have Liam's steel tracks for both but again haven't mounted them yet. They might stretch but I rather doubt to any noticeable extent so I'm interested in your results with stock tracks.
My tracks as they stand are far too loose and do not perform well as seen in my so far limited testing.

I have the swing arms on my KT set for 32° at the moment however I may decide to change this.

Jerry

[Paul Sparkes]

I’m at 47 links a side, very worn tracks ( need replacing soon). Stock idlers the tracks were too tight, with Liam’s fitted I now have adjustment available. 48 links didn’t work for me.
