Barrel Sleeve

[Dave Jackman]

Hi,does anyone know the locations of the barrel sleeve (oil?) plugs? Are there four or six?
Thanks.

[Stephen White]

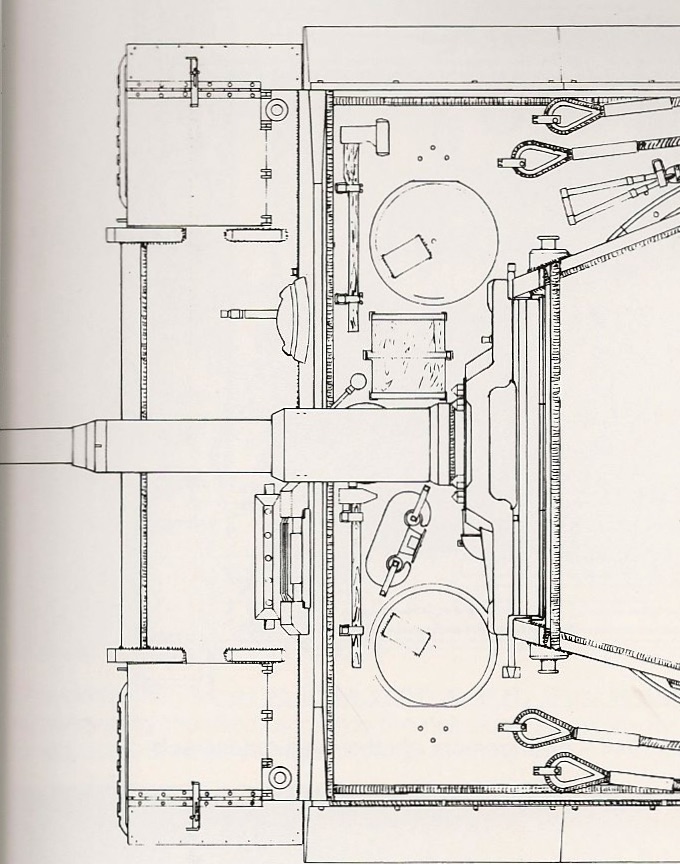

If you mean these on the Walzenblende, gun mantlet:

Tiger gun mantlet.jpg (243.23 KiB) Viewed 3578 times

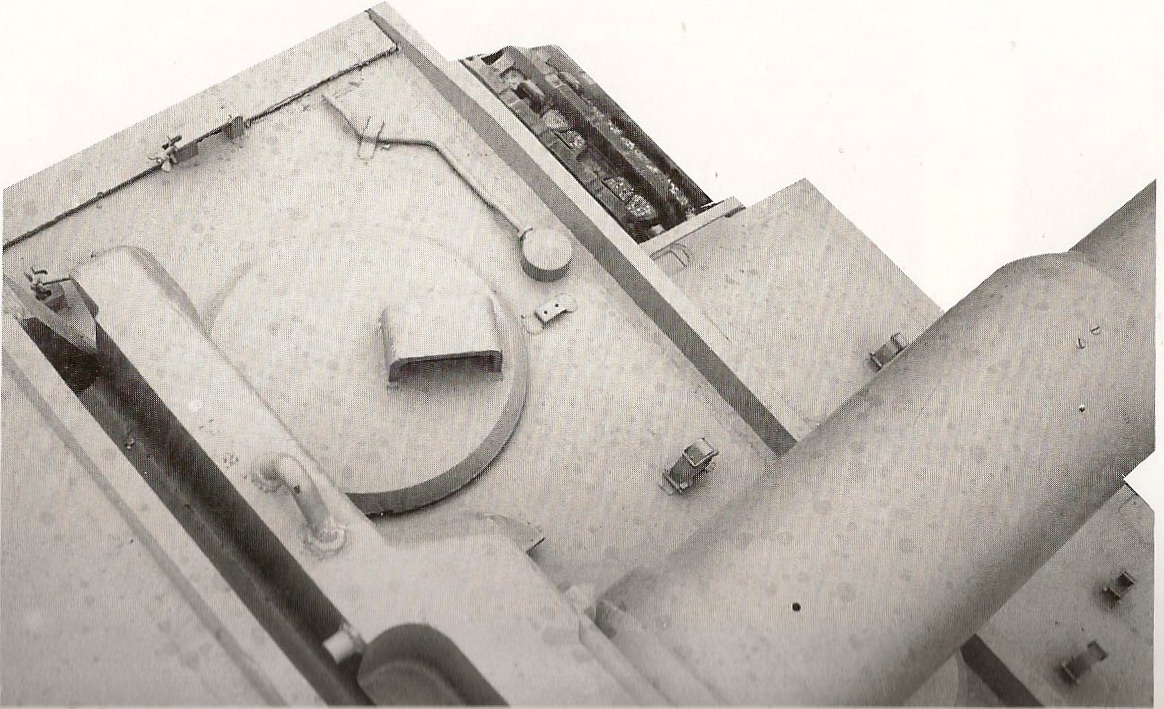

ie two pairs at two and ten o'oclock but this appears to show one pair at twelve:

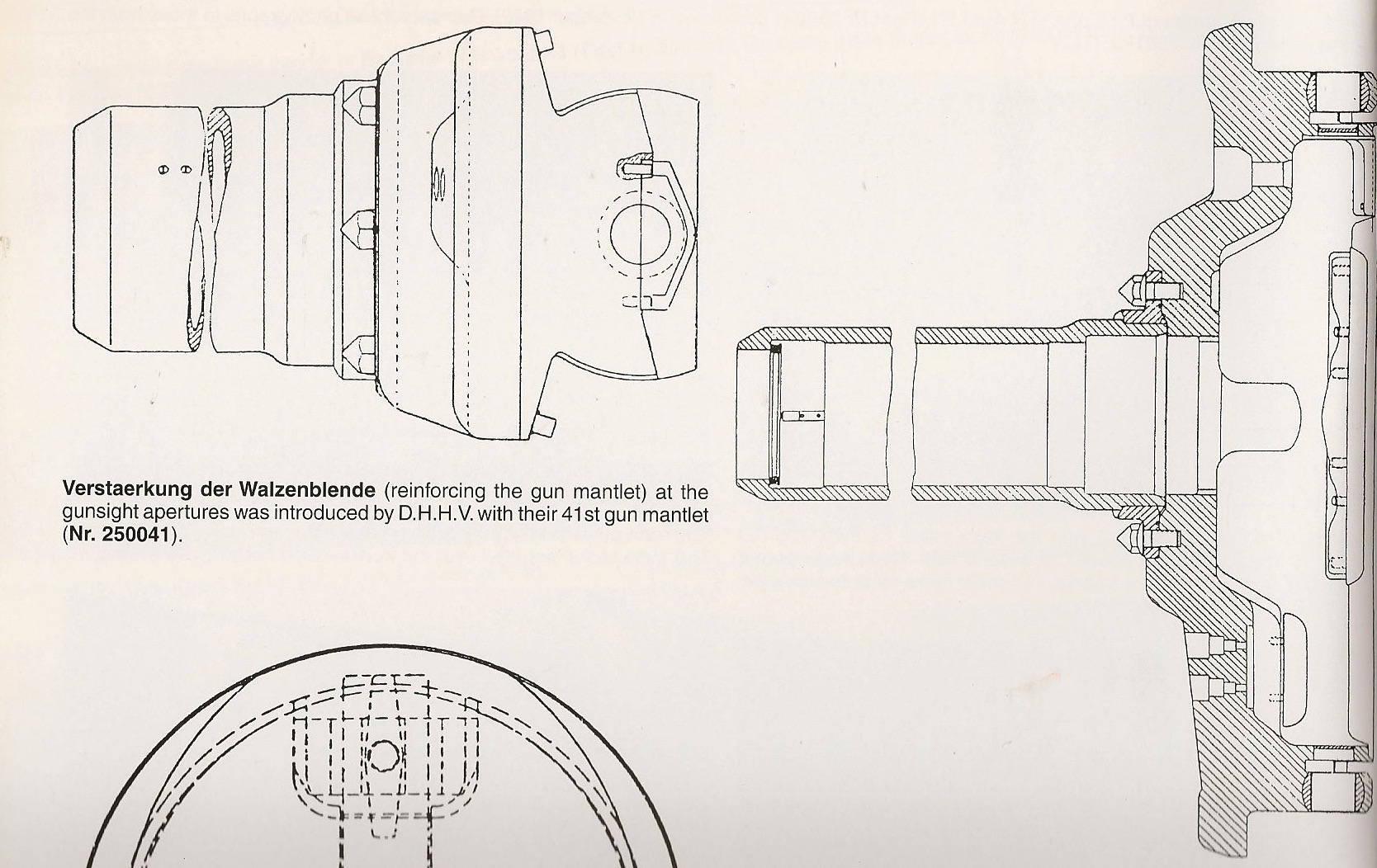

Similarly, Jentz and Doyle clearly show the ten and two positions:

Tiger gun mantlet 5 1.jpg (99.46 KiB) Viewed 3578 times

But they also show what appear to be different configurations:

so to answer your question, I'd suggest the answer is probably four, two pairs at two and ten o'clock. Given that the gun mantlet was changed in Nov 1942, to strengthen the gunner's eyepiece aperture, I suppose it's possible they changed from one pair at twelve o'clock to two pairs, to increase the circulation of lubricant. But that's speculation. You'd probably be safe with the two and ten configuration.

True Tiger rivet counting. There has to be a life somewhere.......

S

[Kent Wiik]

Hi Dave and Stephen,

There was 6 screws placed 2, 10 and 6 o’clock in pairs and their purpose was to hold the ”Dichtung” in place.
There was also a drain hole at 6 o’clock.
Drawings here at David excellent tiger1.info site.

http://tiger1.info/EN/Mantlet-sleeve.html

The photo with the screws at 12 o’clock from the Bovington Tiger show the Britts replaced the sleeve upside down

Hope this helped.
Kind regards
Kent

[Stephen White]

Kent, thanks. That explains the Jentz and Doyle diagrammes but how do you explain the second photo I posted which clearly has two screws at 12 o'clock. Was it possible to fit the sleeve upside down maybe?

Stephen

[Kent Wiik]

Stephen,

Yes, the sleeve is by misstake replaced by her new owner, the Britts, upside down.
Please note the drain hole that can be sen in the photo, it is supposed to be placed at 6 o’lock or be useless....

Kind regards
Kent

[Dave Jackman]

Thank you very much Kent and Steven. That answers my question completely.

[Kent Wiik]

Ur welcome Dave, happy to help.

Sorry Britts I have to go down in flames here accusing you for assembling the sleeve upside down.
No the photo show the Aberdeen Tiger1 with its liftning lugs on the mantlet so it is the US who failed here, sorry....

Kind regards
Kent

[Stephen White]

You’re forgiven Kent. If it was upside down, mihjt have been Down Under. Hello Australia.... glad to help, Dave. Lots of other Tiger builders here. S

[Adrian Harris]

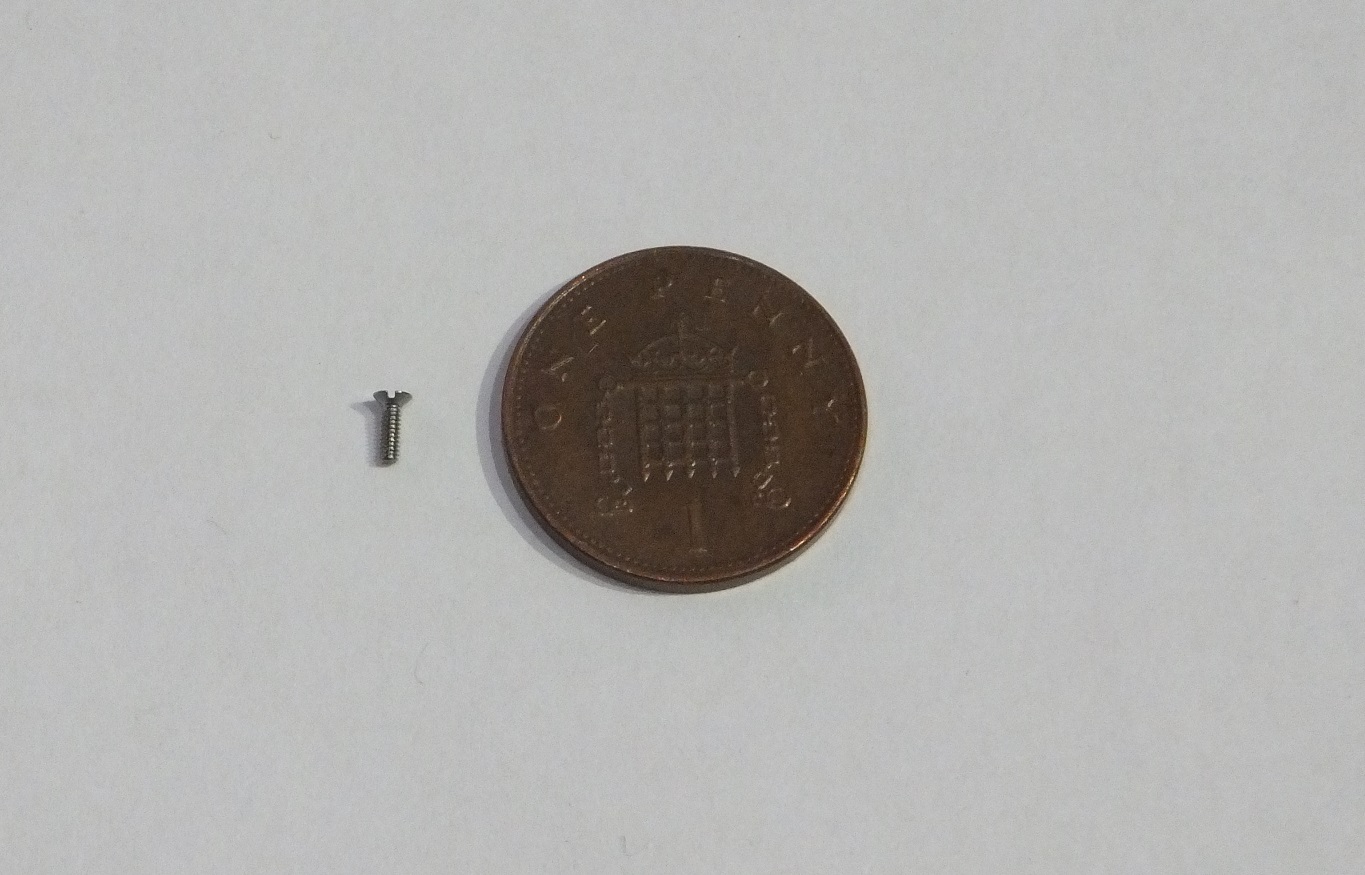

Anyone considering this addition, you will need M1.2 CSK slotted screws.

Mine have just arrived and I have no idea how to countersink a hole that small

Adrian.

[Christoffer Ahlfors]

Drill a hole and hammer it in?

[Adrian Harris]

It wouldn't need a very big hammer

Adrian.

[Vince Cutajar]

Adrian

Did you eventually find a way of making that small countersink?

Vince

[Adrian Harris]

I've ordered one of these:

https://www.ebay.co.uk/itm/ALTiN-Carbid ... 3897149474

I'll post once it arrives.

Adrian.

[Vince Cutajar]

That should work as it's got a sharp point.

Vince

[Liam Mahoney]

Hi Adrian
These go down to 1.3mm and are ok at 1.2 but they do burr the hole a bit so a quick clean up with the drill before you tap.
http://www.modellbauschrauben.de/index.php?m=03_44

Liam
