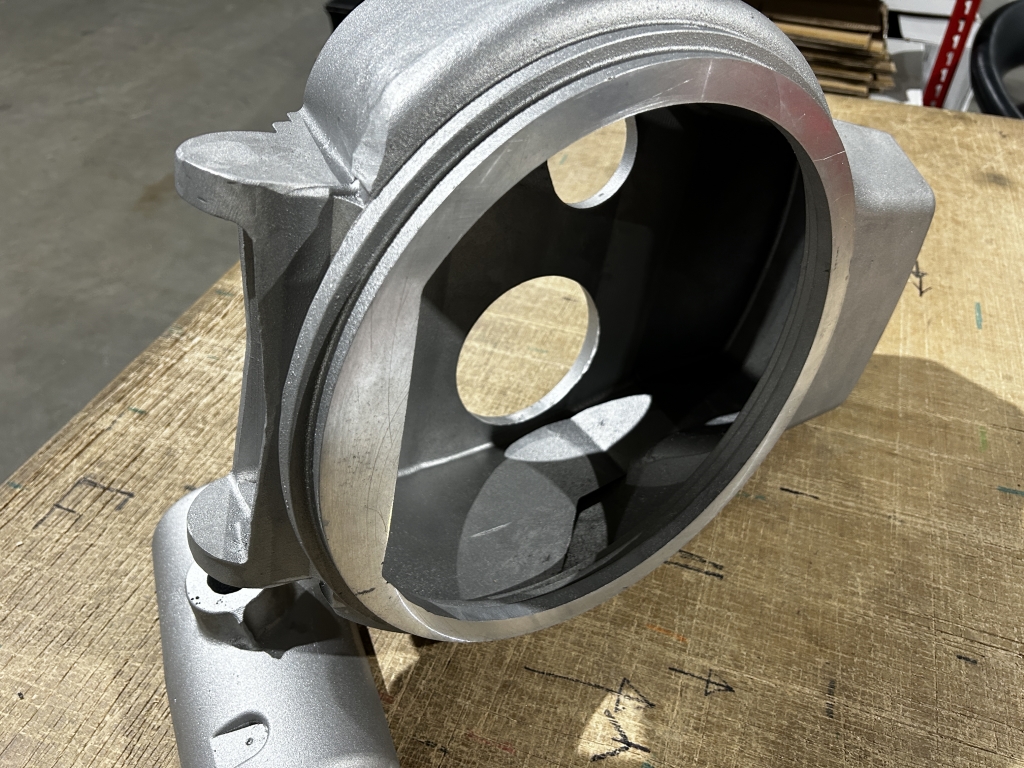

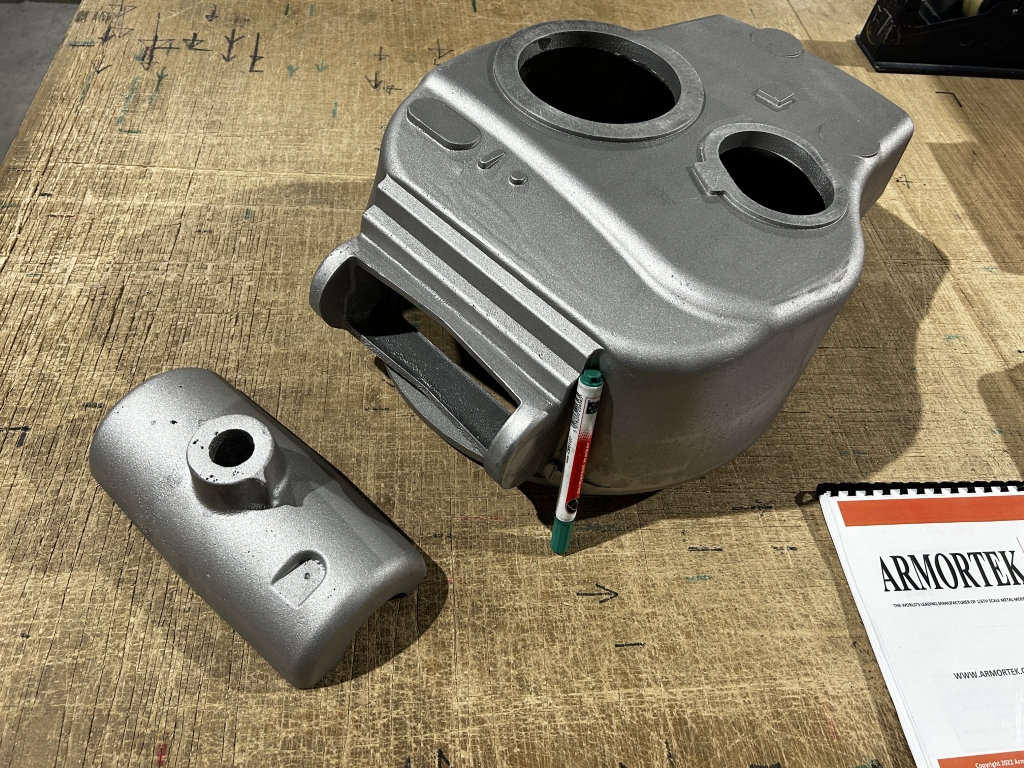

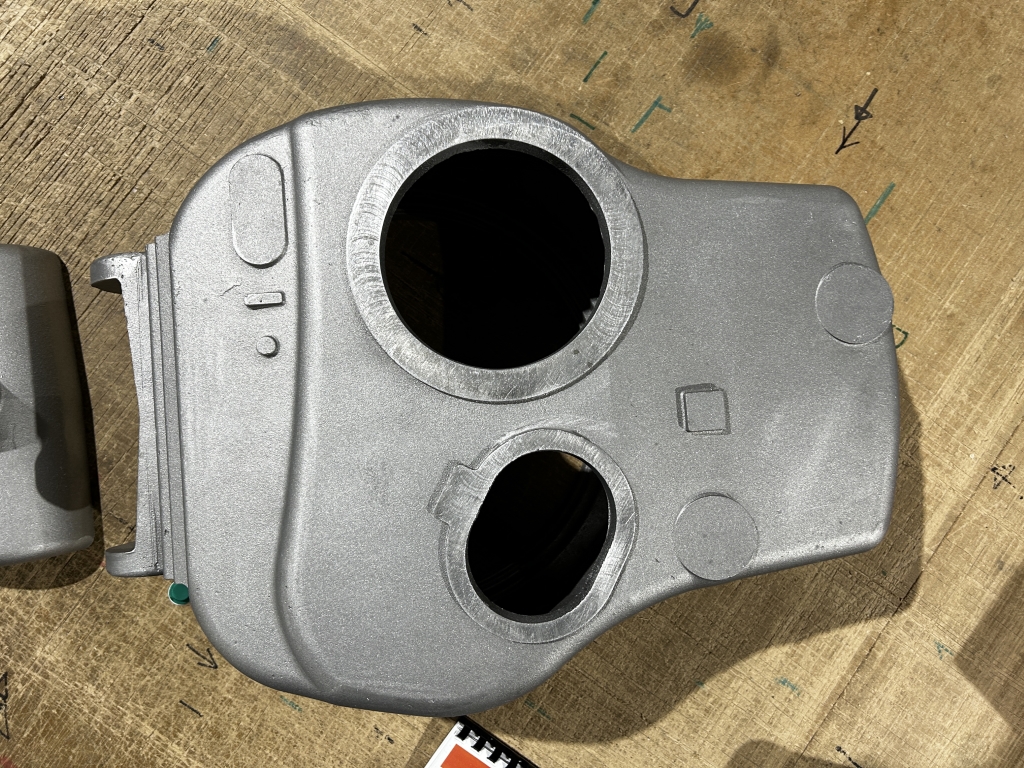

Prototype M26 Pershing turrets arrived on Friday - very happy how these have turned out. I placed a flip board marker next to the turret to show the scale.
The interior of the turret has been cast hollow so it "only" weights 11kg - within 150 grams of the predicted weight from our 3d modelling software.
We will get these onto our CNC machines in the next few days to machine all the features needed.
The interior of the turret has been cast hollow so it "only" weights 11kg - within 150 grams of the predicted weight from our 3d modelling software.
We will get these onto our CNC machines in the next few days to machine all the features needed.
- Attachments
-
Armortek
-
Mike Conley
- Posts: 155
- Joined: Wed Aug 28, 2013 3:03 pm
- Location: Catlettsburg, Kentucky USA
- Has liked: 224 times
- Been liked: 181 times
Re: M26 Pershing Production Images
Great castings!!! I would LOVE to see more videos of the final machining on the turret, mantlet, and cast parts!!
Armorteks: King Tiger, Tiger 1, Panther G, Panzer IV, M4A3 Shermans x2, M3 Lee, Pershing, Sd Kfz 7, Pak 43.
-
Damon Resch
- Posts: 119
- Joined: Fri Jun 17, 2022 10:49 pm
- Location: South Central Pennsylvania
- Has liked: 801 times
- Been liked: 69 times
-
Armortek
- Site Admin
- Posts: 2899
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3501 times
Re: M26 Pershing Production Images
A rendering of the exhaust and barrel travel lock assembly as well as a couple of pictures of the exhaust.
- Pershing Barrel travel lock and exhaust.JPG (36.18 KiB) Viewed 4188 times
- Attachments
-
Armortek
-
Armortek
- Site Admin
- Posts: 2899
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3501 times
Re: M26 Pershing Production Images

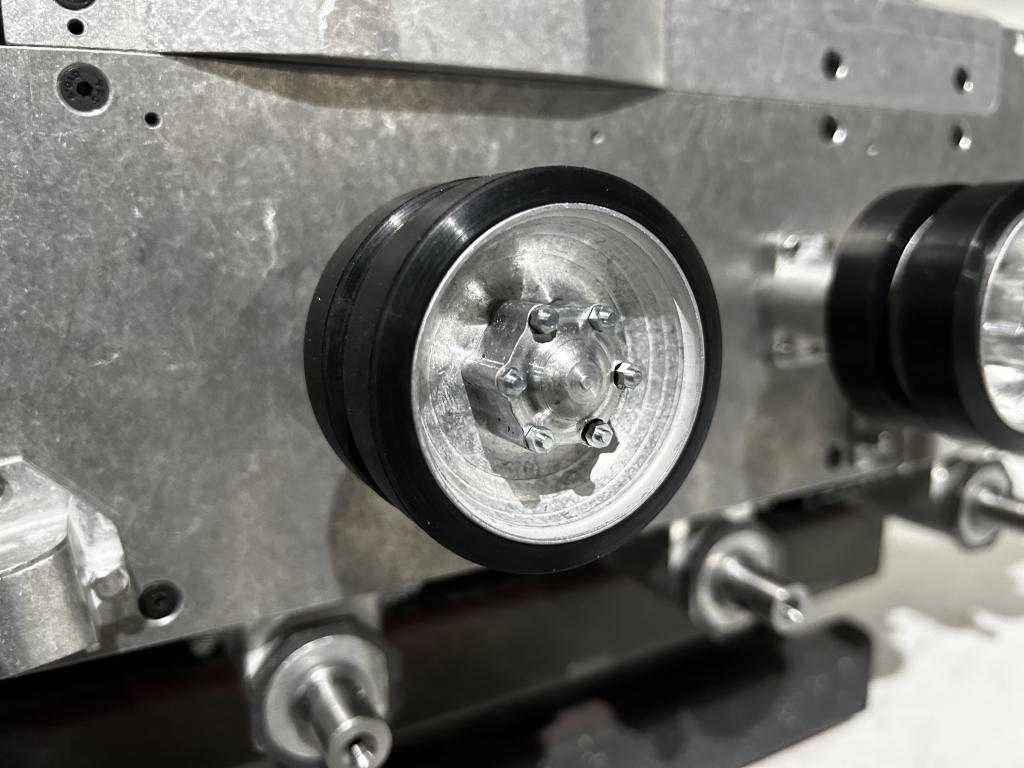

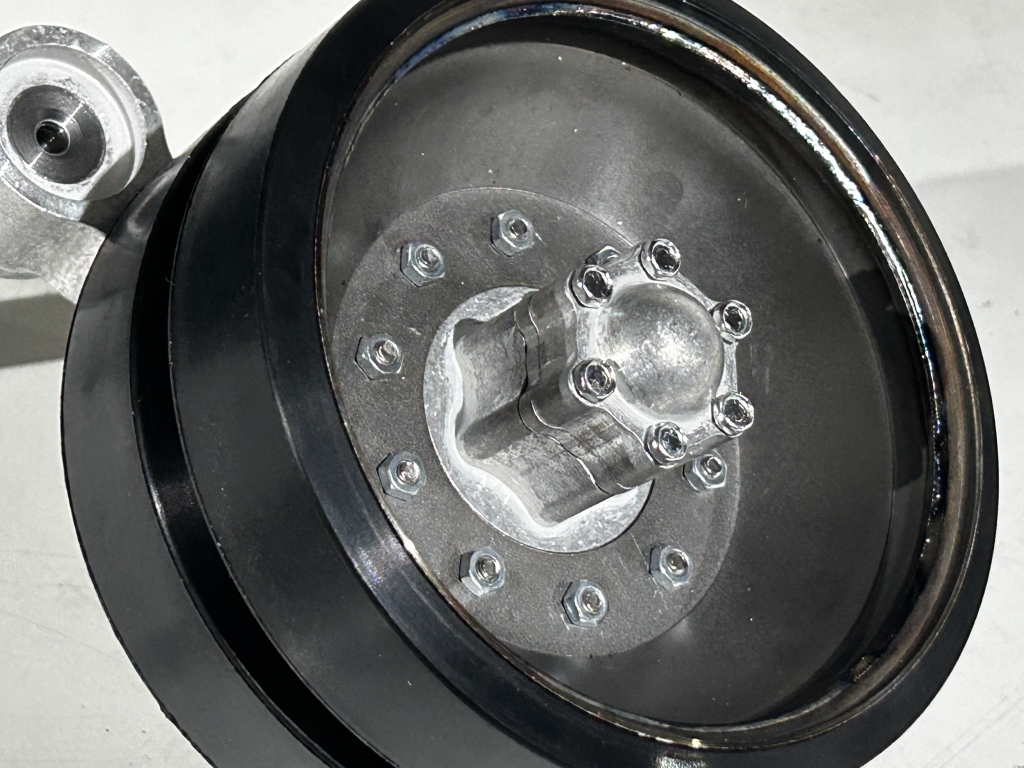

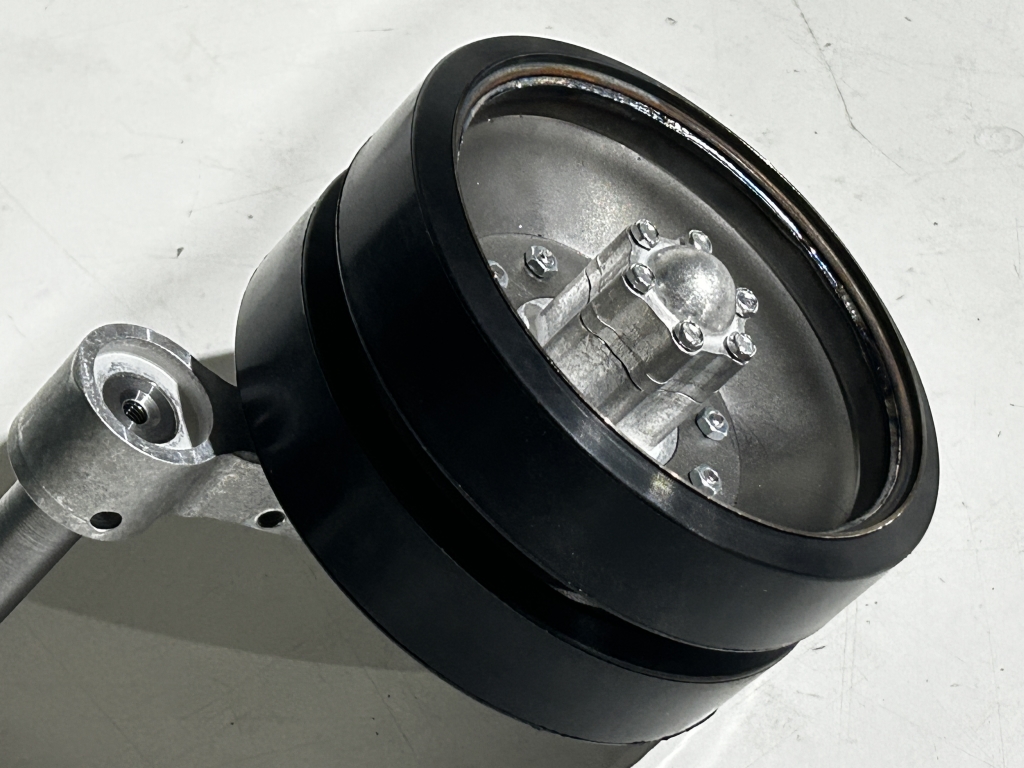

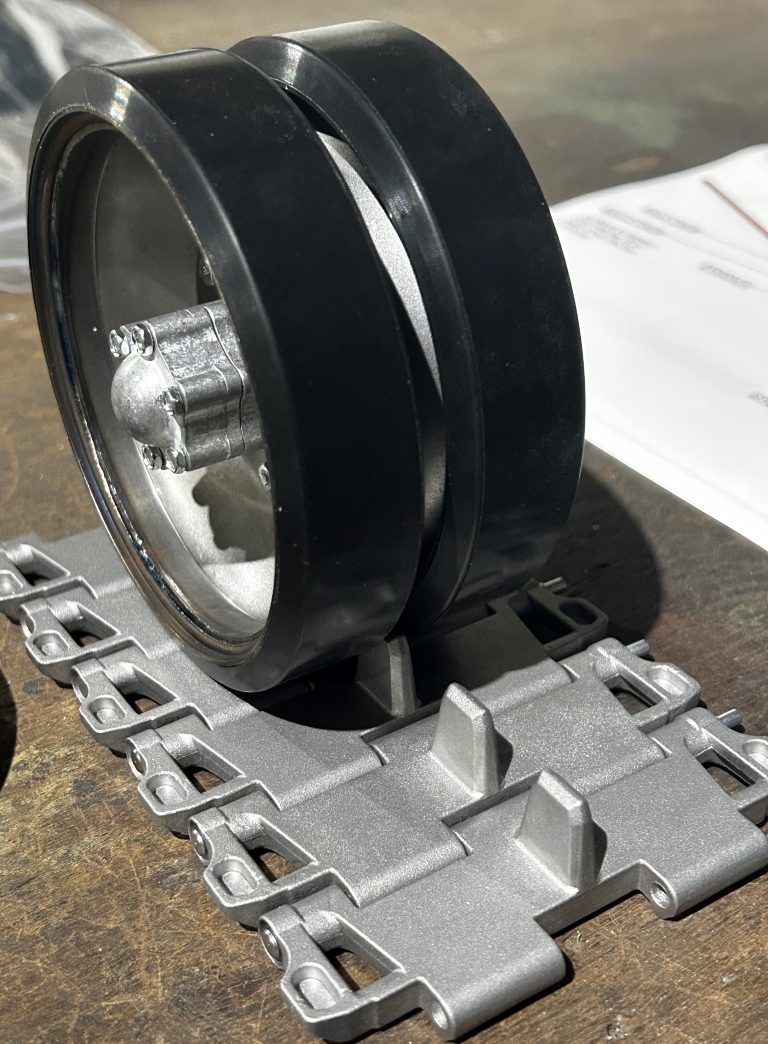

Sample pressed steel wheels and rubber tyres showed up today.
Very pleased with how these have turned out.
Very pleased with how these have turned out.
Armortek
-
Mike Conley
- Posts: 155
- Joined: Wed Aug 28, 2013 3:03 pm
- Location: Catlettsburg, Kentucky USA
- Has liked: 224 times
- Been liked: 181 times
Re: M26 Pershing Production Images
WOW AGAIN!!
Armorteks: King Tiger, Tiger 1, Panther G, Panzer IV, M4A3 Shermans x2, M3 Lee, Pershing, Sd Kfz 7, Pak 43.
-
Chang
- Posts: 1087
- Joined: Mon Jul 21, 2008 1:45 am
- Has liked: 16067 times
- Been liked: 454 times
Re: M26 Pershing Production Images
A very detailed wheel indeed.
Unlike German design , no locking tabs used to prevent the nuts from being loosen.
Is German too dedicated , or American don't think it is necessary? What is the true reason behind using it or not?
Regards,
Lerh Chang
Unlike German design , no locking tabs used to prevent the nuts from being loosen.
Is German too dedicated , or American don't think it is necessary? What is the true reason behind using it or not?
Regards,
Lerh Chang
------------------------------------------------------------------
Es braust unser Panzer im Sturmwind dahin.....
Es braust unser Panzer im Sturmwind dahin.....
-
Adrian Harris
- Posts: 5076
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1421 times
- Been liked: 1603 times
Re: M26 Pershing Production Images
Possibly the next size up for the fasteners ?
Adrian.
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
-
Chang
- Posts: 1087
- Joined: Mon Jul 21, 2008 1:45 am
- Has liked: 16067 times
- Been liked: 454 times
Re: M26 Pershing Production Images
Was the flange nut used? or dome washer? inner lock washer? conical washer?
Maybe nothing but a nut.
Maybe nothing but a nut.
------------------------------------------------------------------
Es braust unser Panzer im Sturmwind dahin.....
Es braust unser Panzer im Sturmwind dahin.....
-
Adrian Harris
- Posts: 5076
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1421 times
- Been liked: 1603 times
Re: M26 Pershing Production Images
Looks like the flange is part of the bolt.
Adrian.
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
-
Adrian Harris
- Posts: 5076
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1421 times
- Been liked: 1603 times
Re: M26 Pershing Production Images
The exhaust looks like a tricky piece of machining. It's not easy to tell from the angle but does are the vents cylindrical or conical ?
Adrian.
- Pershing2.jpg (116.28 KiB) Viewed 3896 times
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
-
Armortek
- Site Admin
- Posts: 2899
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3501 times
-
Armortek
- Site Admin
- Posts: 2899
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3501 times
Re: M26 Pershing Production Images

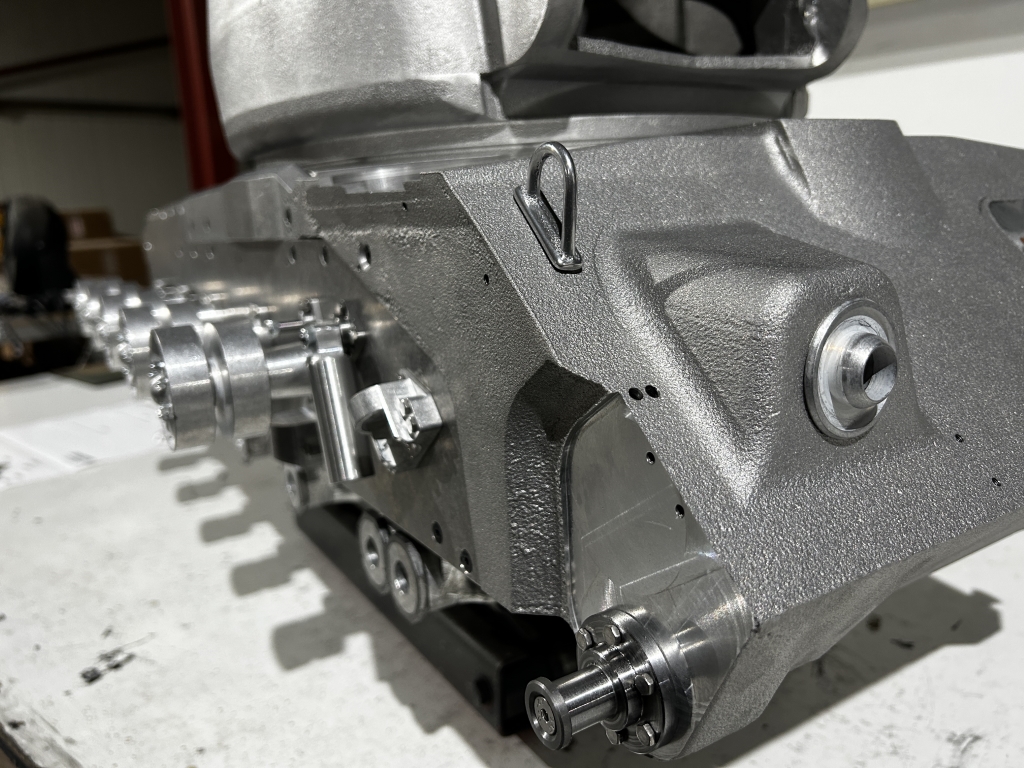

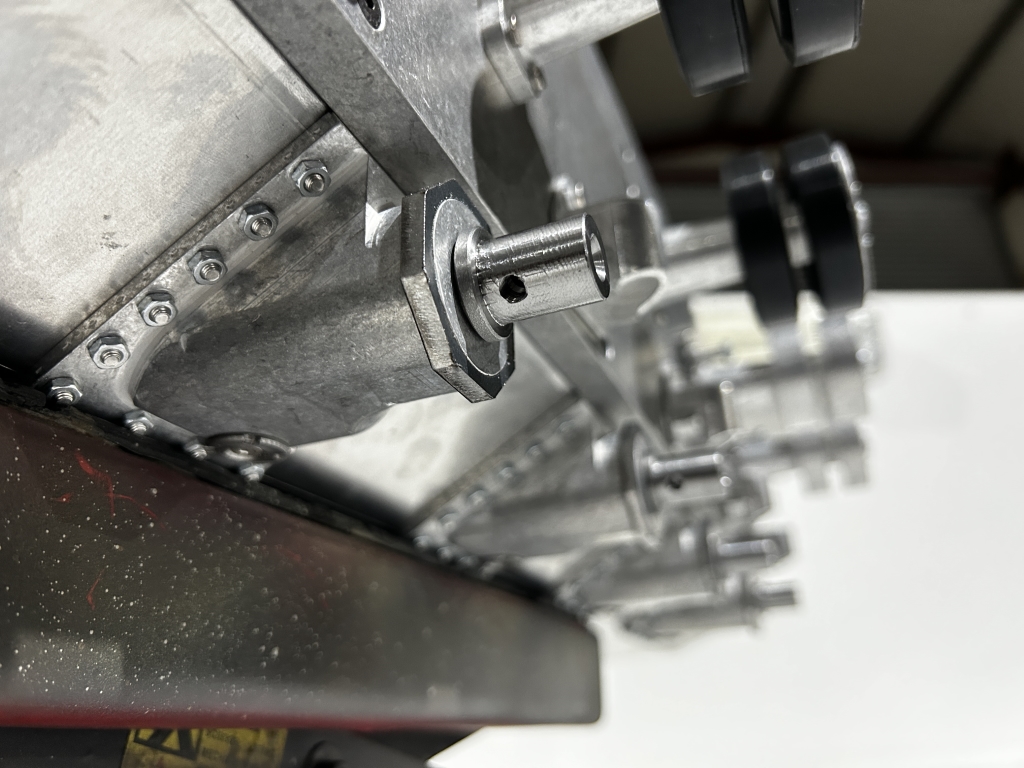

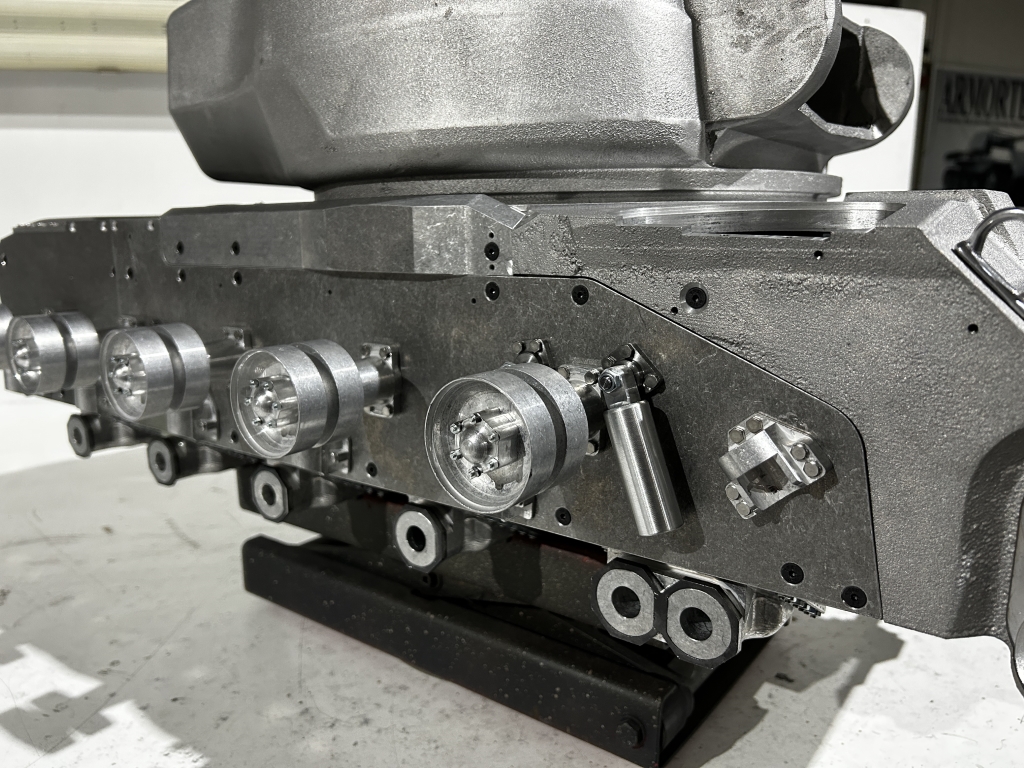

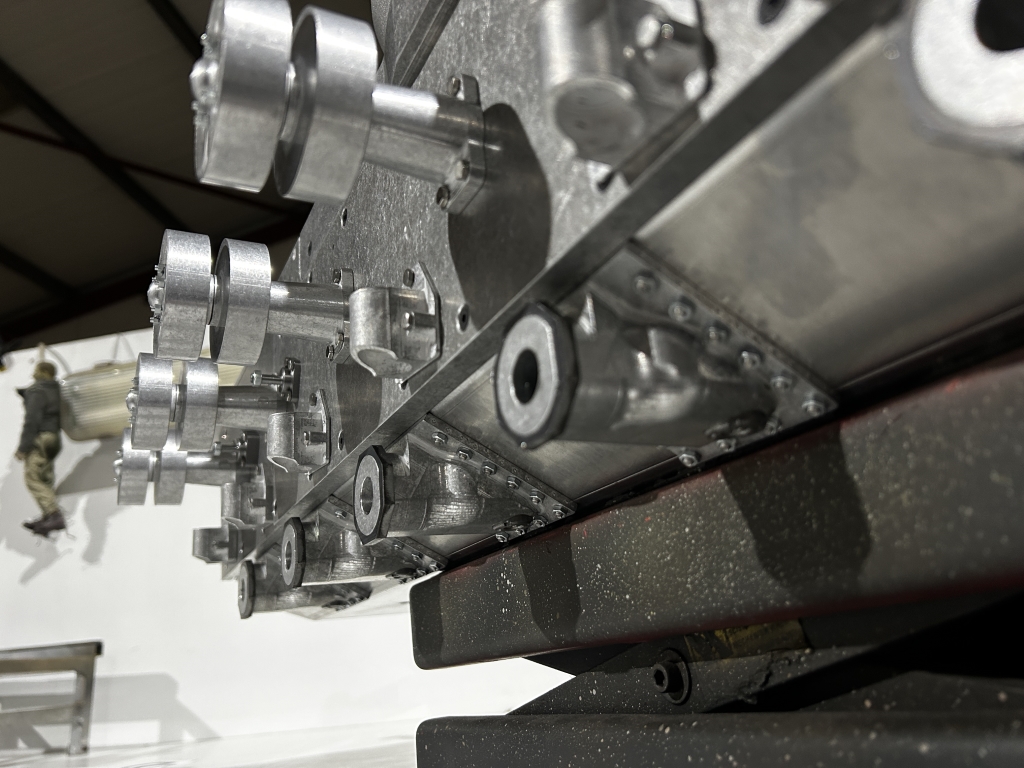

- Right hand hull side1
