M26 Pershing Production Images
- Armortek
- Site Admin
- Posts: 2853
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3218 times
M26 Pershing Production Images
Production has started!!

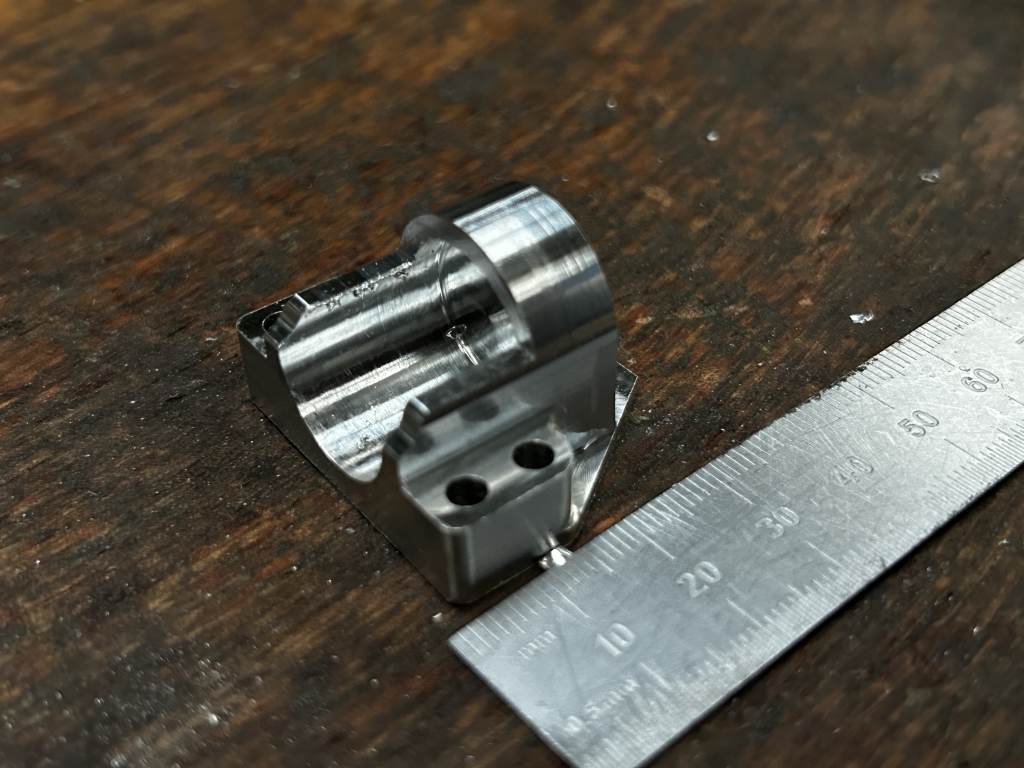

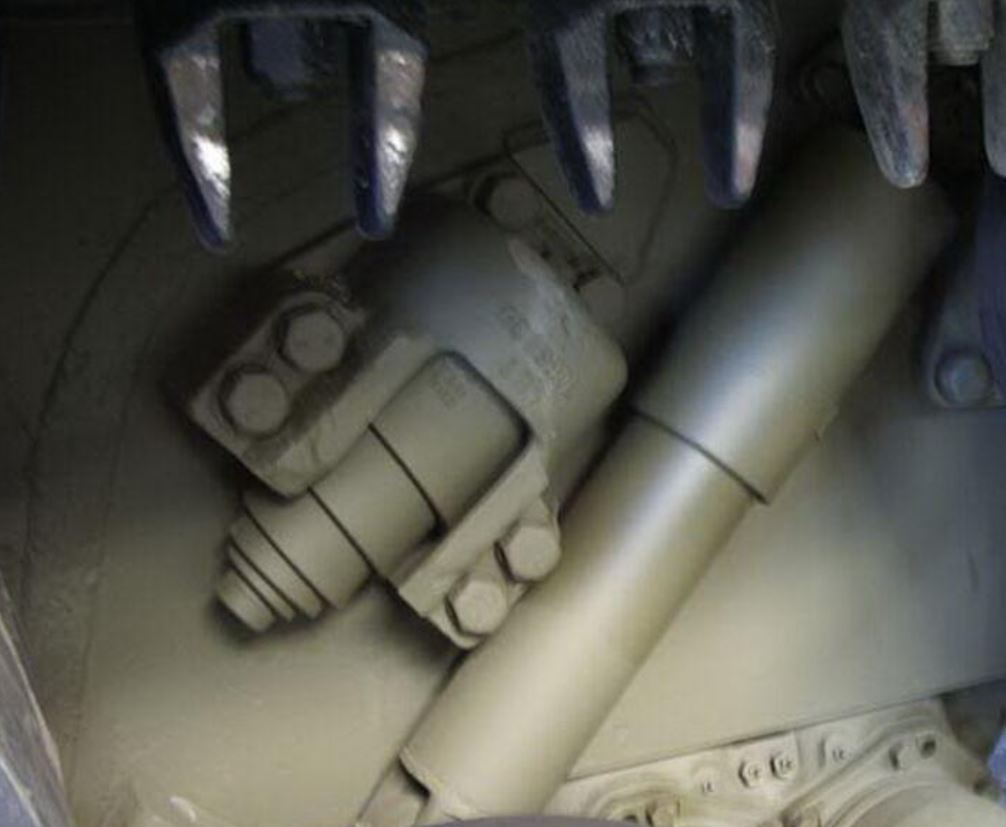

Today the first part rolled off a 5 Axis Machining Centre - the first position Bump Stop that sits above the first roadwheel.
The image quality is not great because the aluminium is far too reflective - we will get some better images once the part have been through de-burring - although that will not be for a while as we focus on getting the Panther G parts packed up and out the way
.
Today the first part rolled off a 5 Axis Machining Centre - the first position Bump Stop that sits above the first roadwheel.
The image quality is not great because the aluminium is far too reflective - we will get some better images once the part have been through de-burring - although that will not be for a while as we focus on getting the Panther G parts packed up and out the way
.
Armortek
- Armortek
- Site Admin
- Posts: 2853
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3218 times
Re: M26 Pershing Production Images

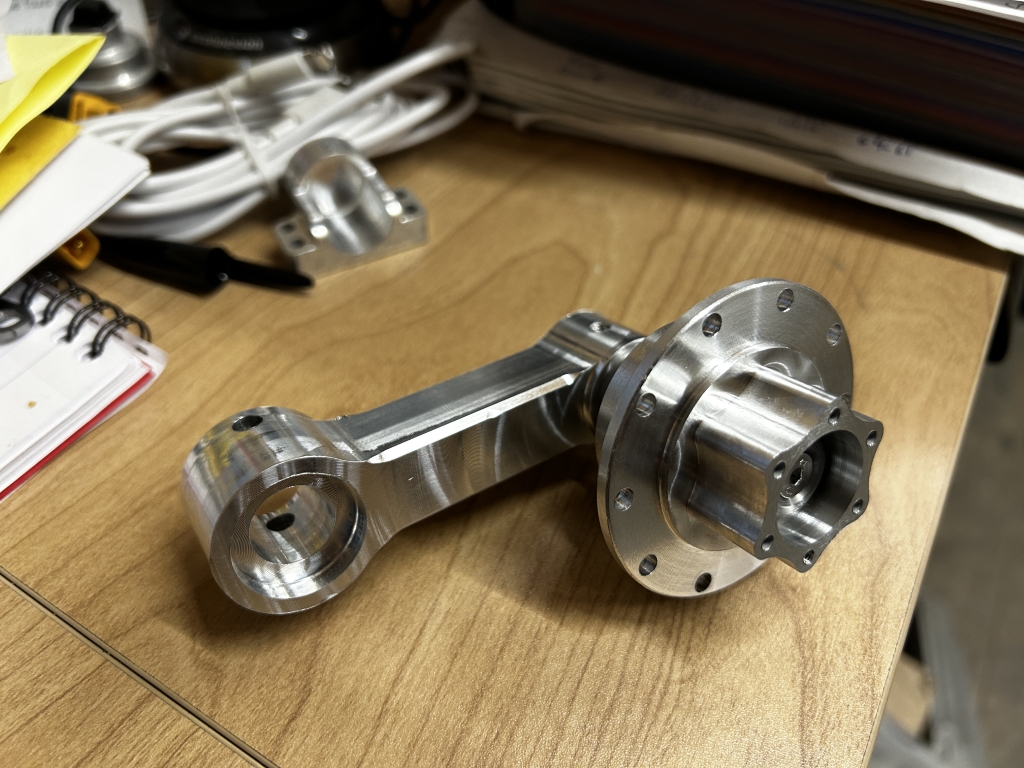

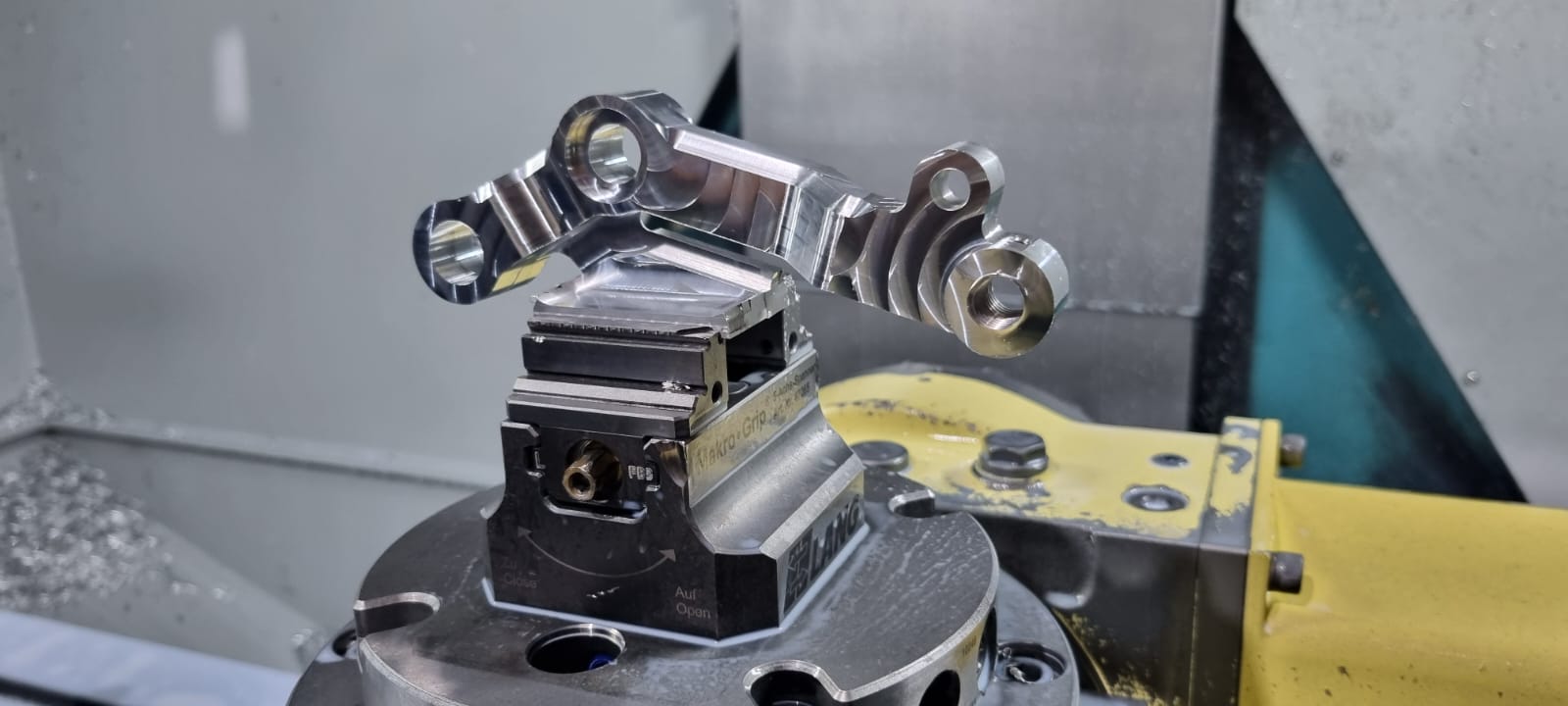

Manufacturing images of the Idler Arm on the M26 Pershing

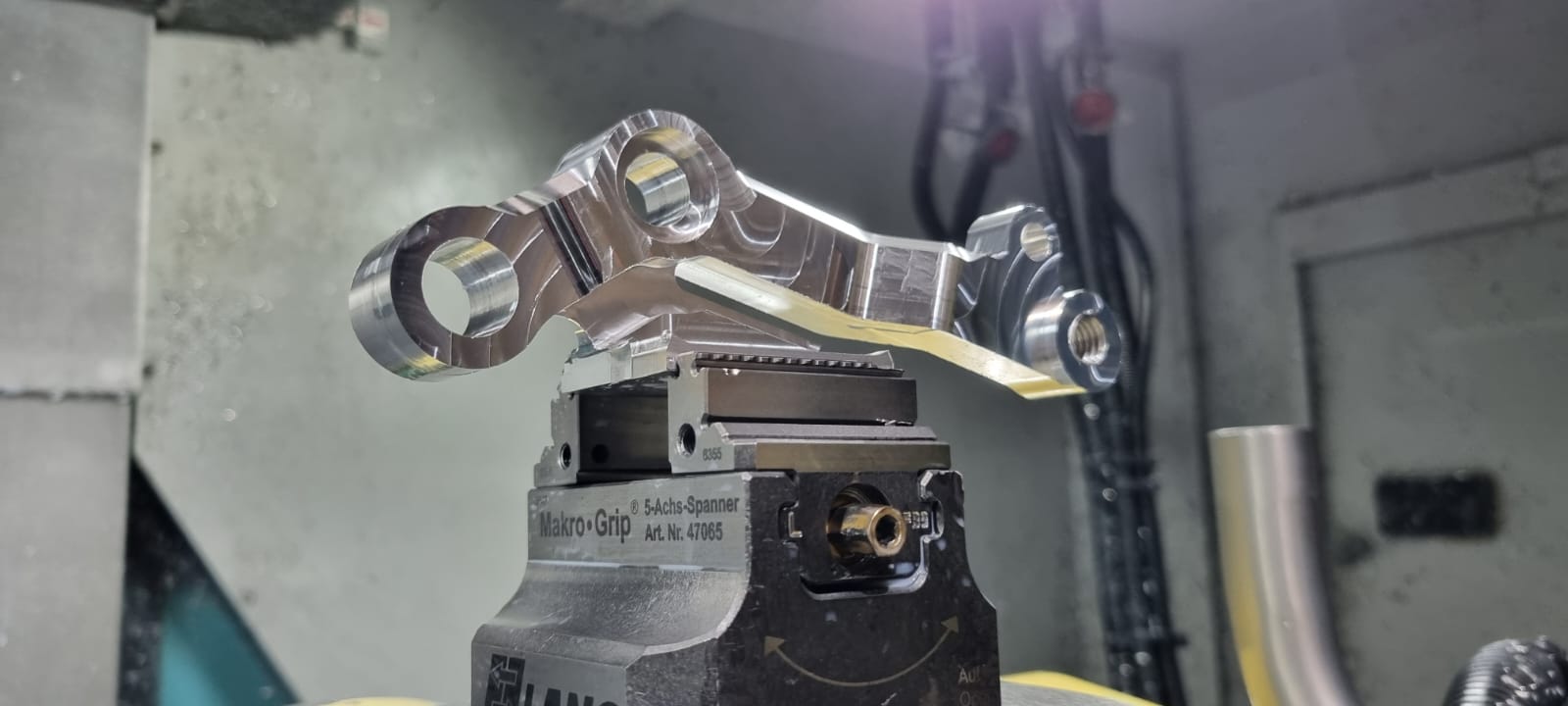

This really shows the power of a 5 Axis machine - all 6 sides of the billet can be machined at once, leaving just a thin aluminium web that can be snapped off to leave an (almost) finished part.
This really shows the power of a 5 Axis machine - all 6 sides of the billet can be machined at once, leaving just a thin aluminium web that can be snapped off to leave an (almost) finished part.
Armortek
- Robert E Morey
- Posts: 2286
- Joined: Wed Jul 18, 2007 12:59 am
- Location: Seattle, WA USA
- Has liked: 111 times
- Been liked: 741 times
Re: M26 Pershing Production Images
Beautiful looking parts! Do you find machining from billet more economical than a casting? Seems like a lot of waste from billet, but perhaps faster than waiting on castings from suppliers.
Look forward to more Pershing progress.
Bob
Look forward to more Pershing progress.
Bob
- Armortek
- Site Admin
- Posts: 2853
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3218 times
Re: M26 Pershing Production Images
Thanks Bob.
It is often a fine decision between what will get machined vs what will get cast. The things we need to consider are:
- Once cast, do we still need to machine the part. If there is lots of machining, then it is almost not worth having the part cast. There is also the consideration of how we will be able to accurately and repeatably hold hundreds of cast parts to be precisely machined. Unless parts are die cast, there is a significant variation in surface dimensions and finish.
- Cost of the mould (or mold depending on your version of English). Investment casting moulds for the sorts of parts we make cost anywhere between USD2,000 to USD30,000 whilst die cast mould costs anywhere between USD10,000 to several 10's of thousands. If we are only making 100 parts, then that's a high cost to amortise over a few parts.
- Time needed to have the pattern made, samples sent across for validation and then production.
- And finally - do we actually have a choice on whether a part needs to get cast or not. For example, Tracks and Pershing turret - both of those have to be cast.
All the above factor into the decisions on dozens of parts that we make - rarely does casting come out as the process of choice - normally anywhere between 1% to 5% of the parts that make up a kit.
It is often a fine decision between what will get machined vs what will get cast. The things we need to consider are:
- Once cast, do we still need to machine the part. If there is lots of machining, then it is almost not worth having the part cast. There is also the consideration of how we will be able to accurately and repeatably hold hundreds of cast parts to be precisely machined. Unless parts are die cast, there is a significant variation in surface dimensions and finish.
- Cost of the mould (or mold depending on your version of English). Investment casting moulds for the sorts of parts we make cost anywhere between USD2,000 to USD30,000 whilst die cast mould costs anywhere between USD10,000 to several 10's of thousands. If we are only making 100 parts, then that's a high cost to amortise over a few parts.
- Time needed to have the pattern made, samples sent across for validation and then production.
- And finally - do we actually have a choice on whether a part needs to get cast or not. For example, Tracks and Pershing turret - both of those have to be cast.
All the above factor into the decisions on dozens of parts that we make - rarely does casting come out as the process of choice - normally anywhere between 1% to 5% of the parts that make up a kit.
Armortek
- Robert E Morey
- Posts: 2286
- Joined: Wed Jul 18, 2007 12:59 am
- Location: Seattle, WA USA
- Has liked: 111 times
- Been liked: 741 times
Re: M26 Pershing Production Images
Thanks Armortek - makes total sense. For small volume and complex parts, 5 and 6 axis machines give a lot of flexibility. Wonderful to discuss these process insights.
whether cast or machined (or both) I'm sure the Pershing will be stunning.
BTW the latest castings for E8 are in my opinion much better than past - the quality has improved!
Happy to be an AT customer all these years and see the growth and improvements.
Best regards,
Bob
whether cast or machined (or both) I'm sure the Pershing will be stunning.
BTW the latest castings for E8 are in my opinion much better than past - the quality has improved!
Happy to be an AT customer all these years and see the growth and improvements.
Best regards,
Bob
- Armortek
- Site Admin
- Posts: 2853
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3218 times
Re: M26 Pershing Production Images
Machining the suspension bogie from a large Aluminium block - PART 1/2
The FIRST (of two) machining operations on the M26 Pershing Tank.
In this first operation we machine the through holes for the suspension shaft and the fixing holes for the torsion bar suspension system.
The second operation will then add the visual details on the other side of the part.
Material is Aluminium 6082.
Armortek
- Armortek
- Site Admin
- Posts: 2853
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3218 times
Re: M26 Pershing Production Images
Machining the suspension bogie from a large Aluminium block - PART 2/2
The SECOND (of two) machining operations on the 1:6 scale M26 Pershing Tank.
In the first operation we machined the through holes for the suspension shaft and the fixing holes for the torsion bar suspension system.
In this second operation we add the visual details on the other side of the part.
Material is Aluminium 6082.
Armortek
- Armortek
- Site Admin
- Posts: 2853
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3218 times
-
- Posts: 155
- Joined: Wed Aug 28, 2013 3:03 pm
- Location: Catlettsburg, Kentucky USA
- Has liked: 224 times
- Been liked: 181 times
Re: M26 Pershing Production Images
WOW!!! THAT is BEAUTIFUL!!!
Armorteks: King Tiger, Tiger 1, Panther G, Panzer IV, M4A3 Shermans x2, M3 Lee, Pershing, Sd Kfz 7, Pak 43.
-
- Posts: 104
- Joined: Fri Jun 17, 2022 10:49 pm
- Location: South Central Pennsylvania
- Has liked: 679 times
- Been liked: 59 times
Re: M26 Pershing Production Images
I’m really enjoying these machining videos and updates thanks for sharing them.
- Jerry Carducci
- Posts: 713
- Joined: Sun Apr 05, 2020 7:38 pm
- Location: The People's Paradise of California, the former Golden State
- Has liked: 3 times
- Been liked: 977 times
- Contact:
Re: M26 Pershing Production Images
Almost a shame to paint such gorgeous parts...
j
j
http://tanks.linite.com/ - RC tanks: stay home, build a tank and save a life!
- Armortek
- Site Admin
- Posts: 2853
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3218 times
Re: M26 Pershing Production Images
Exciting times!

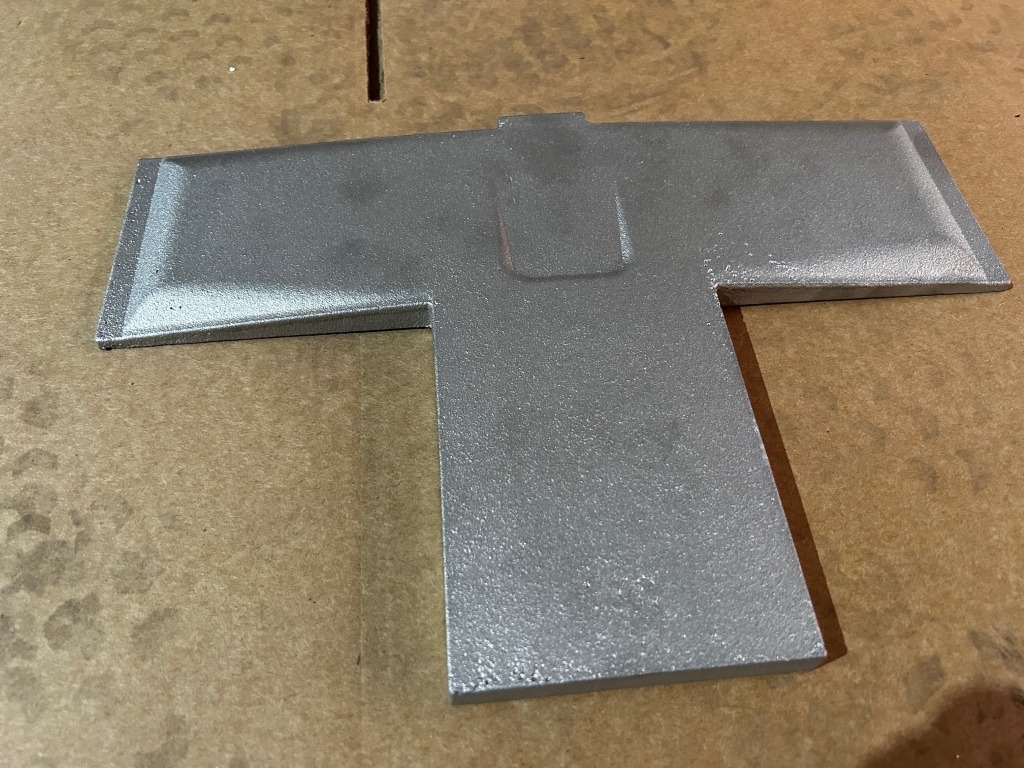

Yesterday our sample castings arrived. 3 parts - the front armour, the engine deck "T" piece and the mantlet. We will still need to wait 2-3 weeks for the turret casting.
Two of the parts are spot on and we are very happy with them. We will get the machining jigs and CNC program for the T piece done later this week - the others will need to wait until some mating parts are ready.
One of the parts has a very obvious error - let's see if you can work it out. The answer will be at the bottom of this post.
Unfortunately, the error means that the moulds need to be re-done. The supplier is checking if the moulds can be fixed or whether new moulds would be easier. Either way, it will be at least a couple of weeks delay.
The casting that has the issue is the front armour casting - for some reason the casters though the tank needed two machine gun placements!
Nonetheless, we can use this part to prove out our jig and the machining program. Will probably machine off the second machine gun position and fill it with car filler for our prototype build. At least that way we do not hold up the production process.
Yesterday our sample castings arrived. 3 parts - the front armour, the engine deck "T" piece and the mantlet. We will still need to wait 2-3 weeks for the turret casting.
Two of the parts are spot on and we are very happy with them. We will get the machining jigs and CNC program for the T piece done later this week - the others will need to wait until some mating parts are ready.
One of the parts has a very obvious error - let's see if you can work it out. The answer will be at the bottom of this post.
Unfortunately, the error means that the moulds need to be re-done. The supplier is checking if the moulds can be fixed or whether new moulds would be easier. Either way, it will be at least a couple of weeks delay.
The casting that has the issue is the front armour casting - for some reason the casters though the tank needed two machine gun placements!
Nonetheless, we can use this part to prove out our jig and the machining program. Will probably machine off the second machine gun position and fill it with car filler for our prototype build. At least that way we do not hold up the production process.
Armortek
-
- Posts: 155
- Joined: Wed Aug 28, 2013 3:03 pm
- Location: Catlettsburg, Kentucky USA
- Has liked: 224 times
- Been liked: 181 times
Re: M26 Pershing Production Images
I was wondering what the big 'blister' in front of the driver's position is. On the right is the MG position but there shouldn't be a blister on the left... it kind'a looks like it might need a big 'bra'..
Armorteks: King Tiger, Tiger 1, Panther G, Panzer IV, M4A3 Shermans x2, M3 Lee, Pershing, Sd Kfz 7, Pak 43.
- John Clarke
- Posts: 1594
- Joined: Sun Oct 17, 2010 10:06 pm
- Location: Staffordshire
- Been liked: 1657 times
Re: M26 Pershing Production Images
It's a prototype!
Nice to see Armortek showing production problems, it's not always rosy in the garden.
Still, it wouldn't surprise, the Americans always like to give everyone a gun.![Very Happy :D](./images/smilies/icon_biggrin.gif)
![Confused :?](./images/smilies/icon_confused.gif)
Still, it wouldn't surprise, the Americans always like to give everyone a gun.
![Very Happy :D](./images/smilies/icon_biggrin.gif)
Oh Man, I only ride em I don't know what makes them work,
Definatley an Anti-Social type
Definatley an Anti-Social type
- Jerry Carducci
- Posts: 713
- Joined: Sun Apr 05, 2020 7:38 pm
- Location: The People's Paradise of California, the former Golden State
- Has liked: 3 times
- Been liked: 977 times
- Contact:
Re: M26 Pershing Production Images
Well, we've been known to provide them to our friends also, when the times required them!John Clarke wrote: ↑Wed Nov 02, 2022 9:25 am...
Still, it wouldn't surprise, the Americans always like to give everyone a gun.![]()
Y'know, Arsenal of Democracy and all that...
![Mr. Green :mrgreen:](./images/smilies/icon_mrgreen.gif)
I think the Pershing is going to be quite the looker..
Jerry
