Quad electronics bit lost
Quad electronics bit lost
Hello,
I'm rushing this a bit as only at my dad's for three nights and trying to help with his quad.
We only have one sheet of A4 with rough guide on how to connect things.
I think he has the latest three red boxes setup.
No power seems to be getting to the Rx. What acts as a bec? The twin motor controller has shrink wrap over the middle wire to the Rx so cut? The sound module doesn't seem to have 5v on the two wires going to the Rx.
Any more documentation or just what supplies the 5v would be great.
Sorry for not doing more research. I'd like to get him going before I have to go home.
Cheers
Sam
I'm rushing this a bit as only at my dad's for three nights and trying to help with his quad.
We only have one sheet of A4 with rough guide on how to connect things.
I think he has the latest three red boxes setup.
No power seems to be getting to the Rx. What acts as a bec? The twin motor controller has shrink wrap over the middle wire to the Rx so cut? The sound module doesn't seem to have 5v on the two wires going to the Rx.
Any more documentation or just what supplies the 5v would be great.
Sorry for not doing more research. I'd like to get him going before I have to go home.
Cheers
Sam
- Adrian Harris
- Posts: 5016
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1296 times
- Been liked: 1511 times
Re: Quad electronics bit lost
Might be a bit late but the main motor controller in the model provides the 5V supply. In the case of a tank it's Motion Control A.
Modules A & B don't play well together as both supply 5V on the receiver leads, so the red wire is usually cut on Module B so there's no interference.
If you've been sent a Module B for the Quad, then you need to repair the red wire to get the 5V supply needed for the receiver and the Audio Module.
Adrian.
Modules A & B don't play well together as both supply 5V on the receiver leads, so the red wire is usually cut on Module B so there's no interference.
If you've been sent a Module B for the Quad, then you need to repair the red wire to get the 5V supply needed for the receiver and the Audio Module.
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
Re: Quad electronics bit lost
Thanks Adrian,
I think I understand. The lower power motor controller is normally for turret motors...
I didn't think I would have to do that much surgery.
Much appreciated. I'm also, very carefully, trying to restore the lipos he has deep discharged.
Cheers
Sam
I think I understand. The lower power motor controller is normally for turret motors...
I didn't think I would have to do that much surgery.
Much appreciated. I'm also, very carefully, trying to restore the lipos he has deep discharged.
Cheers
Sam
- Adrian Harris
- Posts: 5016
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1296 times
- Been liked: 1511 times
Re: Quad electronics bit lost
To be honest, I wouldn't bother with the Lipos. I over-discharged some Graphine ones and tried to resurrect them.
They eventually came back up to the right voltage but had about 1/100th of the original capacity.
Plus I didn't fancy being on tenterhooks every time I charged them in future.
They're OK if used correctly, but not worth the risk if they've been abused.
Adrian.
They eventually came back up to the right voltage but had about 1/100th of the original capacity.
Plus I didn't fancy being on tenterhooks every time I charged them in future.
They're OK if used correctly, but not worth the risk if they've been abused.
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
-
- Site Admin
- Posts: 3107
- Joined: Sat Oct 11, 2008 7:05 pm
- Location: Dorset
- Has liked: 1012 times
- Been liked: 2087 times
- Contact:
Re: Quad electronics bit lost
Thanks Adrian,
It is the first time I have tried to bring any back. I'm being very careful.
Thanks to your help I have power to Rx. Bit puzzled by what looks like a bridge rectifier with two components under it (maybe caps).
Cheers
Sam
It is the first time I have tried to bring any back. I'm being very careful.
Thanks to your help I have power to Rx. Bit puzzled by what looks like a bridge rectifier with two components under it (maybe caps).
Cheers
Sam
Re: Quad electronics bit lost
Oh. Is the bridge rectifier for the smoke fan? The old style just tied to main motor?
- Adrian Harris
- Posts: 5016
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1296 times
- Been liked: 1511 times
Re: Quad electronics bit lost
Yes, the BR means the fan still goes in the correct direction when the tank is going forwards or backwards.
Adrian.
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
- Adrian Harris
- Posts: 5016
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1296 times
- Been liked: 1511 times
Re: Quad electronics bit lost

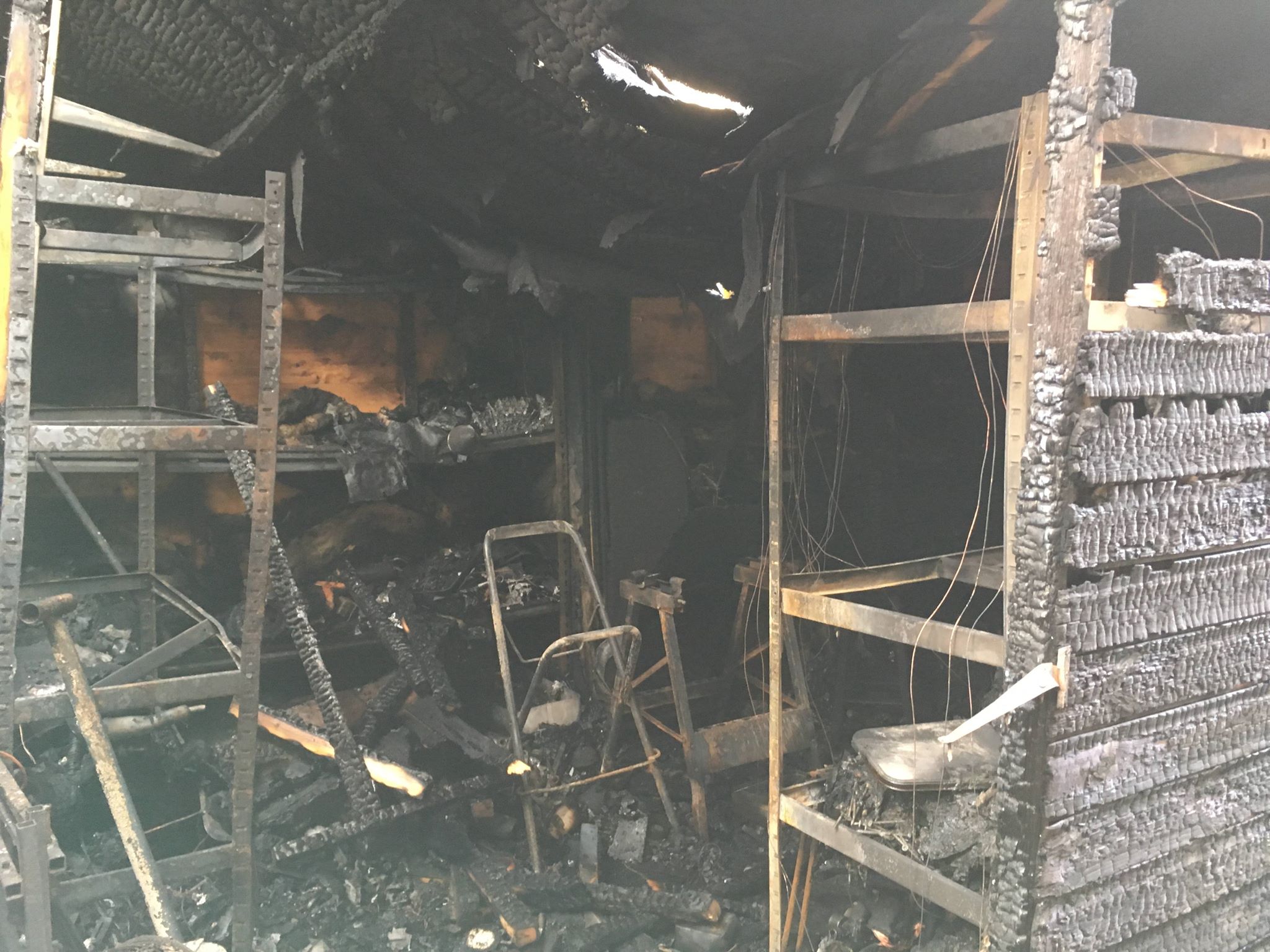

Toastie Tiger Den, before the Fire Brigade rescued it. Started by a charging LiPo.
Adrian.
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
- Jerry Carducci
- Posts: 713
- Joined: Sun Apr 05, 2020 7:38 pm
- Location: The People's Paradise of California, the former Golden State
- Has liked: 3 times
- Been liked: 977 times
- Contact:
Re: Quad electronics bit lost
I don't trust LiPos as far as I can throw them and I have a goodly number of them small and large. In my opinion having LiPos around is like sleepingAdrian Harris wrote: ↑Tue Dec 27, 2022 10:24 pmToastie Tiger Den, before the Fire Brigade rescued it. Started by a charging LiPo.
Adrian.
near a dragon who snores. You just never know.
Jerry
http://tanks.linite.com/ - RC tanks: stay home, build a tank and save a life!
Re: Quad electronics bit lost
Oh no. That was actually your garage? Were the lipos being charged or just decided to do it all on their own?
I'll tell dad to recycle the batteries. Expensive job as pretty new.
I'm wondering about replacing the rectifier with a fet from the sound unit but need to research how to program it.
Cheers
Sam
I'll tell dad to recycle the batteries. Expensive job as pretty new.
I'm wondering about replacing the rectifier with a fet from the sound unit but need to research how to program it.
Cheers
Sam
- Adrian Harris
- Posts: 5016
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1296 times
- Been liked: 1511 times
Re: Quad electronics bit lost
It was another person's shed. He put a LiPo on to charge, went to the loo and by the time he came out again the shed was an inferno. I bought the remains of his Tiger 131 kit, which has suffered quite a bit of damage.
Adrian.
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
Re: Quad electronics bit lost
My dad has put his dodgy lipos outside till they can go to the dump...
Thanks for all your help. We have the basics working now. Binding servo that drops the 5v supply to fix next.
Cheers
Sam
Thanks for all your help. We have the basics working now. Binding servo that drops the 5v supply to fix next.
Cheers
Sam
-
- Posts: 180
- Joined: Sat Oct 24, 2020 8:51 pm
- Has liked: 26 times
- Been liked: 193 times
Re: Quad electronics bit lost
Servo problem solved, test programme under way!! Thanks Sam and everyone else how help us.
