The Sonderanhanger 115 10 ton trailer.

Post by Phil Woollard »

Good news as we have the green light for this thread. I've made a start with one of the most difficult parts to reproduce, the rear fenders. 8)
I won't be posting to often as correctly so, the company's builds and builders come first. Let's hope that Armortek offer a kit for sale in the future as I think it may do quite well.
Attachments
I may use some flak wheels or 222 wheels not sure yet, there were a few different wheel types used..
I may use some flak wheels or 222 wheels not sure yet, there were a few different wheel types used..
There won't be to many printed parts as the trailer needs to be robust enough to carry the lighter panzers.
There won't be to many printed parts as the trailer needs to be robust enough to carry the lighter panzers.

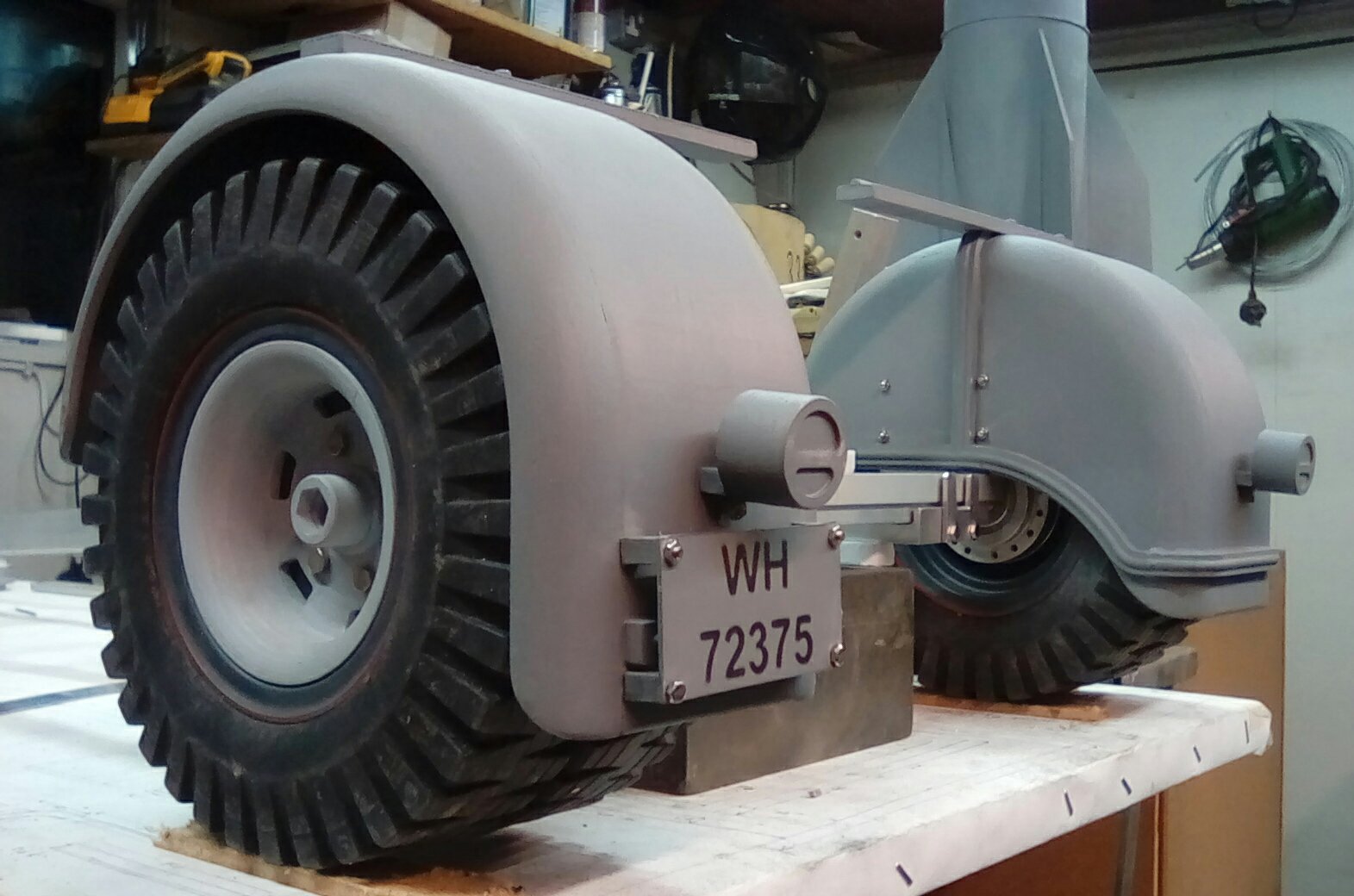

I think with Vince's help we are getting there. The fenders have taken 30hrs to print each side.
I think with Vince's help we are getting there. The fenders have taken 30hrs to print each side.

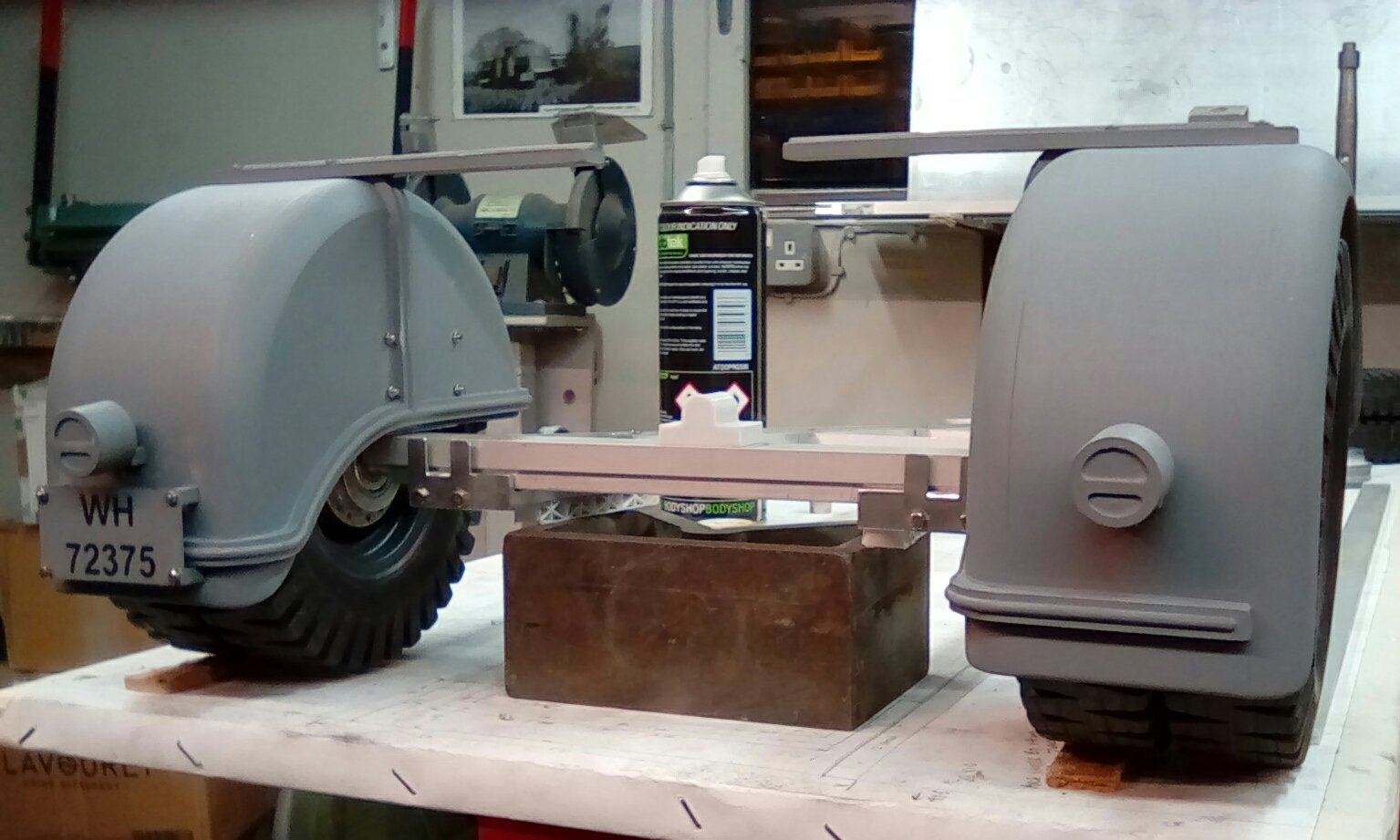

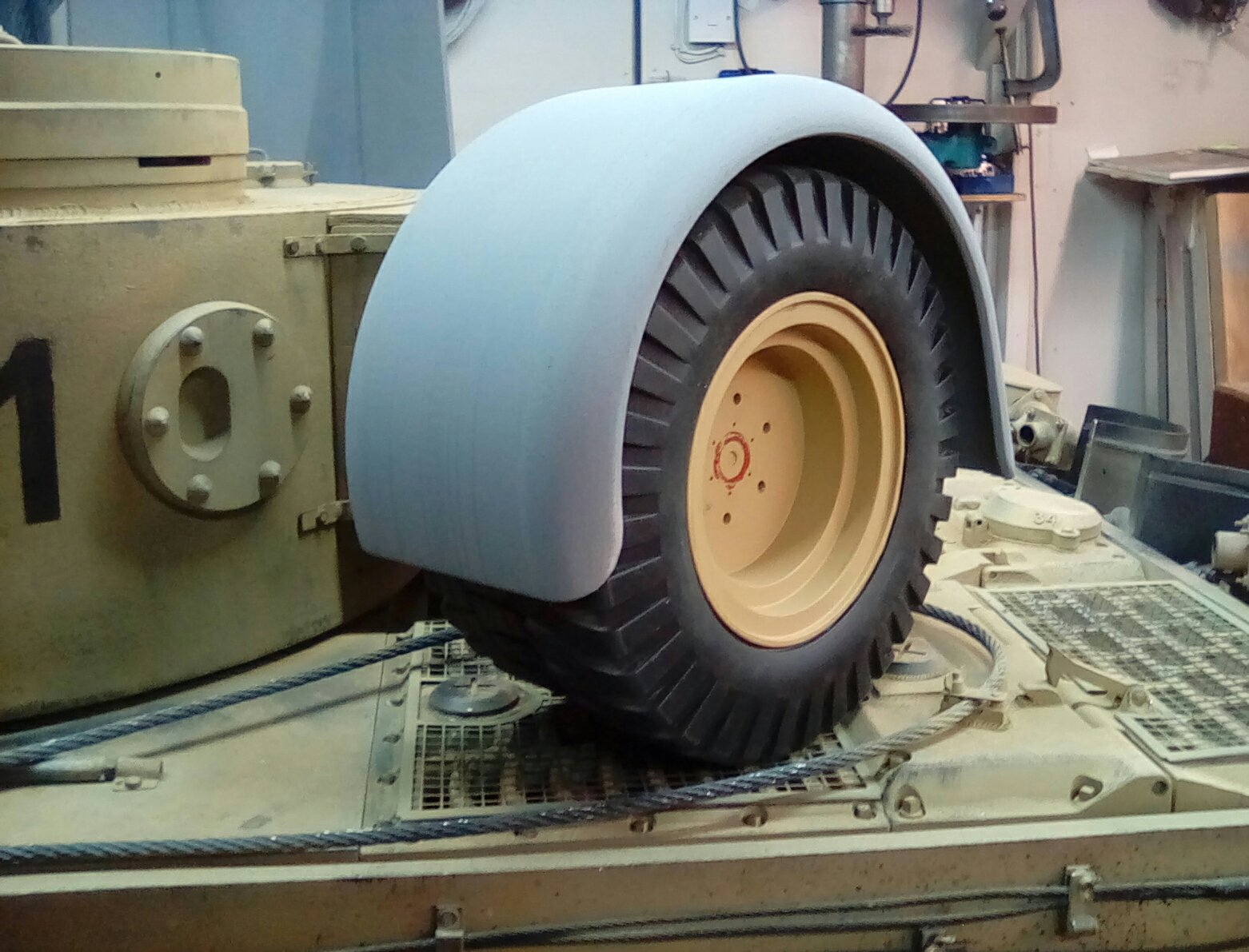

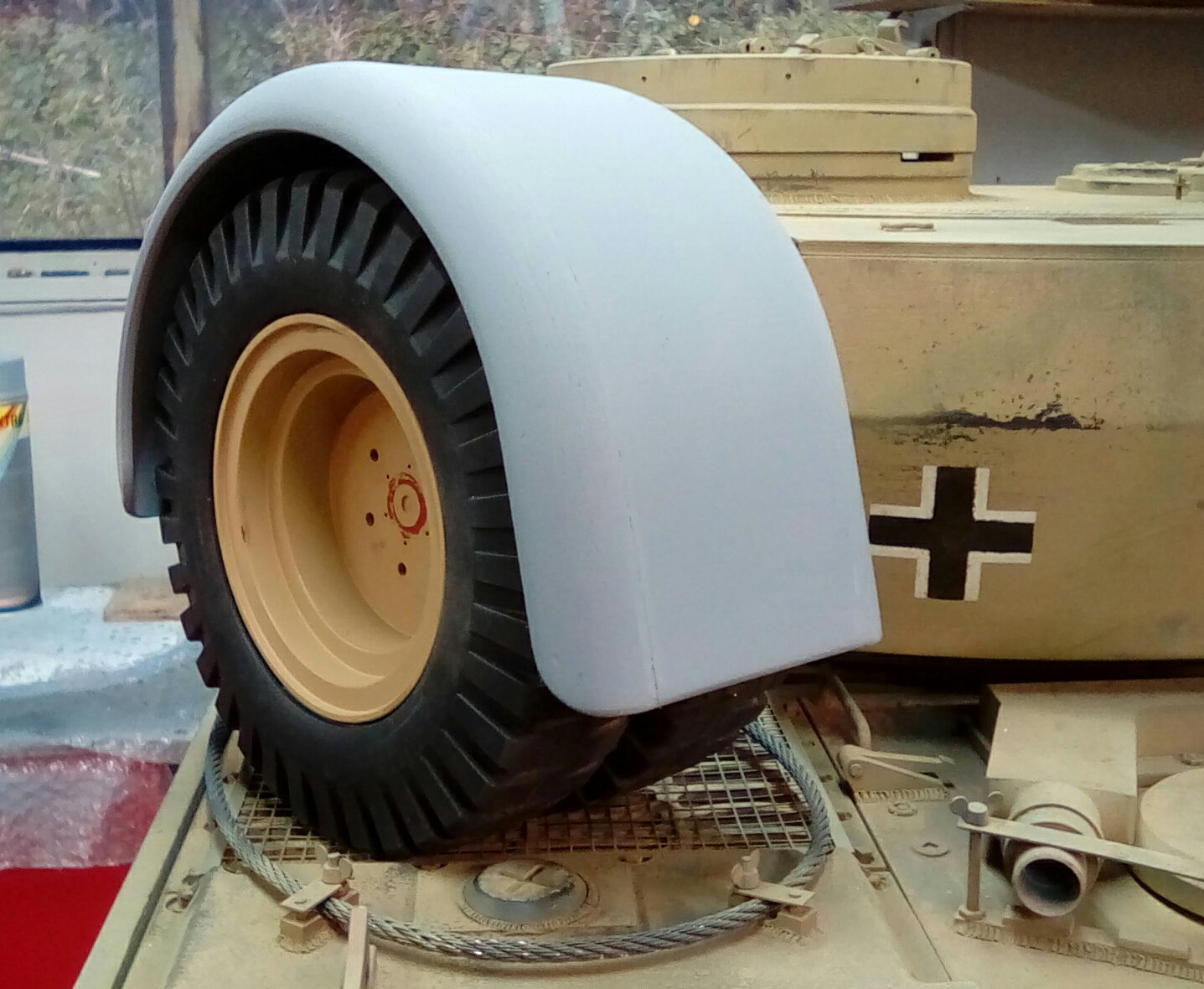

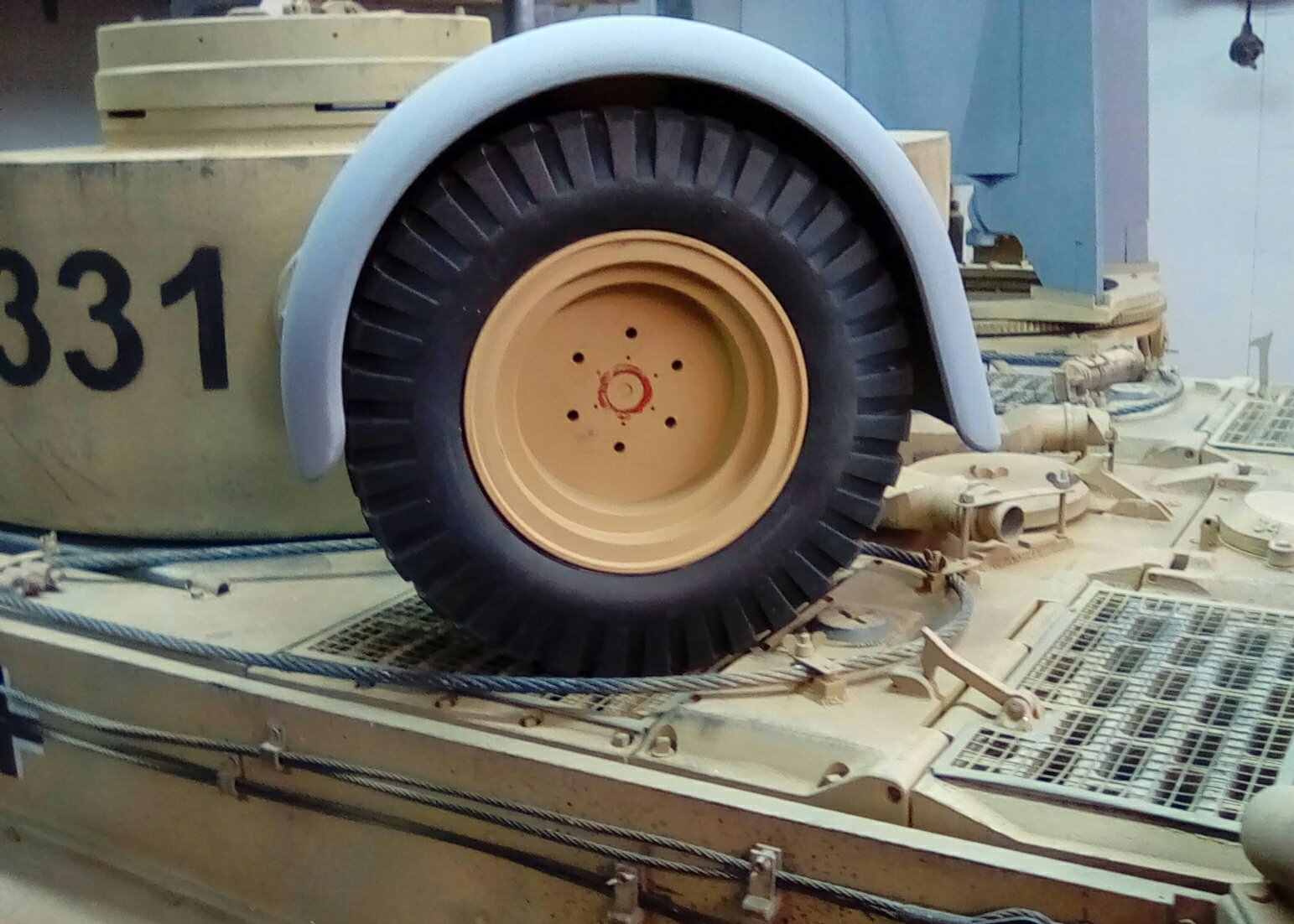

I've photographed them on the Tiger1 for scale.
I've photographed them on the Tiger1 for scale.

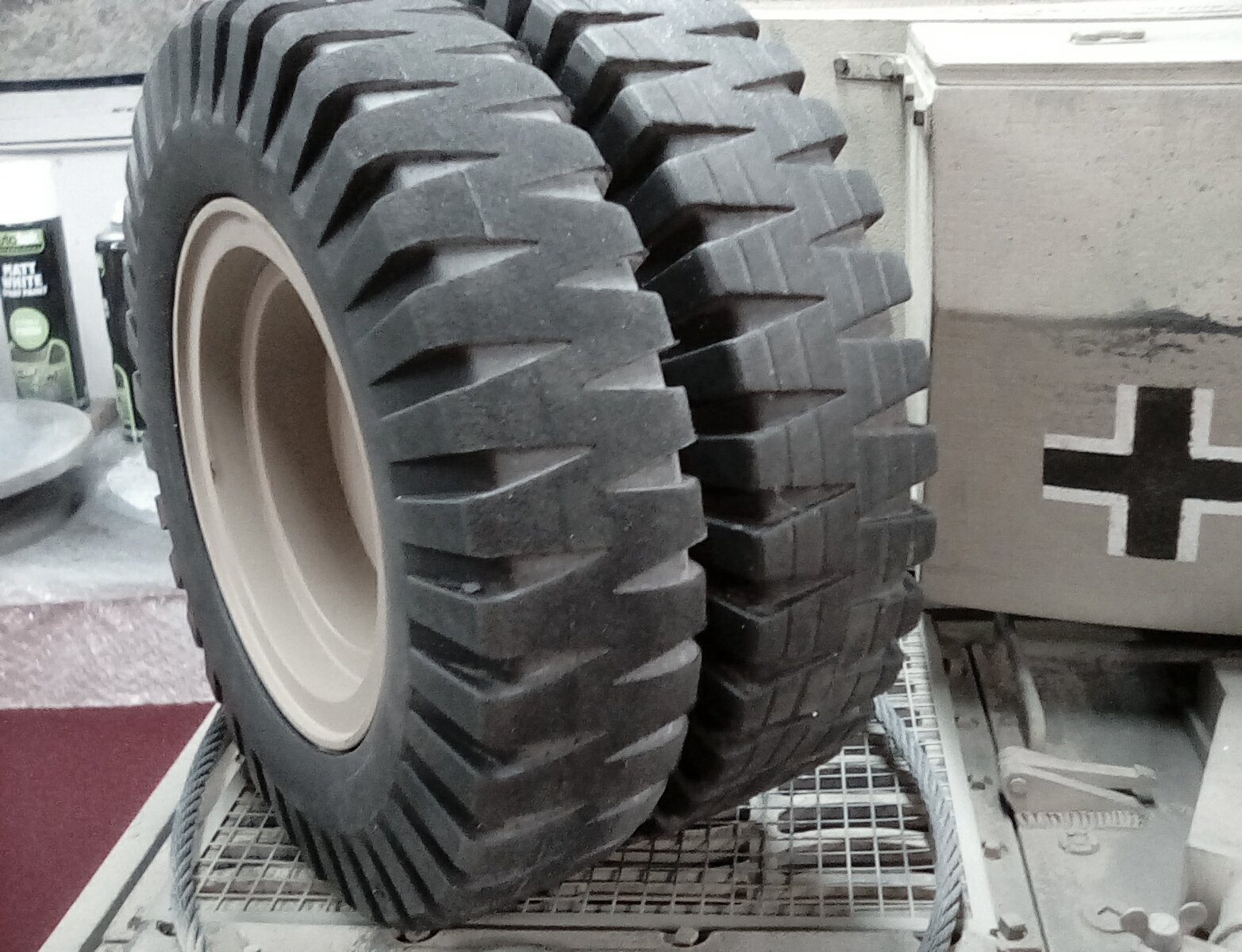

The Armortek wheels are mini works of art. You can see why I was asking for 222 wheels these being fairly close to the originals, each trailer will require a total of 9.
The Armortek wheels are mini works of art. You can see why I was asking for 222 wheels these being fairly close to the originals, each trailer will require a total of 9.

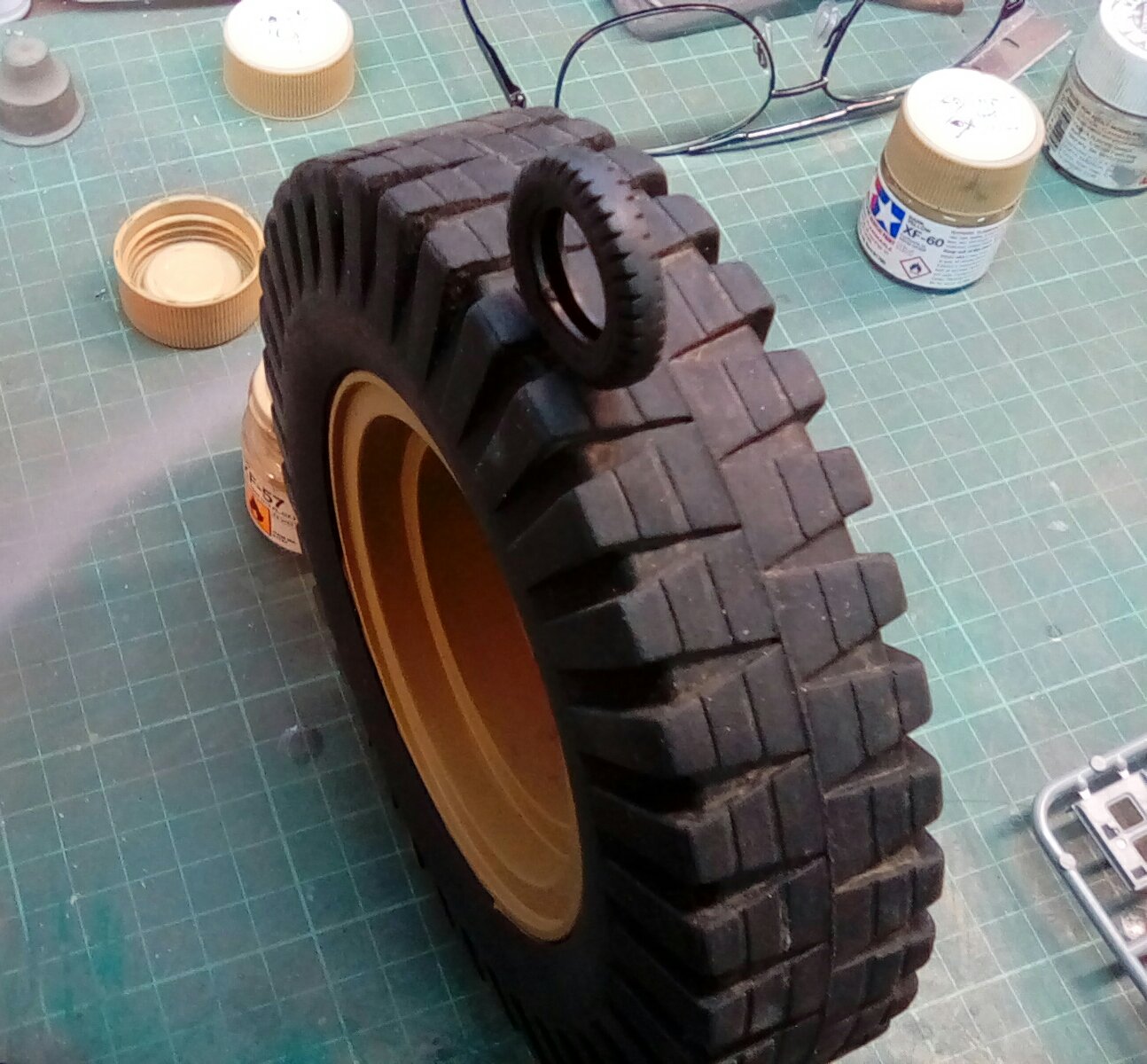

I need to make these look more like the original trailer tyre and wheel. That's the 1/35 on top for comparison, note that this version shows no tread pattern in the middle section.
I need to make these look more like the original trailer tyre and wheel. That's the 1/35 on top for comparison, note that this version shows no tread pattern in the middle section.

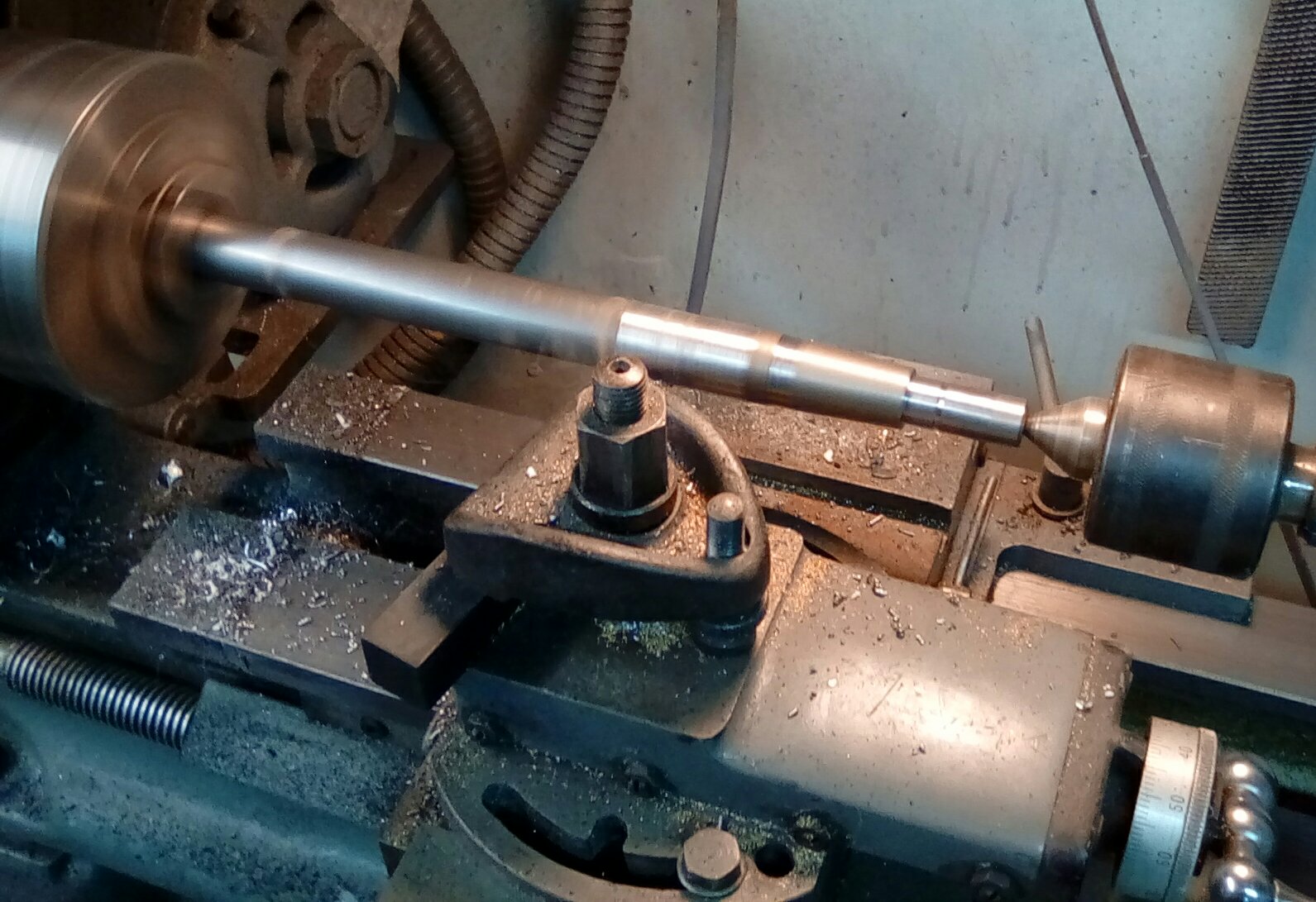

It's getting there just a bit more time on the lathe.
It's getting there just a bit more time on the lathe.
Last edited by Phil Woollard on Thu Dec 17, 2020 8:55 am, edited 5 times in total.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
User avatar
Brian Ostlind
Posts: 1466
Joined: Sat Oct 28, 2017 6:56 am
Location: Oregon, USA
Has liked: 971 times
Been liked: 2066 times

Re: The 115 10 ton trailer.

Post by Brian Ostlind »

Nice project. An Armortek kit would be desirable too.
Top
simon_manning
Posts: 2032
Joined: Fri Nov 02, 2007 8:51 pm
Location: new forest,hampshire,u.k.
Been liked: 1644 times

Re: The 115 10 ton trailer.

Post by simon_manning »

Interesting project, i will keep looking in, regards simon.
Top
florian rudolf
Posts: 672
Joined: Mon Feb 29, 2016 10:53 am
Has liked: 294 times
Been liked: 640 times
Contact:
Contact florian rudolf

Re: The 115 10 ton trailer.

Post by florian rudolf »

Hello Phil,
I would like to be part of the project. I hope to get one of them for my Famo. That would be very cool
Top
Michael Röder
Posts: 136
Joined: Mon Oct 02, 2017 3:29 pm
Location: GERMANY
Has liked: 77 times
Been liked: 113 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Michael Röder »

HI Phil!
Thank you for the thread. I will follow you.
I would like a Sd.Ah.115 too.
Top
User avatar
Jerry Carducci
Posts: 772
Joined: Sun Apr 05, 2020 7:38 pm
Location: California, If you plan to visit you'd better hurry while there's still something left!
Has liked: 3 times
Been liked: 1073 times
Contact:
Contact Jerry Carducci

Re: The Sonderanhanger 115 10 ton trailer.

Post by Jerry Carducci »

Extremely interesting, ambitious project!

Jerry
http://tanks.linite.com/ - RC tanks: stay home, build a tank and save a life!
Top
User avatar
Robert E Morey
Posts: 2310
Joined: Wed Jul 18, 2007 12:59 am
Location: Seattle, WA USA
Has liked: 130 times
Been liked: 776 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Robert E Morey »

Phil,
Great project. I too am following with Interest. I think you are overworking your team of 24-7 "wonder-elves" however. They can't possibly complete 3 or more projects at once! :roll:

I think the SD.AH. 116 would cool for the FAMO! Can you and your team do that next?

Best regards,
Bob
Top
Phil Woollard
Posts: 4271
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2267 times
Been liked: 7152 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Phil Woollard »

I'm making good but slow progress, as it's the first one I've built there's lots to sort out but it's coming along. 8)
Attachments

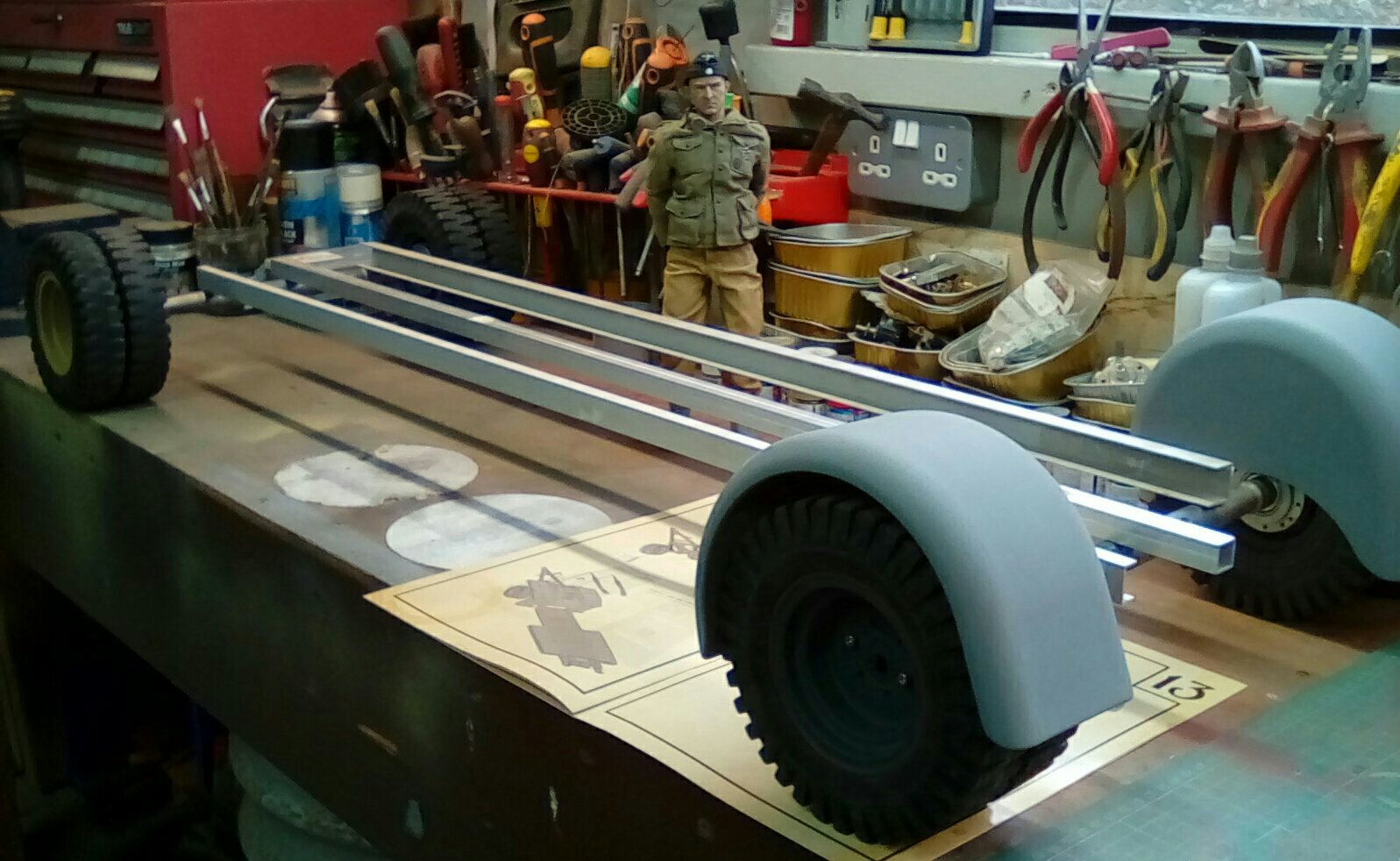

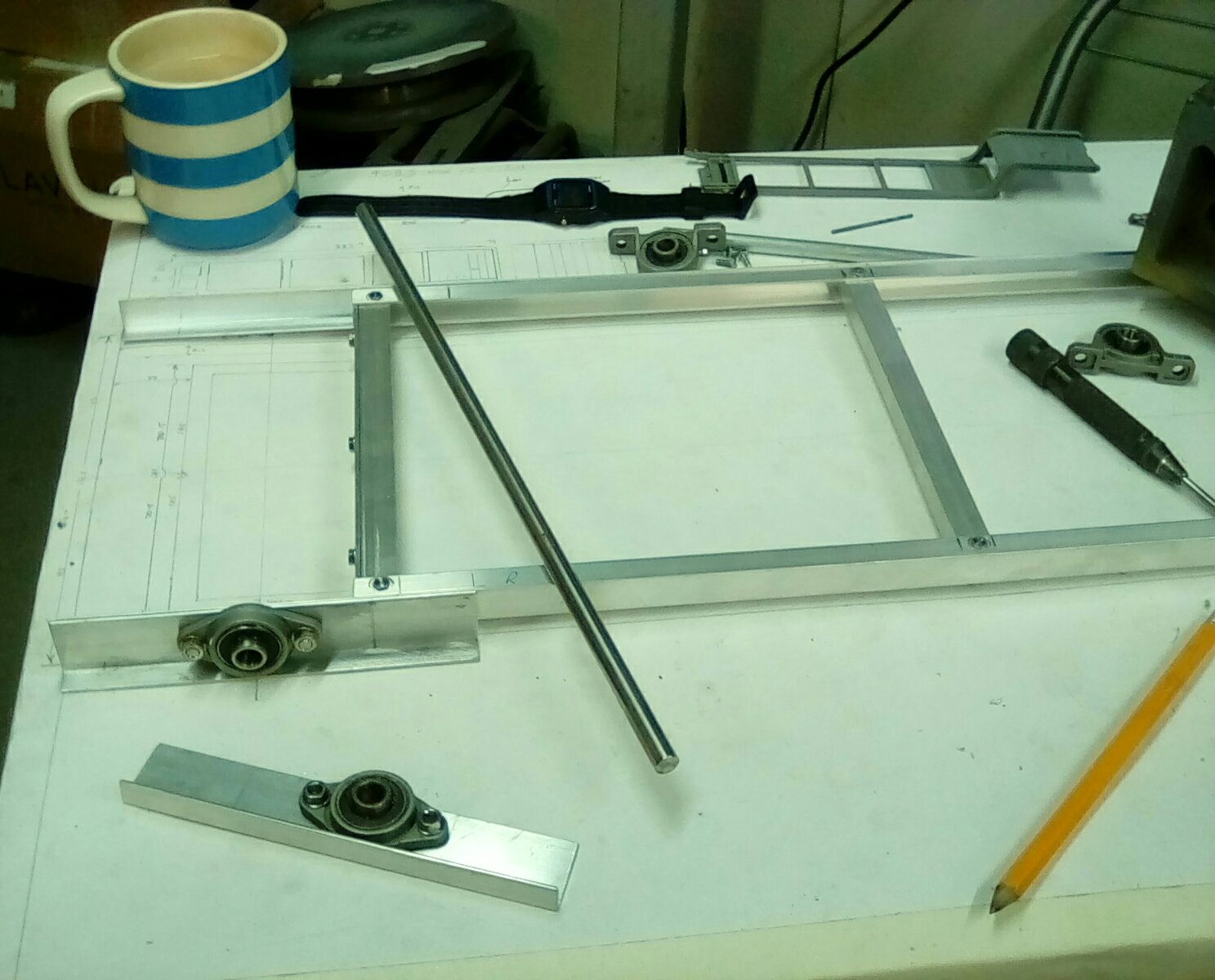

Some basic head scratching to start with.
Some basic head scratching to start with.

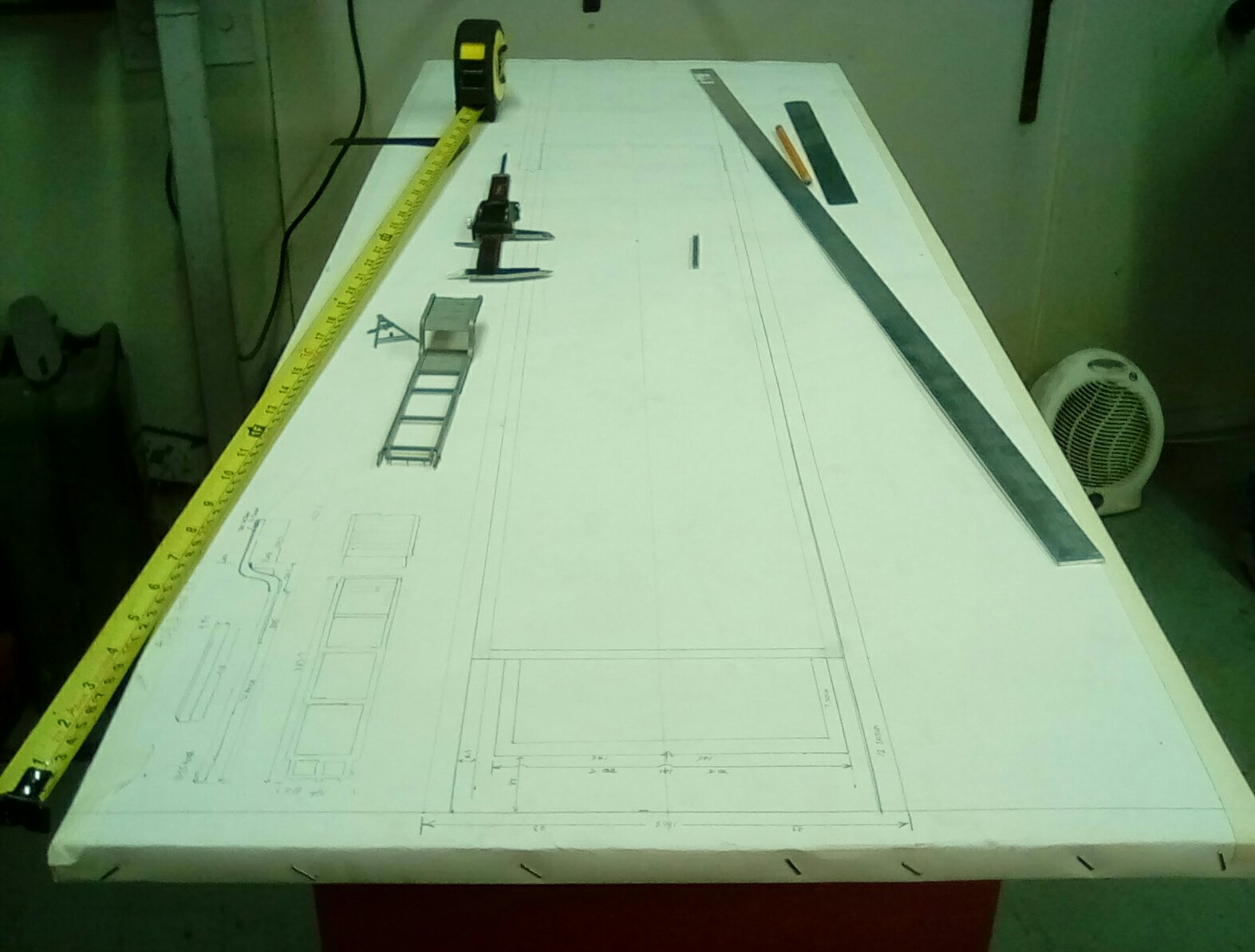

It's awfully big, this plan table isn't quite big enough to include the drawbar and the rear axle .
It's awfully big, this plan table isn't quite big enough to include the drawbar and the rear axle .

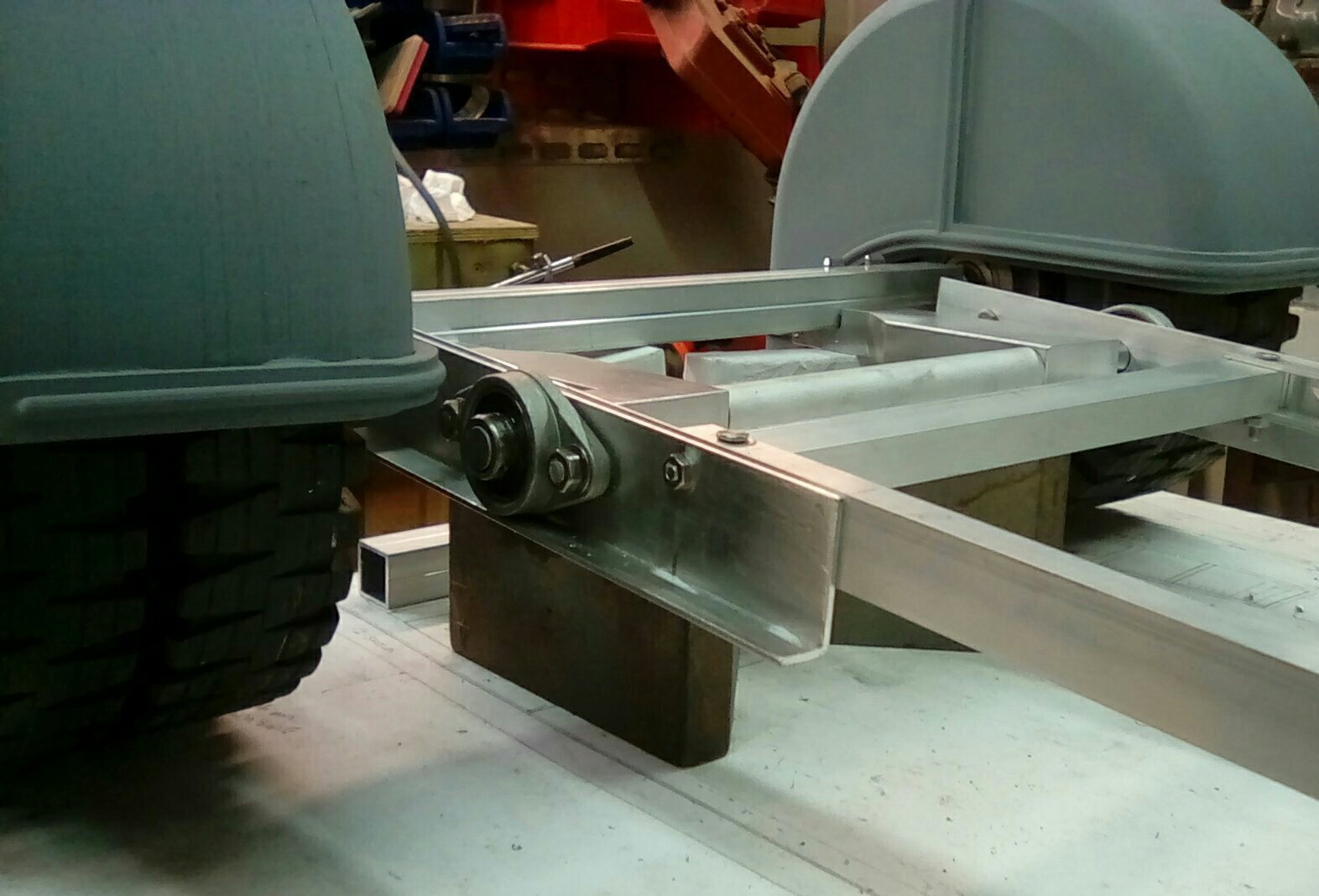

Ive got to figure out the rear axle attachment/detachment system.
Ive got to figure out the rear axle attachment/detachment system.
Those self centering bearings are for the rear axle pivot not for the rear axle.
Those self centering bearings are for the rear axle pivot not for the rear axle.
Great period photo.
Great period photo.

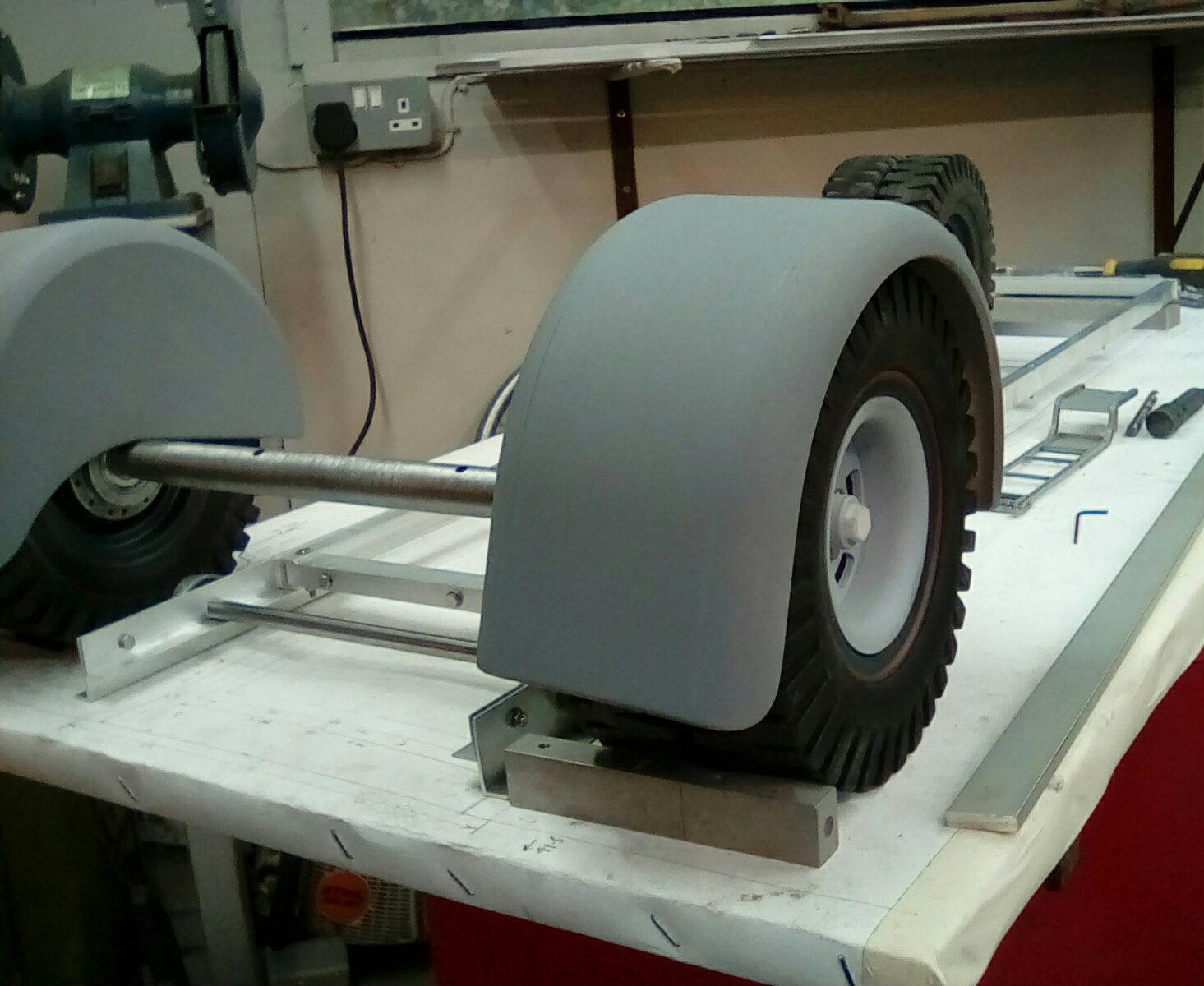

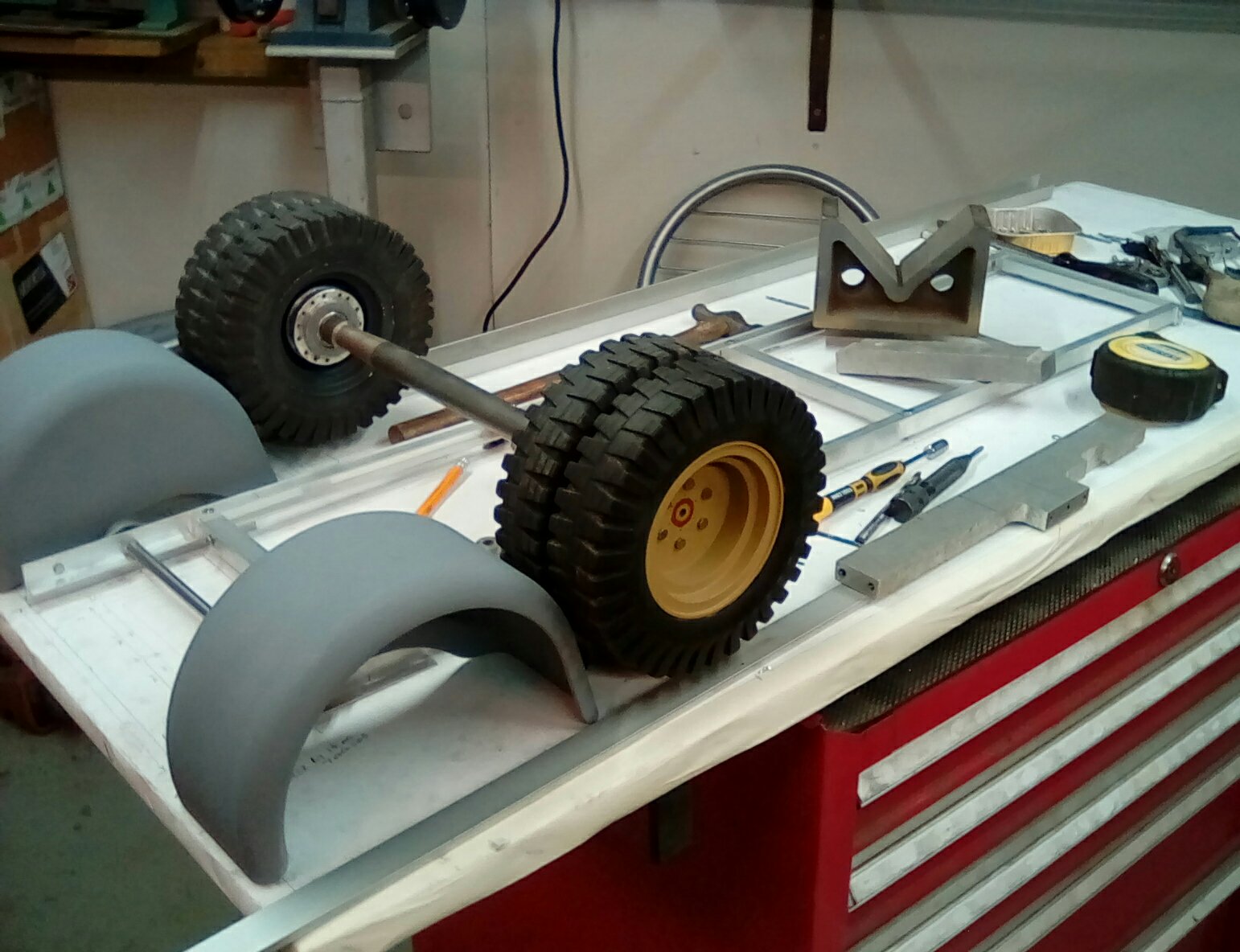

I'm reducing the diameter of the Armortek axle to fit inside the square box section which just happens to be the right dimension.
I'm reducing the diameter of the Armortek axle to fit inside the square box section which just happens to be the right dimension.
Vince those wheels look great now.
Vince those wheels look great now.

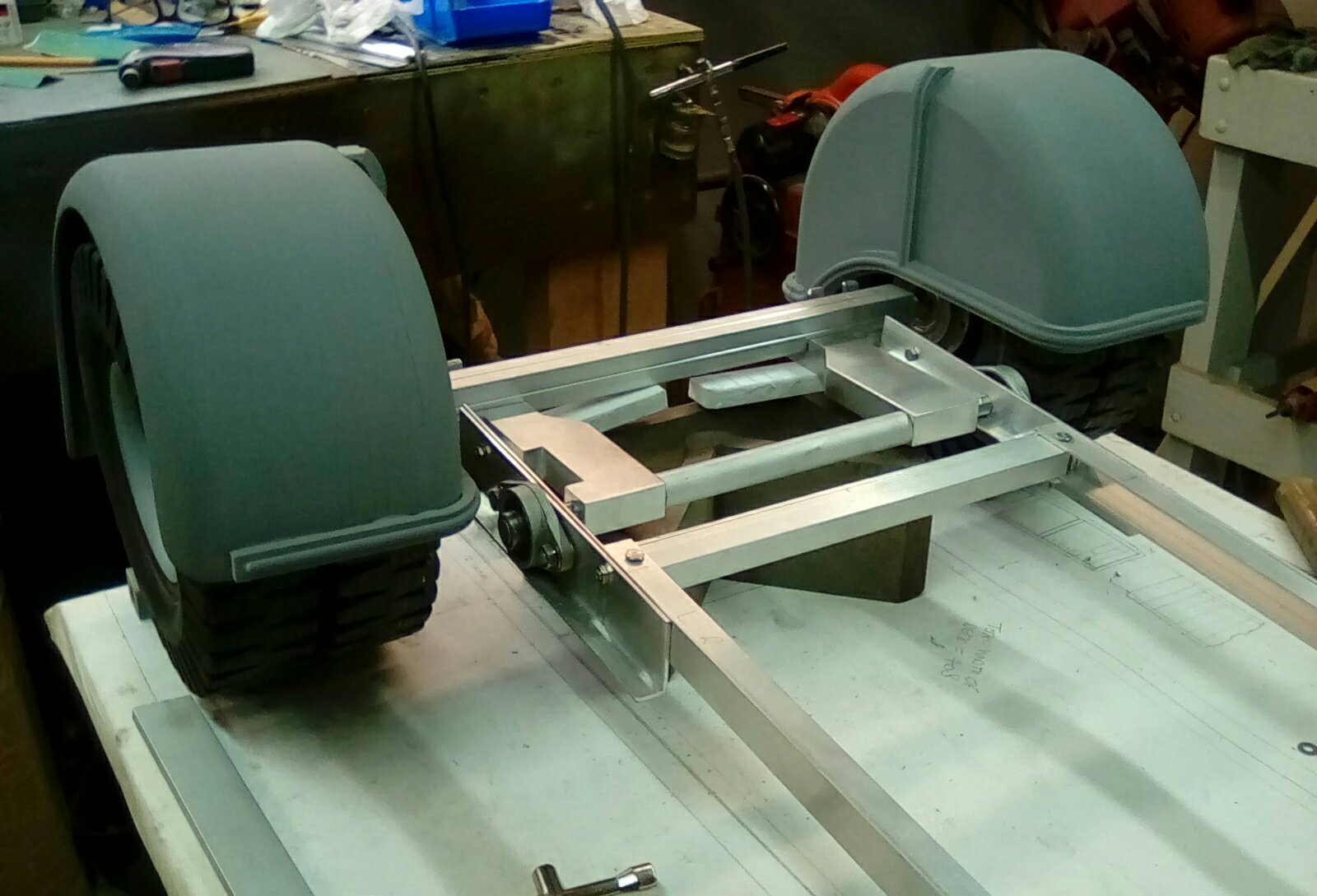

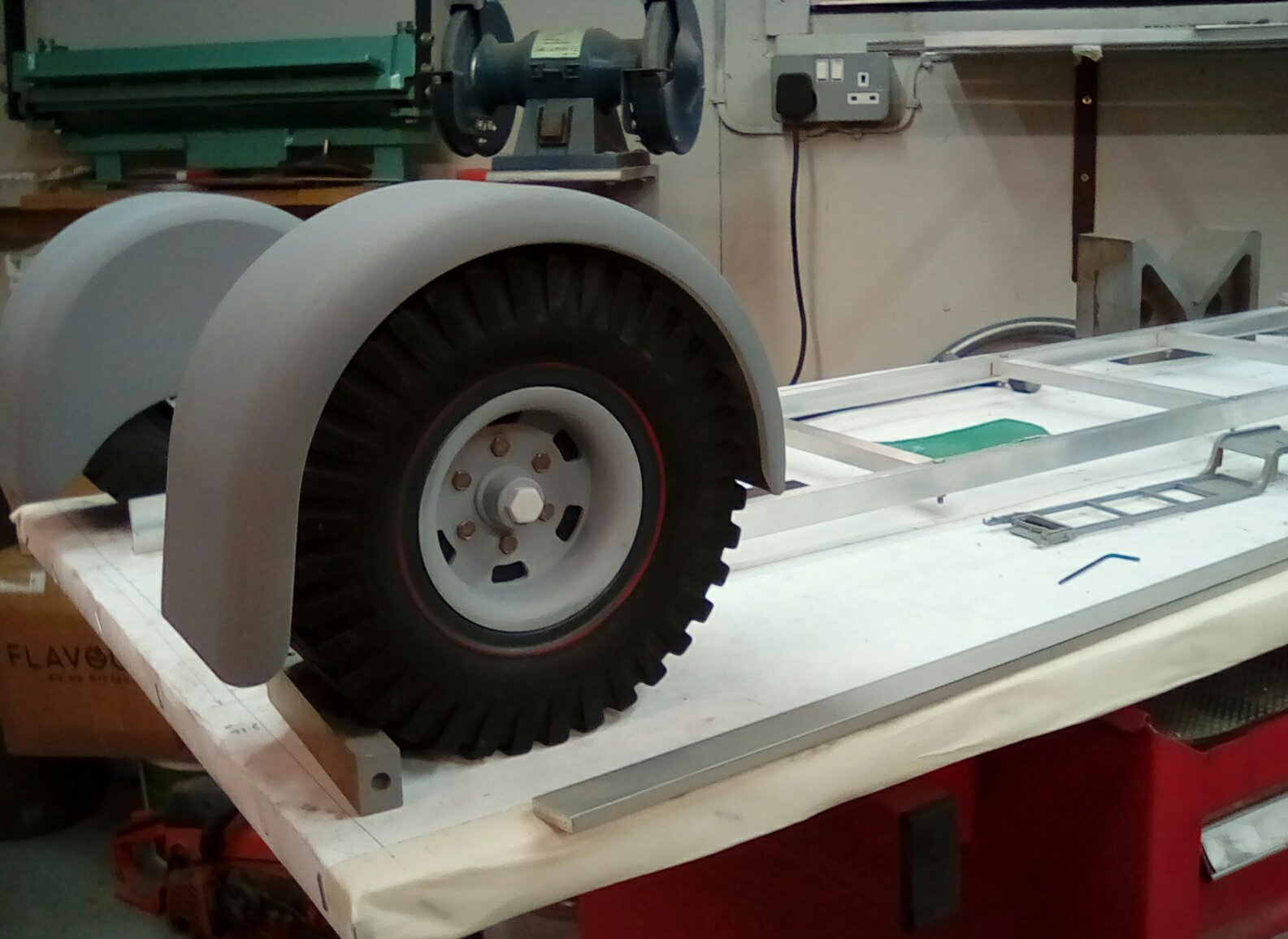

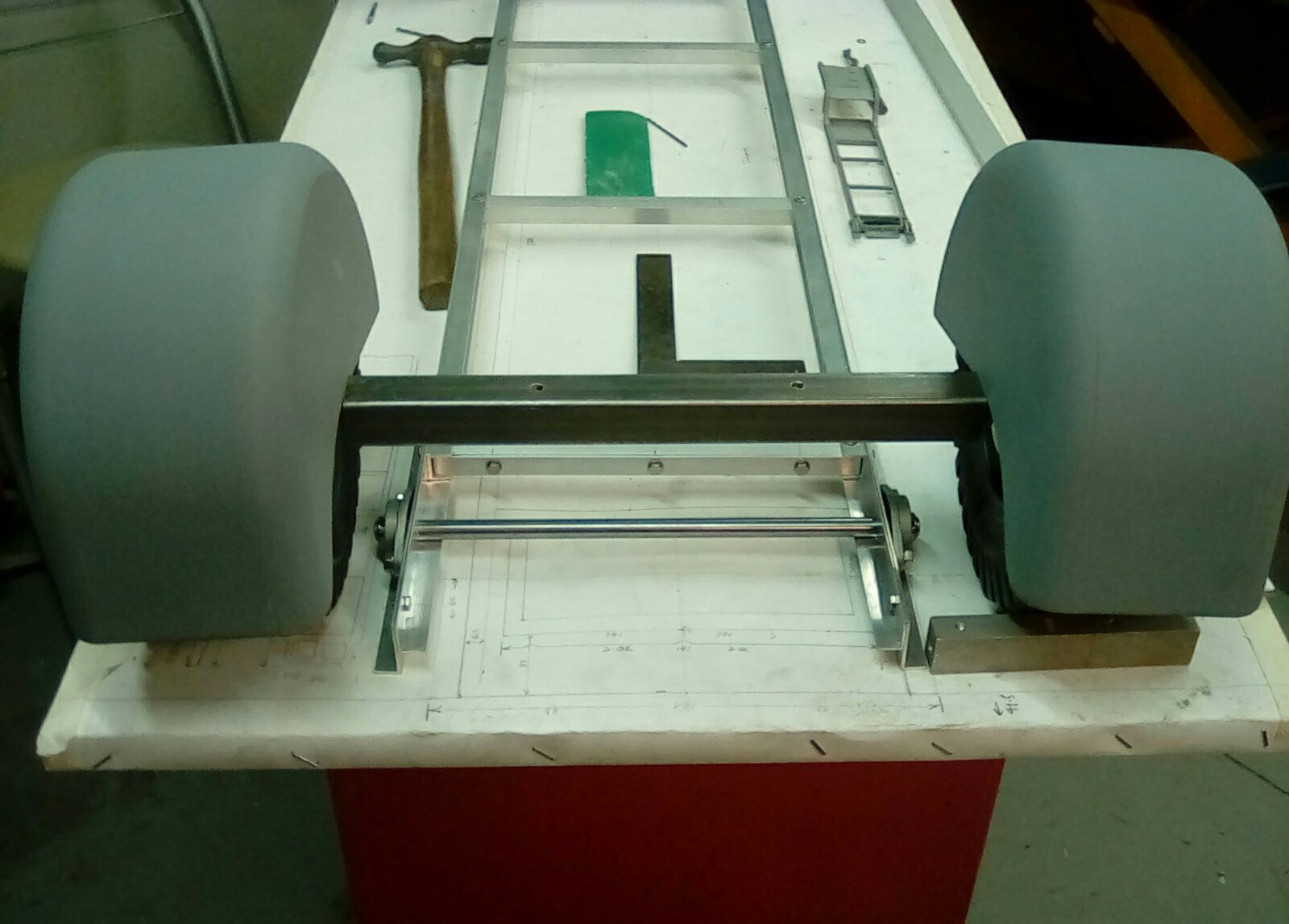

The rear axle is now square and extremely strong.
The rear axle is now square and extremely strong.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
User avatar
Robert E Morey
Posts: 2310
Joined: Wed Jul 18, 2007 12:59 am
Location: Seattle, WA USA
Has liked: 130 times
Been liked: 776 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Robert E Morey »

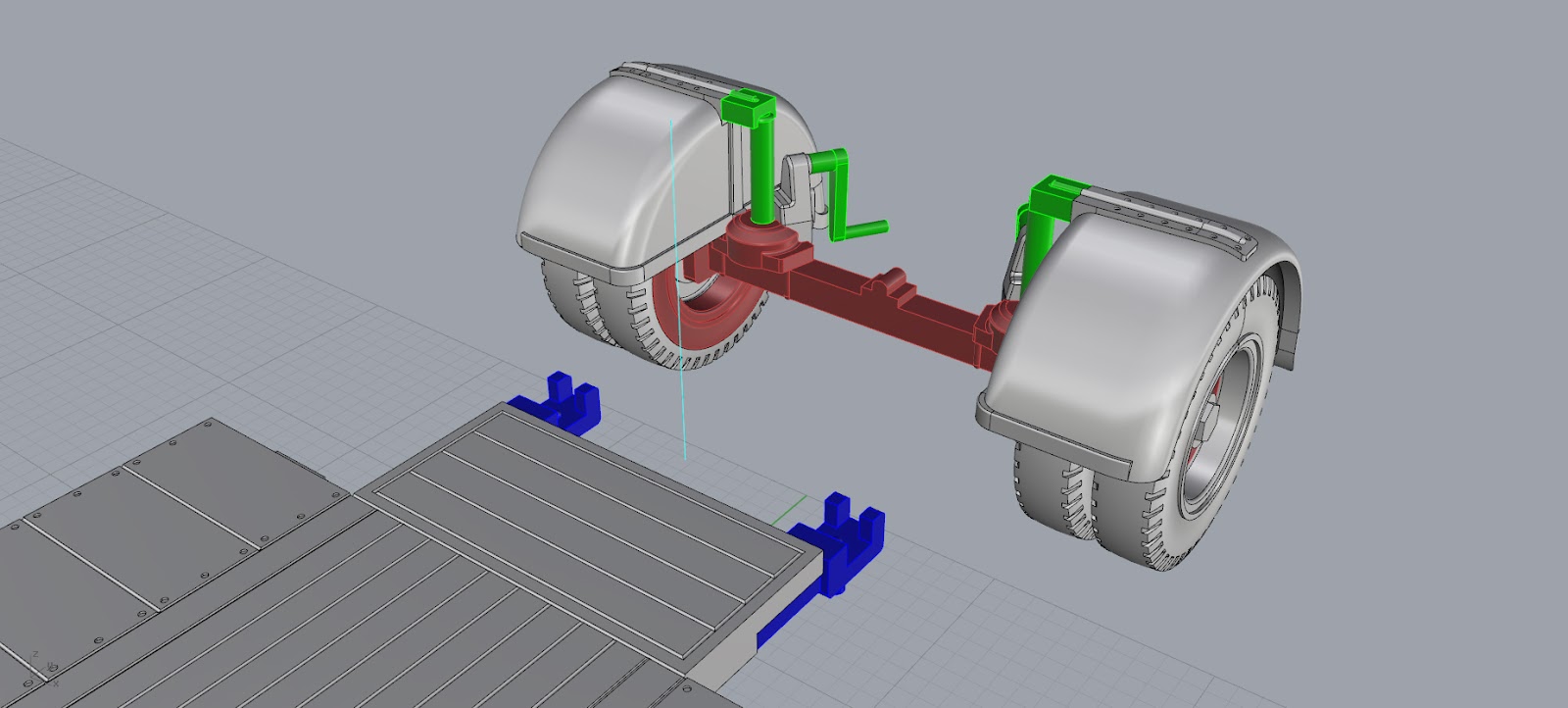

Very cool Phil! I about fell over when you said "batch of these". If I had something to pull it with - I'd take you up on one. Where did you find or make the CAD renders? Excellent!
Bob
Top
Phil Woollard
Posts: 4271
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2267 times
Been liked: 7152 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Phil Woollard »

One word, or name really, Vince! What a team!!!! 8) The wheel upgrade too.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Vince Cutajar
Posts: 2184
Joined: Wed Nov 15, 2017 1:43 pm
Location: Malta
Has liked: 775 times
Been liked: 1740 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Vince Cutajar »

Bob I think Phil misunderstood you. That render (3rd photo) is not mine.

Vince
Top
Phil Woollard
Posts: 4271
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2267 times
Been liked: 7152 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Phil Woollard »

Just a quick note to all, reference any interest in owning a 115 please use my email exploration20@outlook.com for details, we should not use this platform in the " off topic section" to trade non Armortek goods. My apologies to the management.
Regards Phil.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Simon Peck
Posts: 257
Joined: Tue Jan 12, 2010 11:24 am
Has liked: 7 times
Been liked: 46 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Simon Peck »

Interesting thread Phil, is it not ok in the ‘Craftsman Market’ thread?
Top
Phil Woollard
Posts: 4271
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2267 times
Been liked: 7152 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Phil Woollard »

A very quick progress report. 8)
Attachments
We are printing the back axle lowering jacks right now.
We are printing the back axle lowering jacks right now.
115 (8)_kindlephoto-8800057.jpg (18.82 KiB) Viewed 3694 times

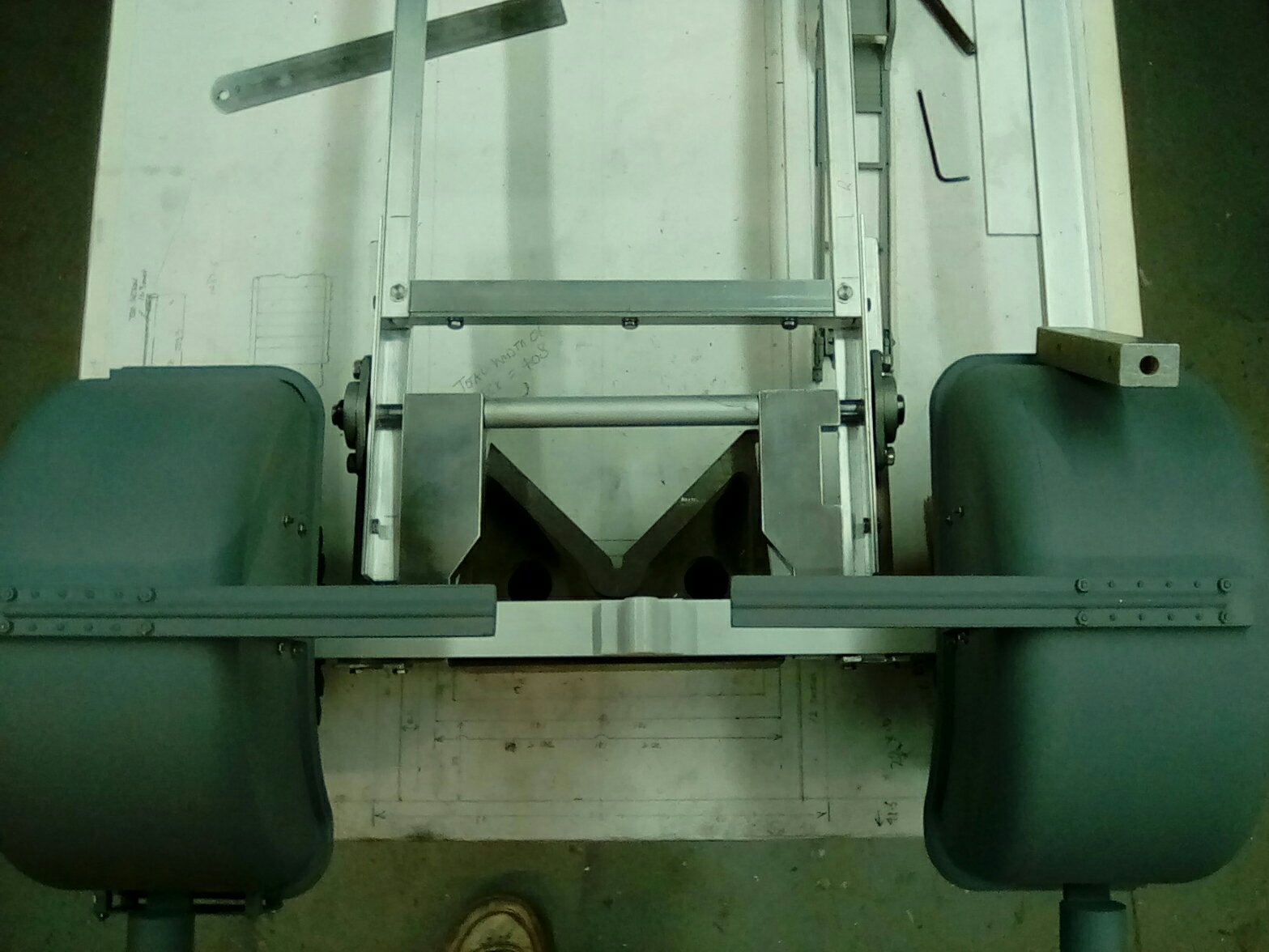

You should be able to make out the axles pivot mech from this angle.
You should be able to make out the axles pivot mech from this angle.
I think she's coming along quite nicely, it's great to have the Armortek axles, wheels and tyres, also the wheel hubs are elefant road wheel hubs.
I think she's coming along quite nicely, it's great to have the Armortek axles, wheels and tyres, also the wheel hubs are elefant road wheel hubs.
The large square swivel blocks are from the Bergepanther kit, they made up the cross bracing that the winch sat on.
The large square swivel blocks are from the Bergepanther kit, they made up the cross bracing that the winch sat on.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Liam Mahoney
Posts: 132
Joined: Fri Feb 14, 2014 10:30 pm
Location: Queensland Australia
Has liked: 1 time
Been liked: 299 times

Re: The Sonderanhanger 115 10 ton trailer.

Post by Liam Mahoney »

Hi Phil
I’ve just come across this posting I don’t know how I missed it, very nice indeed, and hopefully those 222 wheels that look so right finally get released from there temporary internment at the Brisbane airport.
Very nice.

Thanks
Liam
Top
