Re: Chieftain Build No.17

Post by John Clarke »

Great pictures Mark. the tank looks mean. 8)

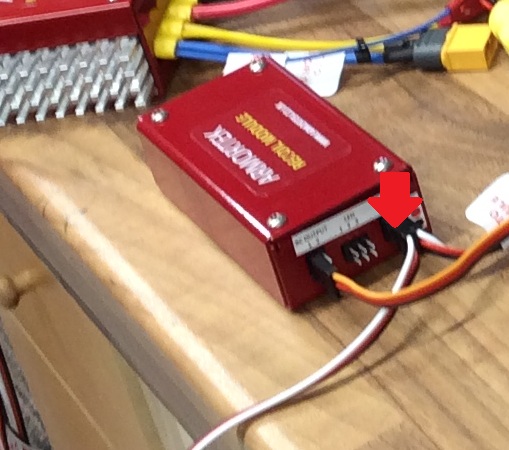

Recoil Module, On input 1 plug (from the audio module), make sure the red power lead is disconnected and insulated, this may solve your problem of too many supplies on the audio module.
The Audio module gets it's supply from the power module and the recoil module gets it's 5v supply from the 24v converter.
I don't think they like each other. :| (I think the two independent supplies mess around with the audio module control outputs).
Oh Man, I only ride em I don't know what makes them work,
Definatley an Anti-Social type

Mark Russell
Posts: 204
Joined: Fri Jul 17, 2009 1:22 pm
Location: Worcestershire
Has liked: 4 times
Been liked: 245 times

Re: Chieftain Build No.17

Post by Mark Russell »

Richard Goodwin wrote:
Sun Jun 07, 2020 5:39 pm
For the modules, I suggest its a return to Armortek!

Wrt the motor, have you taken off the gearbox cover plate and inspected the brass bush?
Richard I haven’t physically checked this but I don’t believe that there is an issue with the brass bush. The issue appears to be too much end float in the motor output shaft which is causing the bevel gears to skip over each other. The motors are being collected today for Armortek to examine.

Mark Russell
Posts: 204
Joined: Fri Jul 17, 2009 1:22 pm
Location: Worcestershire
Has liked: 4 times
Been liked: 245 times

Re: Chieftain Build No.17

Post by Mark Russell »

John Clarke wrote:
Mon Jun 08, 2020 11:21 pm
Great pictures Mark. the tank looks mean. 8)

Recoil Module, On input 1 plug (from the audio module), make sure the red power lead is disconnected and insulated, this may solve your problem of too many supplies on the audio module.
The Audio module gets it's supply from the power module and the recoil module gets it's 5v supply from the 24v converter.
I don't think they like each other. :| (I think the two independent supplies mess around with the audio module control outputs).
Yippee this has worked and all appears to be fully functioning now. There’s voltage on the motor leads with the recoil still working! Just need to wait to get the motors back from Armortek, they were collected today so hopefully it won’t be too long 😀😀😀

User avatar
John Clarke
Posts: 1631
Joined: Sun Oct 17, 2010 10:06 pm
Location: Staffordshire
Been liked: 1729 times

Re: Chieftain Build No.17

Post by John Clarke »

Happy to help. :D even happier it did'nt start smoking in all the wrong places. :lol:
Looking forward to seeing the beast back on the prowl 8)
When I see the model working, it motives me to get up and go and have a look a the bits and pieces that should one day make up my Chieftain.
Oh Man, I only ride em I don't know what makes them work,
Definatley an Anti-Social type

Mark Russell
Posts: 204
Joined: Fri Jul 17, 2009 1:22 pm
Location: Worcestershire
Has liked: 4 times
Been liked: 245 times

Re: Chieftain Build No.17

Post by Mark Russell »

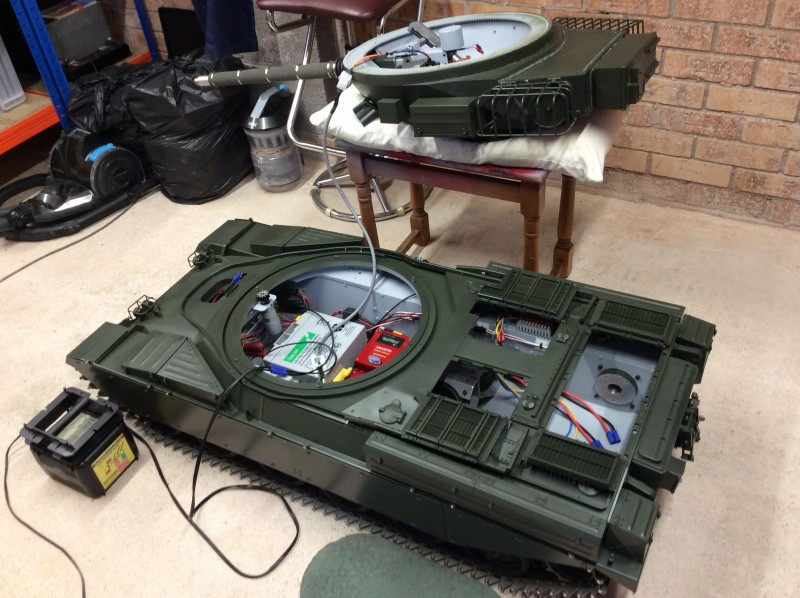

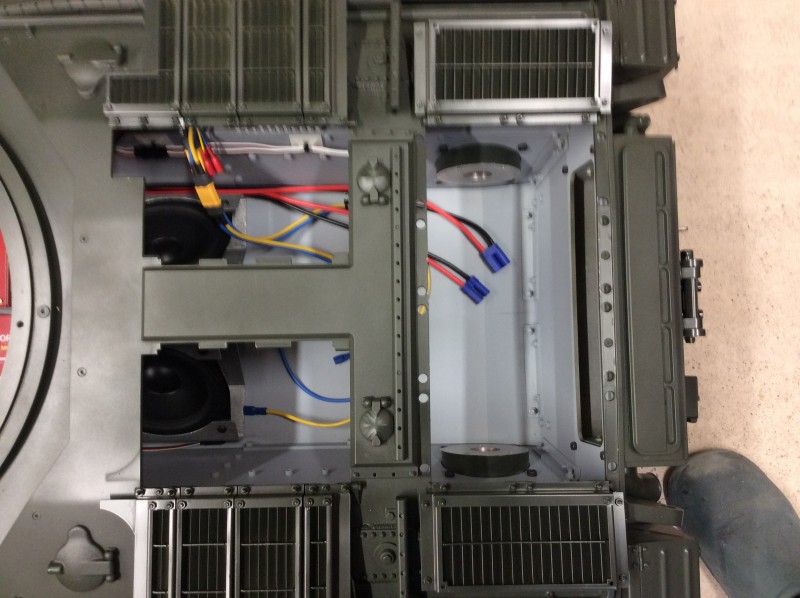

Whilst waiting for the main drive motors to be fixed and returned from Armortek I have been rearranging the electrics and modules got everything much better spaced out and neater/tidier cabling etc. All working fine now including the recoil with voltage at the drive motor cables. Lights also wired up with electronic switch. I have also put full exponential on the turret turn and elevation sticks as with two stick running this means the first 50% stick movement doesn’t do anything and stops inadvertent commands whilst driving 😀😀😀
Attachments

User avatar
Richard Goodwin
Posts: 422
Joined: Fri Mar 15, 2019 6:46 pm
Has liked: 292 times
Been liked: 284 times

Re: Chieftain Build No.17

Post by Richard Goodwin »

Nice layout Mark; everything nice and accessible!

Mark Russell
Posts: 204
Joined: Fri Jul 17, 2009 1:22 pm
Location: Worcestershire
Has liked: 4 times
Been liked: 245 times

Re: Chieftain Build No.17

Post by Mark Russell »

You won’t struggle for smoke from the Chieftain...


Mark Russell
Posts: 204
Joined: Fri Jul 17, 2009 1:22 pm
Location: Worcestershire
Has liked: 4 times
Been liked: 245 times

Re: Chieftain Build No.17

Post by Mark Russell »

Chieftain on the prowl...
Attachments

Mark Russell
Posts: 204
Joined: Fri Jul 17, 2009 1:22 pm
Location: Worcestershire
Has liked: 4 times
Been liked: 245 times

Re: Chieftain Build No.17

Post by Mark Russell »

A few videos taken in the car park of my 5” gauge model engineering society track (my other passion live steam locomotives)...





Enjoy😀😀😀

Stephen White
Site Admin
Posts: 3108
Joined: Sat Oct 11, 2008 7:05 pm
Location: Dorset
Has liked: 1022 times
Been liked: 2091 times
Contact:

Re: Chieftain Build No.17

Post by Stephen White »

Mark, enjoyed seeing your videos, it's such an impressive model. The smoker is working well and the track squeak is very authentic. Great stuff.

Could you perhaps have a word with your tank commander and quietly tell him that if he stands on his seat, he'll be marched off to the jail? That was our way on Chieftain, no more than head above the cupola ring when operating opened up. Having said that, Lt Col Bob Foote won a very well deserved VC in the Desert commanding Fourth Tanks in Matildas by standing up in his turret and leading the Regiment into the face of bitter opposition from Rommel's Afrika Korps.

Dennis Jones
Posts: 889
Joined: Wed Feb 04, 2009 11:19 am
Location: Poole, Dorset
Has liked: 10 times
Been liked: 221 times

Re: Chieftain Build No.17

Post by Dennis Jones »

I think new piston rings required !!! looking good Mark.

Dennis

Mark Russell
Posts: 204
Joined: Fri Jul 17, 2009 1:22 pm
Location: Worcestershire
Has liked: 4 times
Been liked: 245 times

Re: Chieftain Build No.17

Post by Mark Russell »

Stephen White wrote:
Sat Jul 11, 2020 9:59 pm
Mark, enjoyed seeing your videos, it's such an impressive model. The smoker is working well and the track squeak is very authentic. Great stuff.

Could you perhaps have a word with your tank commander and quietly tell him that if he stands on his seat, he'll be marched off to the jail? That was our way on Chieftain, no more than head above the cupola ring when operating opened up. Having said that, Lt Col Bob Foote won a very well deserved VC in the Desert commanding Fourth Tanks in Matildas by standing up in his turret and leading the Regiment into the face of bitter opposition from Rommel's Afrika Korps.
I’ve had a word with him Stephen and there will be no more standing on his seat 😀😀😀

Mark Russell
Posts: 204
Joined: Fri Jul 17, 2009 1:22 pm
Location: Worcestershire
Has liked: 4 times
Been liked: 245 times

Re: Chieftain Build No.17

Post by Mark Russell »

Dennis Jones wrote:
Sun Jul 12, 2020 10:59 am
I think new piston rings required !!! looking good Mark.

Dennis
Hi Dennis thanks and yes i’ll get it booked into the workshop for an engine replacement 🔧🔨🛠

Mark Russell
Posts: 204
Joined: Fri Jul 17, 2009 1:22 pm
Location: Worcestershire
Has liked: 4 times
Been liked: 245 times

Re: Chieftain Build No.17

Post by Mark Russell »

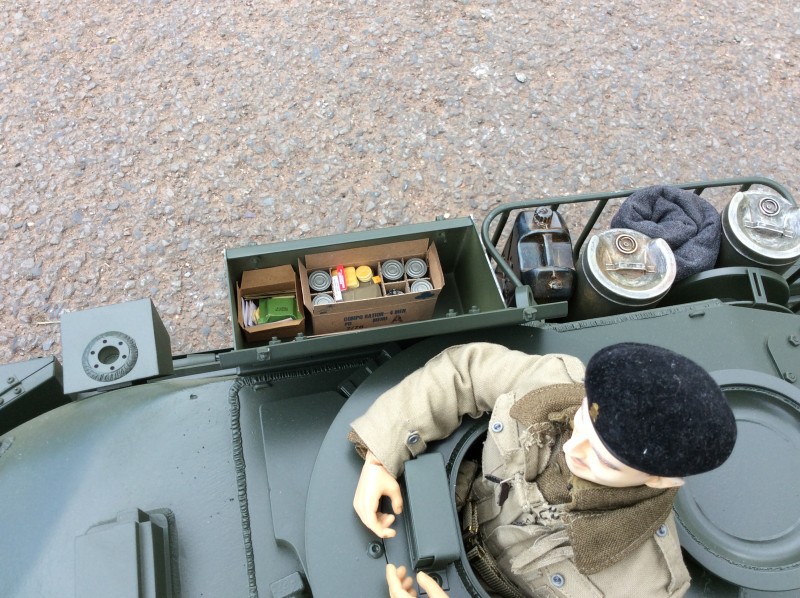

Another Sunday outing for Chieftain at Kinver and West Midlands Society of Model Engineers. Time for a Double Decker for the commander as it’s Hungary work 👍. A change from driving my 5” gauge live steam locomotives 😀😀😀
Attachments

User avatar
John Clarke
Posts: 1631
Joined: Sun Oct 17, 2010 10:06 pm
Location: Staffordshire
Been liked: 1729 times

Re: Chieftain Build No.17

Post by John Clarke »

Nicely geared up Chieftain Mark, Douglas Kay certainly has a smile on his face 8)
Oh Man, I only ride em I don't know what makes them work,
Definatley an Anti-Social type
