Re: landing craft
Hi
Might be an idea to look up "wet exhausts".
Two of the vessels I drove/helmed until recently had them. Usually set just above the waterline.
I can post a photo or two of the outlets if that helps.
Cheers Charles
Might be an idea to look up "wet exhausts".
Two of the vessels I drove/helmed until recently had them. Usually set just above the waterline.
I can post a photo or two of the outlets if that helps.
Cheers Charles
Chieftain No.34, functional. PKW IV (2002), operational. Panther G No.18 (2022), started, well some of it is. Series 1 4x4 No.28 and a Bailey Bridge.
-
Bryan Brown
- Posts: 59
- Joined: Fri Oct 04, 2013 6:06 pm
- Has liked: 398 times
- Been liked: 9 times
-
Charles A Stewart
- Posts: 576
- Joined: Sat Oct 05, 2019 7:26 pm
- Location: Cumbria
- Has liked: 504 times
- Been liked: 915 times
- Contact:
Re: landing craft
Good evening Bryan.
After some ratching about I have these photos:-
InkedTrumpeter kit_LI.jpg[/attachment]

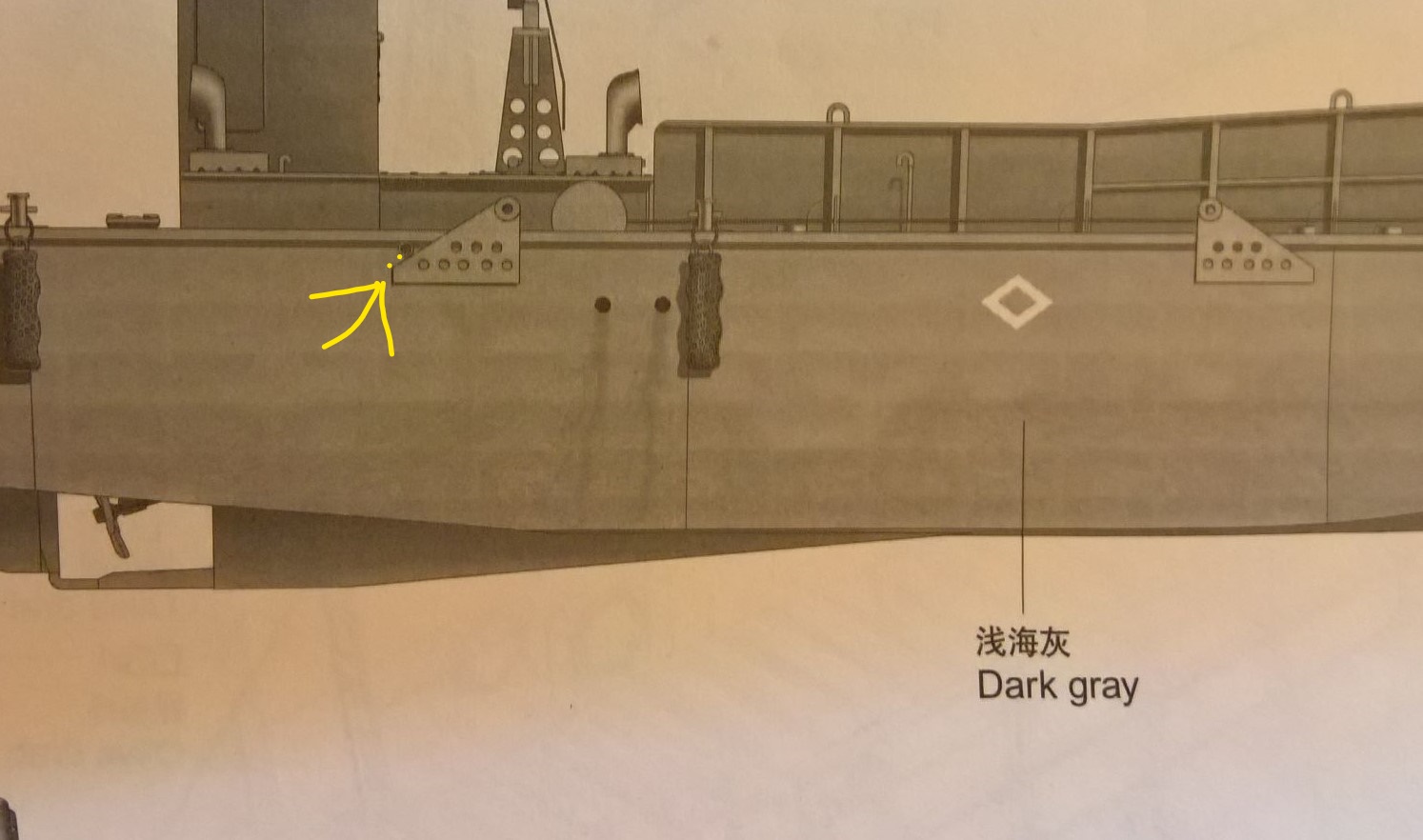

I hope these pictures help, the top one is the beached former Totnes Castle, build 1949. Her sister vessel was involved in the Dunkirk Evacuation as Devon Belle. The other photo is from the plans of the Trumpeter 1/35 kit. I feel fairly safe to suggest the higher sets of holes are the bilge pump outlets.
Hope this helps Charles
After some ratching about I have these photos:-
InkedTrumpeter kit_LI.jpg[/attachment]
- InkedWet exhuast_LI.jpg (855.68 KiB) Viewed 2737 times
Hope this helps Charles
- Attachments
-
Chieftain No.34, functional. PKW IV (2002), operational. Panther G No.18 (2022), started, well some of it is. Series 1 4x4 No.28 and a Bailey Bridge.
-
Bryan Brown
- Posts: 59
- Joined: Fri Oct 04, 2013 6:06 pm
- Has liked: 398 times
- Been liked: 9 times
-
Kevin Hunter
- Posts: 564
- Joined: Sat Nov 03, 2012 9:10 am
- Location: Guernsey, Channel Islands
- Has liked: 603 times
- Been liked: 147 times
Re: landing craft
Bryan
Without wishing to muddy the waters too much, the position of the exhaust(s) is likely to vary depending on the variant or era of landing craft you are looking at.
On the LCM3, subject of the Trumpeter kit, I believe that the exhaust is just above the waterline in line with the rear of the triangular aft lifting plate. You can just make it out in this photo, a rectangular hole also emitting engine cooling water. I think the 3 small round holes higher up on Charles’ drawing may all be bilge pump outlets.

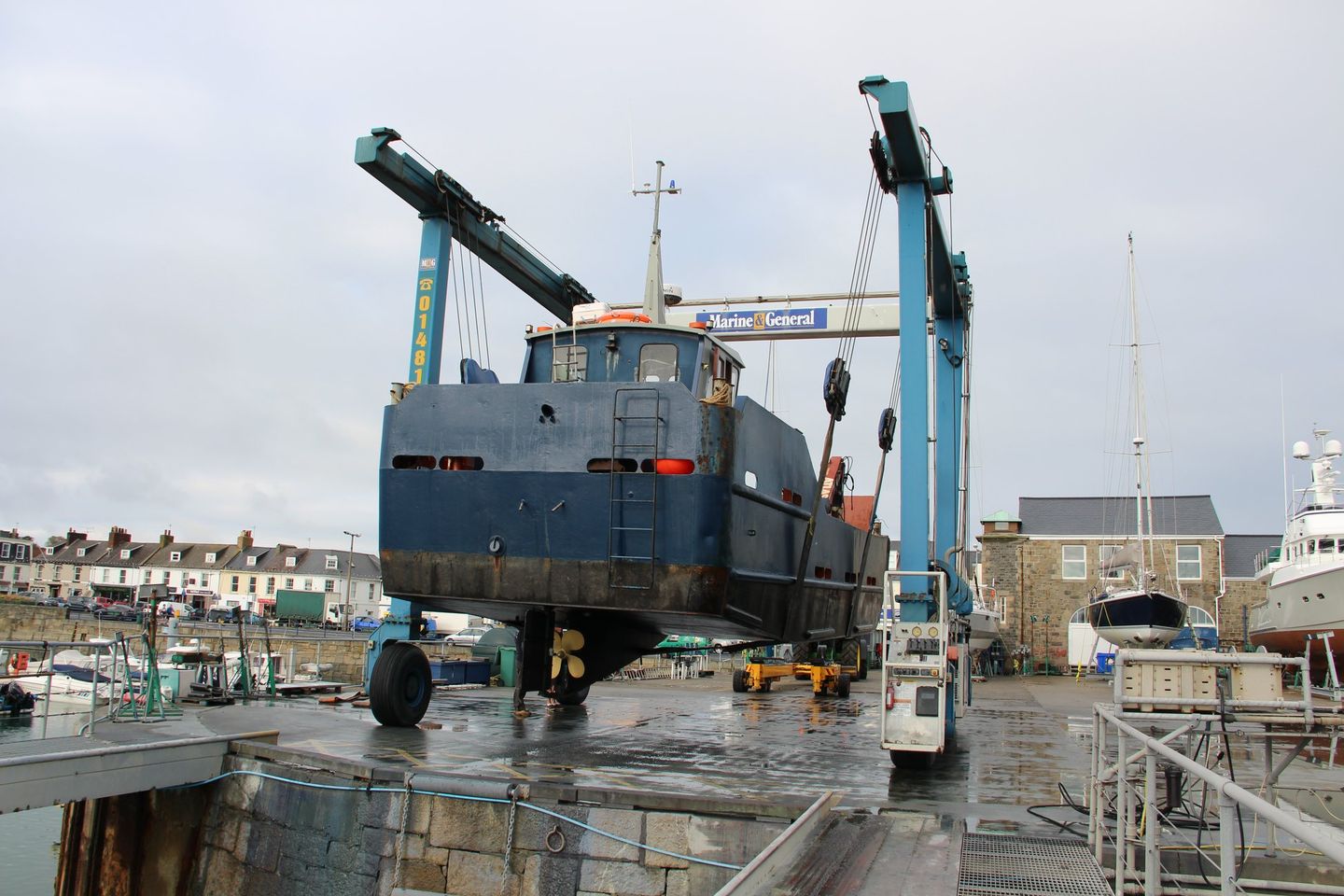

This is “Herm Seahorse”, a local cargo boat serving the small Channel Island of Herm. Admittedly a modern build (1989) but you can see the combined exhaust and engine cooling water outlet in the middle of the transom, protected by a flap.
