20 Tonne jack King Tiger/Jagdtiger/Panther
Since summer I have been working on a 20 tonne jack and have created the most accurate metal jack to date, this will be available in 20 tonne long for King Tiger, Jagdtiger, Tiger I, Elefant and 20 tonne short for Panther A and G. As always with my parts I have spent long hours researching to gain the most accurate details and scale proportions.
Each jack has the correct body length with the correct base and step on the rear, the handle can be folded away as the original, and will have grab handles in the appropriate places some versions only have x1 handle others have x2 handles, even weld lines are provided in the appropriate locations.
Assembly of these jacks is riveted as the original, no screws are used to hold the body together thus assembly is time consuming but completely accurate.

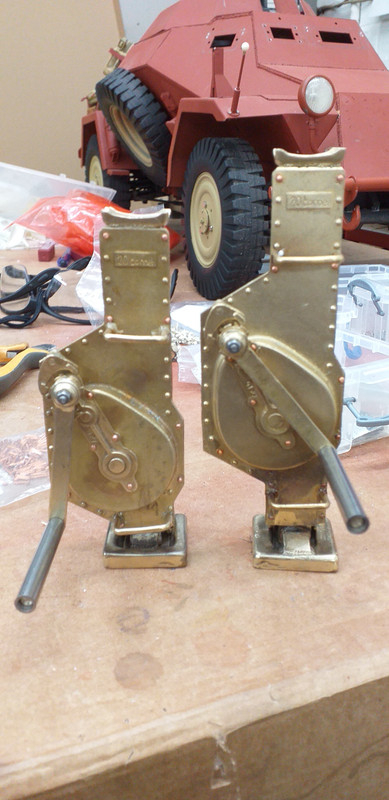

Short Panther version on the left long King Tiger version on the right
King Tiger/Jagdtiger long version
Panther short version
Group of assembled King Tiger and a single Panther jack
This is what the jack looks like fitted on the rear of a Tiger I, I used the master for this picture
I will only be taking batch orders only on these jacks owing to the length of time it takes for the castings and assembly
Price
W5-21L, 20 Tonne jack long Tiger, King Tiger, Jagdtiger and Elefant £85
W5-21S, 20 Tonne jack short (Panther) £85
To order please PM or email werkstatt.five@gmail.com
Facebook werkstatt - 5
Each jack has the correct body length with the correct base and step on the rear, the handle can be folded away as the original, and will have grab handles in the appropriate places some versions only have x1 handle others have x2 handles, even weld lines are provided in the appropriate locations.
Assembly of these jacks is riveted as the original, no screws are used to hold the body together thus assembly is time consuming but completely accurate.
Short Panther version on the left long King Tiger version on the right
King Tiger/Jagdtiger long version
Panther short version
Group of assembled King Tiger and a single Panther jack
This is what the jack looks like fitted on the rear of a Tiger I, I used the master for this picture
I will only be taking batch orders only on these jacks owing to the length of time it takes for the castings and assembly
Price
W5-21L, 20 Tonne jack long Tiger, King Tiger, Jagdtiger and Elefant £85
W5-21S, 20 Tonne jack short (Panther) £85
To order please PM or email werkstatt.five@gmail.com
Facebook werkstatt - 5
Last edited by mark lawson on Mon Oct 10, 2022 9:48 am, edited 2 times in total.
-
- Posts: 2172
- Joined: Wed Nov 15, 2017 1:43 pm
- Location: Malta
- Has liked: 758 times
- Been liked: 1732 times
-
- Posts: 1222
- Joined: Thu Jul 12, 2007 11:42 am
- Location: Manchester
- Has liked: 8 times
- Been liked: 688 times
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
Hi Mark
Super job on the jacks, I know how long you have been developing these and the effort put into them to ensure they are accurate.
Regards
Steve
Super job on the jacks, I know how long you have been developing these and the effort put into them to ensure they are accurate.
Regards
Steve
- Marco Peter
- Posts: 526
- Joined: Mon Feb 26, 2018 12:05 pm
- Has liked: 1334 times
- Been liked: 771 times
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
Very, very nice.
I remember when I bought my first jack from you, and then a second because I wanted to leave one unpainted on my desk as a showpiece!
I remember when I bought my first jack from you, and then a second because I wanted to leave one unpainted on my desk as a showpiece!
'Konan', my Tiger 1 Mid
'Gunther', my Panther G
'Gunther', my Panther G
-
- Posts: 584
- Joined: Mon Oct 09, 2017 9:49 pm
- Has liked: 97 times
- Been liked: 446 times
- Gerhard Michel
- Posts: 613
- Joined: Tue Oct 04, 2016 12:27 pm
- Location: near Nuremberg, Germany
- Has liked: 3 times
- Been liked: 604 times
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
Hello Mark,
very nice work, indeed. But are you sure that the labelling is correct? In German 20 tons would be named as '20 Tonnen'. All pics I found about this jack, in German named '20 Tonnen - Stockwinde', look like this:
http://www.fahrzeuge-der-wehrmacht.de/B ... h_01-1.jpg
http://www.fahrzeuge-der-wehrmacht.de/B ... h_05-1.jpg
very nice work, indeed. But are you sure that the labelling is correct? In German 20 tons would be named as '20 Tonnen'. All pics I found about this jack, in German named '20 Tonnen - Stockwinde', look like this:
http://www.fahrzeuge-der-wehrmacht.de/B ... h_01-1.jpg
http://www.fahrzeuge-der-wehrmacht.de/B ... h_05-1.jpg
kind regards
Gerhard
____________________________________________________________________
1/6 Scale models: Jagdpanther (AT), Jagdtiger (BT), Königstiger (Porsche turret, NH), Königstiger (Production turret, BT), Pz. IV (SH)
Gerhard
____________________________________________________________________
1/6 Scale models: Jagdpanther (AT), Jagdtiger (BT), Königstiger (Porsche turret, NH), Königstiger (Production turret, BT), Pz. IV (SH)
-
- Posts: 717
- Joined: Tue May 14, 2013 9:14 pm
- Location: Solihull
- Has liked: 2487 times
- Been liked: 443 times
- Contact:
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
Gerhard, thanks for your input, I have 20 tonne on my labelling, its not as if I don't know any Germans who I could have asked. It was more than 6 months ago I built the main body of the jack and cant remember where that information came from.
-
- Posts: 448
- Joined: Sun Nov 03, 2019 3:46 pm
- Has liked: 948 times
- Been liked: 816 times
-
- Posts: 37
- Joined: Tue Feb 18, 2020 5:45 pm
- Has liked: 1 time
- Been liked: 10 times
-
- Posts: 717
- Joined: Tue May 14, 2013 9:14 pm
- Location: Solihull
- Has liked: 2487 times
- Been liked: 443 times
- Contact:
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
Thanks to all for the comments and interest in the new jacks, I have now listed the price.
This is a picture of the master fitted to the rear of my Tiger I, this is the long version.
compared to the real Tiger
This is a picture of the master fitted to the rear of my Tiger I, this is the long version.
compared to the real Tiger
-
- Posts: 1222
- Joined: Thu Jul 12, 2007 11:42 am
- Location: Manchester
- Has liked: 8 times
- Been liked: 688 times
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
Hi Mark.
Nice to see a jack that is the correct length as all previous available jacks have been undersized.
Regards
Steve
Nice to see a jack that is the correct length as all previous available jacks have been undersized.
Regards
Steve
-
- Posts: 717
- Joined: Tue May 14, 2013 9:14 pm
- Location: Solihull
- Has liked: 2487 times
- Been liked: 443 times
- Contact:
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
Thanks for your appreciation Steve, as you know I like to get parts as accurate as possible.
-
- Posts: 1222
- Joined: Thu Jul 12, 2007 11:42 am
- Location: Manchester
- Has liked: 8 times
- Been liked: 688 times
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
I have just received my Tiger 1 long jack from Mark and thought I would post a couple of comparison photos of it with the Steve Winston jack just to highlight the size difference (Marks jack is on the left) .
I don’t have any references to compare either of them to, so potential buyers will have to make their own minds up.
Regards
Steve
I don’t have any references to compare either of them to, so potential buyers will have to make their own minds up.
Regards
Steve
-
- Posts: 425
- Joined: Sat Dec 04, 2010 11:18 am
- Location: Northern Sweden
- Has liked: 6 times
- Been liked: 194 times
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
Well done Mark you done it again, me like very much!
Here is a site for those interested in compare with the real thing.
http://www.panzerbasics.com/panzer/01_b ... k_20ts.htm
Kind regards
Kent
Here is a site for those interested in compare with the real thing.
http://www.panzerbasics.com/panzer/01_b ... k_20ts.htm
Kind regards
Kent
It´s all in the details!
-
- Posts: 58
- Joined: Thu Feb 14, 2019 8:34 pm
- Location: Lyon, France
- Has liked: 55 times
- Been liked: 81 times
Re: 20 Tonne jack King Tiger/Jagdtiger/Panther
Looking at this site, i'm afraid Steve you compare a 20t long and a 20t short jacks (or i missed the "undersizing" meaning in you post ?)
20tl and 20Ts being 90% identical (shortened "feet" + relocate lower handle for panther 20Ts compared to 20tl)
This is well explained on the site (better than i can do !)
This without discussing of the accuracy of the different jacks.

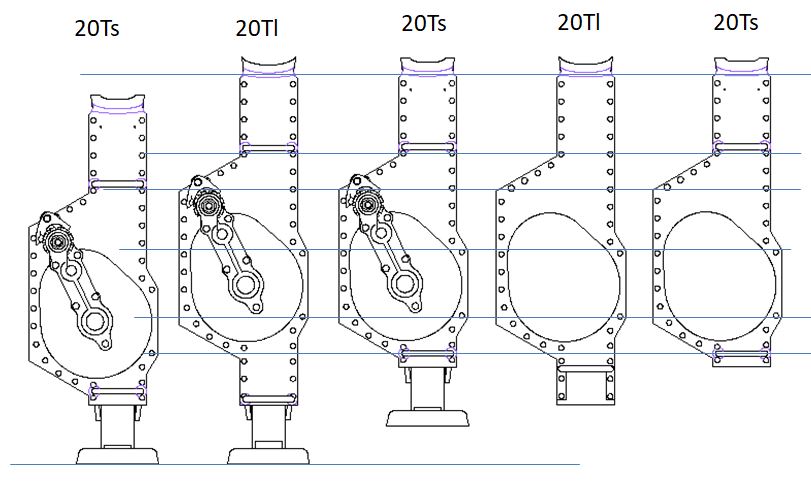

based upon pictures in panzerbasics site a picture with in parallel the 2 versions. kind regards
Didier
20tl and 20Ts being 90% identical (shortened "feet" + relocate lower handle for panther 20Ts compared to 20tl)
This is well explained on the site (better than i can do !)
This without discussing of the accuracy of the different jacks.
based upon pictures in panzerbasics site a picture with in parallel the 2 versions. kind regards
Didier
