Lazy Susan - turntable
Hi All,
I am preparing my work space to start a Tiger 1 (F01) build. I wish to use a `lazy susan' somewhere in the mix; either bolted directly to the hydraulic table or on top of the pad lift I have got. If anyone could give me some advice here I would appreciate it, especially what type of bearing to use and where to source it.
Alastair
I am preparing my work space to start a Tiger 1 (F01) build. I wish to use a `lazy susan' somewhere in the mix; either bolted directly to the hydraulic table or on top of the pad lift I have got. If anyone could give me some advice here I would appreciate it, especially what type of bearing to use and where to source it.
Alastair
Alastair
Tiger 1 (2015 #01 with 2012 parts)
Tiger 1 (2015 #01 with 2012 parts)
-
- Posts: 326
- Joined: Sat Oct 01, 2016 10:11 am
- Location: Near Ipswich, suffolk
- Has liked: 401 times
- Been liked: 164 times
Re: Lazy Susan - turntable
Hi Alastair
I would think its not so much the bearing in the middle you want to worry about, its the weight bearing on the periphery that does.
The Tiger is a heavy bit of machinery, more so once the motors and batteries are fitted, so I would suggest you add rollers around the circumference of the Lazy Susan to take that weight and relieve stresses on the central pillar and bearing.
I would think its not so much the bearing in the middle you want to worry about, its the weight bearing on the periphery that does.
The Tiger is a heavy bit of machinery, more so once the motors and batteries are fitted, so I would suggest you add rollers around the circumference of the Lazy Susan to take that weight and relieve stresses on the central pillar and bearing.
-
- Posts: 2152
- Joined: Wed Nov 15, 2017 1:43 pm
- Location: Malta
- Has liked: 720 times
- Been liked: 1708 times
Re: Lazy Susan - turntable
Hi Alastair
Below is an Armortek photo of the 2017 Tiger 1. As you can see they are using a lazy susan and a large spacer over it. Both these items were part of the kit used for the turret turn mechanism but I don't know how much weight that bearing can support.
Vince
Below is an Armortek photo of the 2017 Tiger 1. As you can see they are using a lazy susan and a large spacer over it. Both these items were part of the kit used for the turret turn mechanism but I don't know how much weight that bearing can support.
Vince
-
- Site Admin
- Posts: 3100
- Joined: Sat Oct 11, 2008 7:05 pm
- Location: Dorset
- Has liked: 983 times
- Been liked: 2047 times
- Contact:
-
- Posts: 2152
- Joined: Wed Nov 15, 2017 1:43 pm
- Location: Malta
- Has liked: 720 times
- Been liked: 1708 times
Re: Lazy Susan - turntable
Those pressed steel ones are ideal for what Alastair needs and they are not expensive at all.
That website also shows the aluminium bearings like the ones in the kit and was surprised at the maximum load rating. Quite a lot.
Vince
That website also shows the aluminium bearings like the ones in the kit and was surprised at the maximum load rating. Quite a lot.
Vince
-
- Posts: 118
- Joined: Fri Feb 14, 2014 10:30 pm
- Location: Queensland Australia
- Has liked: 1 time
- Been liked: 231 times
Re: Lazy Susan - turntable
Hi Alastair
I have one more rotisserie left if your interested.
viewtopic.php?f=4&t=6367&p=53939&hilit= ... rie#p53939
Liam
I have one more rotisserie left if your interested.
viewtopic.php?f=4&t=6367&p=53939&hilit= ... rie#p53939
Liam
- AlastairCooke
- Posts: 202
- Joined: Tue Jul 16, 2019 9:59 am
- Has liked: 8 times
- Been liked: 595 times
Re: Lazy Susan - turntable
Thanks All,
I have placed an order for a bearing as suggested by Stephen.
Alastair
I have placed an order for a bearing as suggested by Stephen.
Alastair
Alastair
Tiger 1 (2015 #01 with 2012 parts)
Tiger 1 (2015 #01 with 2012 parts)
-
- Posts: 32
- Joined: Mon Aug 12, 2019 12:15 pm
- Been liked: 15 times
Re: Lazy Susan - turntable
Hi Stephen,
i have identified a motorbike lift like the one you pictured which i will purchase. what size of lazy susan bearing did you use please,(lots of sizes on the link) and thanks for putting in the link of where to buy them, saves a lot of time searching, BTW i will be building a KT when i get it as a slight delay has been announced by Monique, but judging by the load rating on the bearings all should be totally fine but i was thinking on stability for the area of the bearing in relation to the lift base.
Thanks
Regards
John
i have identified a motorbike lift like the one you pictured which i will purchase. what size of lazy susan bearing did you use please,(lots of sizes on the link) and thanks for putting in the link of where to buy them, saves a lot of time searching, BTW i will be building a KT when i get it as a slight delay has been announced by Monique, but judging by the load rating on the bearings all should be totally fine but i was thinking on stability for the area of the bearing in relation to the lift base.
Thanks
Regards
John
-
- Site Admin
- Posts: 3100
- Joined: Sat Oct 11, 2008 7:05 pm
- Location: Dorset
- Has liked: 983 times
- Been liked: 2047 times
- Contact:
Re: Lazy Susan - turntable
John, you need the 9" round:

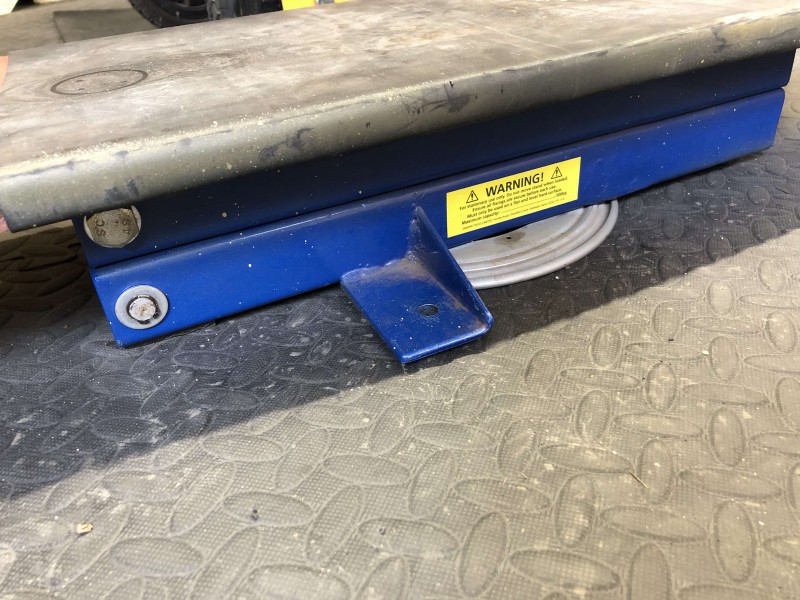

Bolt the lazy susan to the underside of the motor-cycle lift and bolt a suitable piece of MDF to the top. That's designed to spread the load on the hull undersurface.
I drilled the two base flanges of the motor cycle lift with corresponding holes in the lift table and used a couple of M8 set screws dropped in to locate the lift onto the correct position on the table. You can leave these bolts loose to make removal quick.
In use with a fully built tank, lower the MC lift, slide the MC lift under the hull and locate with the positioning set screws. Jack up the hull with an extended ratchet socket and place two lengths of "four be two" under the tracks. I then lower the tank until the tracks are just resting on the wooden rests but with the weight off the suspension. This is a good thing to do for all models for longer term storage but particularly for those with torsion bar suspension. For maintenance, you can then raise the tank to run the tracks or to move it off the table, lower the tank onto the rests, remove the MC lift and then drive the tank off the table via motor cycle or wheelchair ramps. I'll take a couple of photos tomorrow.
I ought to complete writing the Knowledge Base topic on the subject of moving the models, which I'll do sometime.
Bolt the lazy susan to the underside of the motor-cycle lift and bolt a suitable piece of MDF to the top. That's designed to spread the load on the hull undersurface.
I drilled the two base flanges of the motor cycle lift with corresponding holes in the lift table and used a couple of M8 set screws dropped in to locate the lift onto the correct position on the table. You can leave these bolts loose to make removal quick.
In use with a fully built tank, lower the MC lift, slide the MC lift under the hull and locate with the positioning set screws. Jack up the hull with an extended ratchet socket and place two lengths of "four be two" under the tracks. I then lower the tank until the tracks are just resting on the wooden rests but with the weight off the suspension. This is a good thing to do for all models for longer term storage but particularly for those with torsion bar suspension. For maintenance, you can then raise the tank to run the tracks or to move it off the table, lower the tank onto the rests, remove the MC lift and then drive the tank off the table via motor cycle or wheelchair ramps. I'll take a couple of photos tomorrow.
I ought to complete writing the Knowledge Base topic on the subject of moving the models, which I'll do sometime.
-
- Posts: 32
- Joined: Mon Aug 12, 2019 12:15 pm
- Been liked: 15 times
Re: Lazy Susan - turntable
Hi Stephen,
many thanks for your full reply, a great help as to the why and where for to a novice to Armortek, all hints and tips greatfully recieved s i can learn from your hard earned knowledge.
Many thanks
John
many thanks for your full reply, a great help as to the why and where for to a novice to Armortek, all hints and tips greatfully recieved s i can learn from your hard earned knowledge.
Many thanks
John
-
- Posts: 32
- Joined: Mon Aug 12, 2019 12:15 pm
- Been liked: 15 times
Re: Lazy Susan - turntable
Hi Stephen,
lift bought and bearing ordered, now just have to wait for my KT,
Thanks for your advise.
Regards
John
lift bought and bearing ordered, now just have to wait for my KT,
Thanks for your advise.
Regards
John
- Armortek
- Site Admin
- Posts: 2810
- Joined: Tue Jul 10, 2007 10:30 am
- Location: Winchester, England
- Been liked: 3059 times
Re: Lazy Susan - turntable
Prompted by Alastair's original question, I've now updated the Knowledge Base Topic on moving models, here:
http://www.armortek.co.uk/Forum3b/viewt ... 044#p49293
It might seem a bit basic to the old hands but I hope will be useful guidance to those starting out. As ever, there are many ways to do this and, as the Knowledge Base is supposed to be a place for collective best practice, it would be good to cover other options. Please comment or add suggestions to broaden the base of knowledge on this or any other topic.
Thanks. Stephen
http://www.armortek.co.uk/Forum3b/viewt ... 044#p49293
It might seem a bit basic to the old hands but I hope will be useful guidance to those starting out. As ever, there are many ways to do this and, as the Knowledge Base is supposed to be a place for collective best practice, it would be good to cover other options. Please comment or add suggestions to broaden the base of knowledge on this or any other topic.
Thanks. Stephen
