I fell over this original Tiger 1 picture showing the angles for the gun up-down elevation.
On my Tiger the top angle seems to be a wrong angle - what do you think?

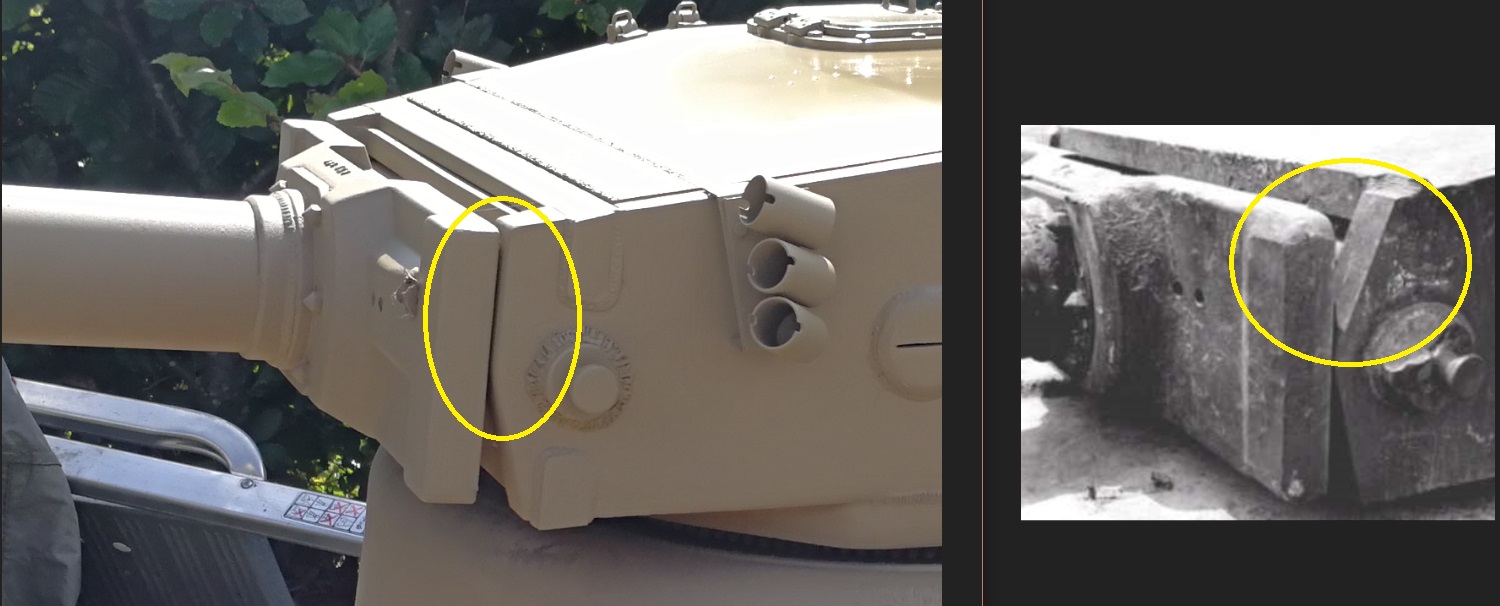

Have drawn yellow circles of the areas
TIger 1 - Gun elevation up-down angle
-
Steen Vøler
- Posts: 771
- Joined: Mon Nov 19, 2012 2:45 pm
- Location: Denmark
- Has liked: 62 times
- Been liked: 500 times
-
yves mouton
- Posts: 1053
- Joined: Fri Nov 06, 2009 7:55 pm
- Location: Belgium
- Has liked: 1 time
- Been liked: 741 times
Re: TIger 1 - Gun elevation up-down angle
Hello Steen,
It looks like the front of turret angle is wrongly milled.
Best regards Yves
It looks like the front of turret angle is wrongly milled.
Best regards Yves
-
Christoffer Ahlfors
- Posts: 702
- Joined: Sun Feb 14, 2010 5:19 pm
- Location: Stockholm, Sweden
- Has liked: 746 times
- Been liked: 359 times
Re: TIger 1 - Gun elevation up-down angle
Maybe this drawing from Roland Mann is of help. He also had an early vintage tiger.
A little too much is about right...
