testing new bosch headlights

[Steen Vøler]

installed the amazing steve winstone bosch headlights and tail light

[Tim Page]

Looks good, although the tail light should be green.......

[Steen Vøler]

Hi Tim
That is a easy fix thanks for info

[Kent Wiik]

Looks good, although the tail light should be green.......

And with measurements seen here:
http://www.network54.com/Forum/47207/thread/1334587654

And this is how they looked like:
Kind regards
Kent

[Steen Vøler]

thats a very detailed picture - thanks Kent

[Christoffer Ahlfors]

And with measurements seen here:
http://www.network54.com/Forum/47207/thread/1334587654

The measurements are gone...

[Kent Wiik]

Yes Chris I noticed that now.
Sadly someone has deleted that information.

But I remember that the 1:10 drawing in Panzer Tracts 5-2 was correct in overall size.
Total length: 200mm
Diam at the ends: ~50mm (the black bulb with 4 green squares a bit smaller)

Hope this helped

Kind regards
Kent

[Christoffer Ahlfors]

Hope this helped

It sure does! Thank you very much, Kent!

[mark lawson]

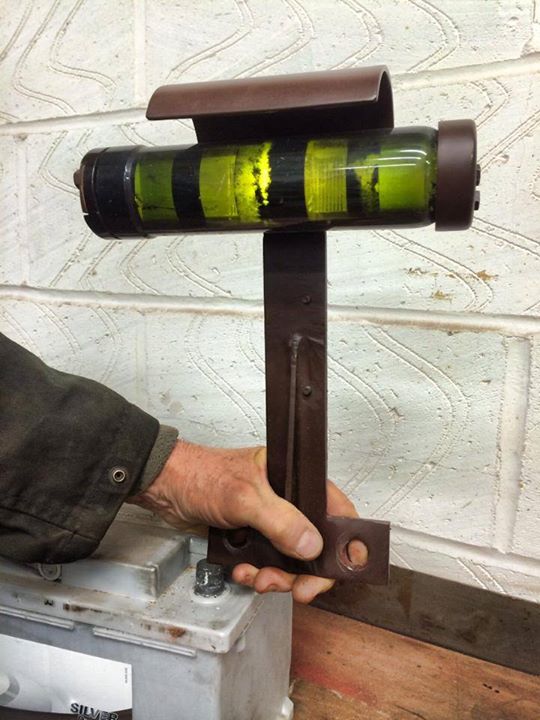

This is my convoy light i modified some time ago using one of Steve Winston's lights, sorry about the quality
