Bump stops.

Forum for discussion relating to Tiger 1, Mid, Early, Late Production and Sturmtiger
User avatar
Adrian Harris
Posts: 5132
Joined: Thu Jul 12, 2007 10:46 pm
Location: Berkshire (UK)
Has liked: 1486 times
Been liked: 1695 times

Bump stops.

Post by Adrian Harris »

I've been looking at the suspension parts and wondering about the missing bump stops.

Vince made some a while ago but I don't know how many people have fitted them :?:
Is the jury still out on whether they are a required item or not :?:

Roland (Mann) - how did you manufacture yours :?: They look superb :!:

Adrian.

Marc Ford
Posts: 42
Joined: Sun Sep 30, 2007 8:34 pm
Location: Somerset
Been liked: 2 times

Post by Marc Ford »

Hi Adrian

Like you i missed the boat on Vince Abbot bump stops so i improvised.All you need do is put two tap washers on a m5 bolt through the holes provided front and back and fill the rest as not needed,secure these with a washer and nylock nut.When all the wheels are on and the tank's been driven through mud you will never see them,mine have been on for two years with no problems.Cost £1.

All the best
:D
Marc
Vere did all zose shermans come from ?

David Pengelly
Posts: 129
Joined: Tue Jul 31, 2007 4:48 pm
Location: South Wales ( the old one )
Been liked: 2 times

Post by David Pengelly »

I made my bump stops from 12.7 mm nylon stock bar, drilled and bolted to the bolt hole adjacent to the suspension arm. Unlike Marc, I fitted a full set . I also agree with Marc that they cannot be seen .
Was die Hölle das war

Dale jordan
Posts: 1456
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been liked: 514 times
Contact:

Post by Dale jordan »

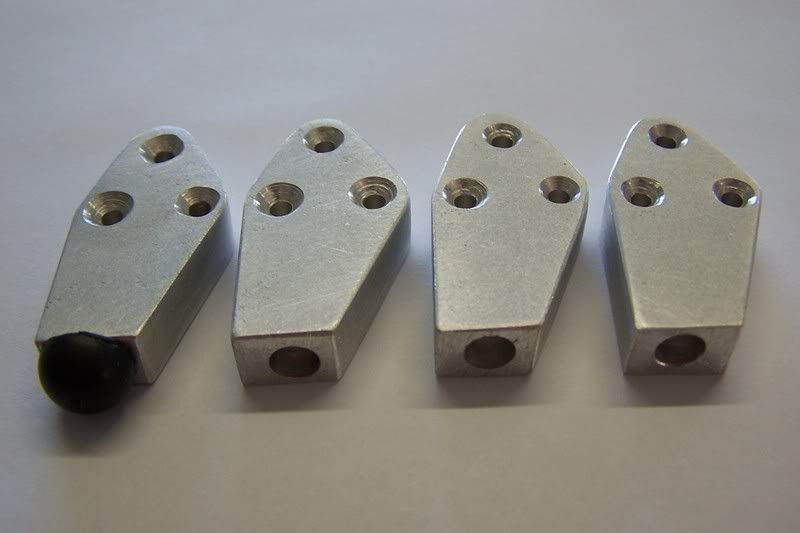

Adrian here is a photo of the bump stops that I made .. They just bolt straight into the three holes on the hull . When I go home to night I will see If I can find my template . If so I will post them to you ... Dale



Dale jordan
Posts: 1456
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been liked: 514 times
Contact:

Post by Dale jordan »

Here is a photo of one of the bump stop on the hull . You only need four ...



Allan Richards
Posts: 743
Joined: Thu Jul 12, 2007 10:34 am
Location: Kent
Been liked: 10 times

Post by Allan Richards »

Dale,

Foer us guys who's Tigers are sagging a little at the rear (comes to us all mate!!) these bump stops could be usefull to raise the rear road wheels a little if the rubber were to be replaced with a strongish spring to augment the torsion bar. Has anyone done this mod??
Allan Richards

Roland Mann
Posts: 174
Joined: Thu Jul 12, 2007 4:45 pm
Location: Stavenow, Germany
Been liked: 19 times

Post by Roland Mann »

Hi Adrian,

thank you for the flowers as we say here in germany. My bump stops are made of different parts from steel exept the rubber cubes. Base is a steel profile angle 25x25x2 mm. The two rounds of 7 mm Ø are placed in it. All comes together with silver soldering step by step. Best impression gives the photo in my gallery, album hull, page 2 with photo DSC 008. Here you still see the parting lines of the different parts just after siver soldering and milling the final assembly. The rubber is glued on a 1 mm stainless plate and hold in place by two M2 brass bolts - as it was on the real thing.

OK, I agree with with other members, ones the tracks are fitted you can hardly see the bump stops. However, I feel fine and find my peace of mind as it is with so many other items.

Best regards Roland
Der Weg ist das Ziel.

User avatar
Adrian Harris
Posts: 5132
Joined: Thu Jul 12, 2007 10:46 pm
Location: Berkshire (UK)
Has liked: 1486 times
Been liked: 1695 times

Post by Adrian Harris »

Dale - thank you for the close ups of your design, they look to be something I should be able to recreate here.

Roland - thank you for the explanation of your construction method, I can see now from your pictures how the part was built up. I've not done any silver soldering yet so these might be an interesting part on which to learn.

Adrian.

Stephen Mason
Posts: 72
Joined: Mon May 26, 2008 11:06 pm
Location: Romsey. Hampshire
Has liked: 1 time
Been liked: 4 times

Post by Stephen Mason »

Dale jordan wrote:Adrian here is a photo of the bump stops that I made .. They just bolt straight into the three holes on the hull . When I go home to night I will see If I can find my template . If so I will post them to you ... Dale


Hi Dale,
Is it possible that you could forward me a copy of the template that you used to make your bumpstops please? I would like to add these missing bumpstops to my Tiger.

Many thanks.
Steve

Dale jordan
Posts: 1456
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been liked: 514 times
Contact:

Post by Dale jordan »

Hello Steve . I lent the template for the bump stops to Rick in Sydney for he's tiger that was a while ago . I rang him the other day he is going to post them back to me next week , so when I have it I will let you know . Dale

Stephen Mason
Posts: 72
Joined: Mon May 26, 2008 11:06 pm
Location: Romsey. Hampshire
Has liked: 1 time
Been liked: 4 times

Post by Stephen Mason »

Ok, Thanks Dale.

Steve

Richie Wignall

bump stops

Post by Richie Wignall »

hi guys

does any one else have any photos of home made bump stops? as i want to fit them also, with haveing pushed one past its limit! :(

thanks richie. :wink:

r-wignall@sky.com

Dale jordan
Posts: 1456
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been liked: 514 times
Contact:

Post by Dale jordan »

wooooop . I did ask Rick to send them back .. Then I forgot to chase him up . I will , E.mail he today.... Dale

Dale jordan
Posts: 1456
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been liked: 514 times
Contact:

Post by Dale jordan »

I have just got of the phone with Rick he has just posted the template to me today . So next week I will get in contact with you guys . Dale

Dale jordan
Posts: 1456
Joined: Fri Jul 13, 2007 1:10 am
Location: Port Macquarie Australia
Been liked: 514 times
Contact:

Post by Dale jordan »

Hello Adrian . I have the bump stop template as of today . Can you PM me your address then I will post it to you . Adrian I will buy enought rubber stoppers to make up four or five set . you only need four per tiger . That way after you have traced around the template and used your four stoppers , you can then post it onto the other guys on forum .
Adrian I have two spare sherman hatch lines would you like them for your sherman ?? Dale
