Mark IV 006

Post by Ray Brown »

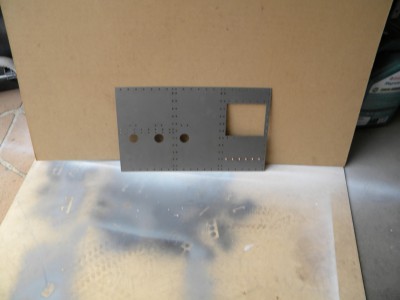

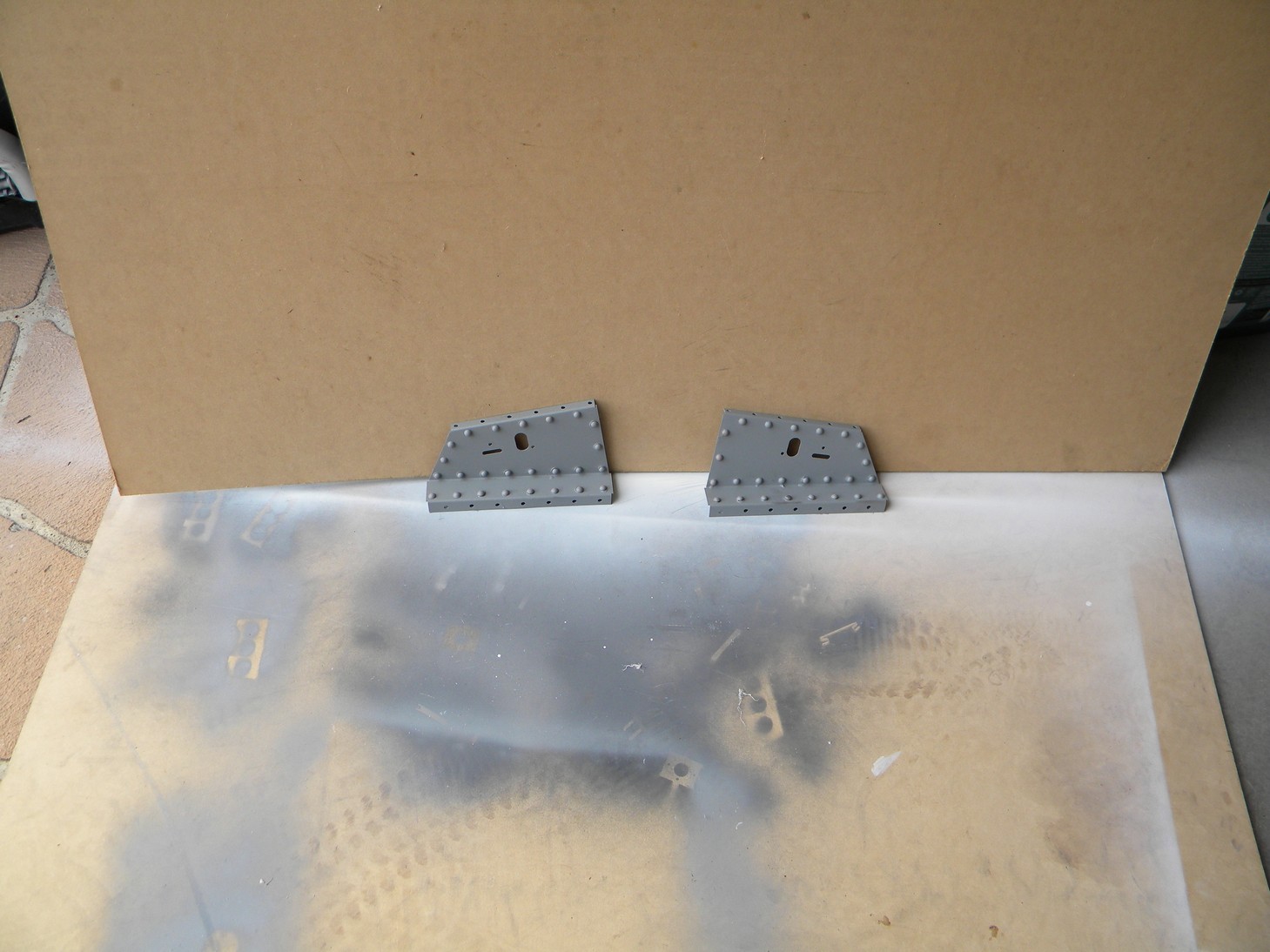

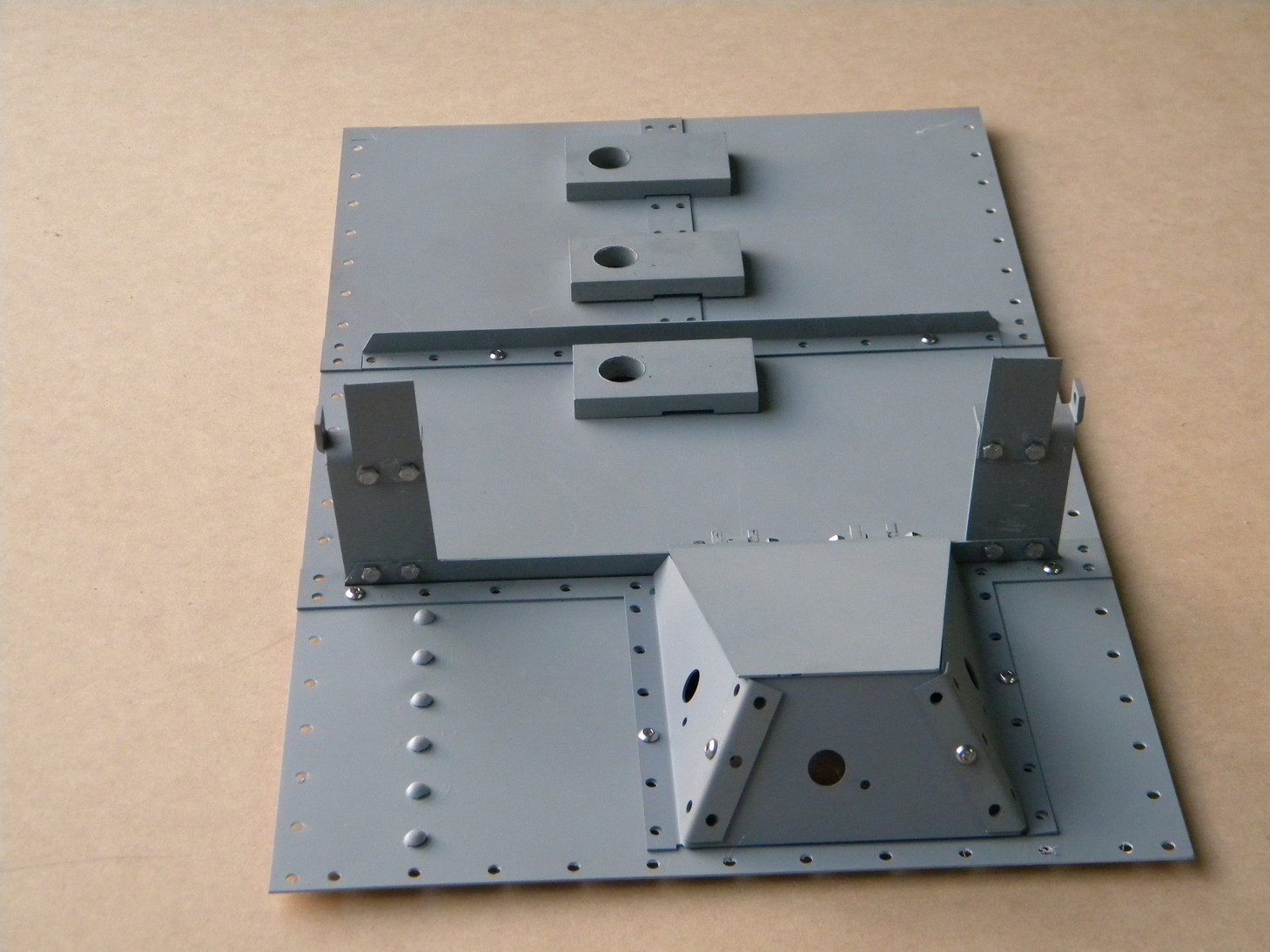

Build project as per page of manual.

Page 1
Page 1
Page 1
Page 2
Page 3
Page 4 On page 4 it tells you to rivet certain holes. I did this unaware of the addition of the cabin front angle. I found no number reference and notice a different part color but no number. Anyway leave it (left hand side as you look at it) and the back top corners open for the beam support lugs. Or you can rivet the piece at this stage and put to one side.
Page 5

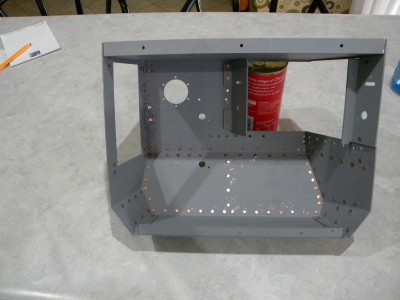

Page 6
Last edited by Ray Brown on Sun Jan 04, 2015 2:55 am, edited 1 time in total.

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

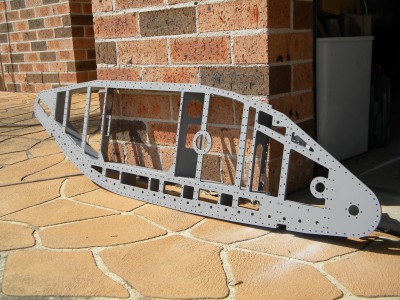

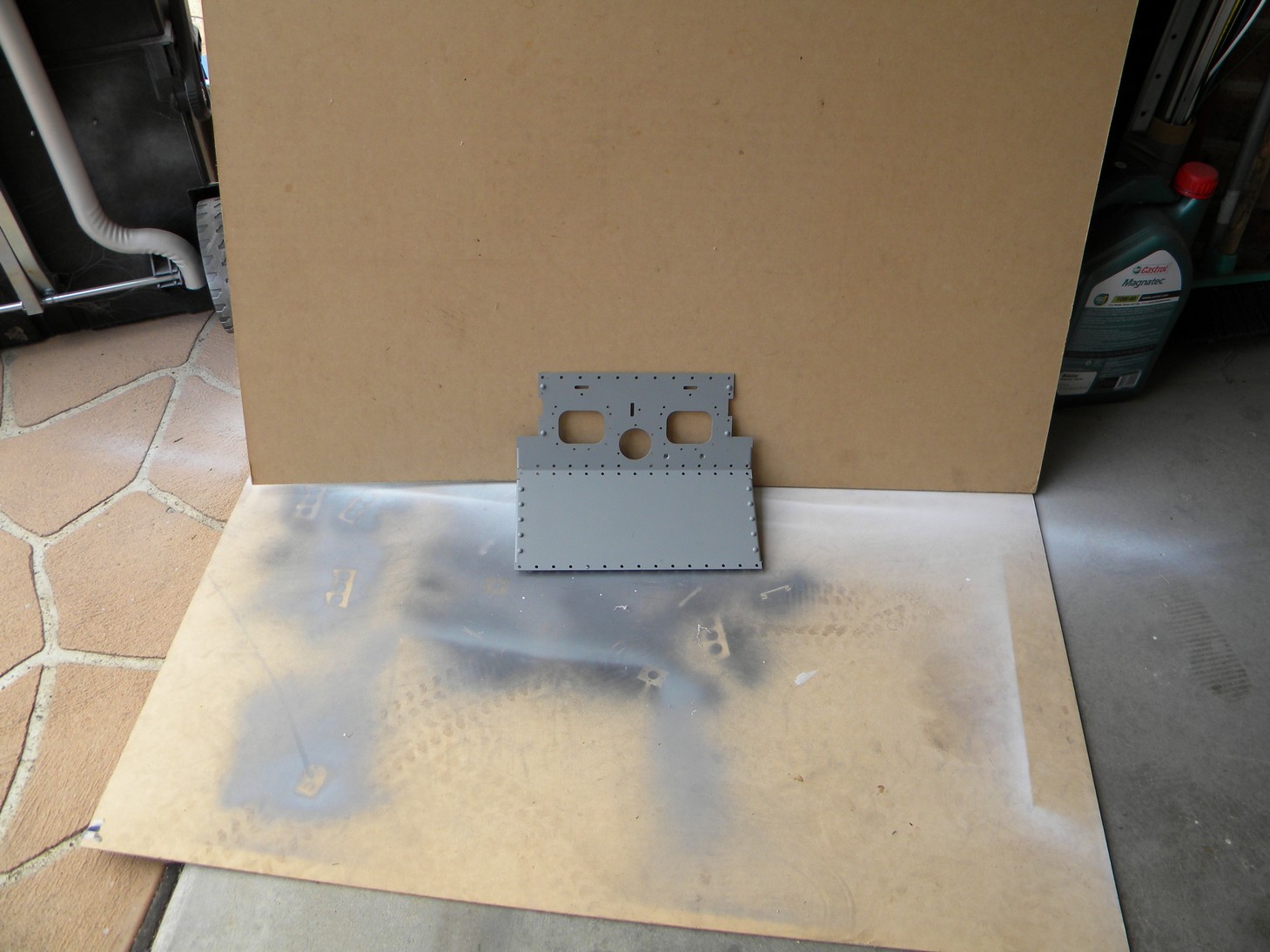

Page 7

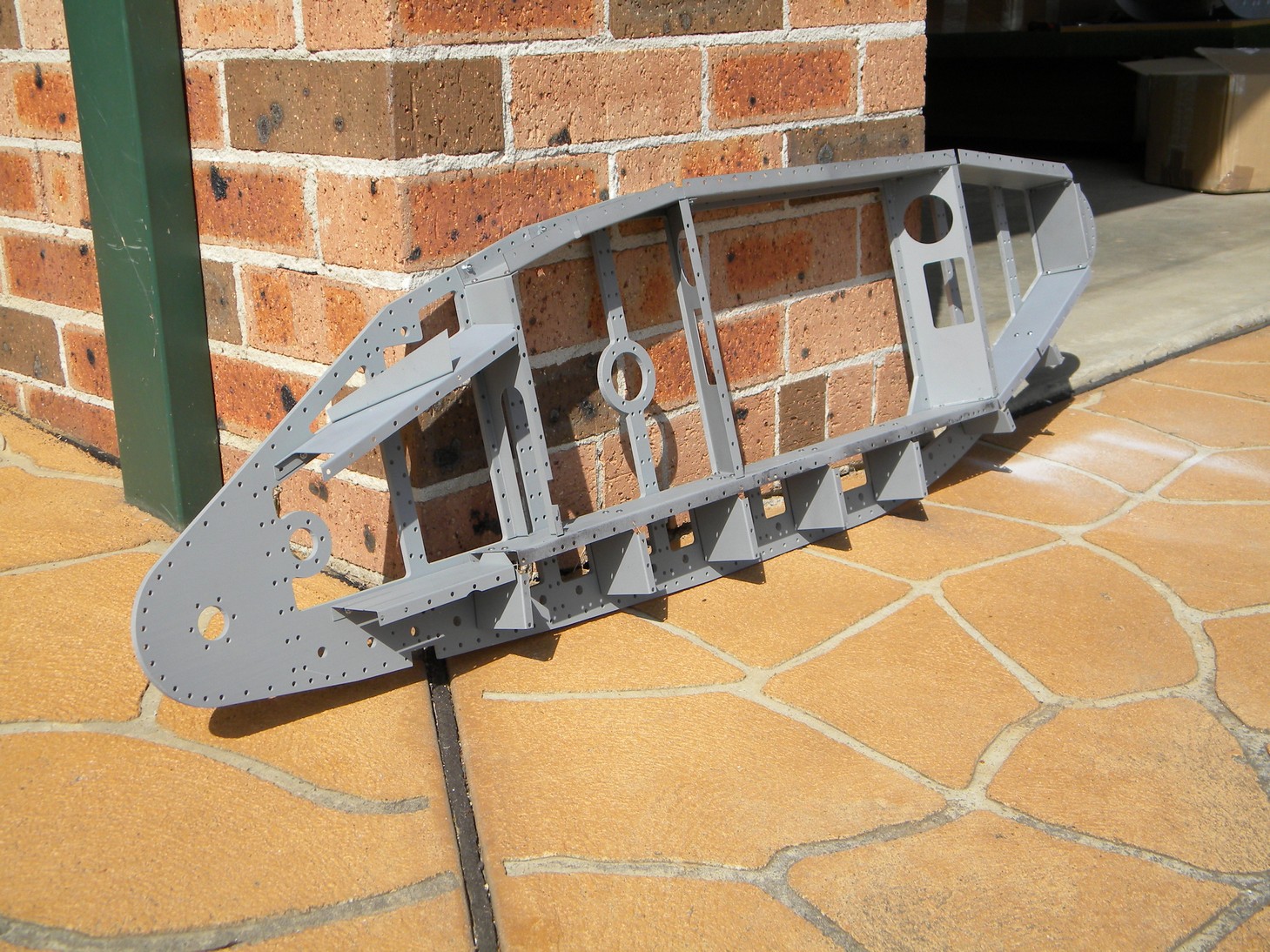

Page 8

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

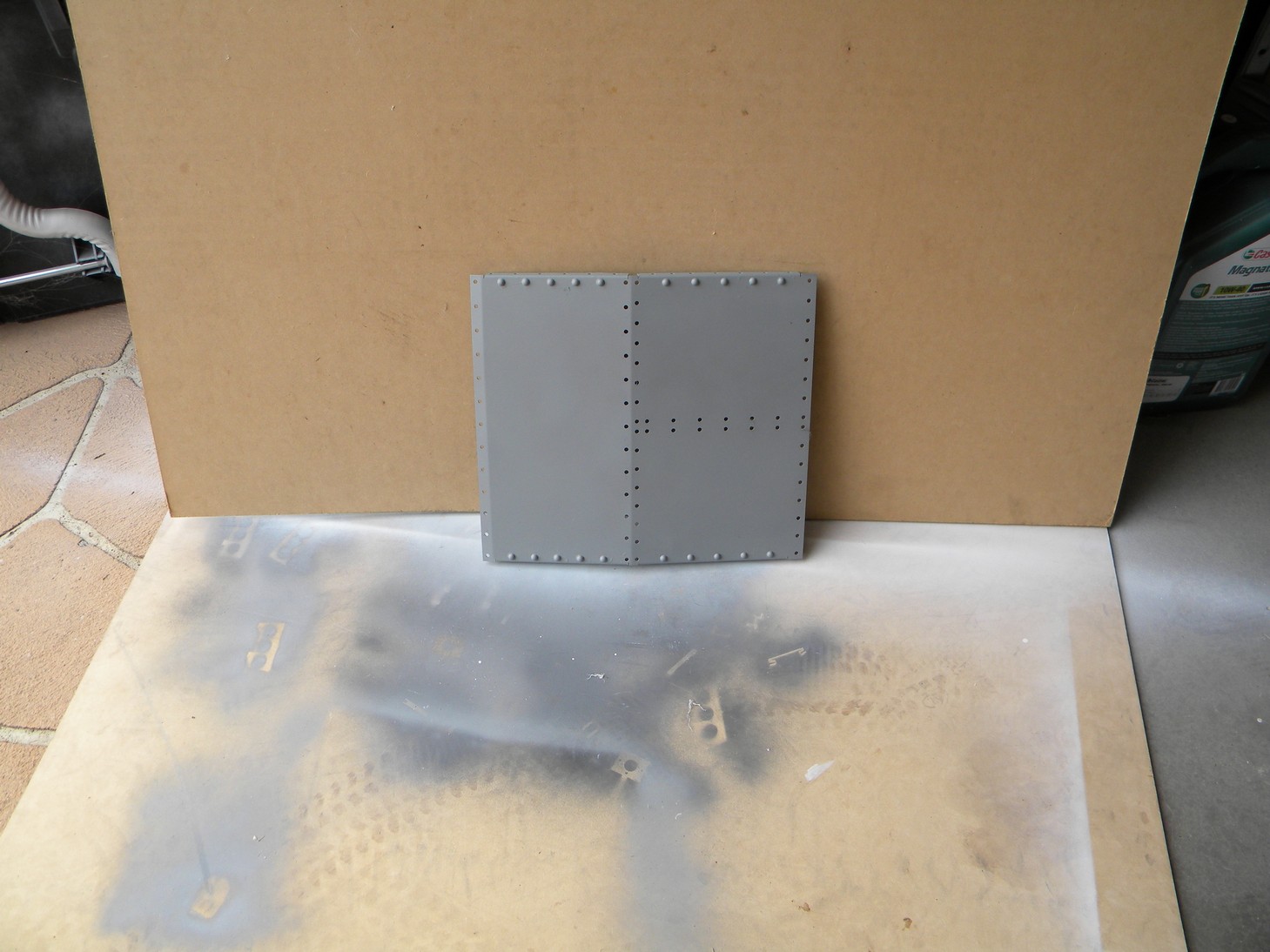

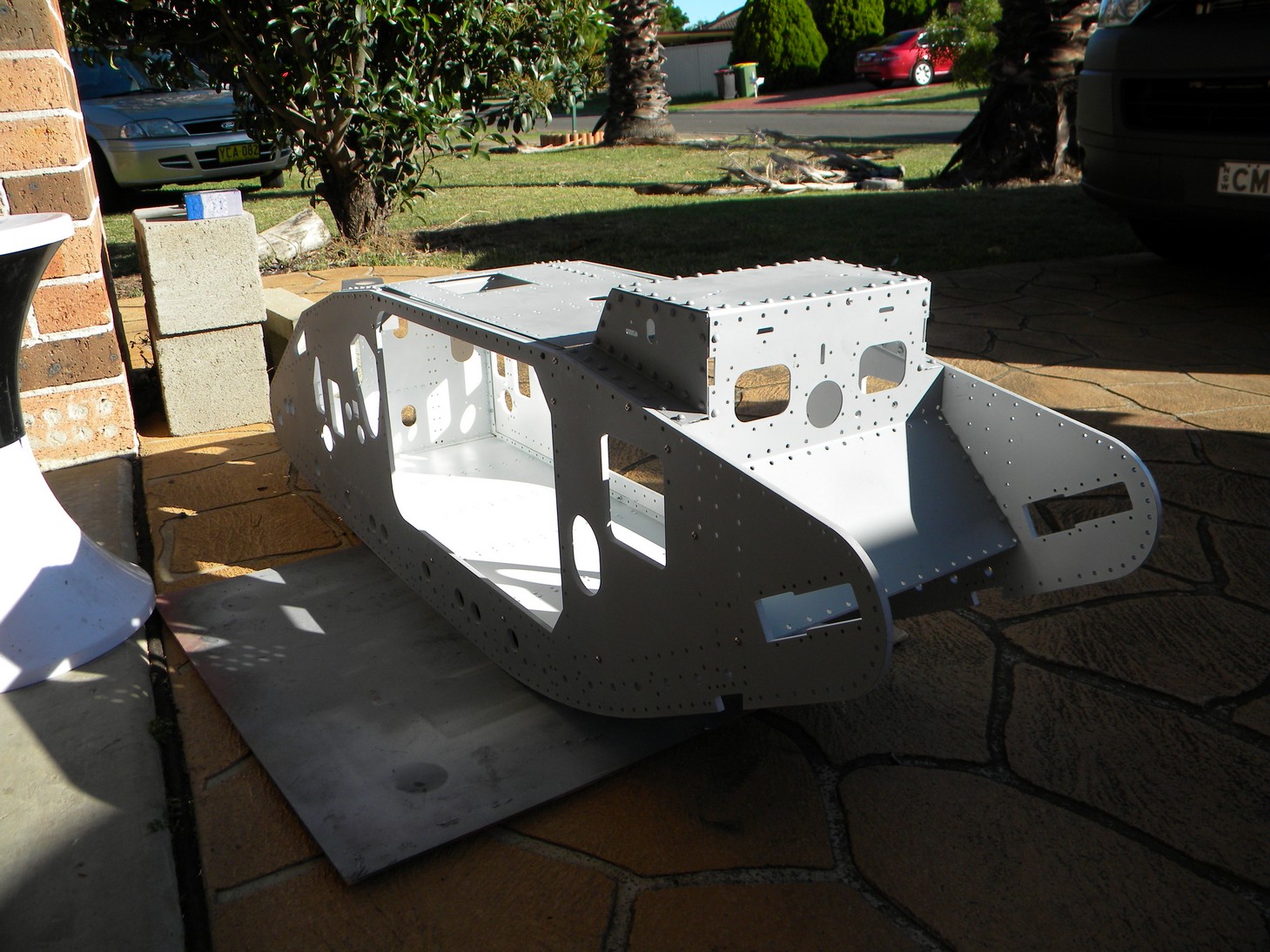

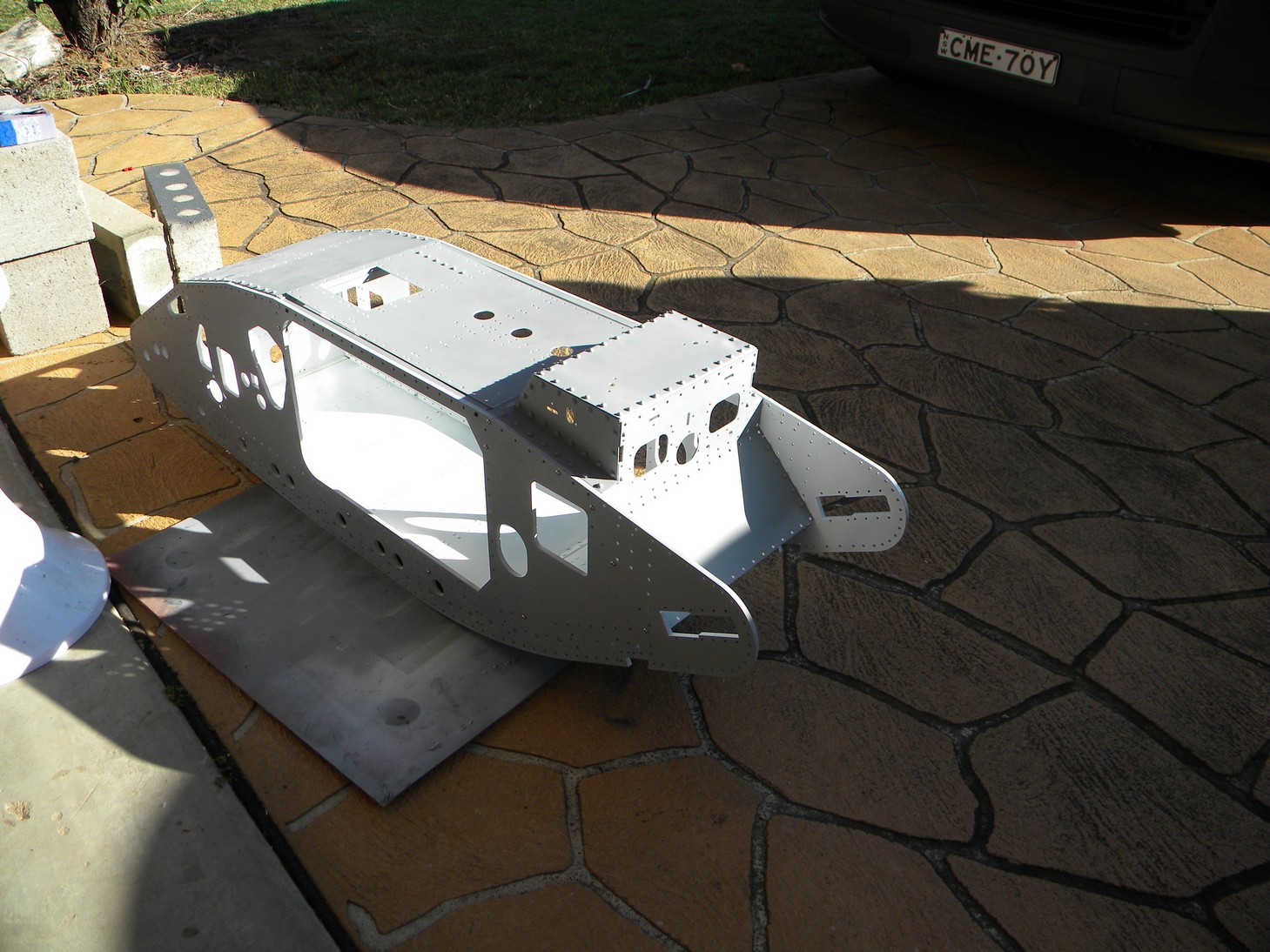

Page 9 & 10 Photos.

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

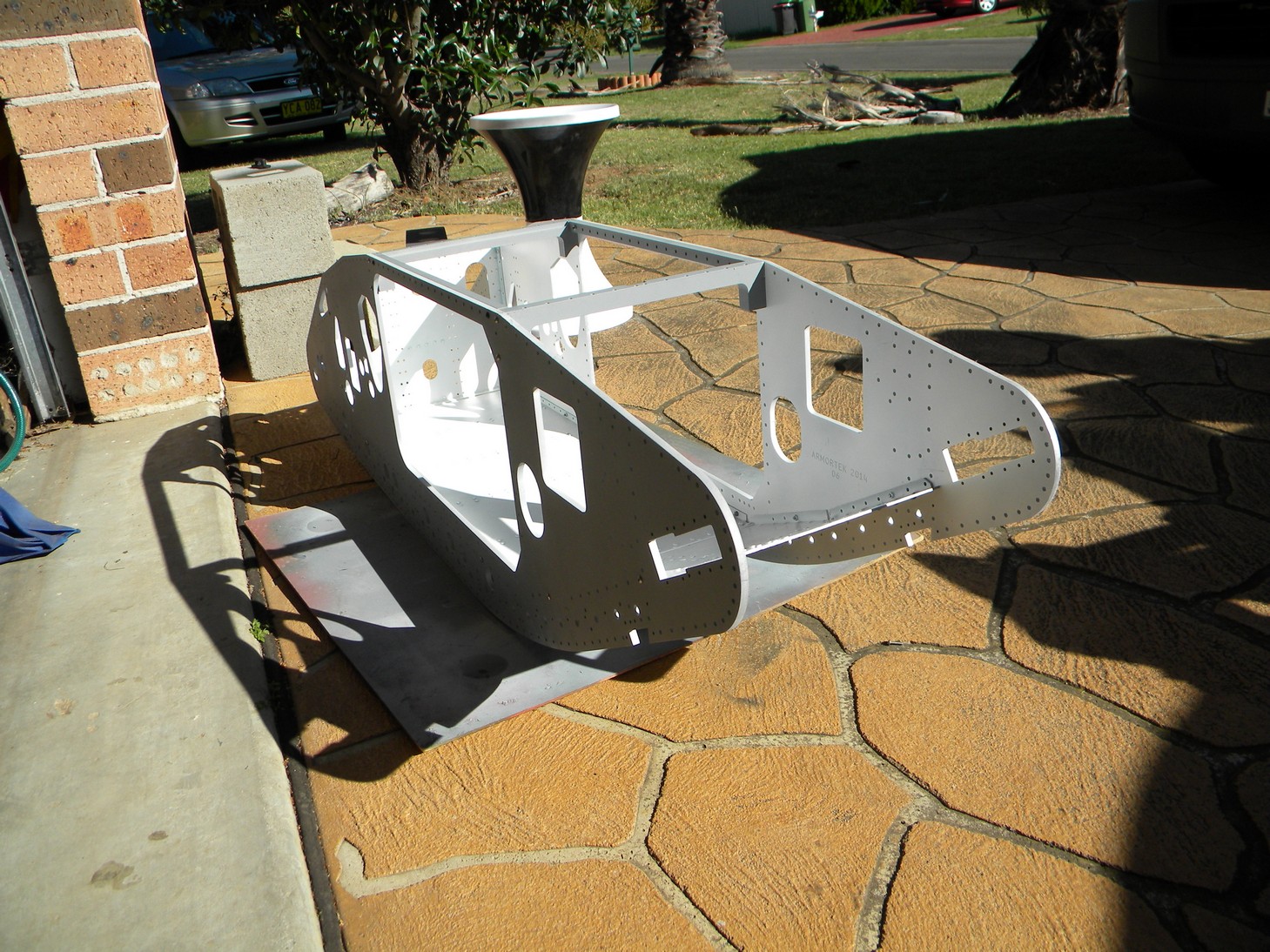

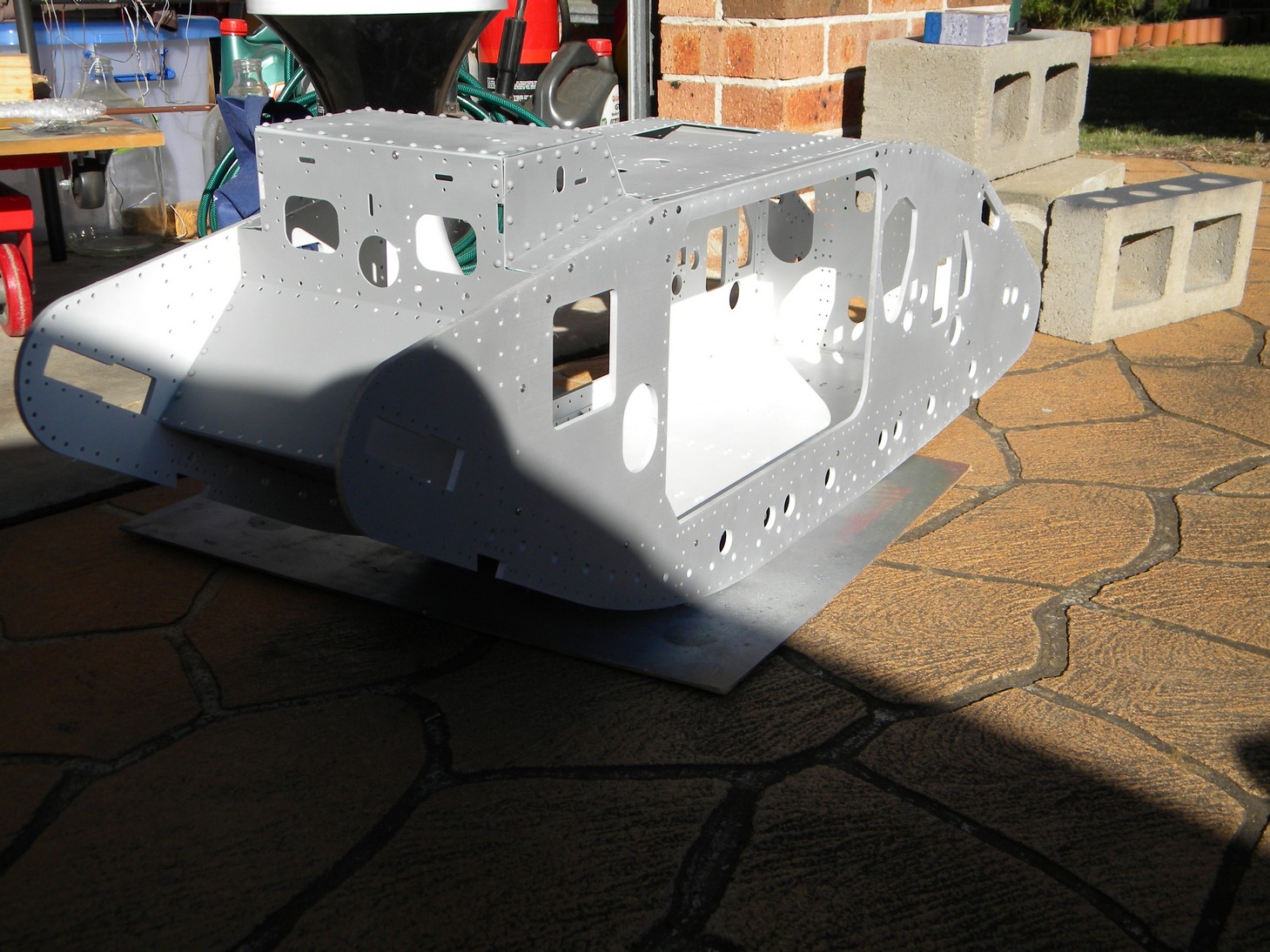

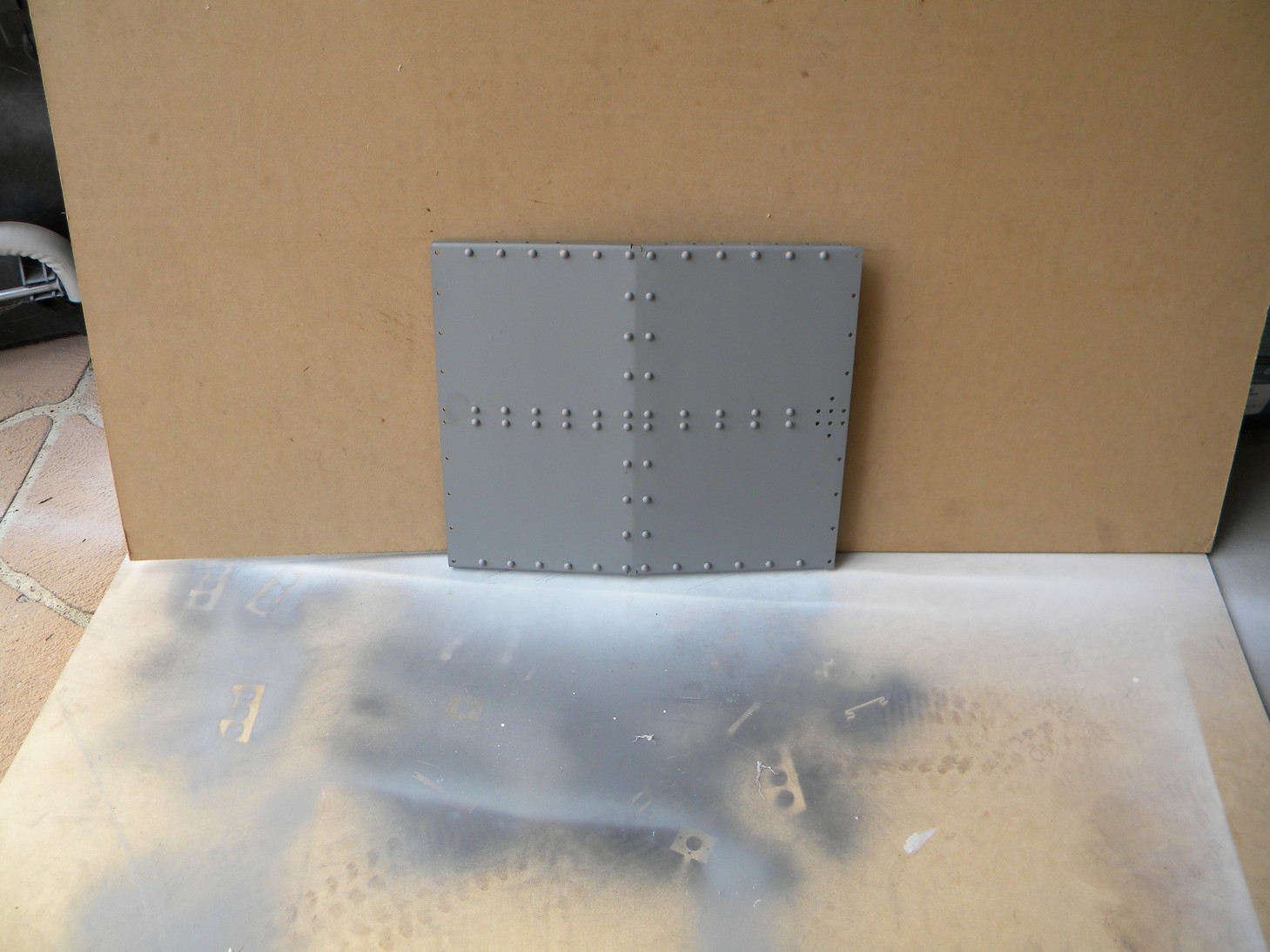

Pages 11 & 12.

Derek Attree
Posts: 1307
Joined: Thu Jul 12, 2007 12:44 pm
Location: london
Has liked: 219 times
Been liked: 200 times

Re: Mark IV 006

Post by Derek Attree »

Hi Ray
Looking good quick work there and the weather looks great :D

Derek
we must stop making stupid predictions

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

Thanks Derek. Straight forward build with a little forethought about where & when to permanently install rivets. There appears to be sub structures built and put aside and a jump to other sub substructures to finalizing details before mounting permanently. I'll post pics with notes but I think details to pieces could've b been done early in the build.

Ray

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

Decided on Tankk 2399 Abou-Ben-Adam II

20-Nov-17 - A bttn, 1 Coy, 1 sec, A2 Lt Duncan CW - A2 was hit and stopped by five trench mortar hits beyond the Hindenburg Line, the OIC and Driver were KIA and the rest of the crew were wounded by the fifth hit. The crew dismounted and Capt Wain silenced 3 MG guns with a Lewis gun before he was shot from behind by a sniper and killed Captain Wain was awarded a posthumous VC W1a

According to info on https://sites.google.com/site/landships ... 300---2400

Just unsure where name and numbers go at this stage.

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

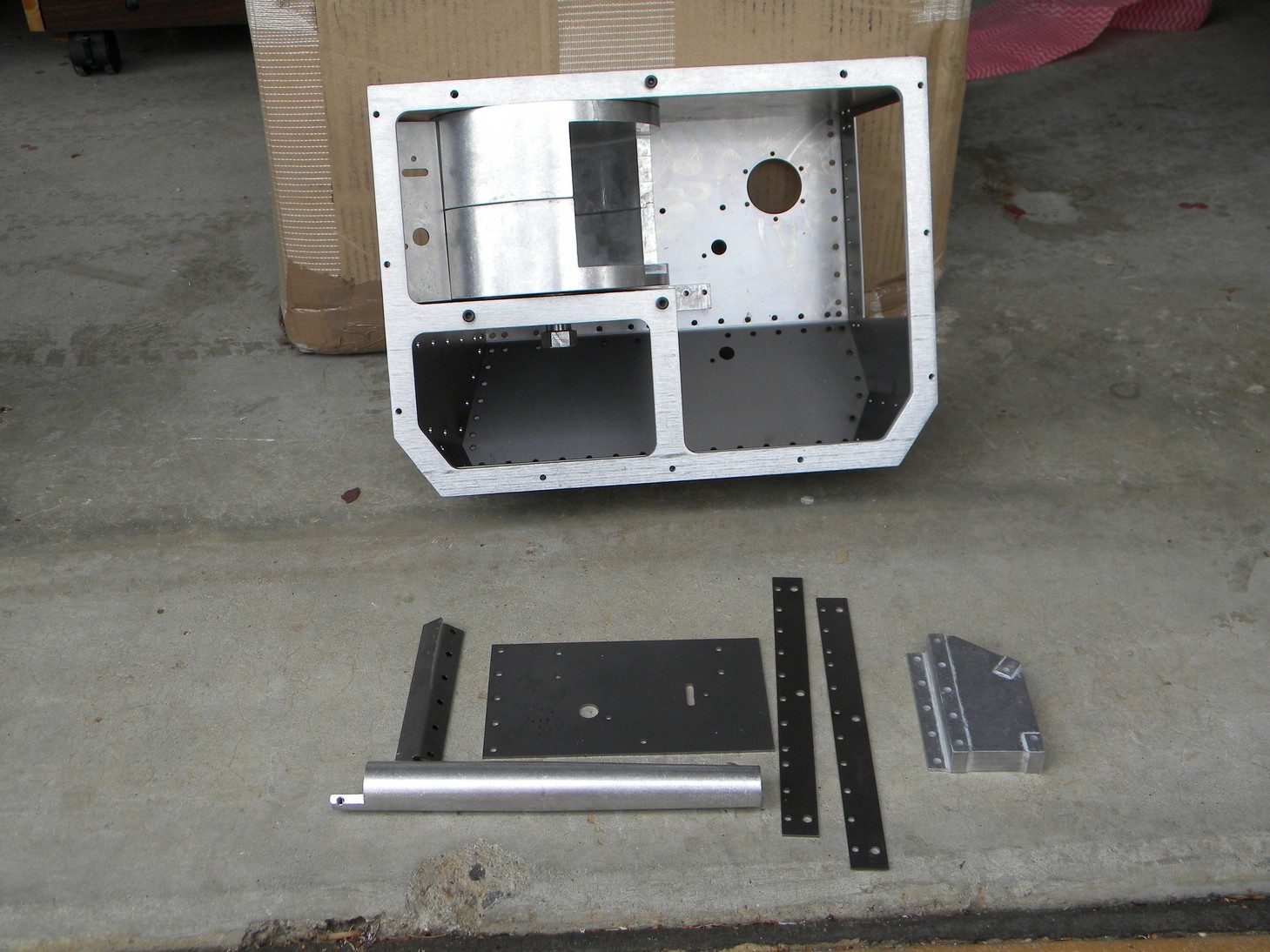

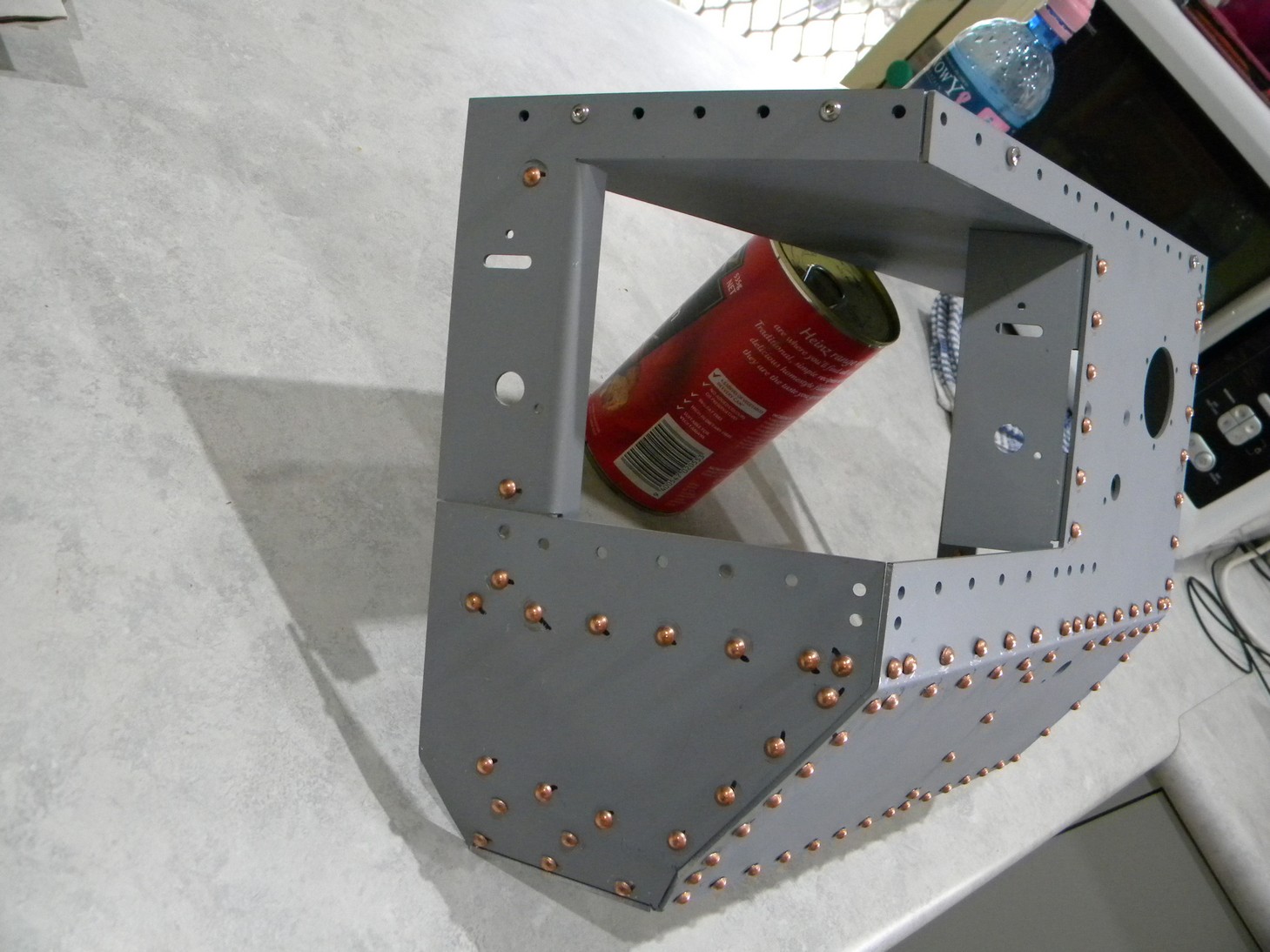

Dry fitted pieces on page 16 & 32 to the piece on page 6. As is now I believe these pieces could be added at page 6 and set aside. Anyway, I'll post again after I perma rivet.

Just my opinion.

User avatar
Armortek
Site Admin
Posts: 2935
Joined: Tue Jul 10, 2007 10:30 am
Location: Winchester, England
Been liked: 3698 times

Re: Mark IV 006

Post by Armortek »

Hi Ray

Looks good. You are completely correct, this looks an ideal sub assembly

Mark
Armortek

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

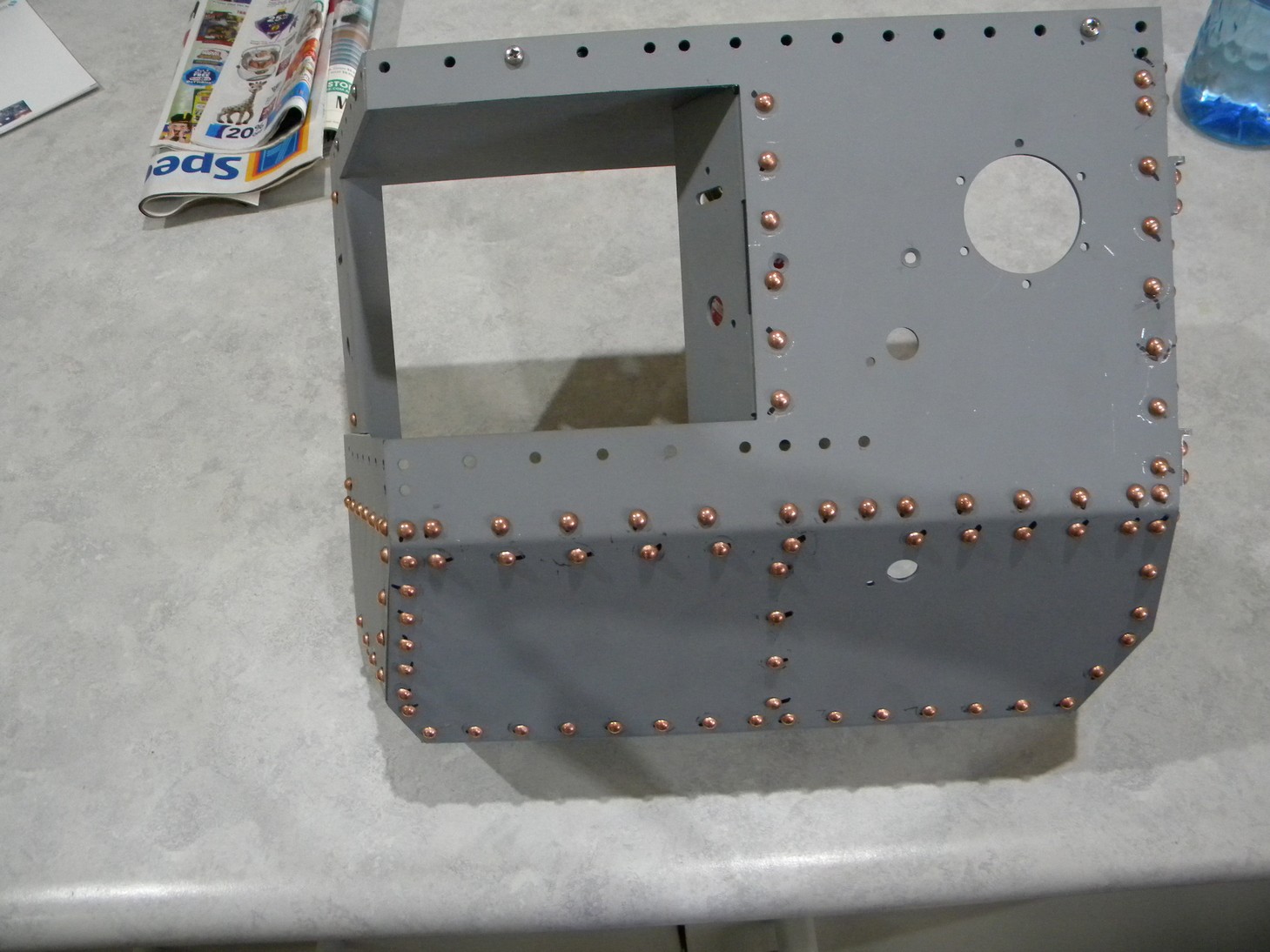

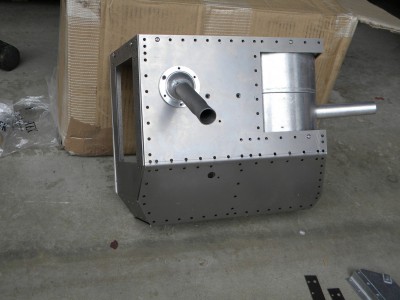

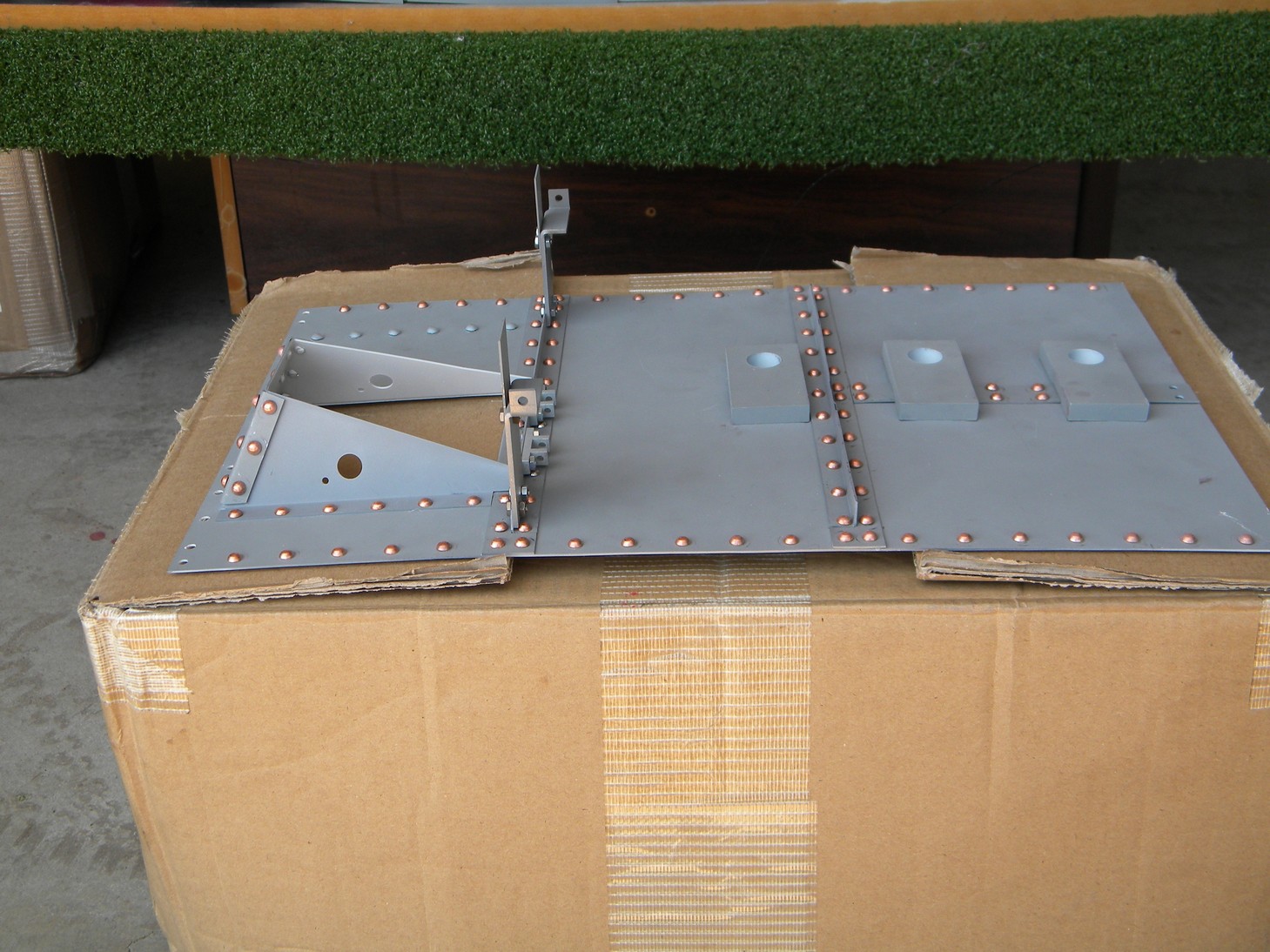

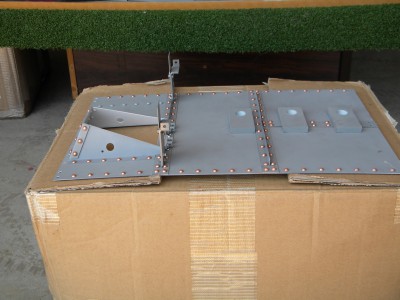

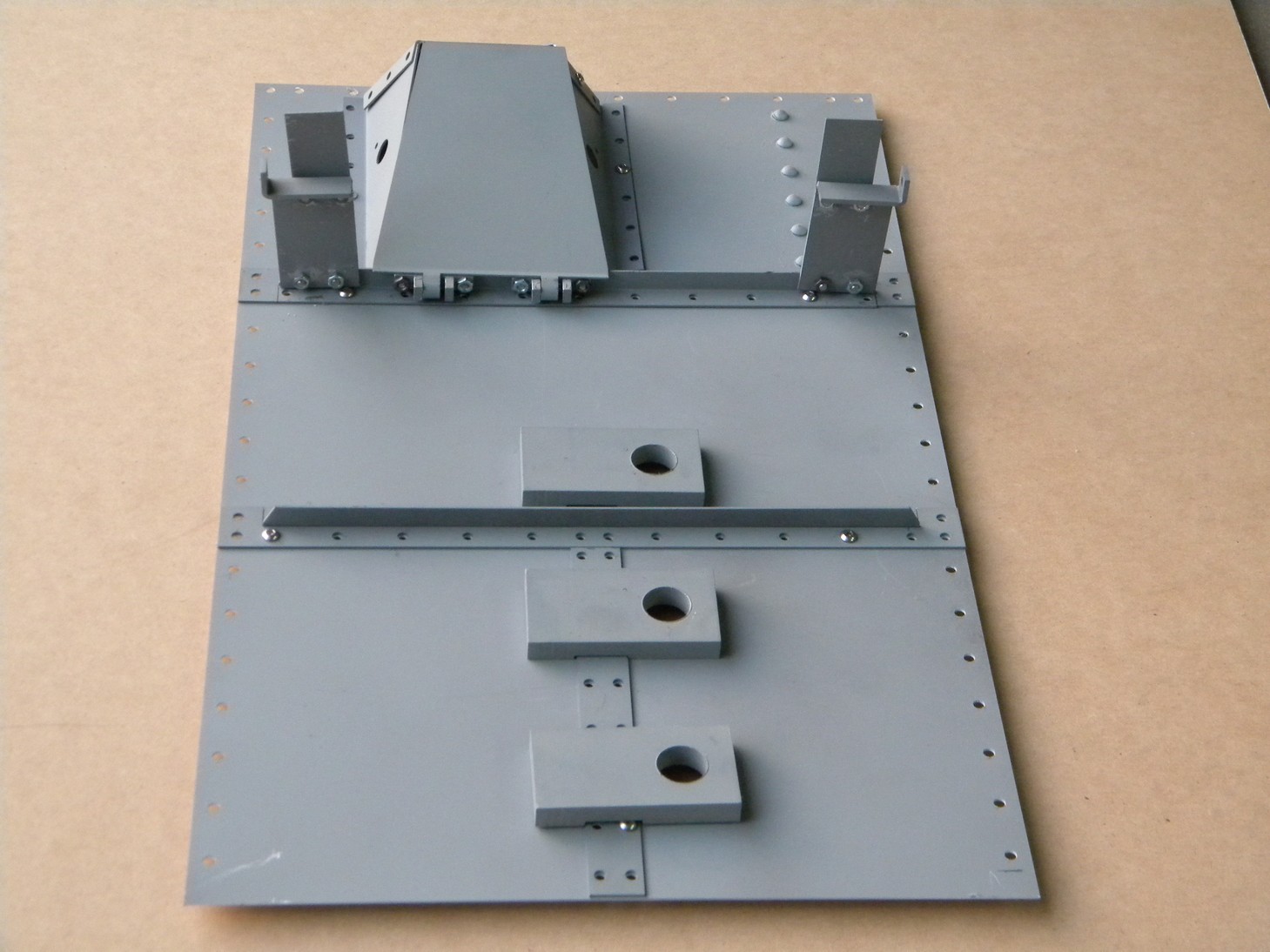

Page 6 sub assembly. Add all rivets and strips as per this photo. Then set aside. The muffler and exhaust stacks can also be fitted at this stage I just hadn't added them in the photos.

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

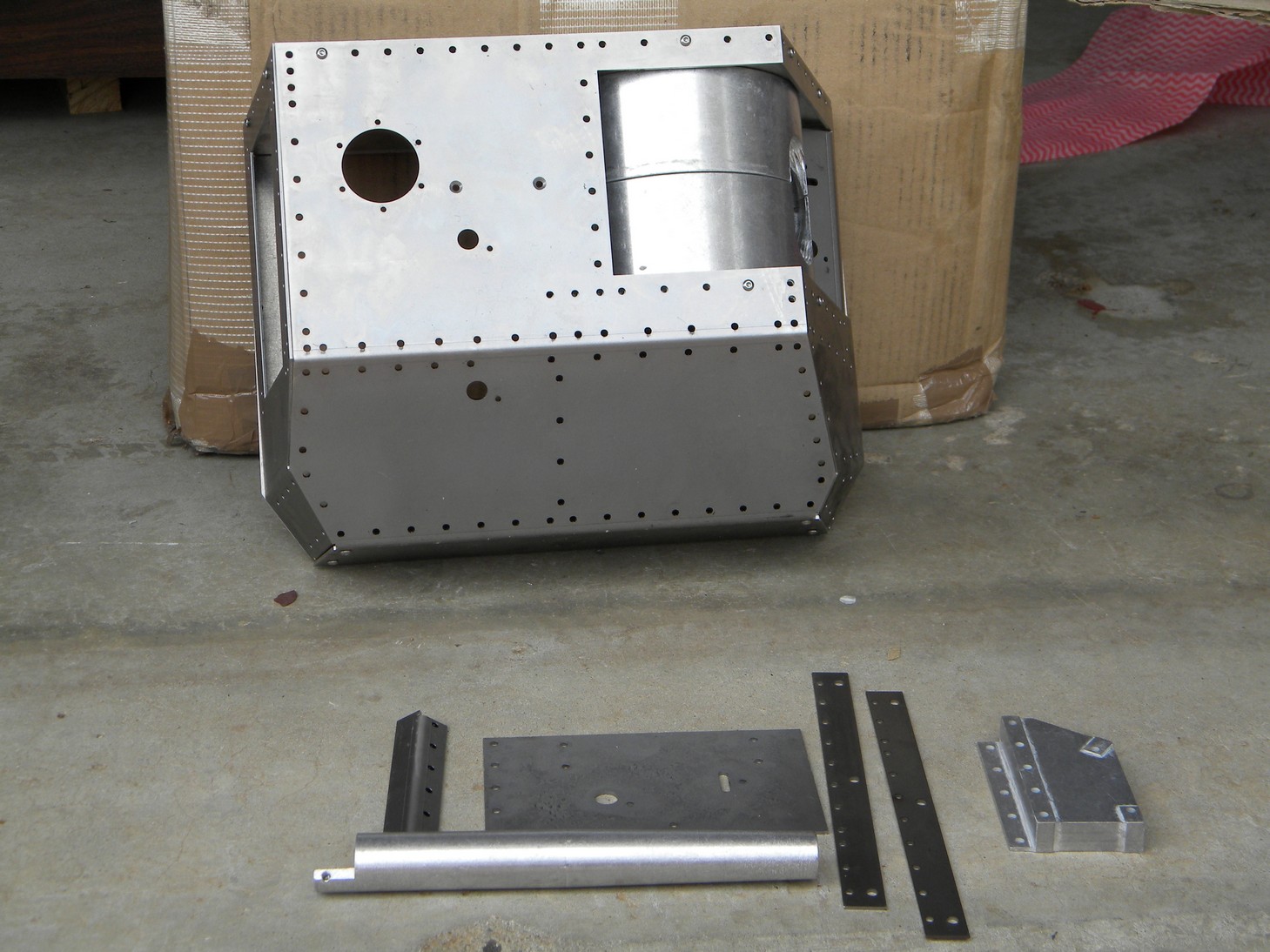

Page 24. Male sponson assembly.

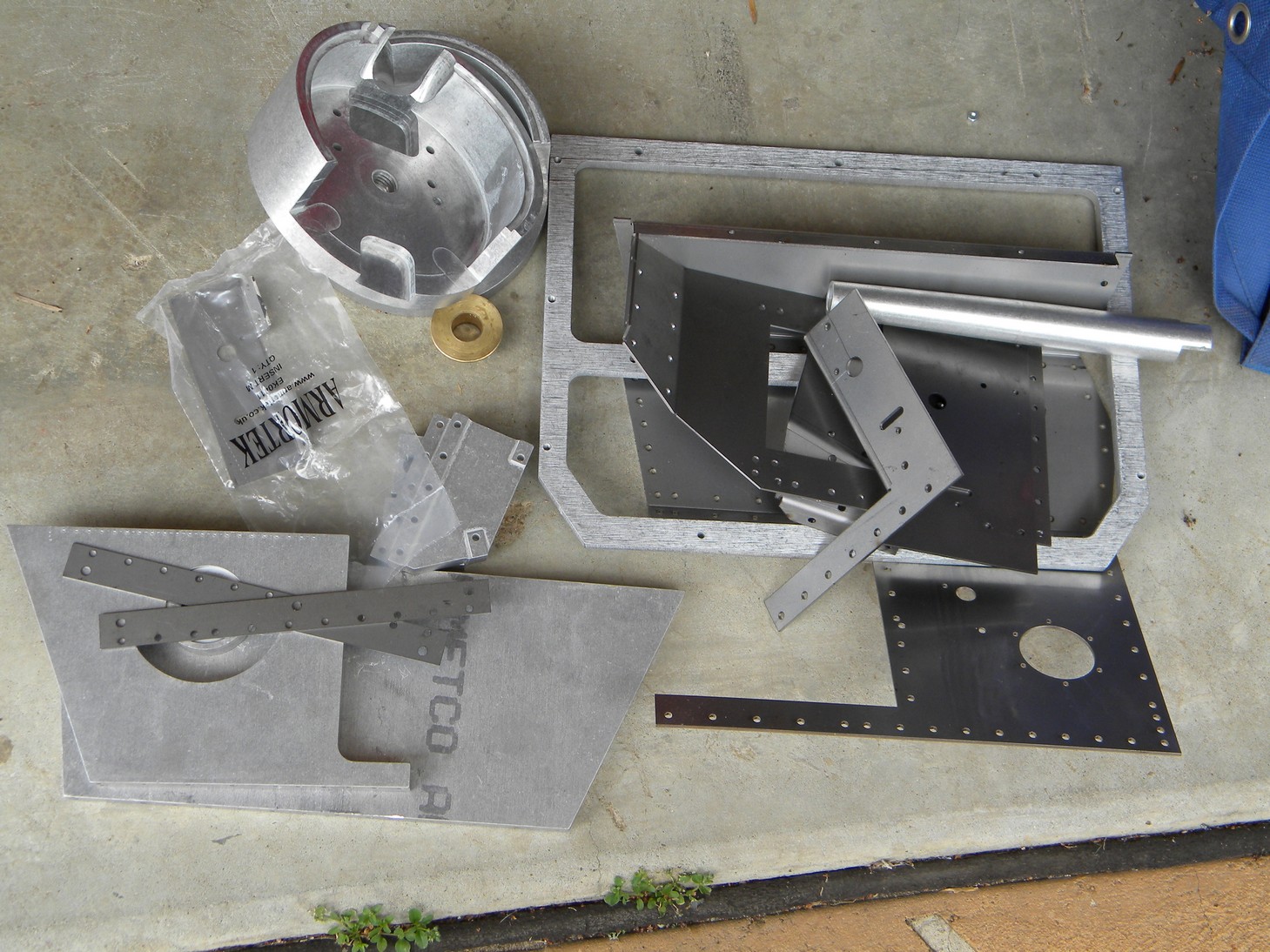

Stage 1 - required pieces and dry fit.

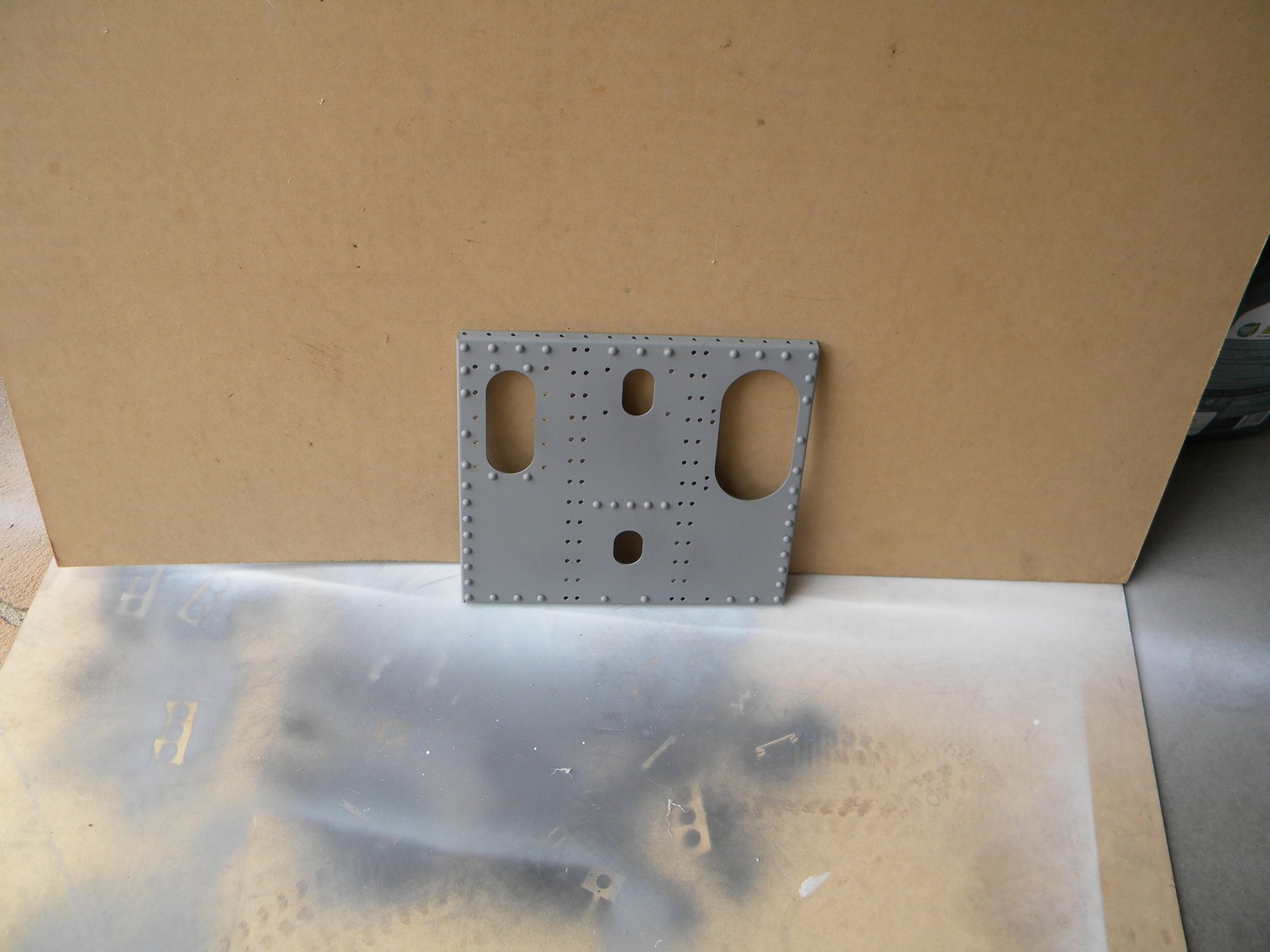

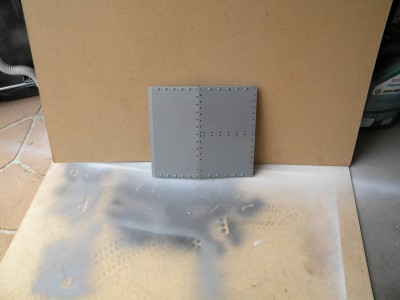

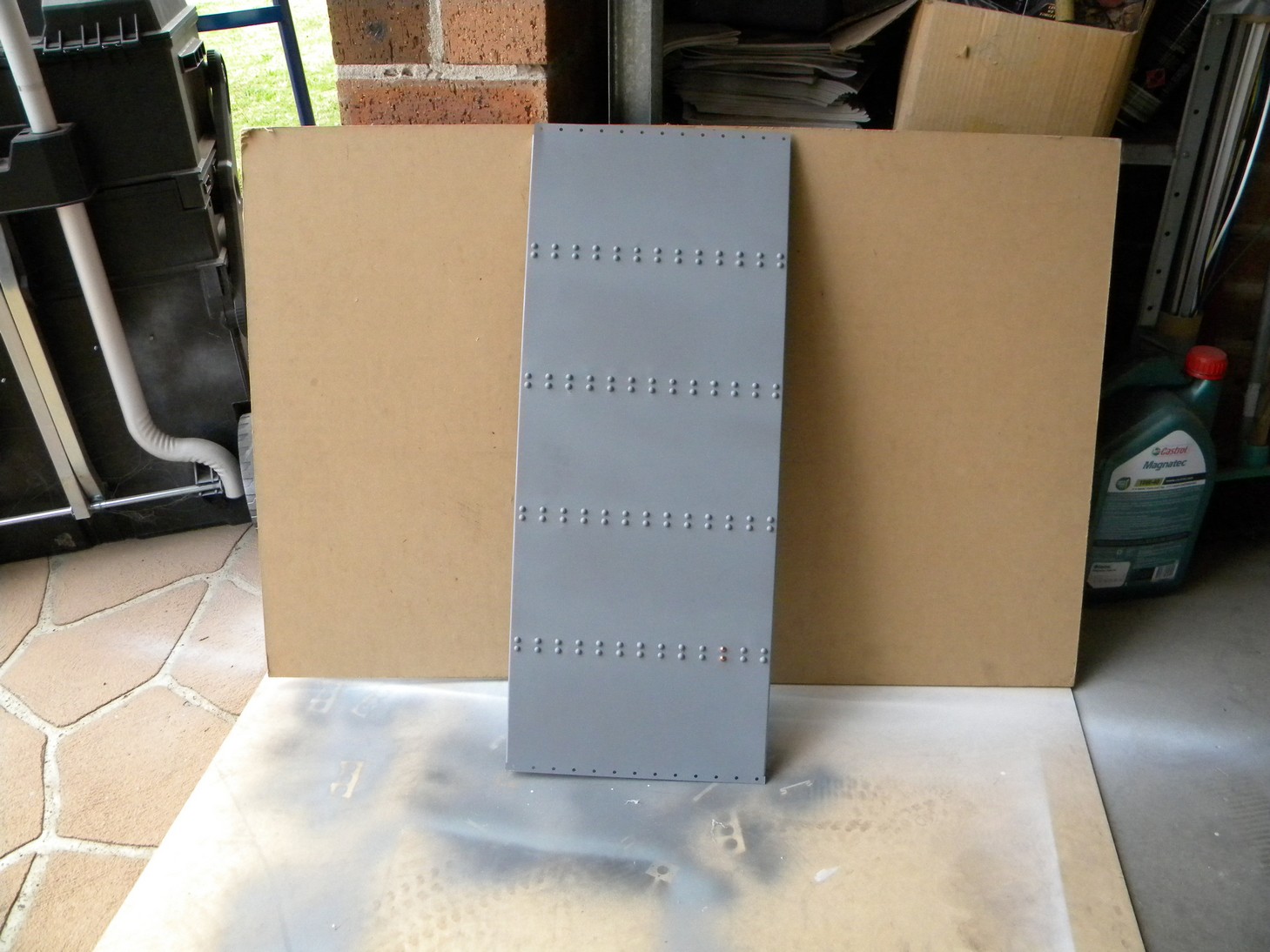

Pieces now primed ready for perma rivets. Once perma riveted photos will be posted. Rivet holes not perma rivited will be glued.

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

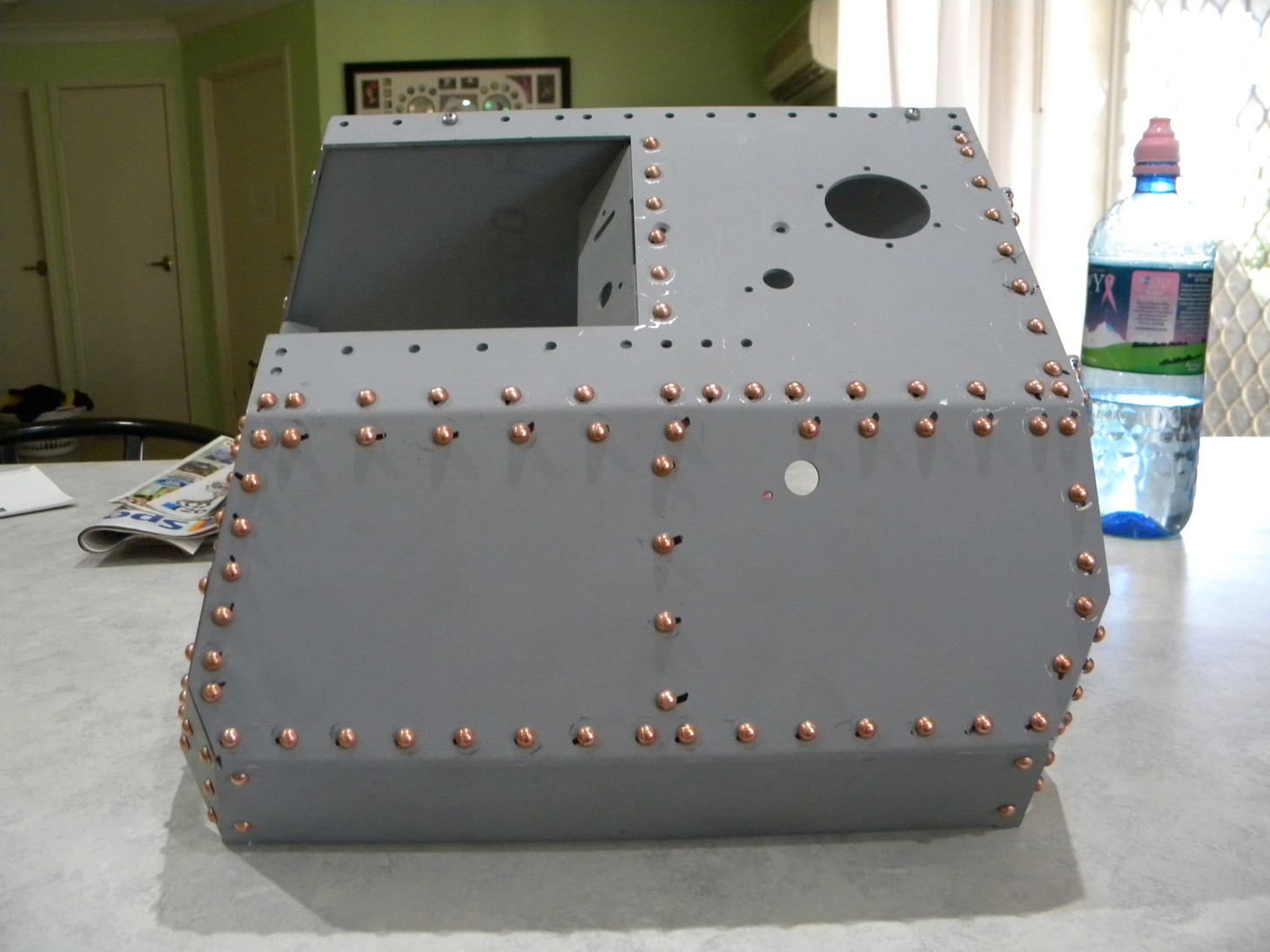

Page 25 of the manual. I've permanently riveted the male sponson as per the following photos. If you're unsure then use these as a reference.

Steve Stuart
Posts: 779
Joined: Fri Apr 18, 2008 11:34 pm
Location: Oxford
Has liked: 264 times
Been liked: 195 times

Re: Mark IV 006

Post by Steve Stuart »

Hi Ray
Very interesting to see the interior of the sponson, and how the rivets are going in.
I am still rivet bashing on the Hull sides, and feeling a little disheartened as I am going to have to remove some that I fitted out of sequence.. ... ..!
Have you sussed how the sponsons are going to be mounted on the hull? It is not quite clear as yet.
All the best
Steve

Ray Brown
Posts: 452
Joined: Tue Jul 05, 2011 2:00 am
Location: Penrith NSW
Has liked: 26 times
Been liked: 103 times
Contact:

Re: Mark IV 006

Post by Ray Brown »

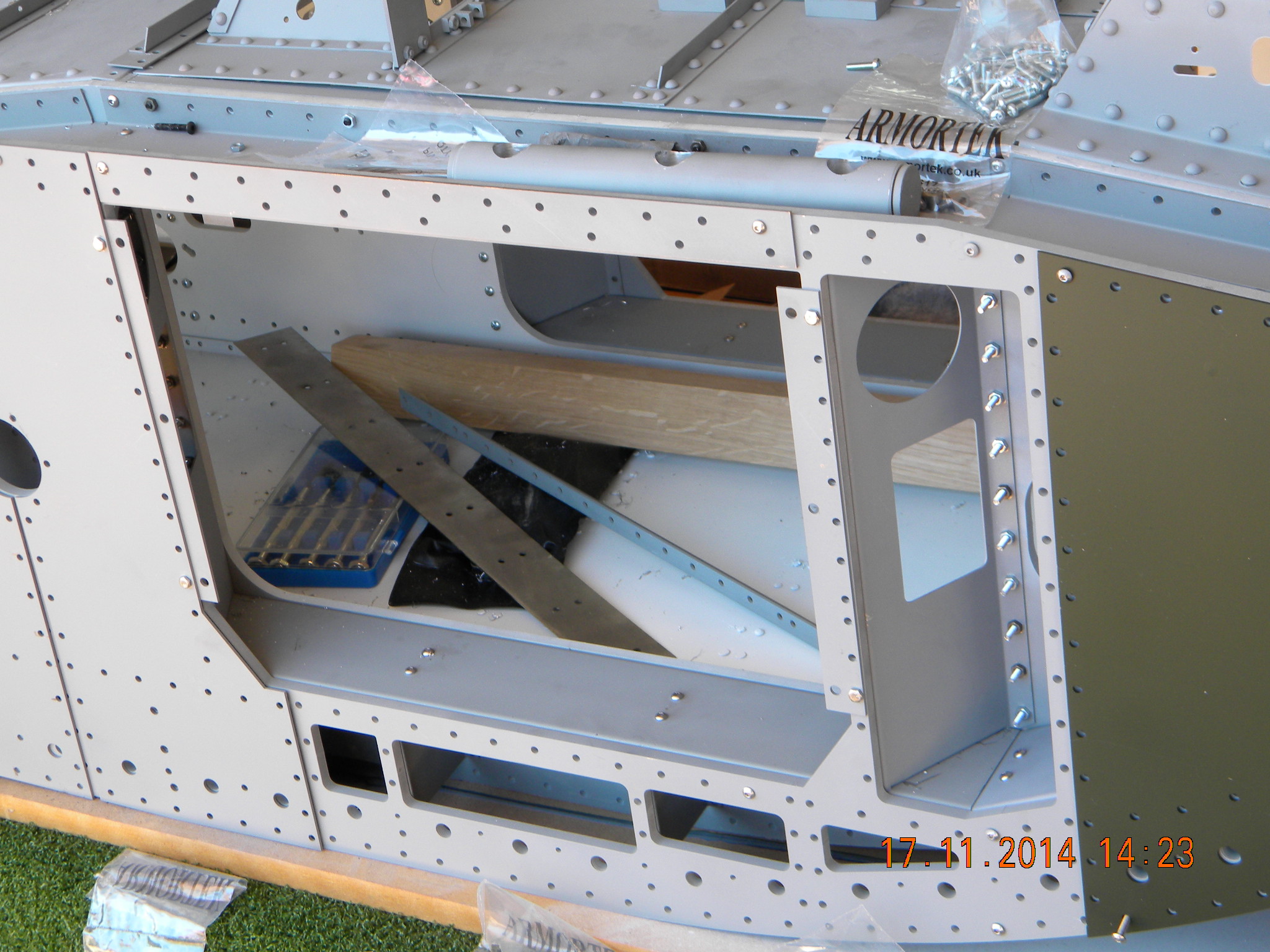

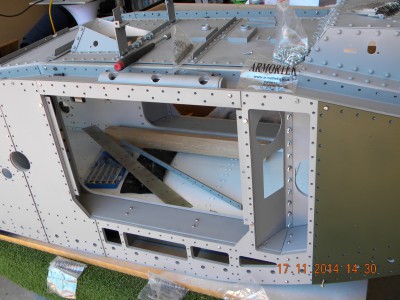

G'day Steve. I've provided 2 photos to look at. The 1st one is per manual instruction, however the thick sponson frame is visible when seated. The 2nd one reveals no frame which I think looks better.

Don't feel disheartened, I've had to remove 4 rivets for failing to triple check manual and then orientate the piece to ensure correct hole not perma riveted. Trust me, even the extremely good builders have made boo boos.


User avatar
Armortek
Site Admin
Posts: 2935
Joined: Tue Jul 10, 2007 10:30 am
Location: Winchester, England
Been liked: 3698 times

Re: Mark IV 006

Post by Armortek »

Hi

The second picture above shows how the assembly is meant to be. Apologies for the lack of clarity in the manual.

Mark
