Bovington Tiger 1 Photos - Wheels

Post by Steven Day »

Here’s the fourth set of pictures for the Wheels of the Bovington Tiger 131.

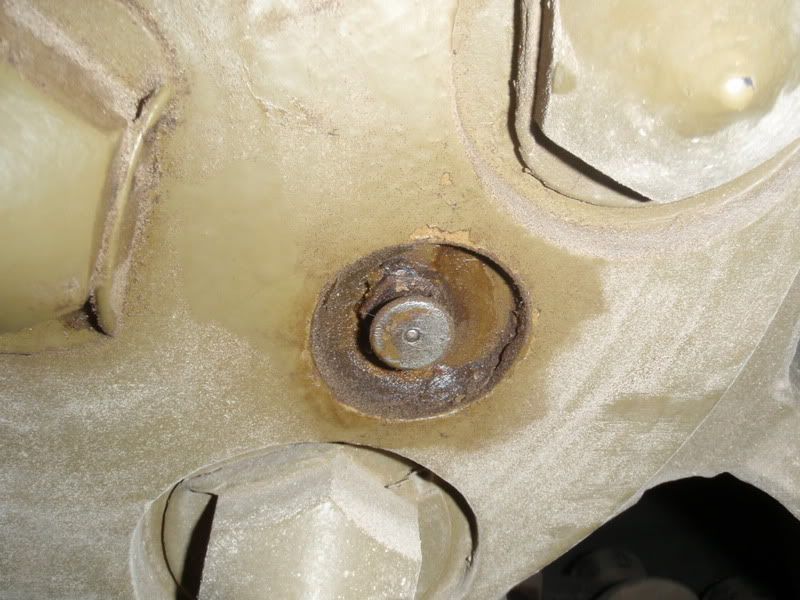

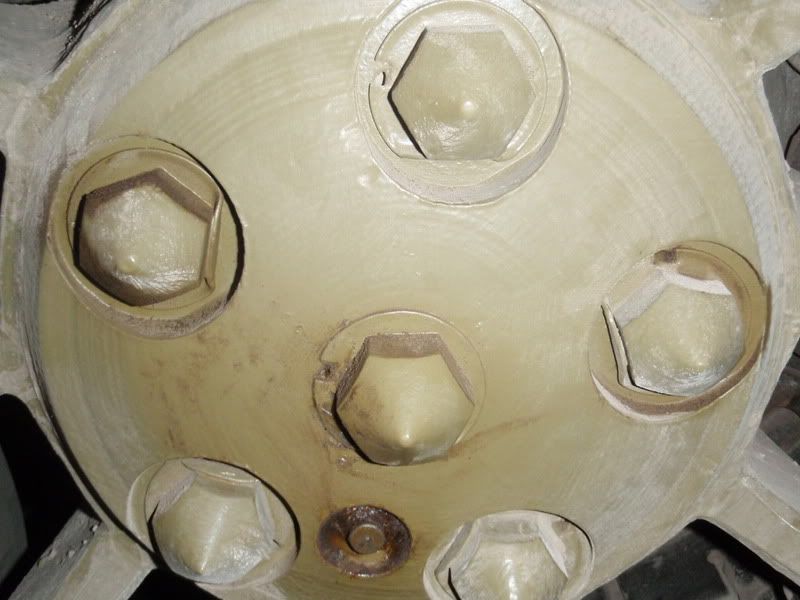

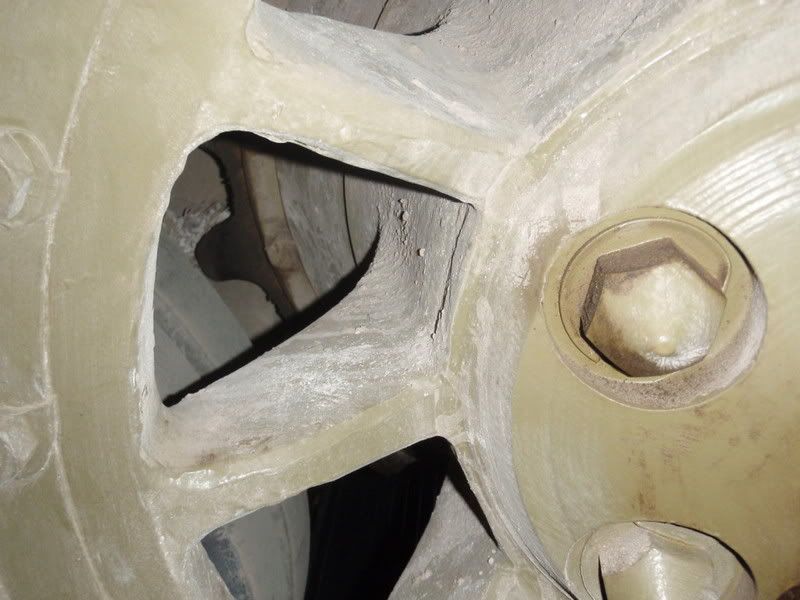

Here’s a close up of the Drive Wheel showing the cast finish inside the webbing of the wheel and the machined finish to the Wheel’s centre + grease nipple + locking washers on the Sprocket nuts

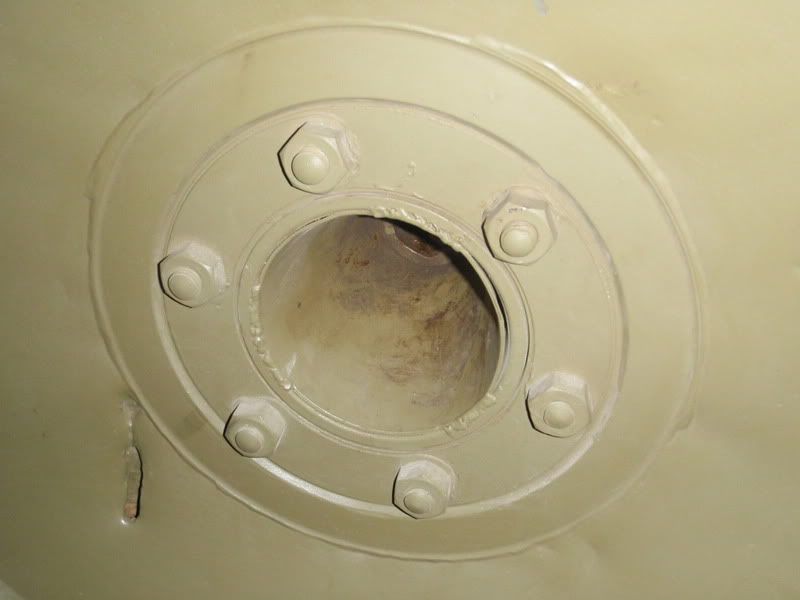

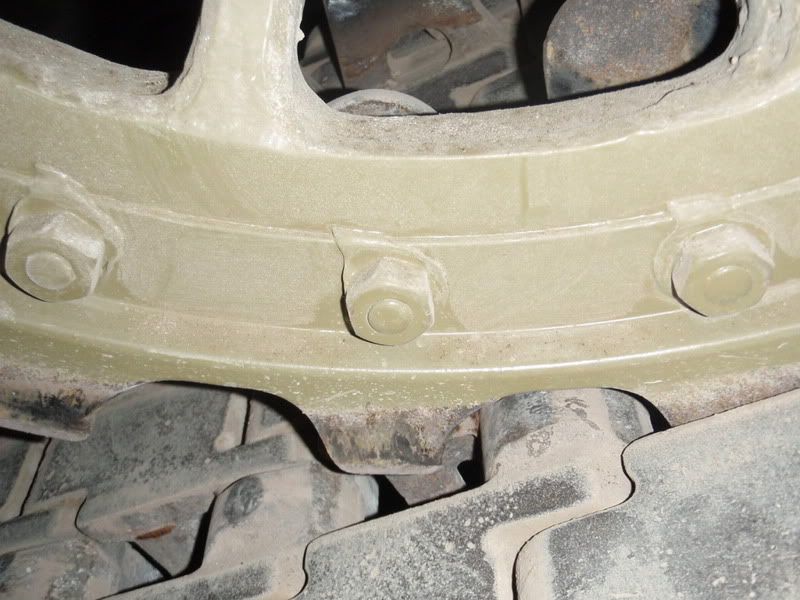

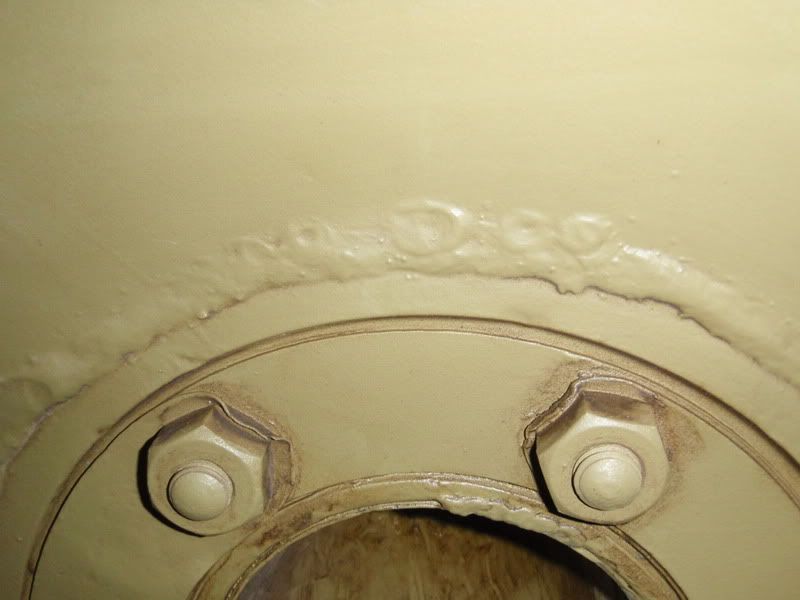

Here’s a close up of the welds on the Road Wheels

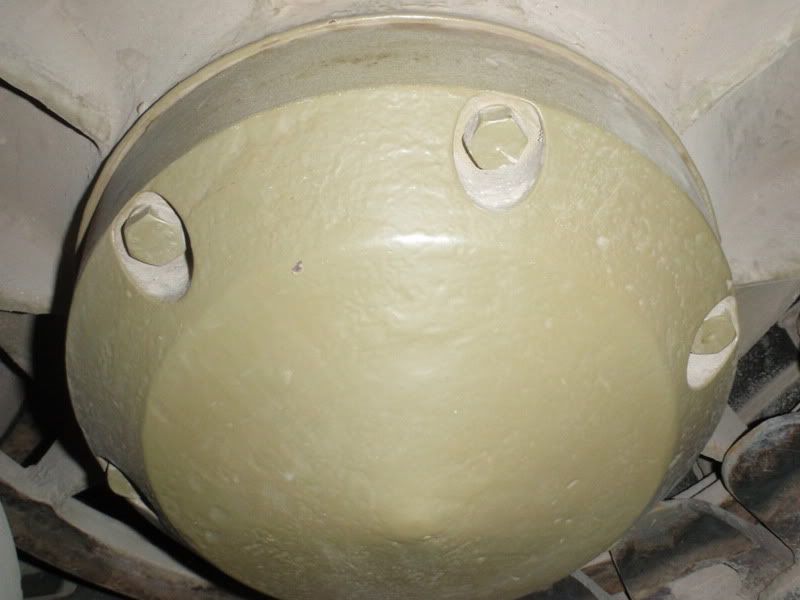

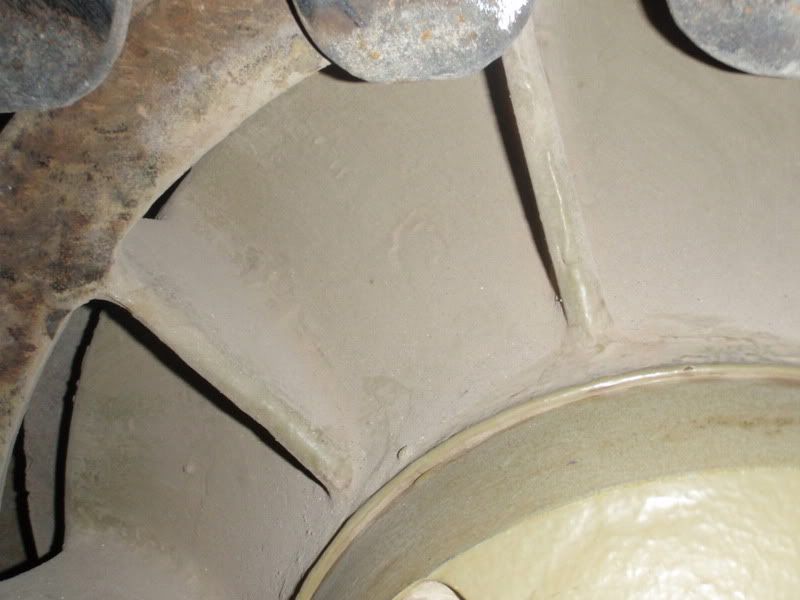

Here’s a close up of the Idler Wheel showing the light cast finish inside the webbing of the wheel and the cast finish to the Wheel’s centre cover
