Tiger 1 (Early Variant) 2004 #98 build

[Graham Hough]

Thanks Adrian. Ooops!

[Paul Wills]

Its nice to have a helper. I only had this nut case,

he was alright until the sound came on and then he would go nuts.

[Graham Hough]

Point of clarification please. The front part of the turret has a recess for a long strip with a small right angle sections at each end. In section it is thicker at one edge than the other - which way round should it be placed? Thicker section towards the front or thinner section to the front?

[Graham Hough]

....CEO425 Top Fillet. In photos of the Tank Museum Tiger the fillet seems to have the wider part facing forward?

[Adrian Harris]

It should sit with the thicker portion towards the rear, so that the top sits flush with the edge of the main body of the turret.

What you can see on Tiger 131 is a lip which sits slightly forward of this fillet.

Adrian.

[Adrian Harris]

This was the part Vince Abbott created to reproduce this on his Tiger:

https://vincesgallery.smugmug.com/Hobbi ... -NB24bb4/A

Adrian.

[Graham Hough]

Thank you Adrian, I know what to do now. I will also have to grind an angle on the fillet piece to follow the shape of the turret, mine has 90 degree sides. Just also used JB weld to modify the escape hatch which tapers the wrong way. All part of the fun of making these models. Thanks again

[Mike Kasputis]

If you want to see what I did on my mid production Tiger for that part go to page 9 and look at my build. It is on the first page. The one Vince made is not correct.

[Sam Hough]

Very slow progress between work, kids...

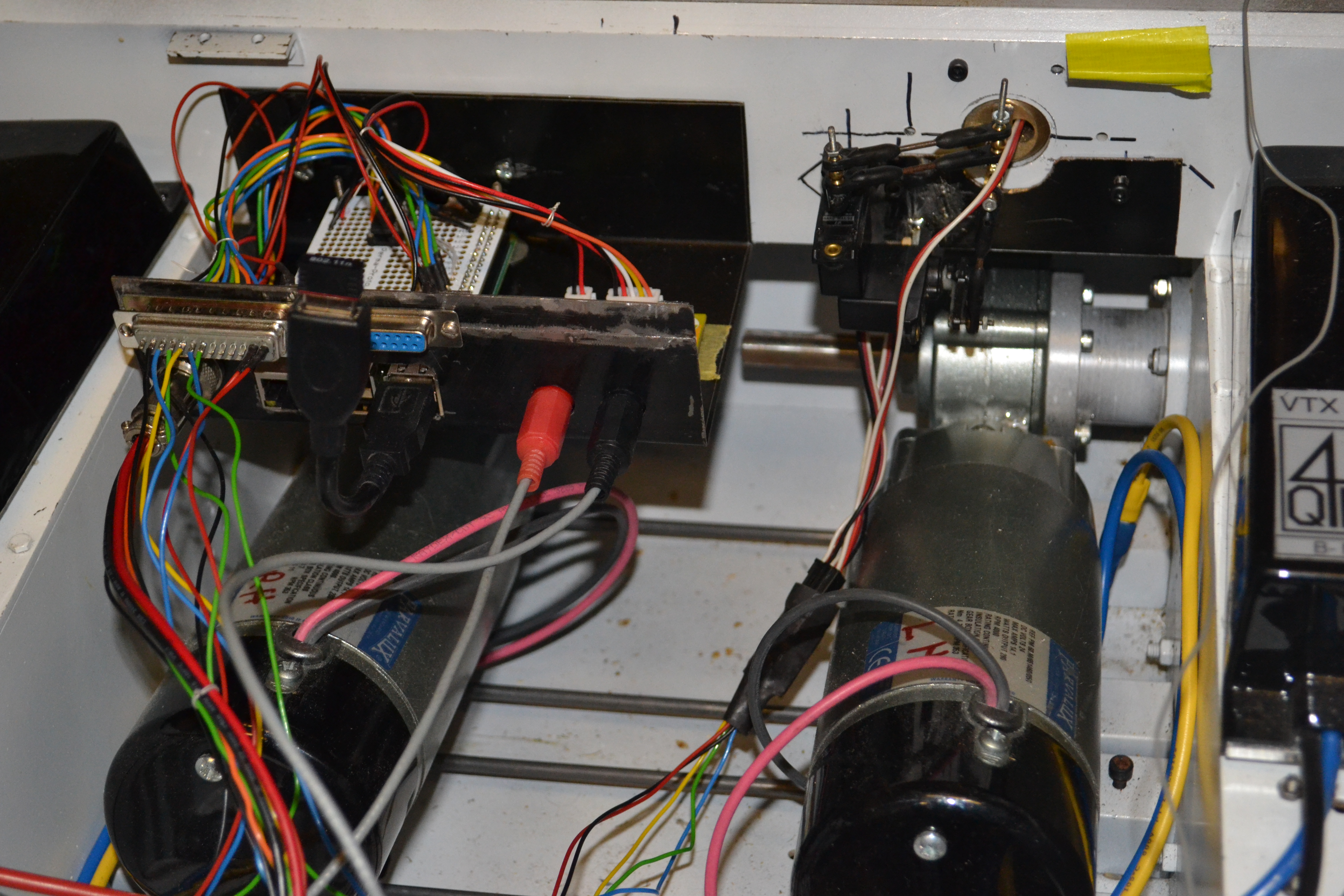

So CPU out of cardboard box and bolted to the front so the camera can see out (without long cable).

Rough prototype of two servos for hull mg horizontal and vertical movement. Seems to be OK just needs a bit of adjustment to get full travel with no binding. Dad made me put in red LED which looks really wrong.

Lots of fun.

[Graham Hough]

Looking good. Glad your doing the electrics - beyond me!

[Graham Hough]

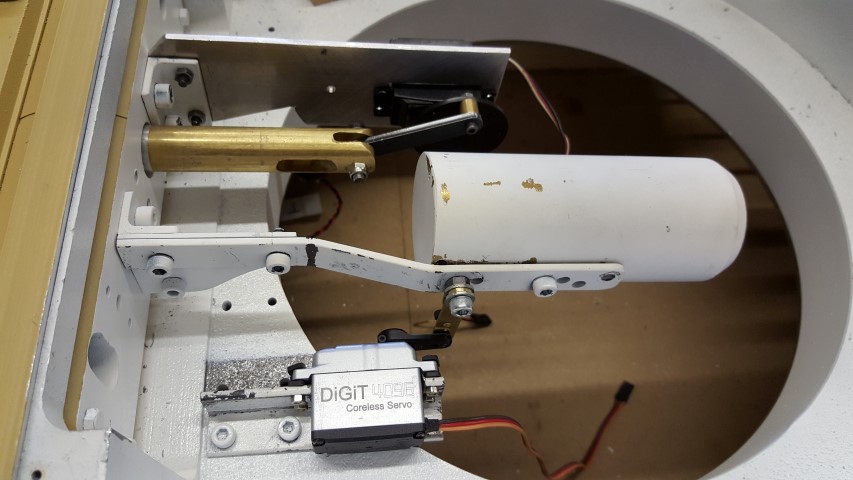

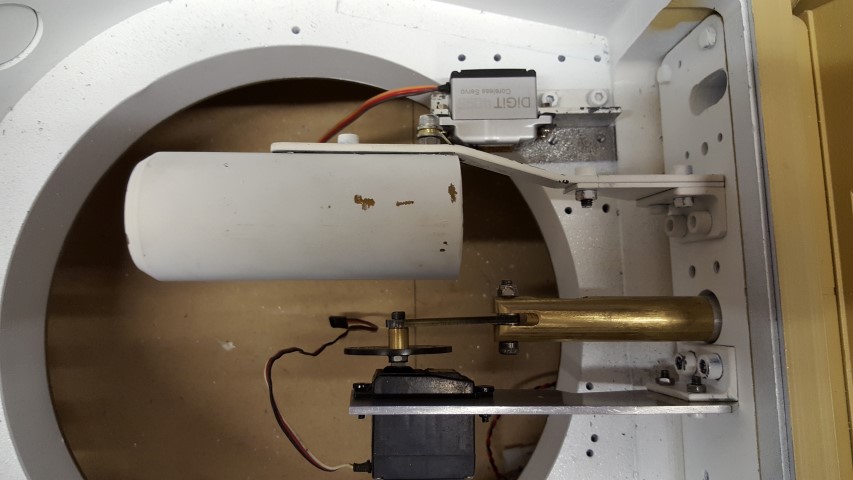

Latest set up inside the turret showing servo controlled recoil and elevation of gun plus the counterweight. Also general view ready for transporting south to be reunited with the chassis.

[Paul Wills]

Looking good lads, I like the set up you are using. is that a lump of brass as a counter weight or just a tube filled with something.

Paul.

[Graham Hough]

Thank you your comments Paul. It is a solid lump of brass. As you probably know it takes a lot of weight to counterbalance the long barrel.

[Sam Hough]

Was thinking we will need a hefty servo saver for when the barrel gets knocked.

[Adrian Harris]

People tend to walk into the barrels laterally, so most of the strain is in the gearbox of the turret traverse motor.

Small children do have a habit of grabbing hold of the muzzle brake, so a loud shout should do as good as job as a servo saver

Also, servo savers tend to be sprung, so you may end up with more barrel bounce if you incorporate one.

Adrian.
