Re: Armorpax's 25 Pounder

Post by Dave Dibb (Armorpax) »

Hi All,

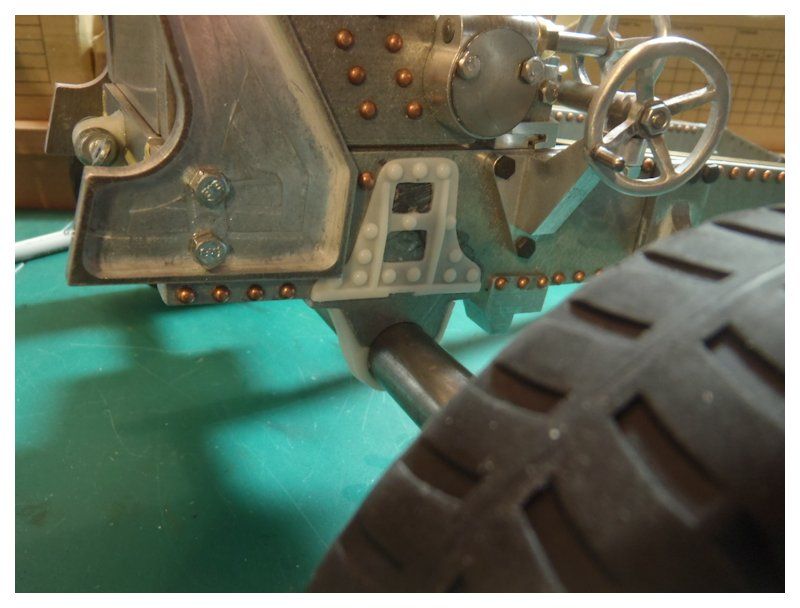

New moulds made and parts fitted. The axle castings may need a little adjustment dependent on how the kit goes together as mine were ever so slighlty different on each side. As I've only made the master from one side there is not much I can do about this but I only had to trim the rear step on the new casting about 1mm on the opposite side.

Also used K&S tubing to add a little more detail to the elevation rod.

Best regards

Dave

www.armorpax.net

There used to be a nice banner here till Photobucket lost everything.............................

Leon Benjamins
Posts: 85
Joined: Fri Oct 11, 2013 5:03 pm
Location: Dedemsvaart, The Netherlands

Re: Armorpax's 25 Pounder

Post by Leon Benjamins »

Looking good Dave! Work of art! :D
Why did the kamikaze pilots wear helmets?

Derek Attree
Posts: 1307
Joined: Thu Jul 12, 2007 12:44 pm
Location: london
Has liked: 219 times
Been liked: 200 times

Re: Armorpax's 25 Pounder

Post by Derek Attree »

Hi Dave
Happy Christmas mate
They are great parts and your 25 pounder look fantastic .
Great photos too.

All ther best.
Derek
we must stop making stupid predictions

Dave Dibb (Armorpax)
Posts: 1158
Joined: Thu Jul 12, 2007 6:03 pm
Location: Hampshire
Has liked: 116 times
Been liked: 1106 times
Contact:

Re: Armorpax's 25 Pounder

Post by Dave Dibb (Armorpax) »

Hi All,

A parcel arrived from Marcus today and inside was the extra brake drum he had made. A little Mr.Surfacer and it was ready to mould.

Its a lovely little piece and will finish the wheels off nicely.

Many thanks Marcus!

Best regards

Dave

www.armorpax.net

There used to be a nice banner here till Photobucket lost everything.............................

Marcus Kwa
Posts: 176
Joined: Wed Nov 13, 2013 6:22 pm
Been liked: 39 times

Re: Armorpax's 25 Pounder

Post by Marcus Kwa »

Glad you like it Dave! I see I forgot to sand the edges of the stiffener ribs smooth on that third one....... :oops:
What kind of photo equipment do you use? I am still struggeling to get the detail shots wholy in focus.

Best regards,

Marcus

User avatar
Adrian Harris
Posts: 5132
Joined: Thu Jul 12, 2007 10:46 pm
Location: Berkshire (UK)
Has liked: 1486 times
Been liked: 1695 times

Re: Armorpax's 25 Pounder

Post by Adrian Harris »

I can't speak for Dave but I find using the Macro function gives the best results for detail pictures.

If the flash is too harsh, I switch off Macro mode and stand further away, then zoom into the model. That way you get the same framing but the flash is dissipated a little by the distance.

Macro mode on your camera is enabled by the flower symbol on the screen. The flower on its own is for distances of 10cm to 30cm. The flower with the S is for "Super Macro" and is for distances as close as 2cm.

I love the detail you've put into this piece. Shame I won't be using the wheels on my 25 pounder :roll:

Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module

Dave Dibb (Armorpax)
Posts: 1158
Joined: Thu Jul 12, 2007 6:03 pm
Location: Hampshire
Has liked: 116 times
Been liked: 1106 times
Contact:

Re: Armorpax's 25 Pounder

Post by Dave Dibb (Armorpax) »

Marcus Kwa wrote:Glad you like it Dave! I see I forgot to sand the edges of the stiffener ribs smooth on that third one....... :oops:
What kind of photo equipment do you use? I am still struggeling to get the detail shots wholy in focus.

Best regards,

Marcus
Hi Marcus,

They were smooth but I've added a fair bit of Mr Surfacer which has blended in the ribs but also then been stippled to look a little more like a casting. It means the edges vary slightly.

I use macro or super macro without a flash. I prefer daylight but if not I shoot the pics under a desk striplight with 2 LED spots on the front to reduce shadow.

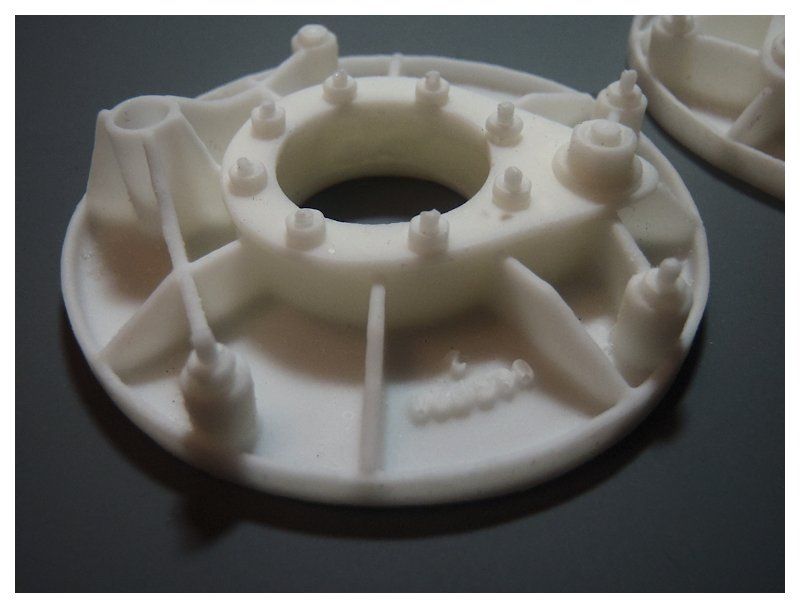

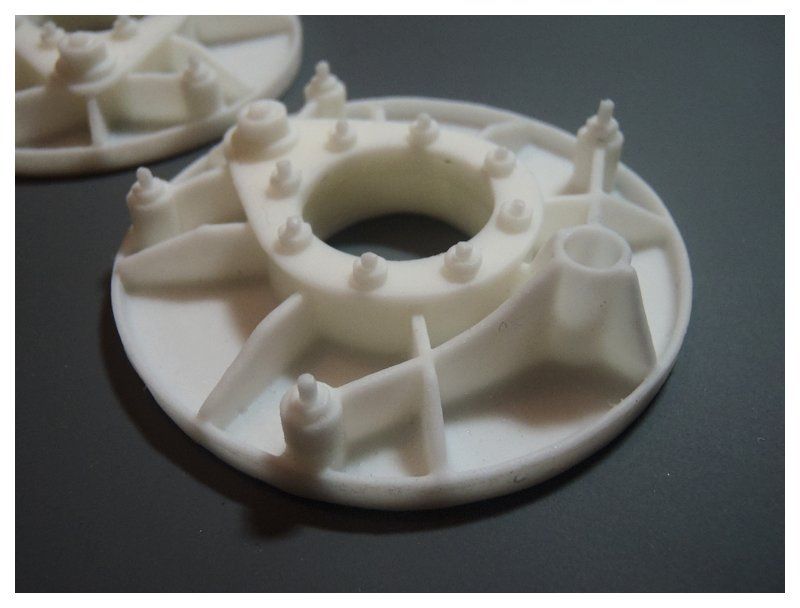

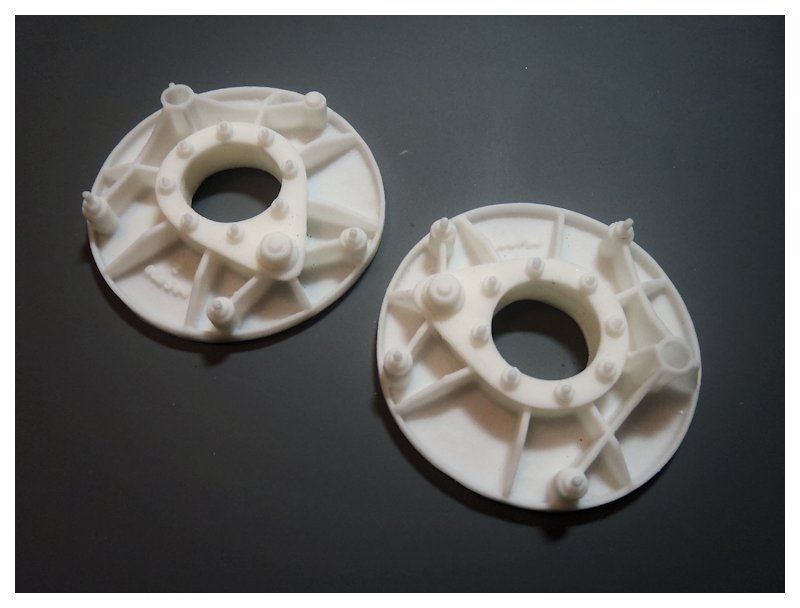

I have the second casting curing at the moment but will post pics of the pair later.

Best regards

Dave
www.armorpax.net

There used to be a nice banner here till Photobucket lost everything.............................

Dave Dibb (Armorpax)
Posts: 1158
Joined: Thu Jul 12, 2007 6:03 pm
Location: Hampshire
Has liked: 116 times
Been liked: 1106 times
Contact:

Re: Armorpax's 25 Pounder

Post by Dave Dibb (Armorpax) »

Adrian Harris wrote: I love the detail you've put into this piece. Shame I won't be using the wheels on my 25 pounder :roll:

Adrian.
Hi Adrian,

Sexton by any chance?

Best regards

Dave
www.armorpax.net

There used to be a nice banner here till Photobucket lost everything.............................

Dave Dibb (Armorpax)
Posts: 1158
Joined: Thu Jul 12, 2007 6:03 pm
Location: Hampshire
Has liked: 116 times
Been liked: 1106 times
Contact:

Re: Armorpax's 25 Pounder

Post by Dave Dibb (Armorpax) »

Hi All,

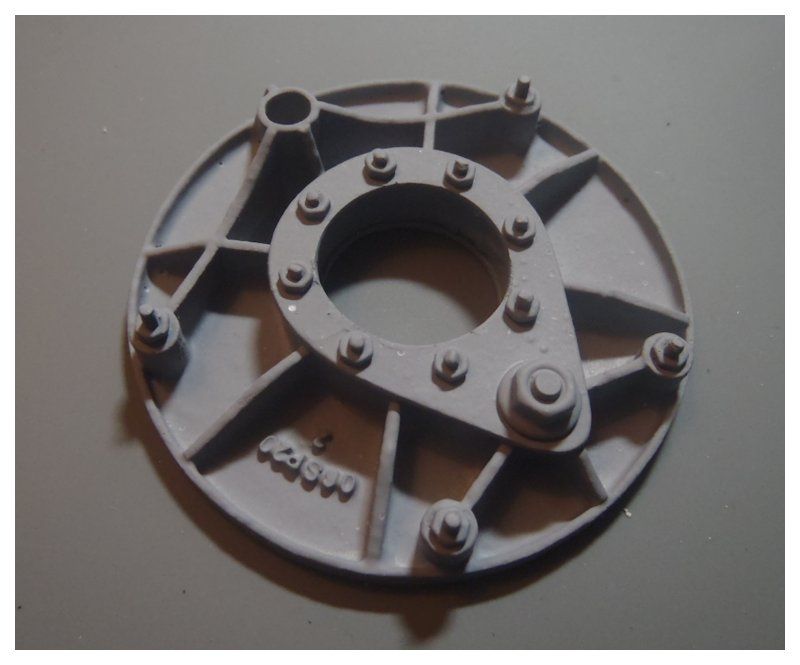

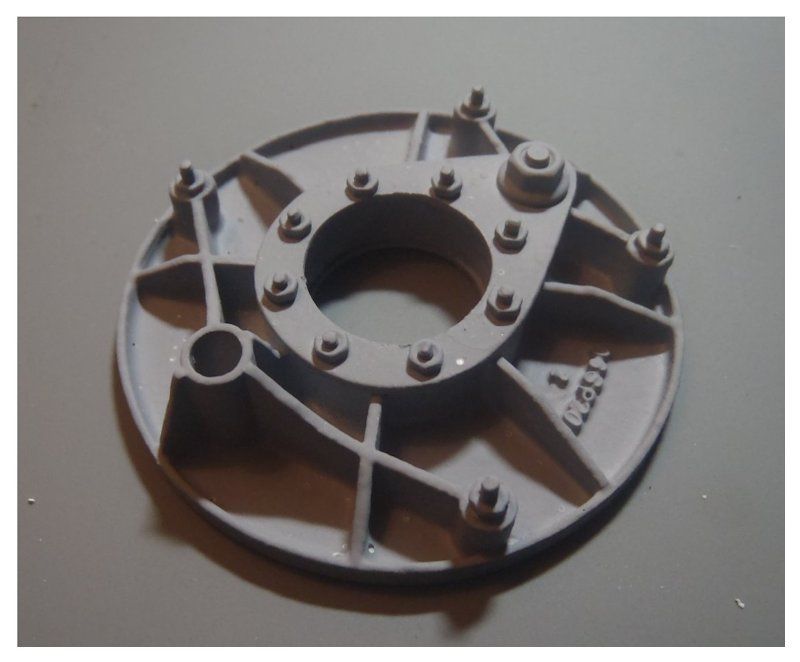

First pair of brake drums cast.

Best regards

Dave

www.armorpax.net

There used to be a nice banner here till Photobucket lost everything.............................

User avatar
Adrian Harris
Posts: 5132
Joined: Thu Jul 12, 2007 10:46 pm
Location: Berkshire (UK)
Has liked: 1486 times
Been liked: 1695 times

Re: Armorpax's 25 Pounder

Post by Adrian Harris »

> Sexton by any chance?

Yup :D

I've got to do something with all this Sherman running gear.

Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module

Leon Benjamins
Posts: 85
Joined: Fri Oct 11, 2013 5:03 pm
Location: Dedemsvaart, The Netherlands

Re: Armorpax's 25 Pounder

Post by Leon Benjamins »

Looking good Dave!
Why did the kamikaze pilots wear helmets?

Marcus Kwa
Posts: 176
Joined: Wed Nov 13, 2013 6:22 pm
Been liked: 39 times

Re: Armorpax's 25 Pounder

Post by Marcus Kwa »

Whow, that realy brings a smile on your face! One that will last the whole day! :lol:

Marcus

Dave Dibb (Armorpax)
Posts: 1158
Joined: Thu Jul 12, 2007 6:03 pm
Location: Hampshire
Has liked: 116 times
Been liked: 1106 times
Contact:

Re: Armorpax's 25 Pounder

Post by Dave Dibb (Armorpax) »

Hi All,

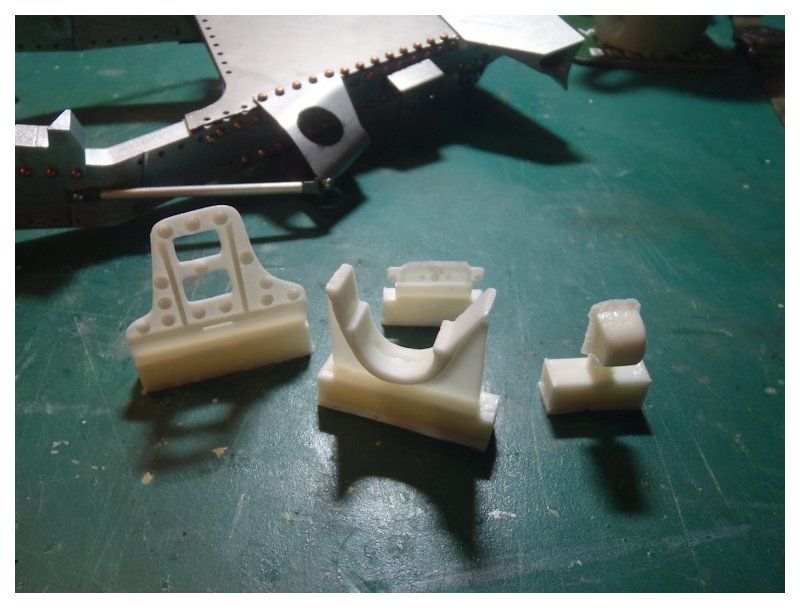

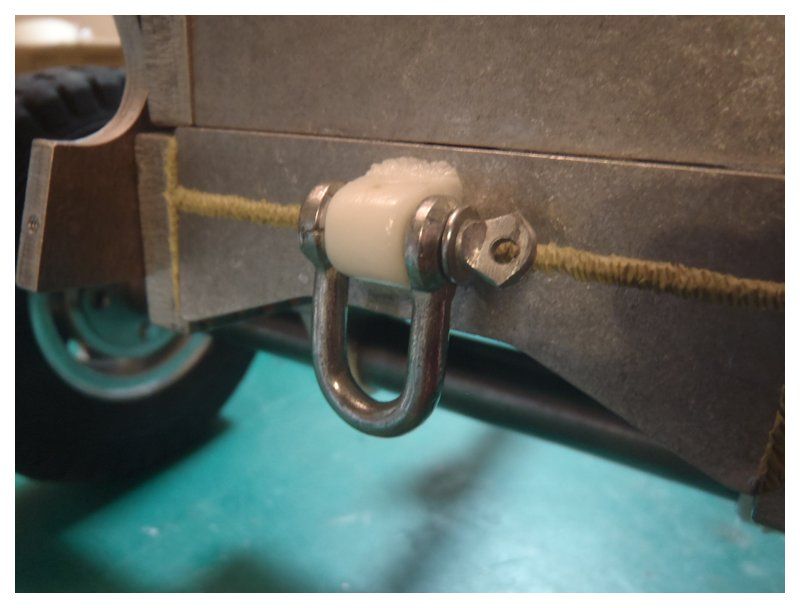

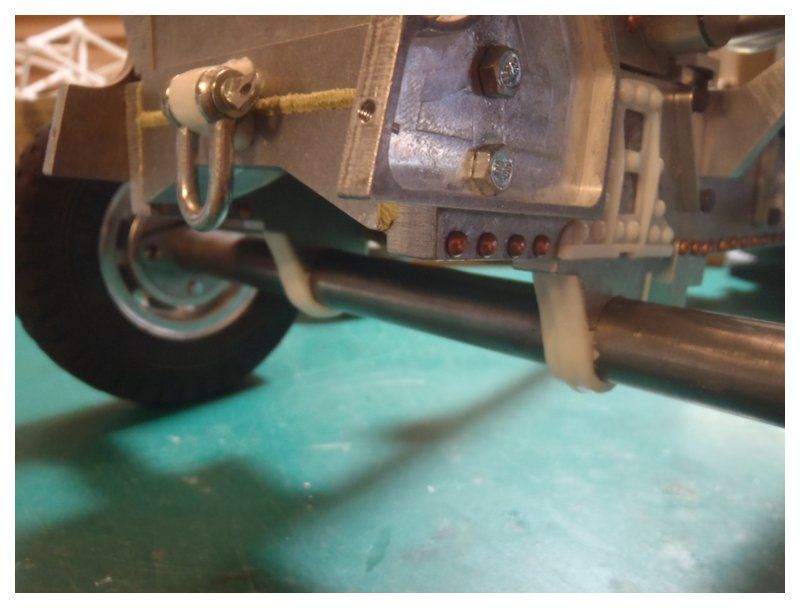

Rest of the axle and brake parts cast and fitted. I'v made a slightly simplified version of the brake assembly to keep it strong enough in resin and make it a little easier to cast. There is also a little artistic licence in my original brake handle but I decided to mould it and add to the set.

I've also made and cast the first of the lower rear trail angles.

Best regards

Dave

www.armorpax.net

There used to be a nice banner here till Photobucket lost everything.............................

Leon Benjamins
Posts: 85
Joined: Fri Oct 11, 2013 5:03 pm
Location: Dedemsvaart, The Netherlands

Re: Armorpax's 25 Pounder

Post by Leon Benjamins »

Very nice work!
Why did the kamikaze pilots wear helmets?

Marcus Kwa
Posts: 176
Joined: Wed Nov 13, 2013 6:22 pm
Been liked: 39 times

Re: Armorpax's 25 Pounder

Post by Marcus Kwa »

Simplified? Actually there is nothing more to add....... :lol: Looking very good!!!
Sourcing the spring for the brake actuator rods.
I replaced the 4 hex bolts on the back of the wheel with some CSK bolts (taper head) to position the drums slightly more towards the wheels.
Working on the rivets here, 200 to go......

Cheers,

Marcus
