Tom's King Tiger Build 2019 Hull 53
-
- Posts: 17
- Joined: Thu Jun 25, 2020 5:56 am
- Has liked: 6 times
- Been liked: 20 times
Re: Tom's King Tiger Build 2019 Hull 53
Looks like I added extra pics, Oops

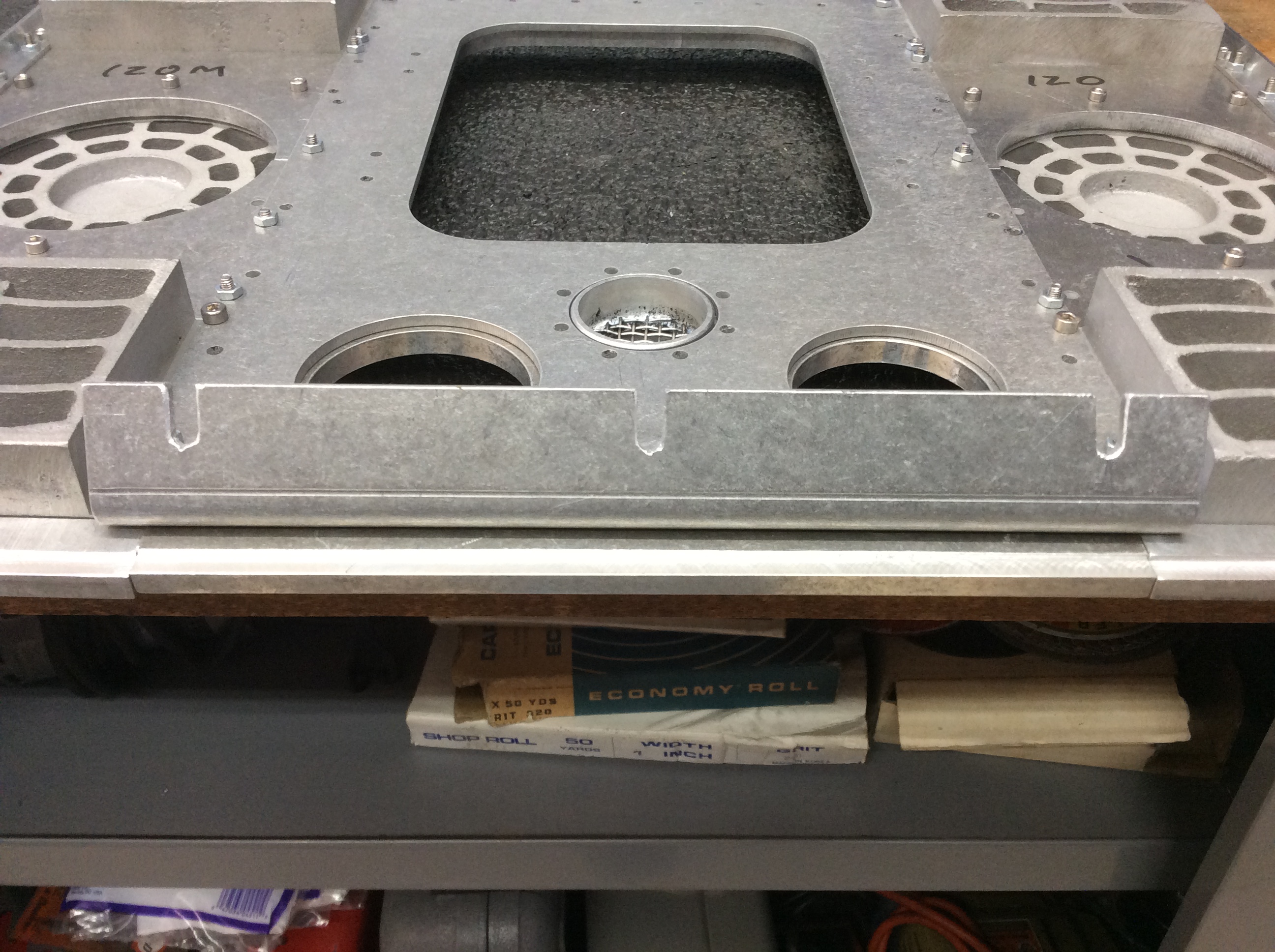

The bottom pic shows how I fixed the warped side plates the dead blow hammer worked the best. I tried using my hydraulic press but it is tricky to get just the right pressure to make the right bend, you end up going back and forth lots. The dead blow hammer supported on my vise worked really good, just strike & use straight edge to check it. The warped upper side plates were quite easy to straighten out
The bottom pic shows how I fixed the warped side plates the dead blow hammer worked the best. I tried using my hydraulic press but it is tricky to get just the right pressure to make the right bend, you end up going back and forth lots. The dead blow hammer supported on my vise worked really good, just strike & use straight edge to check it. The warped upper side plates were quite easy to straighten out
- Tom Miller
- Posts: 163
- Joined: Thu May 23, 2019 9:23 pm
- Location: Portland Oregon USA
- Been liked: 325 times
Re: Tom's King Tiger Build 2019 Hull 53
Hi Brenton,
Nice job fitting the rear hull plate. Yes I think the rear hull plate should sit on the side plates like you have done. I did not remove the material below the side frames only because the part is too big to fit in my bench mill and getting the angle correct would be difficult too. You don't see it when the tank is on the ground and I don't believe it will be an issue.
Tom
Nice job fitting the rear hull plate. Yes I think the rear hull plate should sit on the side plates like you have done. I did not remove the material below the side frames only because the part is too big to fit in my bench mill and getting the angle correct would be difficult too. You don't see it when the tank is on the ground and I don't believe it will be an issue.
Tom
-
- Posts: 17
- Joined: Thu Jun 25, 2020 5:56 am
- Has liked: 6 times
- Been liked: 20 times
Re: Tom's King Tiger Build 2019 Hull 53
Thank you Tom
Im surprised the parts can be that far out. One side of the rear plate (where it meets the hull side plate needed 3/16" removed to be even with the other side. I may leave the bottom rear or mark, grind down and Finish off with a file and a square, but you are right no one can see it.
Your build looks great, it gives me inspiration.
Brent
Im surprised the parts can be that far out. One side of the rear plate (where it meets the hull side plate needed 3/16" removed to be even with the other side. I may leave the bottom rear or mark, grind down and Finish off with a file and a square, but you are right no one can see it.
Your build looks great, it gives me inspiration.
Brent
- Tom Miller
- Posts: 163
- Joined: Thu May 23, 2019 9:23 pm
- Location: Portland Oregon USA
- Been liked: 325 times
Re: Tom's King Tiger Build 2019 Hull 53
Hi Guys,

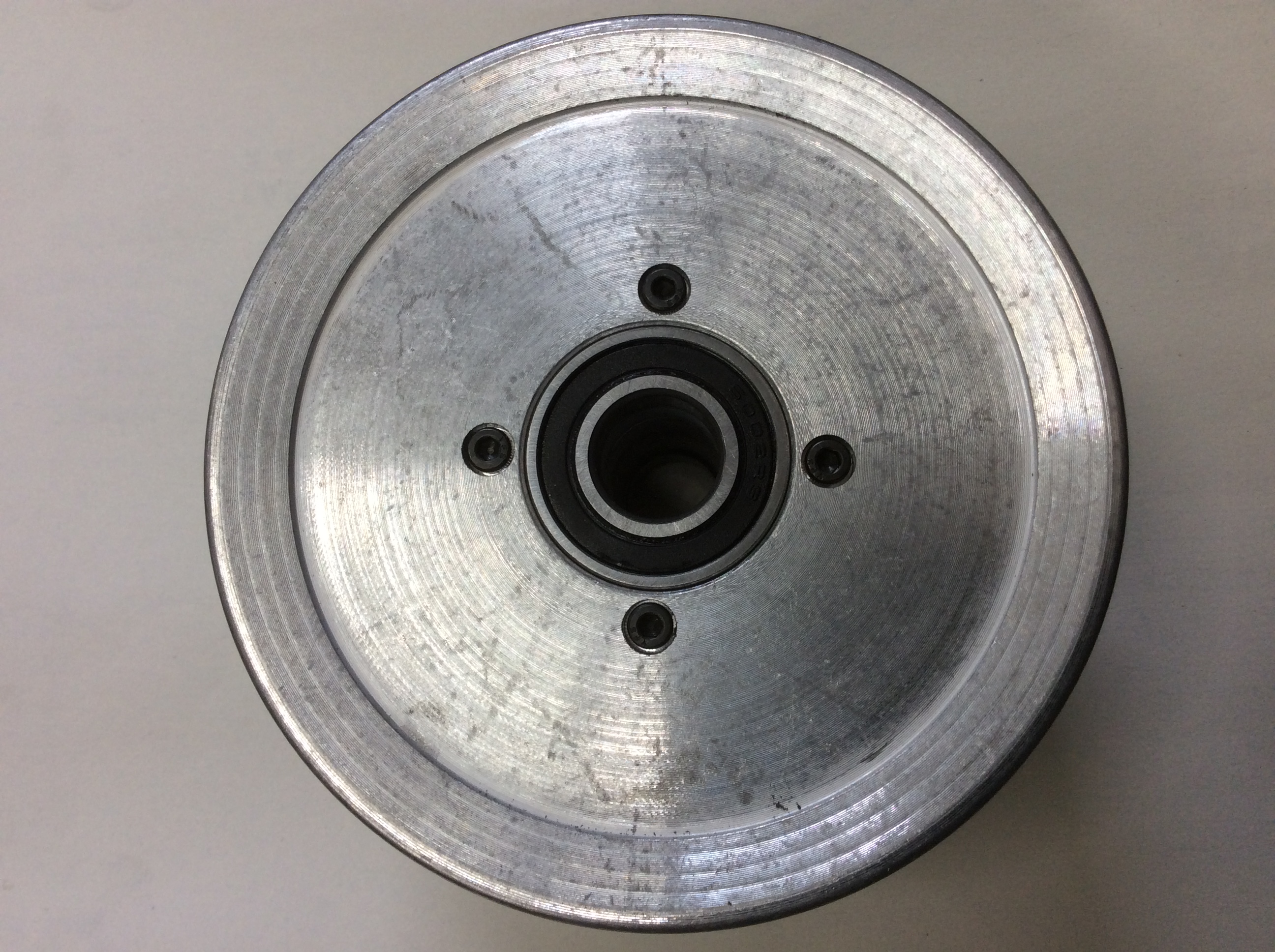

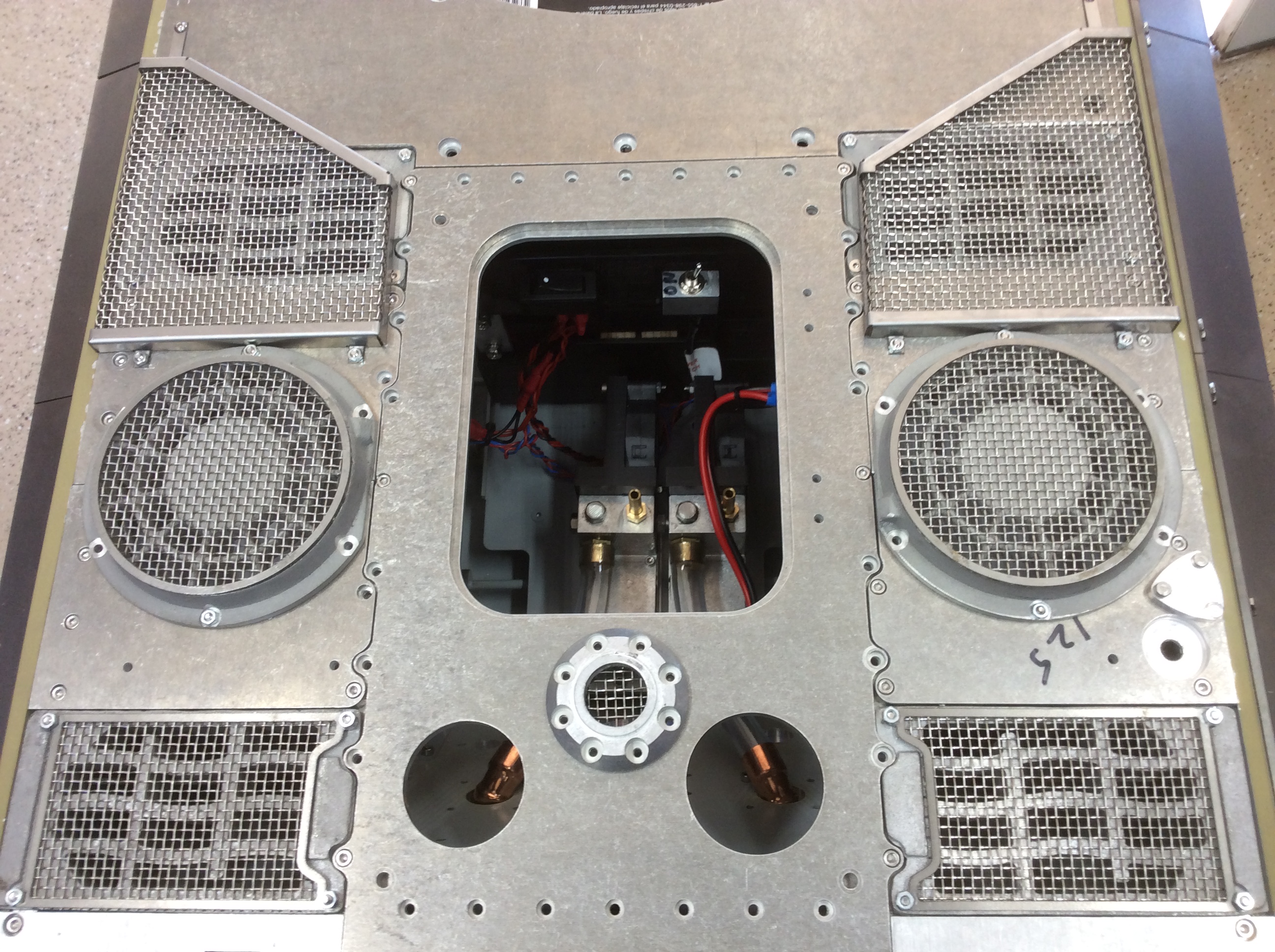

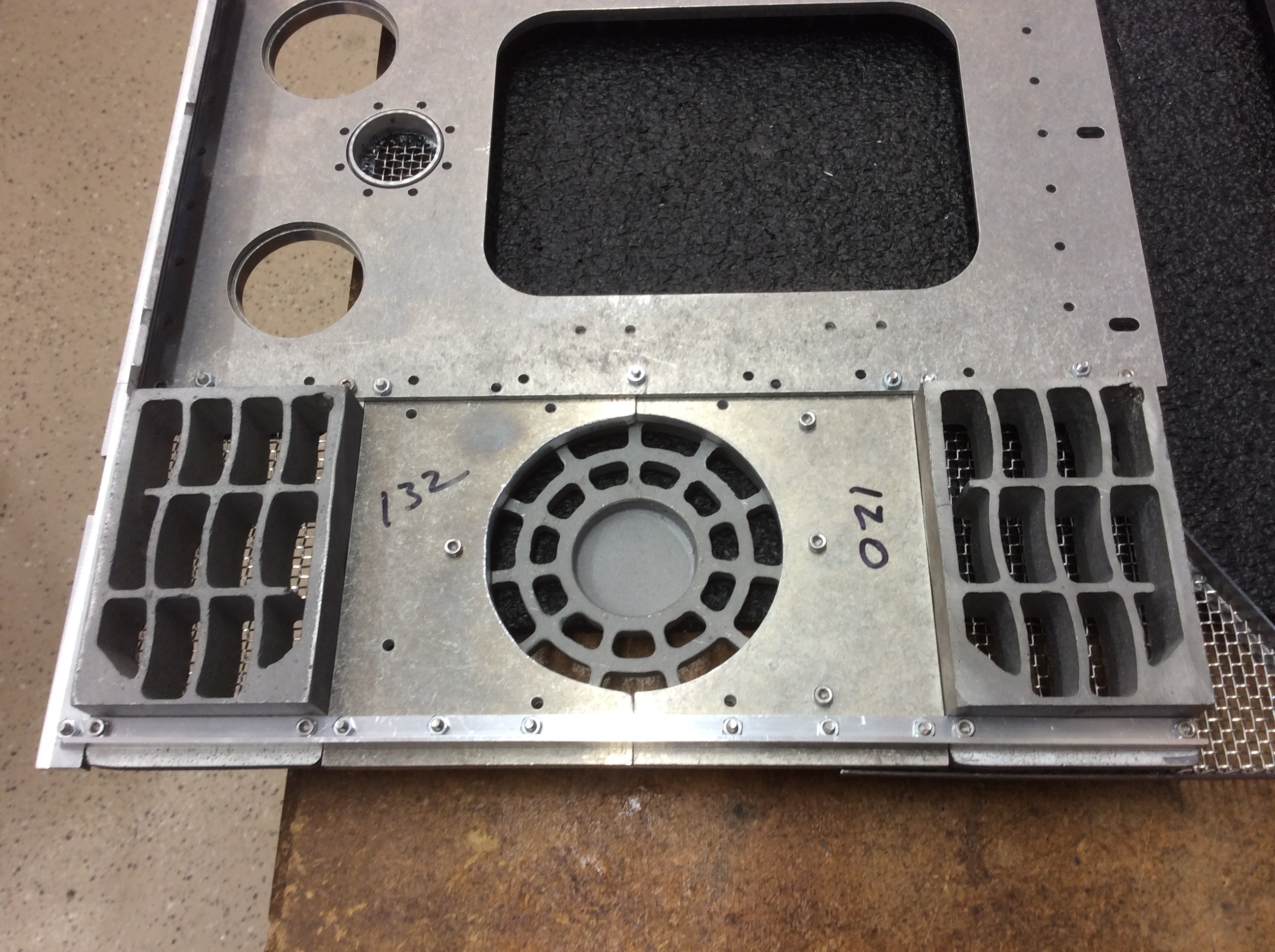

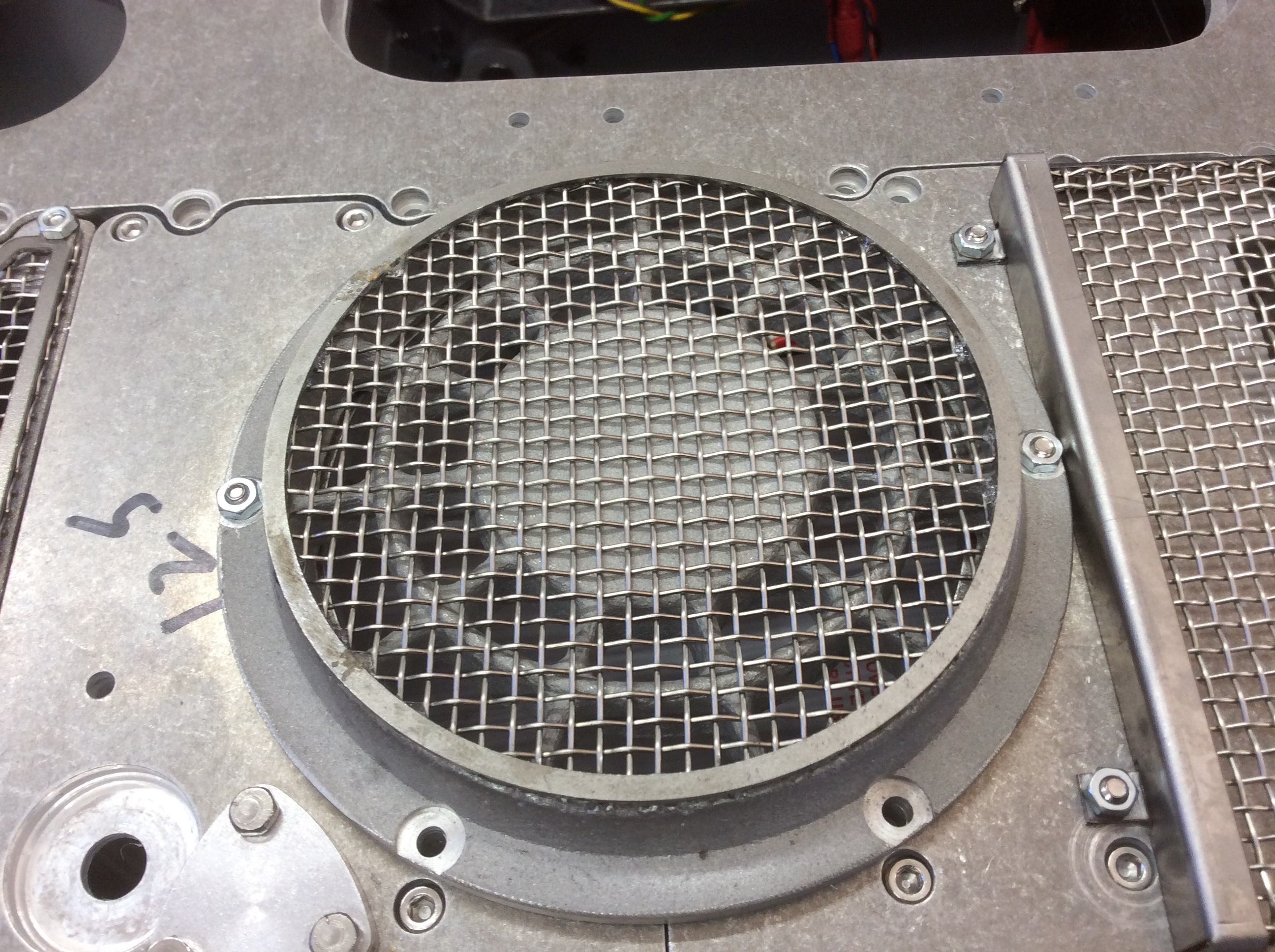

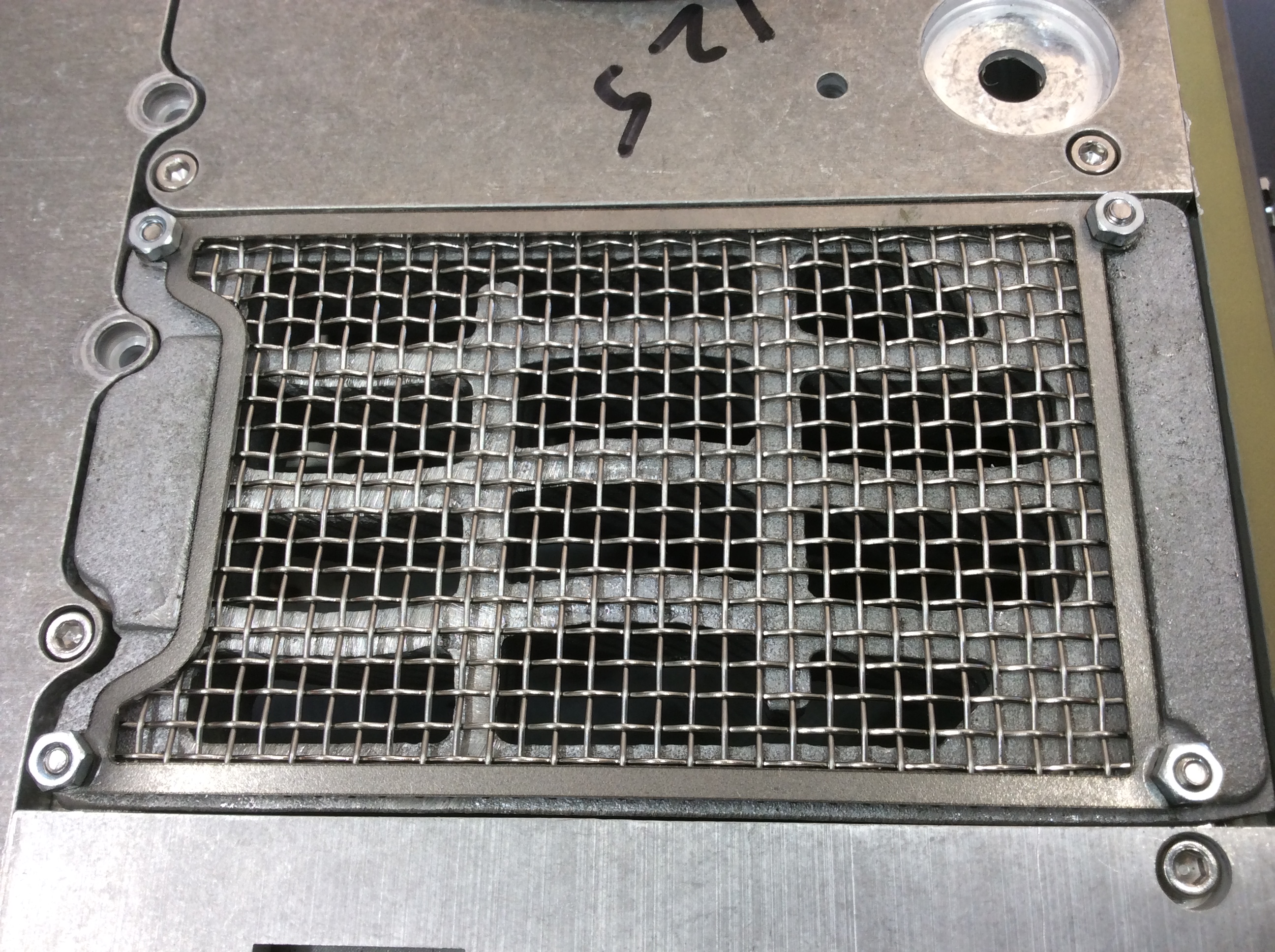

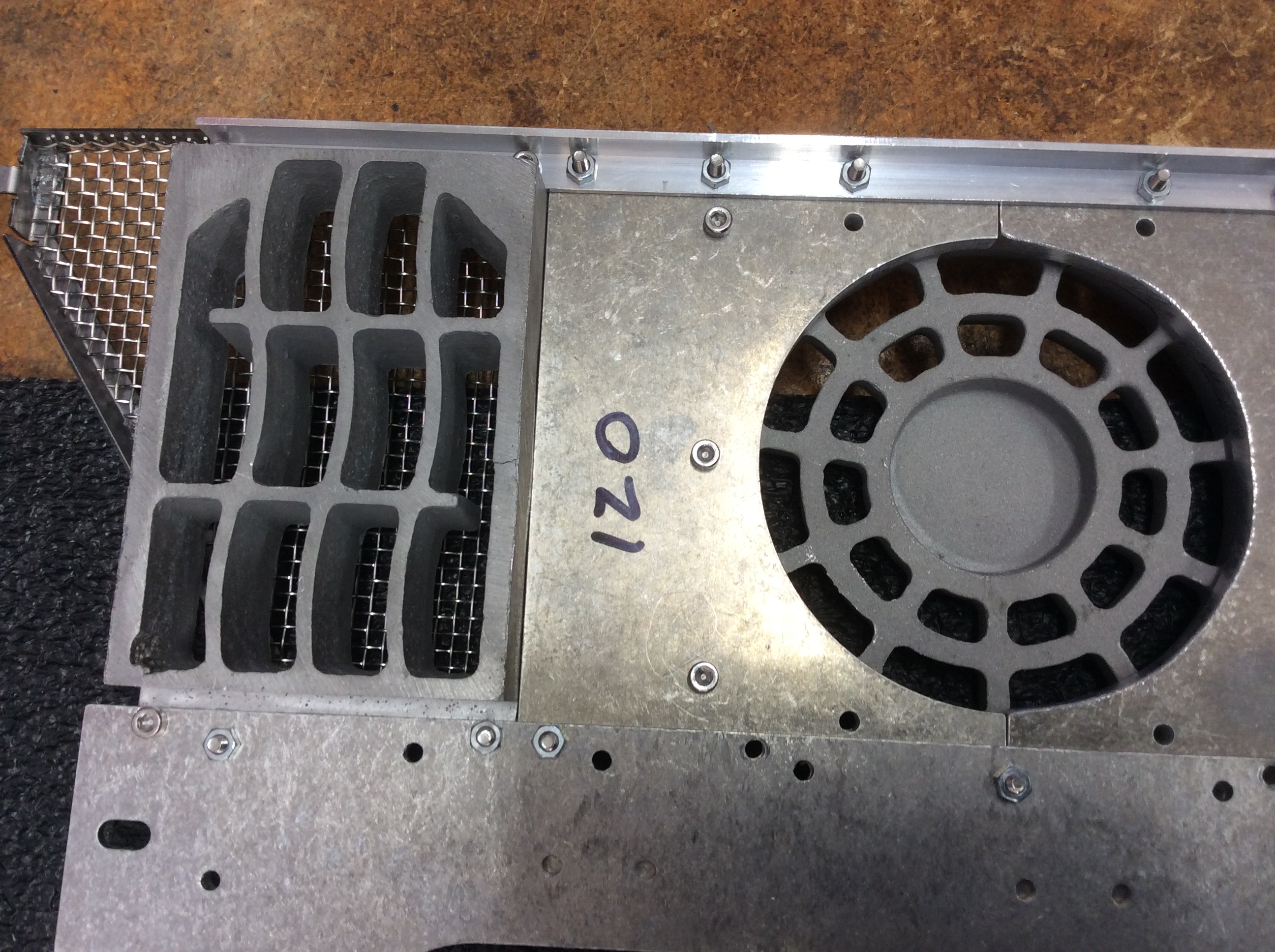

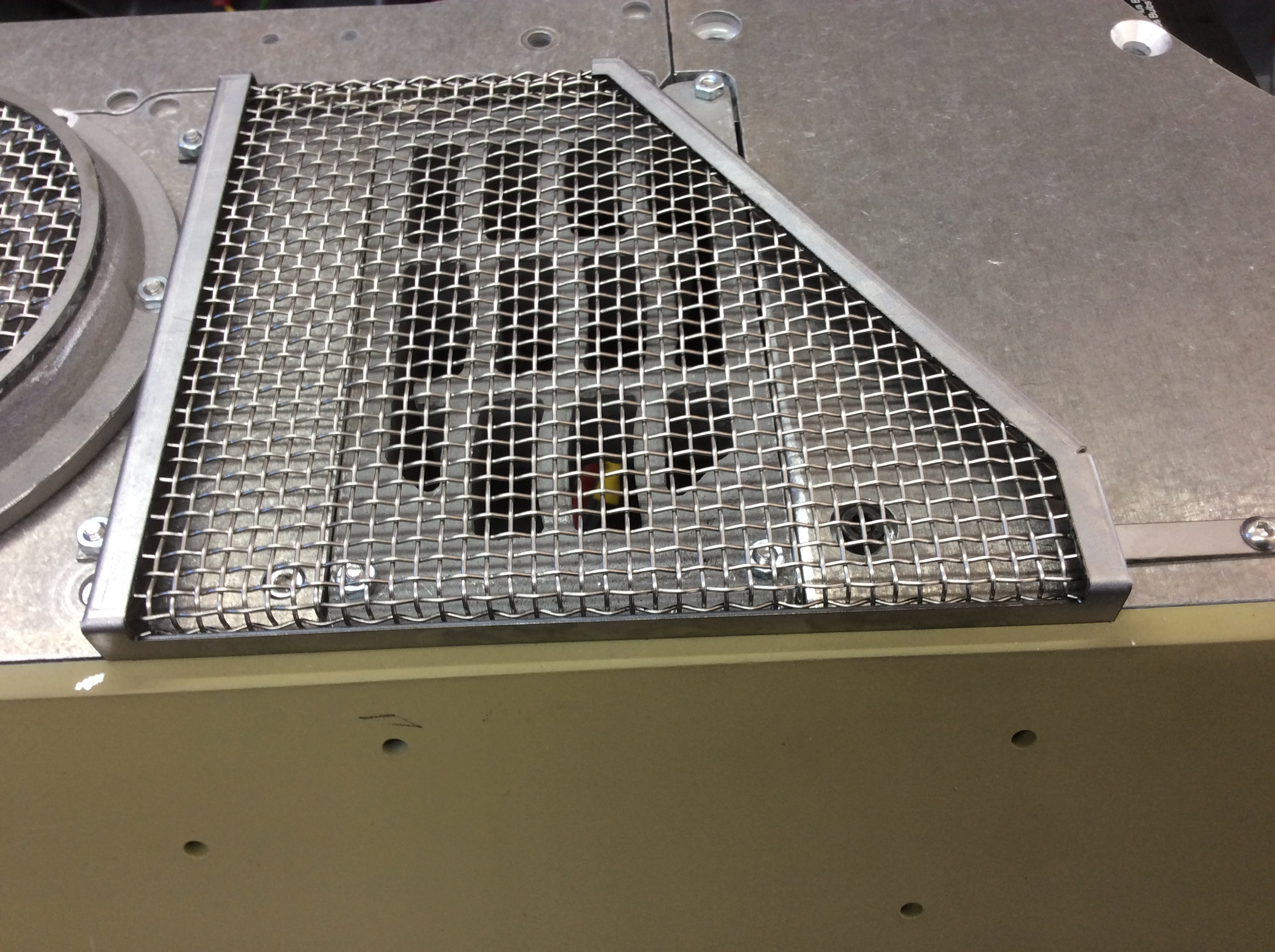

Been working on a variety of things. First off I didn't like the way Armortek has the front and back half of the idler just glued together so I drilled and tapped the front half of the idler for 3mm bolts then drilled and counter bored the back half. It won't come apart now. I wanted the rear deck to be removable to gain access to the batteries for maintenance so I did not use the brackets supplied and cut two pieces of .312 x .312 aluminum angle and match drilled the mounting holes where it attaches to the rear deck components. It is not attached to the pannier sides. Then I made the three rear mounting holes slots. Now I can take the rear deck off in one piece by removing the three front mounting bolts and loosening the three rear bolts and lifting the part off. The rear bolts are a real pain to access. Now they only have to be loosened not removed. I did cut off the front part of the supplied deck support to support the end of the mid deck. I cut, bent and fit all the mesh screens. I tricky job. Armortek shows the screens mounted on top of the square and round grill frames. I think they look better under the frames.
Been working on a variety of things. First off I didn't like the way Armortek has the front and back half of the idler just glued together so I drilled and tapped the front half of the idler for 3mm bolts then drilled and counter bored the back half. It won't come apart now. I wanted the rear deck to be removable to gain access to the batteries for maintenance so I did not use the brackets supplied and cut two pieces of .312 x .312 aluminum angle and match drilled the mounting holes where it attaches to the rear deck components. It is not attached to the pannier sides. Then I made the three rear mounting holes slots. Now I can take the rear deck off in one piece by removing the three front mounting bolts and loosening the three rear bolts and lifting the part off. The rear bolts are a real pain to access. Now they only have to be loosened not removed. I did cut off the front part of the supplied deck support to support the end of the mid deck. I cut, bent and fit all the mesh screens. I tricky job. Armortek shows the screens mounted on top of the square and round grill frames. I think they look better under the frames.
- Tom Miller
- Posts: 163
- Joined: Thu May 23, 2019 9:23 pm
- Location: Portland Oregon USA
- Been liked: 325 times
Re: Tom's King Tiger Build 2019 Hull 53

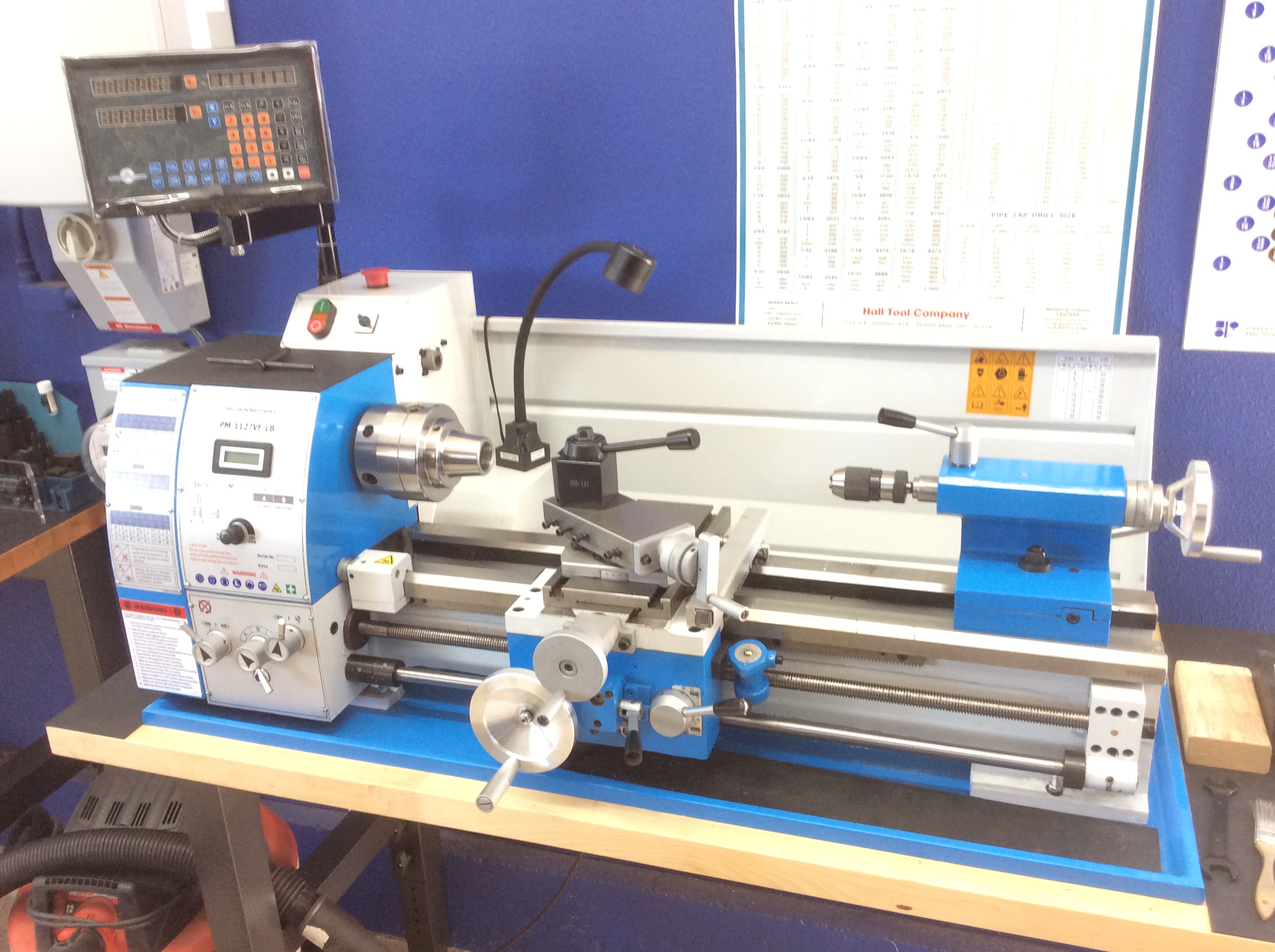

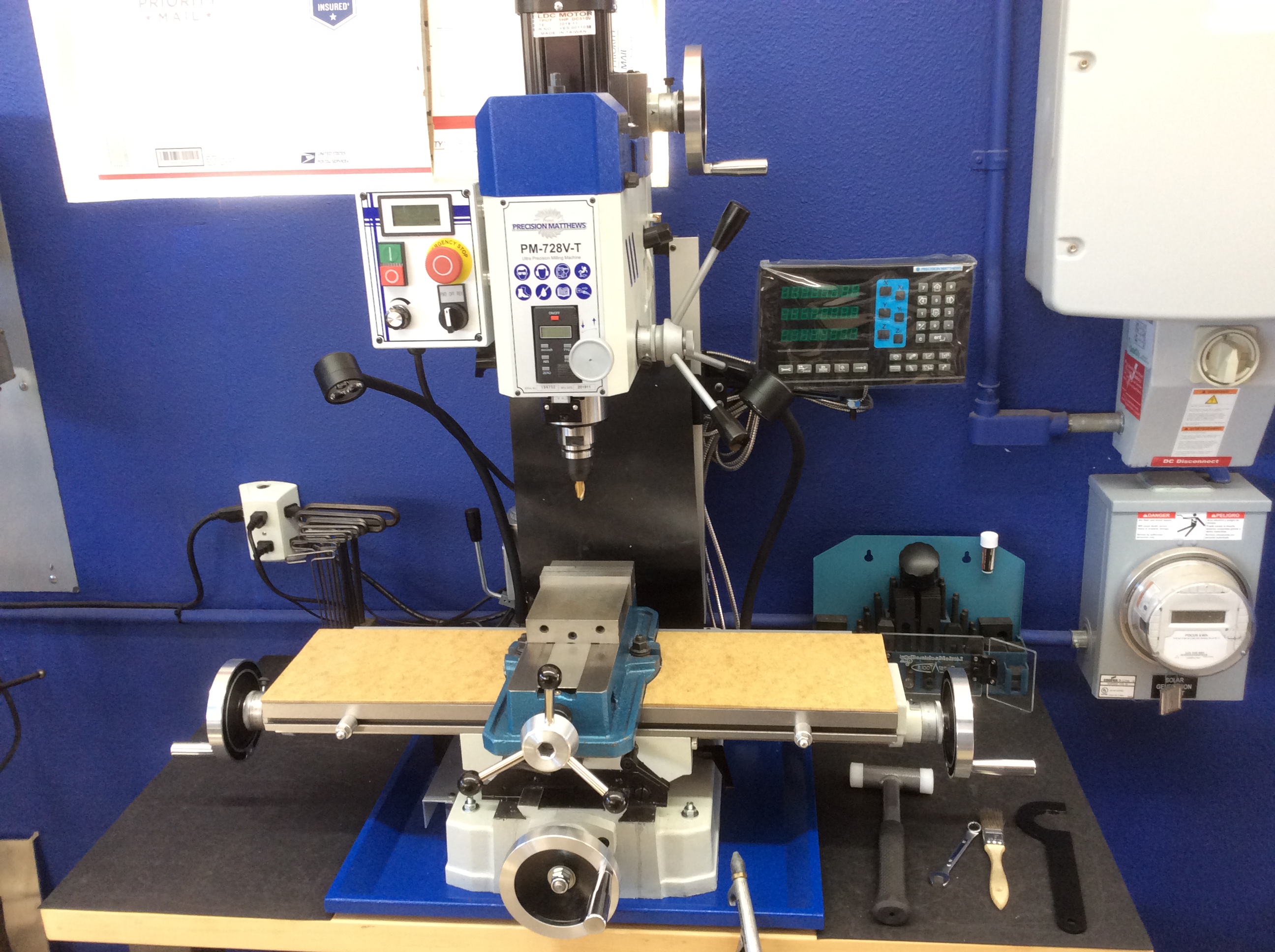

Took delivery of my new 11" lathe and Mill. Both Precision Mathews products. Big improvement in size and quality from my previous machines.
Been working on the side skirts and other attachments. I want to get everything below the turret done before starting the turret. It is much easier to access all the hardware with the turret and upper decks removed. I will start the attachments to the pannier sides and start plugging holes and apply welds next.
Last edited by Tom Miller on Wed Aug 19, 2020 9:29 pm, edited 1 time in total.
-
- Posts: 46
- Joined: Fri Feb 01, 2019 4:43 pm
- Has liked: 45 times
- Been liked: 23 times
Re: Tom's King Tiger Build 2019 Hull 53
Hi Tom, I just bought a PM 728 V-T for my build to. Interested in seeing what you plan on doing with the mill! Hope to purchase a lathe in the near future to. I’ll have a KT build thread to in the near future. Good luck and have fun with your build!
Scott
Scott
- Robert E Morey
- Posts: 2286
- Joined: Wed Jul 18, 2007 12:59 am
- Location: Seattle, WA USA
- Has liked: 111 times
- Been liked: 741 times
Re: Tom's King Tiger Build 2019 Hull 53
Tom,
Nice looking new lathe and mill. You can never have too much table travel! I like your Mods on the rear deck, I'm converting most of my lift off decks to be held with magnets. Great progress on your KT.
B
Nice looking new lathe and mill. You can never have too much table travel! I like your Mods on the rear deck, I'm converting most of my lift off decks to be held with magnets. Great progress on your KT.
B
-
- Posts: 18
- Joined: Wed Jun 10, 2020 3:40 am
- Location: Tauranga. New Zealand
- Been liked: 10 times
Re: Tom's King Tiger Build 2019 Hull 53
Hi Tom.
I hope that you are OK and keeping safe and away from the fires?
Keep up the good work on your Tiger, looking good.
I hope that you are OK and keeping safe and away from the fires?
Keep up the good work on your Tiger, looking good.
- Tom Miller
- Posts: 163
- Joined: Thu May 23, 2019 9:23 pm
- Location: Portland Oregon USA
- Been liked: 325 times
Re: Tom's King Tiger Build 2019 Hull 53
Hi Phillip,
The fires are just a few miles from me at this time. No evacuation order yet.... Smoke is so heavy you can hardly breath. Can't work in the shop because the smoke is so hazardous. The high winds have calmed down and that is helping get the fires under control. Had a scare the other night when the phone rang at 1:00 in the morning. It was my neighbor telling me a small fire had started just a few hundred yards from my house. Thankfully the fire dept. put it out in spite of the winds. My son is a local firefighter and has not been home for days. Other than that things are great....
Tom
The fires are just a few miles from me at this time. No evacuation order yet.... Smoke is so heavy you can hardly breath. Can't work in the shop because the smoke is so hazardous. The high winds have calmed down and that is helping get the fires under control. Had a scare the other night when the phone rang at 1:00 in the morning. It was my neighbor telling me a small fire had started just a few hundred yards from my house. Thankfully the fire dept. put it out in spite of the winds. My son is a local firefighter and has not been home for days. Other than that things are great....
Tom
-
- Posts: 18
- Joined: Wed Jun 10, 2020 3:40 am
- Location: Tauranga. New Zealand
- Been liked: 10 times
Re: Tom's King Tiger Build 2019 Hull 53
Tom.
You and your family keep safe and good luck.
Best regards
Phil
You and your family keep safe and good luck.
Best regards
Phil
- Tom Miller
- Posts: 163
- Joined: Thu May 23, 2019 9:23 pm
- Location: Portland Oregon USA
- Been liked: 325 times
Re: Tom's King Tiger Build 2019 Hull 53
Hi Guys,

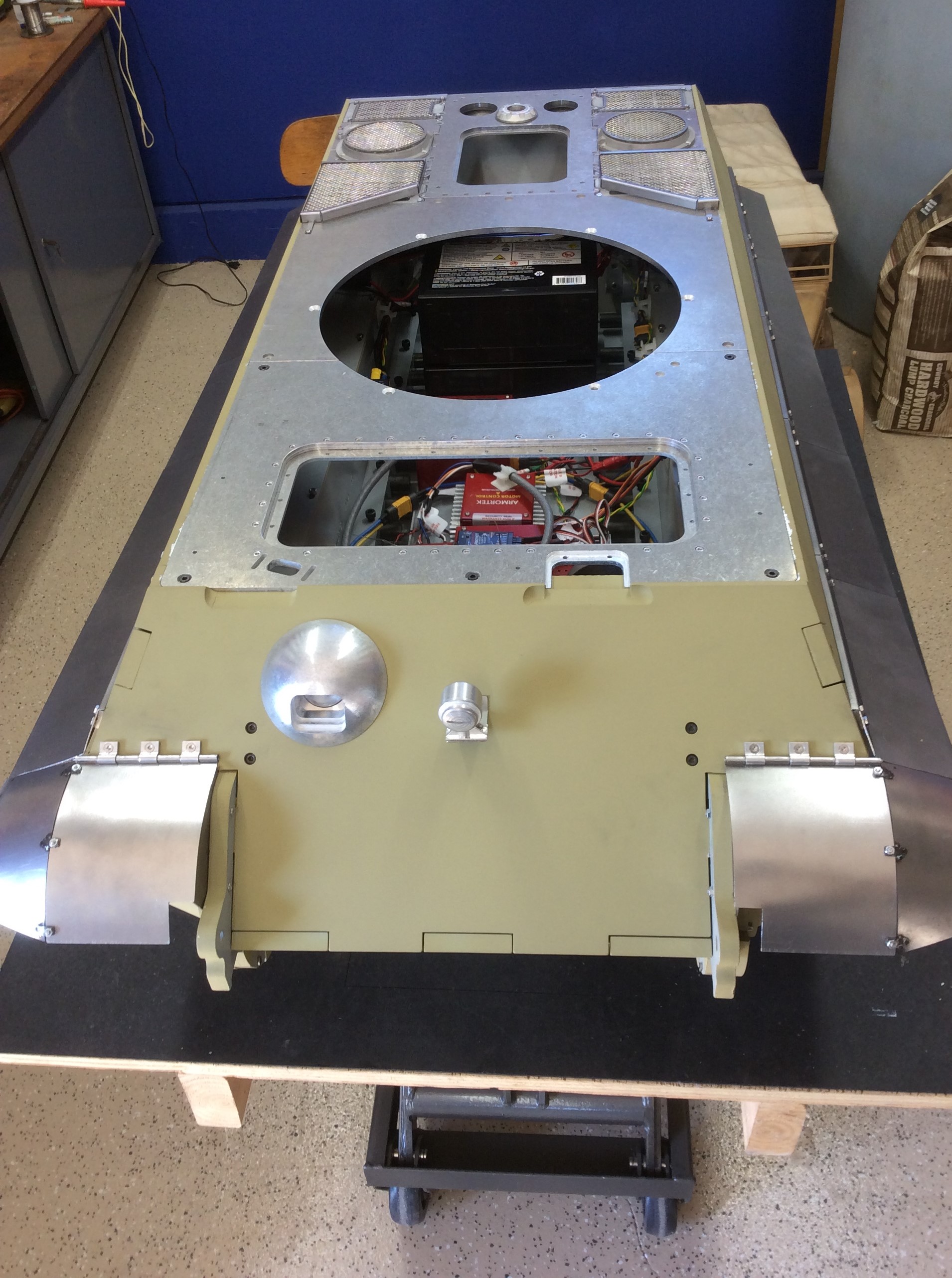

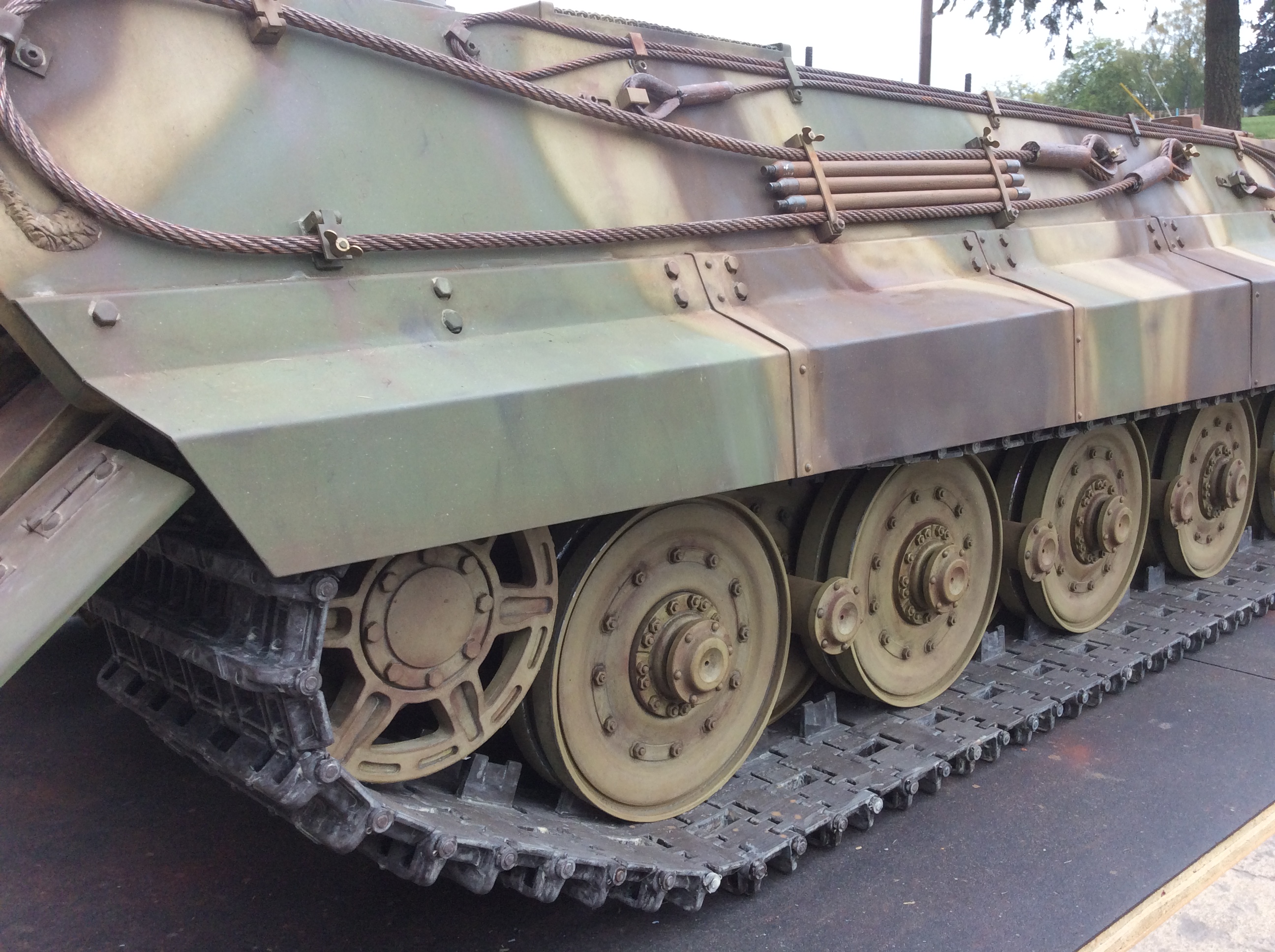

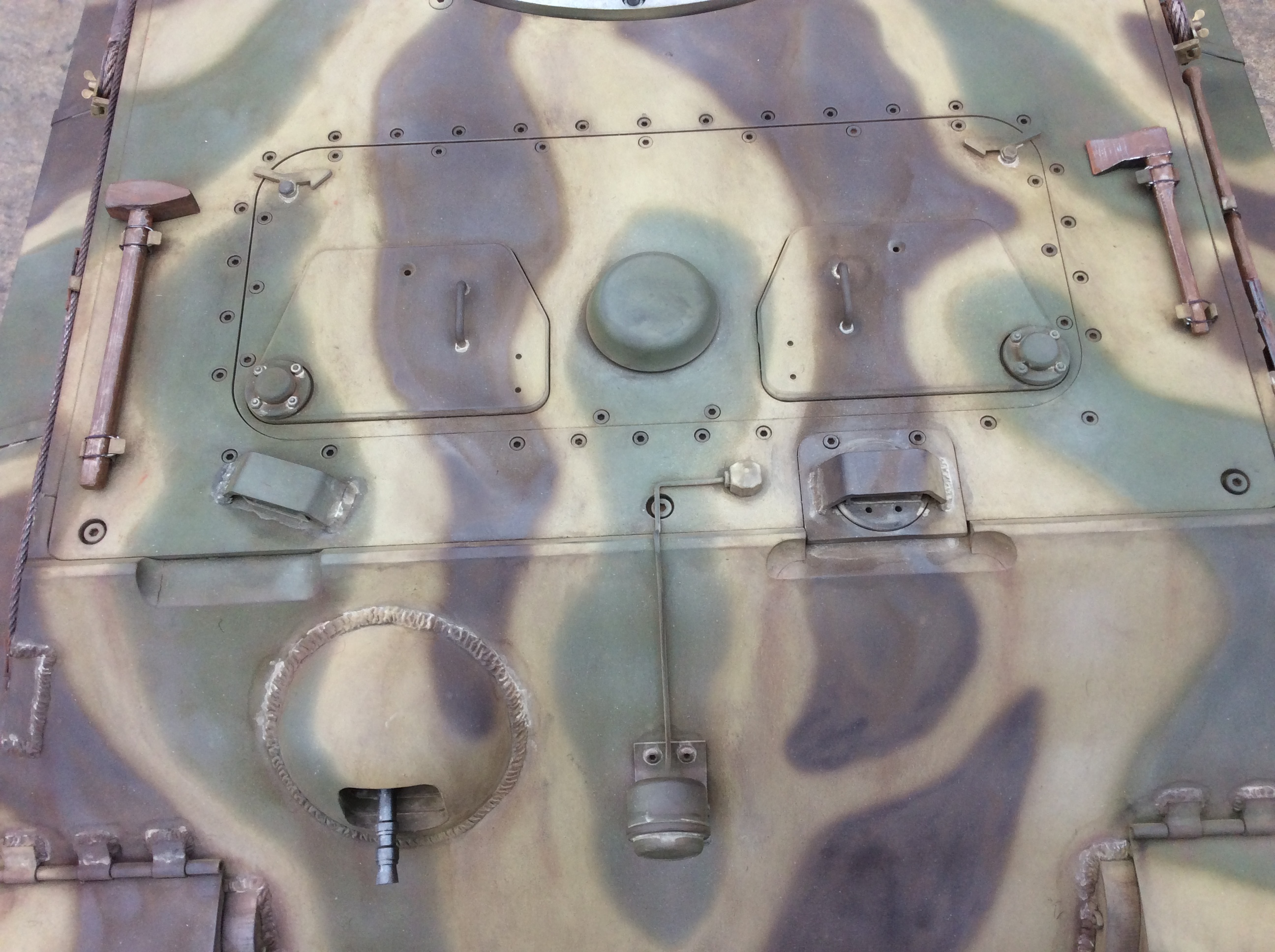

A few pics of the latest progress. I have everything below the turret done, painted and weathered. Applied a few welds too. This is my first try at three color camo. Now it's on to the turret. The parts are big and heavy. Curious to see what the difficulties are with this part of the build. Several people on this board have warned of difficulties. Wish me luck...
A few pics of the latest progress. I have everything below the turret done, painted and weathered. Applied a few welds too. This is my first try at three color camo. Now it's on to the turret. The parts are big and heavy. Curious to see what the difficulties are with this part of the build. Several people on this board have warned of difficulties. Wish me luck...
-
- Posts: 78
- Joined: Wed Jun 27, 2018 8:55 am
- Location: Gloucestershire
- Has liked: 40 times
- Been liked: 59 times
Re: Tom's King Tiger Build 2019 Hull 53
Hi Tom,
It’s looking good, well done!
How did you find tensioning the tracks? I found that minimum tensioning wasn’t enough to take a link (1&1/2 links really) out and max tensioning, even with the longer tensioning bolts, wasn’t enough to obtain some tension. I’ve resorted to altering the angle of the suspension arms, in effect raising the tank, now I have just enough tension to run it.
Phil.
It’s looking good, well done!
How did you find tensioning the tracks? I found that minimum tensioning wasn’t enough to take a link (1&1/2 links really) out and max tensioning, even with the longer tensioning bolts, wasn’t enough to obtain some tension. I’ve resorted to altering the angle of the suspension arms, in effect raising the tank, now I have just enough tension to run it.
Phil.
- Tom Miller
- Posts: 163
- Joined: Thu May 23, 2019 9:23 pm
- Location: Portland Oregon USA
- Been liked: 325 times
Re: Tom's King Tiger Build 2019 Hull 53
Hi Phil,
I had the same problem with tensioning the tracks. I increased the angle a couple degrees too. Mostly to compensate for future sagging of the suspension. At present my tensioner is set at maximum and it is barely enough. If I take a track set out I can not rejoin the tracks. Works OK for now but as the tracks stretch I may have to remove a tracks set.
I had the same problem with tensioning the tracks. I increased the angle a couple degrees too. Mostly to compensate for future sagging of the suspension. At present my tensioner is set at maximum and it is barely enough. If I take a track set out I can not rejoin the tracks. Works OK for now but as the tracks stretch I may have to remove a tracks set.
- Robert E Morey
- Posts: 2286
- Joined: Wed Jul 18, 2007 12:59 am
- Location: Seattle, WA USA
- Has liked: 111 times
- Been liked: 741 times
Re: Tom's King Tiger Build 2019 Hull 53
Excellent paint work Tom. Really nice looking KT.
Best regards,
B
Best regards,
B
-
- Posts: 2015
- Joined: Fri Nov 02, 2007 8:51 pm
- Location: new forest,hampshire,u.k.
- Been liked: 1614 times
Re: Tom's King Tiger Build 2019 Hull 53
The Tiger looks good, nice effect, the tracks will stretch and you will find a happy medium, also the Kingtiger tracks were a little on the loose side on the real vehicle, just be careful on neutral turns and on grass, drive it like the real vehicle, with care. regards simon
