Now to start fitting it all into the tank!Mark IV No. 35
-
Daniel Scholefield
- Posts: 204
- Joined: Mon Aug 05, 2013 7:48 pm
- Location: Maidstone, Kent
- Has liked: 68 times
- Been liked: 280 times
Re: Mark IV No. 35
Happpy days, the sound module is now working as advertised. It does help if you plug the wires in the correct slots after all Now to start fitting it all into the tank!
Now to start fitting it all into the tank!Mark IV No. 35 aka. L9 Lightning III
Hetzer No 28
Hetzer No 28
-
Ray Brown
- Posts: 452
- Joined: Tue Jul 05, 2011 2:00 am
- Location: Penrith NSW
- Has liked: 26 times
- Been liked: 103 times
- Contact:
Re: Mark IV No. 35
G'day Daniel,
I've just done mine but feel it's not right. I followed instructions with the LED going solid. Set the motion requirement for it to accelerate then full speed with the toggle forward then middle. At this point it goes back to LED blinking.
It seemed like I couldn't get that last forward/middle before switching off.
When I started tank up I got engine start up and idle. When I accelerated I got full speed sound, but not a gradual grunting. When I stopped driving it didn't return to the idle sound just driving sound.
Is this the same for you or does yours idle, accelerate, de-accelerate and then idle?
Cheers
Ray
I've just done mine but feel it's not right. I followed instructions with the LED going solid. Set the motion requirement for it to accelerate then full speed with the toggle forward then middle. At this point it goes back to LED blinking.
It seemed like I couldn't get that last forward/middle before switching off.
When I started tank up I got engine start up and idle. When I accelerated I got full speed sound, but not a gradual grunting. When I stopped driving it didn't return to the idle sound just driving sound.
Is this the same for you or does yours idle, accelerate, de-accelerate and then idle?
Cheers
Ray
-
Daniel Scholefield
- Posts: 204
- Joined: Mon Aug 05, 2013 7:48 pm
- Location: Maidstone, Kent
- Has liked: 68 times
- Been liked: 280 times
Re: Mark IV No. 35
The final set up for mine went like this:-I've just done mine but feel it's not right. I followed instructions with the LED going solid. Set the motion requirement for it to accelerate then full speed with the toggle forward then middle. At this point it goes back to LED blinking.
It seemed like I couldn't get that last forward/middle before switching off.
When I started tank up I got engine start up and idle. When I accelerated I got full speed sound, but not a gradual grunting. When I stopped driving it didn't return to the idle sound just driving sound.
Is this the same for you or does yours idle, accelerate, de-accelerate and then idle?
1. press the button to set the idle
2. move the stick forward to where the motor just started moving - switch 5 down and back (got a burst of noise)
3 go to full power on the motor and repeat (got another burst of noise and it beeped complete)
Tested and I got the on/off start noise and throttle progression.
Mark IV No. 35 aka. L9 Lightning III
Hetzer No 28
Hetzer No 28
-
Daniel Scholefield
- Posts: 204
- Joined: Mon Aug 05, 2013 7:48 pm
- Location: Maidstone, Kent
- Has liked: 68 times
- Been liked: 280 times
Re: Mark IV No. 35
Progress!
After lots of dis-assembly then days of frustration trying to get the tracks on I had given up on the 'beast'. Now, thanks to support from Mark and Gill I have a new track tensioner (threaded the first one) and newly machined front trensioner trays.
I fitted the drive motors and drive chains as I realised that it would be easier to to that before the tracks went on then rebuilt all the rear plates I had removed for access.
Finally today the moment of truth - the track that had beaten me first time around went on with only the slightest of fuss.
Now onto the right side...
After lots of dis-assembly then days of frustration trying to get the tracks on I had given up on the 'beast'. Now, thanks to support from Mark and Gill I have a new track tensioner (threaded the first one) and newly machined front trensioner trays.
I fitted the drive motors and drive chains as I realised that it would be easier to to that before the tracks went on then rebuilt all the rear plates I had removed for access.
Finally today the moment of truth - the track that had beaten me first time around went on with only the slightest of fuss.
Last edited by Daniel Scholefield on Wed Nov 02, 2016 8:37 pm, edited 1 time in total.
Mark IV No. 35 aka. L9 Lightning III
Hetzer No 28
Hetzer No 28
-
Steve Stuart
- Posts: 779
- Joined: Fri Apr 18, 2008 11:34 pm
- Location: Oxford
- Has liked: 263 times
- Been liked: 195 times
Re: Mark IV No. 35
Looking Good, Daniel
The second track goes on in a fraction of the time of the first track, thankfully! I can see a large huddle of people on Armortek Day chewing the fat over how we all managed in the end to perfect our own techniques. I hope that I will have run the tracks in good and proper before I need to take them off, so some extra slack will have been worn in!
If any one wants to phone me about it, PM me and I will give my number out.
All the best
Steve
The second track goes on in a fraction of the time of the first track, thankfully! I can see a large huddle of people on Armortek Day chewing the fat over how we all managed in the end to perfect our own techniques. I hope that I will have run the tracks in good and proper before I need to take them off, so some extra slack will have been worn in!
If any one wants to phone me about it, PM me and I will give my number out.
All the best
Steve
-
Daniel Scholefield
- Posts: 204
- Joined: Mon Aug 05, 2013 7:48 pm
- Location: Maidstone, Kent
- Has liked: 68 times
- Been liked: 280 times
Re: Mark IV No. 35

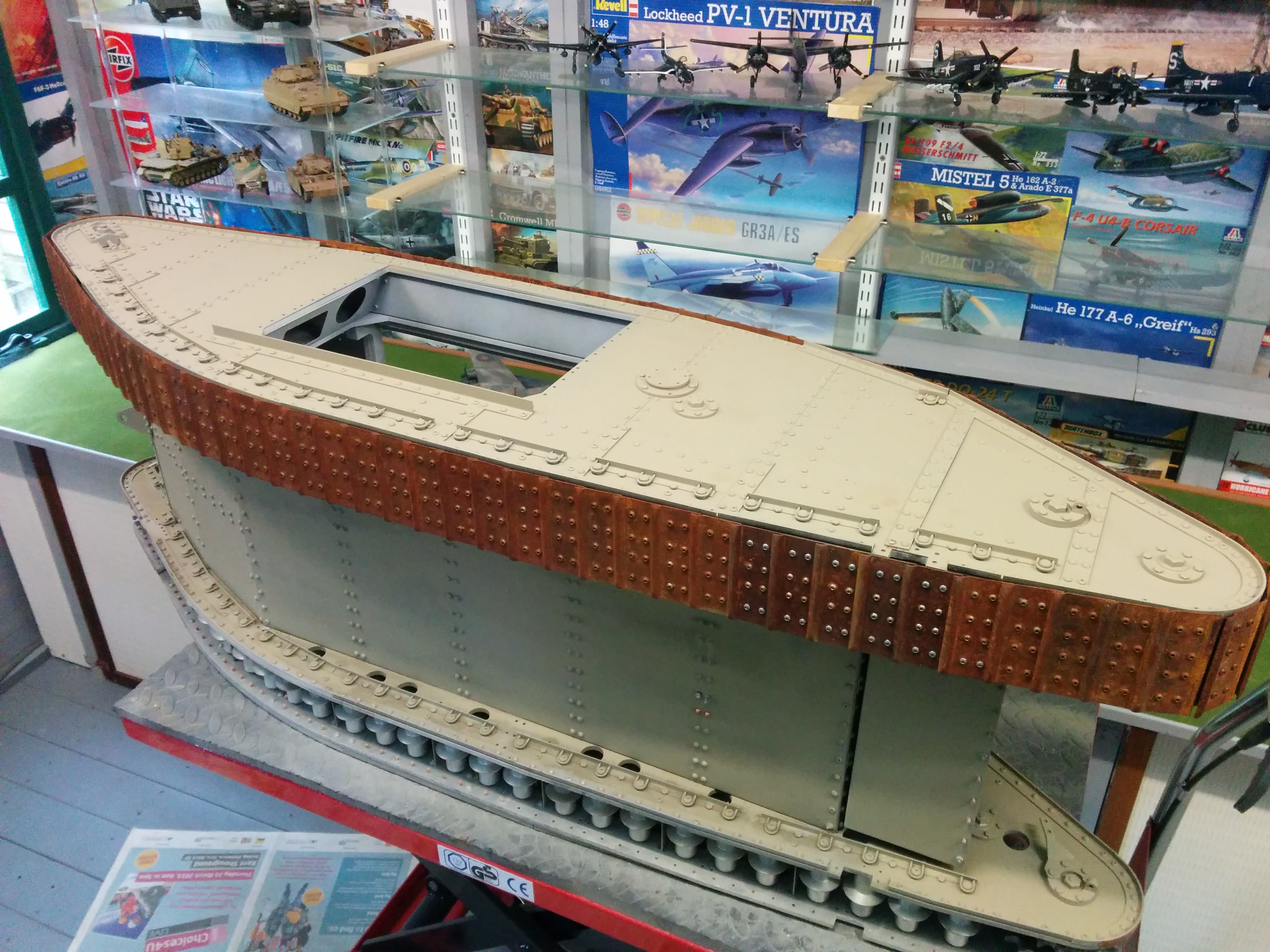

The right side track is now on (amazing what a difference the removal of a little metal can make). It fought a bit but it came together in the end
Next step, hook up the batteries and see if it works...near disaster as, after a few tentative tests I got one track jammed at full forward and dropped the controller! The tank dropped off the lift and I nearly gave my self a hernia trying to stop it crashing to the floor, not my best moment.

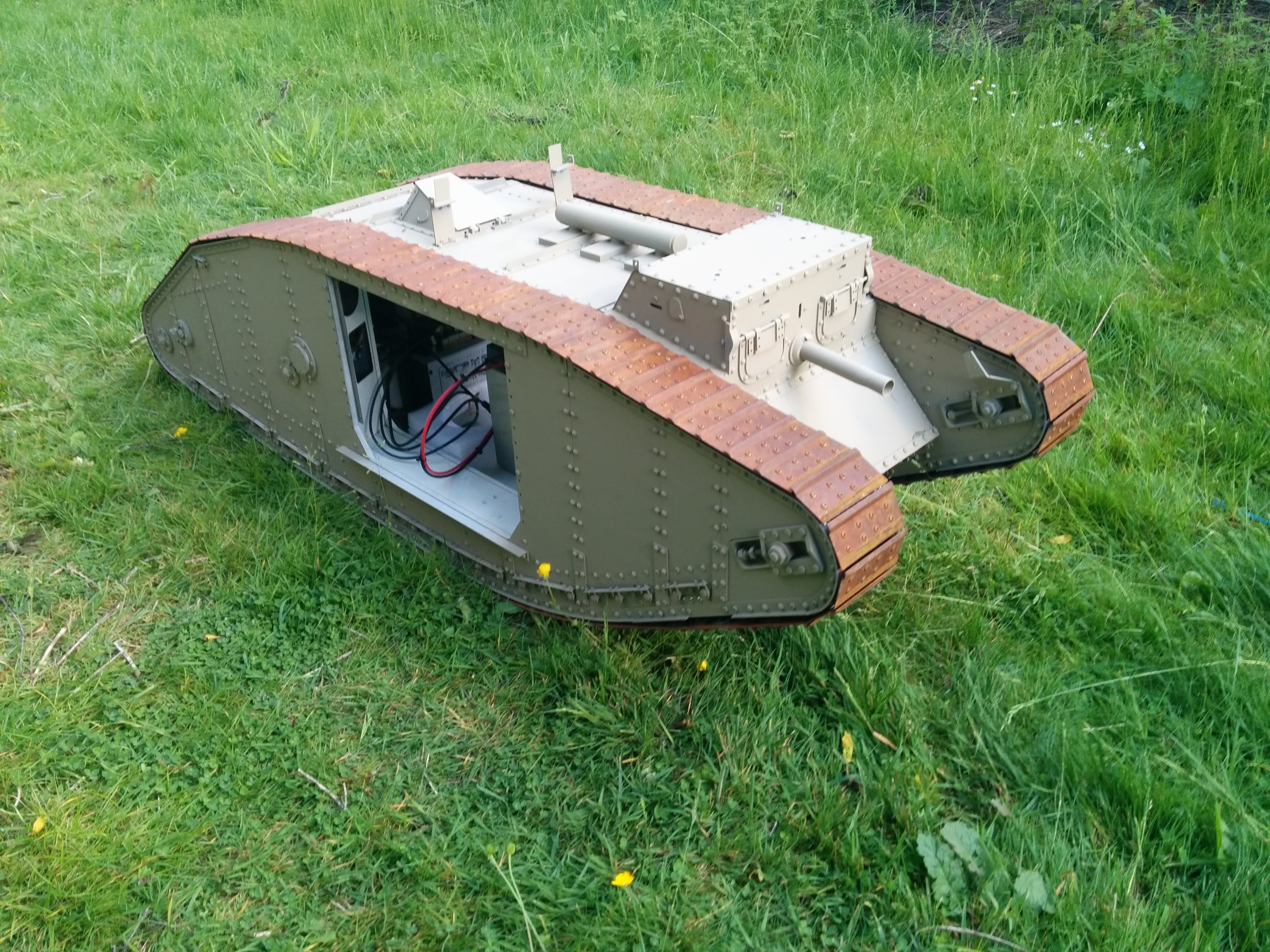

Anyway the main news is that No.35 is now moving under its own power, still plenty to do but the milestone is reached
Next step, hook up the batteries and see if it works...near disaster as, after a few tentative tests I got one track jammed at full forward and dropped the controller! The tank dropped off the lift and I nearly gave my self a hernia trying to stop it crashing to the floor, not my best moment.
Anyway the main news is that No.35 is now moving under its own power, still plenty to do but the milestone is reached
Last edited by Daniel Scholefield on Wed Nov 02, 2016 8:38 pm, edited 1 time in total.
Mark IV No. 35 aka. L9 Lightning III
Hetzer No 28
Hetzer No 28
-
Ray Brown
- Posts: 452
- Joined: Tue Jul 05, 2011 2:00 am
- Location: Penrith NSW
- Has liked: 26 times
- Been liked: 103 times
- Contact:
Re: Mark IV No. 35
Hi mate. Excellent work. Feels good when you finally get your 'baby' taking it's first steps. Hope you enjoy running it as much as I do running mine.
Cheers
Ray
Cheers
Ray
-
Daniel Scholefield
- Posts: 204
- Joined: Mon Aug 05, 2013 7:48 pm
- Location: Maidstone, Kent
- Has liked: 68 times
- Been liked: 280 times
Re: Mark IV No. 35

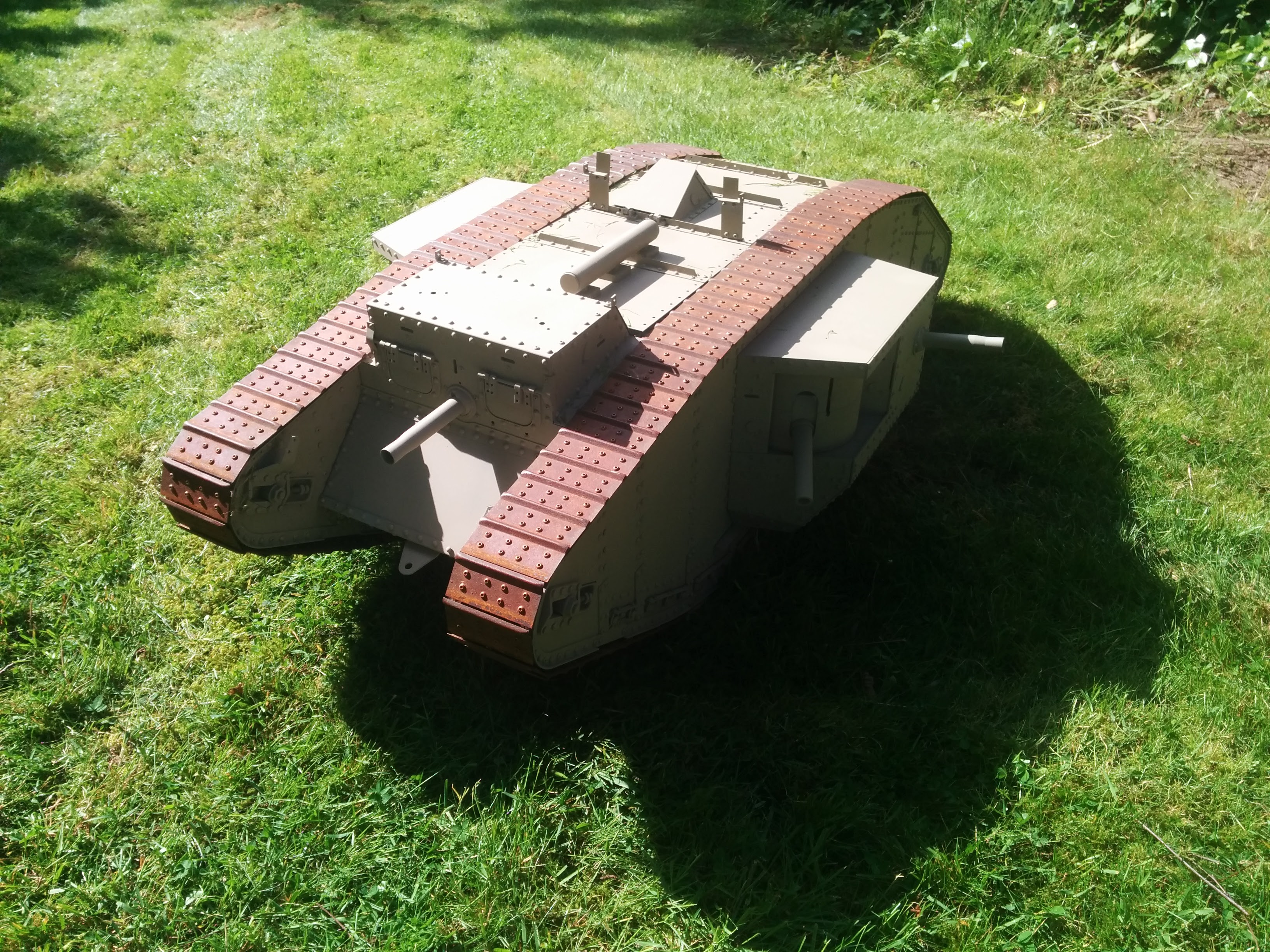

More testing, I seem to be getting some track binding in reverse, not sure what it is fouling on at the moment though. Meanwhile I fitted the sponsons and the speakers and spend a while annoying the neighbours with the noise
Next up is the roof and rails but I am trying to figure out how I can mount them and still have some access into the tank...
Mark IV No. 35 aka. L9 Lightning III
Hetzer No 28
Hetzer No 28
-
Chris Hall
- Posts: 772
- Joined: Mon Jan 12, 2015 12:34 pm
- Location: Devizes, Wiltshire, UK
- Has liked: 535 times
- Been liked: 686 times
Re: Mark IV No. 35
Daniel -
You're a bit ahead of me, but I had a look at the issue of the roof and the unditching rails today, and I think I may have a solution for you.
The issue is where the unditching beam goes. It's more of a problem if you do it according to the build instructions, as you'll have to take that off first. If you put it in the later historical position (as discussed at length between myself and Steve Stuart) then it's nicely out of the way at the back of the tank.
The only point where the unditching rail fixes to the roof is at the support EK0647. I can't see any way of avoiding that, so just bolt it finger-tight and remove the bolt whenever you want to take the roof off. The roof should then slide out between the rails.
Personally, I'm going to leave the Stop Plates (EK0652) off my build, especially as my unditching beam will be at the back. If you tie the unditching beam down securely on the top they shouldn't be necessary. The holes at the top of EK0647 will need to be filled, either with filler or a rivet.
Hope this helps. If any of the completed builds came up with a better way, or if Mark has some tips, I'm sure we'll all be agog to learn !
Chris
You're a bit ahead of me, but I had a look at the issue of the roof and the unditching rails today, and I think I may have a solution for you.
The issue is where the unditching beam goes. It's more of a problem if you do it according to the build instructions, as you'll have to take that off first. If you put it in the later historical position (as discussed at length between myself and Steve Stuart) then it's nicely out of the way at the back of the tank.
The only point where the unditching rail fixes to the roof is at the support EK0647. I can't see any way of avoiding that, so just bolt it finger-tight and remove the bolt whenever you want to take the roof off. The roof should then slide out between the rails.
Personally, I'm going to leave the Stop Plates (EK0652) off my build, especially as my unditching beam will be at the back. If you tie the unditching beam down securely on the top they shouldn't be necessary. The holes at the top of EK0647 will need to be filled, either with filler or a rivet.
Hope this helps. If any of the completed builds came up with a better way, or if Mark has some tips, I'm sure we'll all be agog to learn !
Chris
Mark IV (Liesel, Abteilung 14, France 1918)
M3 Lee (25 Dragoons, Burma 1944)
Universal Carrier (2/Wiltshires, Italy 1944)
Panther (Deserter, 145 RAC, Italy 1944)
Centurion Mk 3 (8KRIH, Korea 1950/51)
Morris Quad, 25-pdr & limber (45RA, Korea 1951)
M3 Lee (25 Dragoons, Burma 1944)
Universal Carrier (2/Wiltshires, Italy 1944)
Panther (Deserter, 145 RAC, Italy 1944)
Centurion Mk 3 (8KRIH, Korea 1950/51)
Morris Quad, 25-pdr & limber (45RA, Korea 1951)
-
Daniel Scholefield
- Posts: 204
- Joined: Mon Aug 05, 2013 7:48 pm
- Location: Maidstone, Kent
- Has liked: 68 times
- Been liked: 280 times
Re: Mark IV No. 35

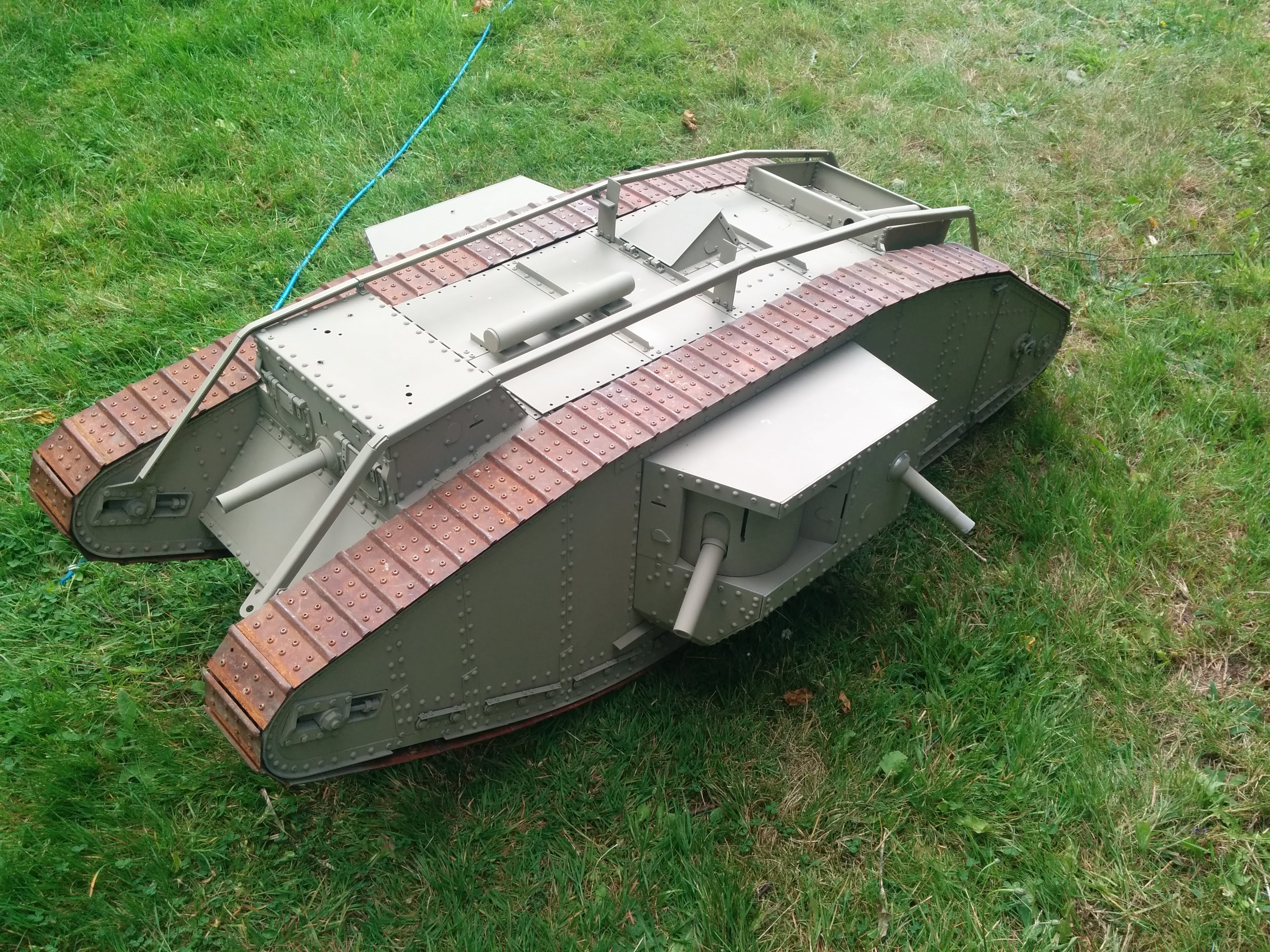

Further progress, got the rails attached and the spud box re-attached. Just the top plate to finish once I sort out a solution to getting access to the batteries etc. The left track is going to have to come off to sort out some binding issues and to replace some lost screws but after the trails of getting them on I am postponing it until I get to 'play' some more
- Attachments
-
Mark IV No. 35 aka. L9 Lightning III
Hetzer No 28
Hetzer No 28
-
Daniel Scholefield
- Posts: 204
- Joined: Mon Aug 05, 2013 7:48 pm
- Location: Maidstone, Kent
- Has liked: 68 times
- Been liked: 280 times
Re: Mark IV No. 35

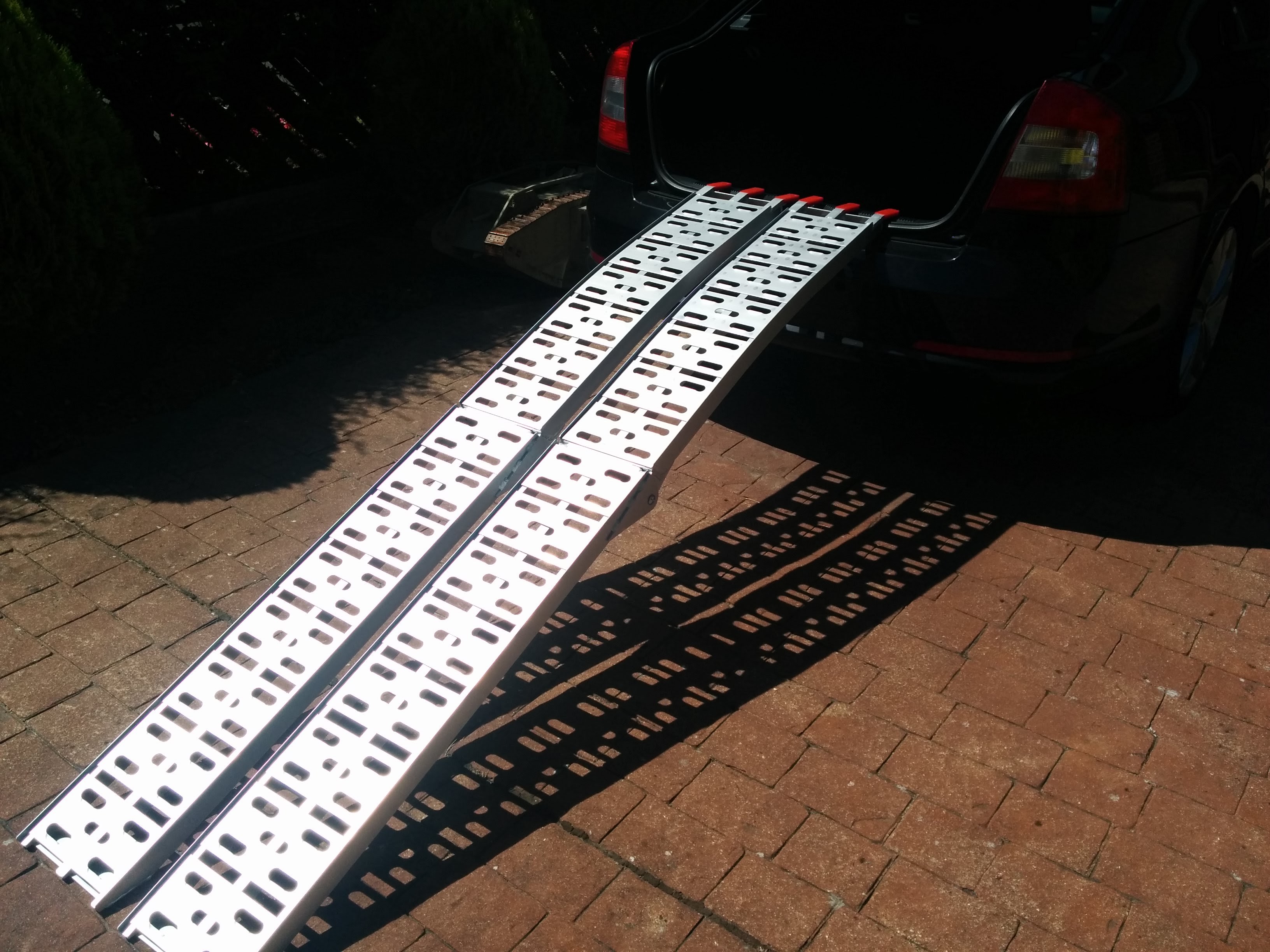

As a last piece of testing before I take the tracks off (to find out what is binding) and secure the roof I wanted to see how the Mark IV would get along with my new ramps:-

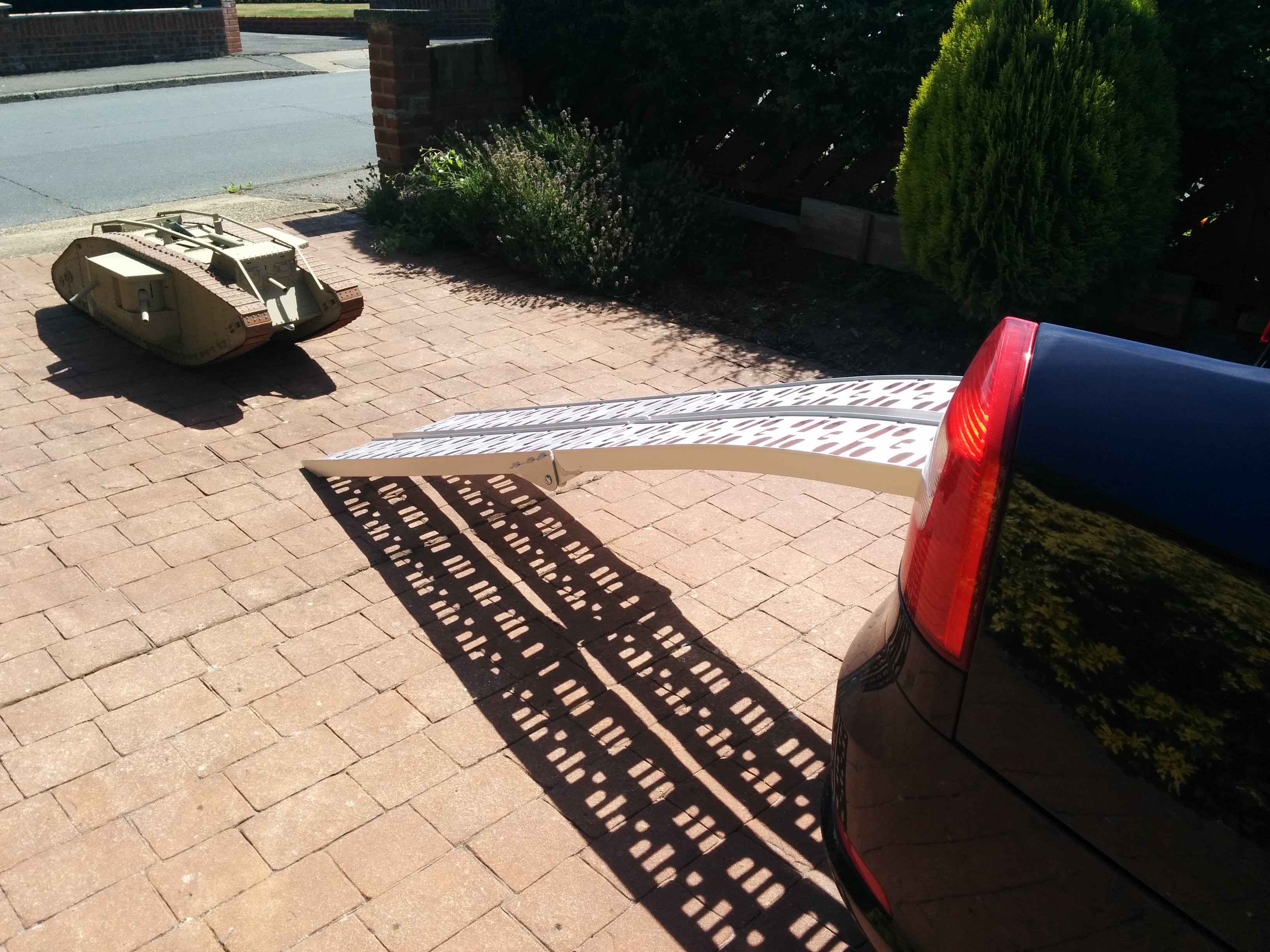

Placement on the car seemed ok so I lined it up...

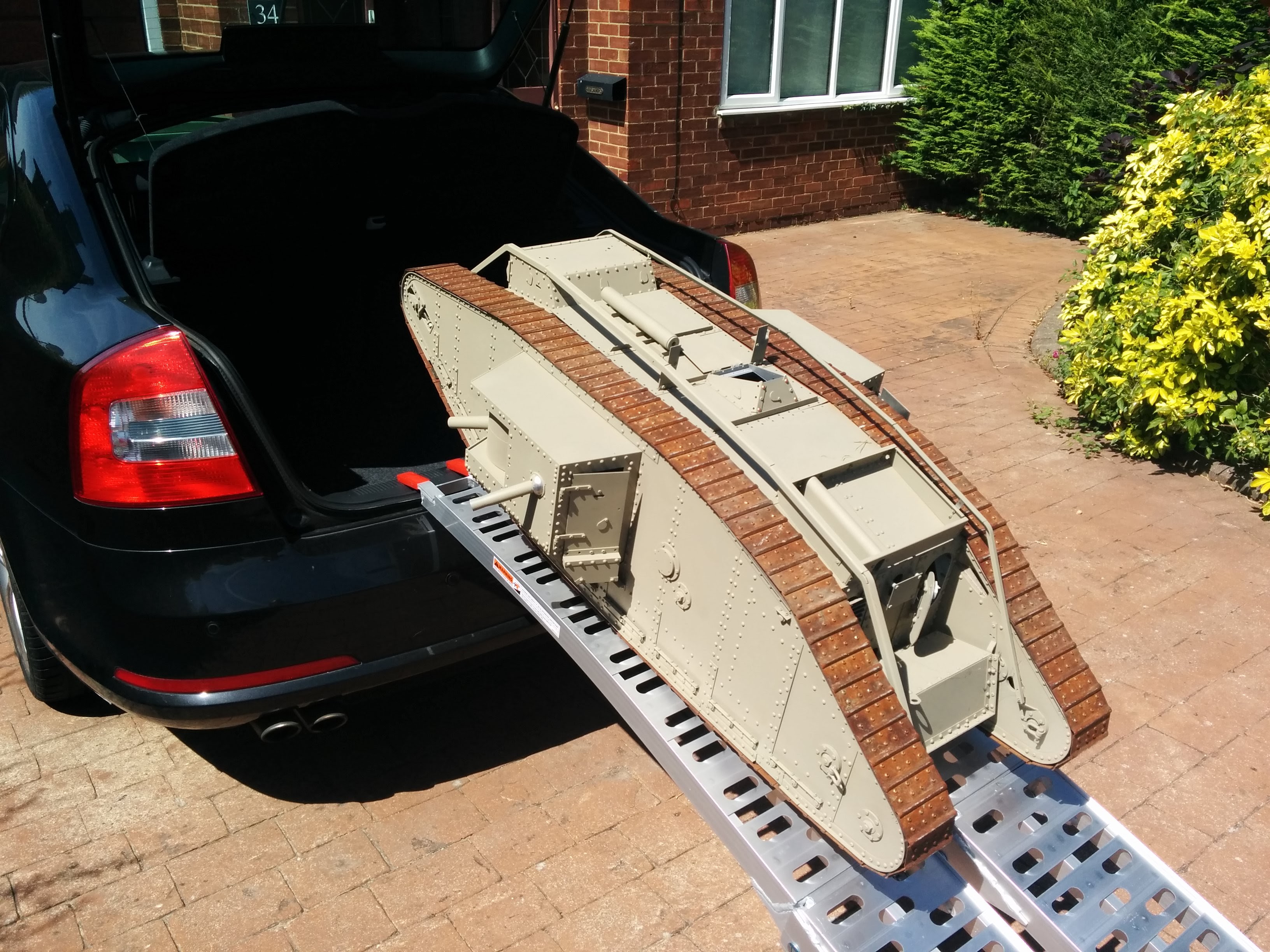

Pushed forwards and up it went!
