Front Drain Valve
I recently finished, in collaboration with another forum member, a complex (to me) 3D model of a Chieftain part and today I woke up with an itch to do a simple part for a change. So went on my favorite site (tiger1.info) and decided to do the front drain valve:
https://tiger1.info/EN/Front-drain.html

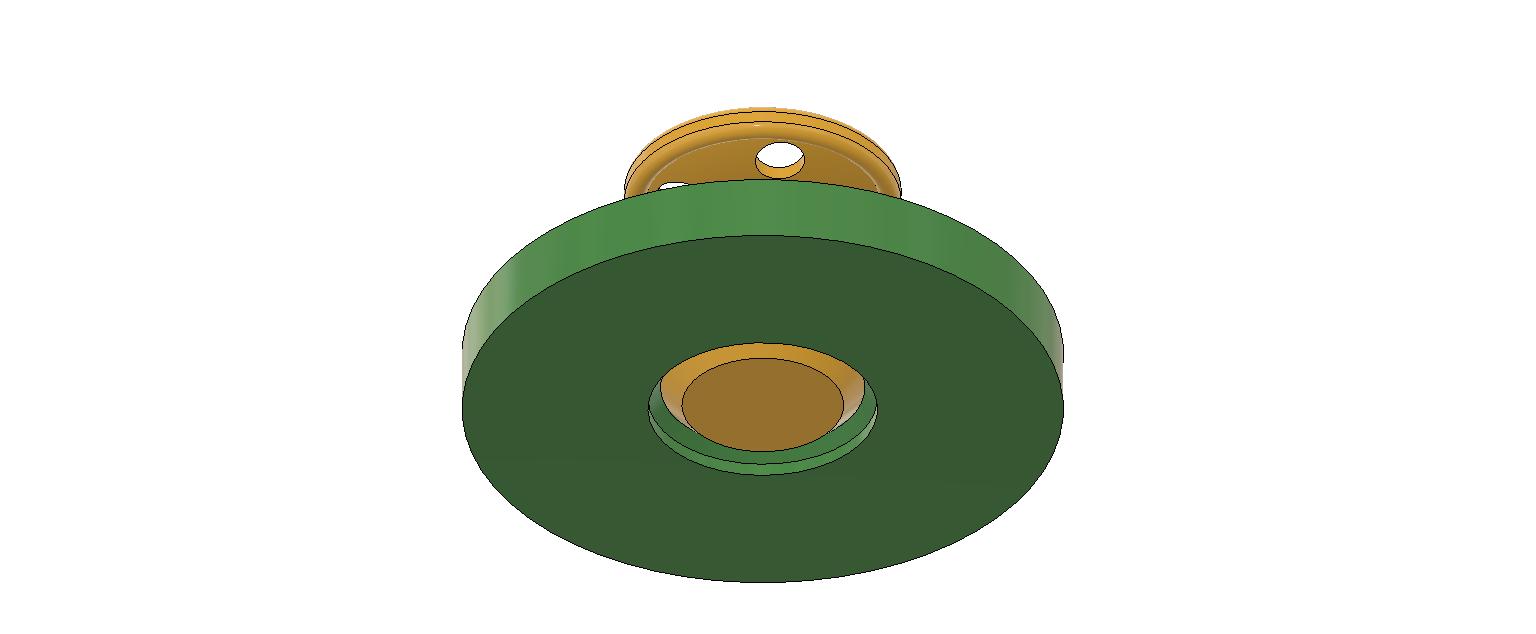

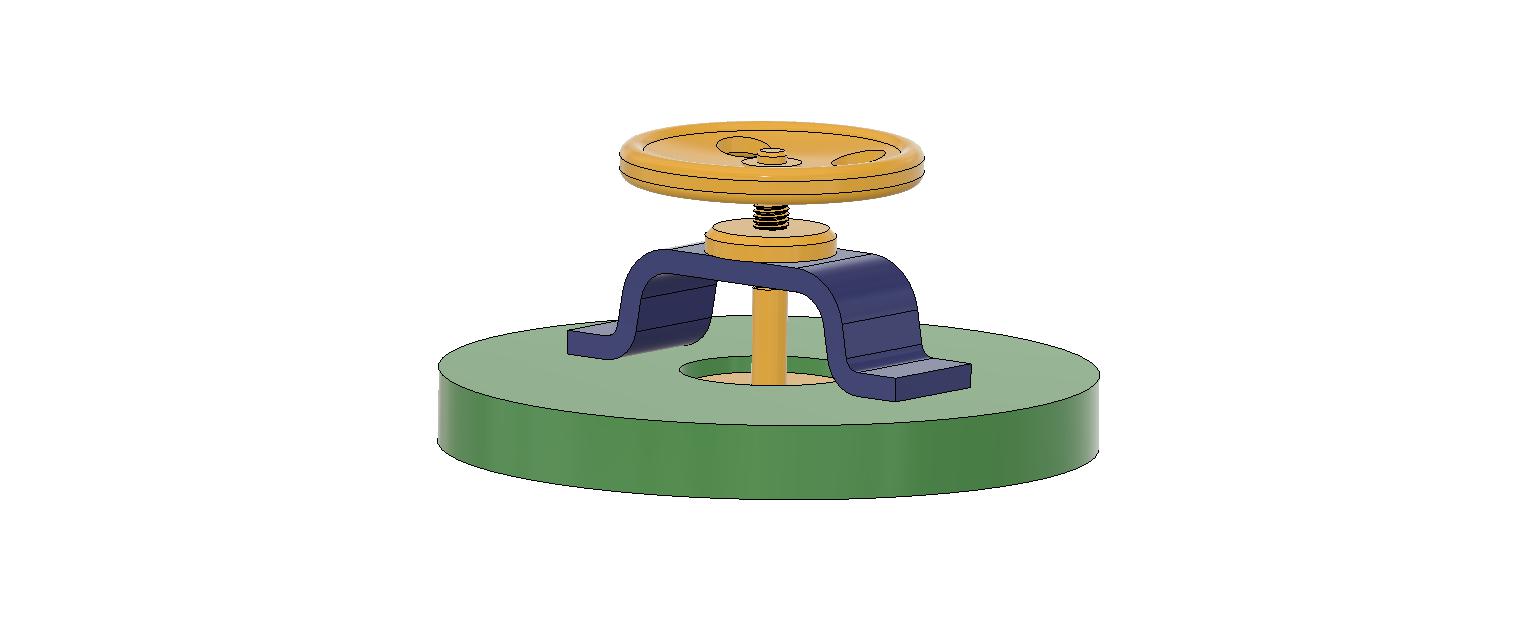

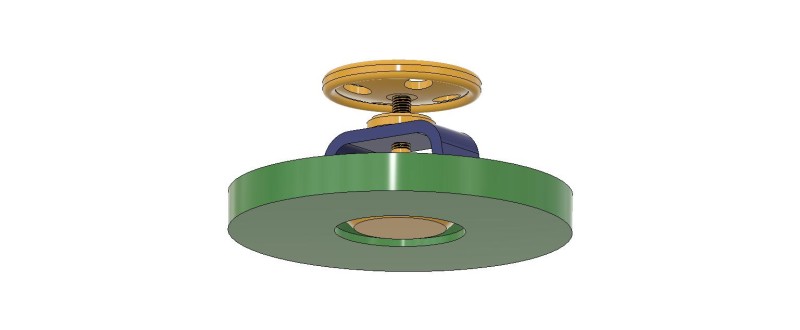

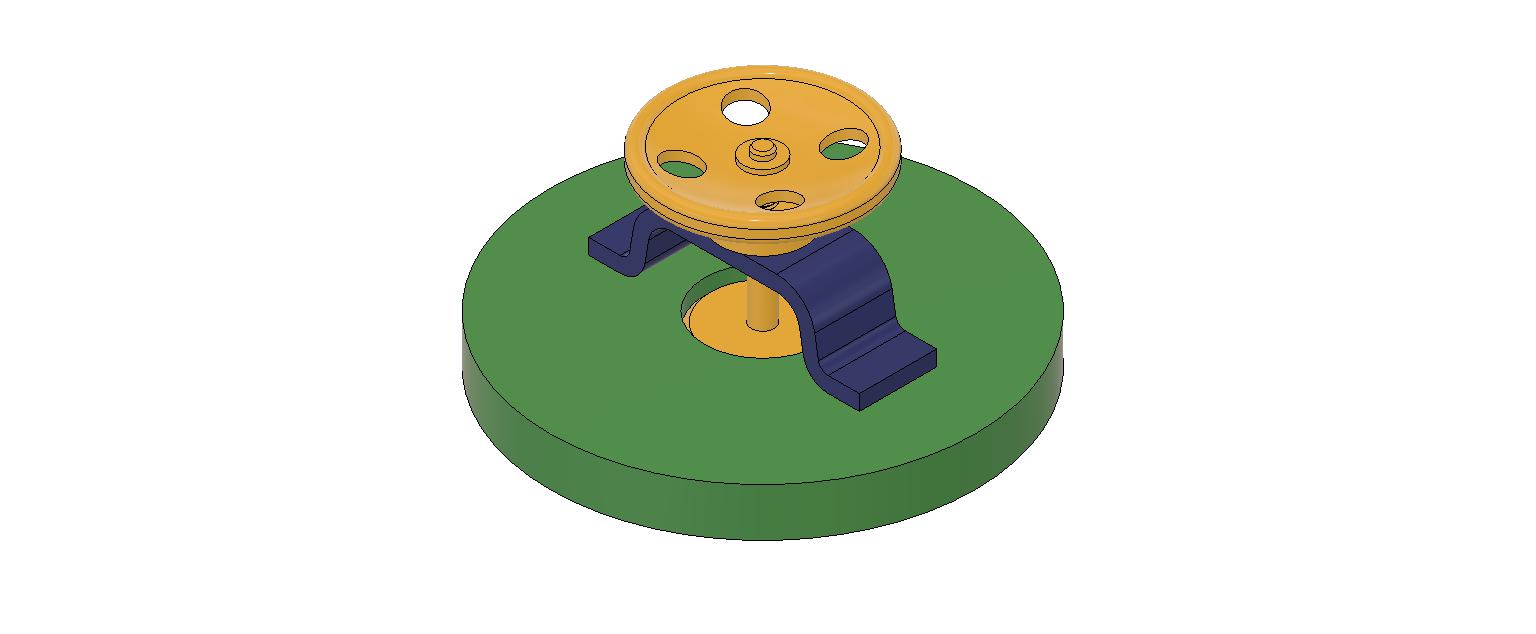

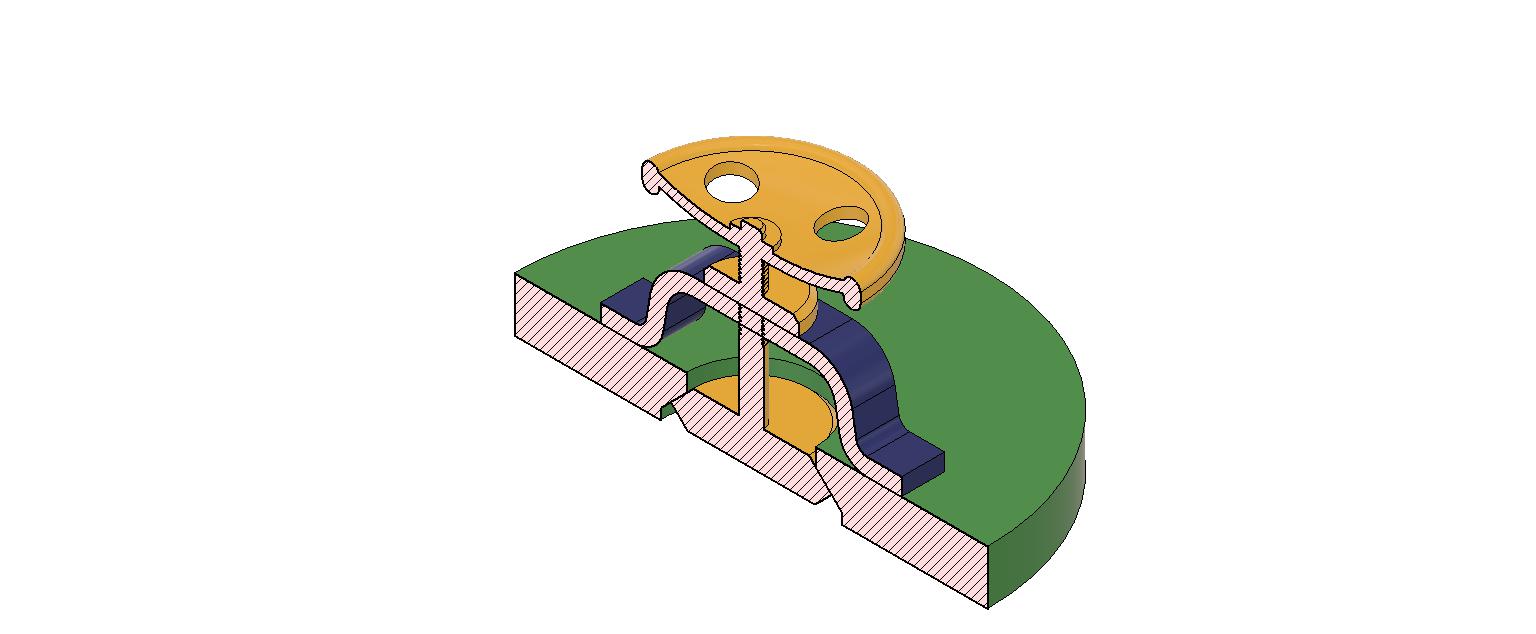

I drew it just for fun and to complement the great information on that website. I coloured the parts for ease of viewing. The green part is the Tiger 1 hull floor.
The rear drain valve is similar but cable operated:
https://tiger1.info/EN/Rear-drain.html
Vince
