Engine Cooling Components
-
Vince Cutajar
- Posts: 2193
- Joined: Wed Nov 15, 2017 1:43 pm
- Location: Malta
- Has liked: 790 times
- Been liked: 1761 times
Engine Cooling Components

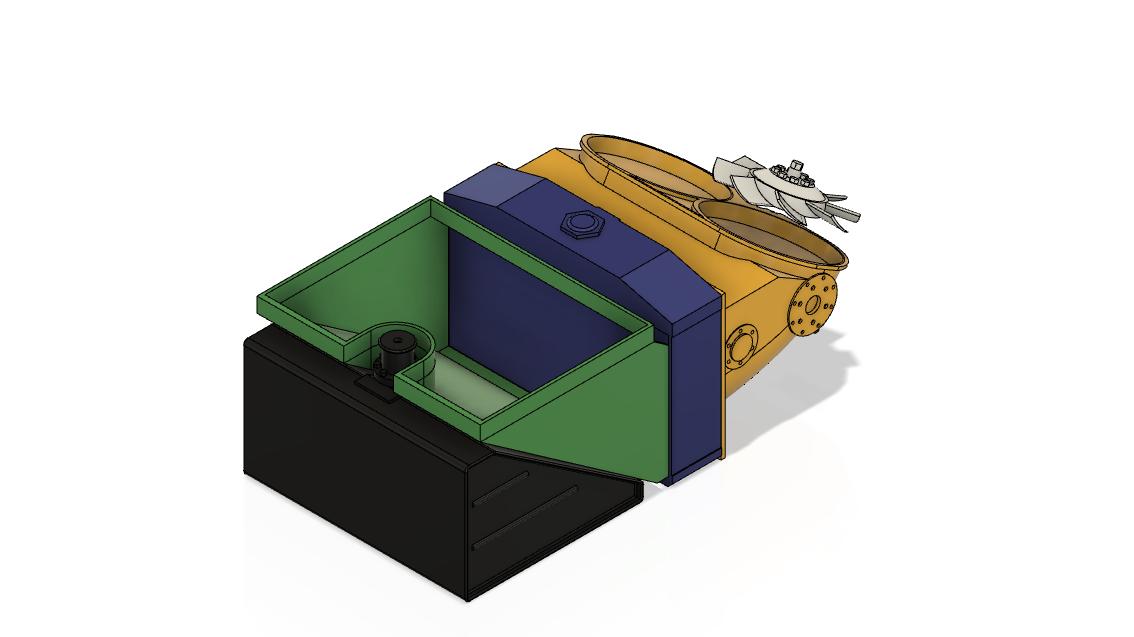

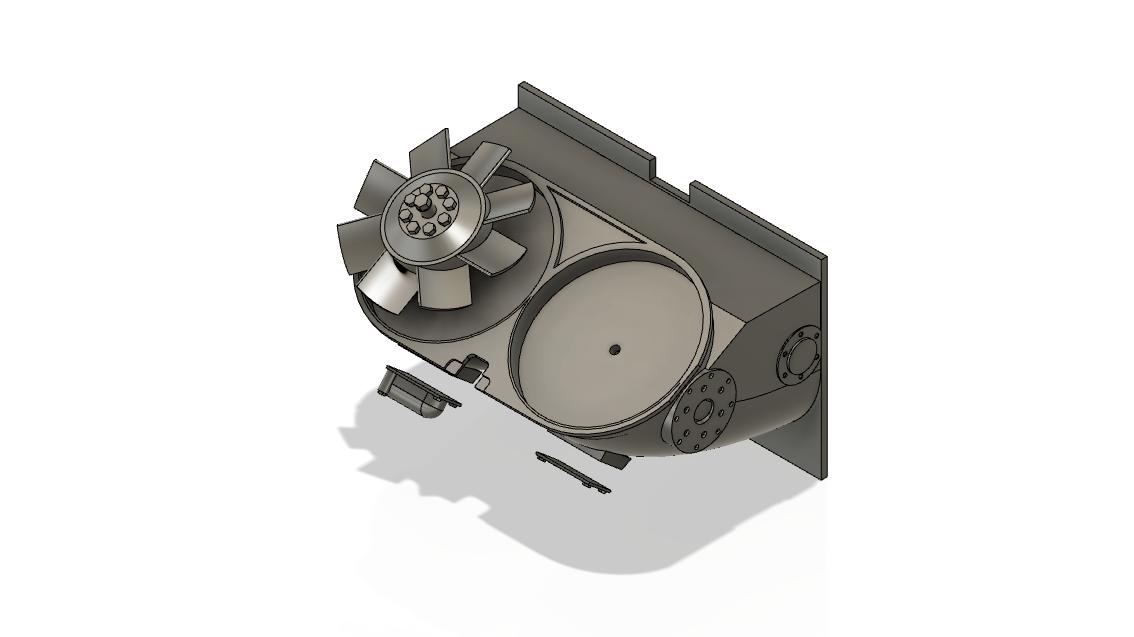

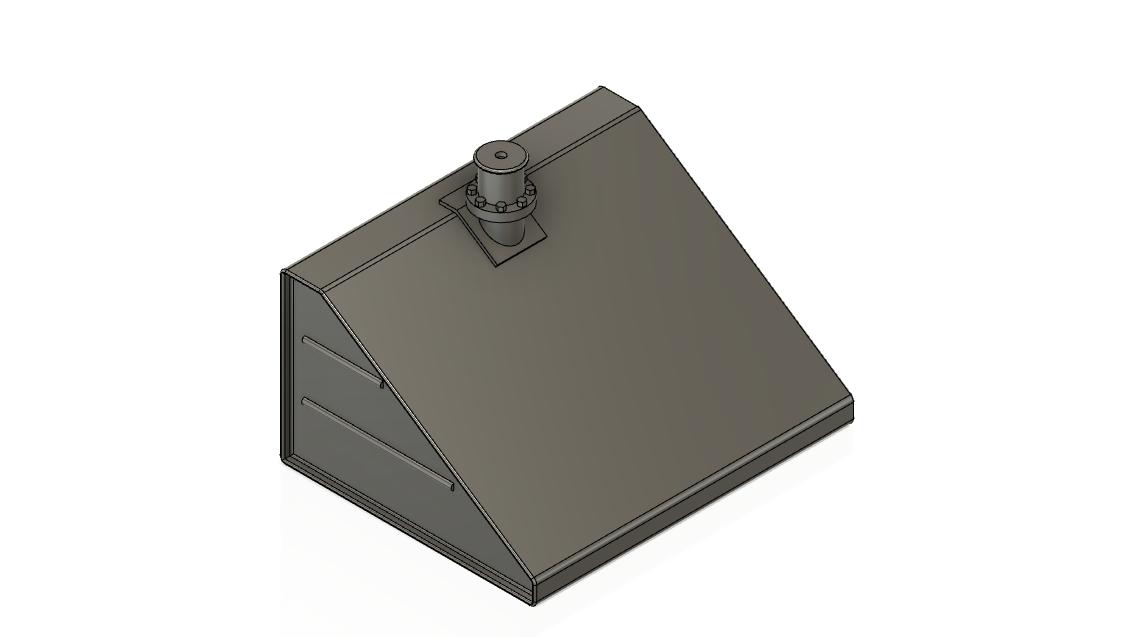

Just for fun I drew up the various components of the engine cooling system which are found under the engine deck grilles. Used information from the tiger1.info website and drew everything full-size. These are simple representations and as such the finer details have not be added.
Vince
Vince
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Engine Cooling Components
Nice looking they are to Vince, I still don't have the grills as yet from Armortek so I can't give you those dimensions for the underside add-ons.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Vince Cutajar
- Posts: 2193
- Joined: Wed Nov 15, 2017 1:43 pm
- Location: Malta
- Has liked: 790 times
- Been liked: 1761 times
Re: Engine Cooling Components
Still do not know why you want that add-on as with the feifel system installed that grille cannot be opened.
Vince
Vince
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Engine Cooling Components
Dioramas Vince , I doubt that I will have the feifel system fully connected just like the crews didn't as it was a pain to sevice that Maybach even without the system in place.
