Australian 25 PDR. 1942.
-
Carl Puckett
- Posts: 10
- Joined: Mon Nov 18, 2013 8:00 pm
-
Michael Cecil
- Posts: 130
- Joined: Wed May 20, 2015 7:03 pm
- Has liked: 73 times
- Been liked: 109 times
Re: Australian 25 PDR. 1942.
Another interesting one, Carl.

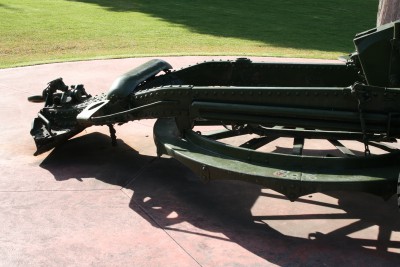

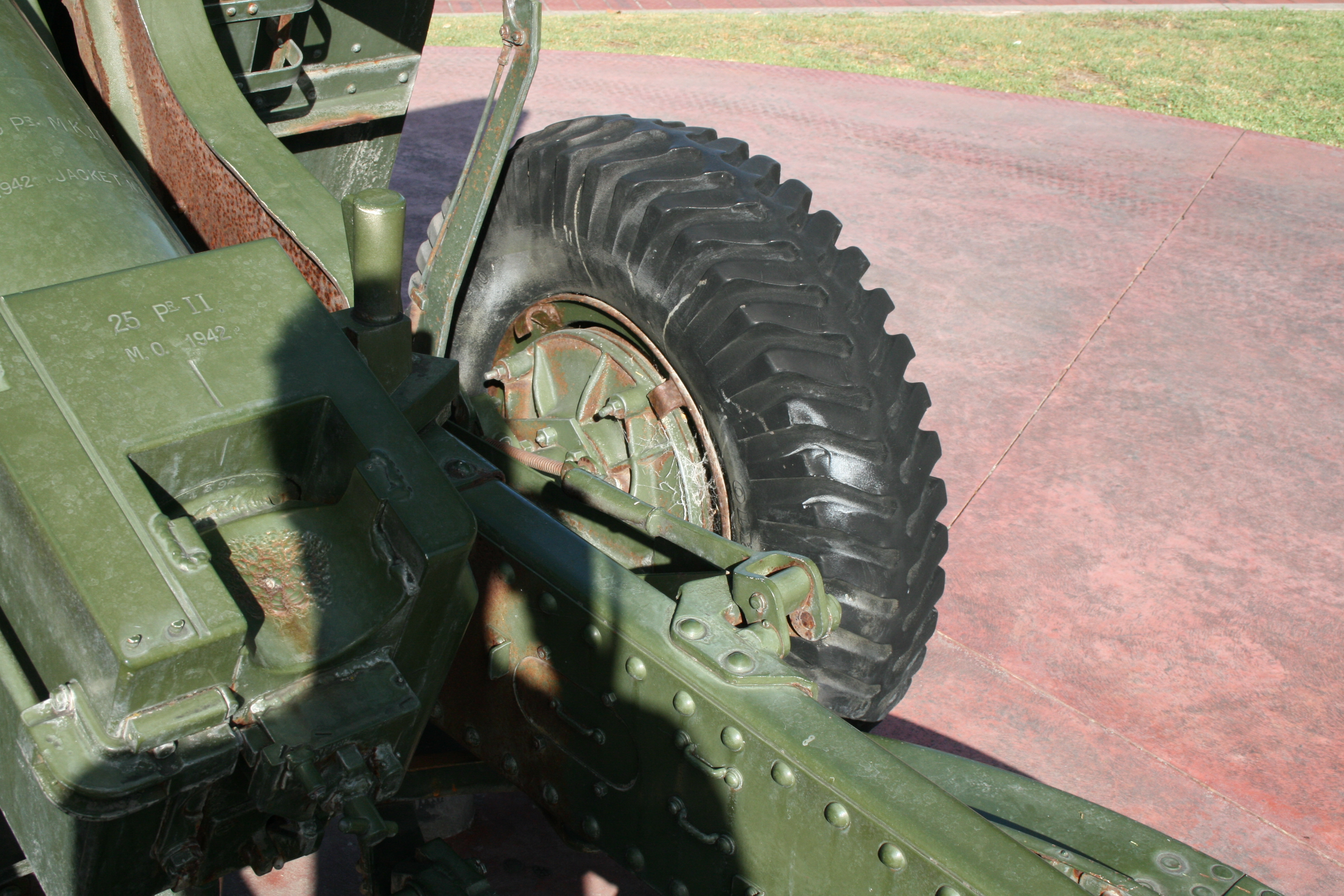

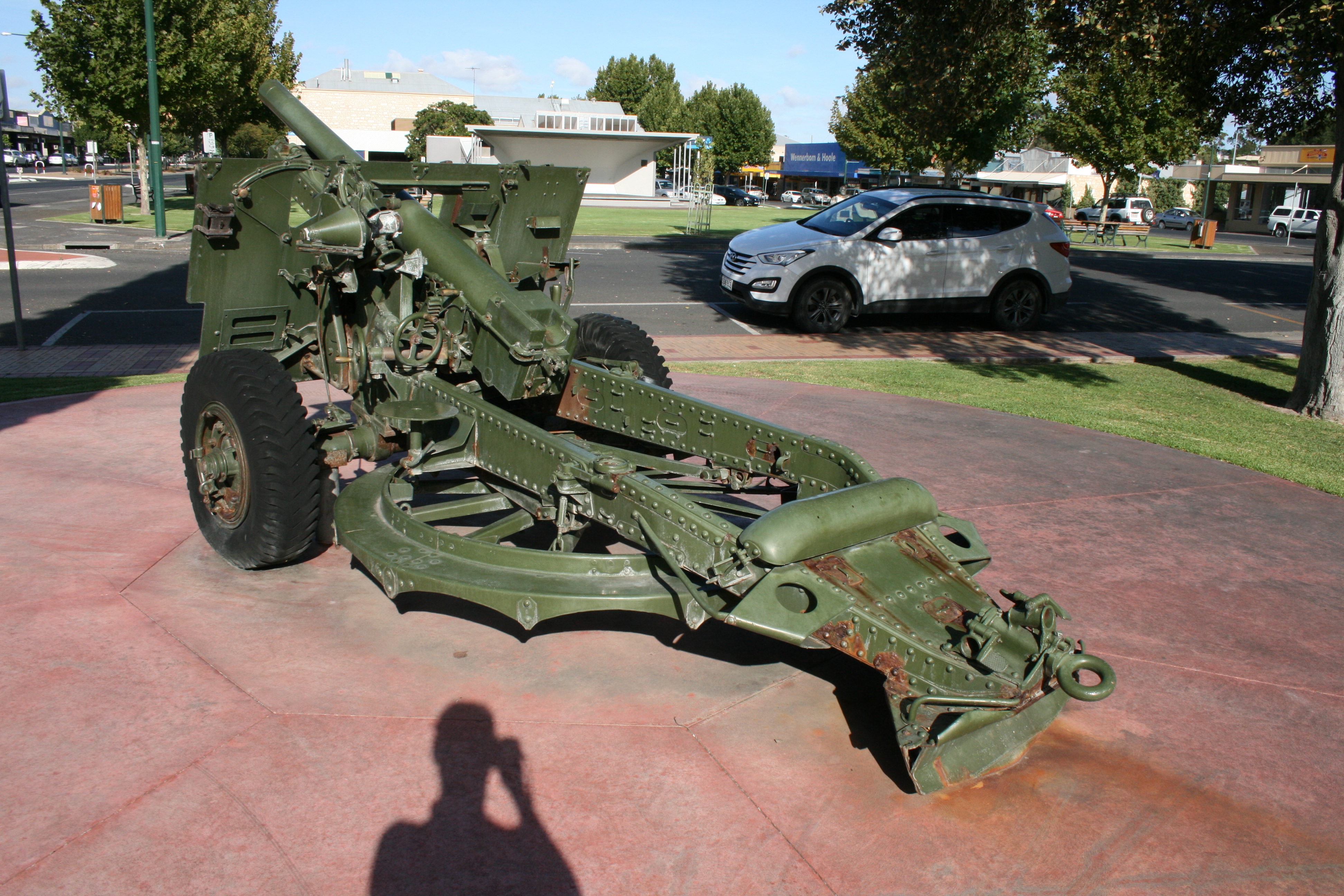

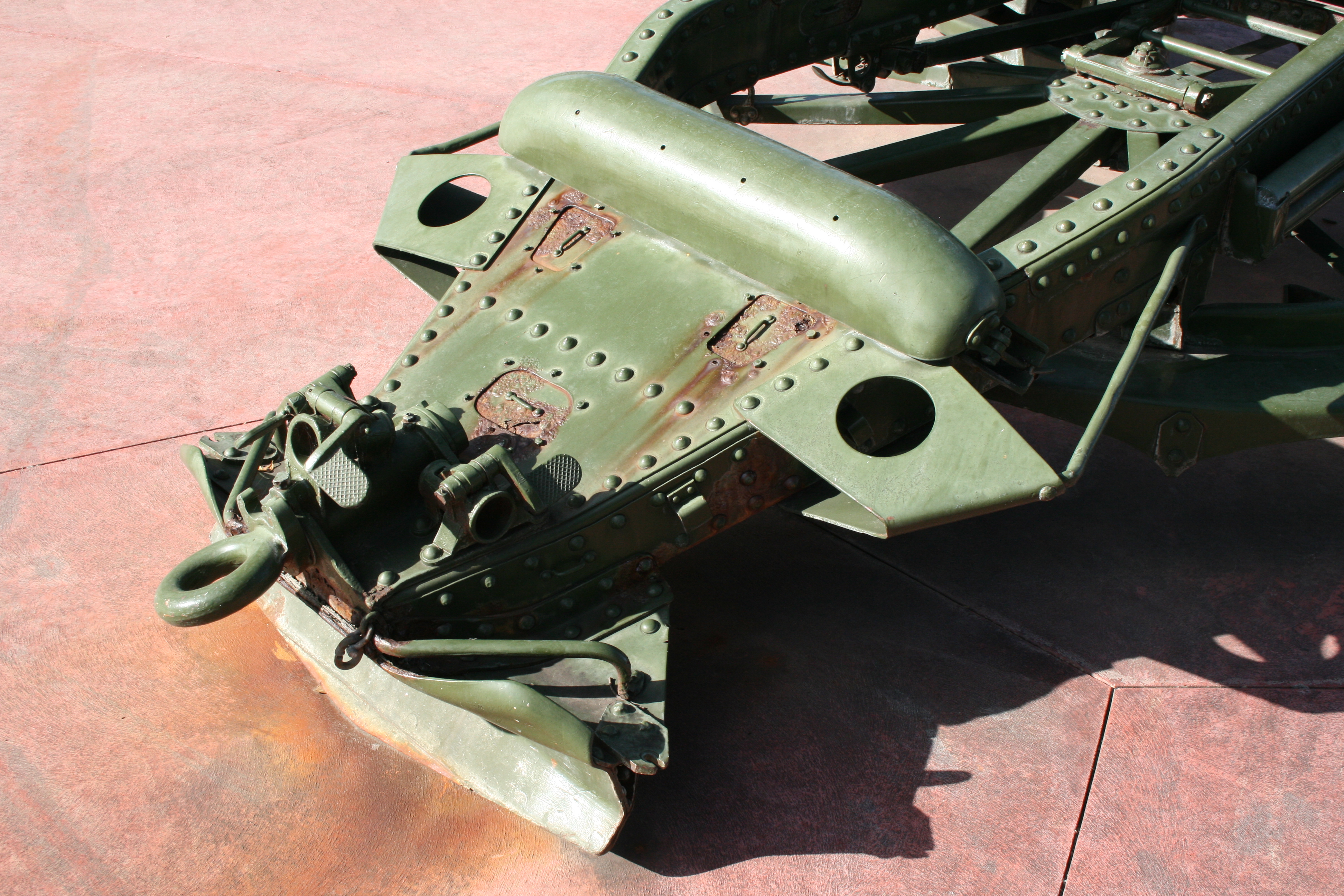

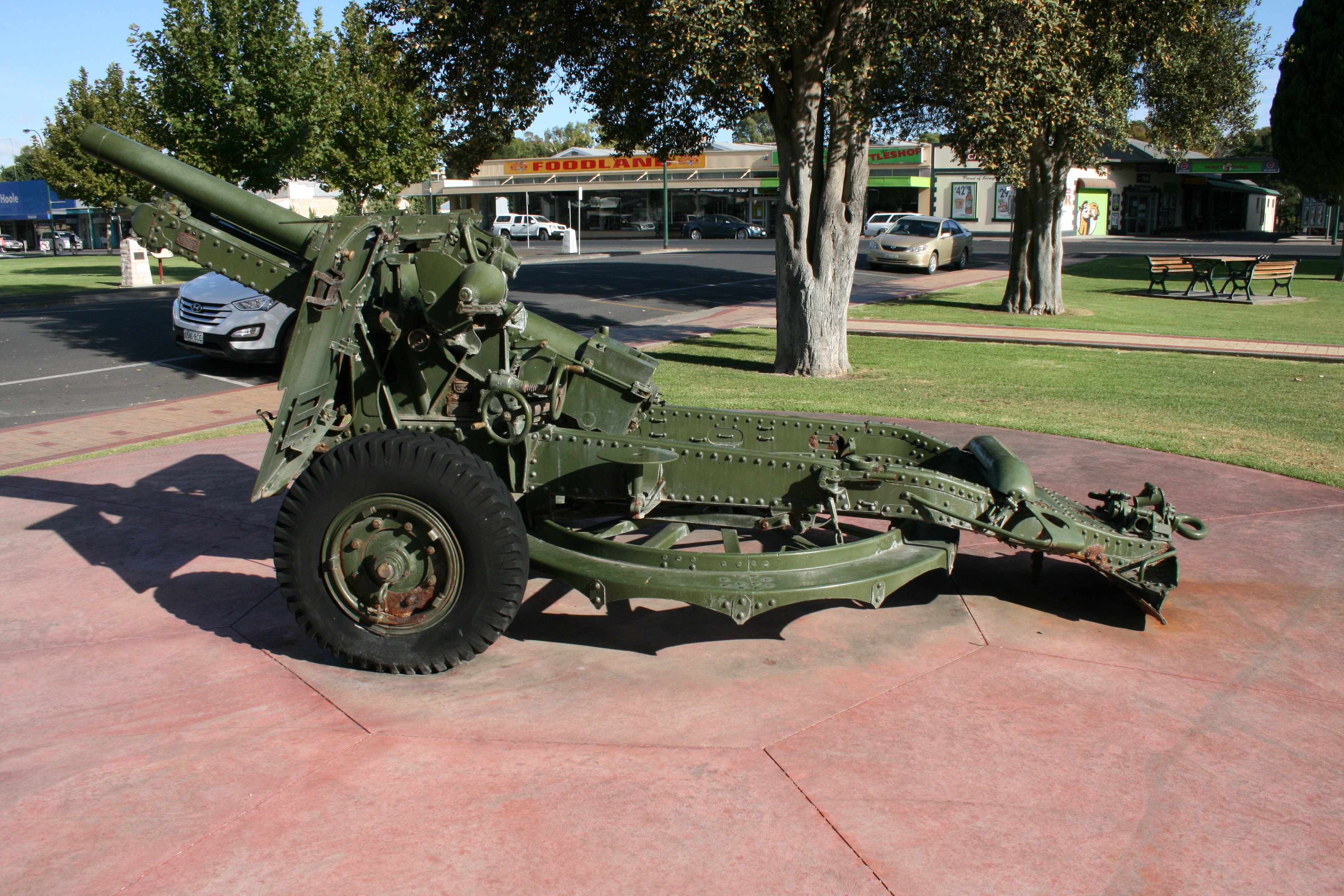

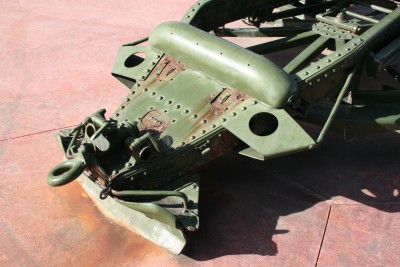

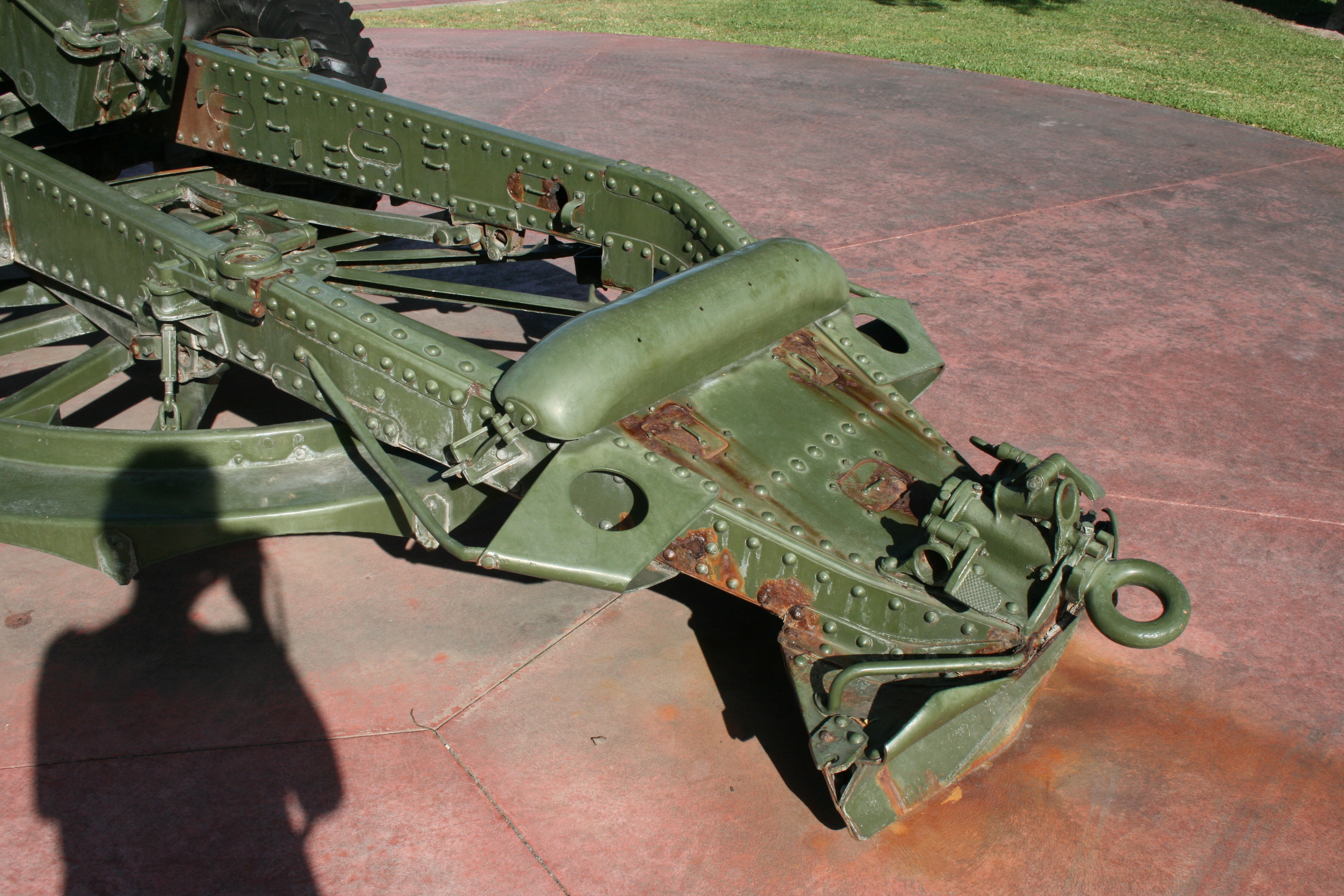

An Australian riveted trail with an Australian all-welded saddle, with an Australian Mk.2 barrel. This was a reasonably common configuration for 'rebuilds'. The Australian manufactured Mk.2 barrels had a different muzzle profile to the early British manufactured barrel with the curved muzzle 'swell'. On the Australian barrel, the barrel taper finished 90mm short of the muzzle, where there was a very small 1.5mm step up to a straight profile for the last 90mm. On the top of the barrel, 30mm short of the muzzle, was a milled flat, 205mm long, for placing the clinometer during sight checking.
The Aust manufactured 25-pdrs have several unique features not seen on their British or Canadian counterparts. It will be interesting to try and incorporate some of these when I (finally!) get to building my Kompact Kit.
Mike
