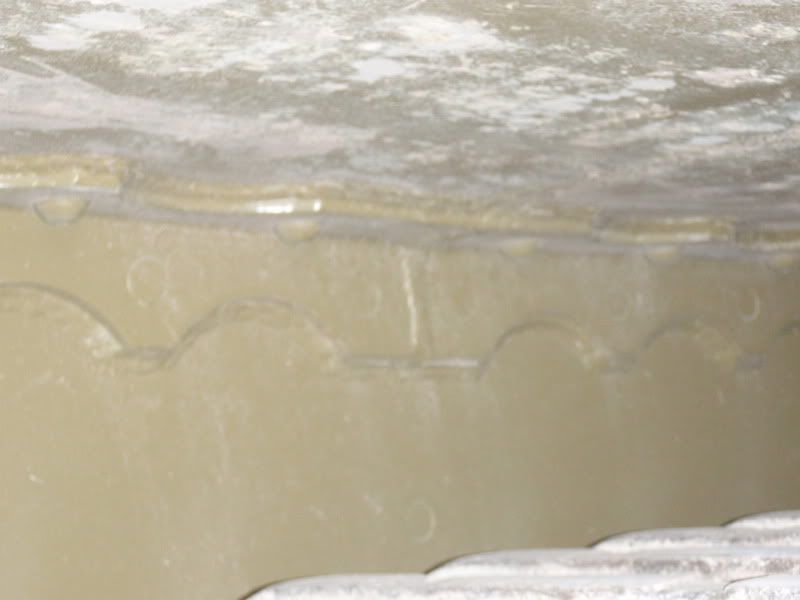

Here’s the joint between the Rear Plate and the Floor Plates

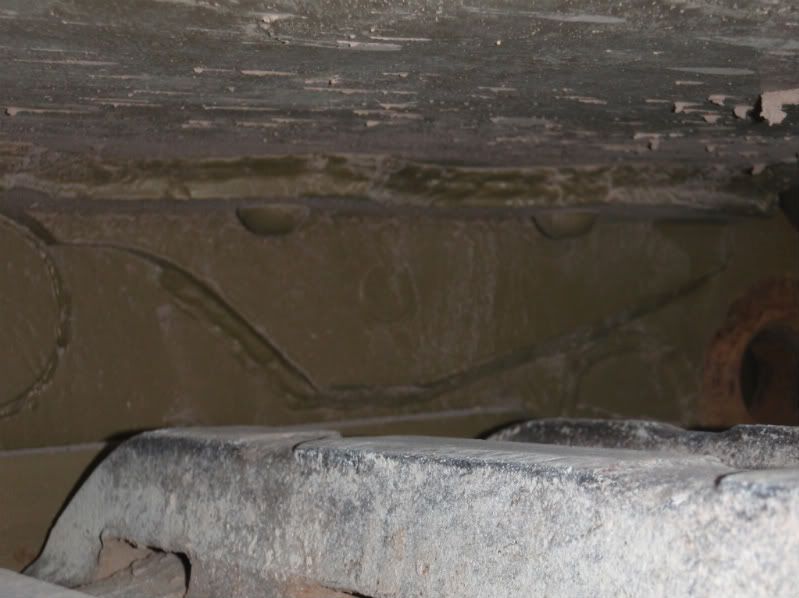

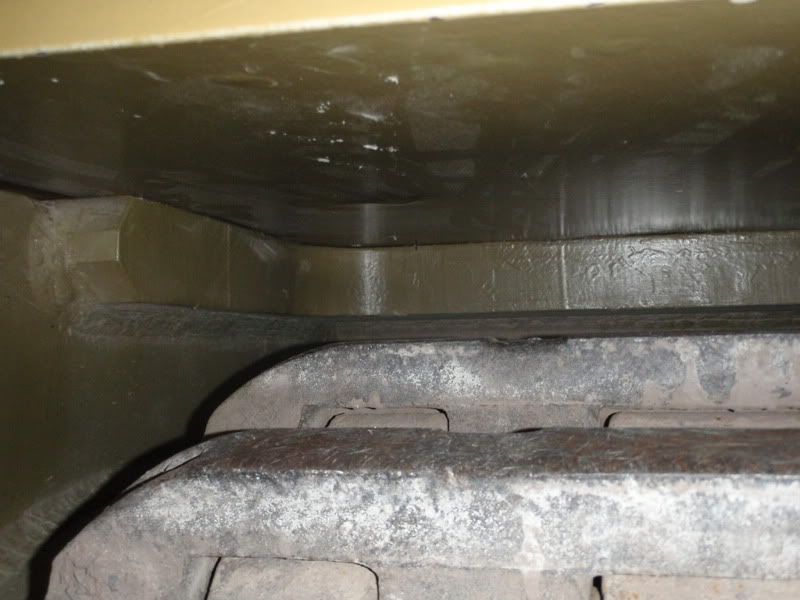

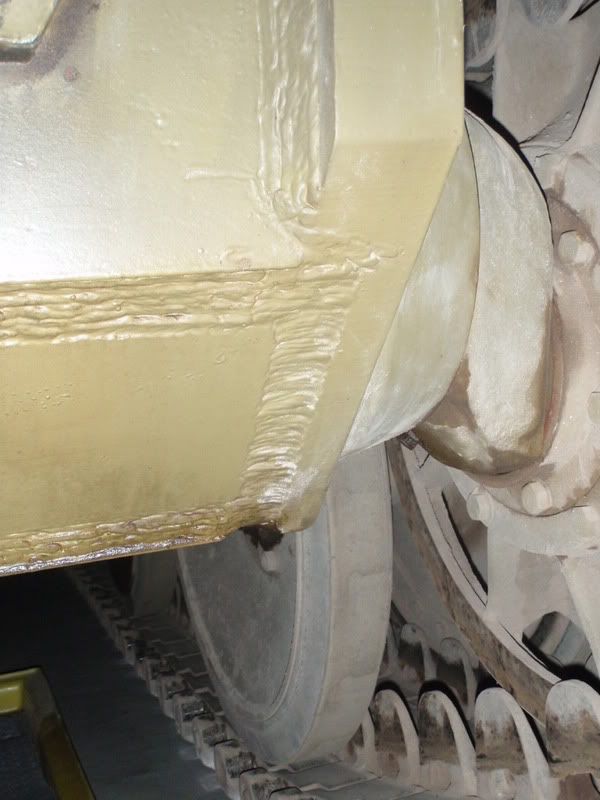

Here’s the underside of the Front Mudguards, showing both the curved shape of the Upper Front Panel and the welded joints.

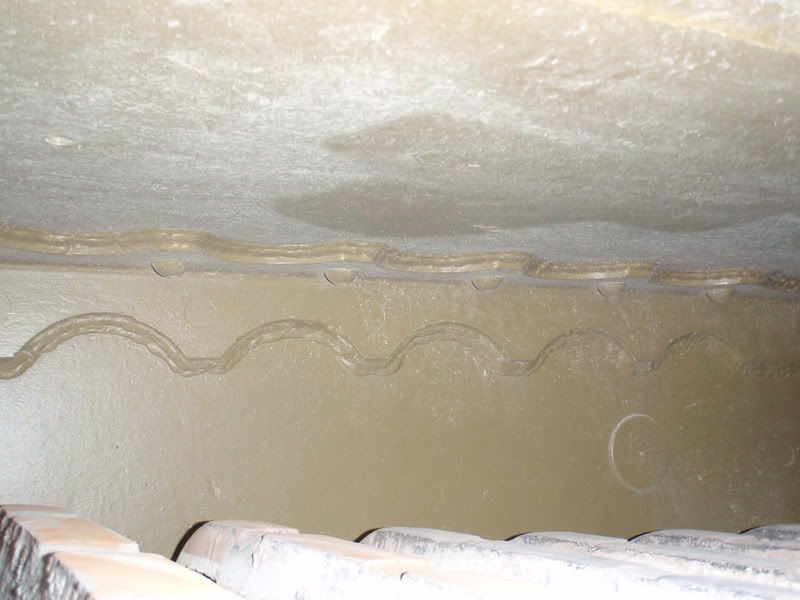

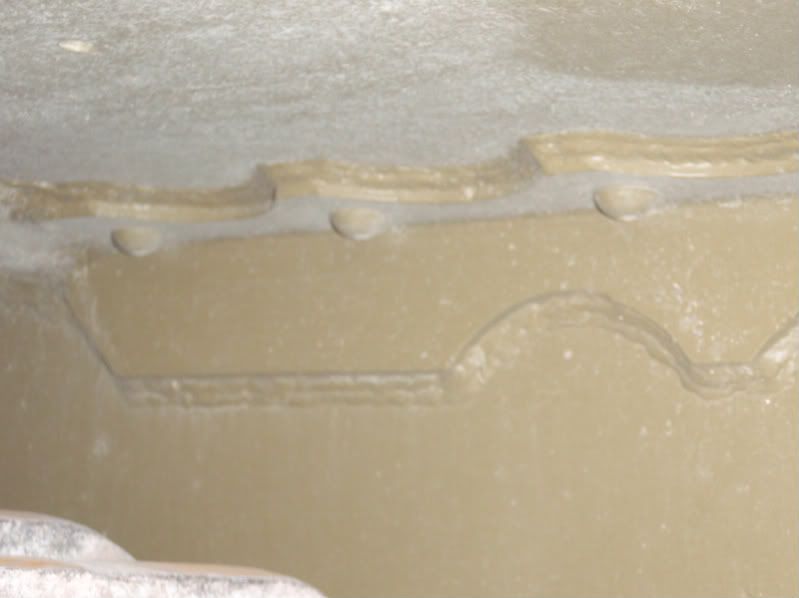

Welded and rivited joints between the Panier Floor and Hull Side

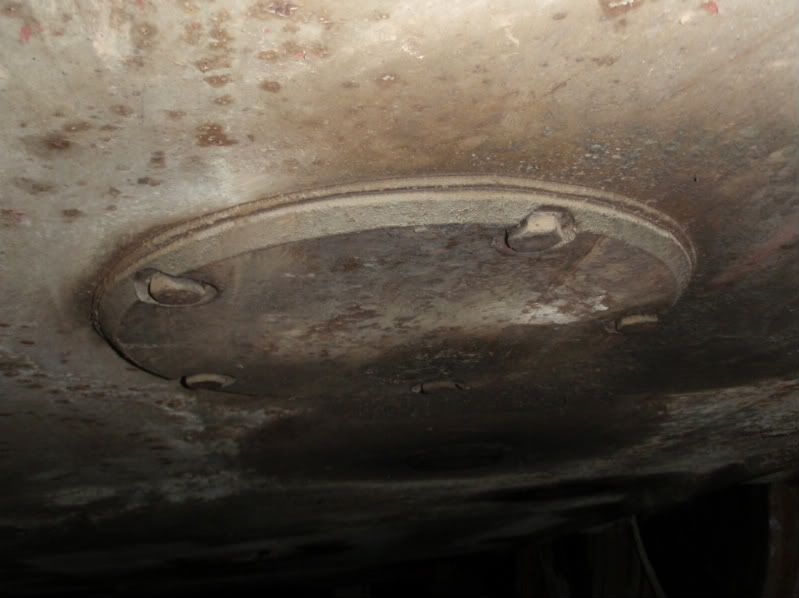

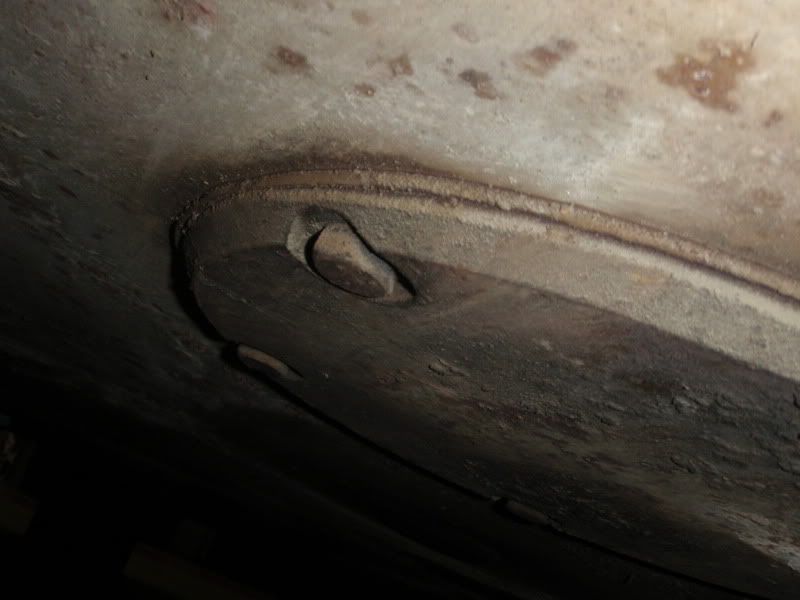

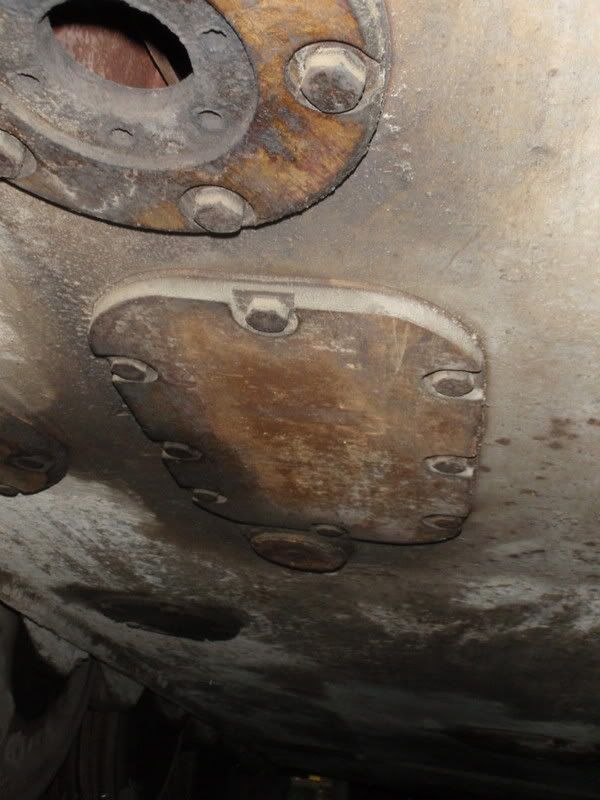

OK you experts out there will spot straight away that these pictures below are from the underside of a King Tiger and not the Tiger 1. Unfortunately, the engine access plates had been removed from the Tiger 1, but I’m sure that the King Tiger covers are very similar in shape and size to the Mid and Late Tiger 1's. Maybe someone out there can confirm this.
