I am looking for some decent images of the ir detector mounted behind the commander’s coupola, typically I was at the model show at Bovington last weekend and didn’t get a single photo of it.
Regards
Steve
Chieftain ir detector.
-
Steve Norris
- Posts: 1225
- Joined: Thu Jul 12, 2007 11:42 am
- Location: Manchester
- Has liked: 8 times
- Been liked: 688 times
-
Vince Cutajar
- Posts: 2180
- Joined: Wed Nov 15, 2017 1:43 pm
- Location: Malta
- Has liked: 762 times
- Been liked: 1738 times
-
Charles A Stewart
- Posts: 550
- Joined: Sat Oct 05, 2019 7:26 pm
- Location: Cumbria
- Has liked: 485 times
- Been liked: 896 times
- Contact:
Re: Chieftain ir detector.
Hi Steve.
Is this any good:-
I can supply dimensions if required.
Cheer
Charles
Is this any good:-
- Trip hazard 1a.jpg (50.17 KiB) Viewed 1915 times
Cheer
Charles
Chieftain No.34, functional. PKW IV (2002), operational. Panther G No.18 (2022), started, well some of it is. Series 1 4x4 No.28 and a Bailey Bridge.
-
Steve Norris
- Posts: 1225
- Joined: Thu Jul 12, 2007 11:42 am
- Location: Manchester
- Has liked: 8 times
- Been liked: 688 times
Re: Chieftain ir detector.
Hi Vincent and Charles.
Thanks for the posts, both are very useful.
There are at least 2 variations of the installation, one as Charles has done and another with the ir detector as per Charles set up but with a longer cable conduit and the armoured shroud further inboard. My plan is to do the second version.
Charles, if you have some dimensions it would be greatly appreciated.
Regards
Steve
Thanks for the posts, both are very useful.
There are at least 2 variations of the installation, one as Charles has done and another with the ir detector as per Charles set up but with a longer cable conduit and the armoured shroud further inboard. My plan is to do the second version.
Charles, if you have some dimensions it would be greatly appreciated.
Regards
Steve
-
John Clarke
- Posts: 1631
- Joined: Sun Oct 17, 2010 10:06 pm
- Location: Staffordshire
- Been liked: 1729 times
Re: Chieftain ir detector.

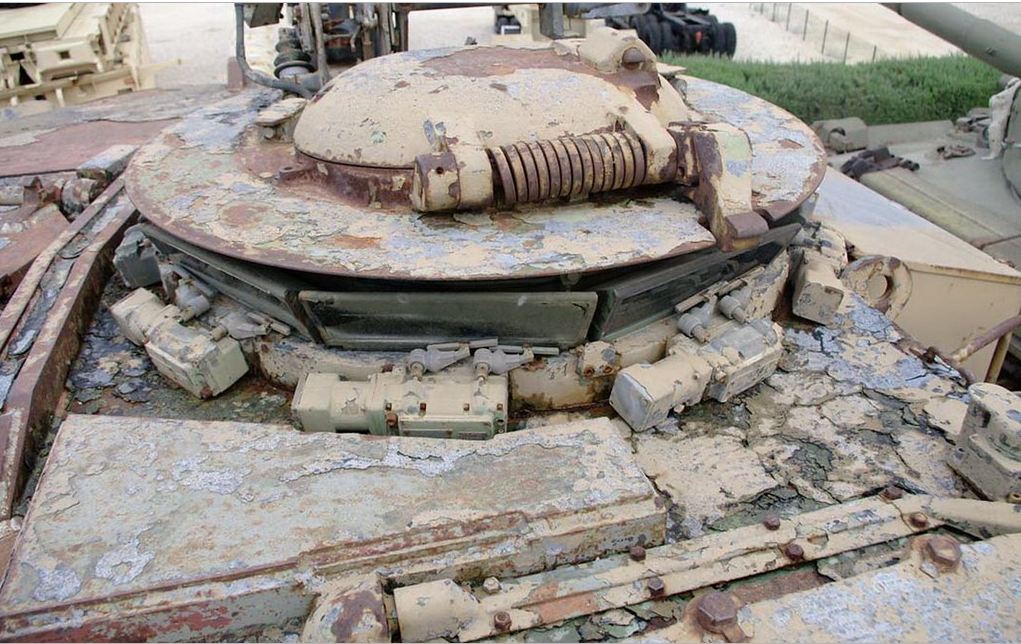

Here's a few alternatives, with or without detector (weather protection plug cover in place). Best guess for sizing
- DJI_006322551.jpg (144.7 KiB) Viewed 1852 times
- 61689094_10215834300064422_1943959196680585216_o.jpg (107.05 KiB) Viewed 1852 times
Oh Man, I only ride em I don't know what makes them work,
Definatley an Anti-Social type
Definatley an Anti-Social type
-
Vince Cutajar
- Posts: 2180
- Joined: Wed Nov 15, 2017 1:43 pm
- Location: Malta
- Has liked: 762 times
- Been liked: 1738 times
Re: Chieftain ir detector.
What sort of dimensions Charles?I can supply dimensions if required.
Vince
-
David Battson
- Posts: 169
- Joined: Mon Jul 23, 2007 9:51 pm
- Has liked: 108 times
- Been liked: 232 times
Re: Chieftain ir detector.
Hi Vince,
I am interested that you are interested :

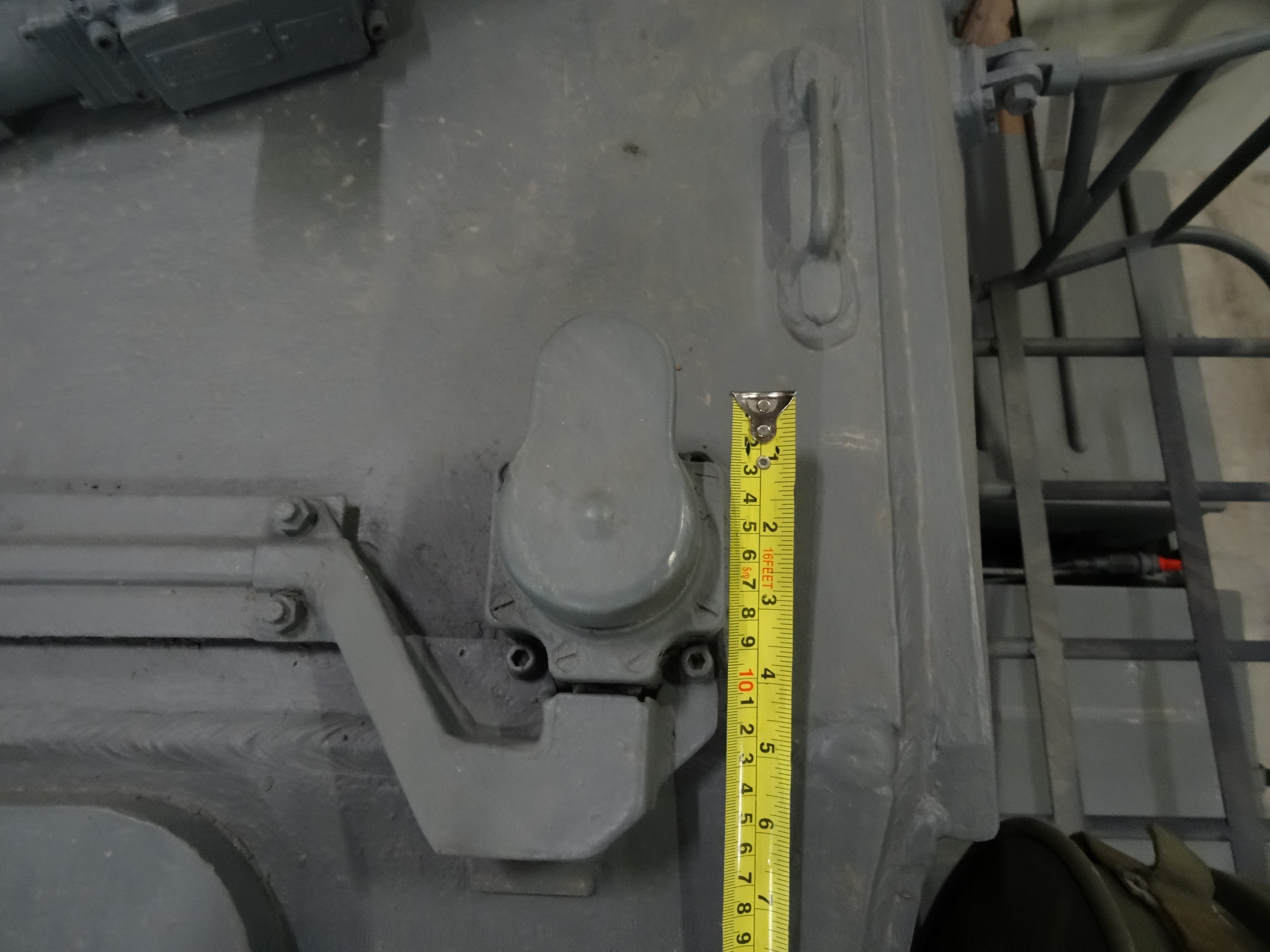

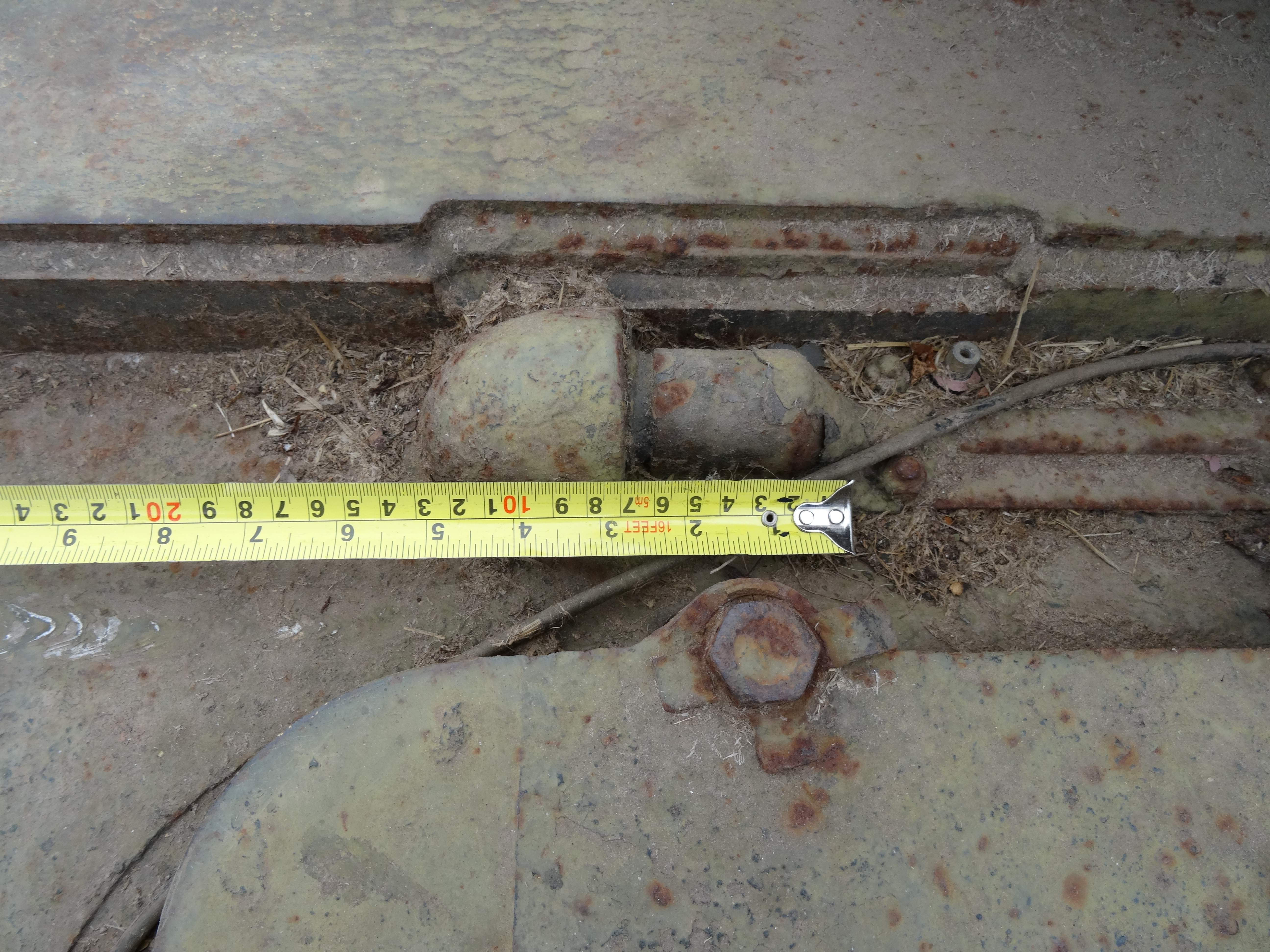

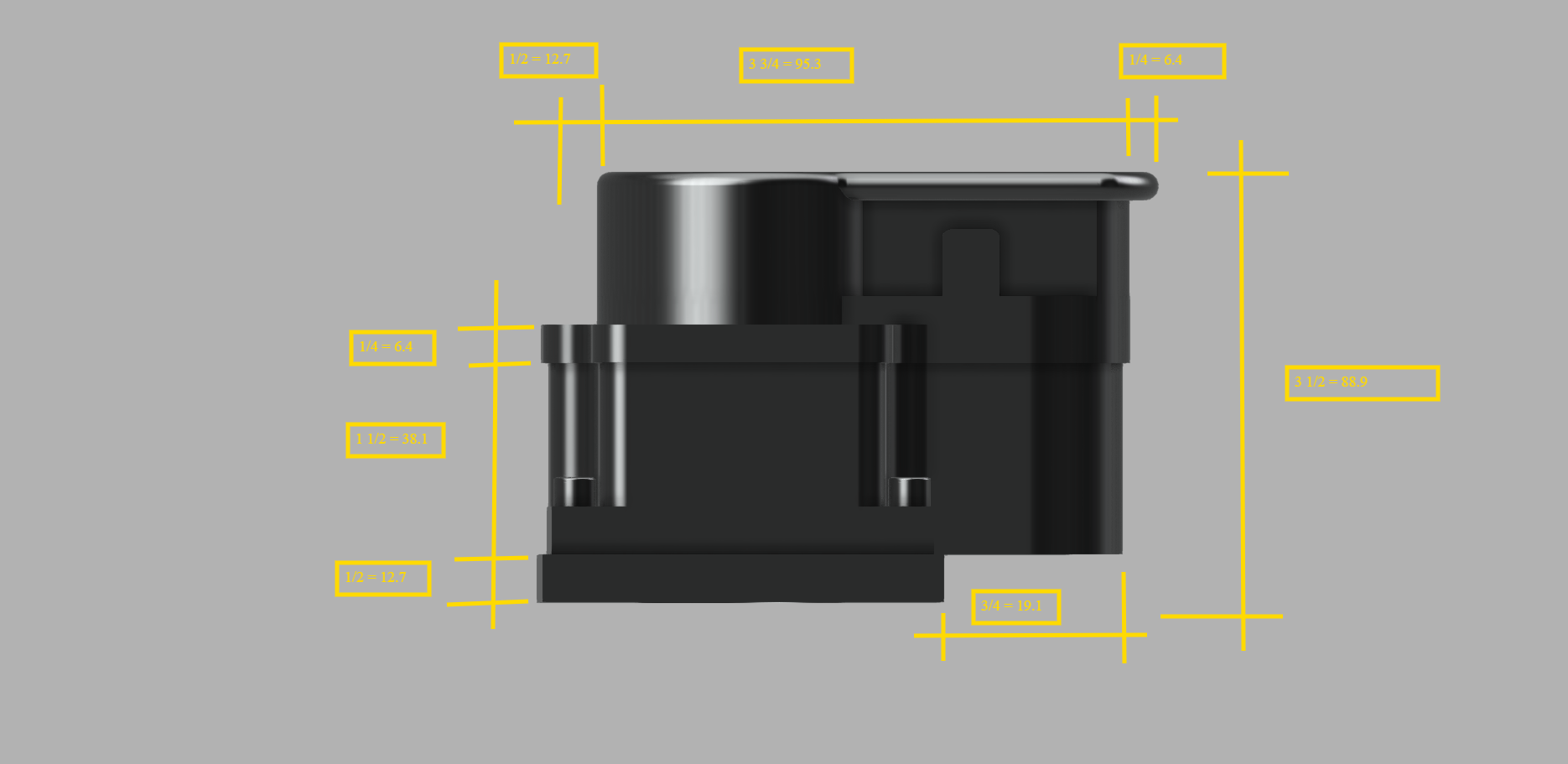

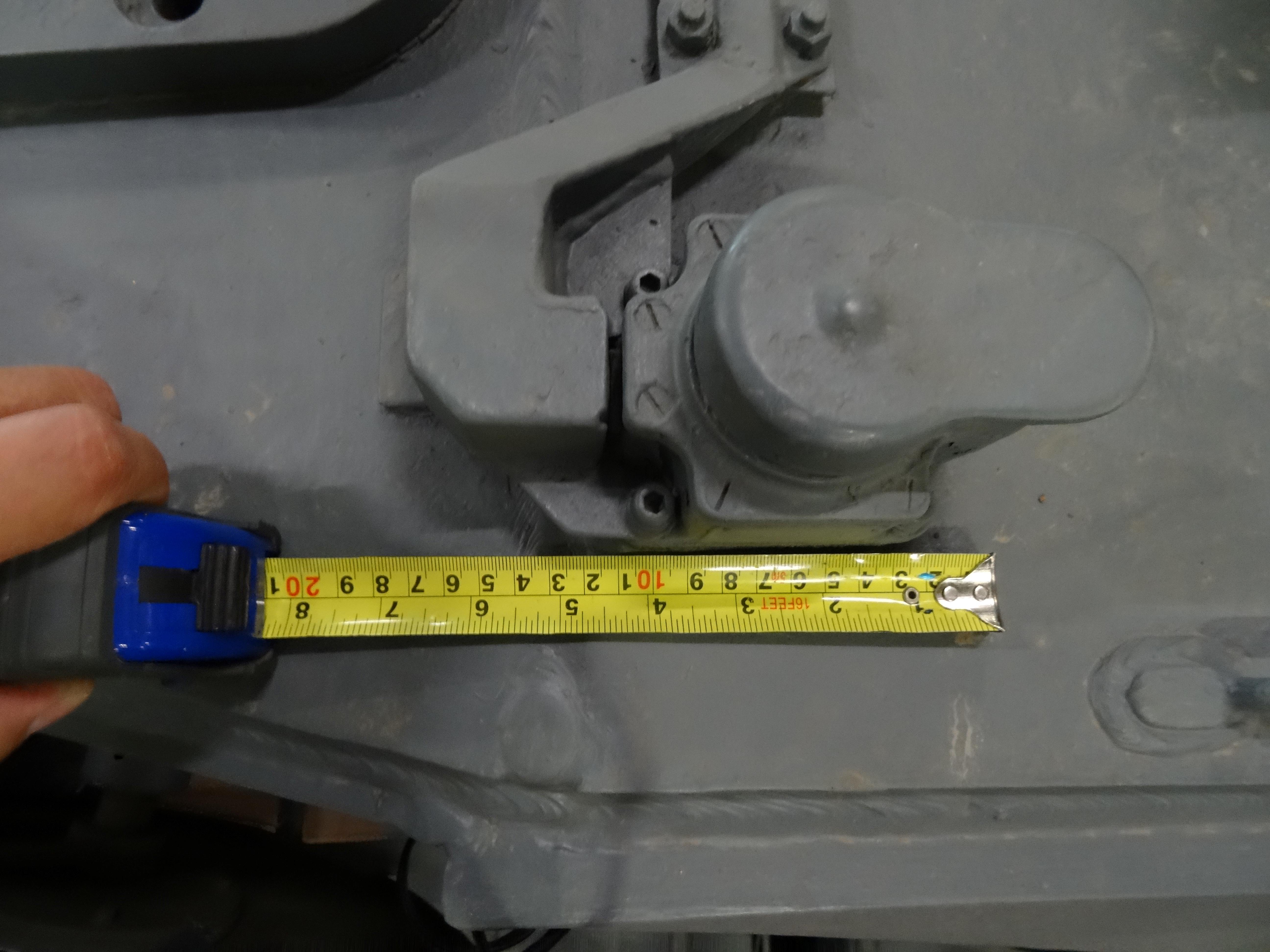

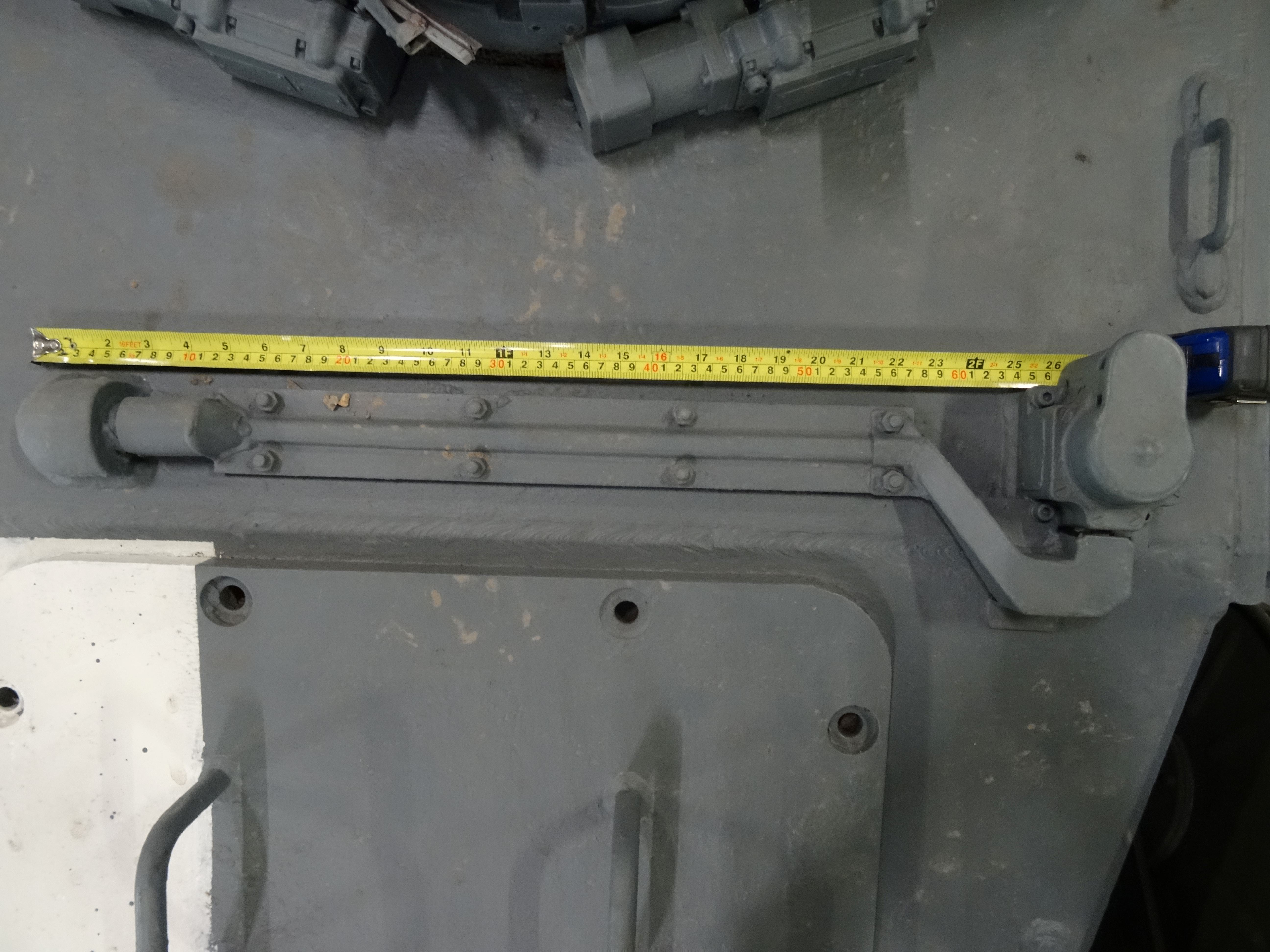

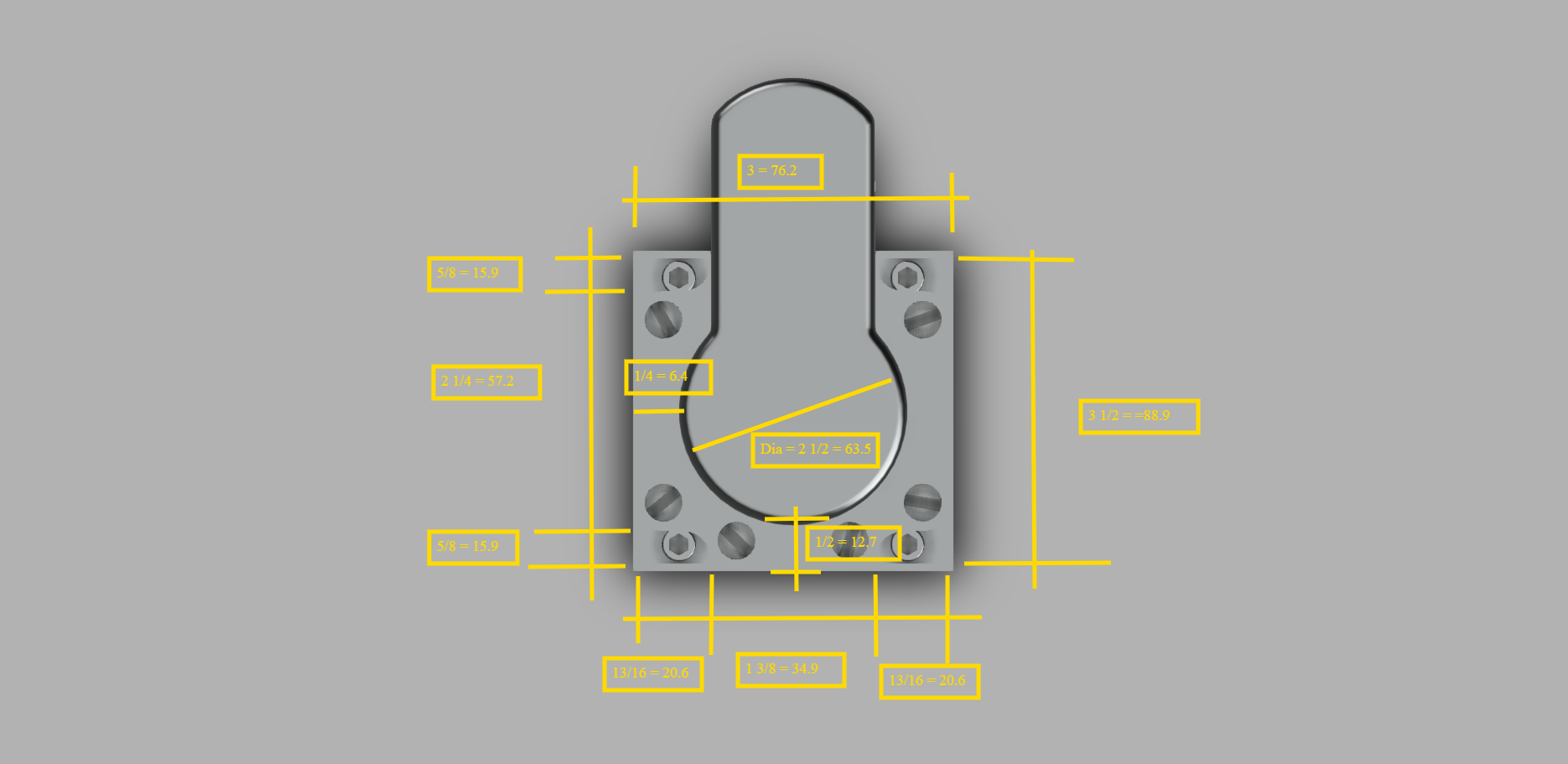

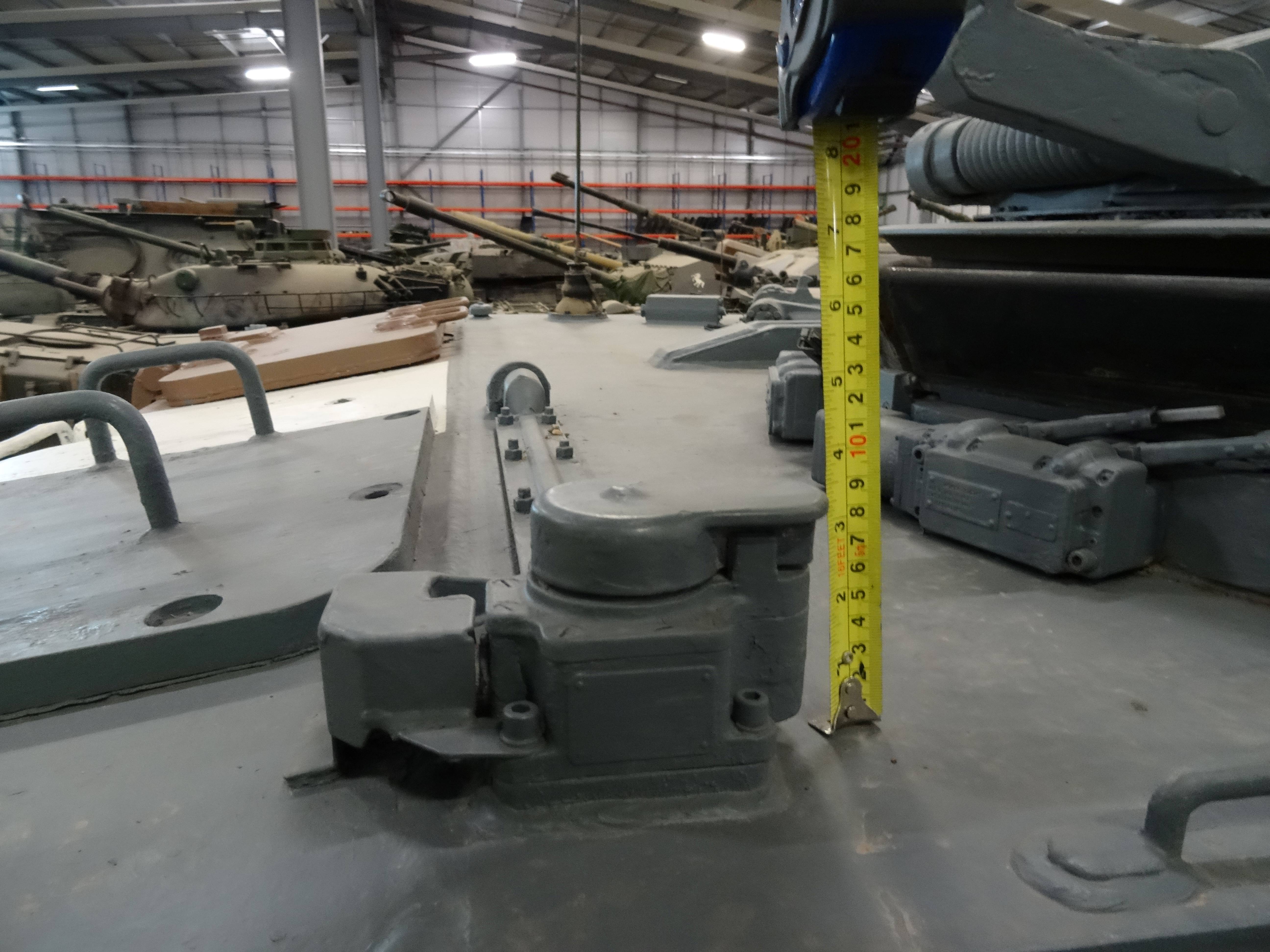

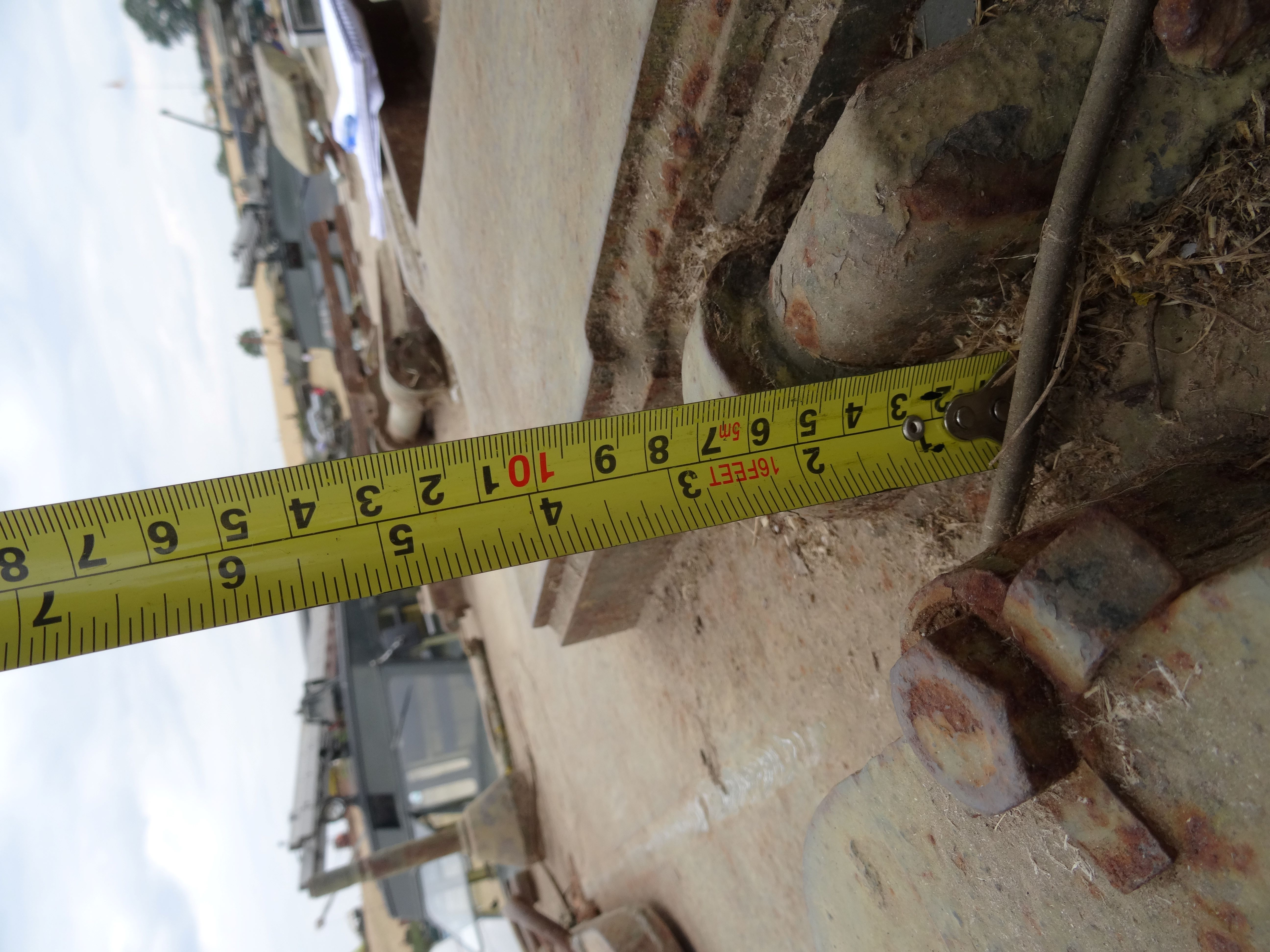

Do these help ?
Chieftain was designed in imperial, so I find that most measurements only really start to make sense when rounded to the nearest 1/8 of an inch or so.
David
I am interested that you are interested :
Do these help ?
Chieftain was designed in imperial, so I find that most measurements only really start to make sense when rounded to the nearest 1/8 of an inch or so.
David
