When I was doing my own late Tiger 1 I made a 3d model of the thing so that I could scratch build one myself. I couldn't find any dimensions for this late version so most were eyeballed from photos and the Armortek ventilator that came with the kit. Infact during the actual machining of the part I changed again some dimensions to make them more pleasing to the eye.
Today I came across the dimensions for the earlier model.

https://tiger1.info/EN/First-turret-fan.html

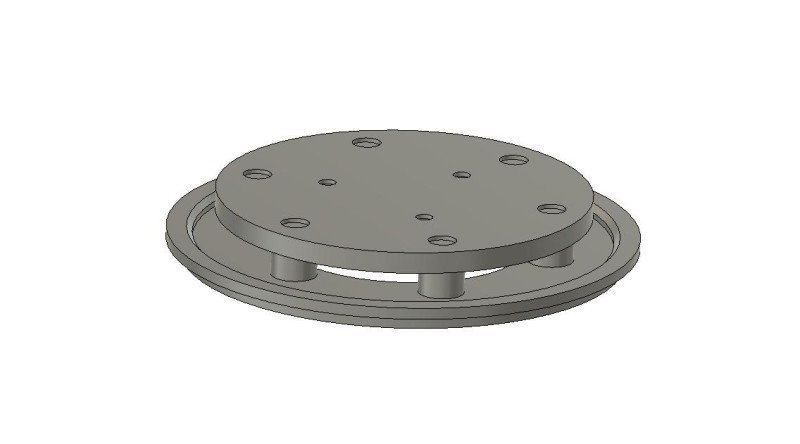

And decided to make a CAD drawing also to have both.
Vince

Vince
That is an outstanding website link.
Thanks for sharing it.

And Good Luck with the ventilators

Later Tim
