1/4 scale its just to big!

Post by Phil Woollard »

As it's quiet I thought I would share a few photos of a HL230 that I've been printing , stick with an Armortek 1/6 it's more manageable. Thanks go to Vince and Ivano for their help with this lump.
Oh and as it's valentines day do spare a thought for those of us that will be on are own tonight........and maybe spare an even bigger thought for all those poor devils that won't be on their own!
Attachments

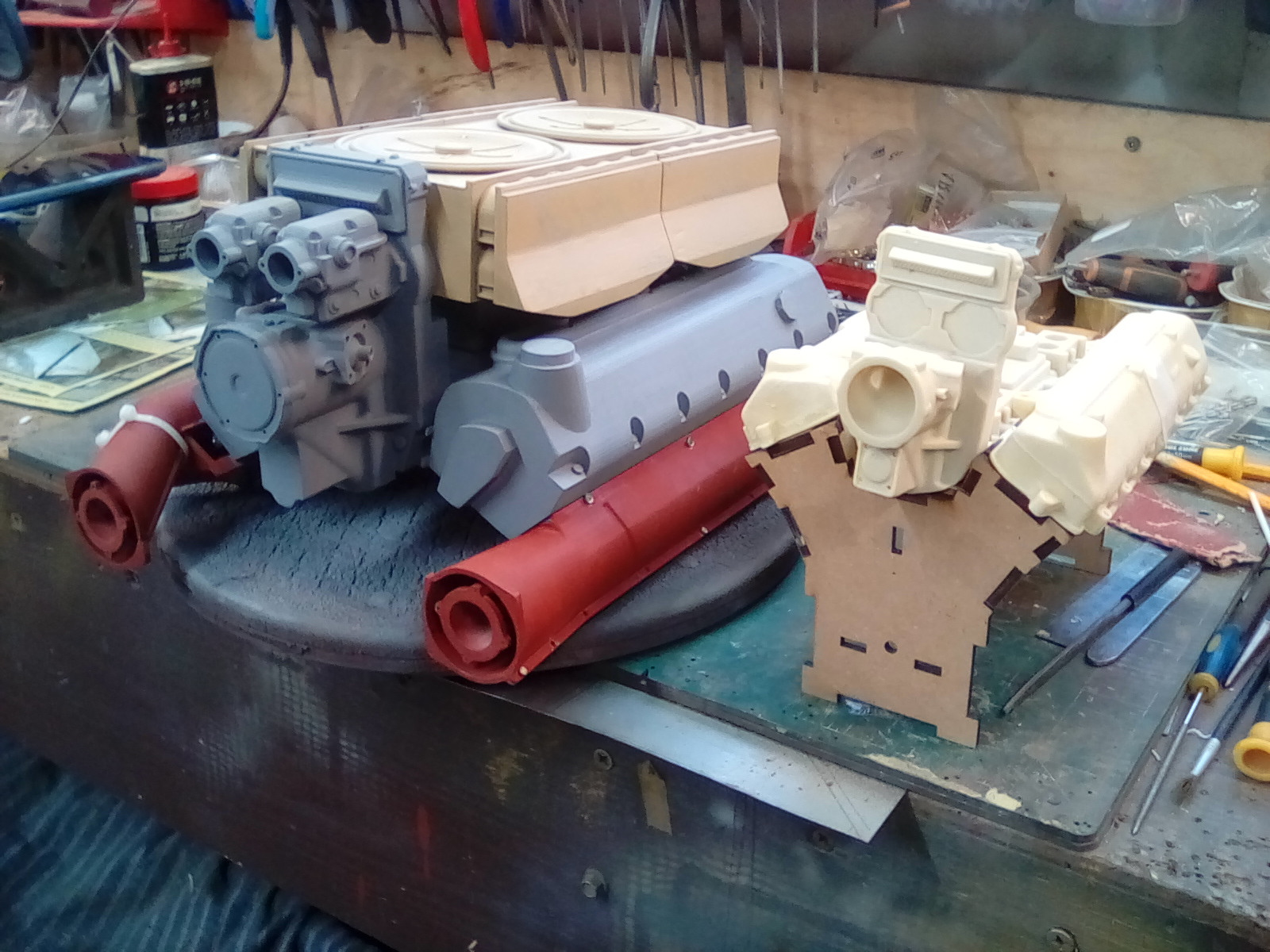

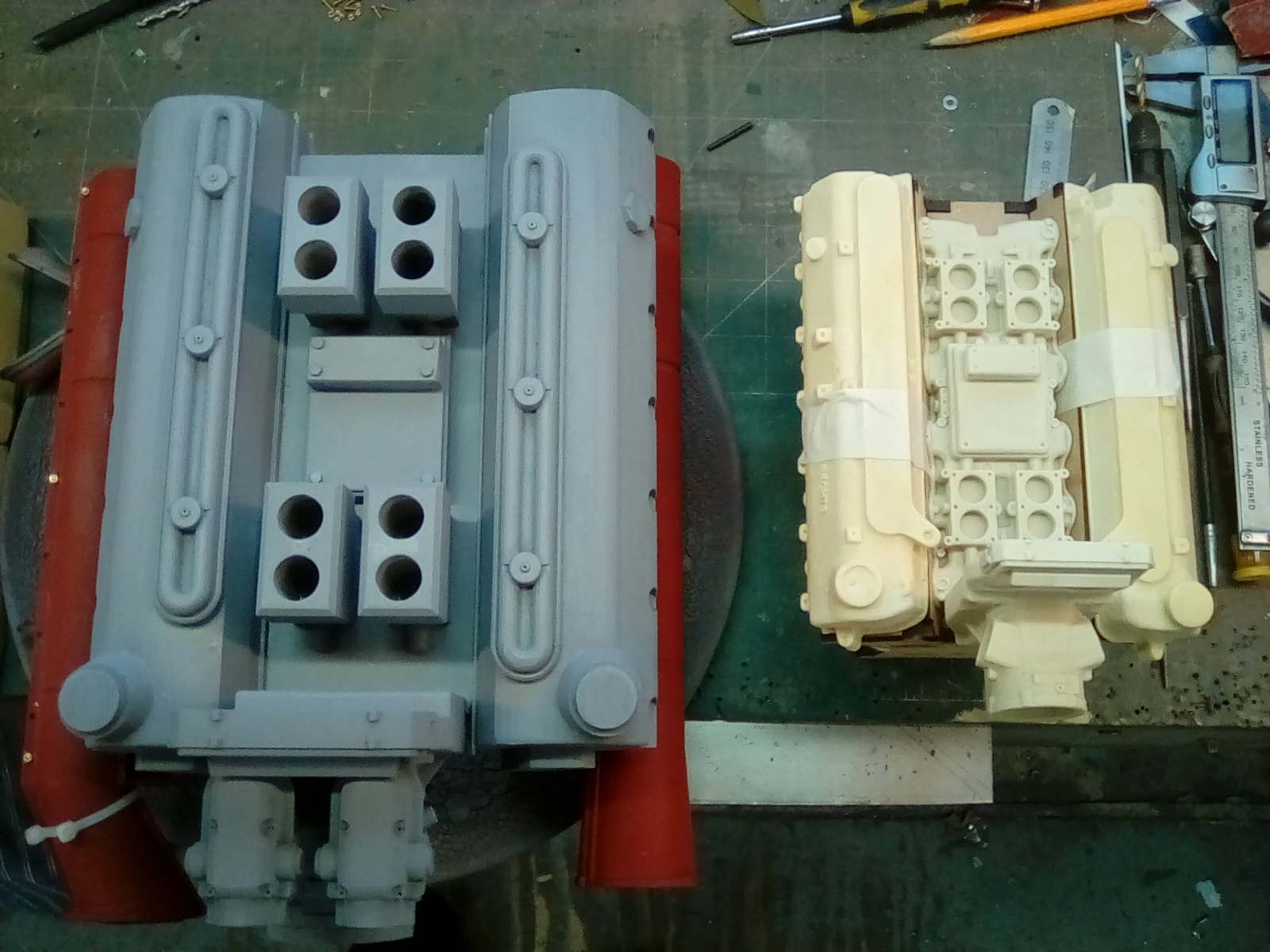

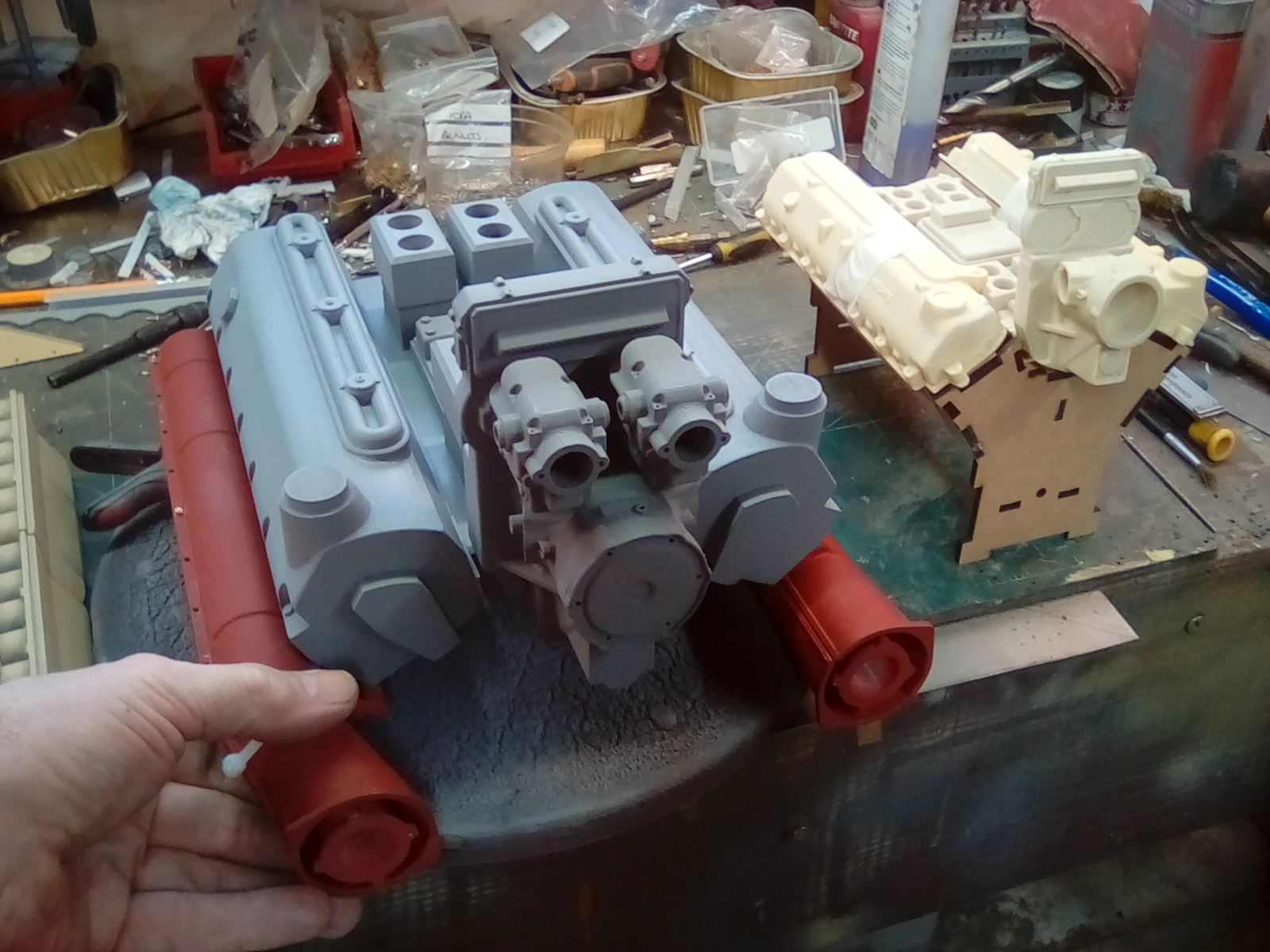

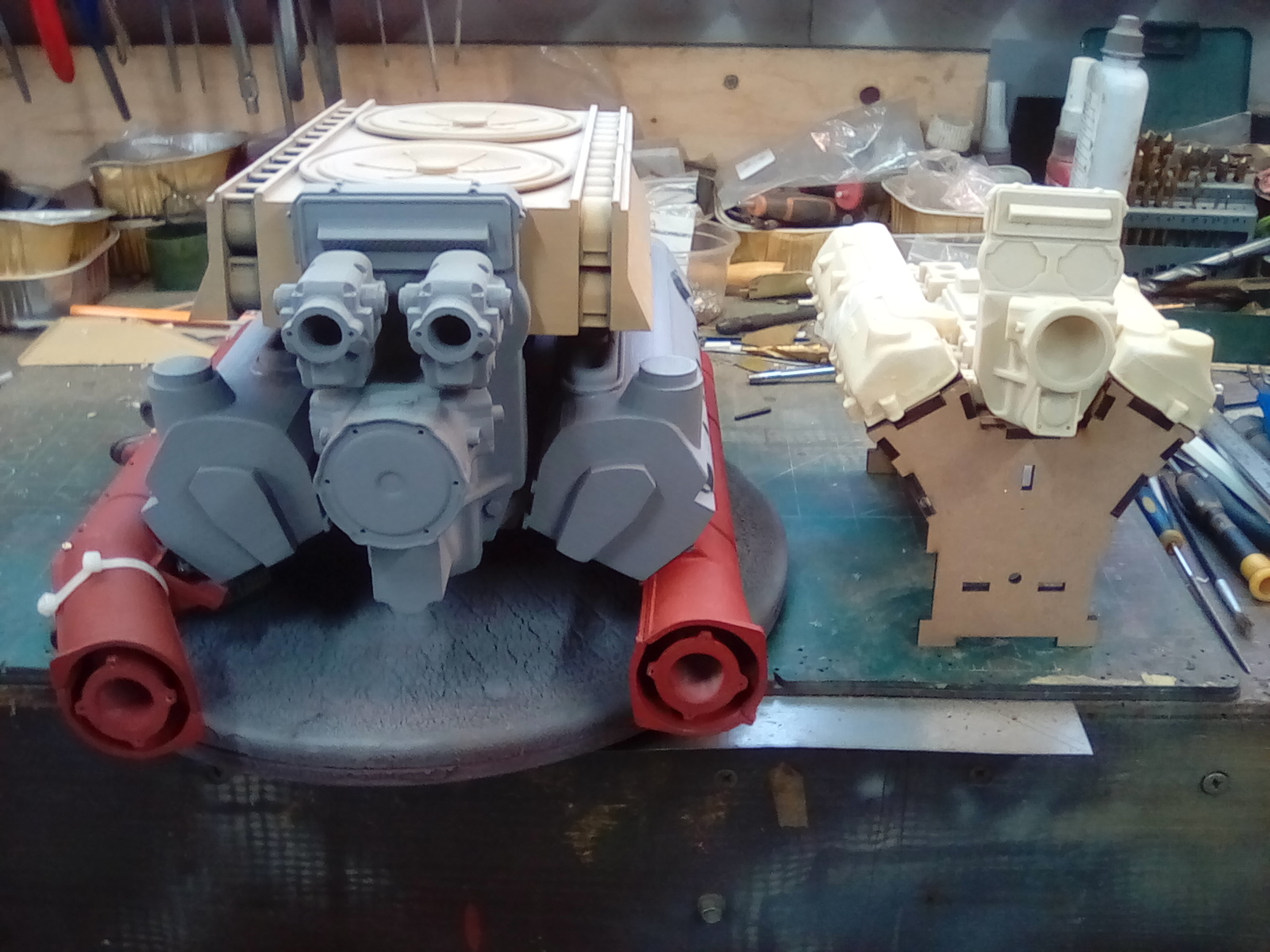

That's one of Ivano's 1/6 on the right
That's one of Ivano's 1/6 on the right

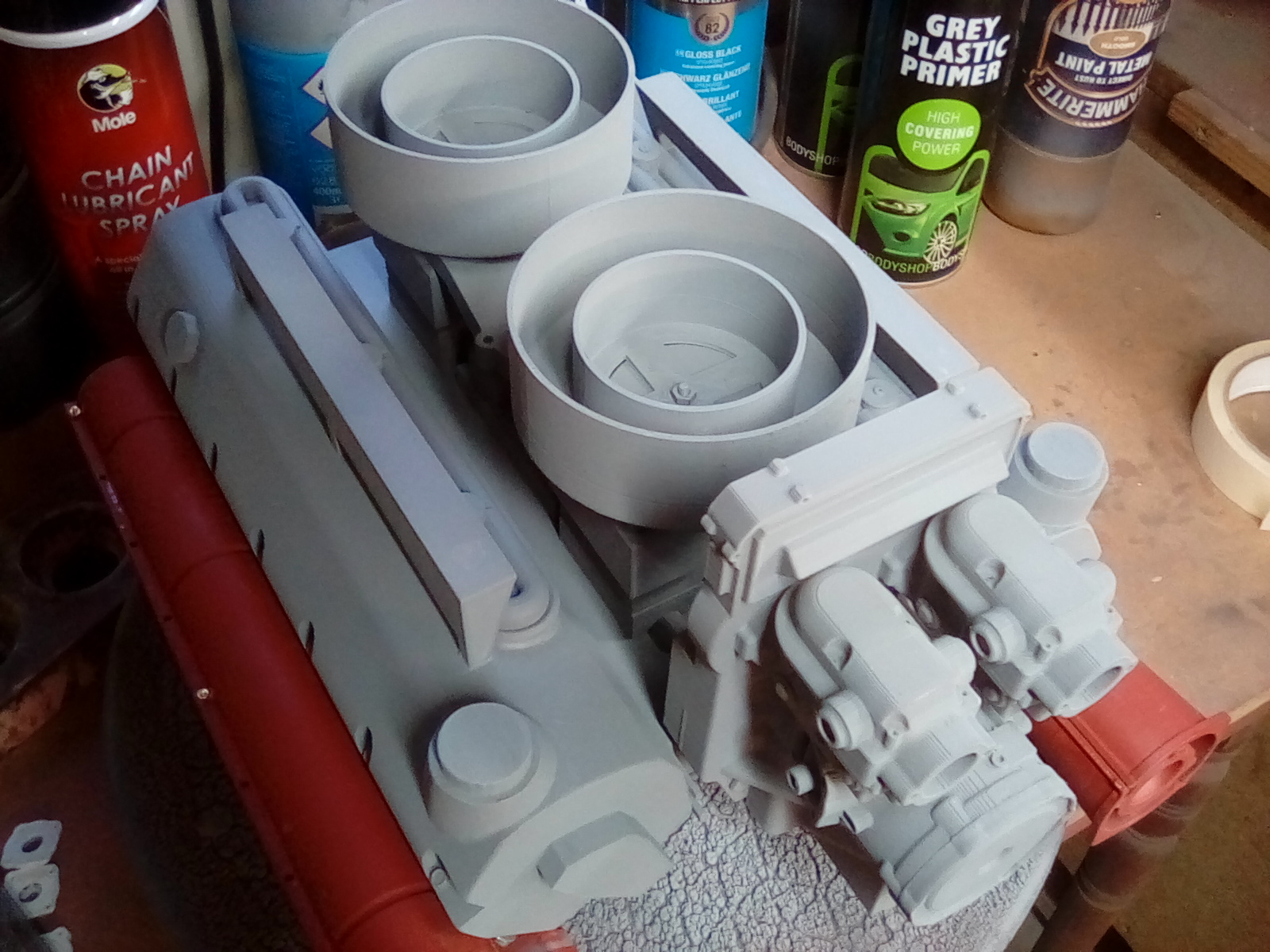

Vince is drawing some working oil bath air filters for me that will actually contain oil!
Vince is drawing some working oil bath air filters for me that will actually contain oil!
Last edited by Phil Woollard on Tue Feb 14, 2023 6:29 pm, edited 2 times in total.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.

User avatar
Tim Page
Posts: 516
Joined: Wed Dec 03, 2014 10:45 am
Location: Milton Keynes
Has liked: 40 times
Been liked: 424 times

Re: 1/4 scale its just to big!

Post by Tim Page »

YIKES - that is a monster
2008 Armortek Panther ausf.G (early) #0035
2012 Armortek Tiger 1e (Late) #001
2009 Armortek BefehlsPanzer 111 ausf.J #0011 (SOLD)
2010 Armortek A34 Comet #0031 (SOLD)

Kevin Hunter
Posts: 555
Joined: Sat Nov 03, 2012 9:10 am
Location: Guernsey, Channel Islands
Has liked: 591 times
Been liked: 135 times

Re: 1/4 scale its just to big!

Post by Kevin Hunter »

Huge!
Working air filters are intriguing, what are you up to? Gonna sit that “disguise” on top of a working engine of some description..?

Kevin
Last edited by Kevin Hunter on Tue Feb 14, 2023 6:24 pm, edited 1 time in total.

Phil Woollard
Posts: 4217
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2228 times
Been liked: 6945 times

Re: 1/4 scale its just to big!

Post by Phil Woollard »

Keep an eye on my Facebook account and you will see as it unfolds, it's not really appropriate on here unless I get the ok from Kian. 8)
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.

User avatar
Gerhard Michel
Posts: 600
Joined: Tue Oct 04, 2016 12:27 pm
Location: near Nuremberg, Germany
Has liked: 3 times
Been liked: 572 times

Re: 1/4 scale its just to big!

Post by Gerhard Michel »

Hi Phil,

suppose you know that there are some 1/4 scale models in the world which your engine could fit. Unfortunately the manufacturers live in Wolgograd and no more model comes out of Russia....
kind regards
Gerhard
____________________________________________________________________
1/6 Scale models: Jagdpanther (AT), Jagdtiger (BT), Königstiger (Porsche turret, NH), Königstiger (Production turret, BT), Pz. IV (SH)

Phil Woollard
Posts: 4217
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2228 times
Been liked: 6945 times

Re: 1/4 scale its just to big!

Post by Phil Woollard »

I am aware Gerhard, we won't be seeing that companies products for a very long time!
The oil bath air filters look the business, thanks Vince .
Attachments
Right now I'm not sure how much detail to add as not much can be seen when it's in the engine bay
Right now I'm not sure how much detail to add as not much can be seen when it's in the engine bay
Printed and fitted the cyclone air cleaner supports, they bolt to the rocker covers.
Printed and fitted the cyclone air cleaner supports, they bolt to the rocker covers.
Just need some scale period oil containers
Just need some scale period oil containers
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.

Phil Woollard
Posts: 4217
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2228 times
Been liked: 6945 times

Re: 1/4 scale its just to big!

Post by Phil Woollard »

Our 1/4 scale Maybach is getting even bigger, I'm now into the third kilo of filament.
Attachments
I've opted for the sirocco fan assembly which may be just visible through the engine hatch
I've opted for the sirocco fan assembly which may be just visible through the engine hatch
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.

Phil Woollard
Posts: 4217
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2228 times
Been liked: 6945 times

Re: 1/4 scale its just to big!

Post by Phil Woollard »

Our Maybach is coming along. For Ivano, I have gotten this far regarding the inertia starter, I'm just adapting/editing non related stl files in Cura to achieve parts that look very much like they should, well I think they do. I have attached a simple crank to the end of the inertia shaft for now, obviously the correct two man crank would be used with that device that the crank connects to, I shall look for references of that device on the internet, if anyone can help with any information on the inertia device that would be very much appreciated.
Attachments

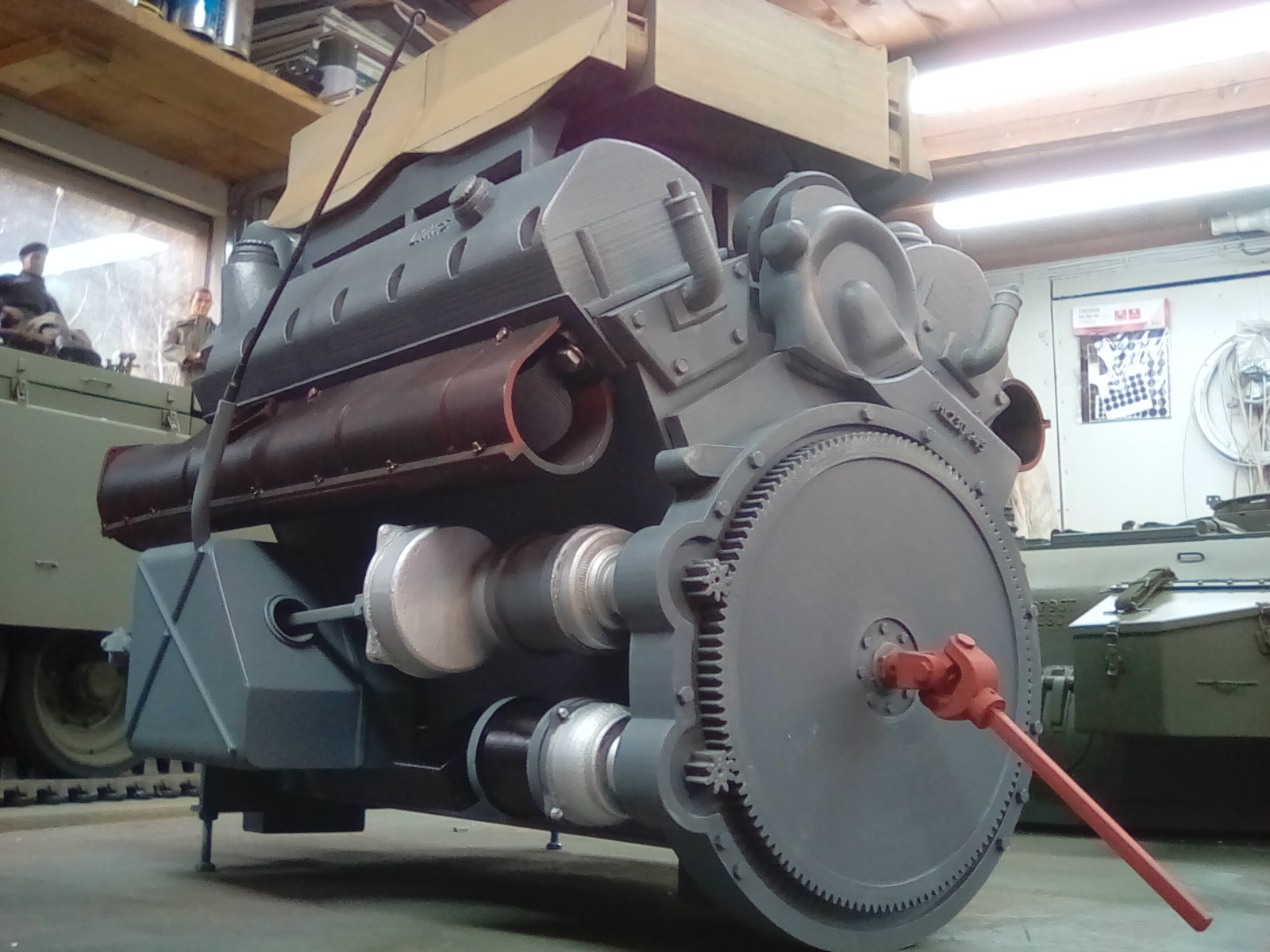

You can clearly see the inertia shaft universal joint in front of the reduction gear box
You can clearly see the inertia shaft universal joint in front of the reduction gear box
The Maybach stands at 12" tall in 1/4 scale, the real thing weighed 1500 kgs.
The Maybach stands at 12" tall in 1/4 scale, the real thing weighed 1500 kgs.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.

Phil Woollard
Posts: 4217
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2228 times
Been liked: 6945 times

Re: 1/4 scale its just to big!

Post by Phil Woollard »

A little more detail to the Maybach, it was not my intention to go into this much detail but I'm enjoying it immensely. The front and back of the block/head pieces should arrive very soon.
I didn't like the aluminium head colour so I've gone for the Weald Foundation Jagdpanther German grey/blue shade.
Attachments
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.

Phil Woollard
Posts: 4217
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2228 times
Been liked: 6945 times

Re: 1/4 scale its just to big!

Post by Phil Woollard »

It's getting ridiculous now but I'm enjoying every minute, soon be on to the plumbing.
Attachments

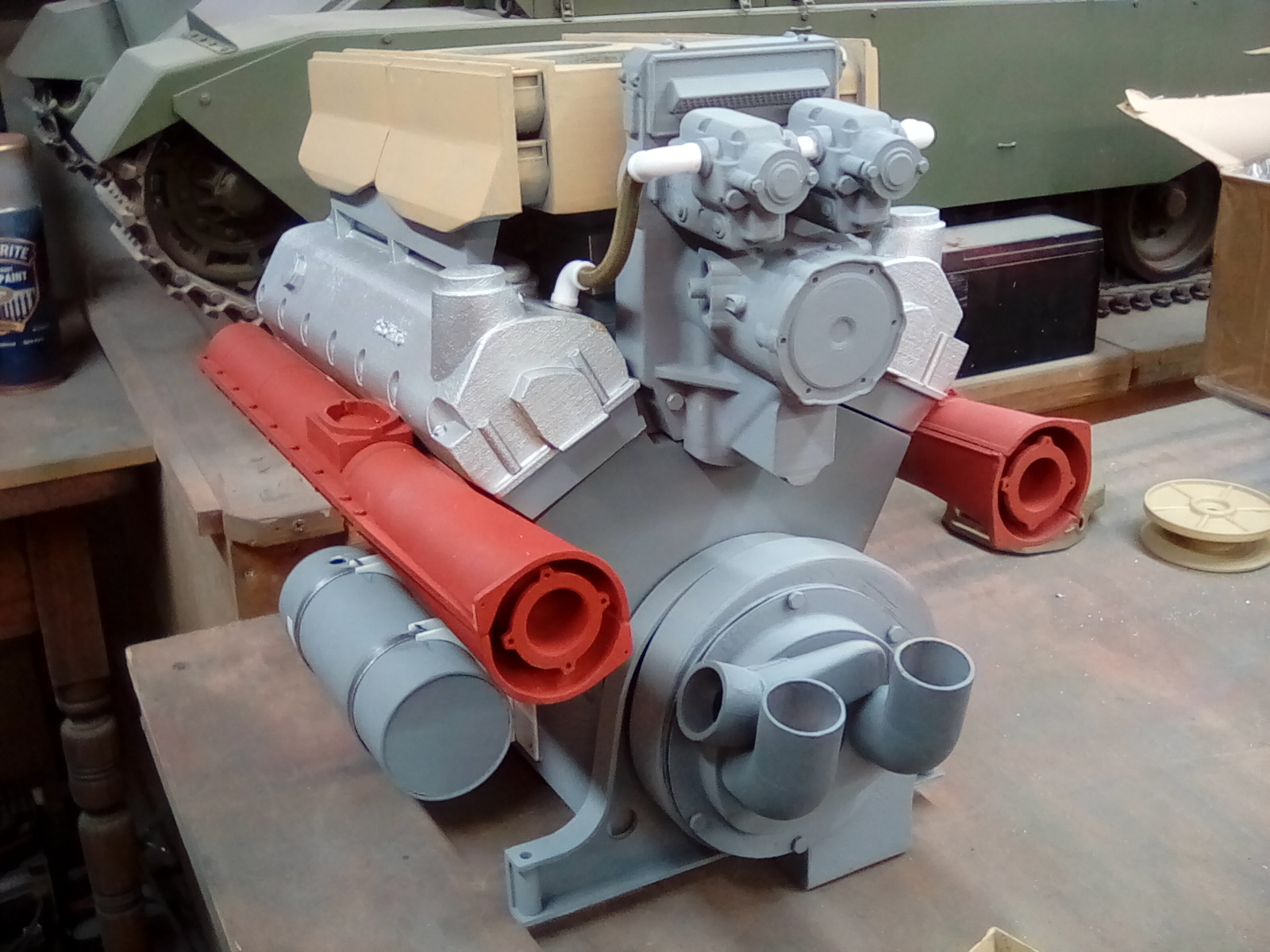

I now know what all the ancillary units are.
I now know what all the ancillary units are.
Is the motor a P45 or a P30?
Is the motor a P45 or a P30?
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.

User avatar
Charles A Stewart
Posts: 512
Joined: Sat Oct 05, 2019 7:26 pm
Location: Cumbria
Has liked: 454 times
Been liked: 828 times
Contact:

Re: 1/4 scale its just to big!

Post by Charles A Stewart »

Hi Phil

When are you going to start/run it :-D

Yes, I know "you stupid boy" (probably well deserved)

Cheers
Charles
Chieftain No.34, functional. PKW IV (2002), operational. Panther G No.18 (2022), started, well some of it is. Series 1 4x4 No.28 and a Bailey Bridge.

Phil Woollard
Posts: 4217
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2228 times
Been liked: 6945 times

Re: 1/4 scale its just to big!

Post by Phil Woollard »

Don't know how to delete it, so I will drop a couple of the machining photos in instead.
Attachments

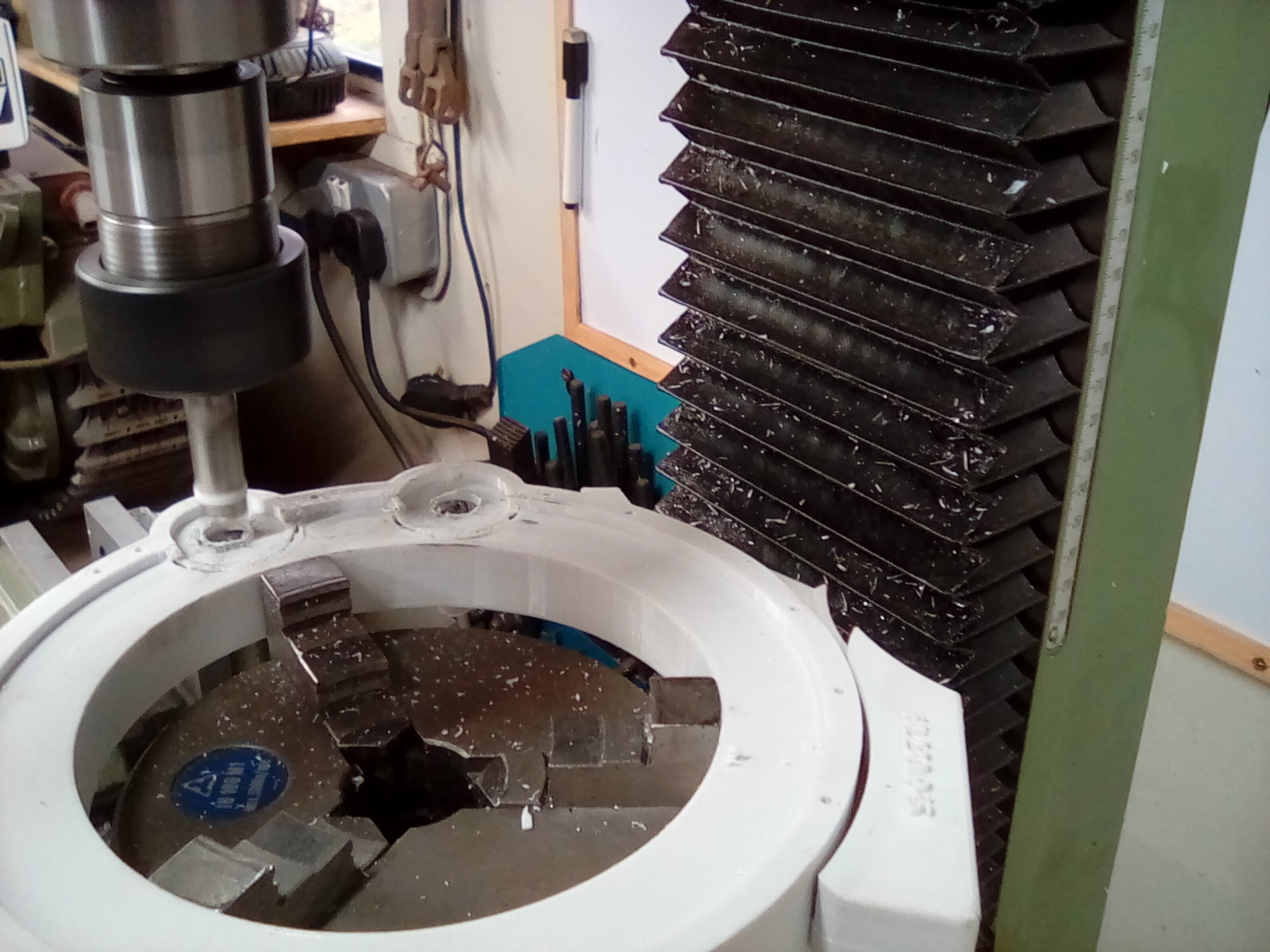

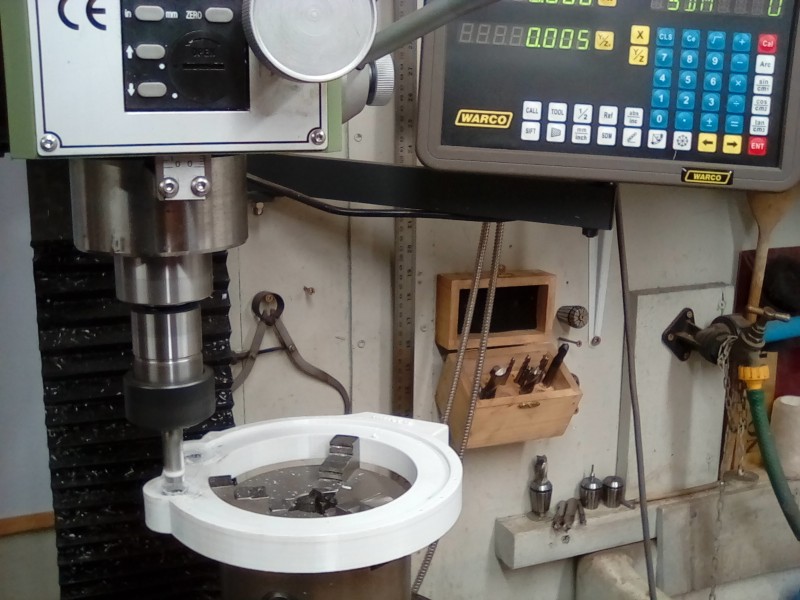

You can appreciate just how big the parts are once mounted on my milling machine
You can appreciate just how big the parts are once mounted on my milling machine
I'm milling the holes for the starter gear position bushes, plural as there are two.
I'm milling the holes for the starter gear position bushes, plural as there are two.
Last edited by Phil Woollard on Mon Mar 06, 2023 9:23 pm, edited 4 times in total.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.

Vince Cutajar
Posts: 2160
Joined: Wed Nov 15, 2017 1:43 pm
Location: Malta
Has liked: 732 times
Been liked: 1717 times

Re: 1/4 scale its just to big!

Post by Vince Cutajar »

Phil you posted in the wrong place.

Vince

Phil Woollard
Posts: 4217
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2228 times
Been liked: 6945 times

Re: 1/4 scale its just to big!

Post by Phil Woollard »

On no! I must pay more attention .
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.

Phil Woollard
Posts: 4217
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2228 times
Been liked: 6945 times

Re: 1/4 scale its just to big!

Post by Phil Woollard »

Couldn't sleep last night so spent some time detailing and painting the Maybach.
Attachments
A good cad example of the flywheel that I shall attempt to make
A good cad example of the flywheel that I shall attempt to make
I think that the universal joint needs to increase in size a little, there's no way that could handle around 600 hp
I think that the universal joint needs to increase in size a little, there's no way that could handle around 600 hp
I must try and make a flywheel from my collection of stl files, I'm hoping with a little tweaking in cura  the chieftain flywheel may work
I must try and make a flywheel from my collection of stl files, I'm hoping with a little tweaking in cura the chieftain flywheel may work
Good old milliput was used for the generator driven gear casting bulge , what would we do without it.
Good old milliput was used for the generator driven gear casting bulge , what would we do without it.
The water pump housing was made using an Armortek Tiger one turret roof vent and a Armortek Centurion fitting with milliput to form the impeller snail profile
The water pump housing was made using an Armortek Tiger one turret roof vent and a Armortek Centurion fitting with milliput to form the impeller snail profile
