Hand made 1/5 scale K2 Black Panther MBT in Korea.

Post by Youngjae Bae »

Happy New Year, everyone.

I haven't heard from you under the pretext of being busy for a long time.
However, I always wish the forum here where Armortek and I interact will last forever. I haven't been able to tell you, but the love of a track vehicle like my tank hasn't cooled down.

I also have a young friend who makes engine tanks by hand in Korea.
I'm introducing you to the new year a young tank enthusiast who makes a lot of things that everyone who loves Armortek will be interested in, so take a look.

You'll see a number of techniques that he can use to build our tanks in the course of his production.

He's always full of love and passion for orbital vehicles. He's currently making bulldozers.
Look at his interesting hand skills.



Once again, I wish everyone a happy 2023.

Youngjae.
Last edited by Youngjae Bae on Fri Aug 18, 2023 12:18 am, edited 2 times in total.

User avatar
Paul Sparkes
Posts: 139
Joined: Thu Mar 03, 2022 7:57 pm
Location: Dorset
Has liked: 71 times
Been liked: 178 times
Contact:

Re: Hand made bulldozer in Korea.

Post by Paul Sparkes »

That is some impressive fabrication.
Jagdtiger 2020 number 40. With Gun Smoke, CO2 recoil and Driving on custom Brushless motors.
Leopard “ The Bear” build with a difference. Big power for good reason.
222 scout car
See my YouTube for video's https://www.youtube.com/@TheMinimivic/featured

Vince Cutajar
Posts: 2160
Joined: Wed Nov 15, 2017 1:43 pm
Location: Malta
Has liked: 732 times
Been liked: 1717 times

Re: Hand made bulldozer in Korea.

Post by Vince Cutajar »

Happy new year also. Next month year of the rabbit.
Nice to see you back here on the forum.

Vince

User avatar
Robert E Morey
Posts: 2274
Joined: Wed Jul 18, 2007 12:59 am
Location: Seattle, WA USA
Has liked: 111 times
Been liked: 733 times

Re: Hand made bulldozer in Korea.

Post by Robert E Morey »

That is some impressive engineering and fabrication. It will be a monster. Even making his own hydraulic cylinder and valves. Impressive project.
Thanks, Happy New Year,
Bob

User avatar
Youngjae Bae
Posts: 274
Joined: Sun Jan 27, 2019 12:01 am
Location: South Korea
Has liked: 747 times
Been liked: 591 times

Re: Hand made bulldozer in Korea.

Post by Youngjae Bae »

Vince Cutajar wrote:
Mon Jan 02, 2023 11:59 am
Happy new year also. Next month year of the rabbit.
Nice to see you back here on the forum.

Vince
You know the twelve zodiac signs of the Orient.
2023 is the year of the black rabbit.
I wish you all the best and always be healthy in everything you do. It's nice to see you again.

Youngjae

User avatar
Youngjae Bae
Posts: 274
Joined: Sun Jan 27, 2019 12:01 am
Location: South Korea
Has liked: 747 times
Been liked: 591 times

Re: Hand made bulldozer in Korea.

Post by Youngjae Bae »

Robert E Morey wrote:
Mon Jan 02, 2023 8:04 pm
That is some impressive engineering and fabrication. It will be a monster. Even making his own hydraulic cylinder and valves. Impressive project.
Thanks, Happy New Year,
Bob
Happy new year to you too, :D

Youngjae

User avatar
Youngjae Bae
Posts: 274
Joined: Sun Jan 27, 2019 12:01 am
Location: South Korea
Has liked: 747 times
Been liked: 591 times

Re: Hand made bulldozer in Korea.

Post by Youngjae Bae »

As a tank-loving maniac, I'm sending news from Korea to the extent that it's not rude to Armortek. :mrgreen:
Not long ago, I suggested to him that we make 1/5 scale K2 Black Panther Tank together, which is MBT of the Korean Army, and he was willing to spare his time for me.
I asked him to use steel, not aluminum, for the basic material, so he lacks the sophisticated precision of an armortek's tank because he makes this work mostly by welding.
But we're happy to construct the overall shape, and he's also a longtime fanatic of Armortek. :wink:

Regards,
Youngjae
Attachments
Last edited by Youngjae Bae on Thu Nov 09, 2023 11:52 pm, edited 4 times in total.

User avatar
Youngjae Bae
Posts: 274
Joined: Sun Jan 27, 2019 12:01 am
Location: South Korea
Has liked: 747 times
Been liked: 591 times

Re: Hand made bulldozer in Korea.

Post by Youngjae Bae »

The long rainy season and heat wave have started in Korea, and hot and humid days continue.
It's been a while since I've made RC bulldodzer and I'm telling you about the production of the K2 Black Panther.

As the RC bulldozer was operated with a hydraulic system,
it was more difficult to set the cooling conditions than I thought.

The following is a video that includes the RC bulldozer maker.


The following is a video that includes The 1/5 scale K2 Black Panther.


I hope everyone is healthy again in the hot summer.

Regards,
Youngjae
Attachments

Vince Cutajar
Posts: 2160
Joined: Wed Nov 15, 2017 1:43 pm
Location: Malta
Has liked: 732 times
Been liked: 1717 times

Re: Hand made bulldozer in Korea.

Post by Vince Cutajar »

Great videos Youngjae.
Loved the Fusion 360 timelapse video of the Black Panther but now can't remember where I saw it.

Vince

User avatar
Youngjae Bae
Posts: 274
Joined: Sun Jan 27, 2019 12:01 am
Location: South Korea
Has liked: 747 times
Been liked: 591 times

Re: Hand made bulldozer in Korea.

Post by Youngjae Bae »

Vince Cutajar wrote:
Sat Jul 15, 2023 7:26 am
Great videos Youngjae.
Loved the Fusion 360 timelapse video of the Black Panther but now can't remember where I saw it.

Vince
These days, the central part of Korea is having a hard time because of heavy rain.I'm expecting the sun to shine soon.

I hope Vince has seen the following videos in the past.

Youngjae
Attachments
Last edited by Youngjae Bae on Thu Nov 09, 2023 11:54 pm, edited 1 time in total.

Vince Cutajar
Posts: 2160
Joined: Wed Nov 15, 2017 1:43 pm
Location: Malta
Has liked: 732 times
Been liked: 1717 times

Re: Hand made bulldozer in Korea.

Post by Vince Cutajar »

Yes. That's the one. Impressive 3D modelling. I now also found it on the official Autodesk website:

https://www.autodesk.com/community/gall ... attle-tank

I suspect the time lapse was done with an add-on script or extension.
I'm expecting the sun to shine soon.
I can send you some sunshine from here. We have too much of it.😁

Vince

User avatar
Youngjae Bae
Posts: 274
Joined: Sun Jan 27, 2019 12:01 am
Location: South Korea
Has liked: 747 times
Been liked: 591 times

Re: Hand made bulldozer in Korea.

Post by Youngjae Bae »

Replaced the power drive from the hydraulic system to the gear system.


User avatar
Youngjae Bae
Posts: 274
Joined: Sun Jan 27, 2019 12:01 am
Location: South Korea
Has liked: 747 times
Been liked: 591 times

Re: Hand made 1/5 scale K2 Black Panther MBT in Korea.

Post by Youngjae Bae »

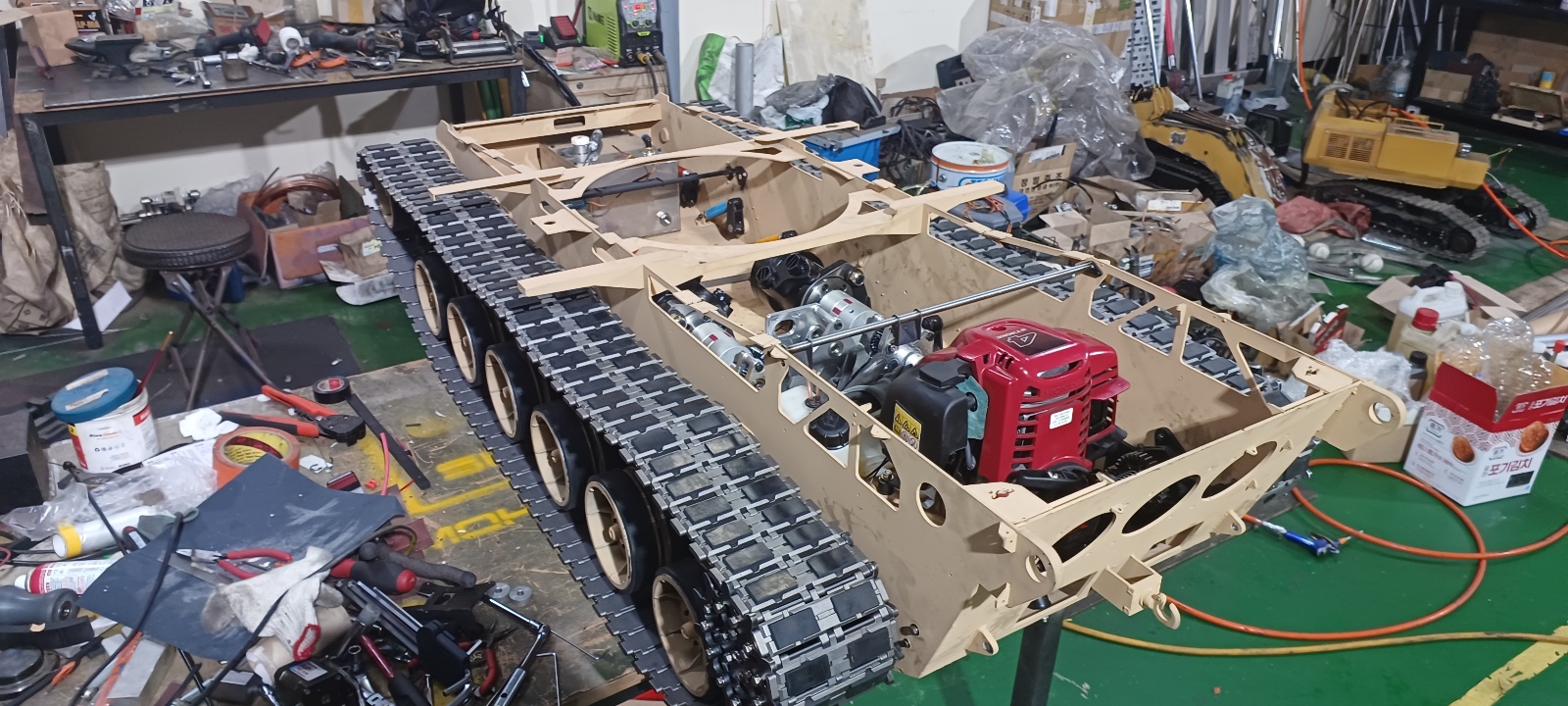

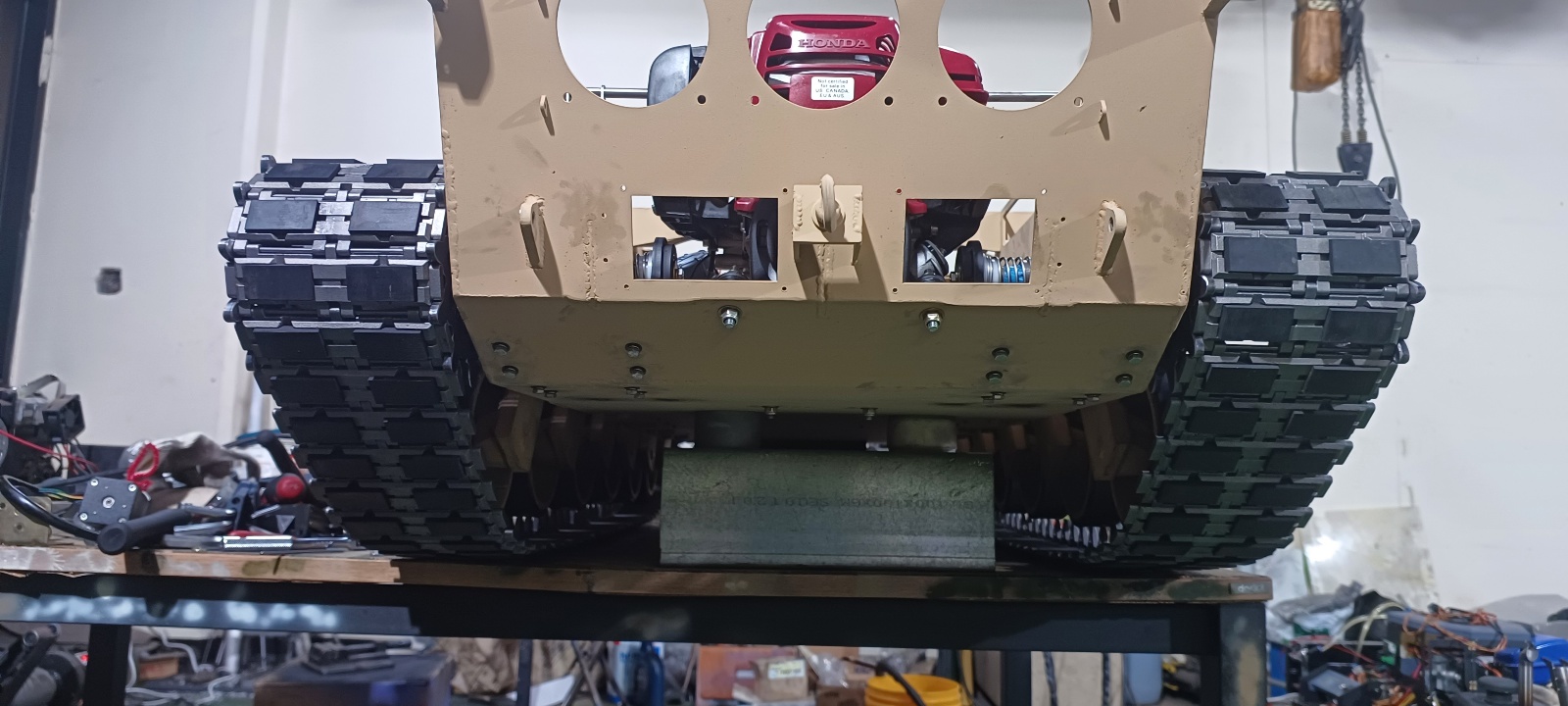

This week, we conducted outdoor tests of Dozer and indoor tests of K2 tanks.
For the indoor test, we installed a servo and a transceiver and finished it well.

Regards
Youngjae



User avatar
Youngjae Bae
Posts: 274
Joined: Sun Jan 27, 2019 12:01 am
Location: South Korea
Has liked: 747 times
Been liked: 591 times

Re: Hand made 1/5 scale K2 Black Panther MBT in Korea.

Post by Youngjae Bae »

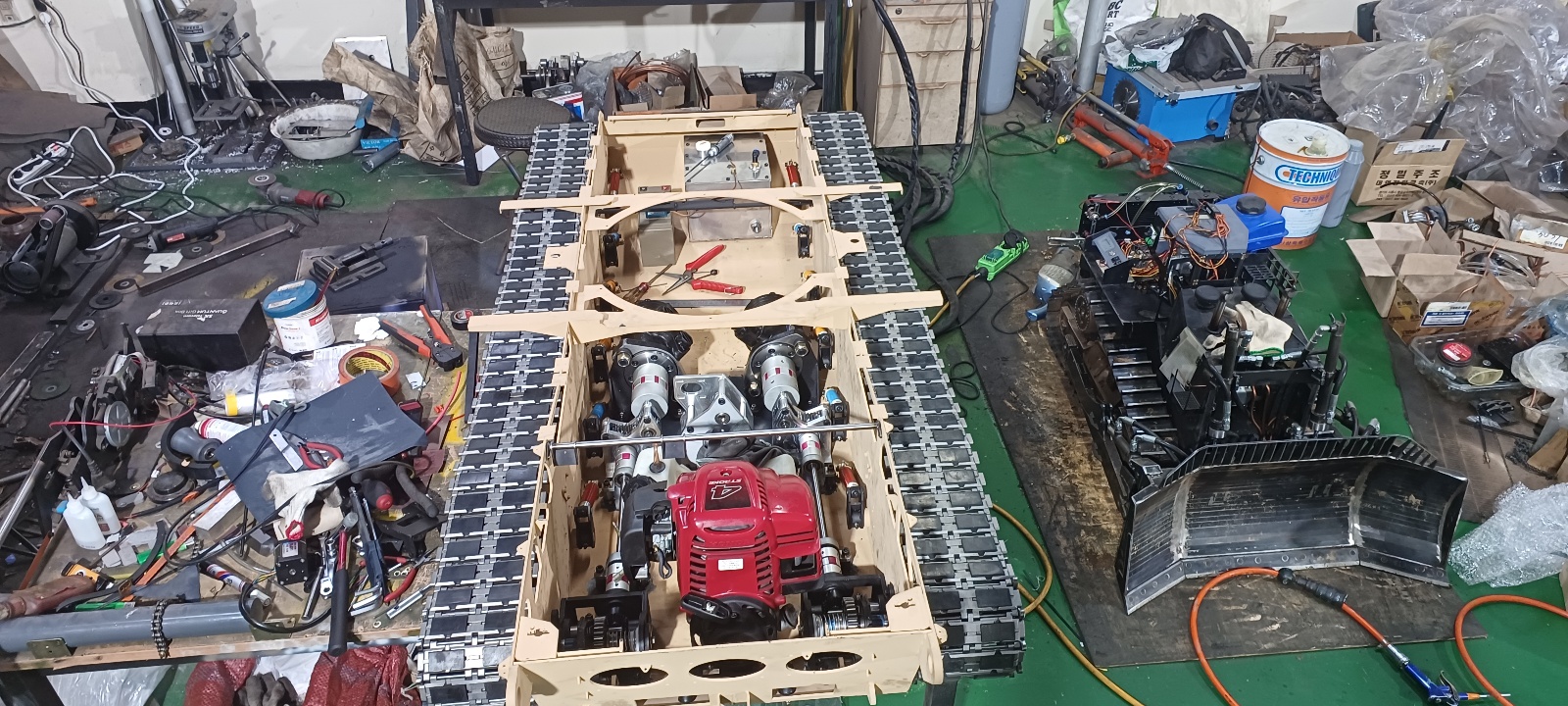

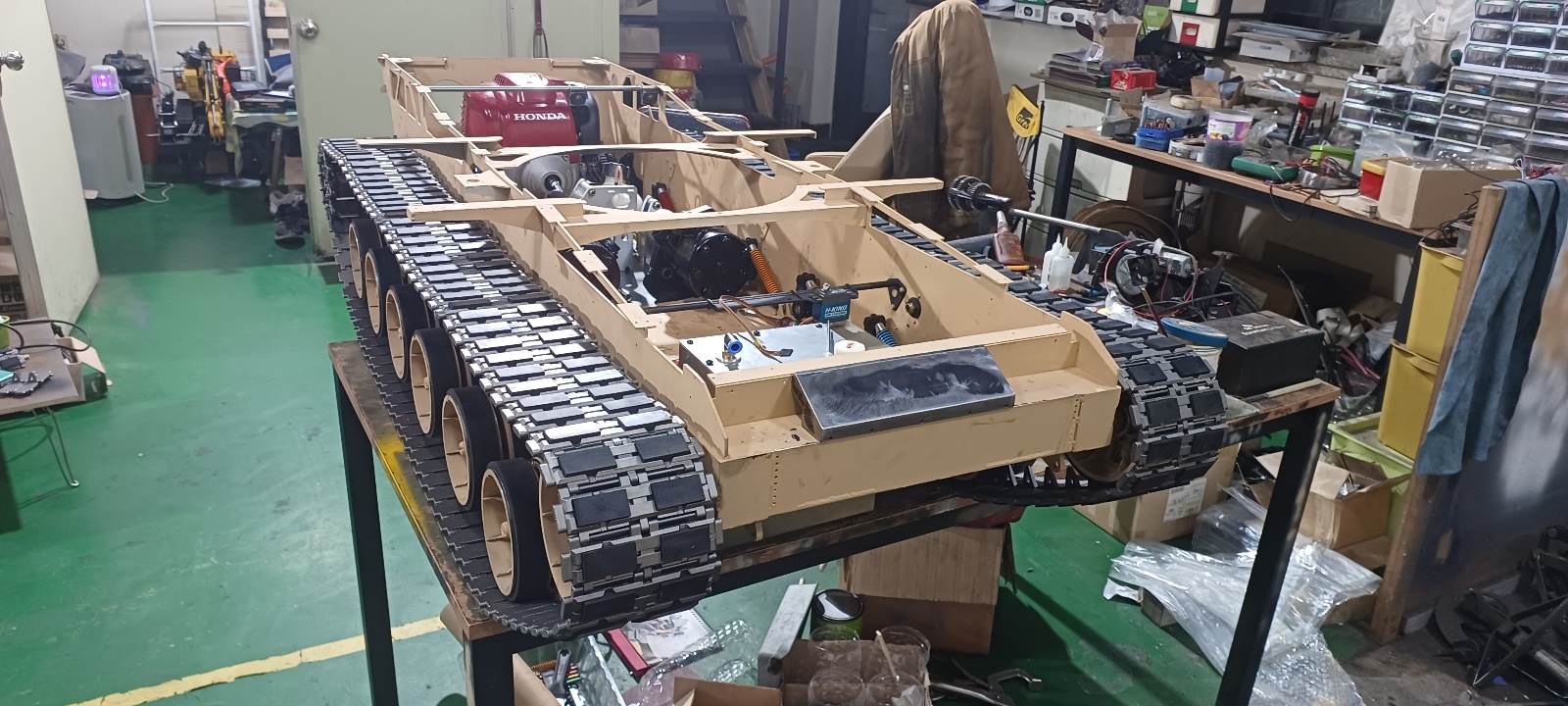

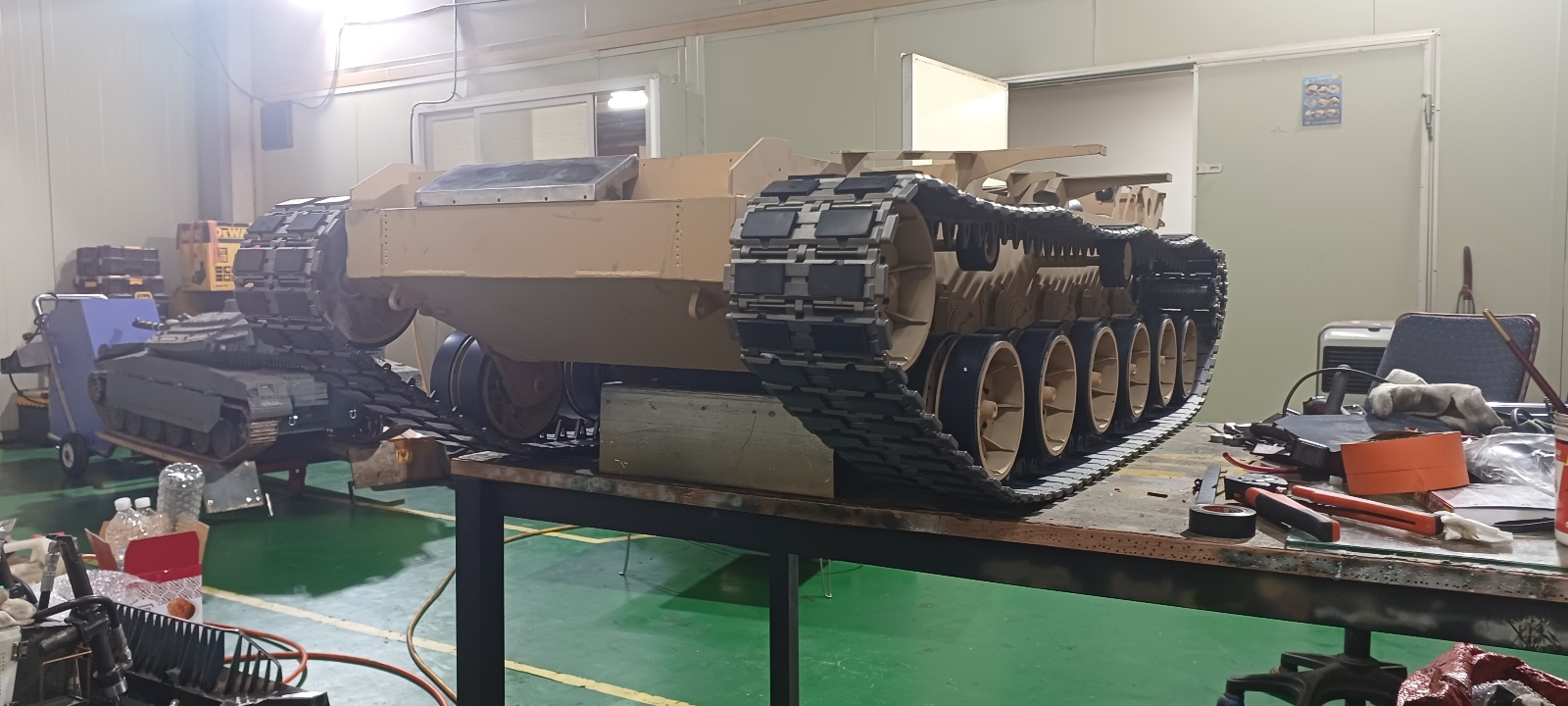

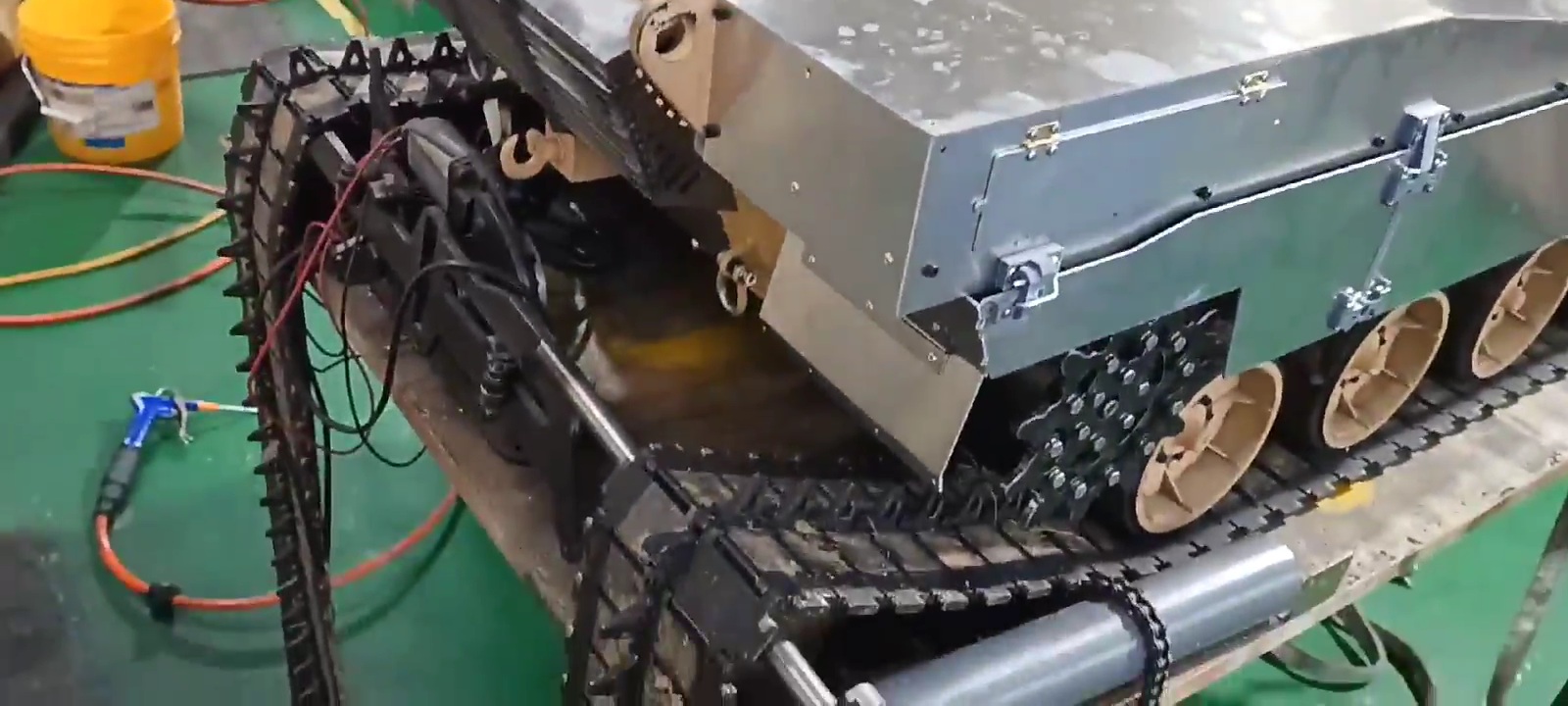

So far, we've done some simple outdoor test.

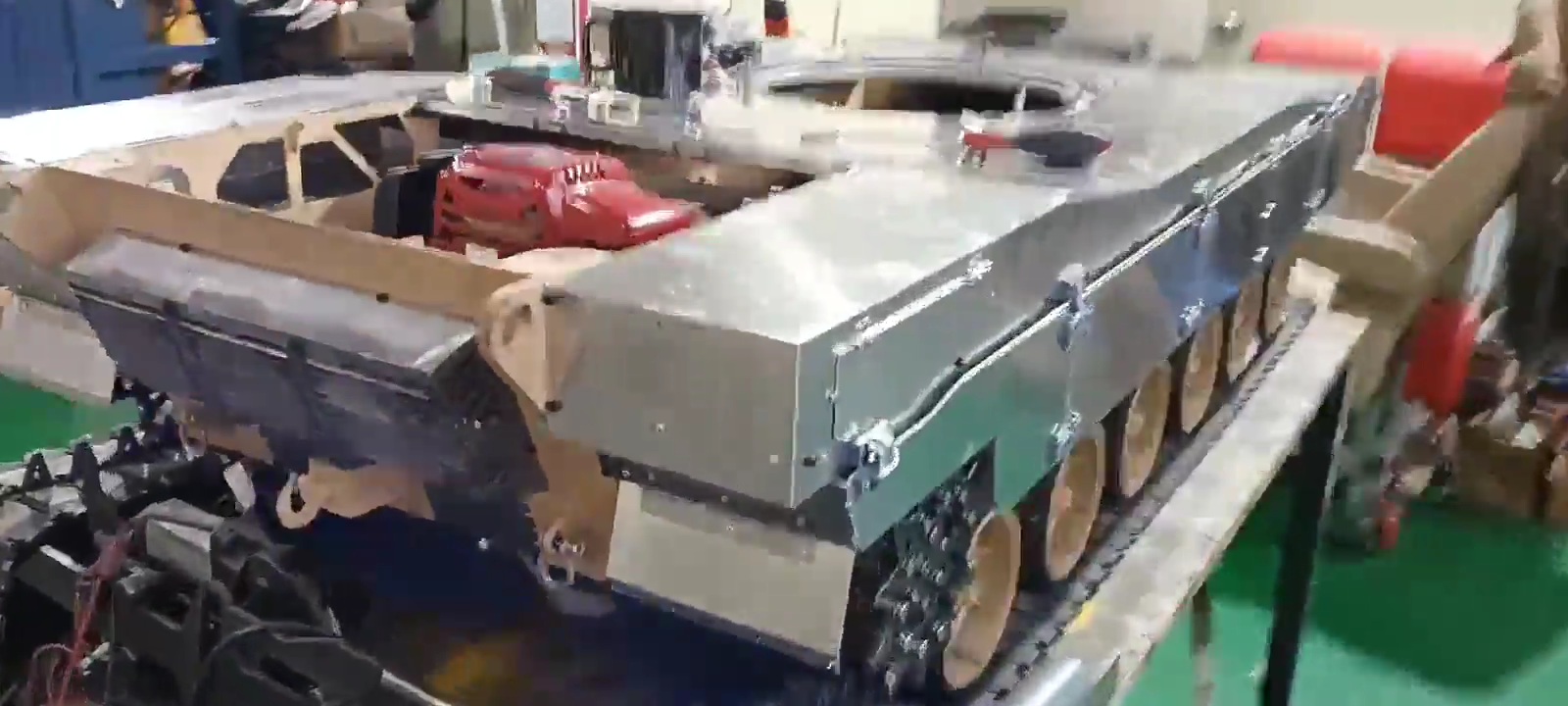

The test was to climb a hill with a slope of about 40 degrees in a backward direction with a high gear ratio. Since then, the tank body has been shaped.
The side skirt and top plate work were done, the turret ring was manufactured by an external drive method, and the variable test was performed using the transmission of the RC car.

Regards
Youngjae



User avatar
Youngjae Bae
Posts: 274
Joined: Sun Jan 27, 2019 12:01 am
Location: South Korea
Has liked: 747 times
Been liked: 591 times

Re: Hand made 1/5 scale K2 Black Panther MBT in Korea.

Post by Youngjae Bae »

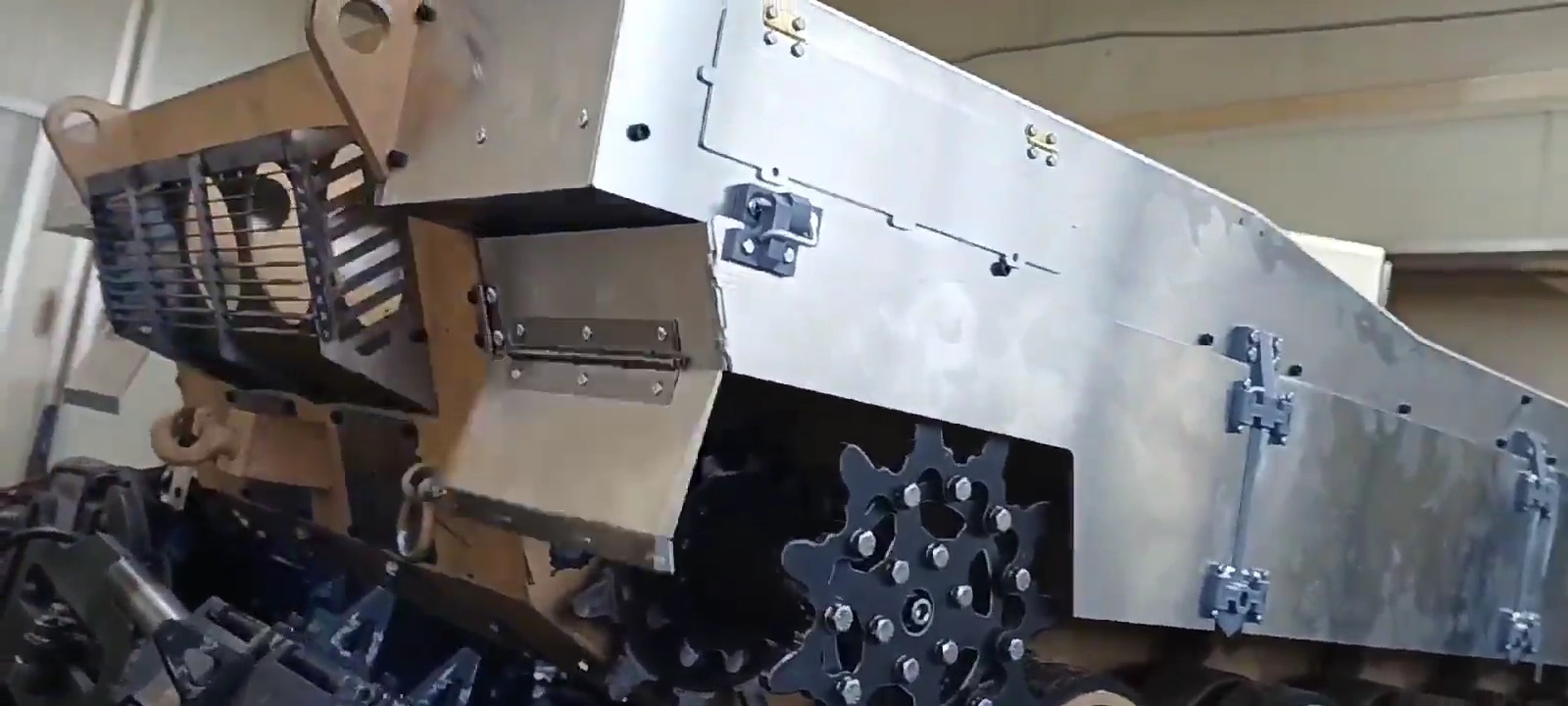

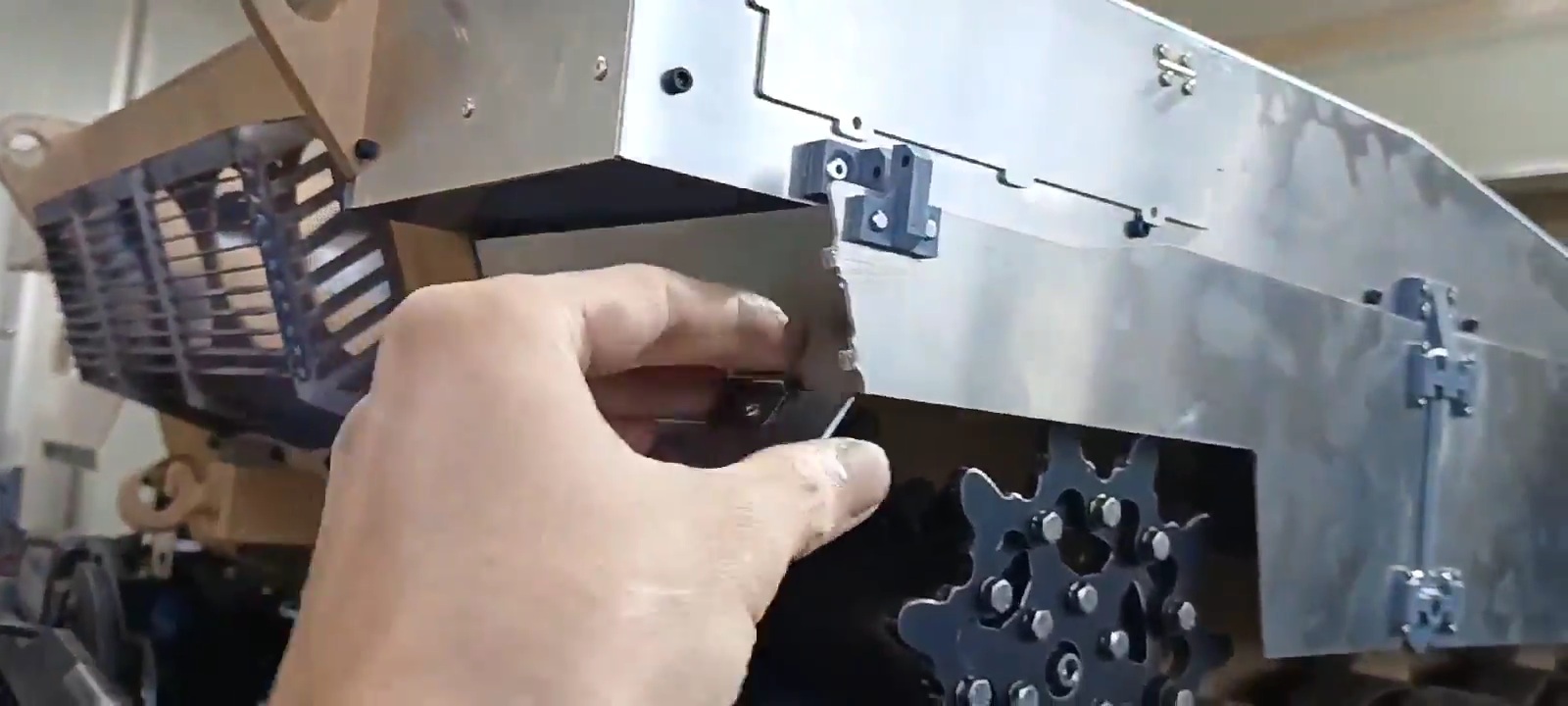

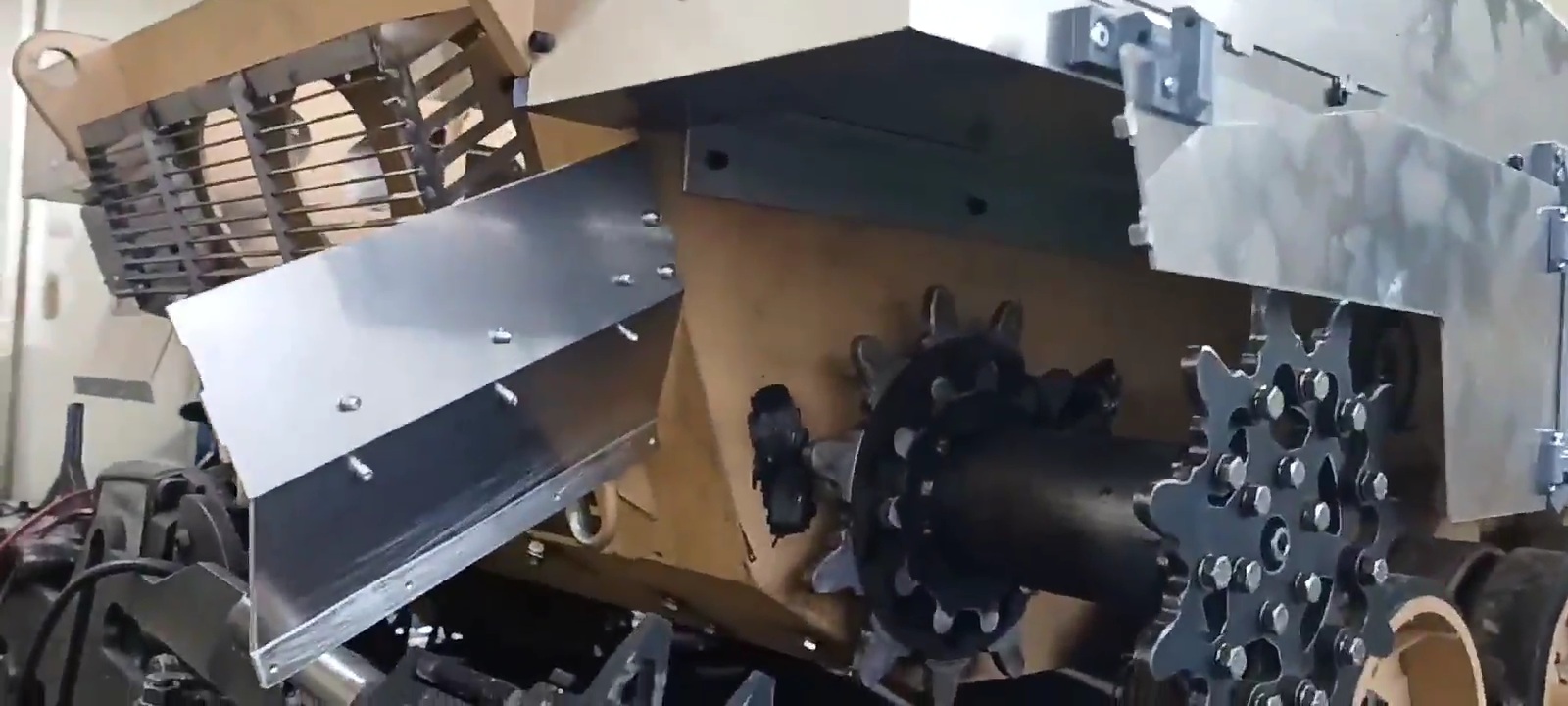

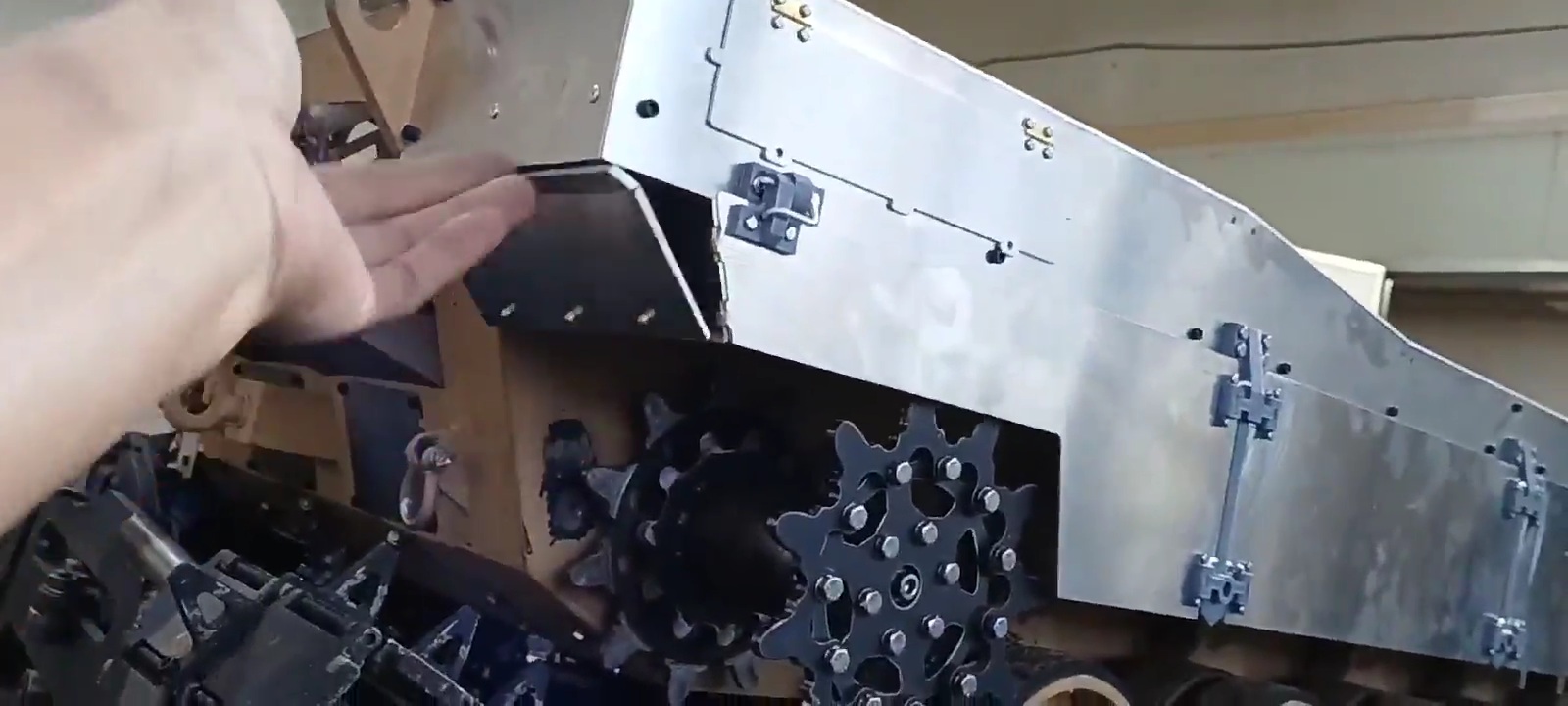

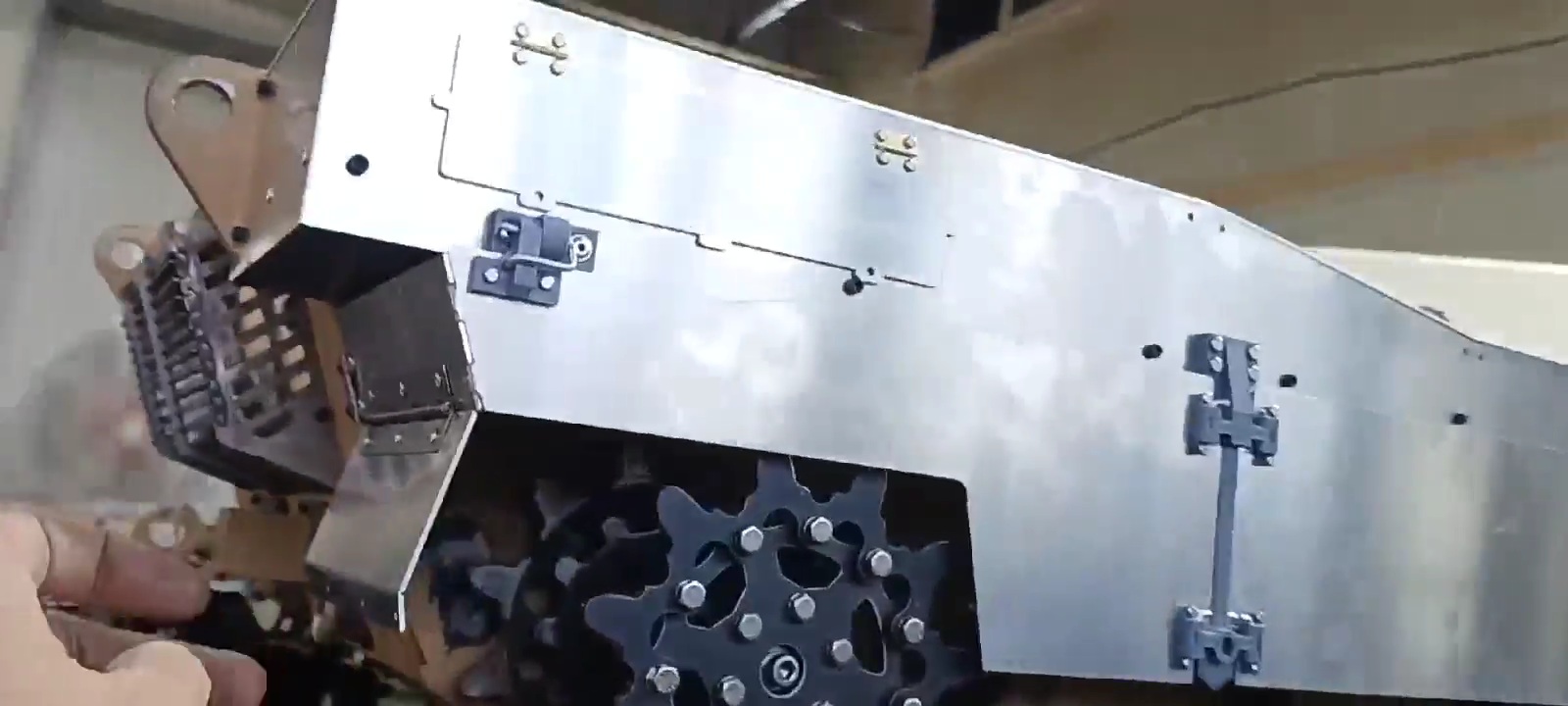

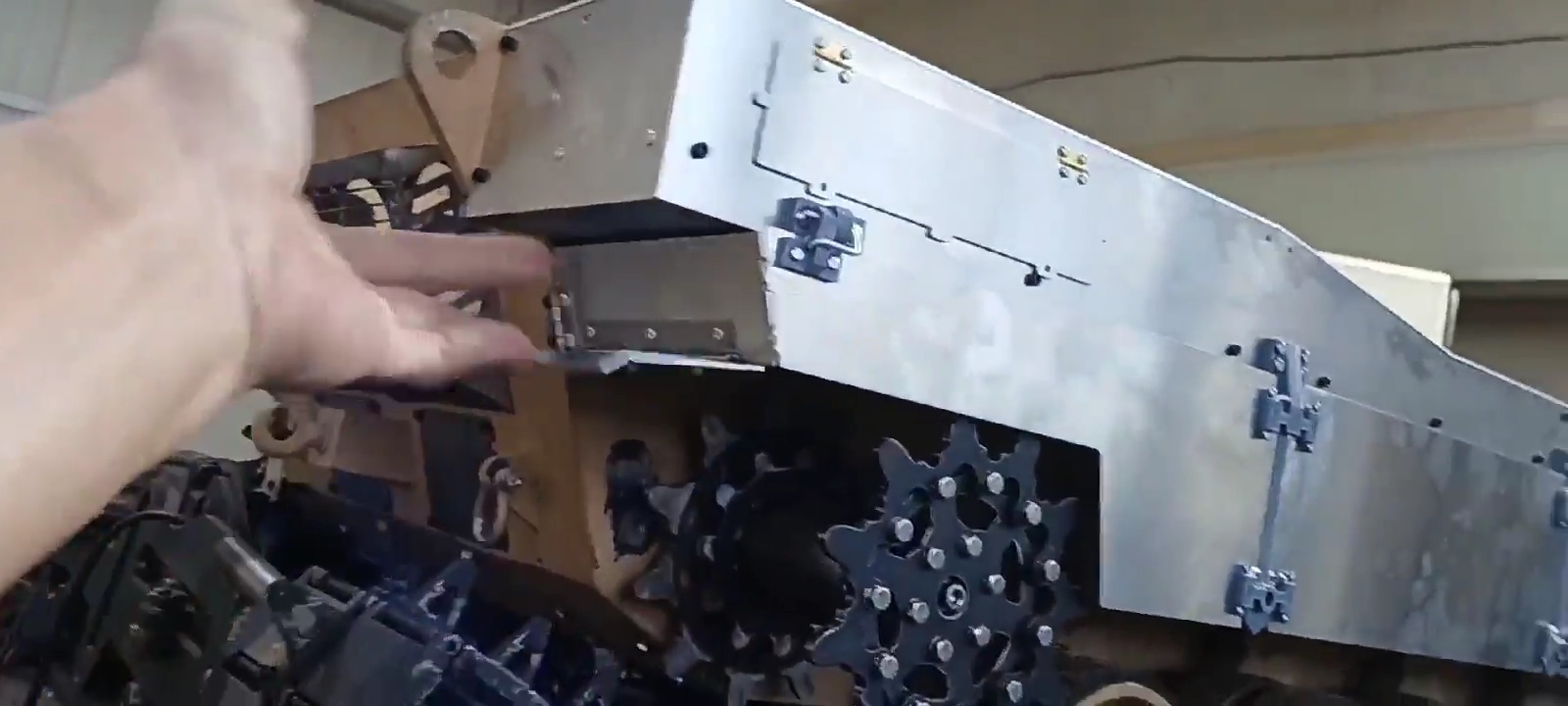

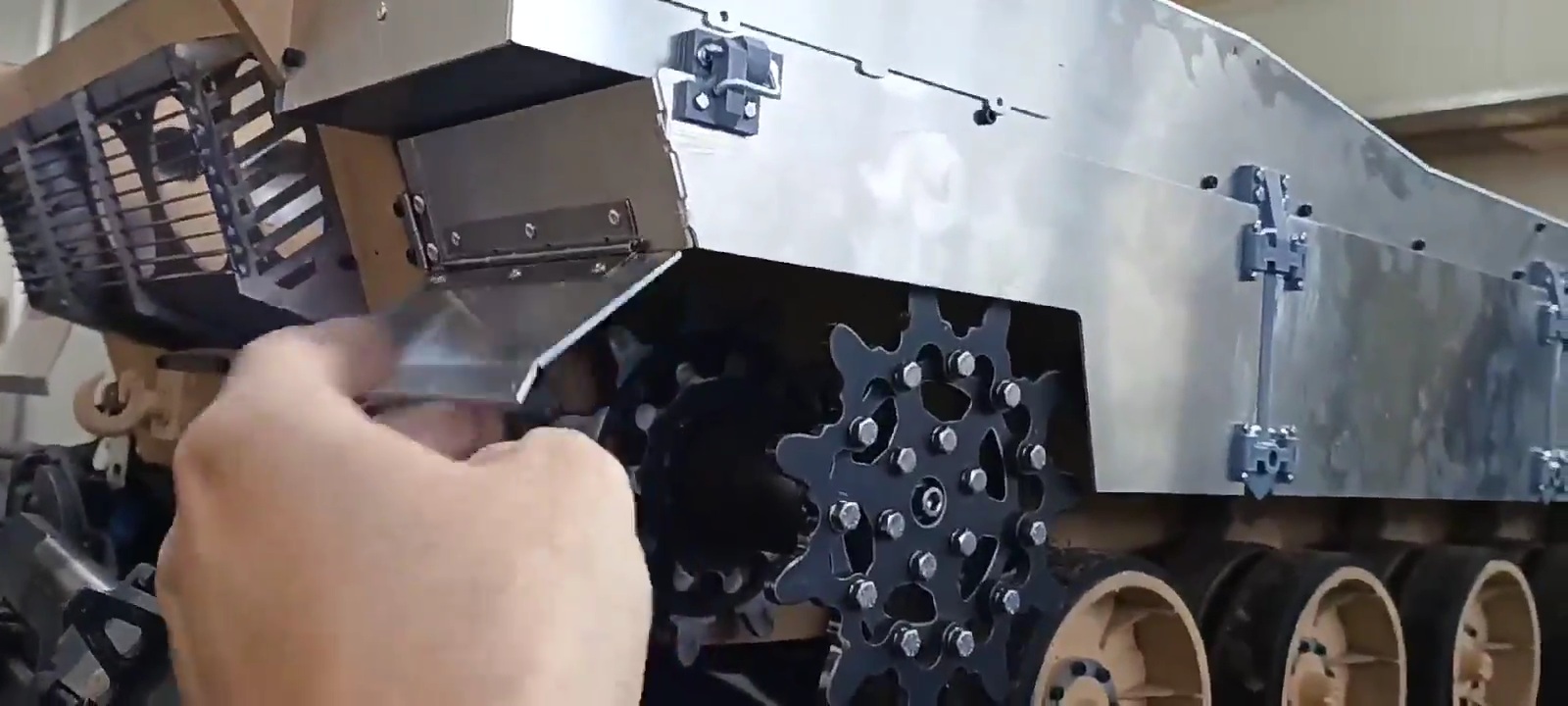

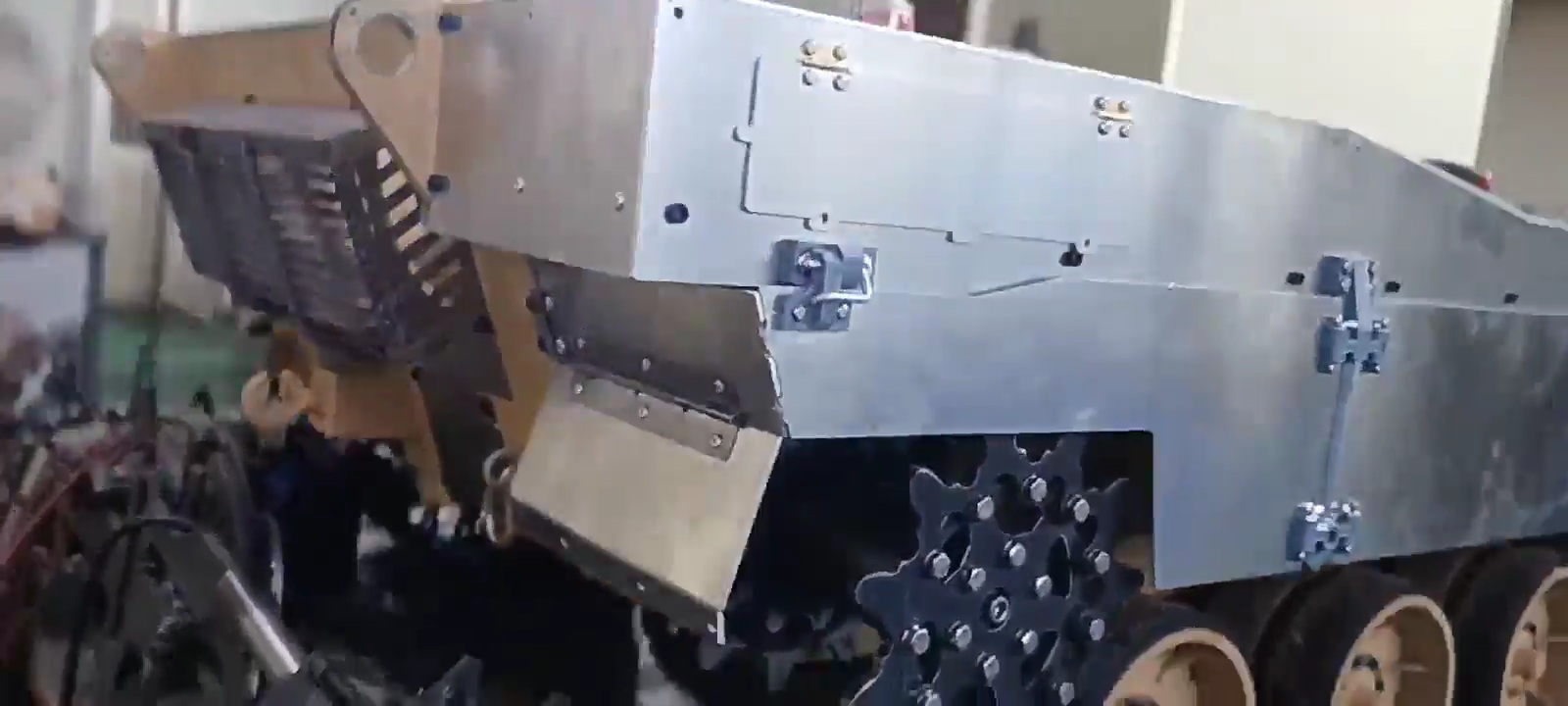

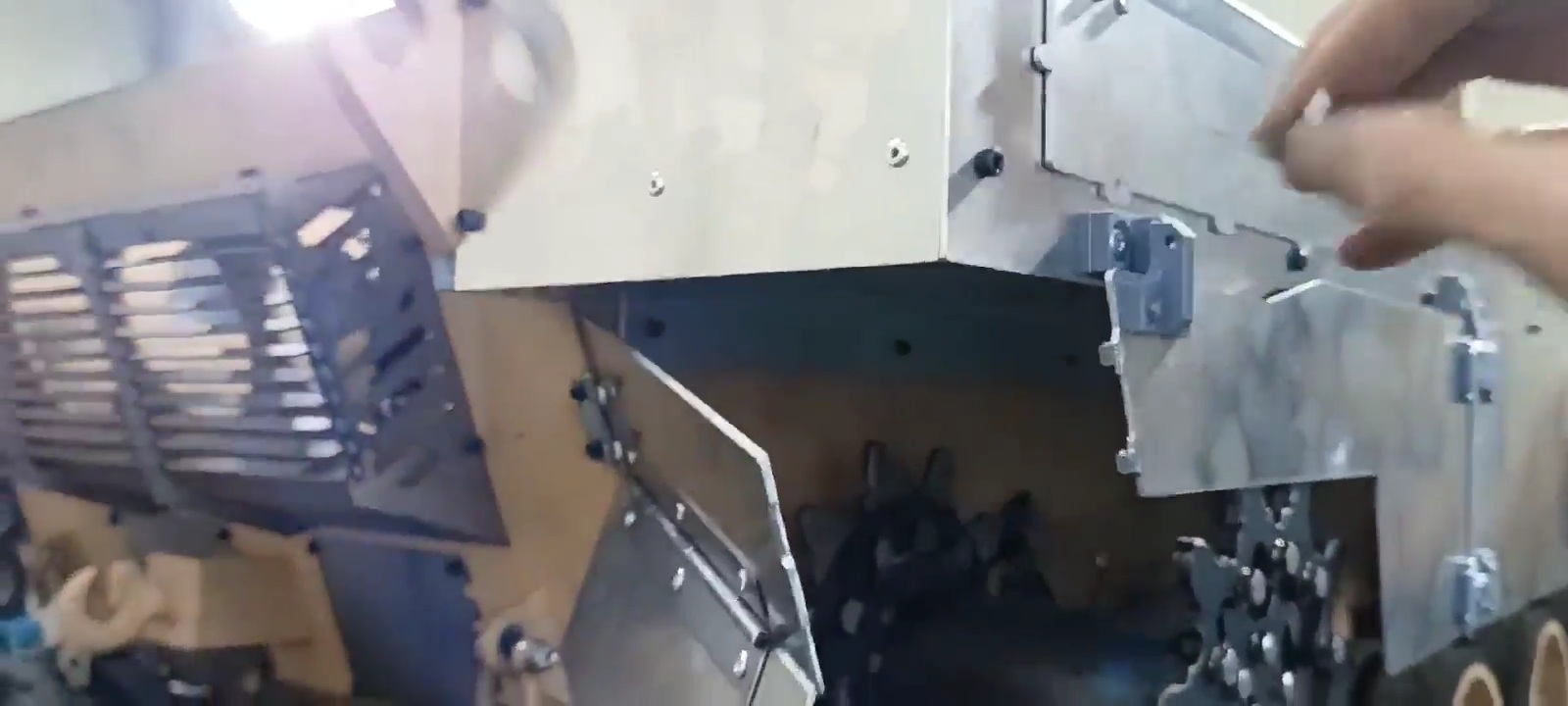

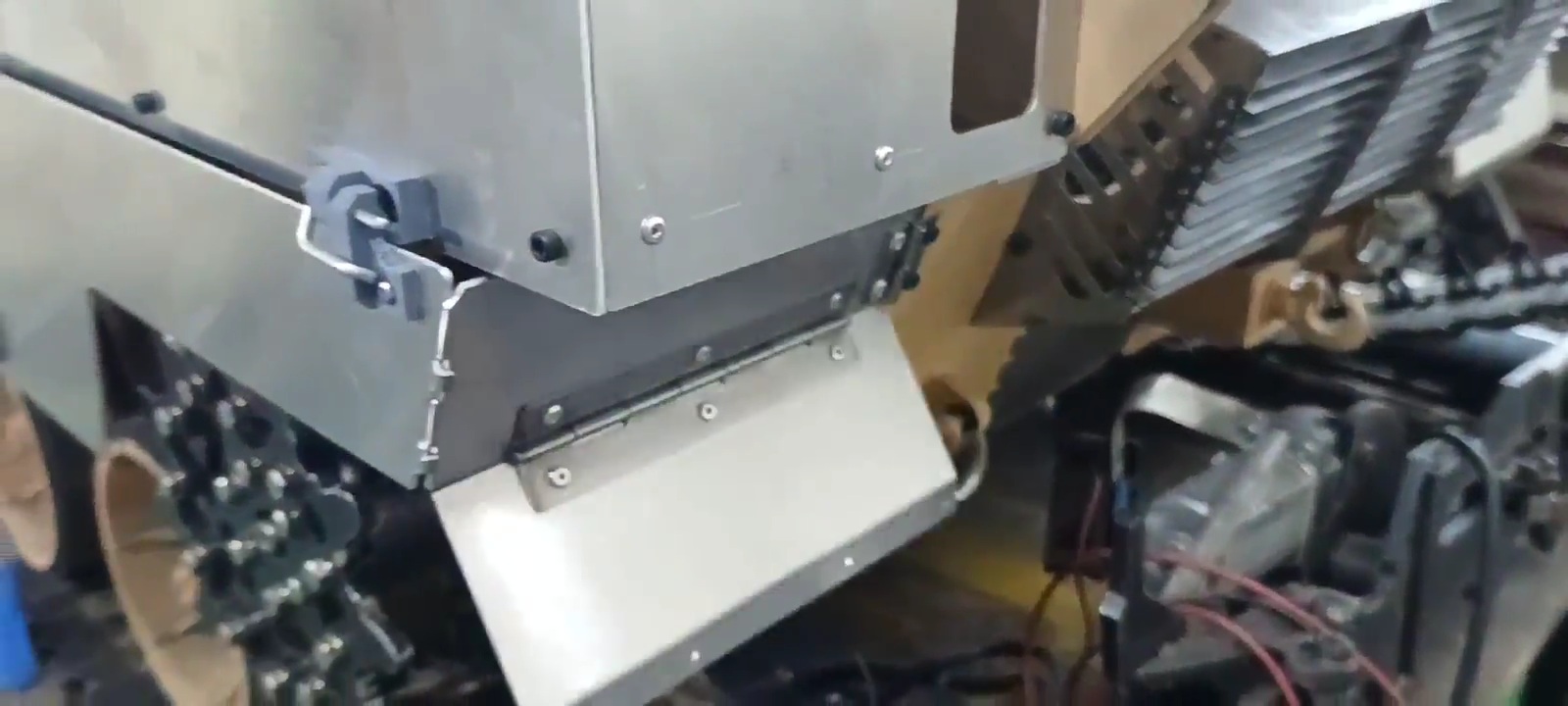

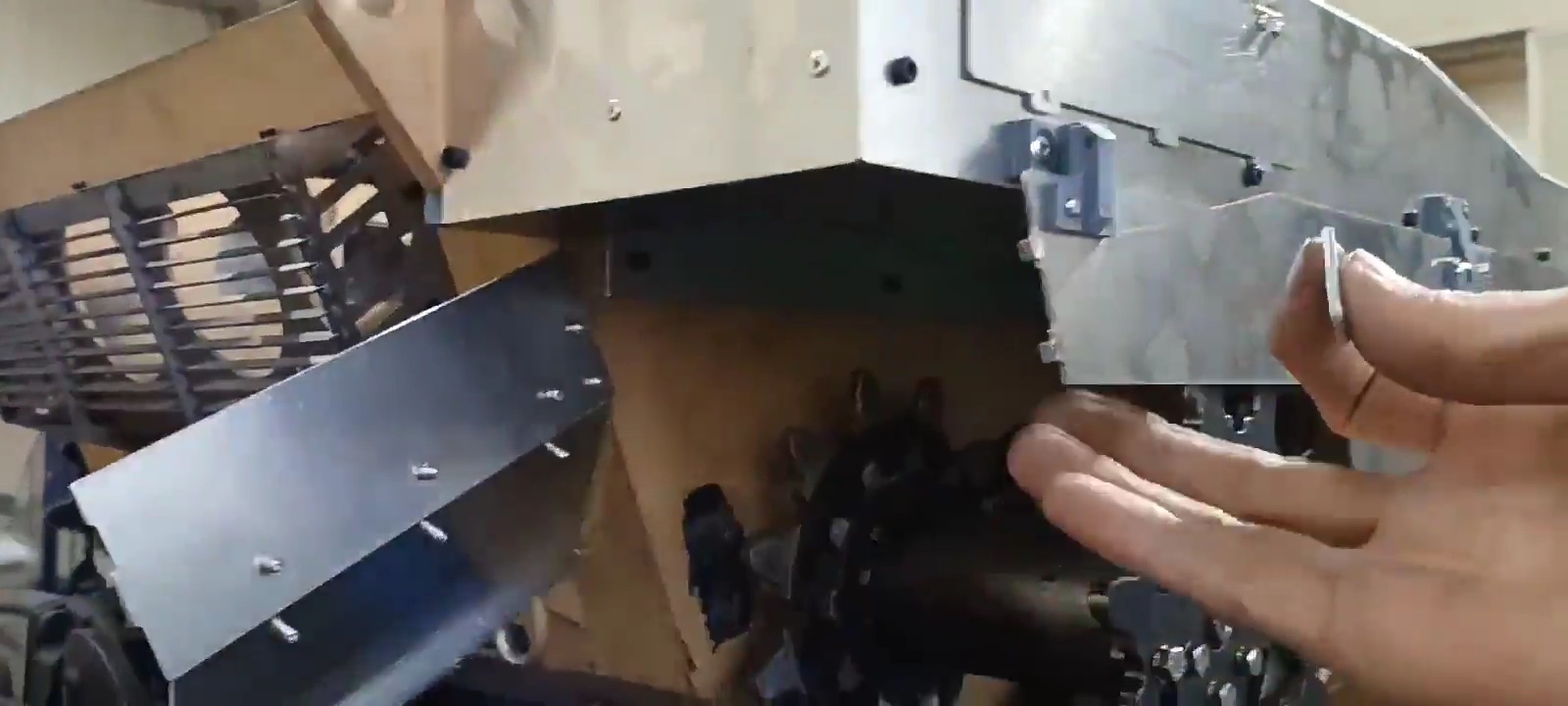

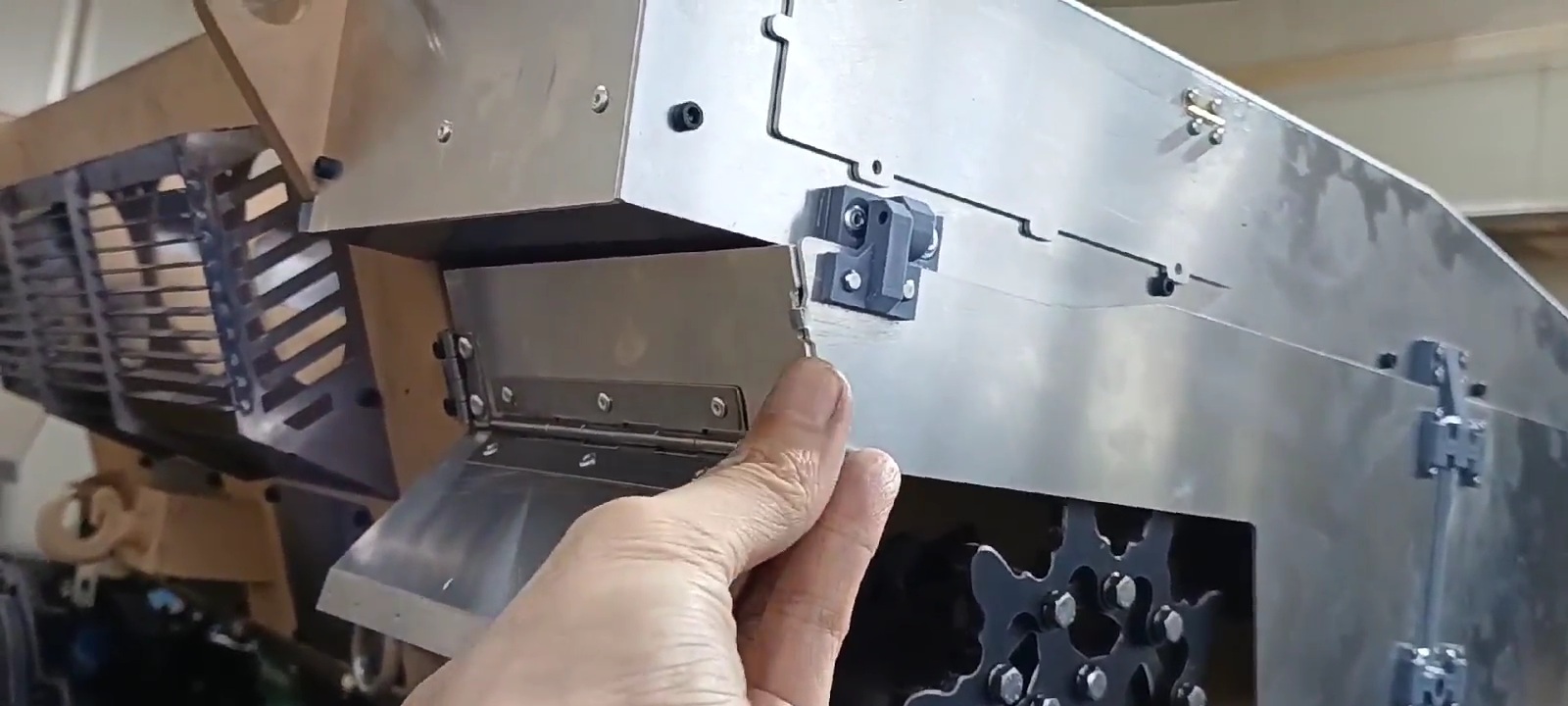

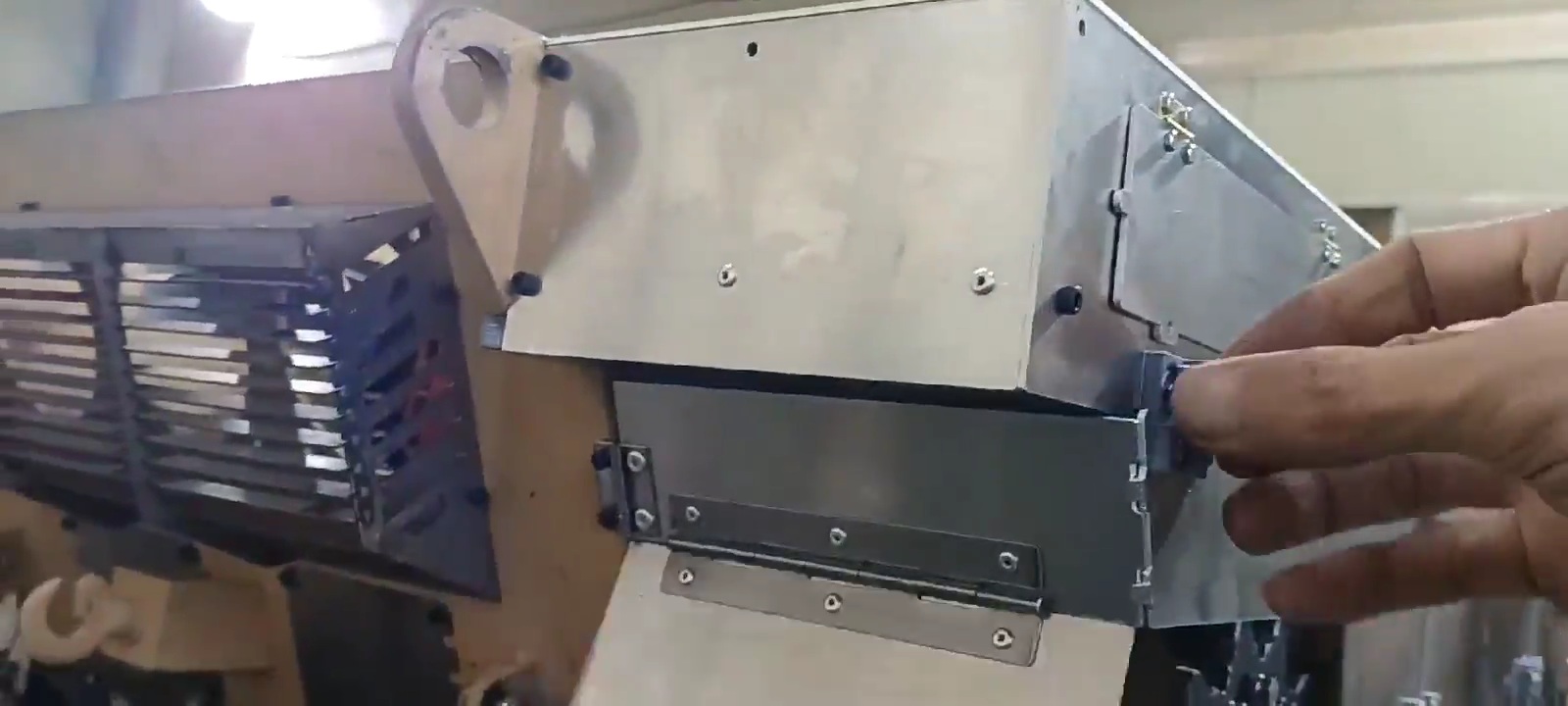

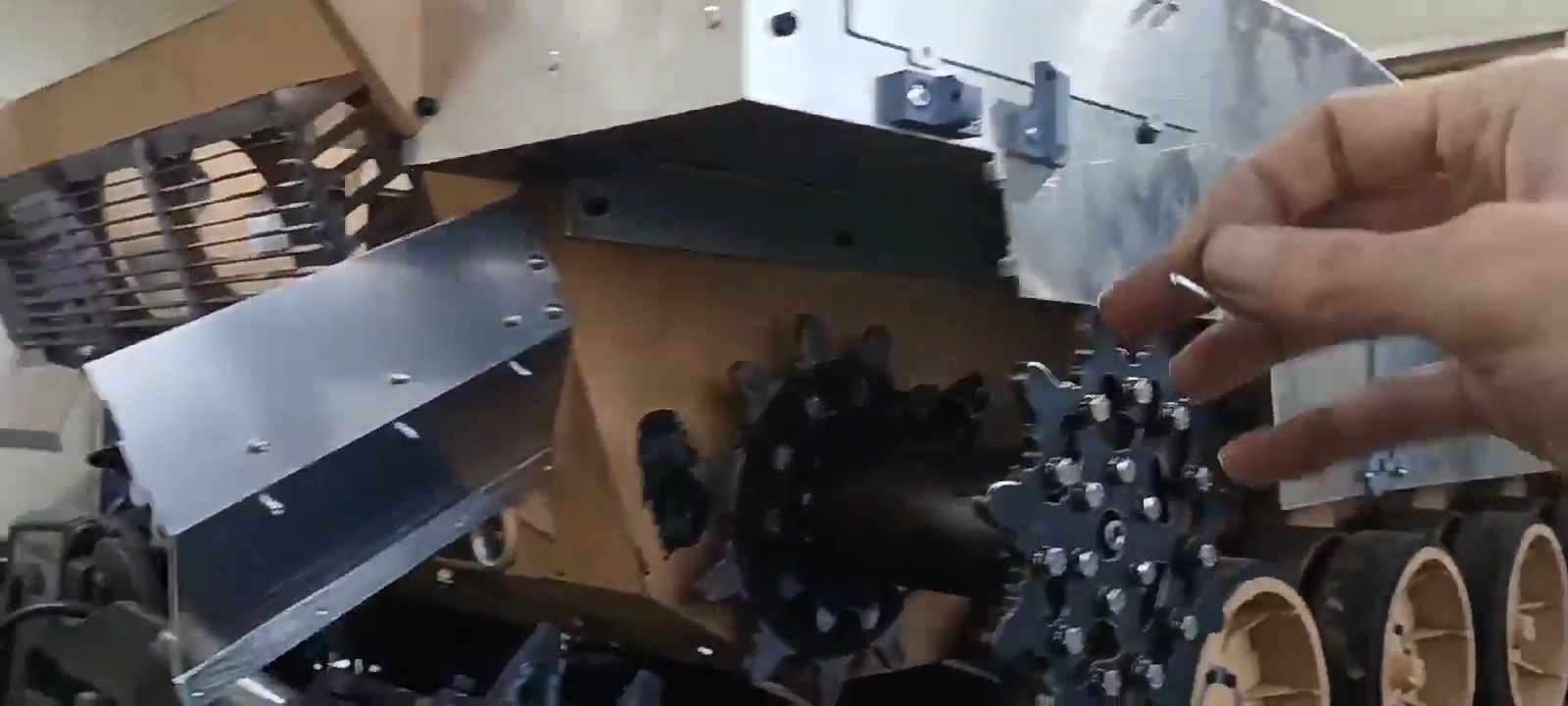

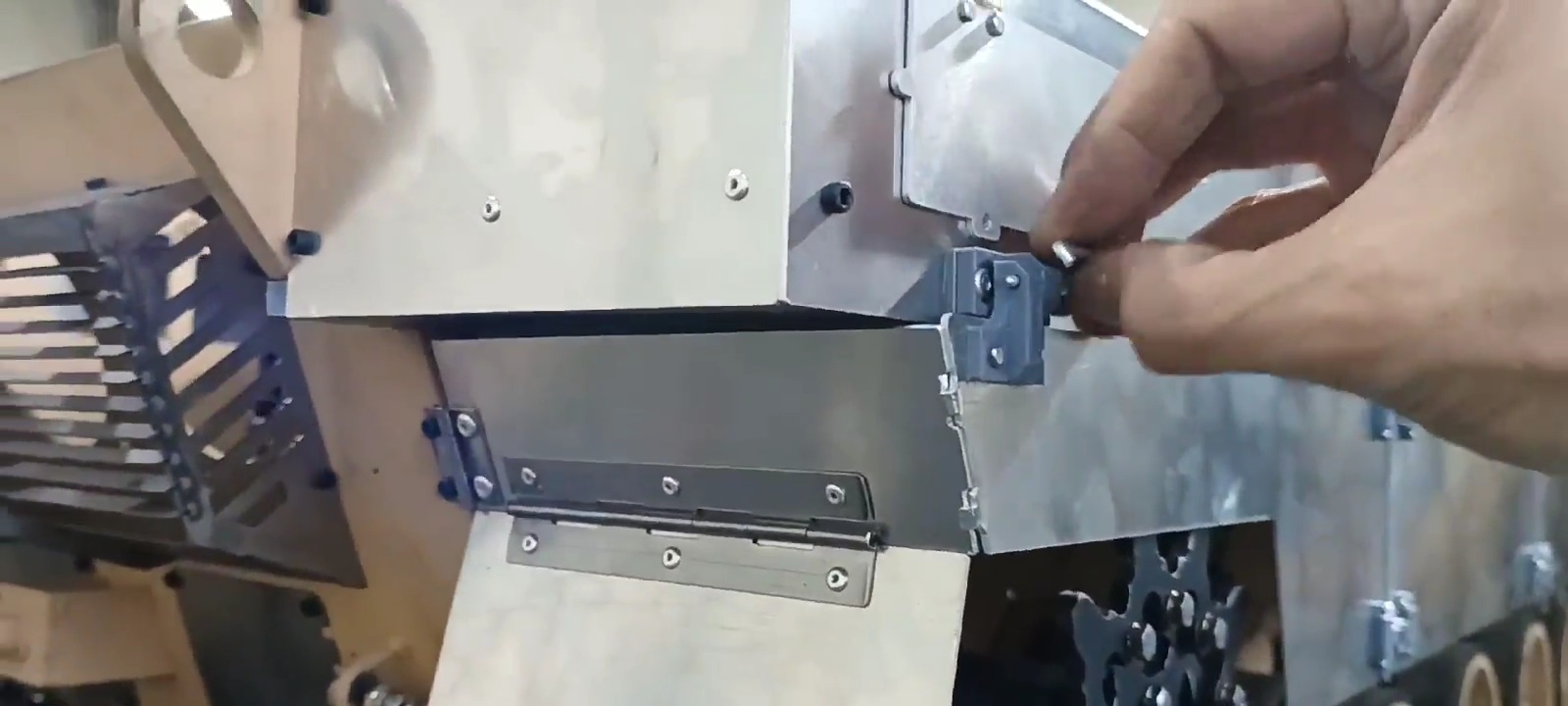

The rear mudguard of the K2 tank has been completed.
It naturally goes up and down when it's pushed from the outside.
The viewer will understand intuitively without the explanation of the pictures.

Regards,
Youngjae
Attachments
