Hi all

Has anyone got any close up pictures of the Jagdtiger rear doors. I'm looking to see what fasteners were used and if split
pins were fitted. Also detail pictures of the small pins that must of held the seal on would be appreciated.

DB

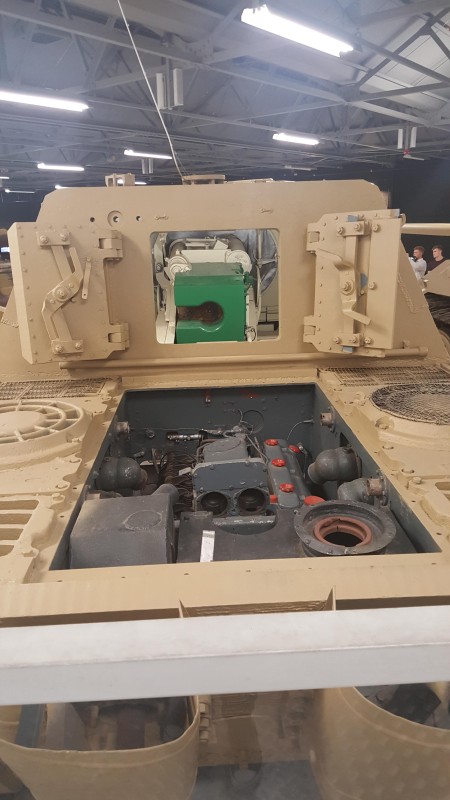

Some pics of the back doors here:

https://www.landmarkscout.com/the-tiger ... d-kingdom/

Adrian.

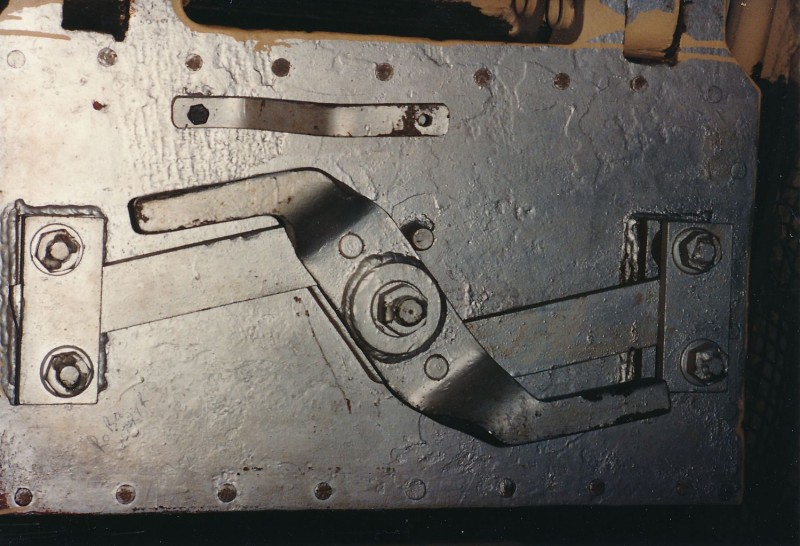

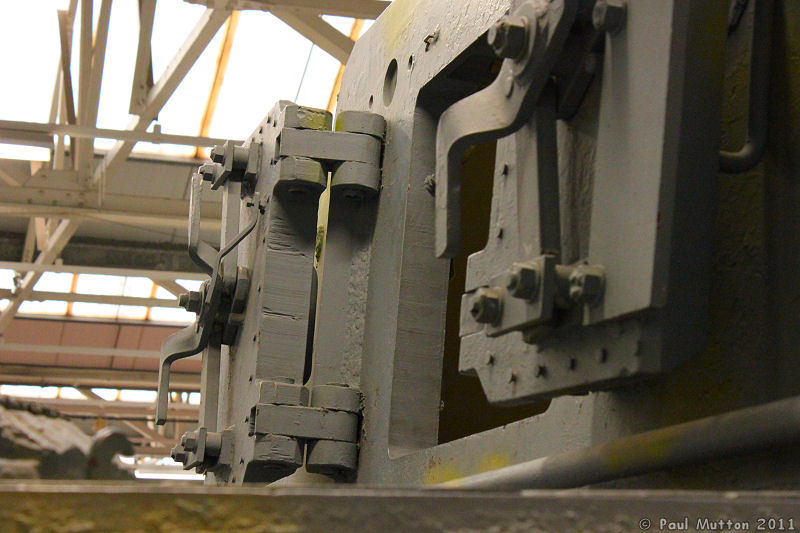

Hope this is with little help.
http://photos.jibble.org/Vehicles/Tanks ... _6663.html

Sorry I forgot where I'd found this picture. Maybe have copied it from a JT builder in the forum.

Thank you both. Turns out I had the picture I needed on my phone after all.
DB
