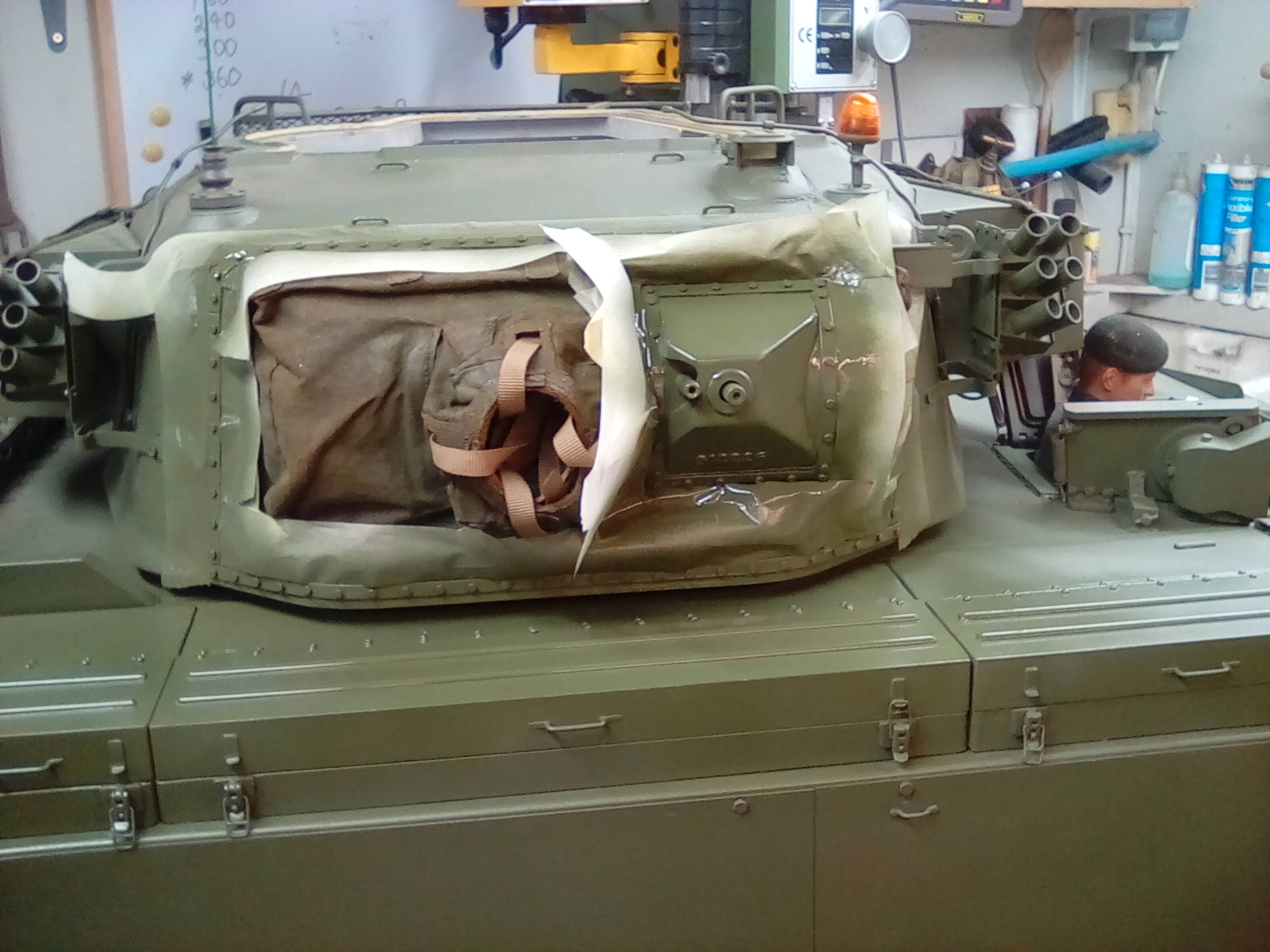

Final bolting up of the mantlet cover, and now onto the thermal jacket for that long barrel
Attachments

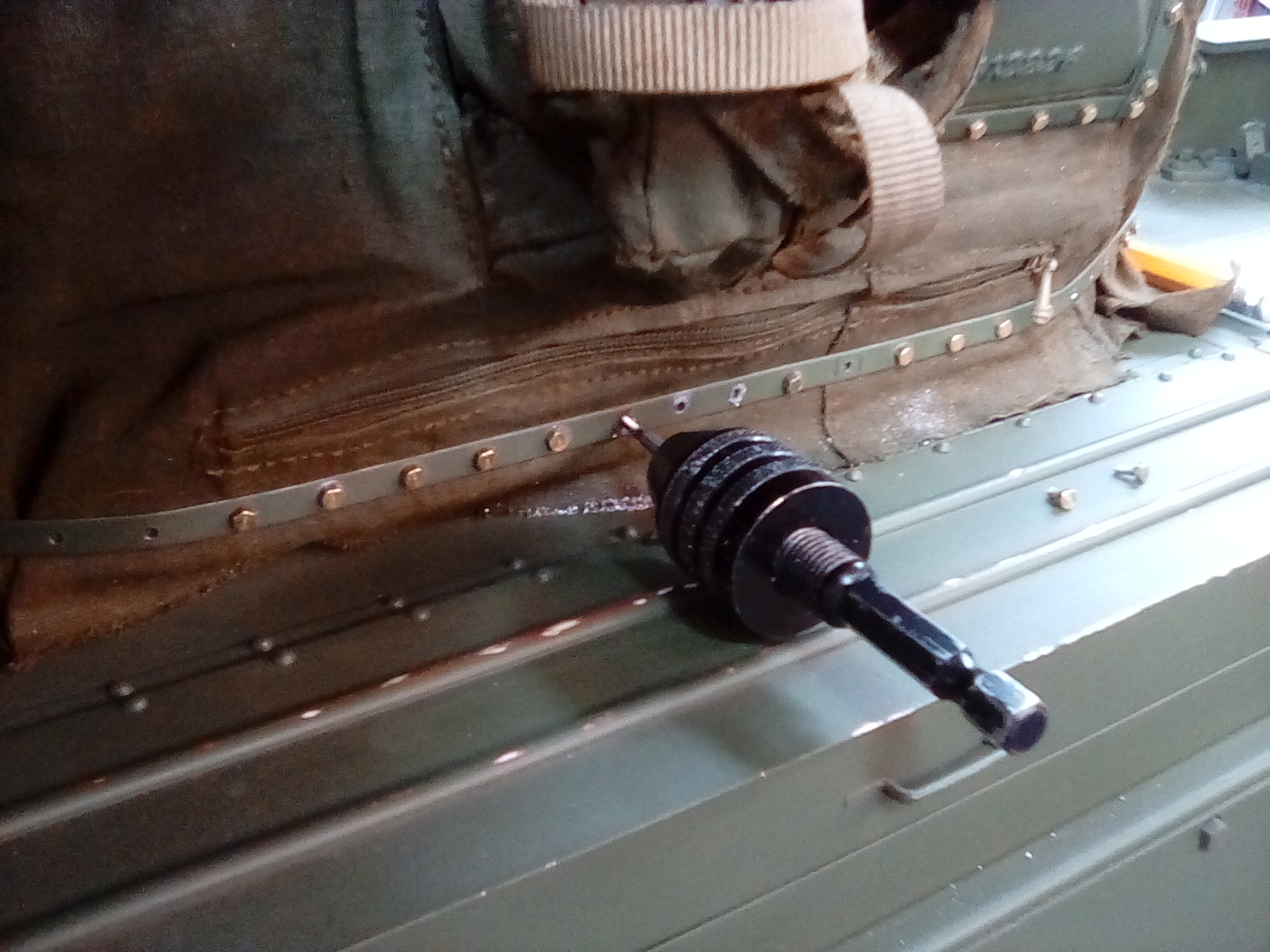

When the tiny brass fixings break off you just have to drill them out and retap
When the tiny brass fixings break off you just have to drill them out and retap
Top coat
Top coat
All done here for now
All done here for now
Hemming, stitching is required, lots of stiching
Hemming, stitching is required, lots of stiching

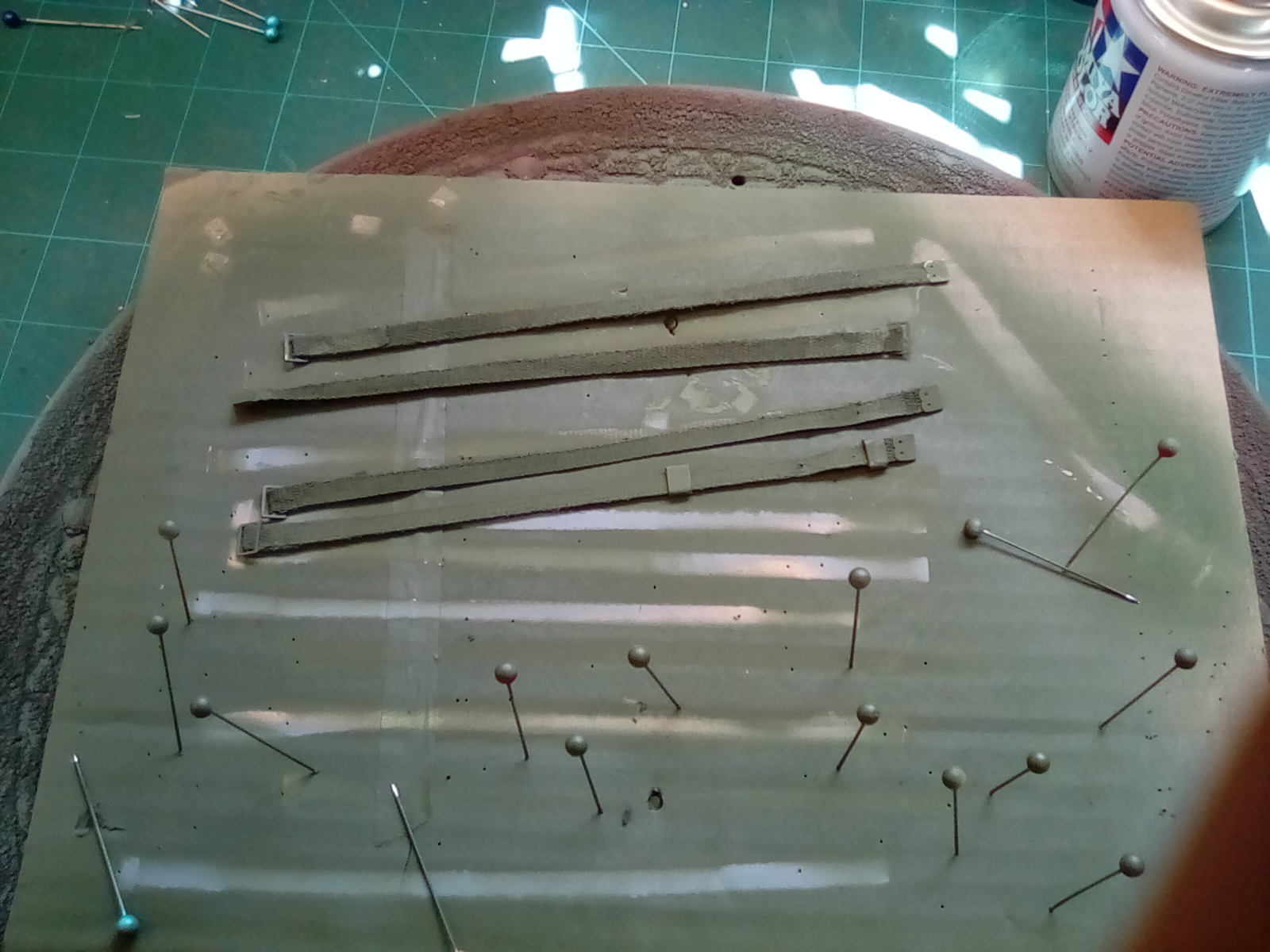

The sequence
The sequence

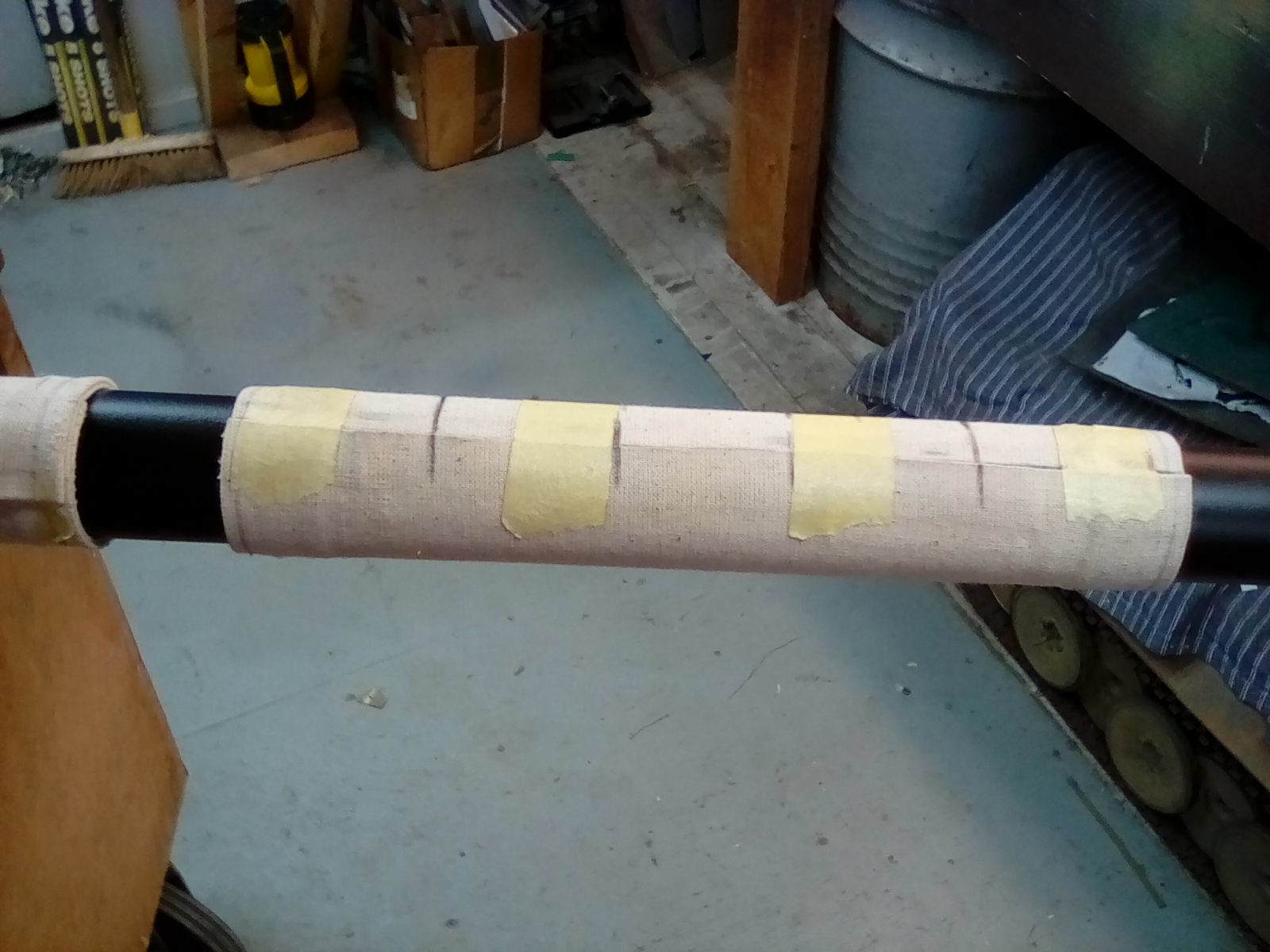

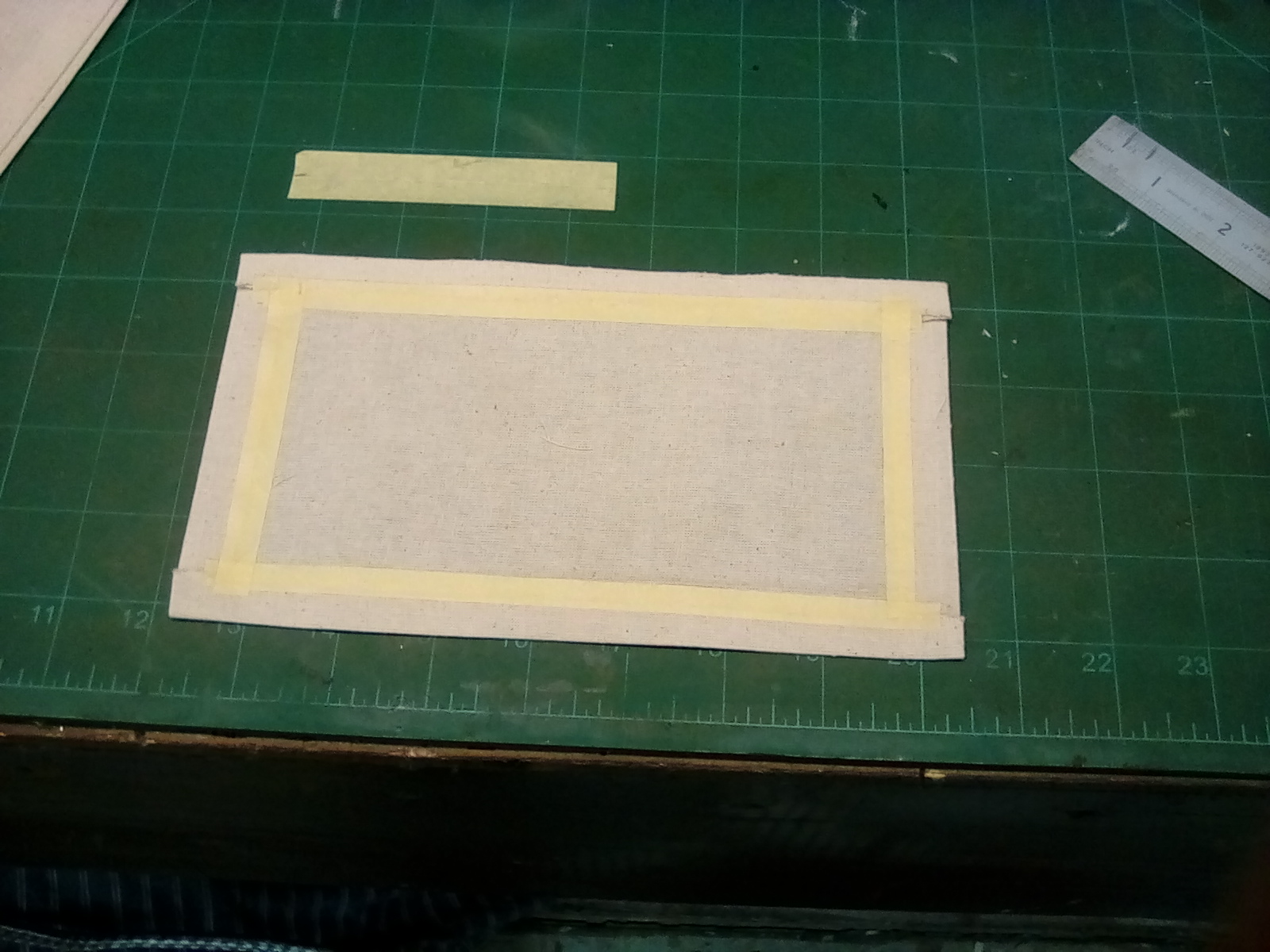

The masking tape is as good as pins
The masking tape is as good as pins

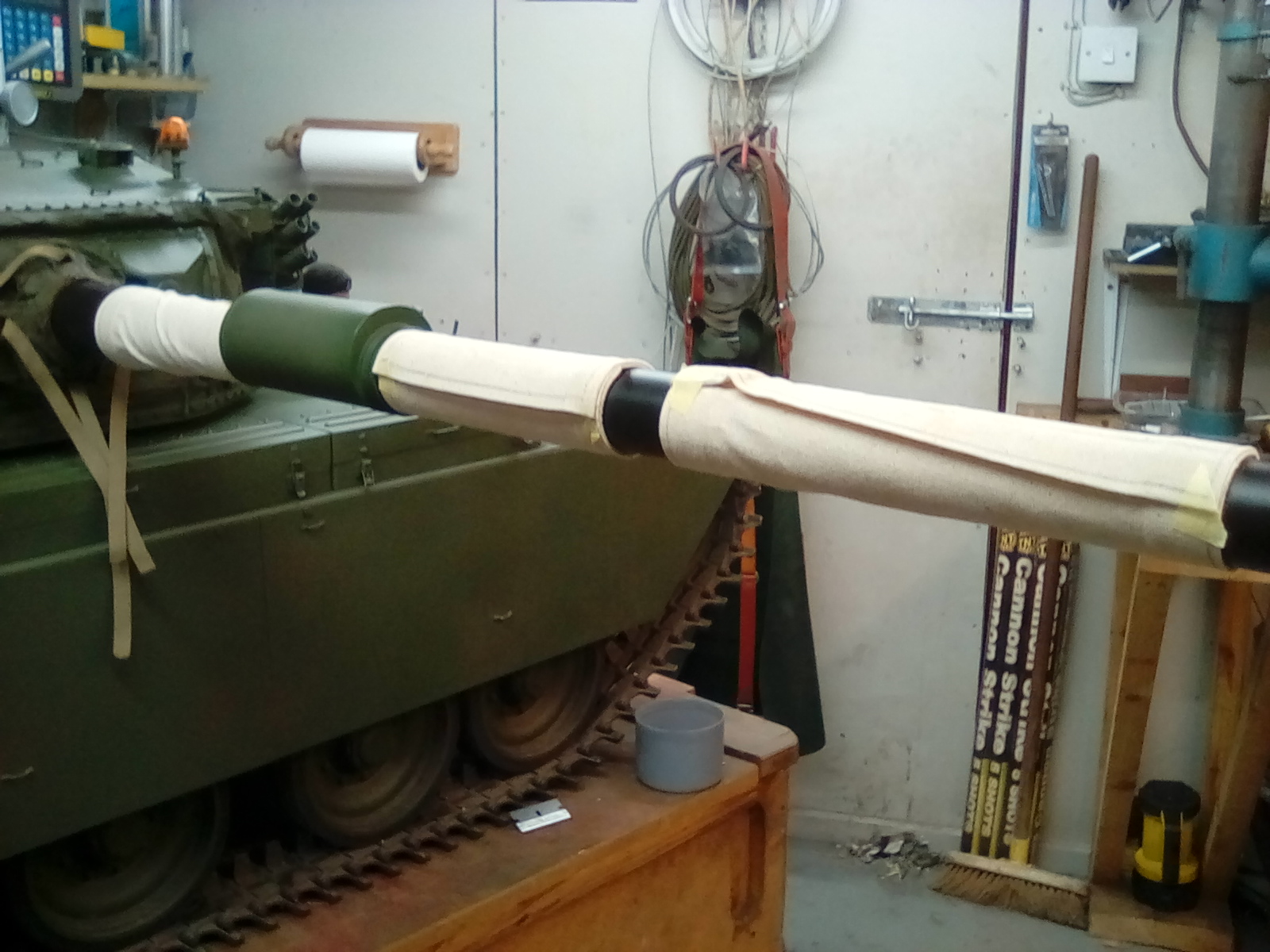

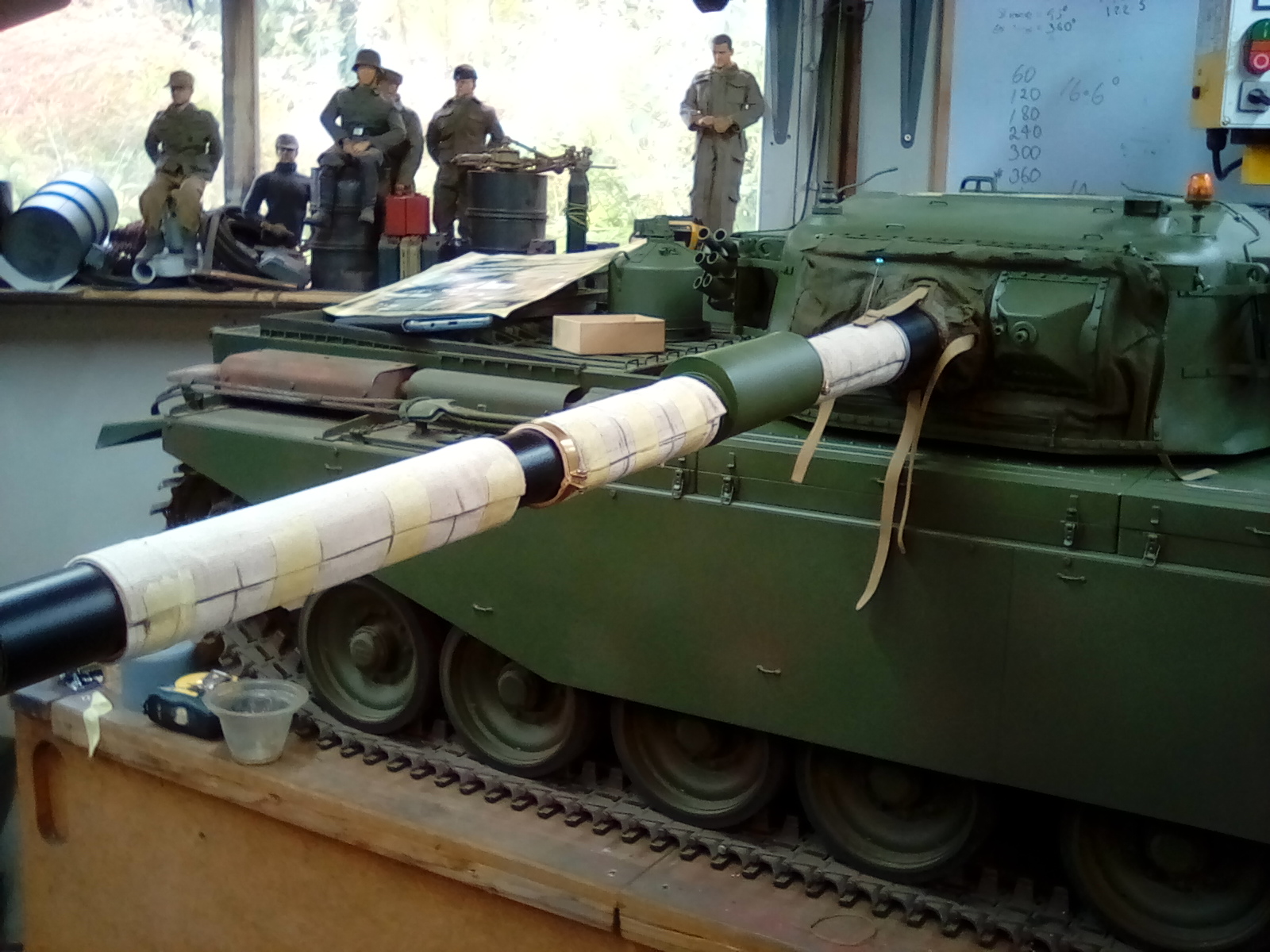

Nice creases but they are due to the barrels taper
Nice creases but they are due to the barrels taper
That taper will need accounting for
That taper will need accounting for

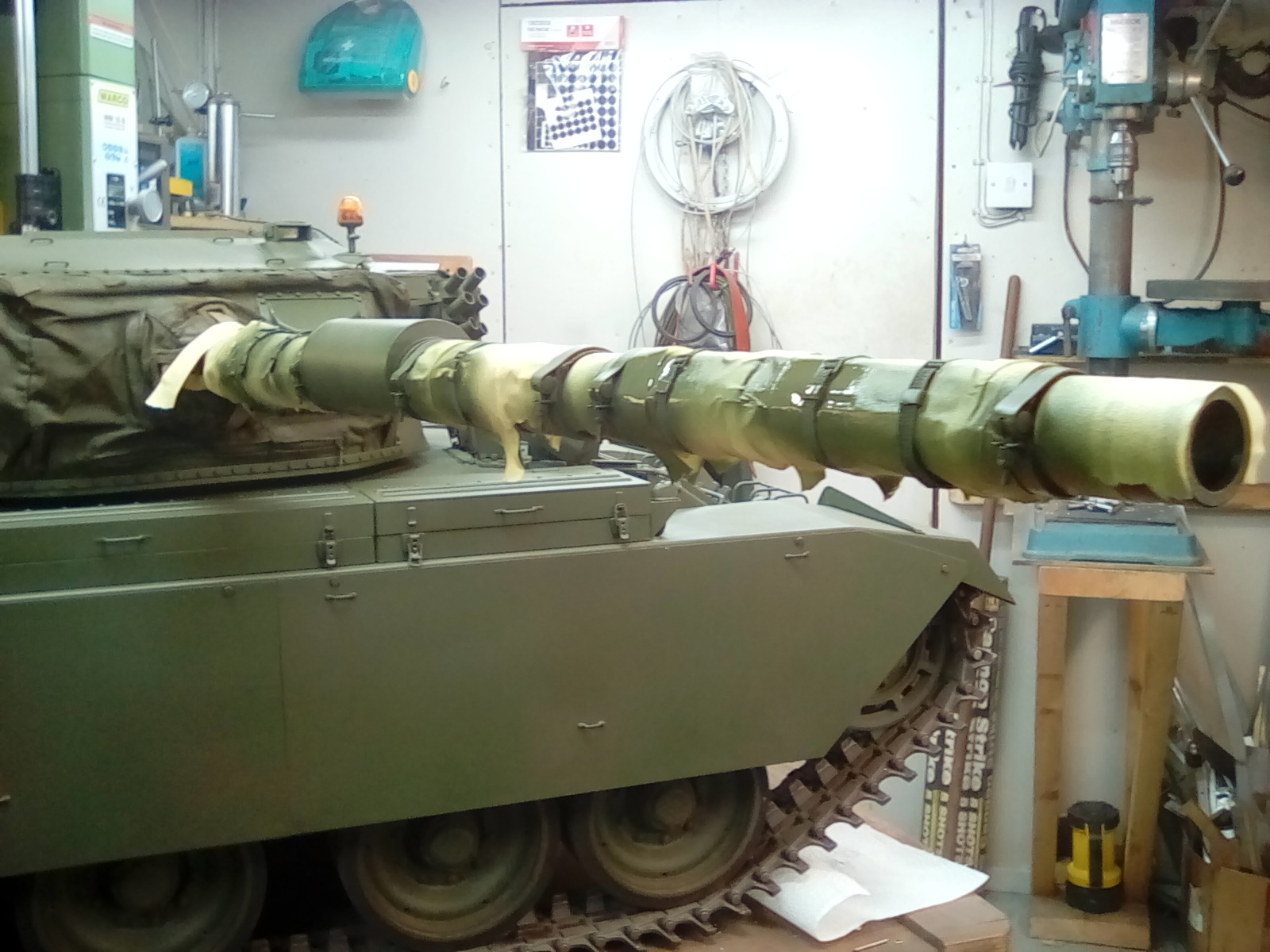

Sure looks a mess right now
Sure looks a mess right now
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4268
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2259 times
Been liked: 7149 times

Re: Mr Dawe's Centurion.

Post by Phil Woollard »

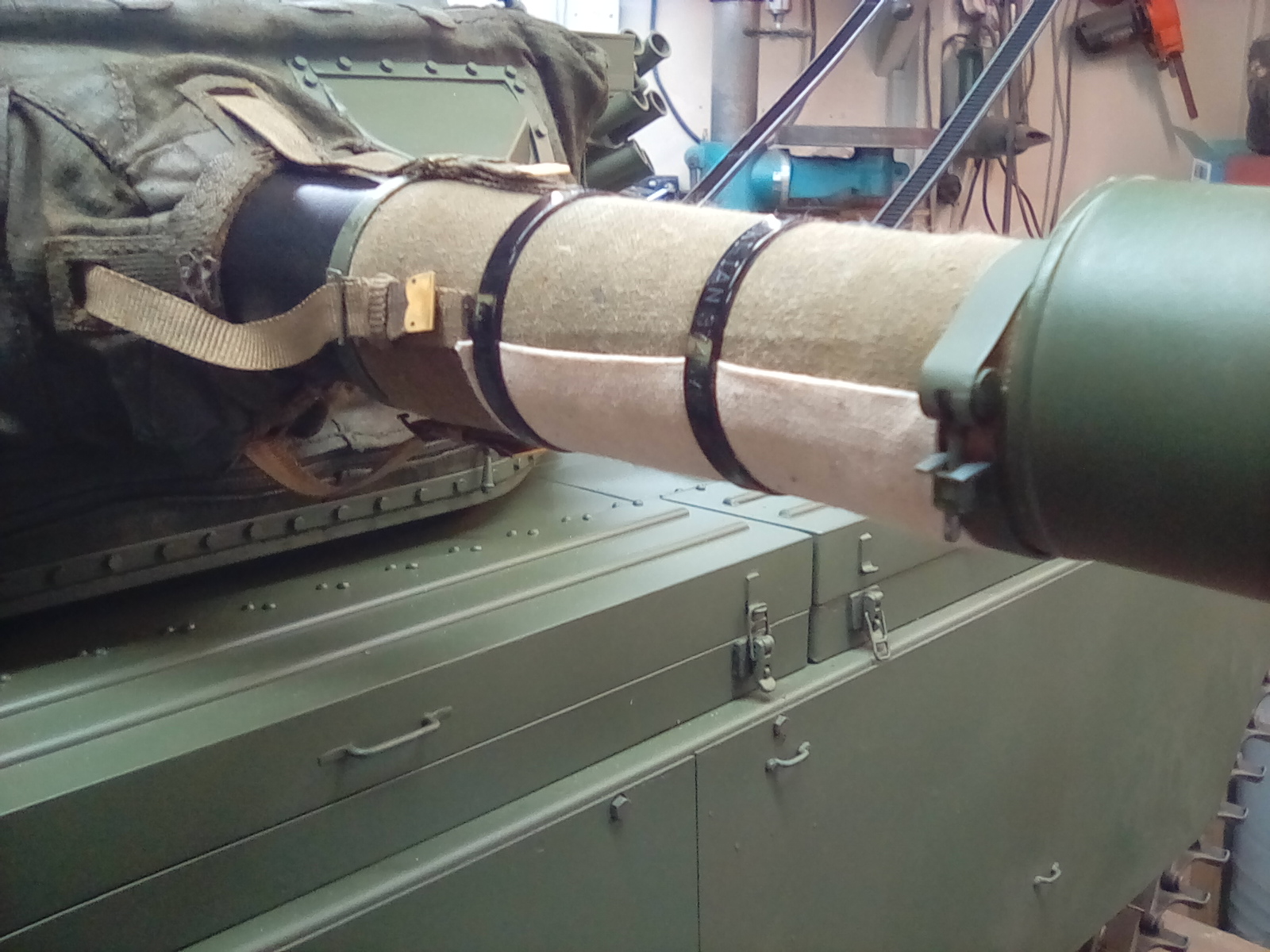

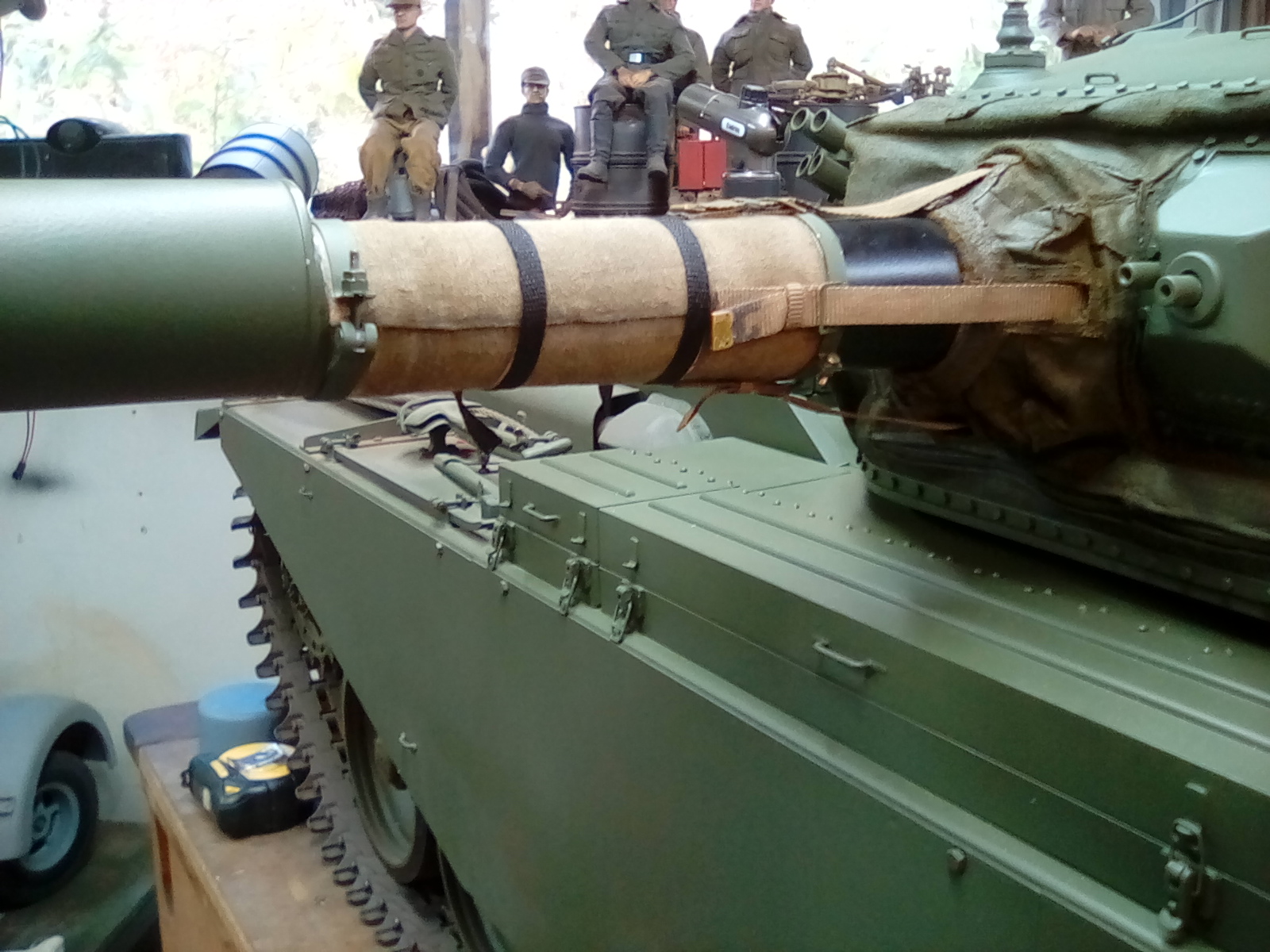

The thermal jacket is a tad tricky but coming together
Attachments
Just pissed enough to soak up the taper
Just pissed enough to soak up the taper

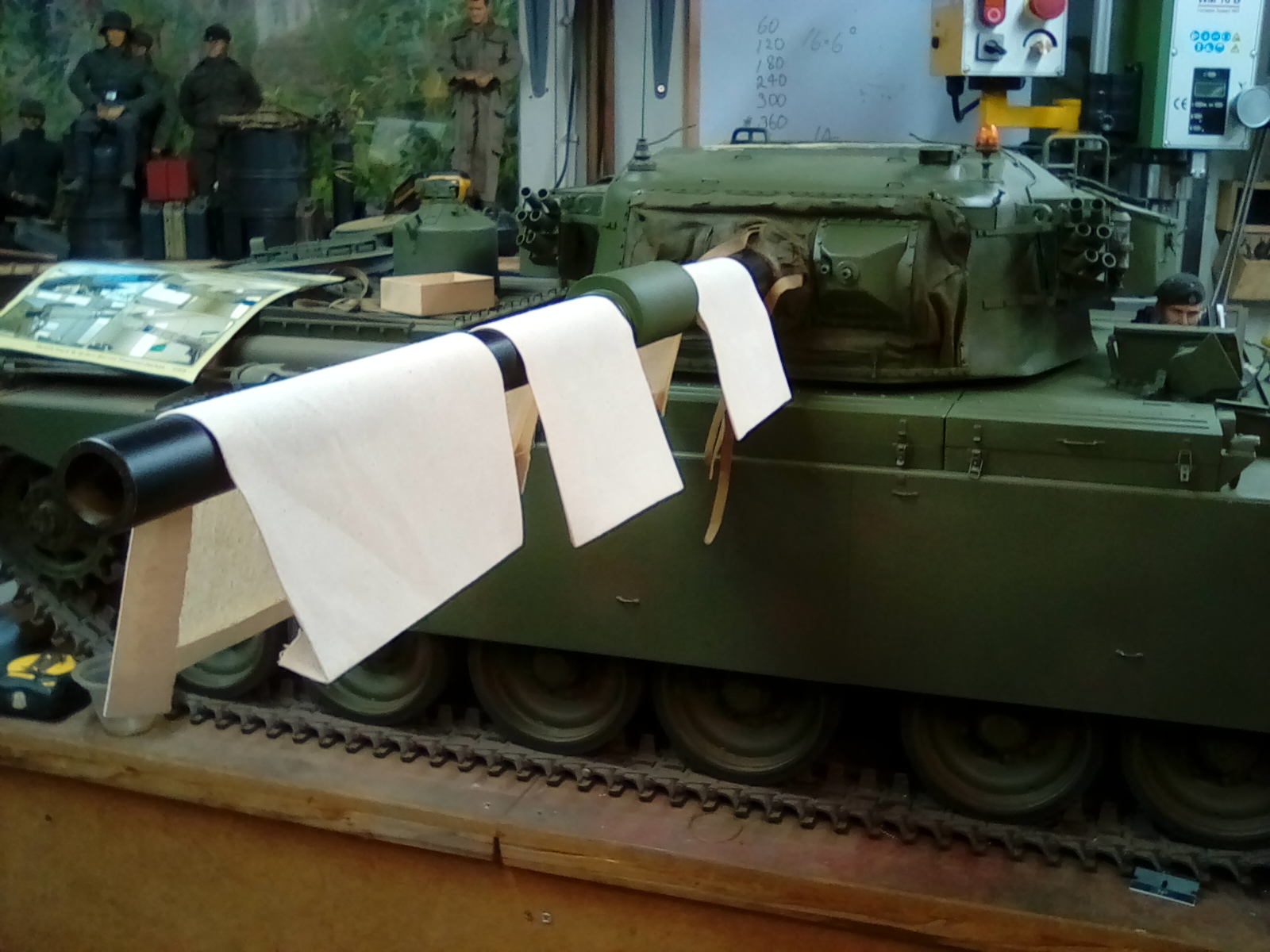

Card packing for that look I'm after
Card packing for that look I'm after
I'm trying to keep it tidy but the real thing was far from it, so a compromise will suit nicely
I'm trying to keep it tidy but the real thing was far from it, so a compromise will suit nicely
These require stitching
These require stitching
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4268
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2259 times
Been liked: 7149 times

Re: Mr Dawe's Centurion.

Post by Phil Woollard »

Moving along, making the swivel clamps for the sleeves.
Attachments

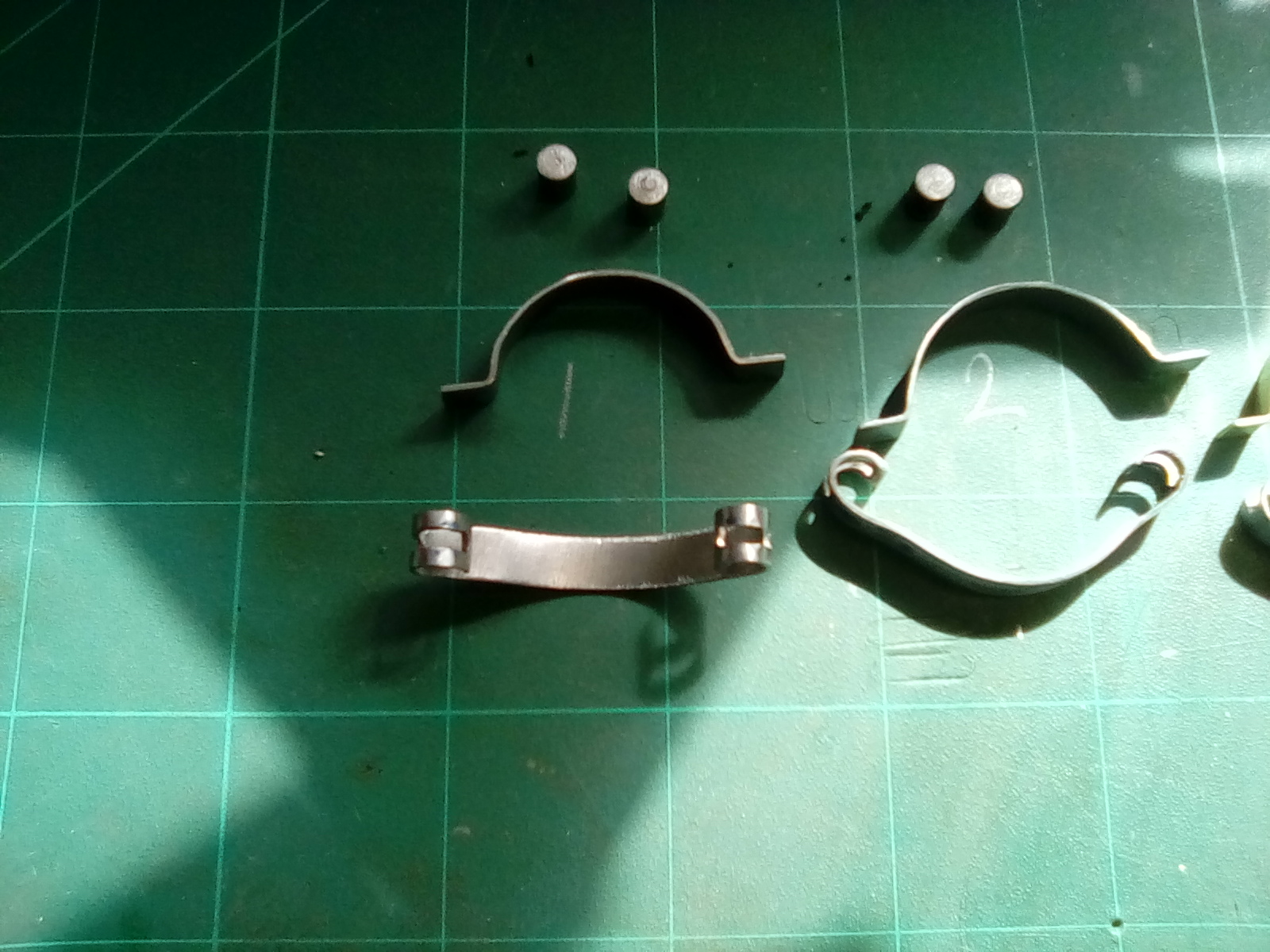

The clamps have two main parts, it looks like the clamps were all the same size despite the barrel being tapered, the joint gap was simply smaller at the narrow end and wider at the thick end
The clamps have two main parts, it looks like the clamps were all the same size despite the barrel being tapered, the joint gap was simply smaller at the narrow end and wider at the thick end
Looks like these clamps can or were mounted horizontally and or vertically
Looks like these clamps can or were mounted horizontally and or vertically

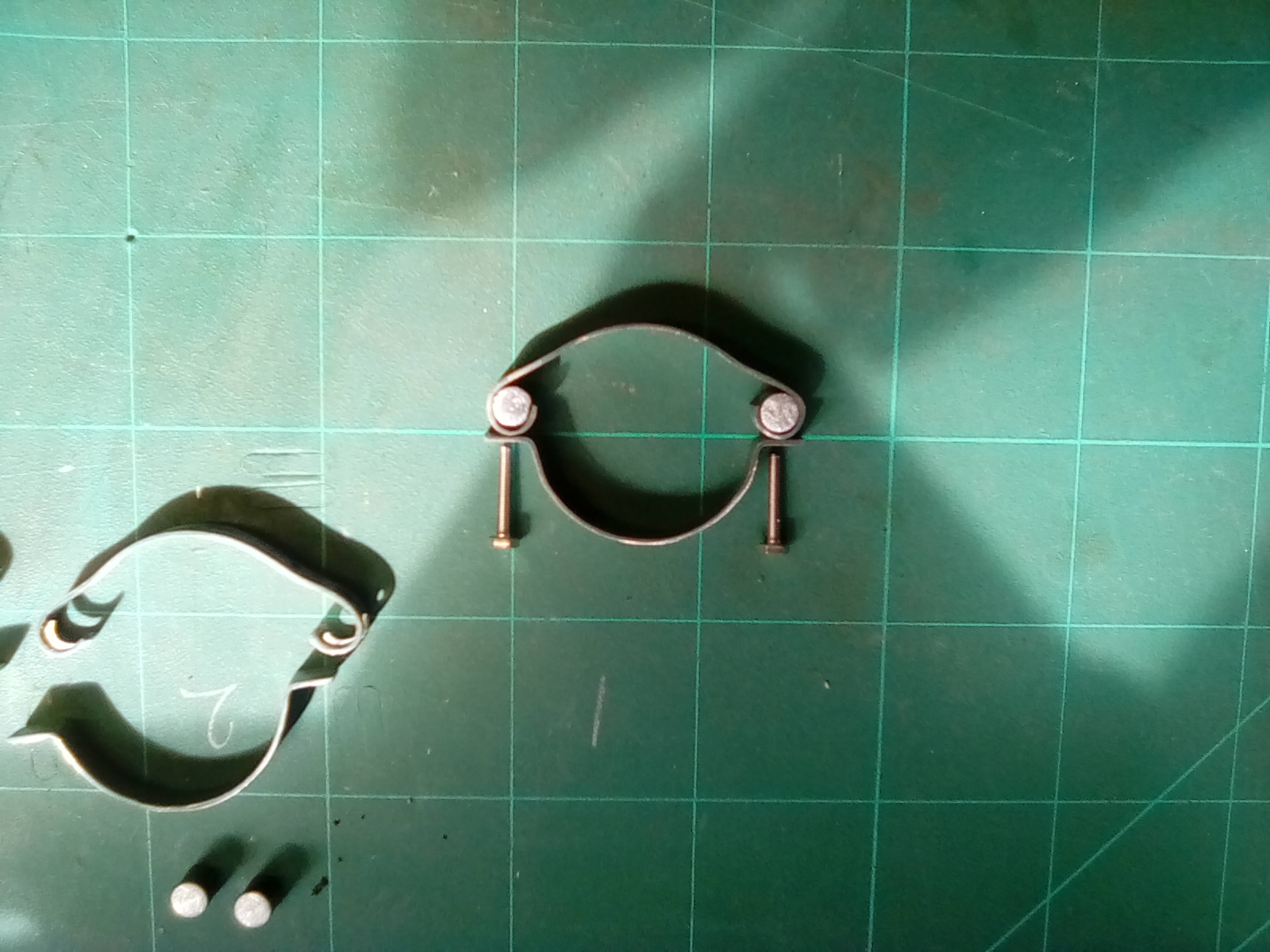

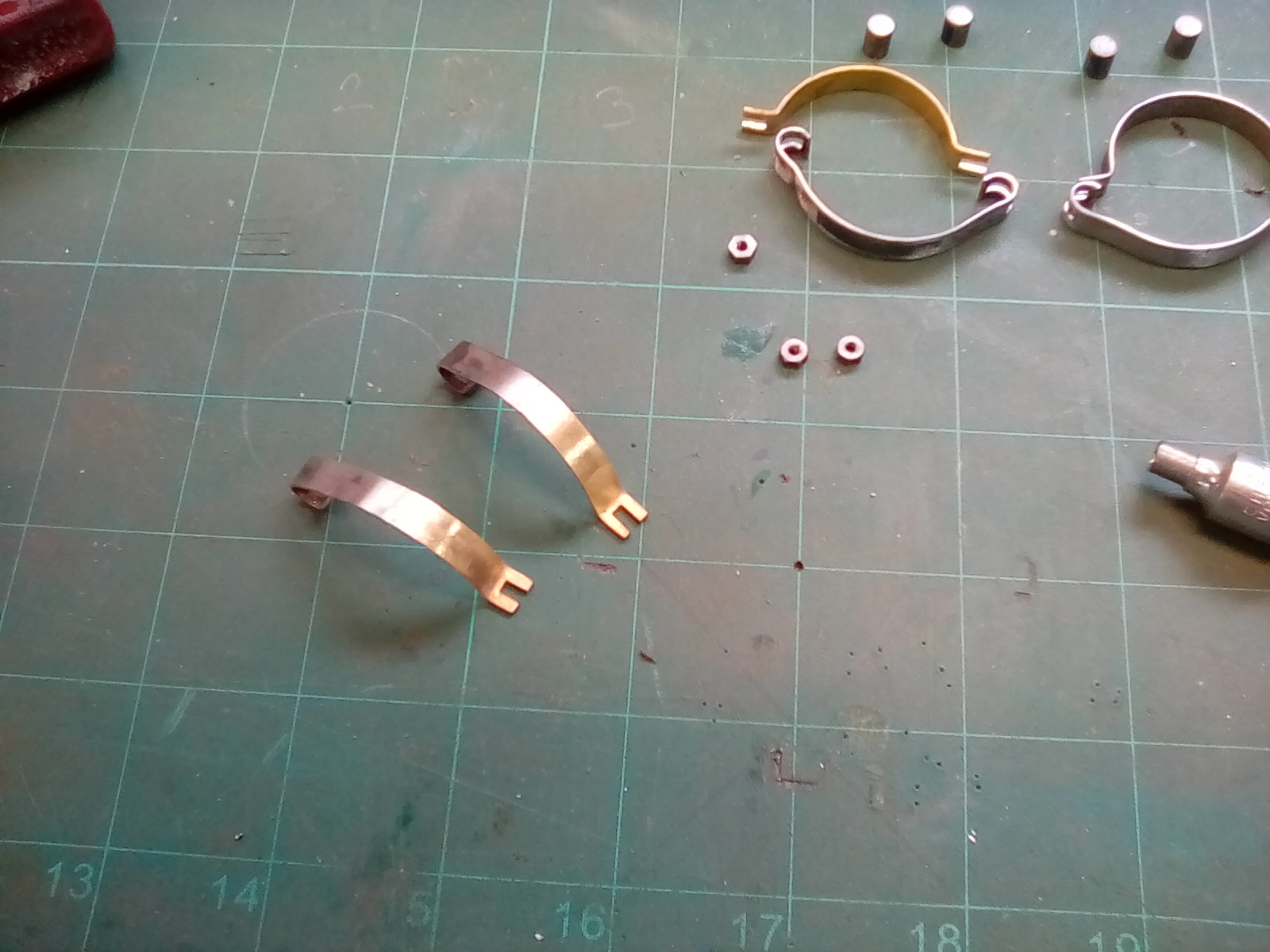

The swivels
The swivels

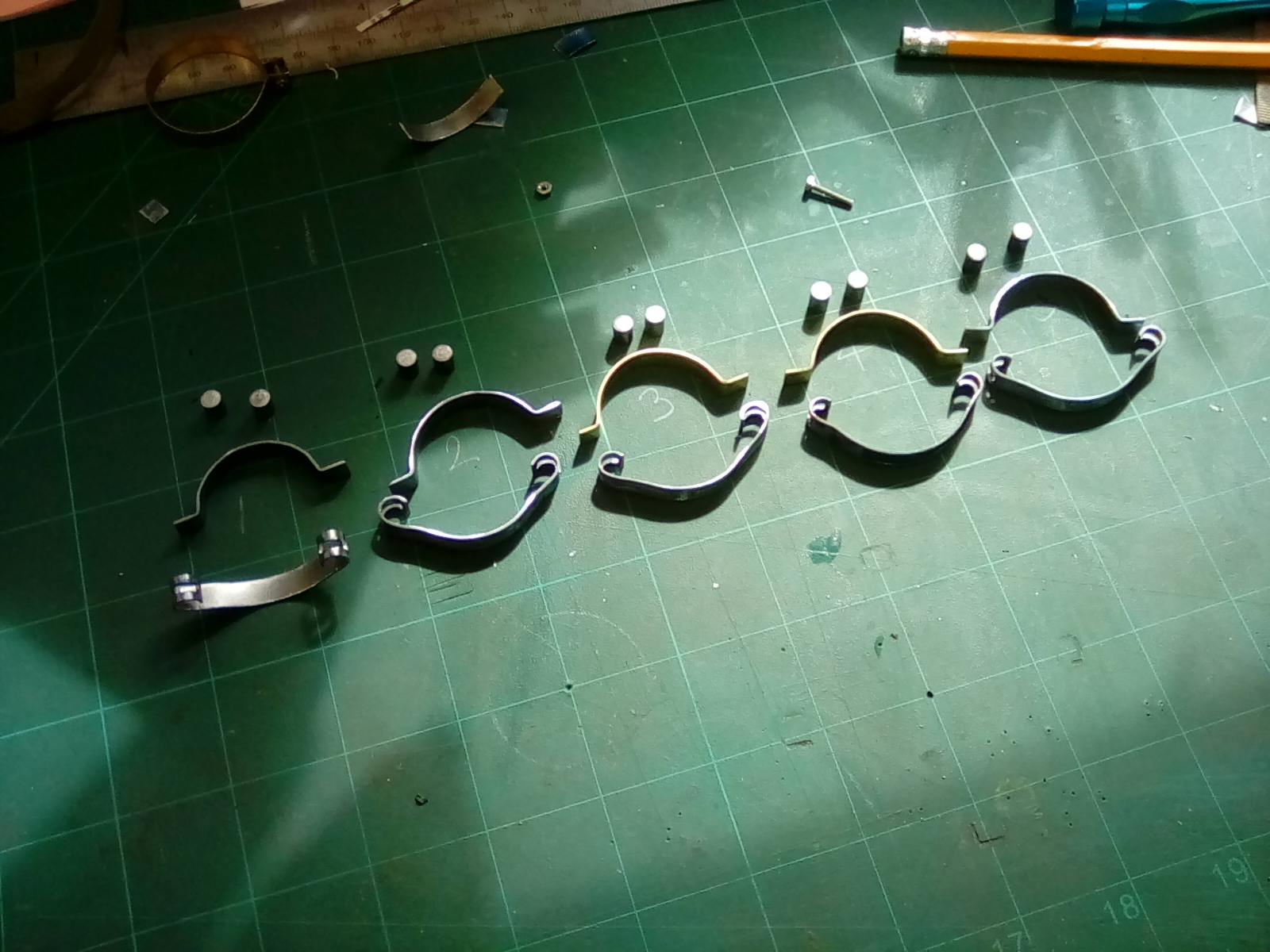

5 off
5 off
Awkward little devils
Awkward little devils
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4268
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2259 times
Been liked: 7149 times

Re: Mr Dawe's Centurion.

Post by Phil Woollard »

Still making those barrel jacket clamps, three are now finished and two are now mounted
Attachments

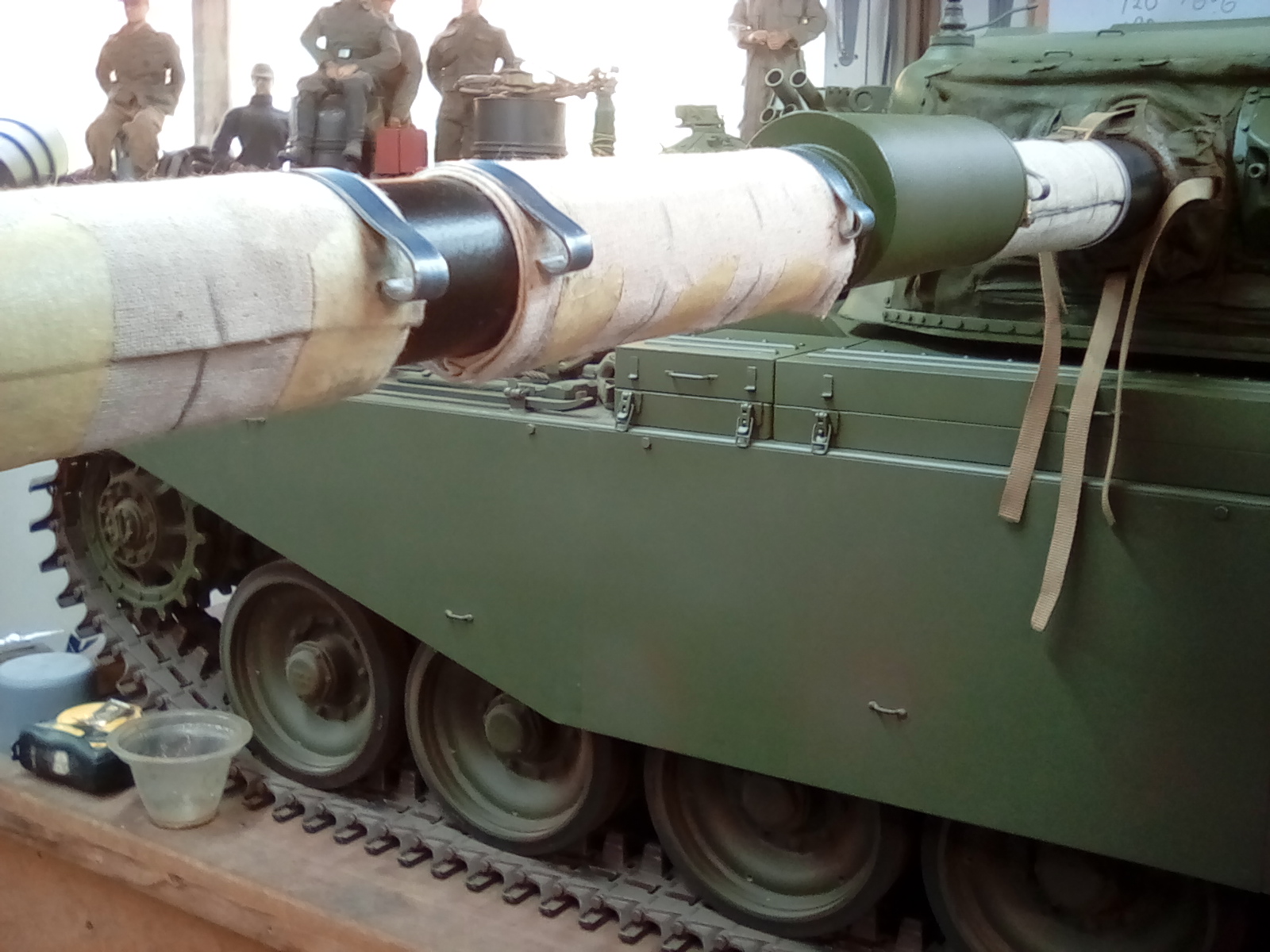

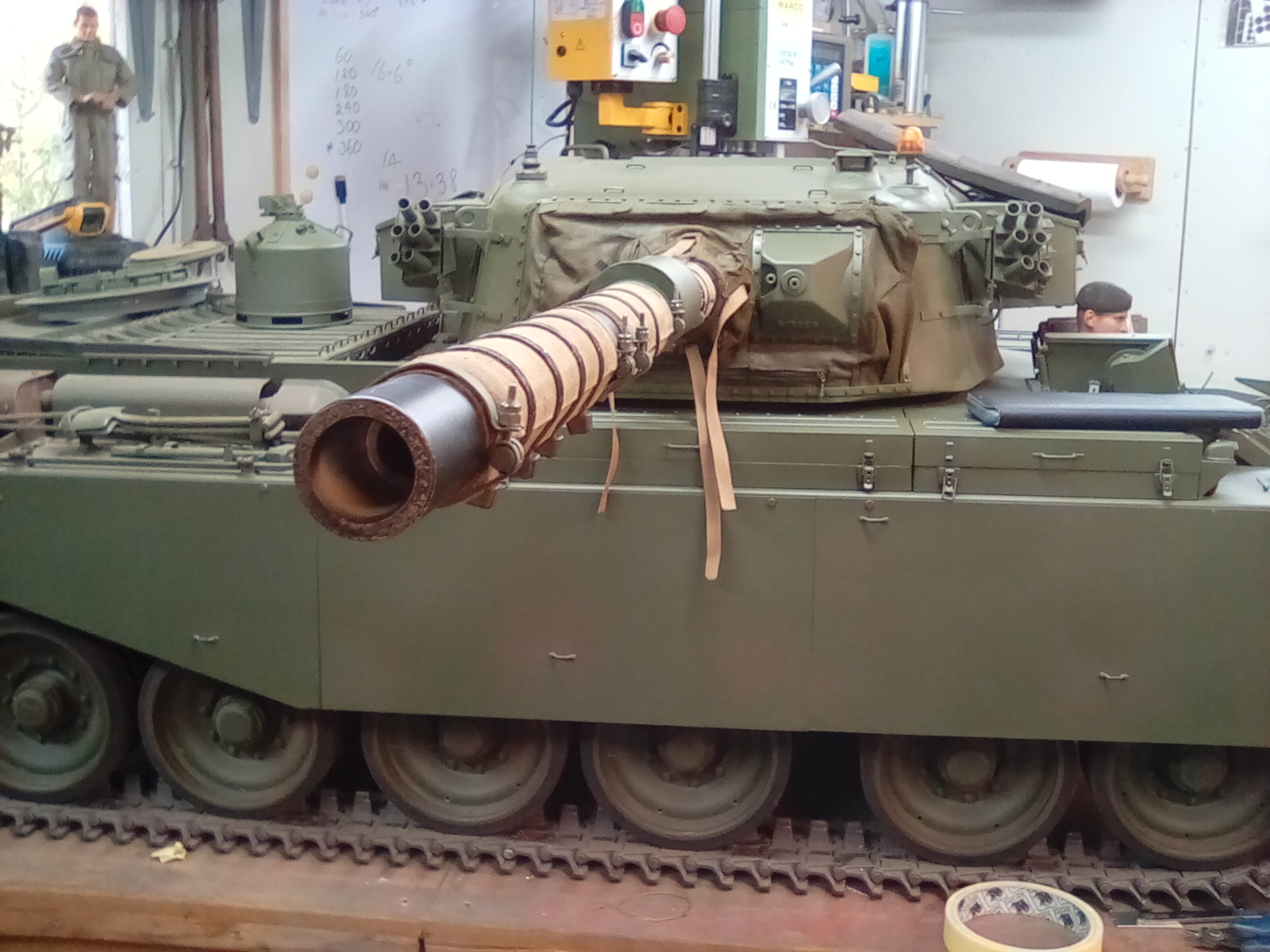

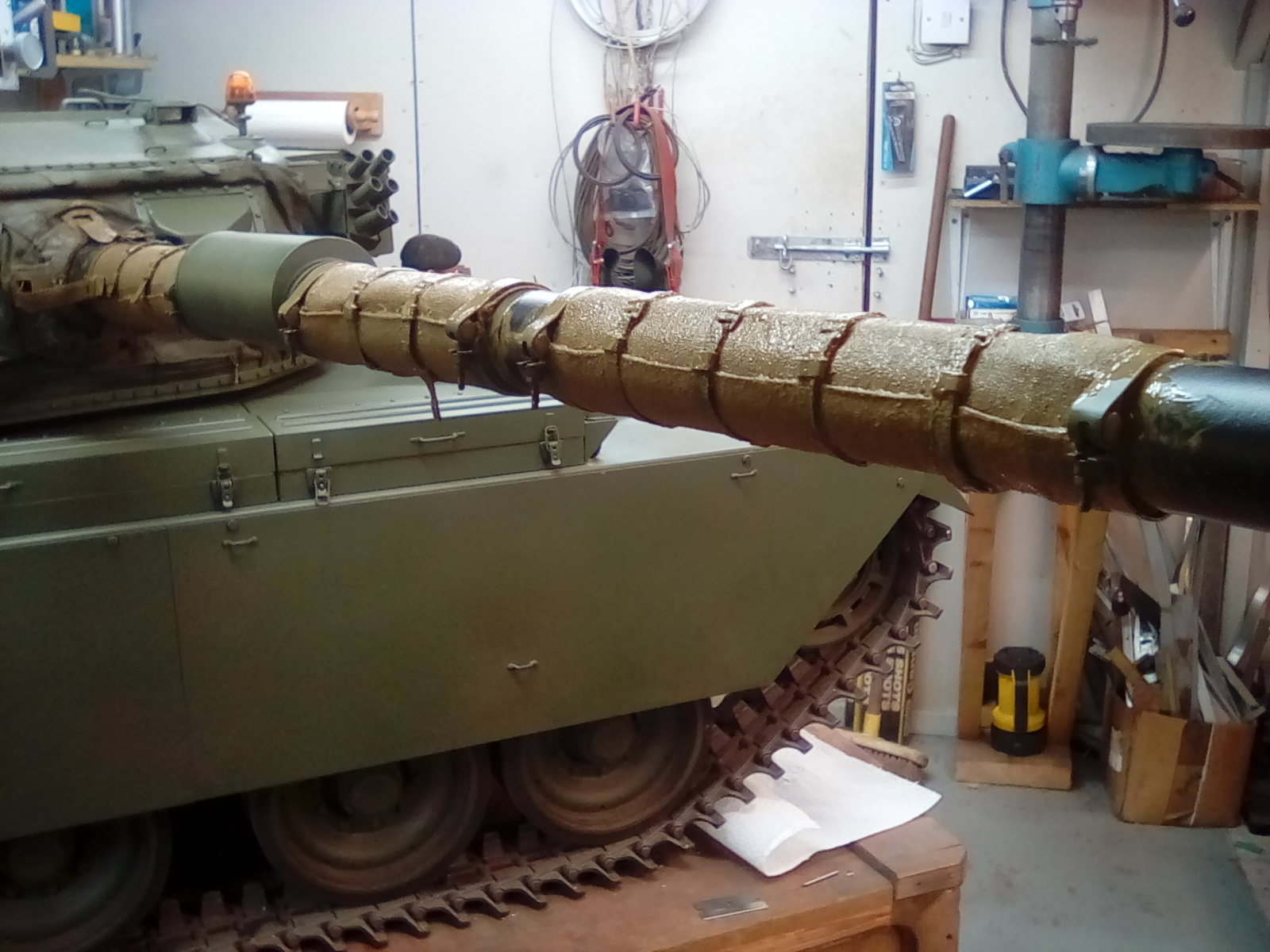

First coat of stain on the jacket, I like the contrast with the mantlet cover
First coat of stain on the jacket, I like the contrast with the mantlet cover
The bolts on the brackets are one facing up and the other faces down
The bolts on the brackets are one facing up and the other faces down
Cable ties stand in for the webbing for now, they will easily pull the material in to give the desired effect, the stain is water based and as it dries the impressions in the fabric will be fixed in place, well that's the plan.
Cable ties stand in for the webbing for now, they will easily pull the material in to give the desired effect, the stain is water based and as it dries the impressions in the fabric will be fixed in place, well that's the plan.
Bi metalic
Bi metalic
I found this 5 mm edging which makes for very nice webbing, primer and top coat works great, I wonder if 100 metres will be enough?
I found this 5 mm edging which makes for very nice webbing, primer and top coat works great, I wonder if 100 metres will be enough?

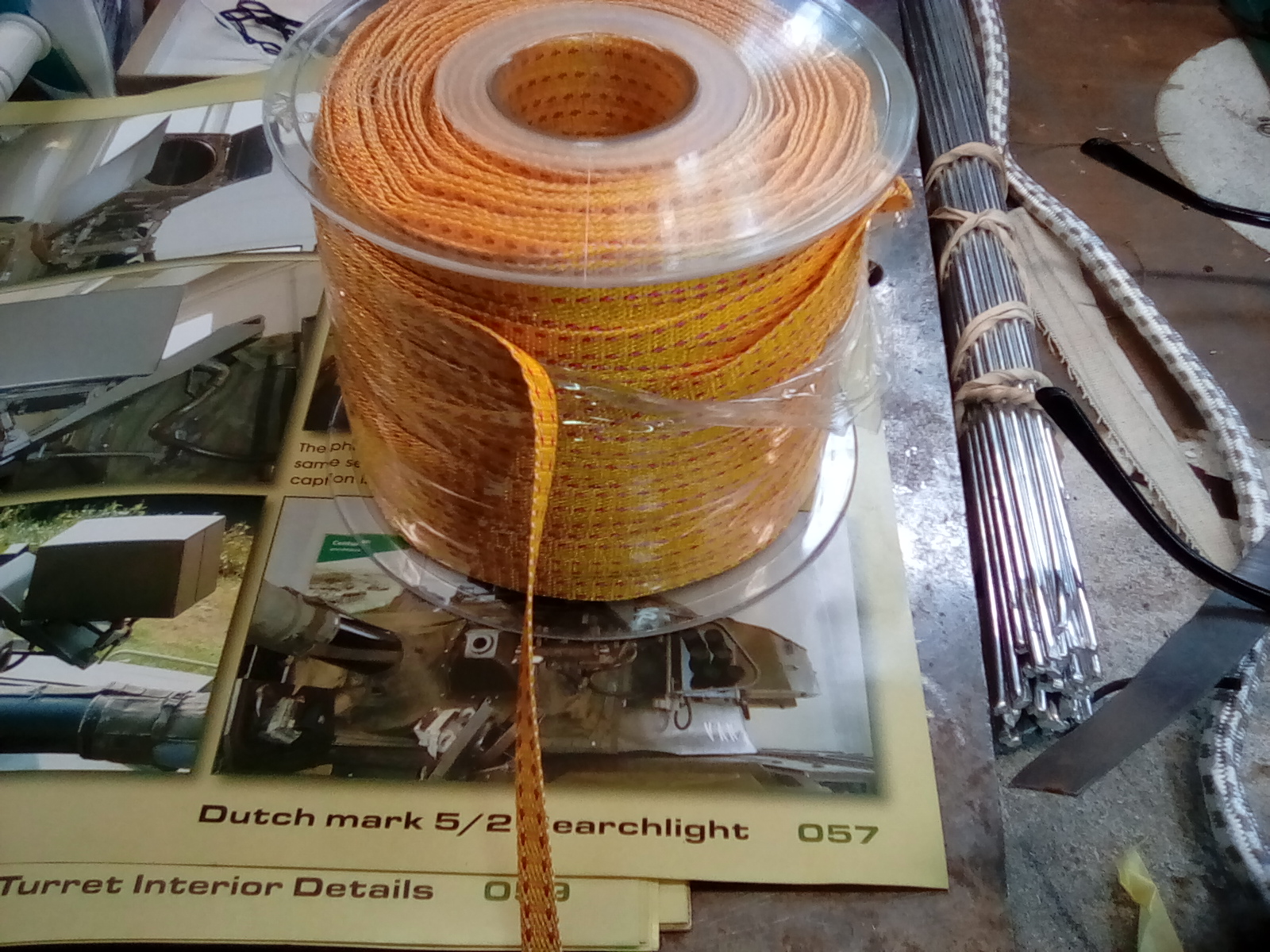

The Armorpax buckles and strap ends have arrived
The Armorpax buckles and strap ends have arrived
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Dawe
Posts: 290
Joined: Sat Aug 30, 2014 5:49 pm
Has liked: 755 times
Been liked: 276 times

Re: Mr Dawe's Centurion.

Post by Phil Dawe »

Nothing like a well lagged barrel! :D
Top
Phil Woollard
Posts: 4268
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2259 times
Been liked: 7149 times

Re: Mr Dawe's Centurion.

Post by Phil Woollard »

Indeed Mr Dawe, moving along.
Attachments

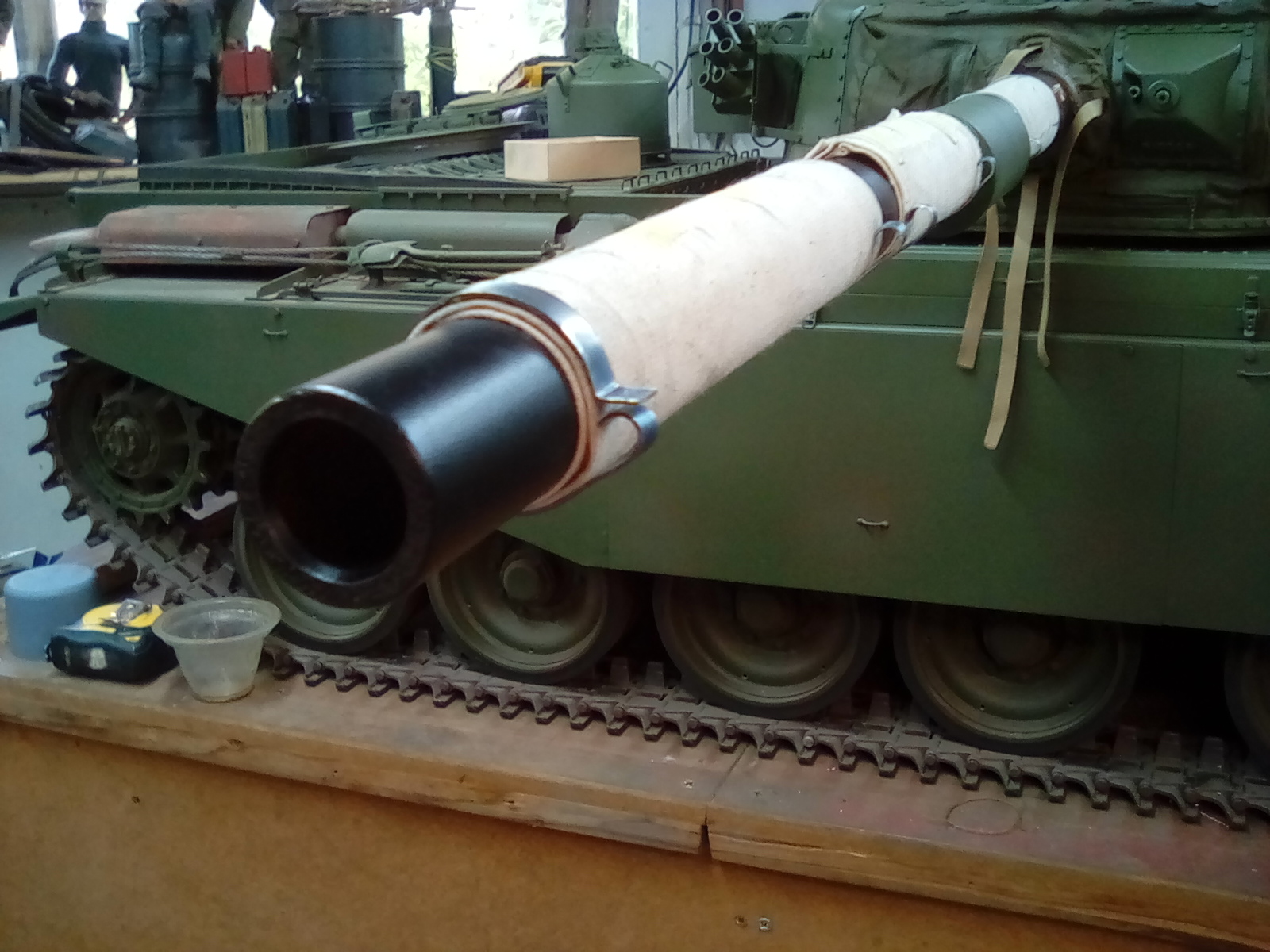

That's all five brackets now done and painted
That's all five brackets now done and painted
Masking up every time we need to paint a fitting is a pain but necessary
Masking up every time we need to paint a fitting is a pain but necessary
These small parts really eat up the paint
These small parts really eat up the paint

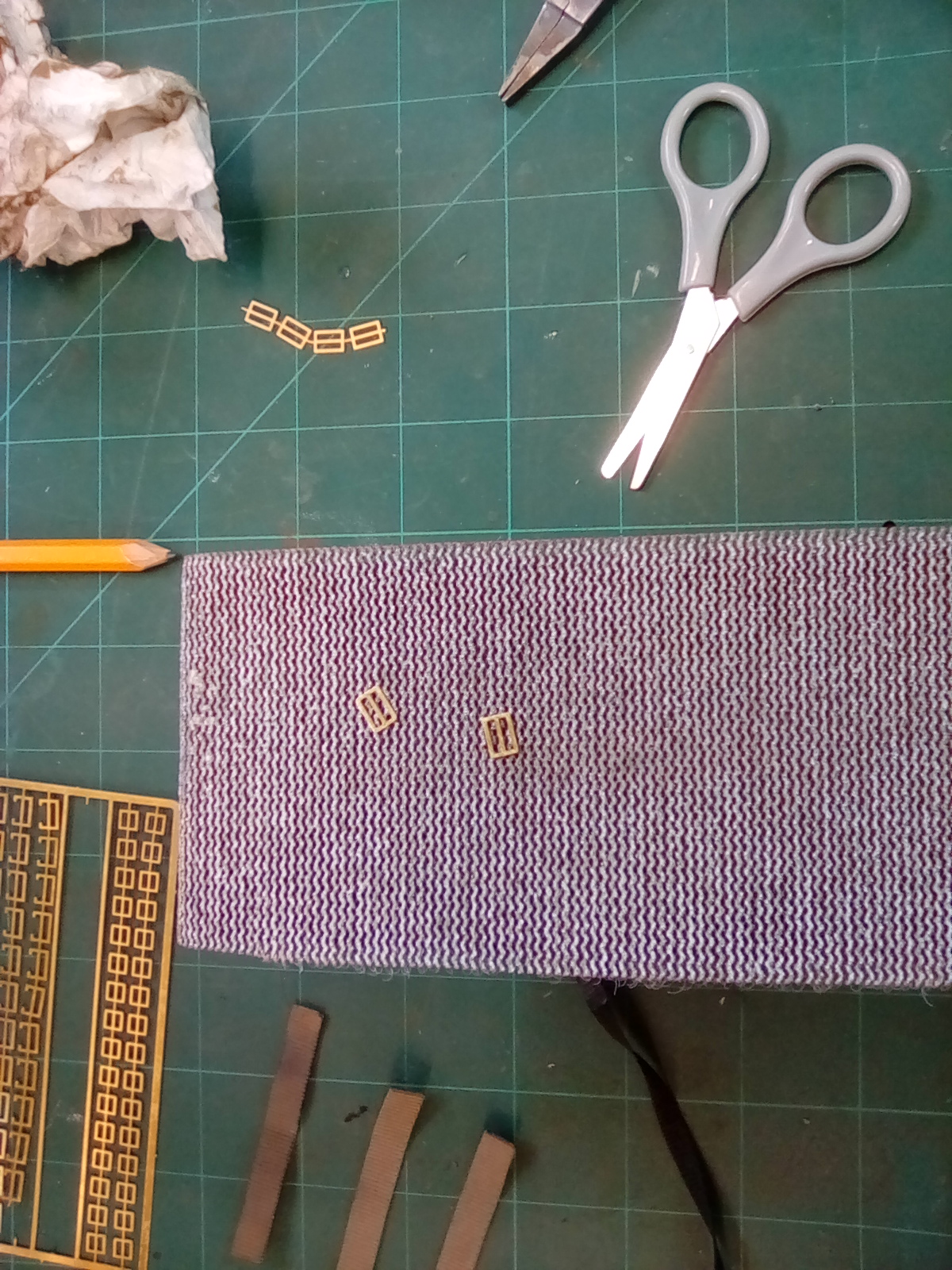

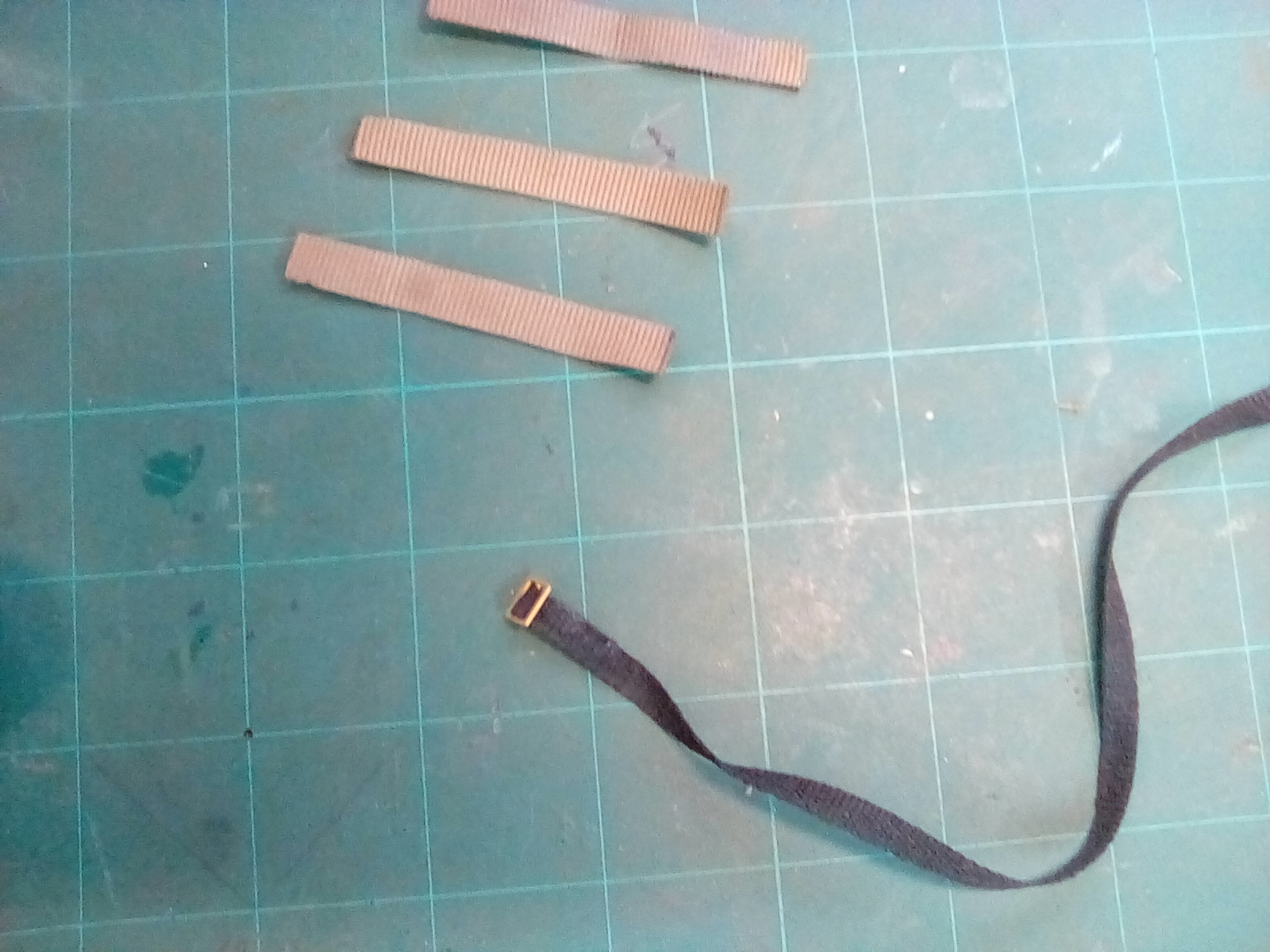

Making straps , lots of straps
Making straps , lots of straps
Keying the brass buckles
Keying the brass buckles

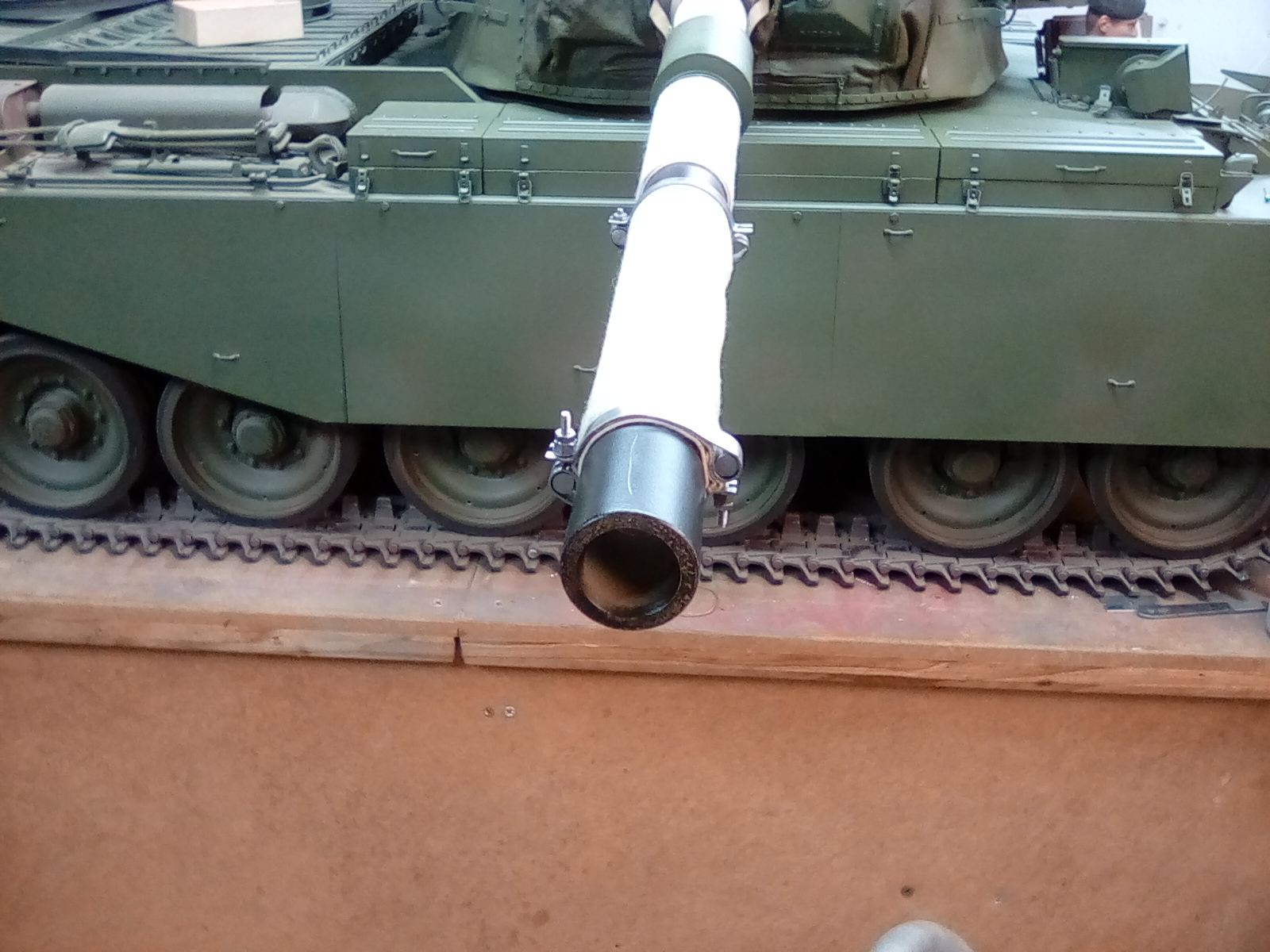

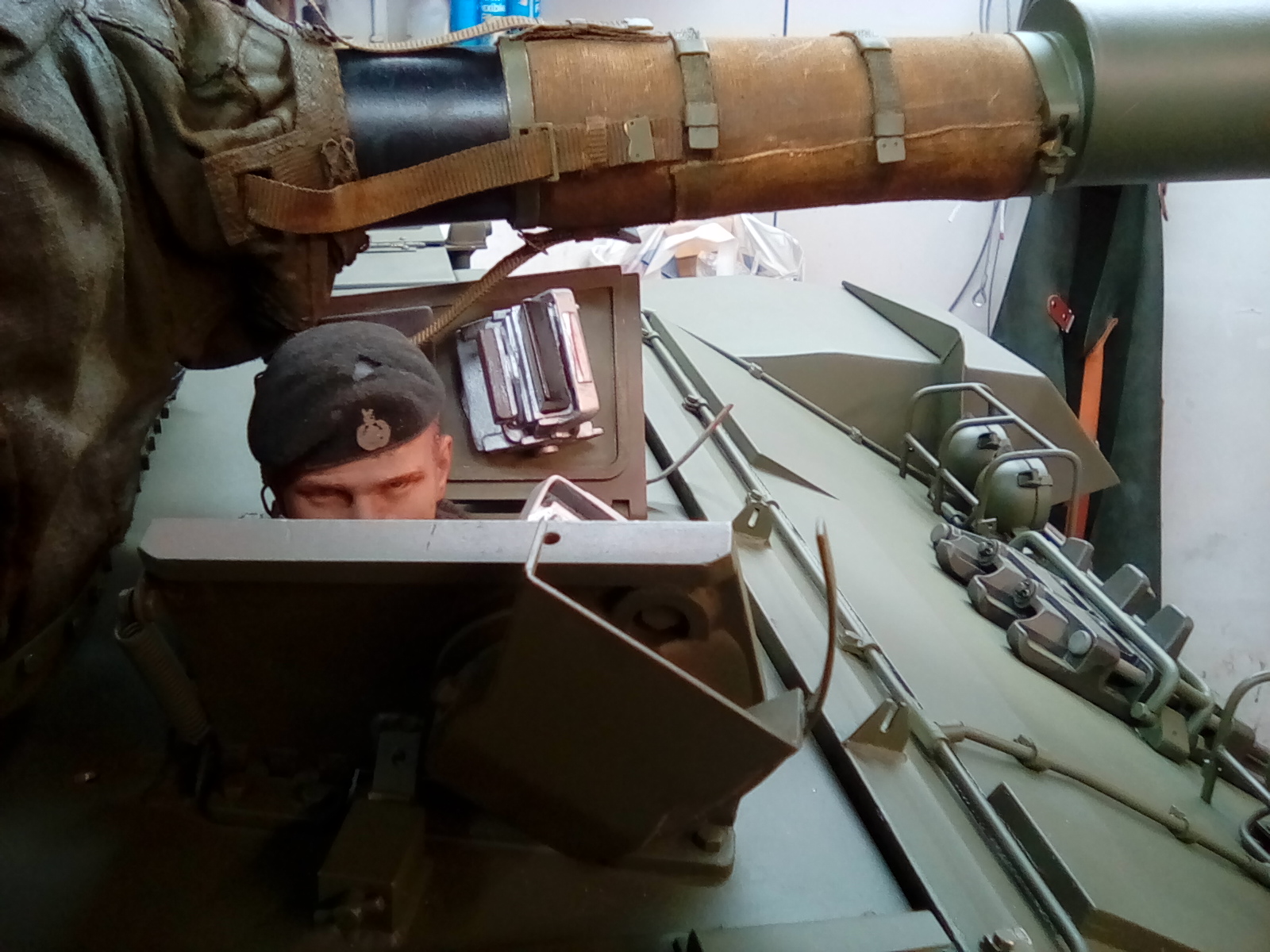

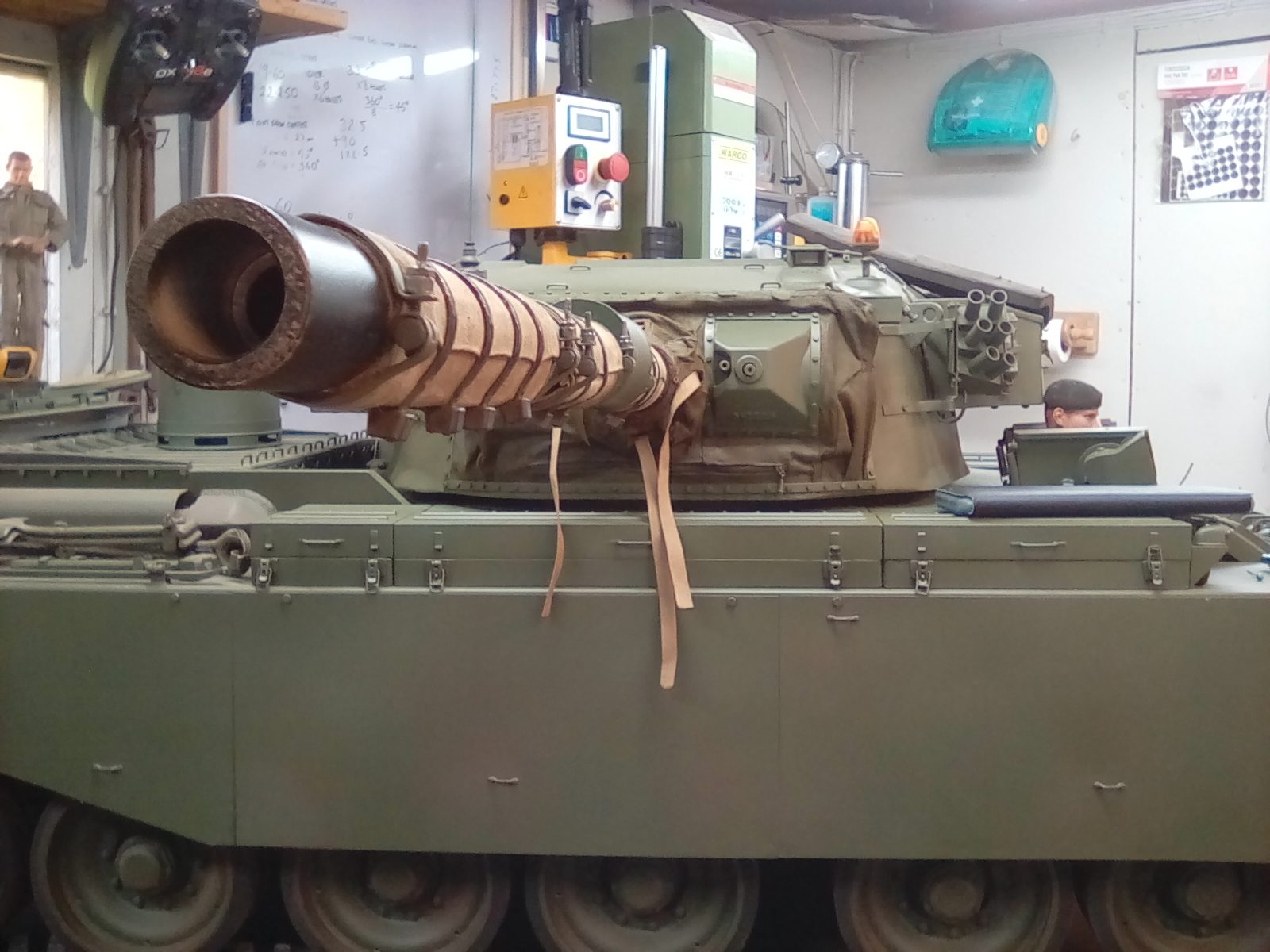

I'm happy with the swivel clamps and their position
I'm happy with the swivel clamps and their position

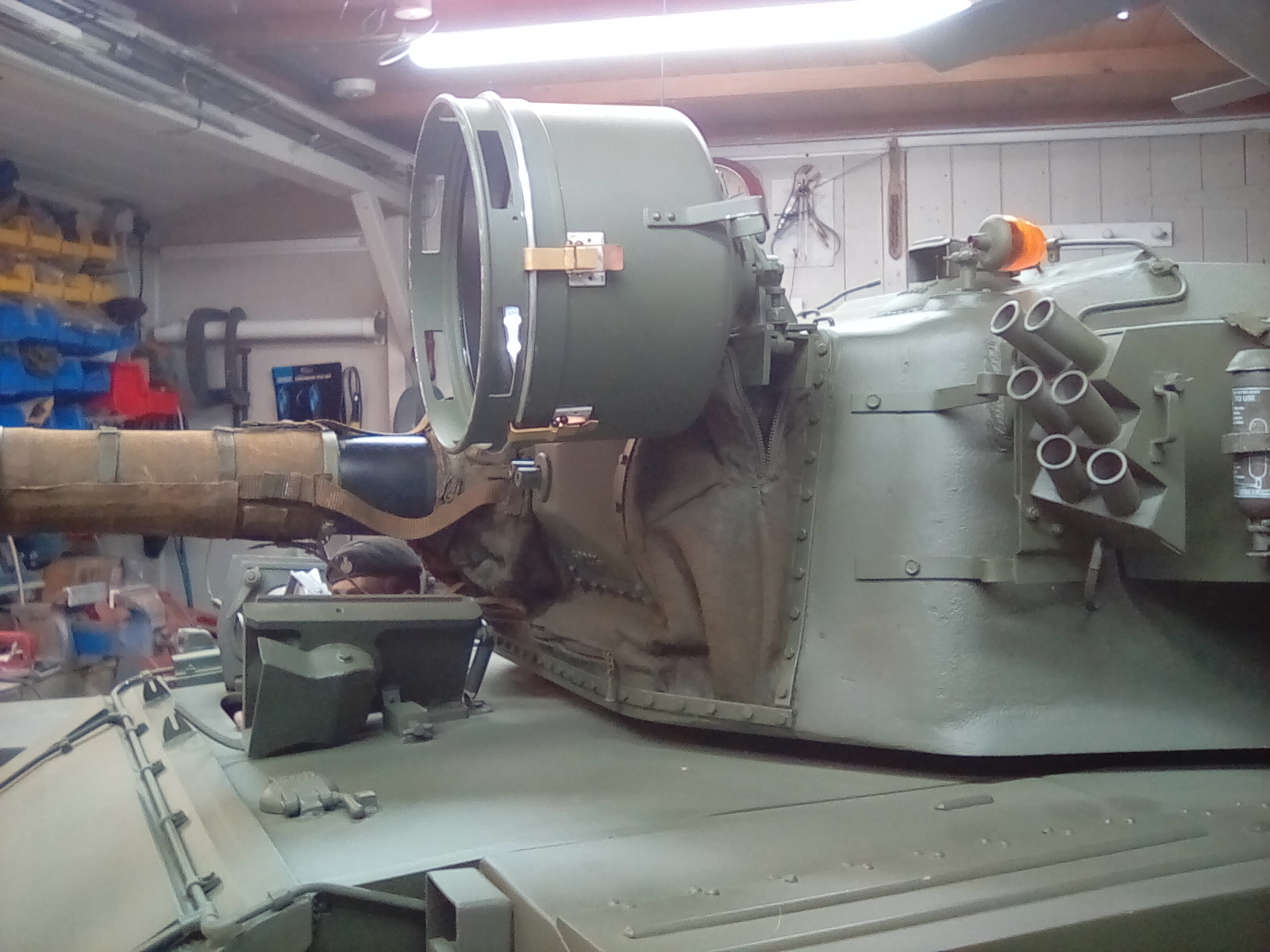

I love this angle
I love this angle
Ours won't be as untidy as this example
Ours won't be as untidy as this example
I think that I have worked out how I'm going to fit the straps
I think that I have worked out how I'm going to fit the straps
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4268
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2259 times
Been liked: 7149 times

Re: Mr Dawe's Centurion.

Post by Phil Woollard »

Just a quick update for Mr Dawe and the keen followers of this epic make over
Attachments

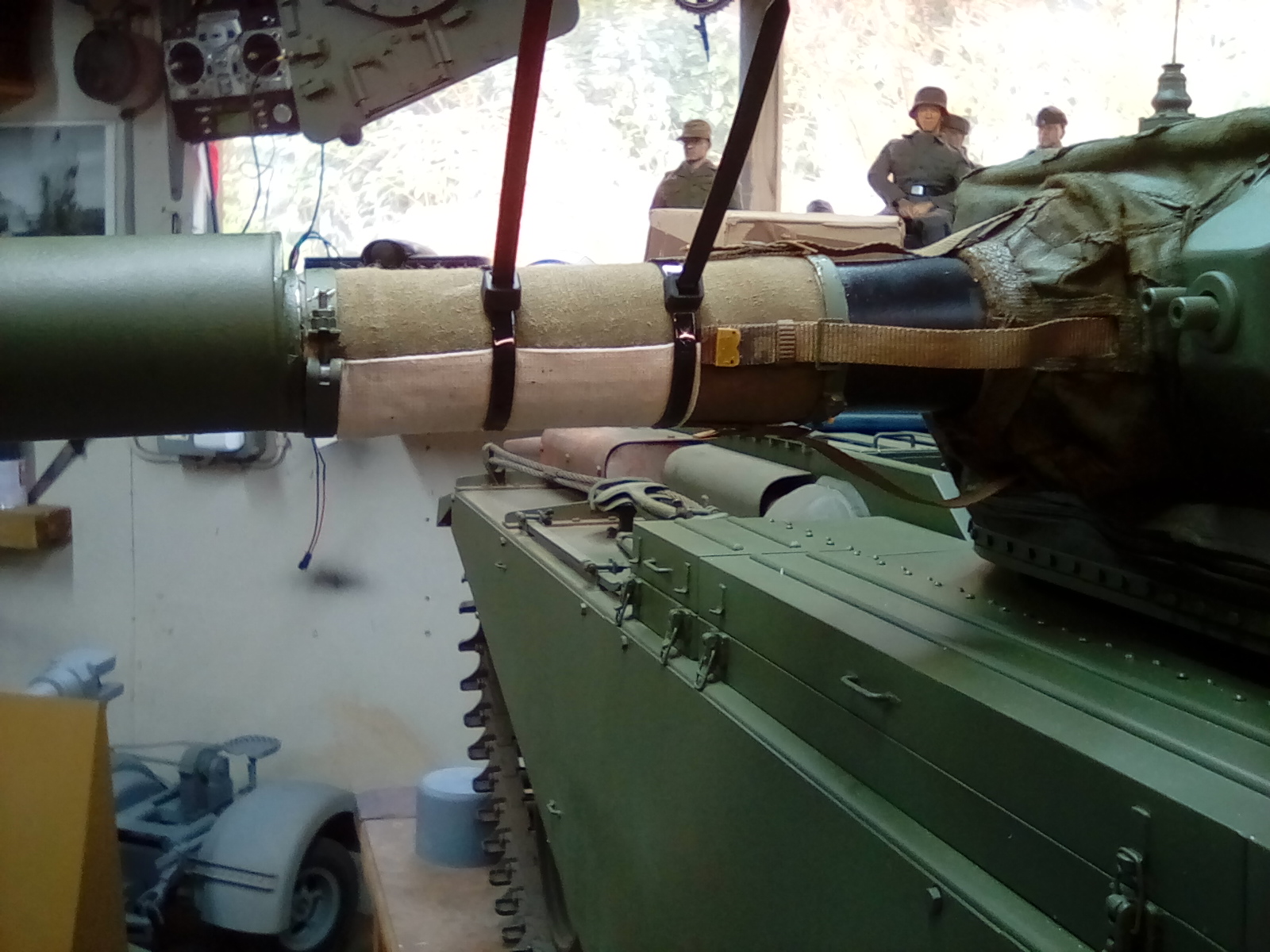

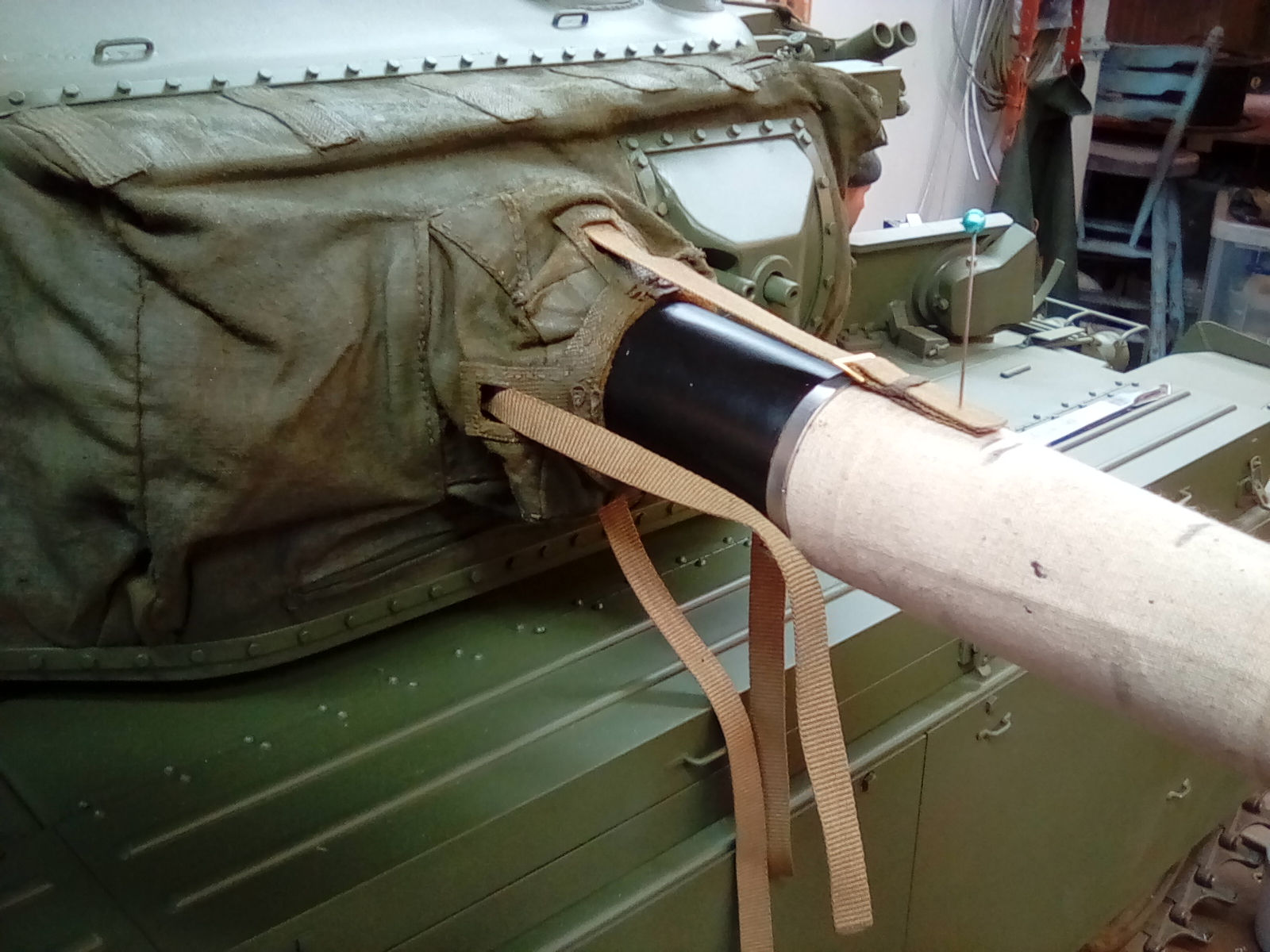

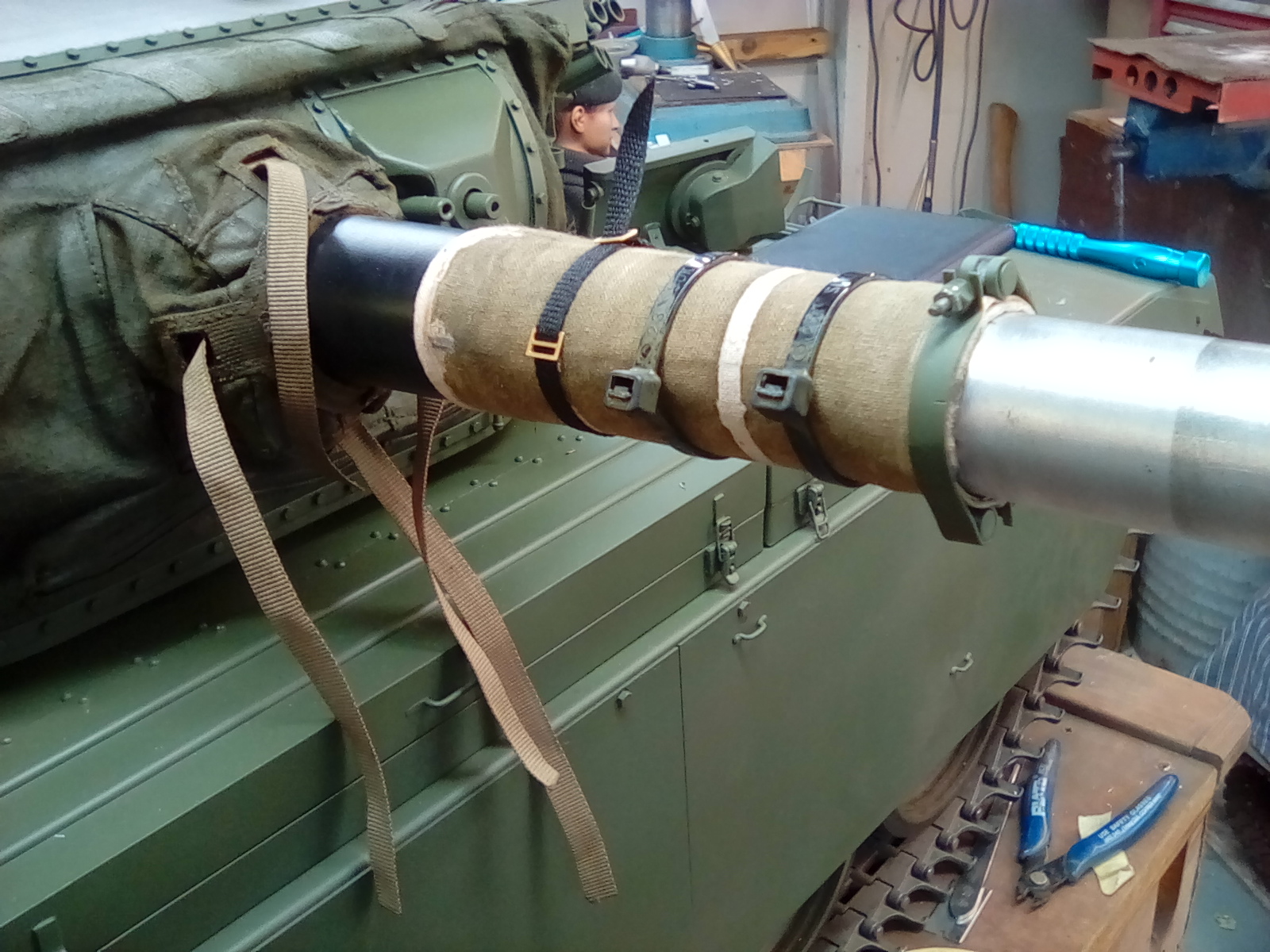

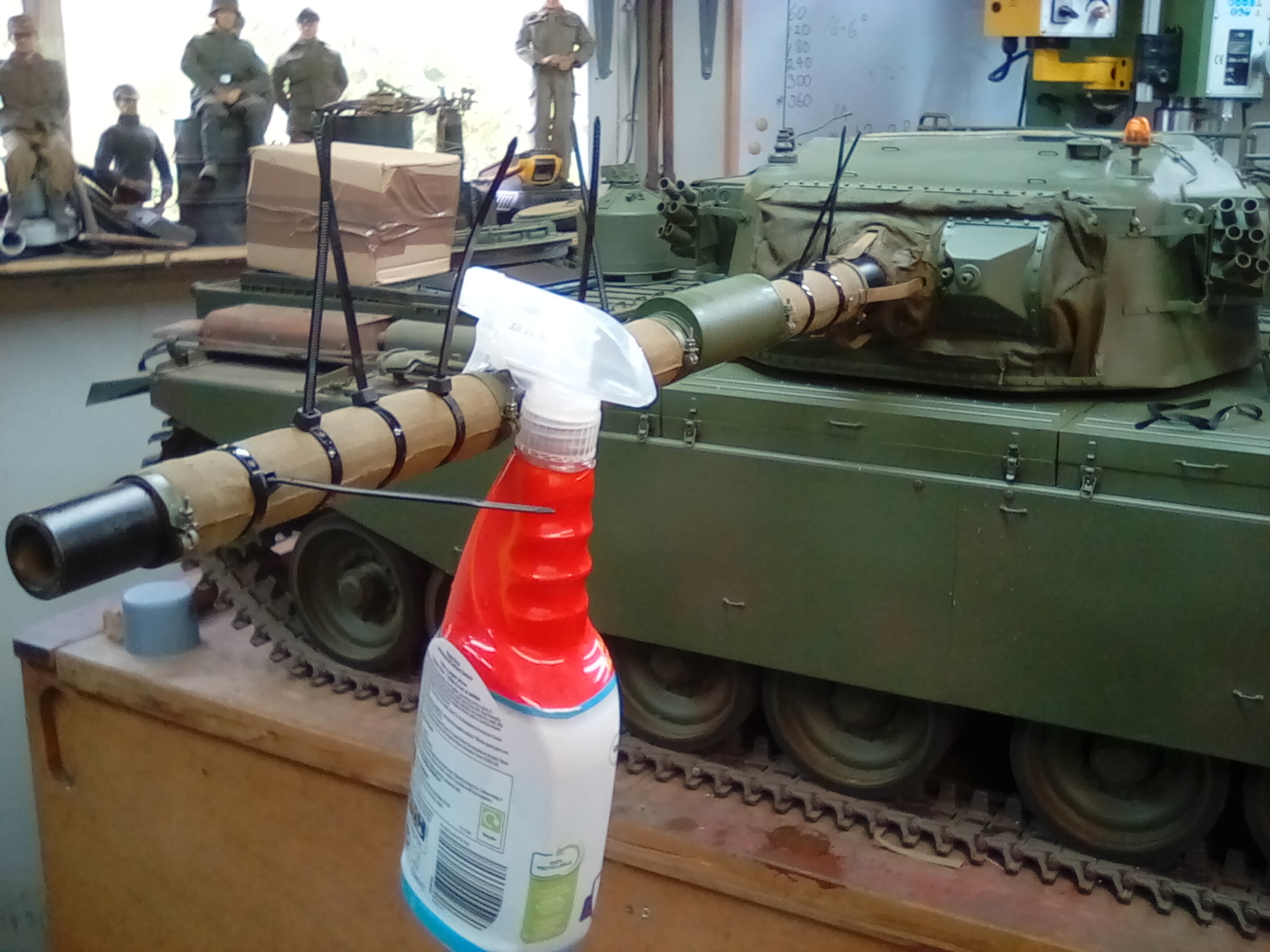

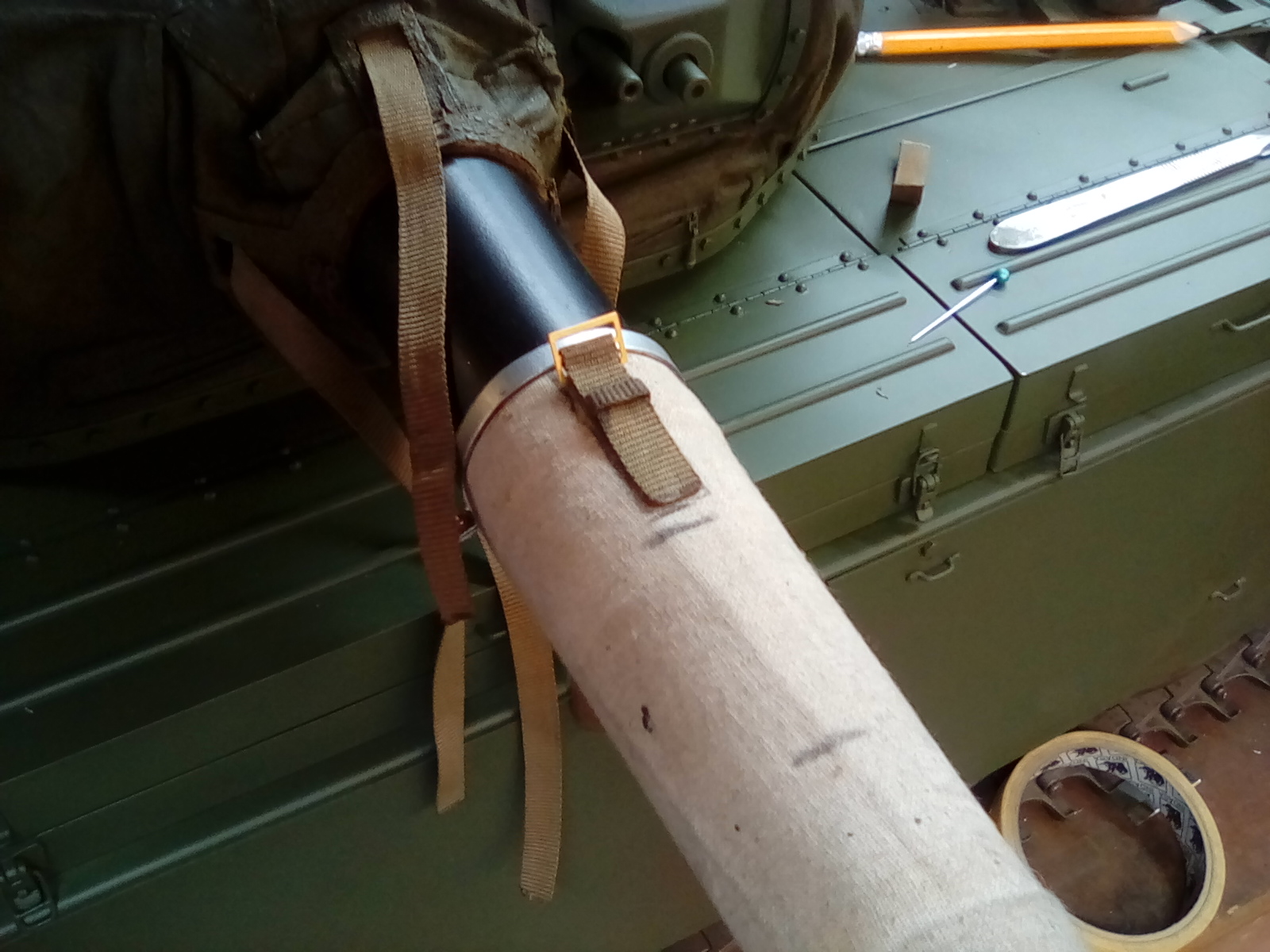

I've soaked the whole sleeve with water and wanged up the cable ties
I've soaked the whole sleeve with water and wanged up the cable ties
Reinforcing patch
Reinforcing patch
I guess this was a reinforcing piece to protect the sleeve
I guess this was a reinforcing piece to protect the sleeve
More paint has arrived, I'm hoping that's the lot for this project
More paint has arrived, I'm hoping that's the lot for this project
Those cable ties are as tight as I can get them without breaking the teeth
Those cable ties are as tight as I can get them without breaking the teeth

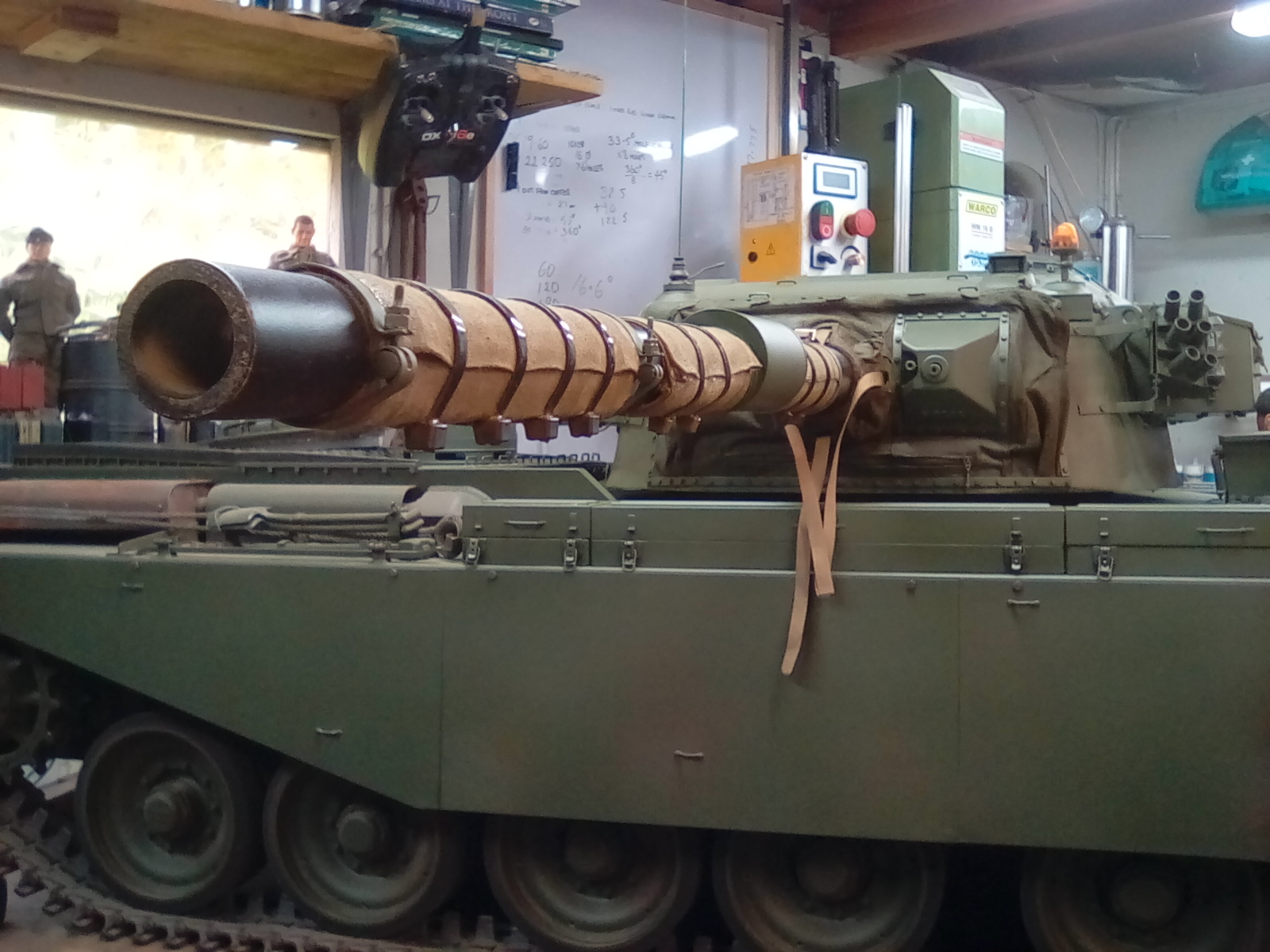

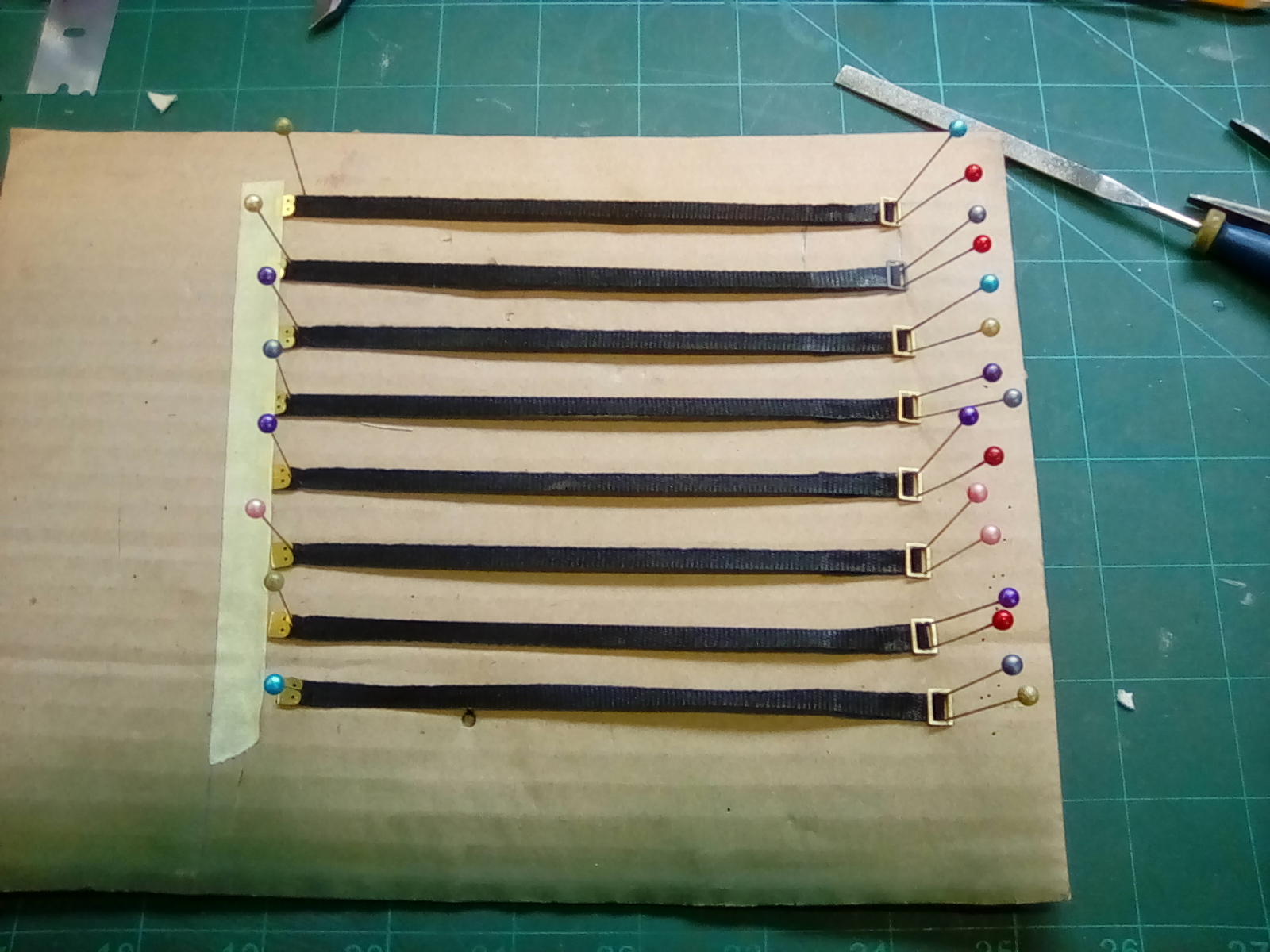

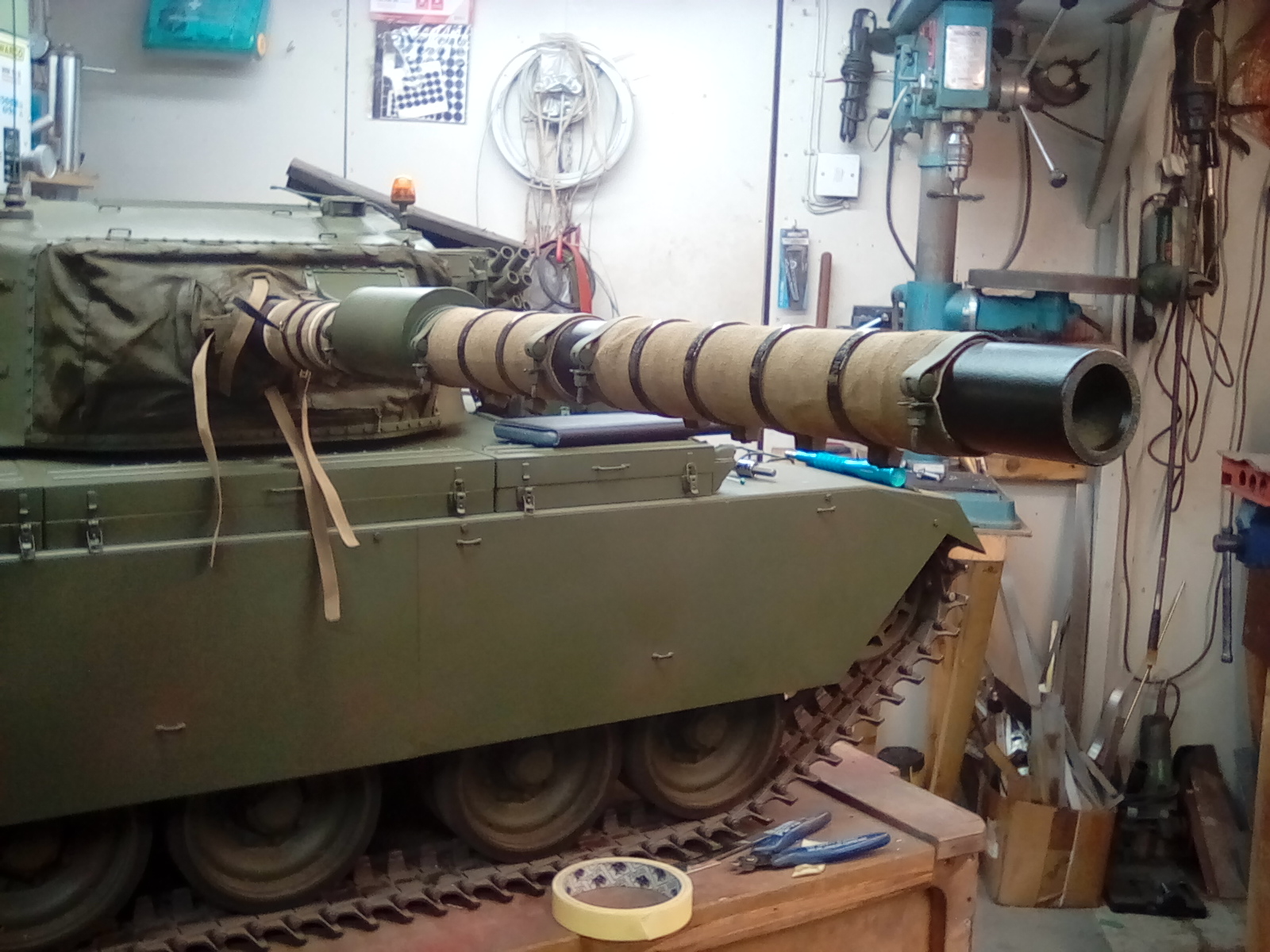

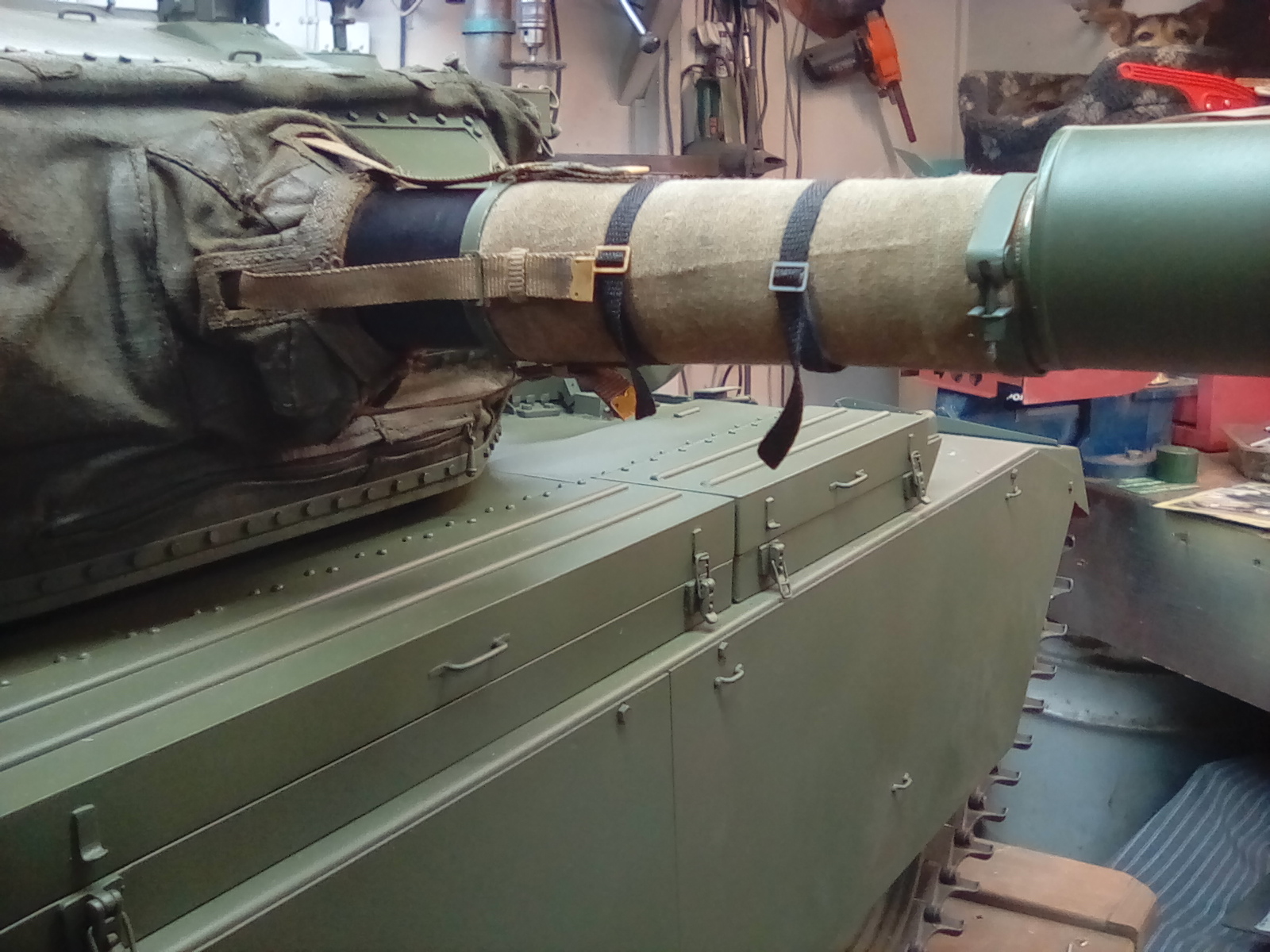

That's the eight straps nearly done now onto staining and making the strap loops
That's the eight straps nearly done now onto staining and making the strap loops
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Kevin Hunter
Posts: 558
Joined: Sat Nov 03, 2012 9:10 am
Location: Guernsey, Channel Islands
Has liked: 597 times
Been liked: 142 times

Re: Mr Dawe's Centurion.

Post by Kevin Hunter »

The detailing in your mantlet cover and thermal sleeve is really something. In some of your close up photos, it’s a struggle to tell the model apart from the real thing.

and as for those needlework skills…….no end to your talents!
Top
Phil Woollard
Posts: 4268
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2259 times
Been liked: 7149 times

Re: Mr Dawe's Centurion.

Post by Phil Woollard »

Thanks Kevin, I hope that the detailed account of the work may help those that wish to have a go themselves.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Dawe
Posts: 290
Joined: Sat Aug 30, 2014 5:49 pm
Has liked: 755 times
Been liked: 276 times

Re: Mr Dawe's Centurion.

Post by Phil Dawe »

And none of it would have been possible without support form people like Kevin Hunter, Stephen White, Didier Mollard and one or two others! :D
Top
Phil Woollard
Posts: 4268
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2259 times
Been liked: 7149 times

Re: Mr Dawe's Centurion.

Post by Phil Woollard »

Here here Mr Dawe! The canvas work is now finished, I now need to tie up those little jobs , jobs like the searchlight clips and the engine.
Attachments
I'm not rushing this job , these straps have to look the dogs dangly bits
I'm not rushing this job , these straps have to look the dogs dangly bits
Final masking
Final masking
The stain looks like mud when it's first applied
The stain looks like mud when it's first applied
I better finish this
I better finish this
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
User avatar
Robert E Morey
Posts: 2295
Joined: Wed Jul 18, 2007 12:59 am
Location: Seattle, WA USA
Has liked: 123 times
Been liked: 753 times

Re: Mr Dawe's Centurion.

Post by Robert E Morey »

Simply amazing detail! True Masterpiece. You raise the bar with each build.
Thanks for posting,
Bob
Top
Phil Woollard
Posts: 4268
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2259 times
Been liked: 7149 times

Re: Mr Dawe's Centurion.

Post by Phil Woollard »

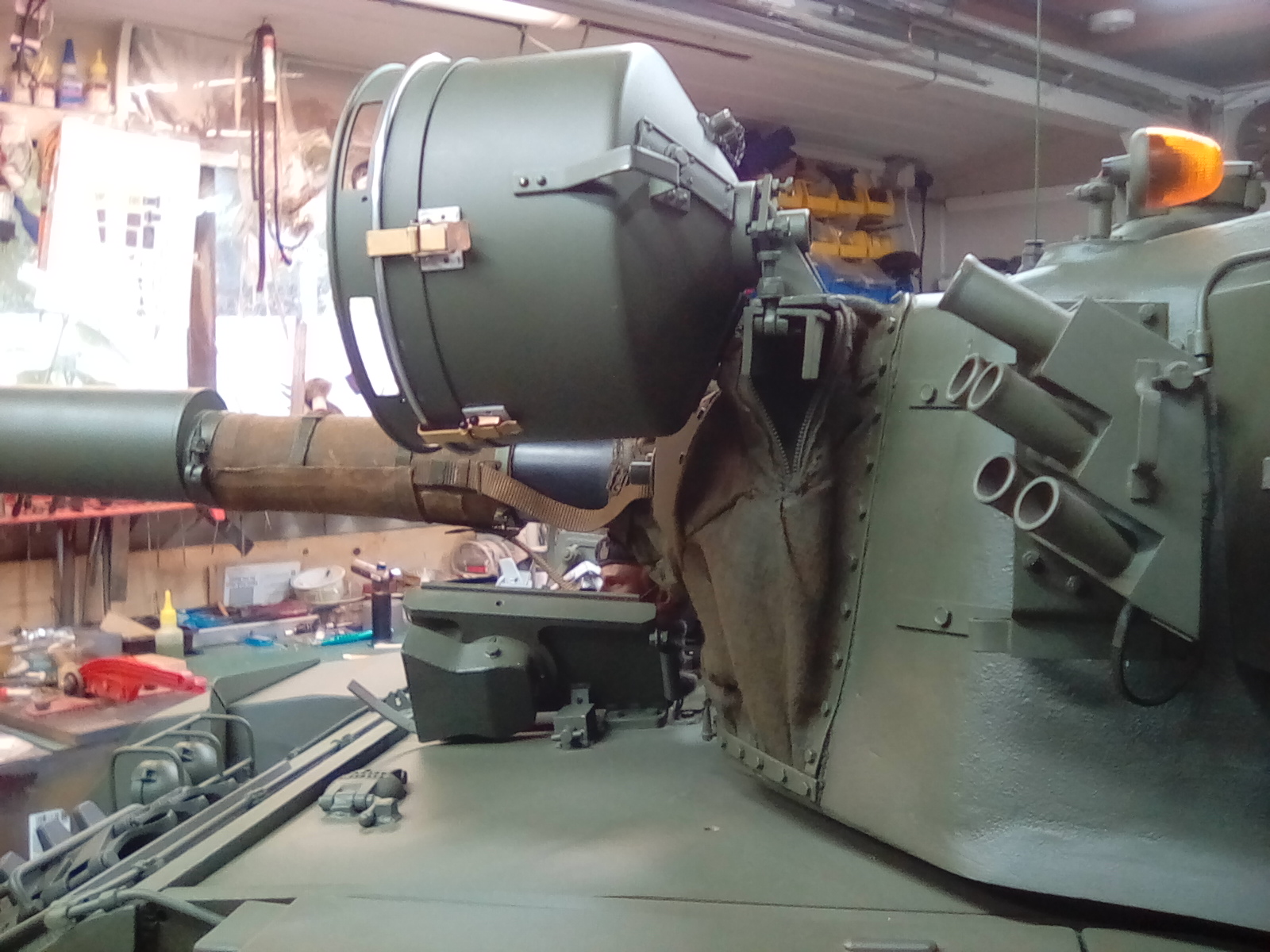

Thanks REM much appreciated, working on those searchlight clamps

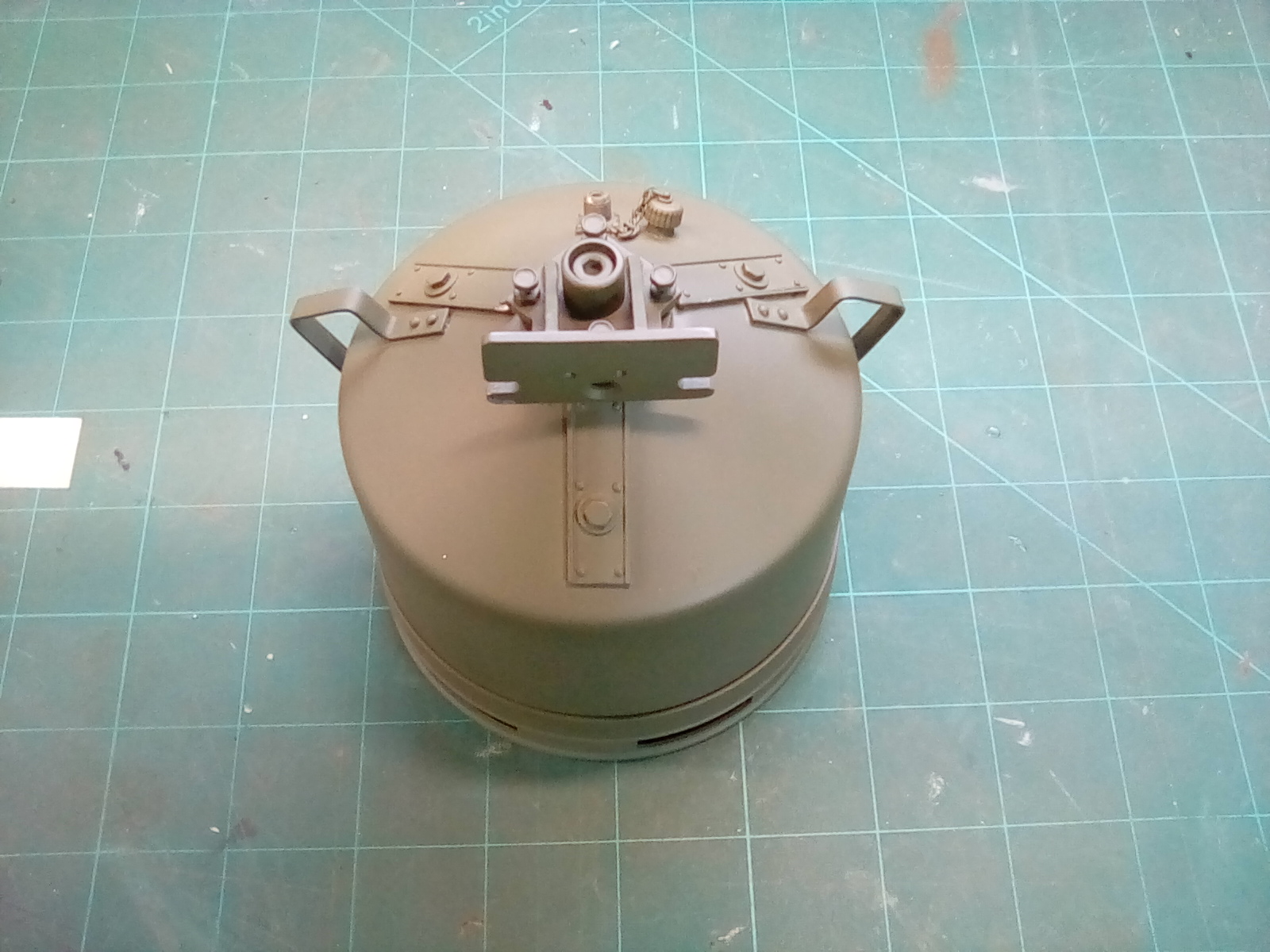

Attachments

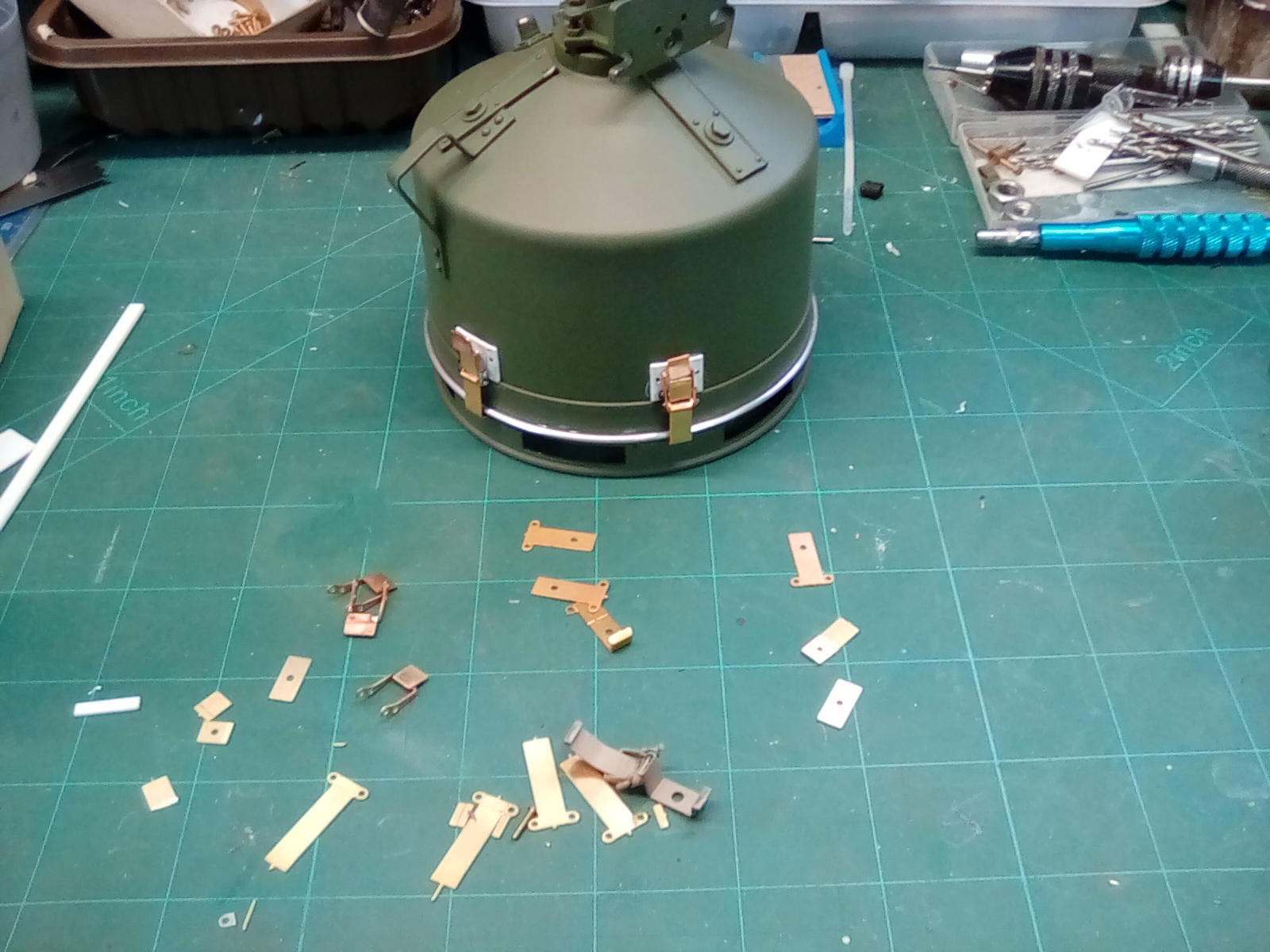

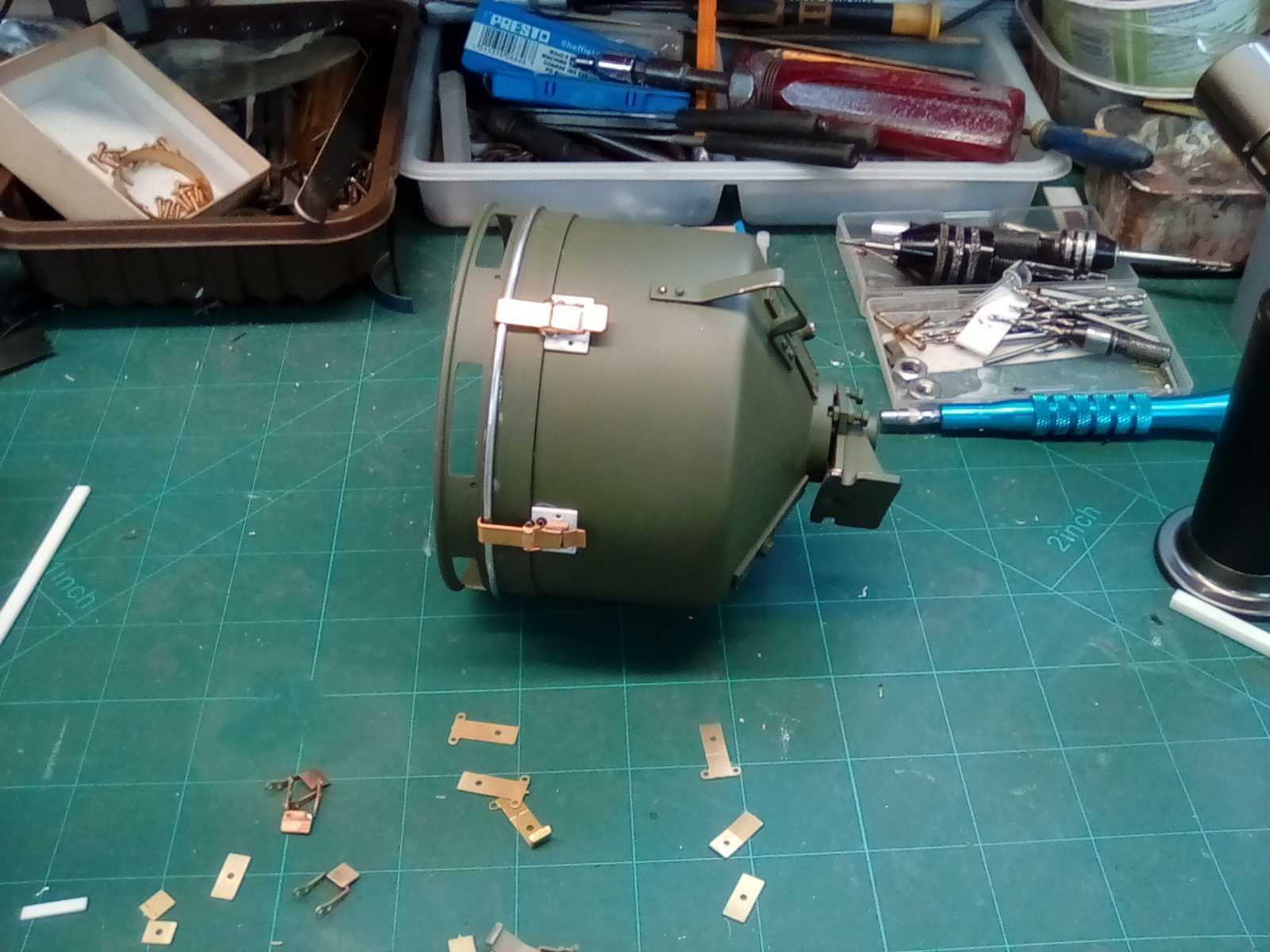

I'm using Armorpax tool clamp etched brass parts for convenience, this saves many hours of fabrication
I'm using Armorpax tool clamp etched brass parts for convenience, this saves many hours of fabrication
You just have to cut the various parts down to achieve something that looks and functions like the real thing just a tad over scale or they will be to fine and fragile to work
You just have to cut the various parts down to achieve something that looks and functions like the real thing just a tad over scale or they will be to fine and fragile to work
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Kevin Hunter
Posts: 558
Joined: Sat Nov 03, 2012 9:10 am
Location: Guernsey, Channel Islands
Has liked: 597 times
Been liked: 142 times

Re: Mr Dawe's Centurion.

Post by Kevin Hunter »

Genius!
Top
Phil Woollard
Posts: 4268
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2259 times
Been liked: 7149 times

Re: Mr Dawe's Centurion.

Post by Phil Woollard »

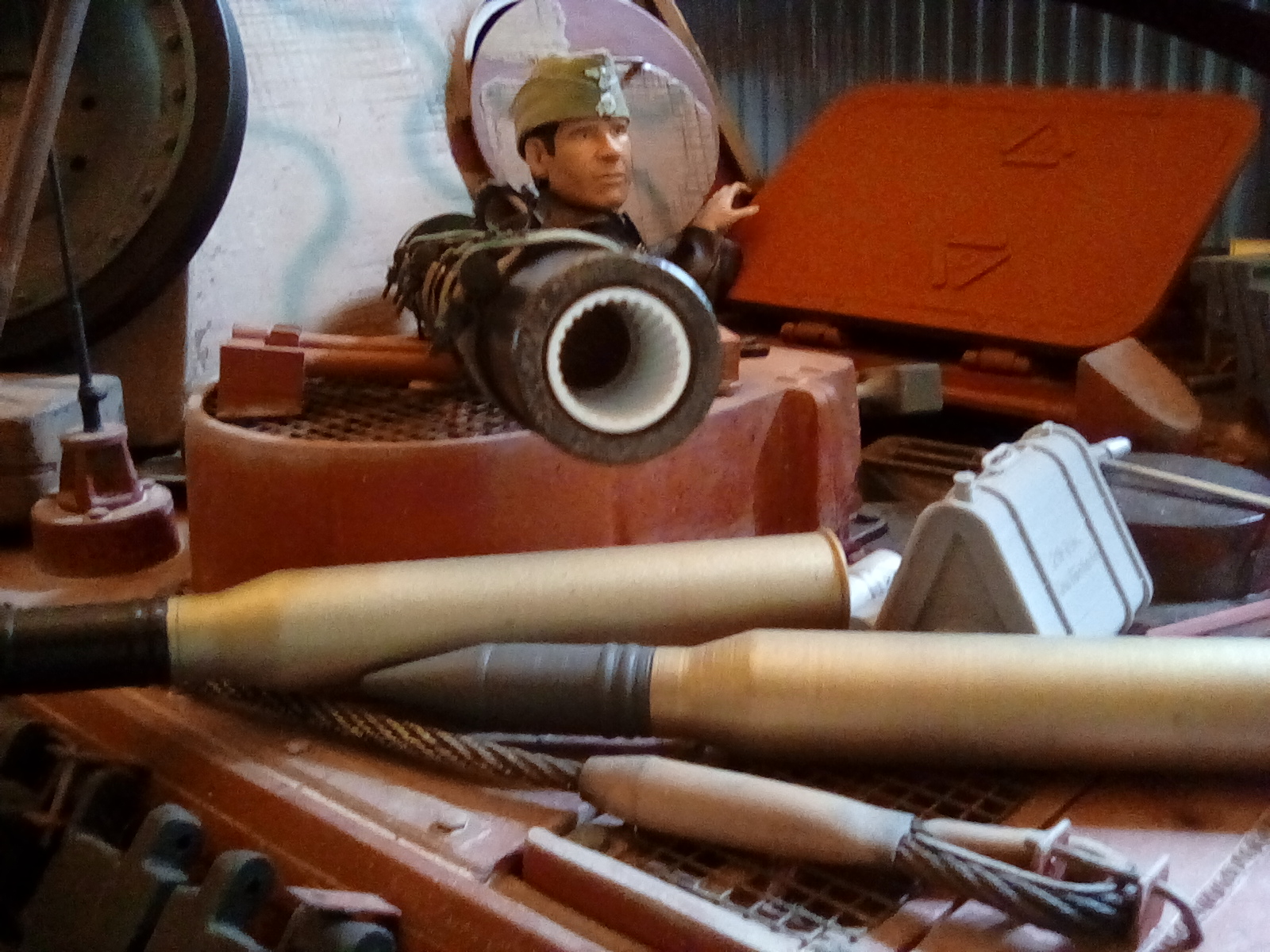

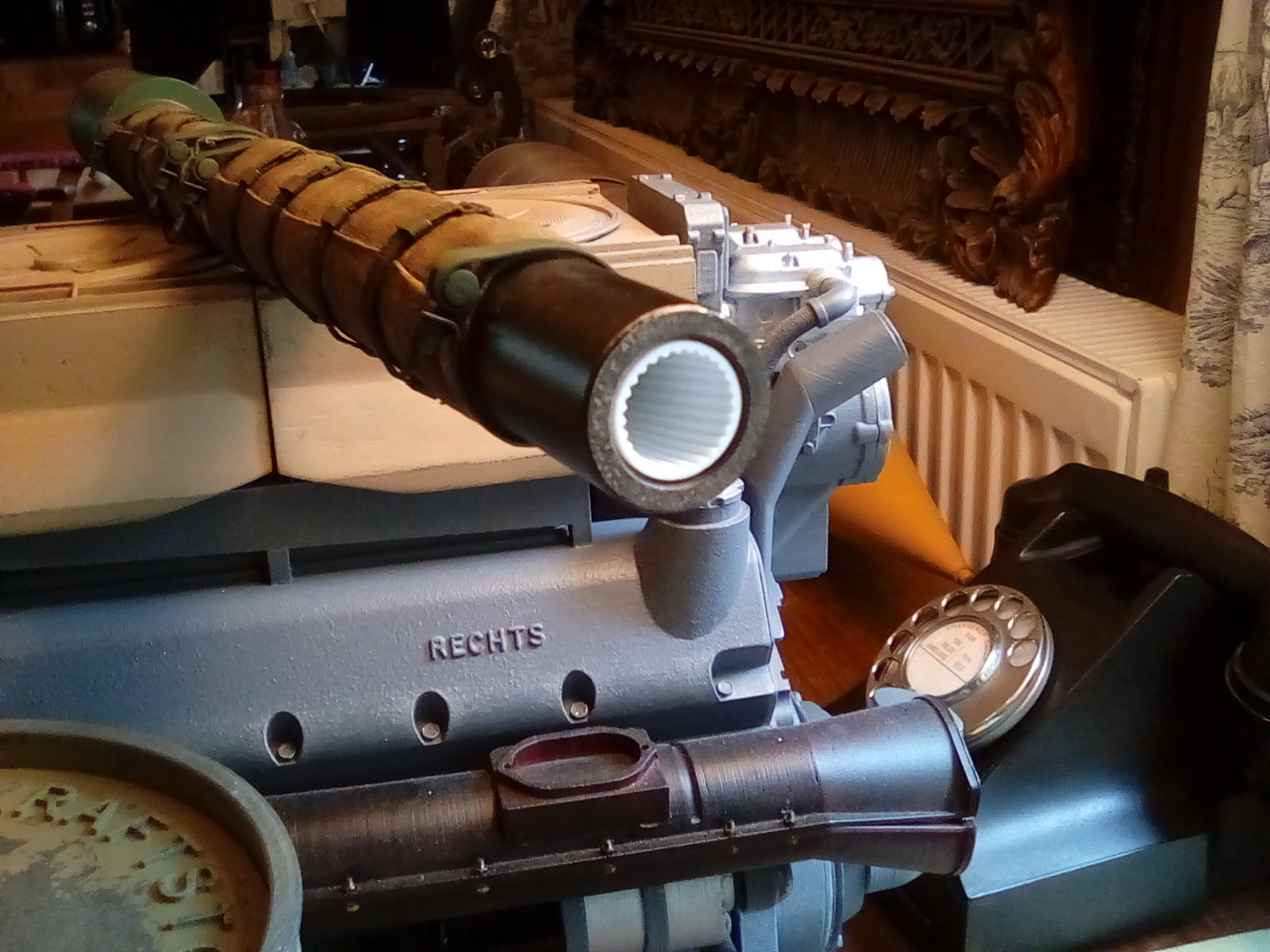

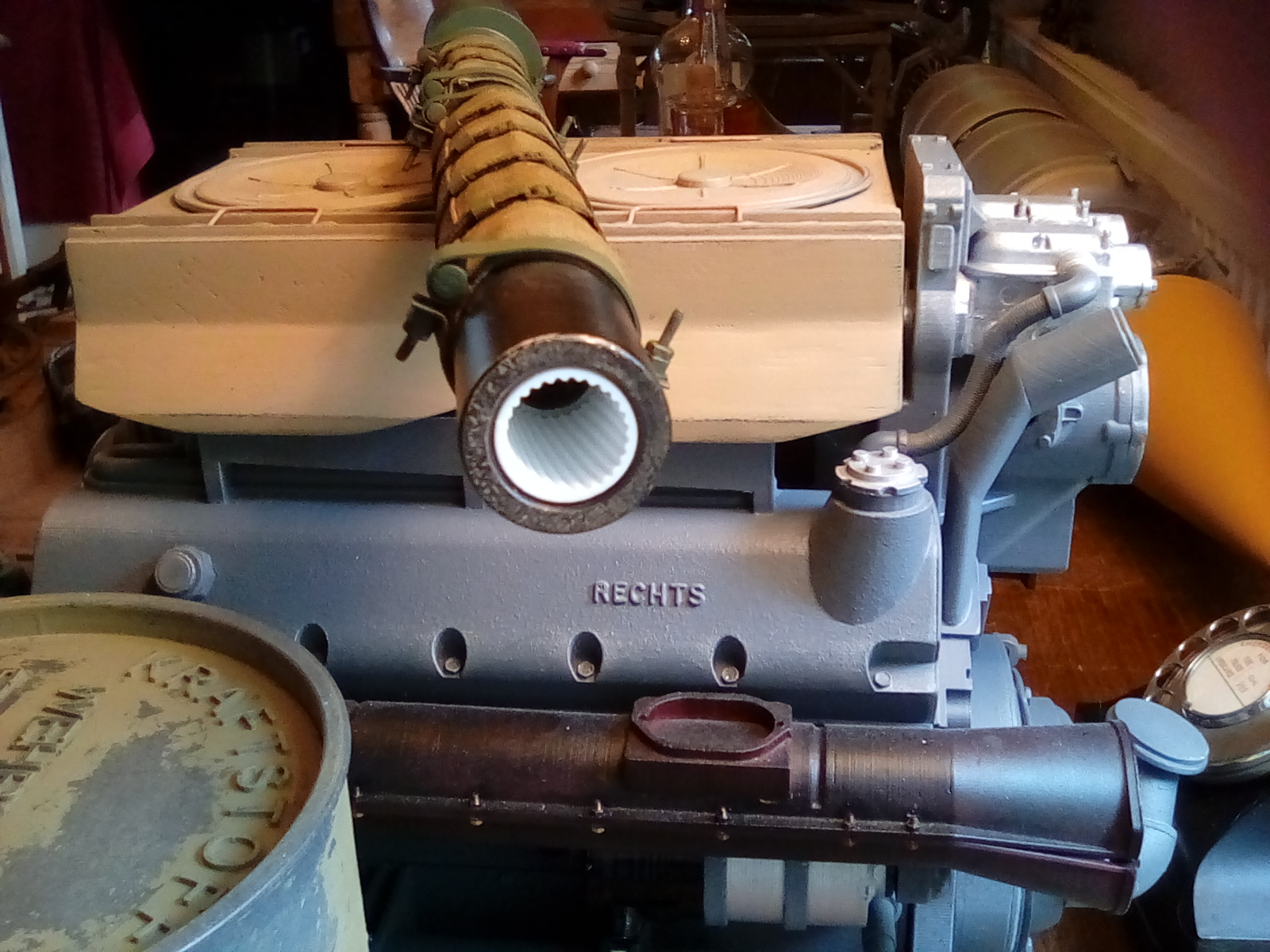

Got all my house work done this morning whilst the 3d printer produced a perfect rifeling sleeve for the 105 muzzle, I love my 3d printer and I think I want it's babies !
One of Vinces drawings......this was originally drawn for the Chieftain's muzzle but just needed resizing down a little.
Attachments

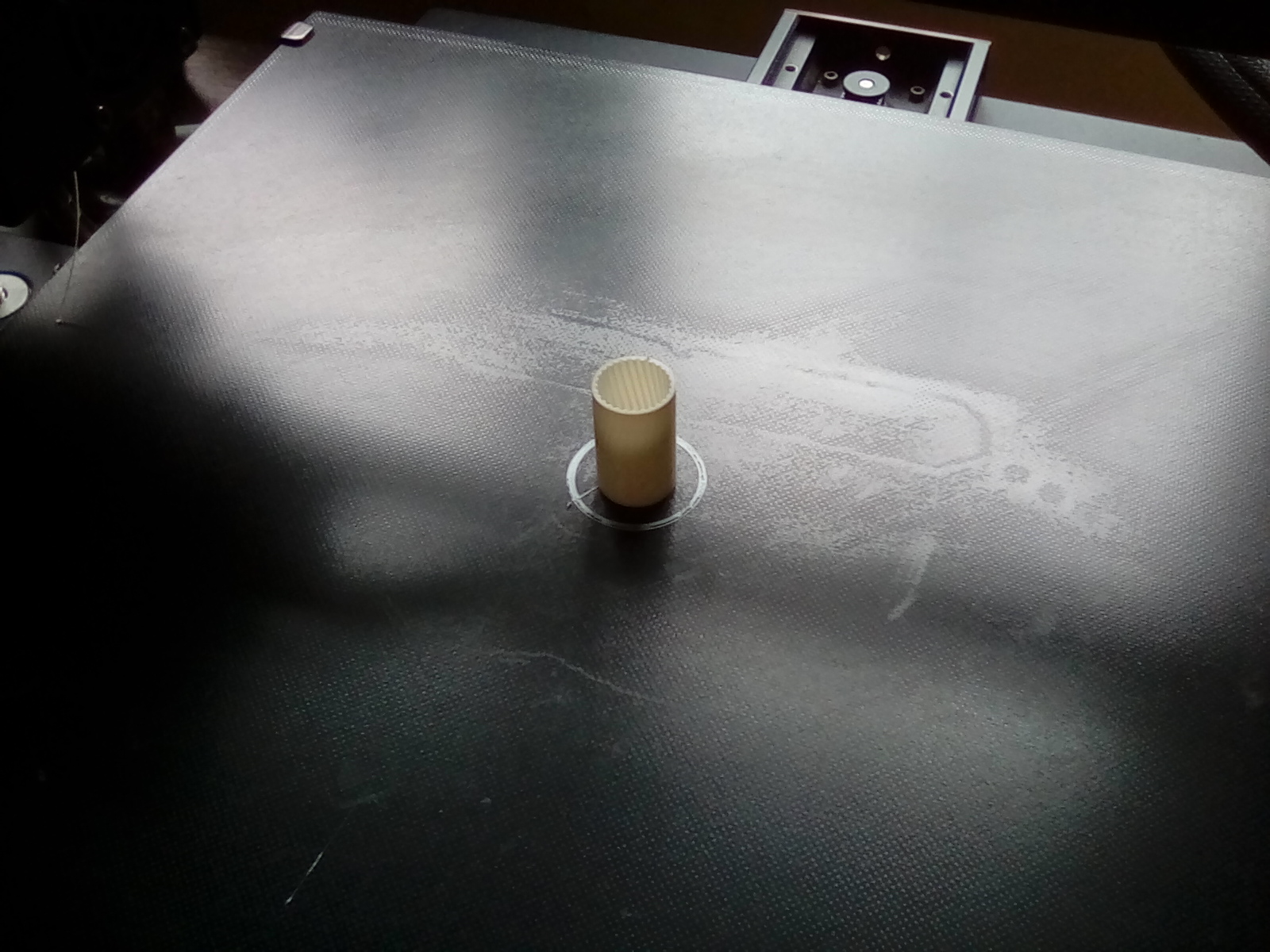

No brim, no raft just straight on to the build plate
