Hi Adrian,Adrian Harris wrote: ↑Fri Jul 30, 2021 6:51 pmDon't forget to take the third step off the drive housings, or it'll make a mess of your sprockets.
Adrian.
What is the "third step" to be taken off? Thanks in advance.
2025 ARMORTEK KIT SURVEY
Over the last few years we have brought out a whole series of kits as a direct result of your feedback - kits like the Pershing, JagdPanther, Hetzer, Leopard 2A4, and more recently the Sd Kfz 7, 88mm Flak 36 and the upcoming Challenger 2.
So, in keeping with what has become and annual tradition, here is your opportunity to once again influence our future production plans.
We have added in some "guide pricing" next to the names of the models. This is a rough estimate of the price at the current rates.
Thanks in advance for your input and we look forward to the results.
Tiger 1 range target refurbish ......again.
-
Chang
- Posts: 1114
- Joined: Mon Jul 21, 2008 1:45 am
- Has liked: 16516 times
- Been liked: 487 times
Re: Tiger 1 range target refurbish ......again.
What is the "third step" to be taken off? Thanks in advance.
------------------------------------------------------------------
Es braust unser Panzer im Sturmwind dahin.....
Es braust unser Panzer im Sturmwind dahin.....
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Tiger 1 range target refurbish ......again.
Nice mod I could never understand why Mark made them so chunky, I'm short of two of the inner 4mm torsion bar axle mounts as I used them for the Faun front stub axles like a dick!

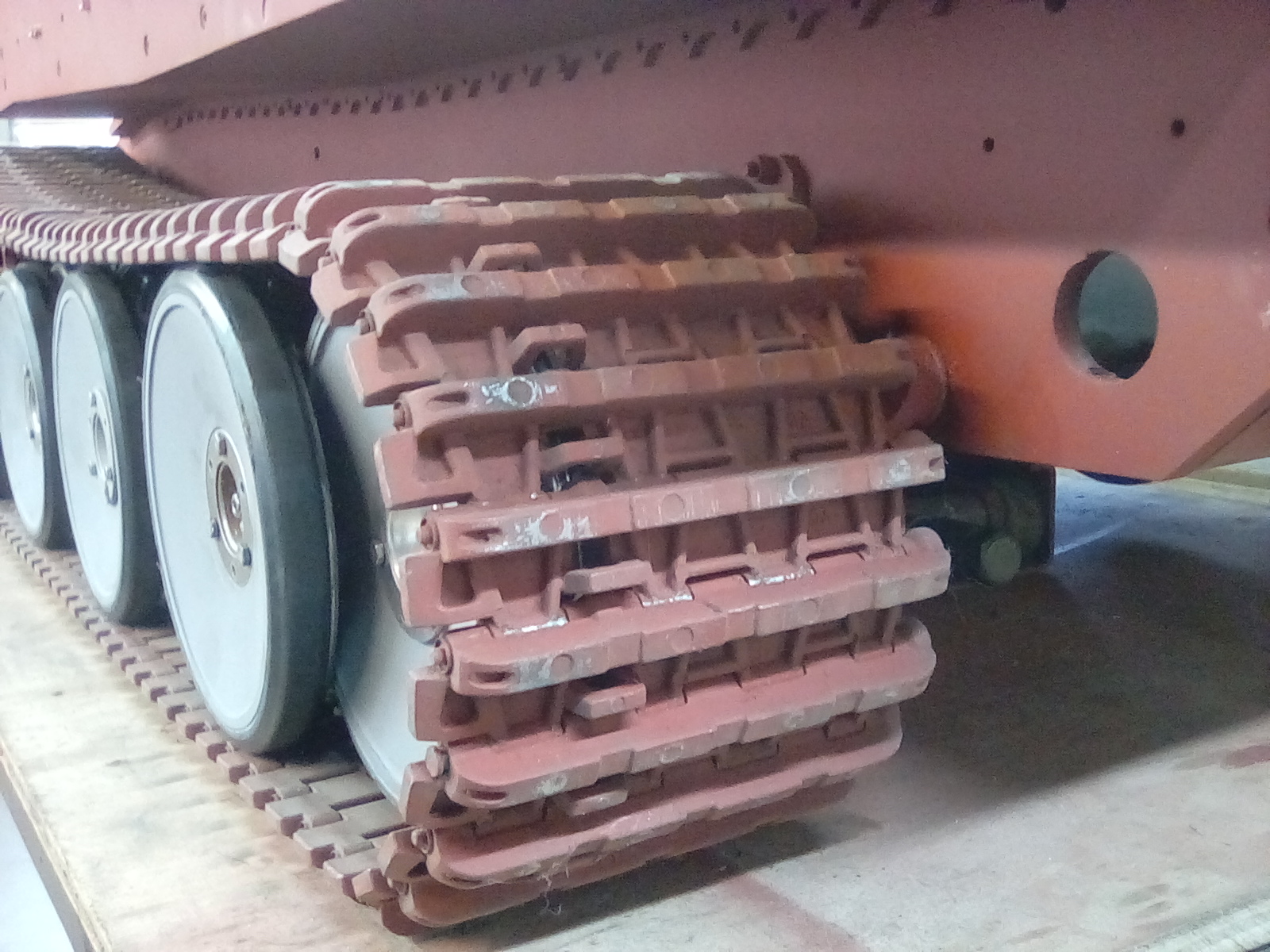

This step Chang, see photo.
This step Chang, see photo.
- Attachments
-
- IMG_20210730_145832_kindlephoto-13482676.jpg (19.01 KiB) Viewed 4407 times
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Adrian Harris
- Posts: 5119
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1475 times
- Been liked: 1674 times
Re: Tiger 1 range target refurbish ......again.

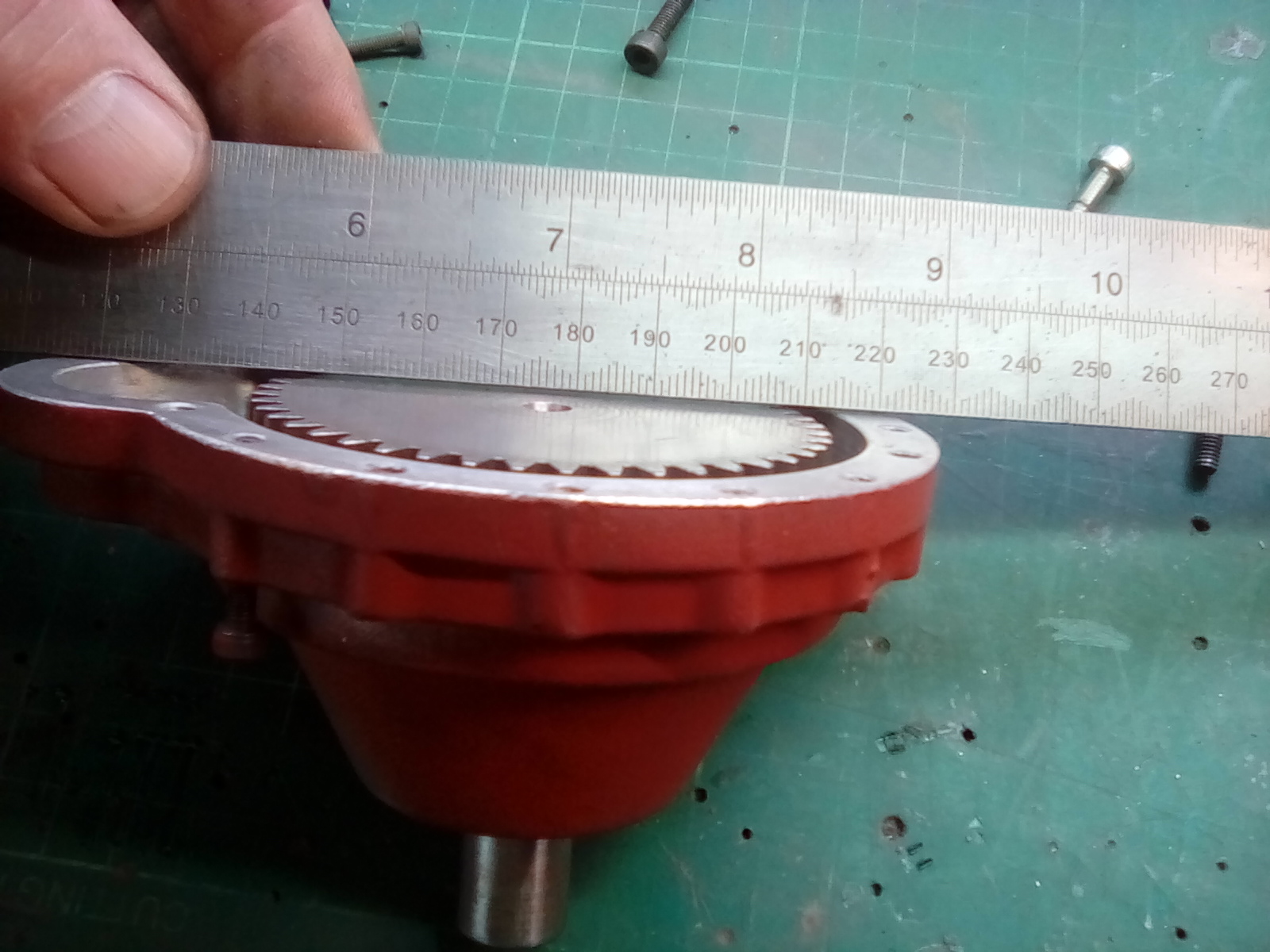

These really old Tigers have three steps in the drive casings, where the smaller one can rub against the Sprocket, depending on how the tank was put together.
Whereas the new models only have two steps, so there is no issue with the sprocket rubbing.
Adrian.

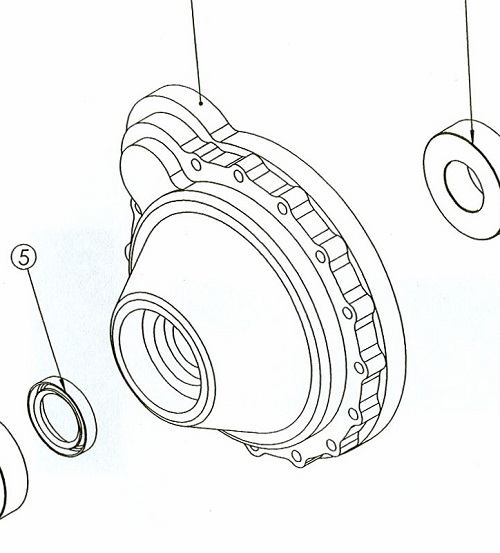

- Old Tiger Drive Case.jpg (92.14 KiB) Viewed 4373 times
Whereas the new models only have two steps, so there is no issue with the sprocket rubbing.
- New Tiger Drive Case.jpg (99.28 KiB) Viewed 4373 times
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Tiger 1 range target refurbish ......again.
Run of the mill Tiger1 build work. As soon as I have the idlers I can get her up and running.
Message for Adrian, I know your busy mate but you have mail, basically it says can you supply those idler shafts ? If not then I will order from Monique
Message for Adrian, I know your busy mate but you have mail, basically it says can you supply those idler shafts ? If not then I will order from Monique
- Attachments
-
-
-
-
-
-
-
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Tiger 1 range target refurbish ......again.

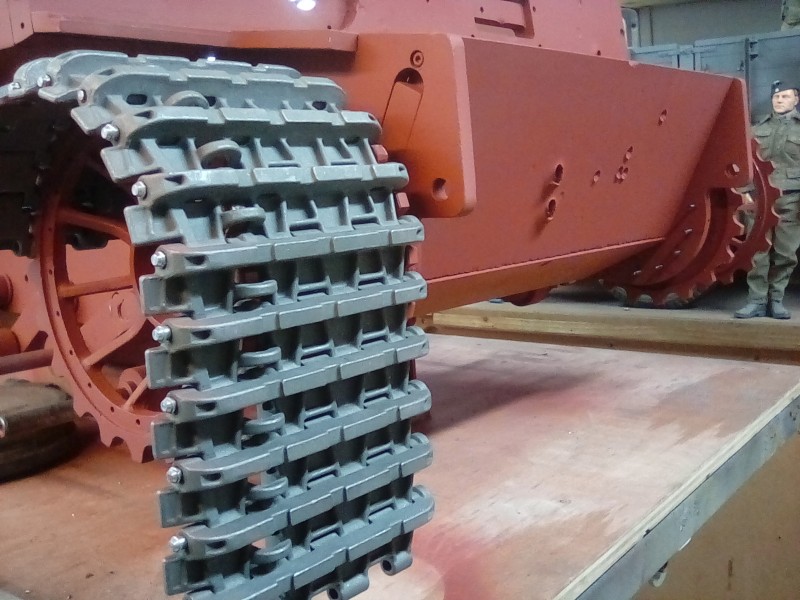

The old range target is taking shape, these very early kits do present their own unique problems but we overcome, I must stress again that the new kits are a breeze to build in comparison.
I know some find this type of build thread boring but you don't have to follow but saying that you are reading it right now
I know some find this type of build thread boring but you don't have to follow but saying that you are reading it right now
- Attachments
-

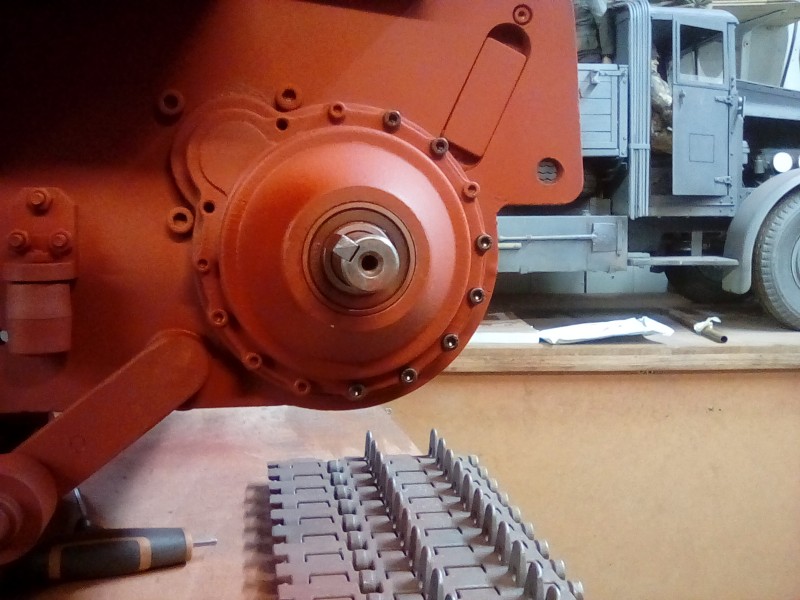

- After trying to find an engineering company to machine the old sprockets to no avail, I decide to dig out my lathe faceplate and have ago at the taper lock machining my self. The photo shows the first attempt to mount the early sprockets, this soon failed, I've seen the key steel sheared in half but more likely the cast aluminum key way would deform and become sloppy.
-
-

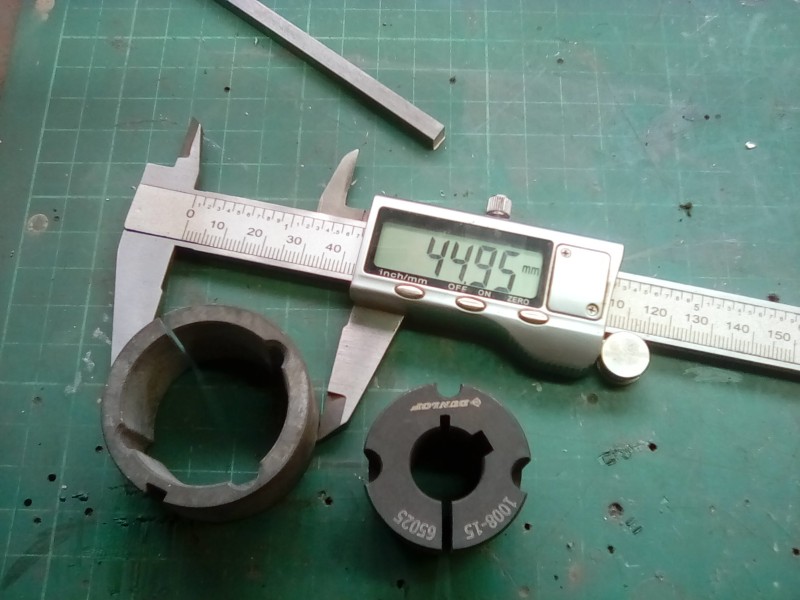

- I did find this machined taper lock insert which I could have used, you simply bore a parallel hole and fix in place.
-

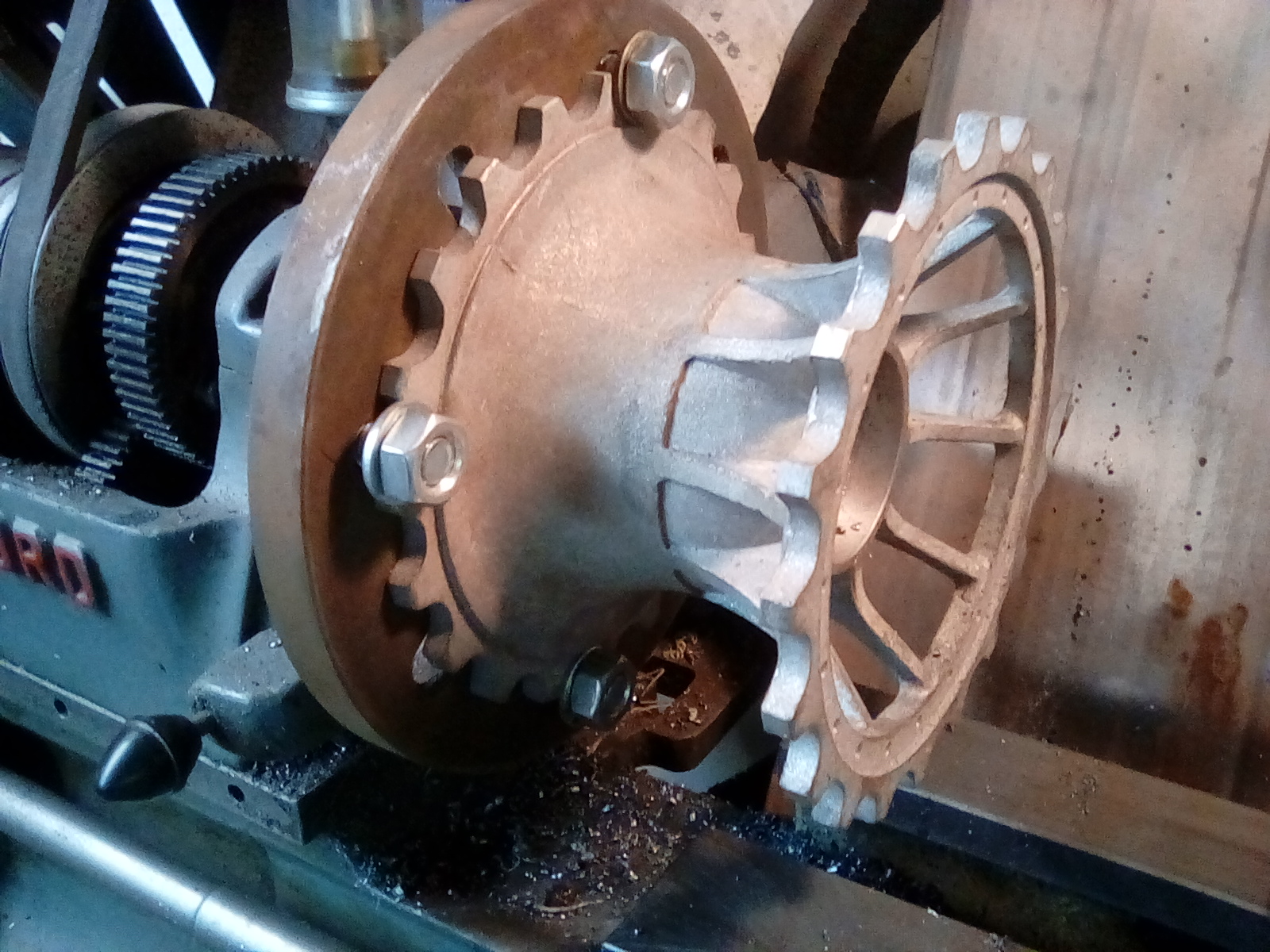

- Just about the limit for my lathe but it clears.
-
- I set the angle to 4 degrees and with a new ceramic tool insert off I went.
-
- All went well despite a few tiny voids in the casting, drilling the half threads used for clamping the taper lock was tricky not having a mill right now but it's working just great. Warco have new milling machines coming in soon so I have ordered a gearhead machine.
-
- Key steel cut and fitted.
-

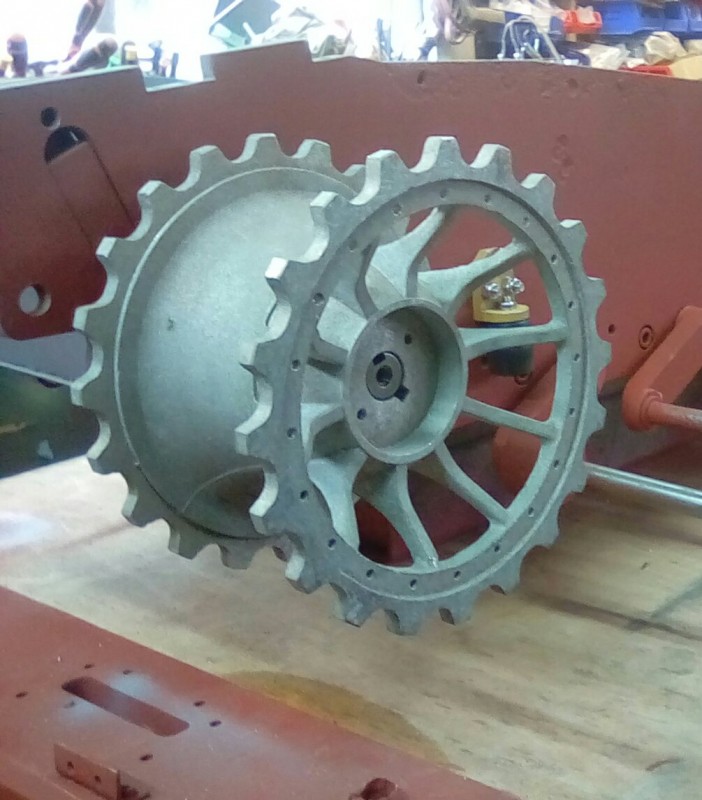

- Bobs your uncle it's all nice an neat and won't be going anywhere it shouldn't.
-
- I do like the battle scares that seem to be on every plate although some may end up covered in zimmerit.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Tiger 1 range target refurbish ......again.
Doesn't matter how many of the early/mid Tiger1 I build I'm still impressed with that road wheel configuration!
Anyone know when Armortek are back from vacation, I need to order the idler shafts?
Anyone know when Armortek are back from vacation, I need to order the idler shafts?
- Attachments
-
-

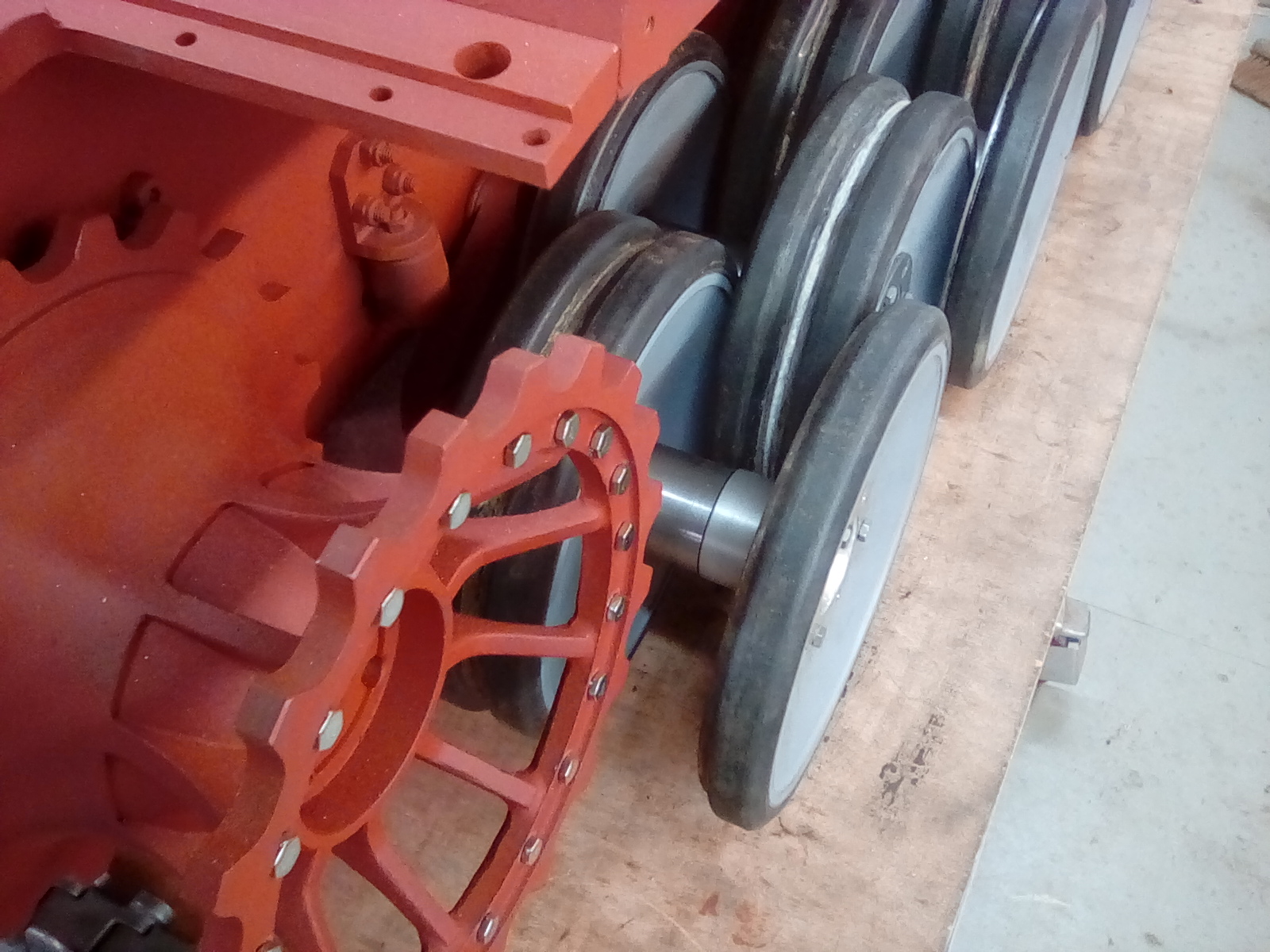

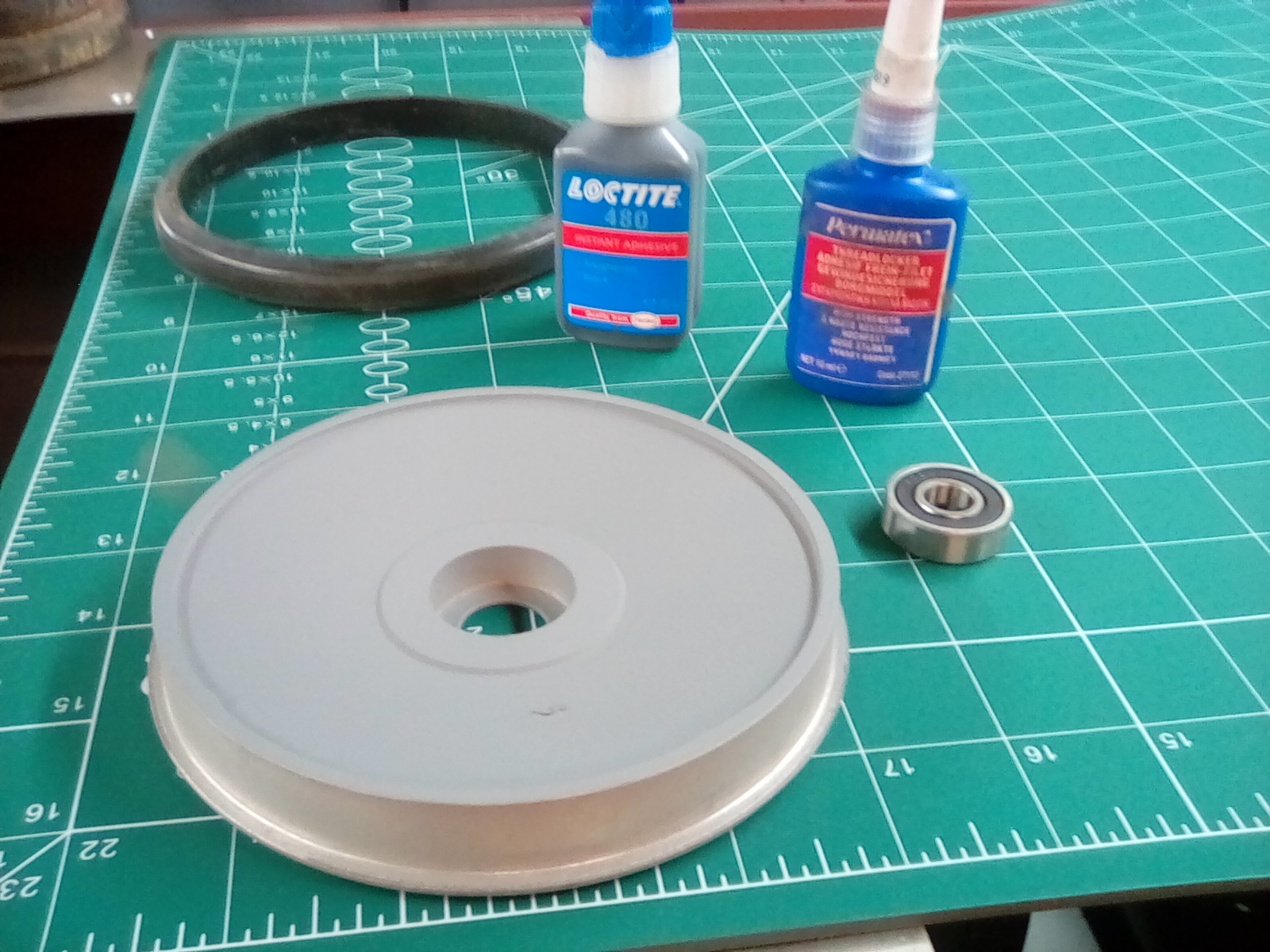

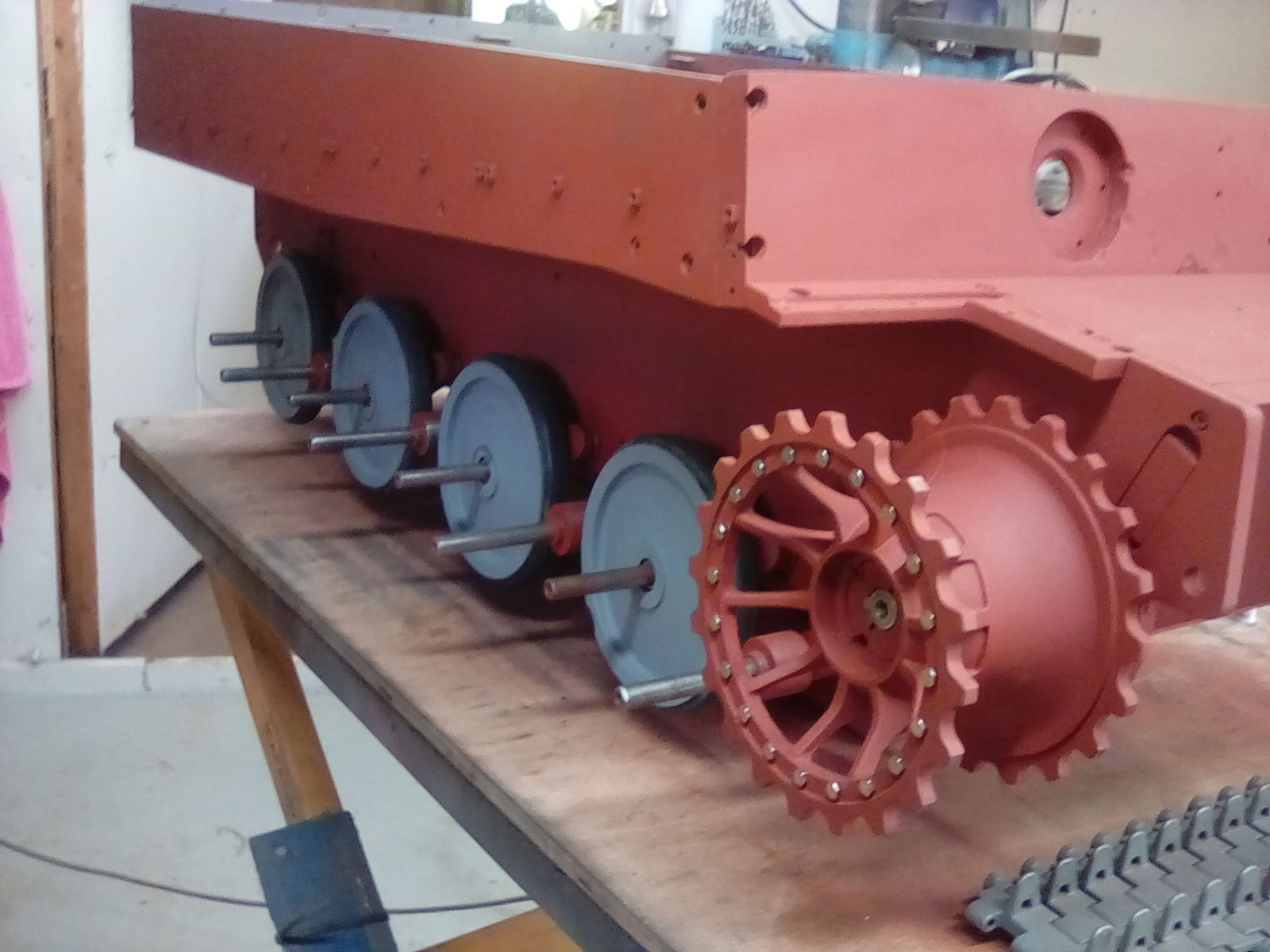

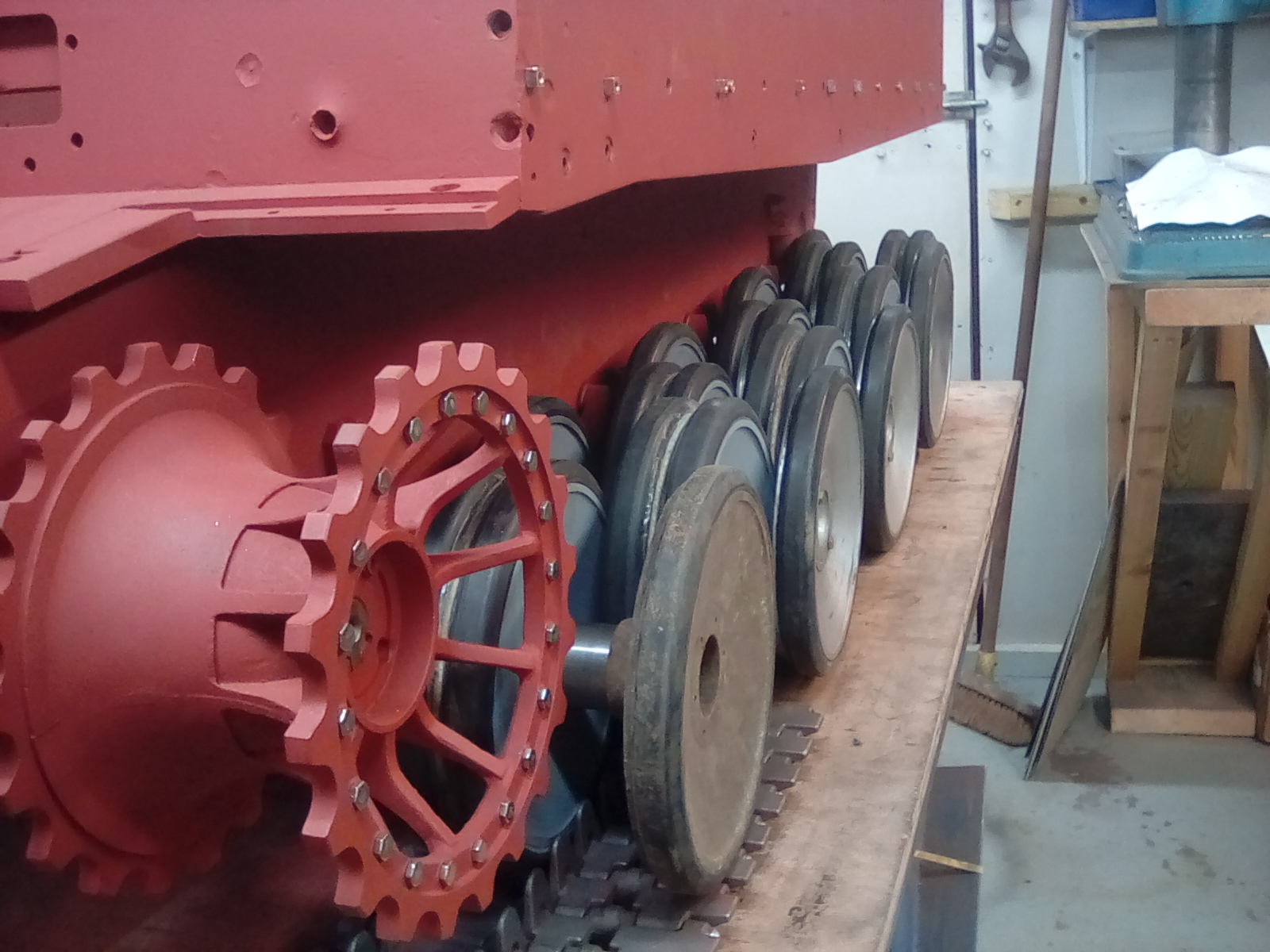

- All new bearings for the road wheels, the inner doubles now have two sets of bearings / wheel.
-
-
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Tiger 1 range target refurbish ......again.
The future? This was posted 11yrs ago! Take note of the 3 PPP's technology, why use one 120mm rnd that may miss or pass right through the target when four proximity 40mm fuse rnds wont!
- Attachments
-
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Stephen White
- Site Admin
- Posts: 3114
- Joined: Sat Oct 11, 2008 7:05 pm
- Location: Dorset
- Has liked: 1038 times
- Been liked: 2111 times
- Contact:
Re: Tiger 1 range target refurbish ......again.
Taking on a soft-skinned VW Camper at 600m is also possible with a British Longbow and about as useful. Now, if they were actually showing penetration of the NATO triple array at say 2000m, I might be impressed. Nice recce vehicle and probably quite useful against helos but for big boys’ jobs, you probably need………. a tank.
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Tiger 1 range target refurbish ......again.

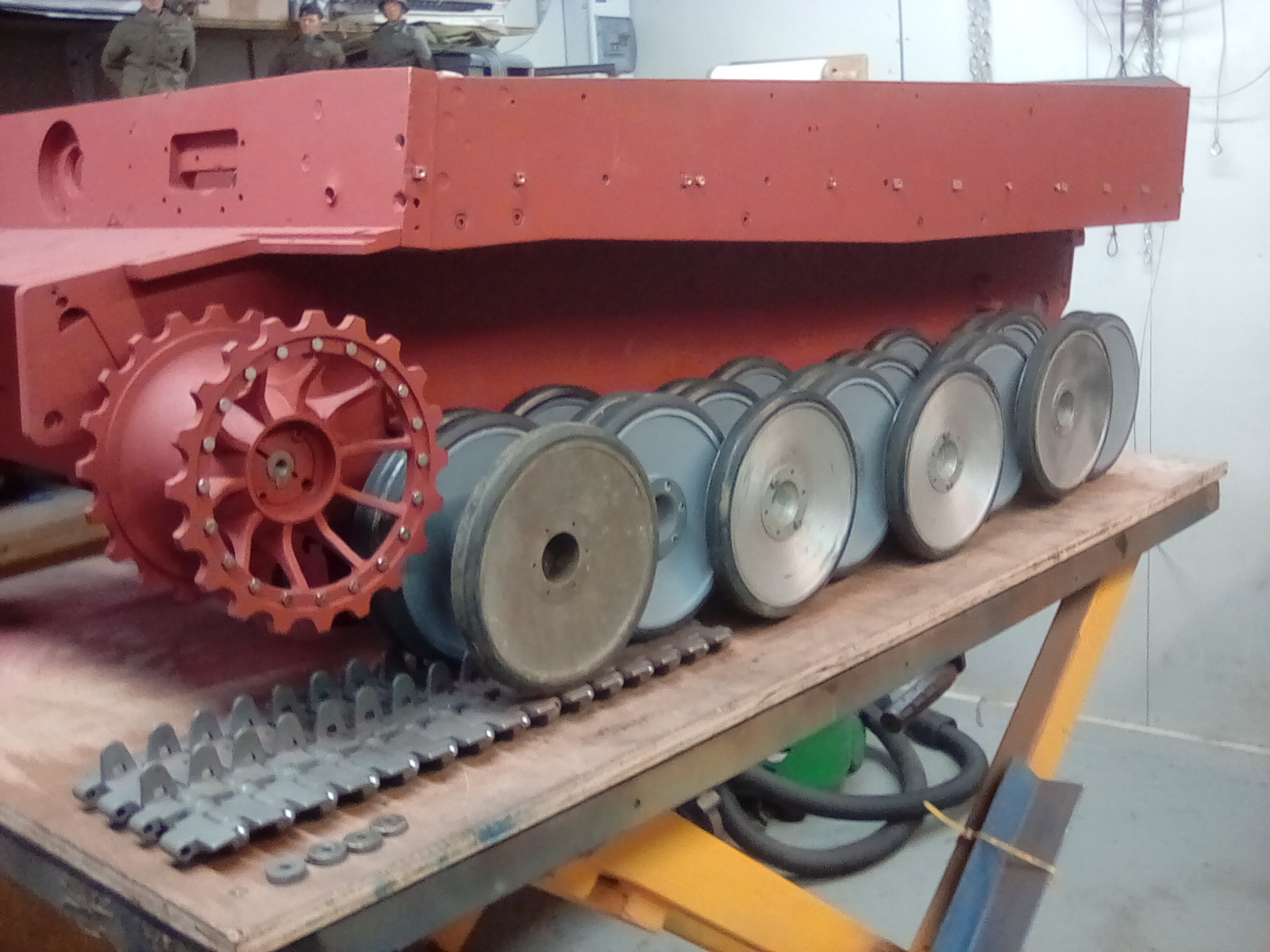

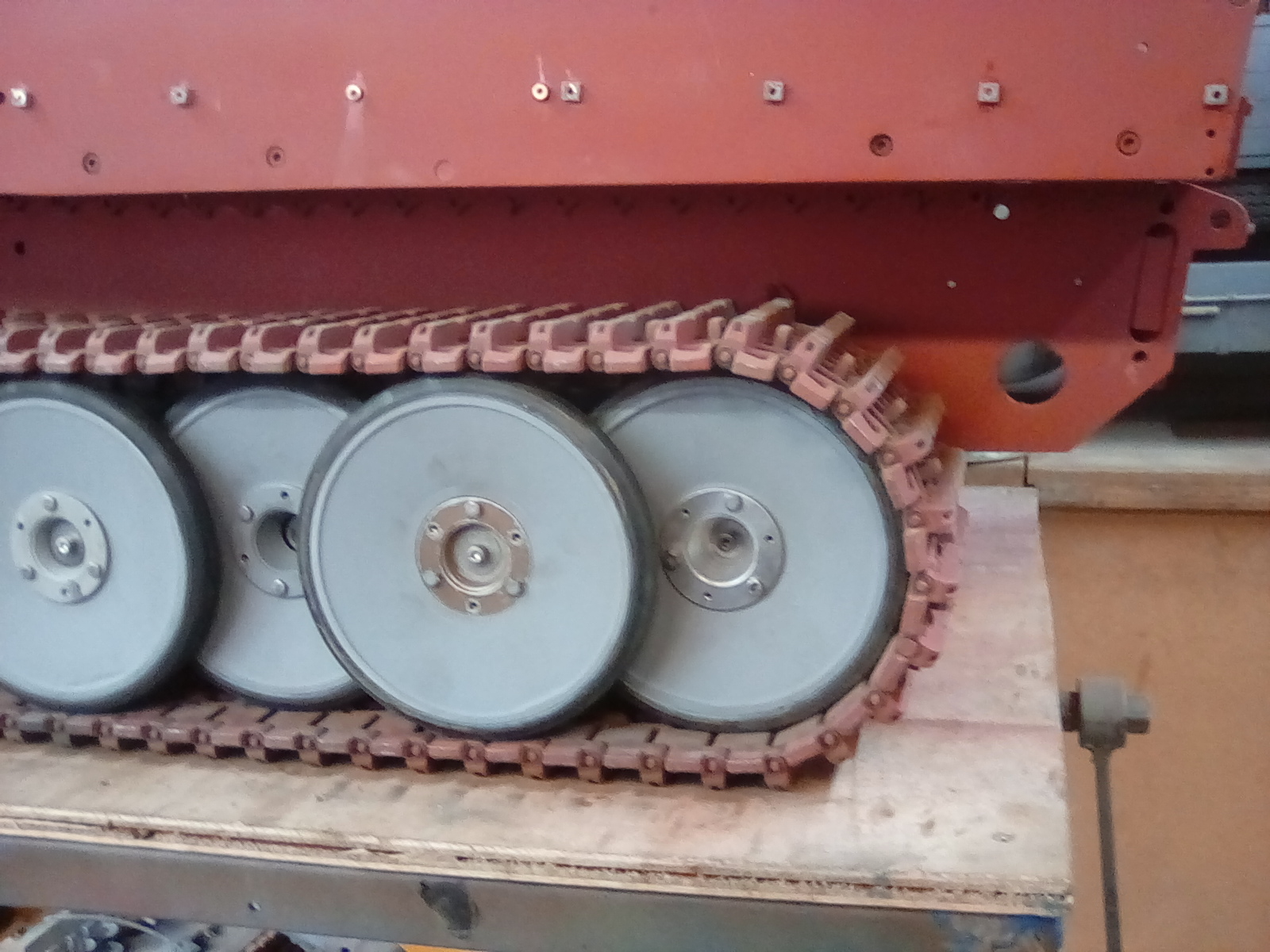

One side of the tiger 90% finished with a little short track experiment.
- Attachments
-

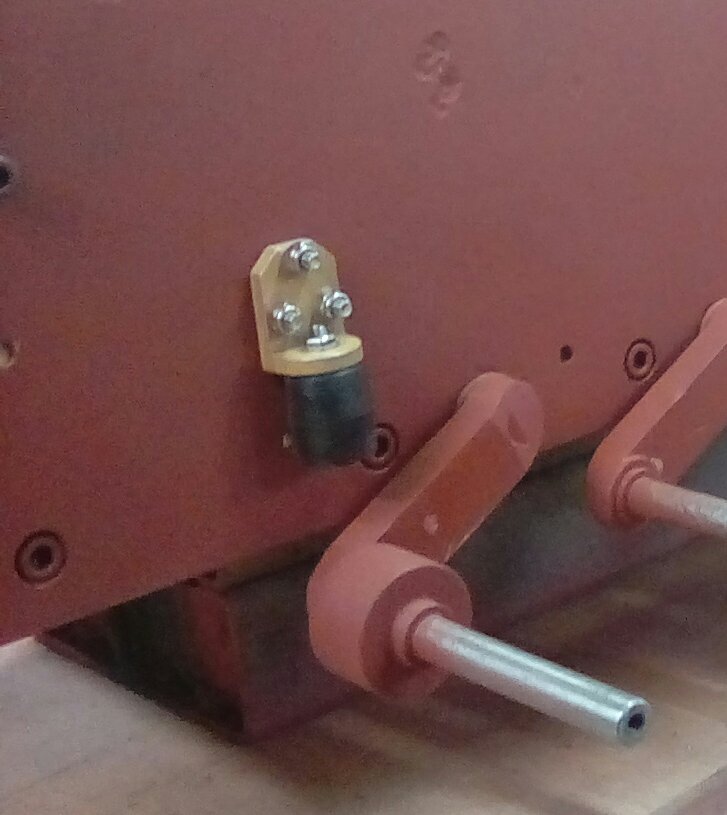

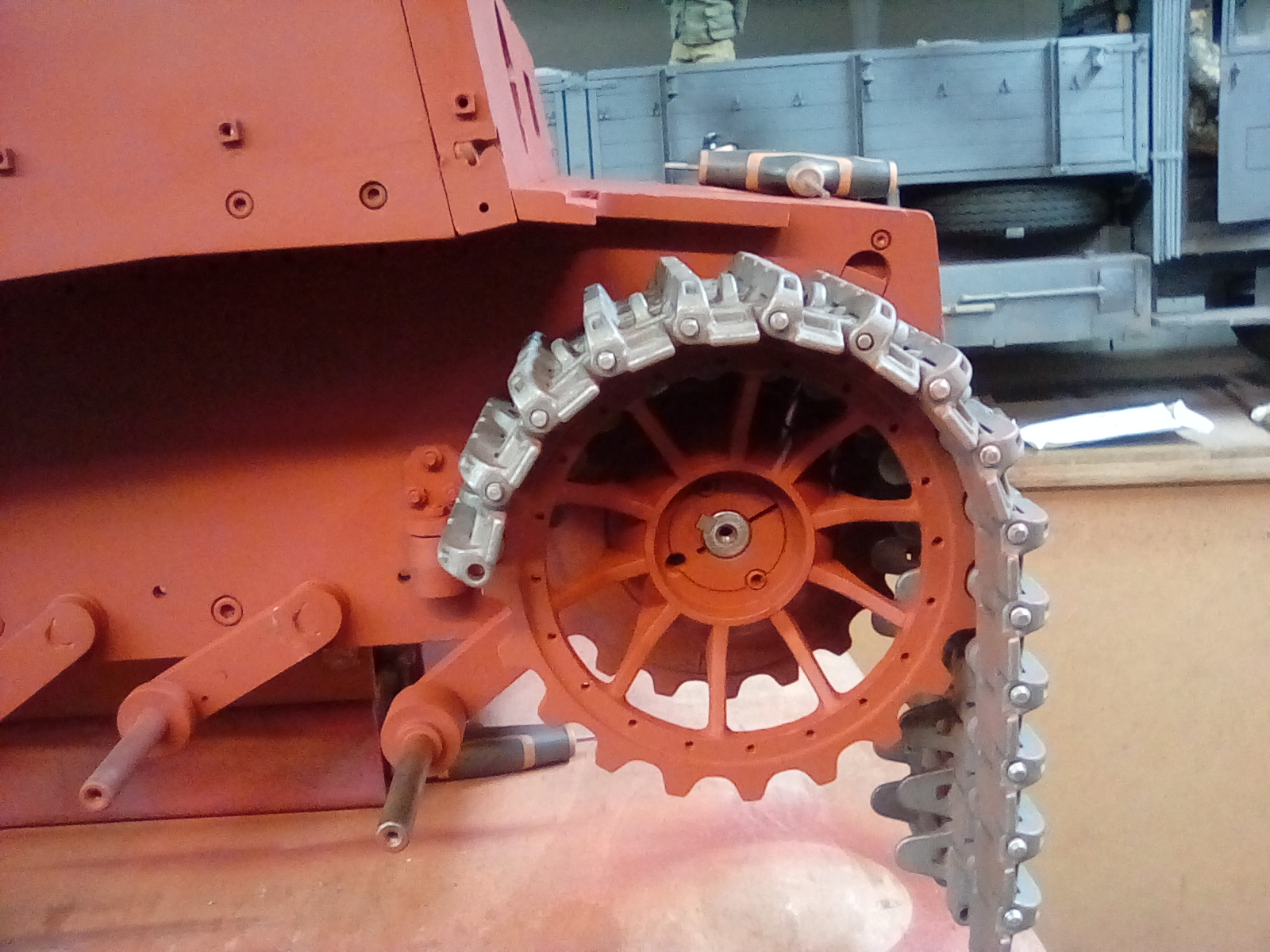

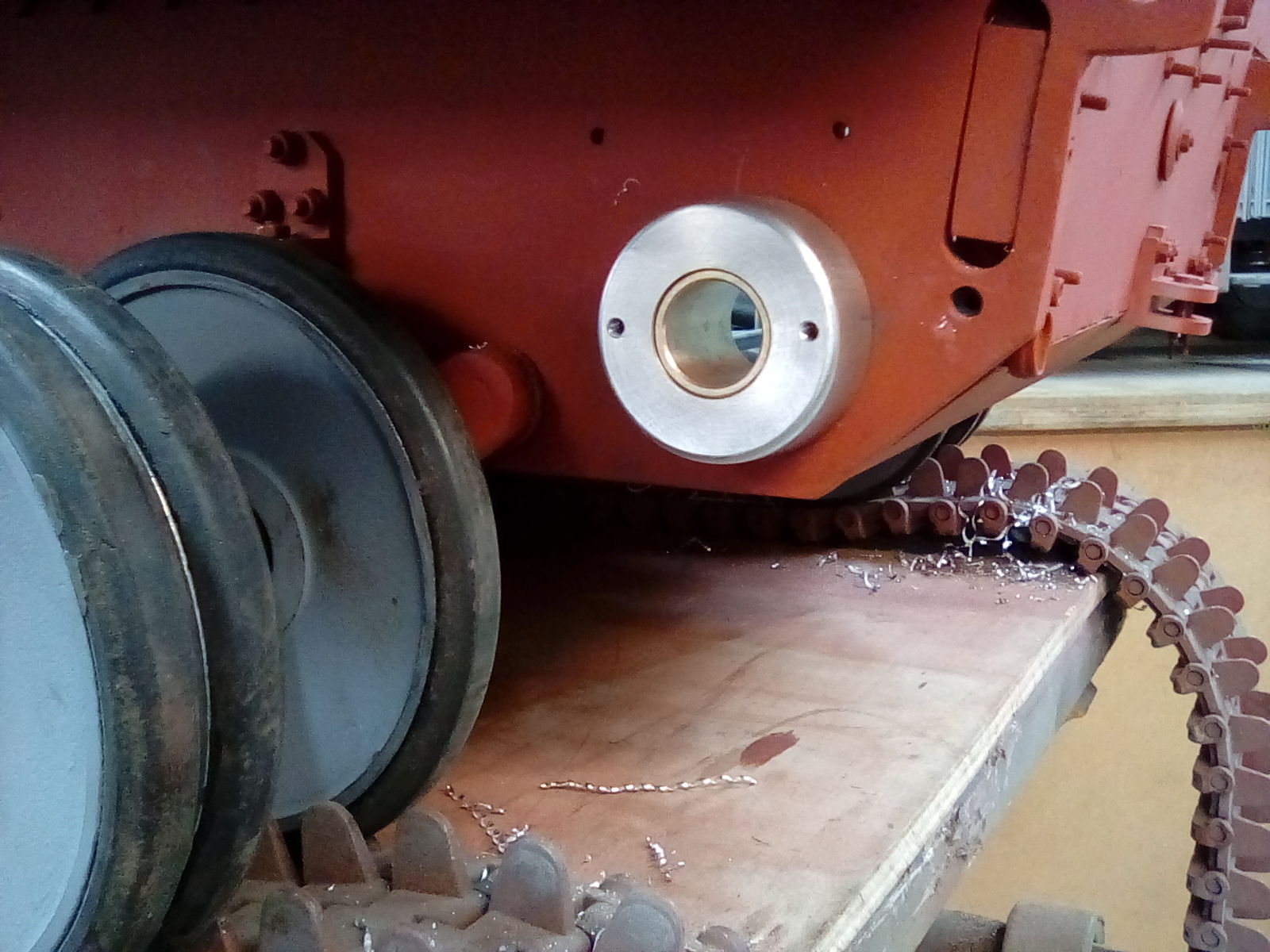

- Turning the outer road wheel axle casting down to give more clearance to the neighbouring road wheel tyre.
-
-
-
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Richard Goodwin
- Posts: 434
- Joined: Fri Mar 15, 2019 6:46 pm
- Has liked: 294 times
- Been liked: 291 times
Re: Tiger 1 range target refurbish ......again.
Phil,
Just thought i'd add your post are never boring and always informative. Keep up the good work!!
Just thought i'd add your post are never boring and always informative. Keep up the good work!!
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Tiger 1 range target refurbish ......again.
Nice new parts have arrived from Armortek, I have decided to make the idler shafts mounts my self.
- Attachments
-

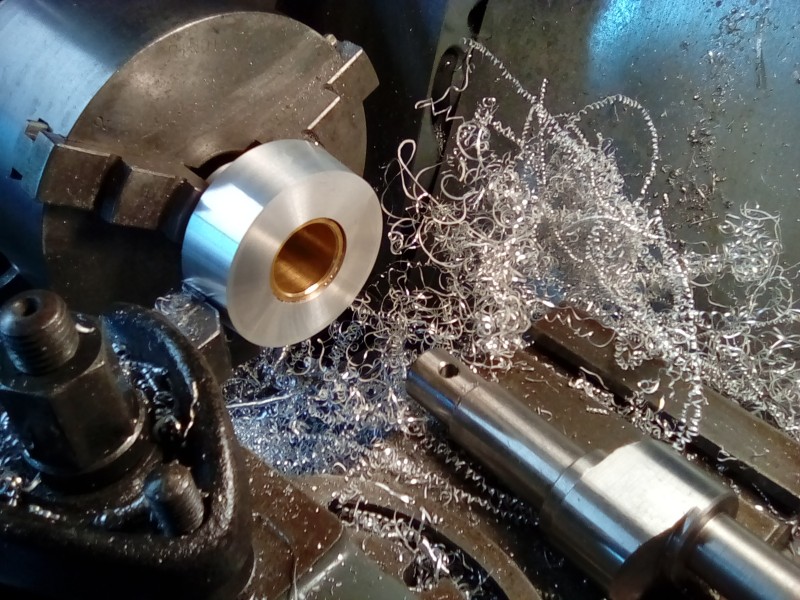

- The reason I have decided to make my own idler mounts........ I can then turn them to the exact size required to fit each side, this being an older kit with a big mix of parts is going to need some bespoke work.
-
- I love those idler shafts.
-
- It turns out that there was only .75mm difference between the right and left idler positions but it needs to be as close as I can get.
-
-
-
- She's now ready for the motion pack and then some running trials.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Tiger 1 range target refurbish ......again.

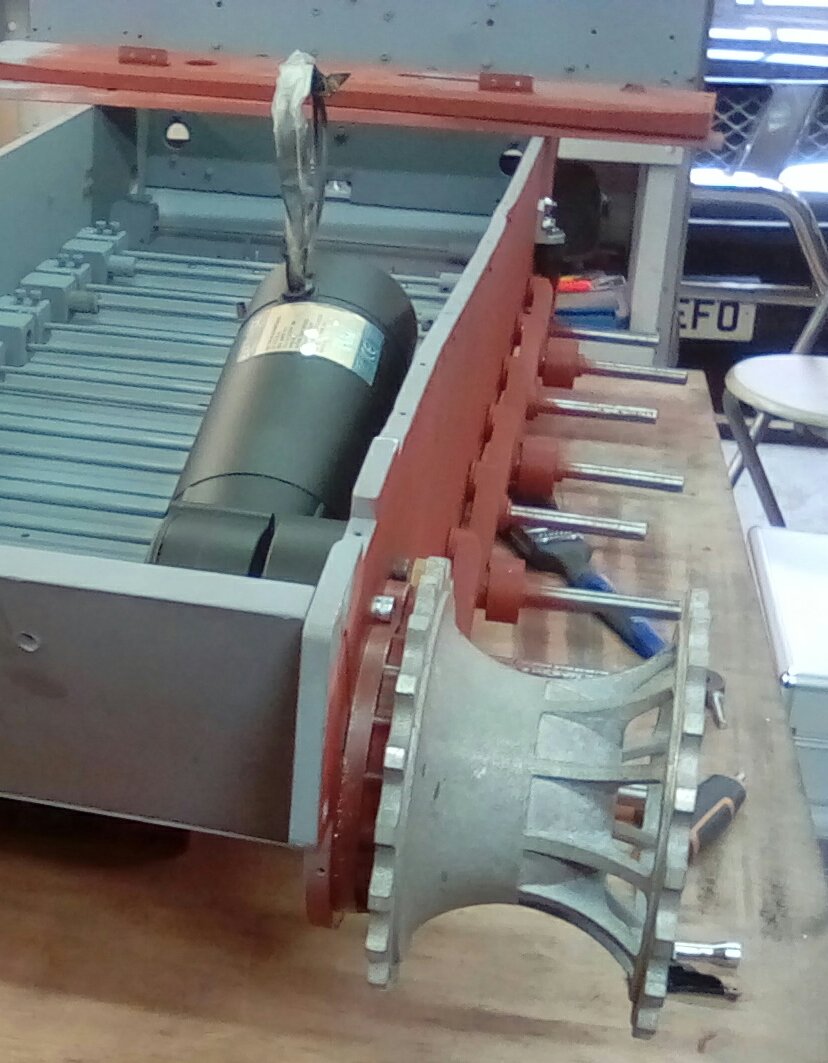

More progress with the ol girl. I've been setting out the motion pack which is a mix of Armortek and my own blend.
Before I commit to a big parts order which Variant should I go for, the bergetiger or the bergepanzer ?
The bergepanzer would require a bespoke heavy duty 40 ton winch which is no problem rather like the Bergepanther and a bespoke winch house?
Before I commit to a big parts order which Variant should I go for, the bergetiger or the bergepanzer ?
The bergepanzer would require a bespoke heavy duty 40 ton winch which is no problem rather like the Bergepanther and a bespoke winch house?
- Attachments
-
-
-
-
-

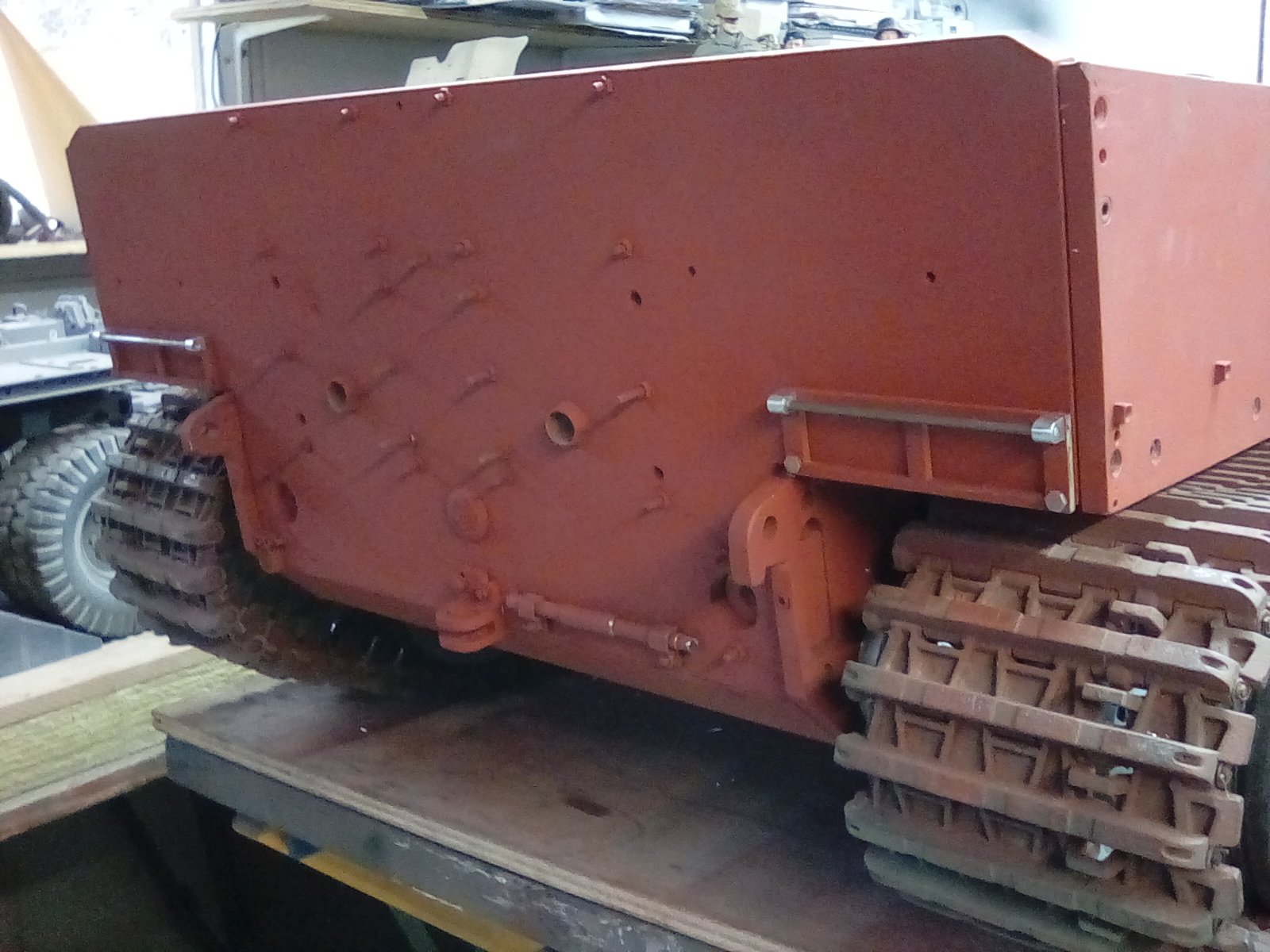

- This one which I would call the bergepanzer?
-
- or this one which I would call the bergetiger?
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Phil Woollard
- Posts: 4279
- Joined: Mon Mar 01, 2010 4:48 pm
- Location: Cornwall
- Has liked: 2280 times
- Been liked: 7192 times
Re: Tiger 1 range target refurbish ......again.
Getting on with the old girl, she now lives.
- Attachments
-

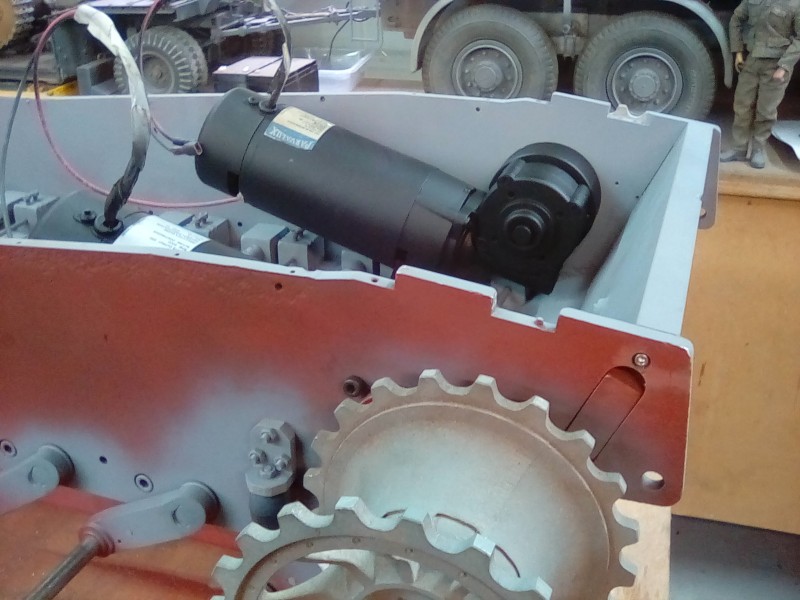

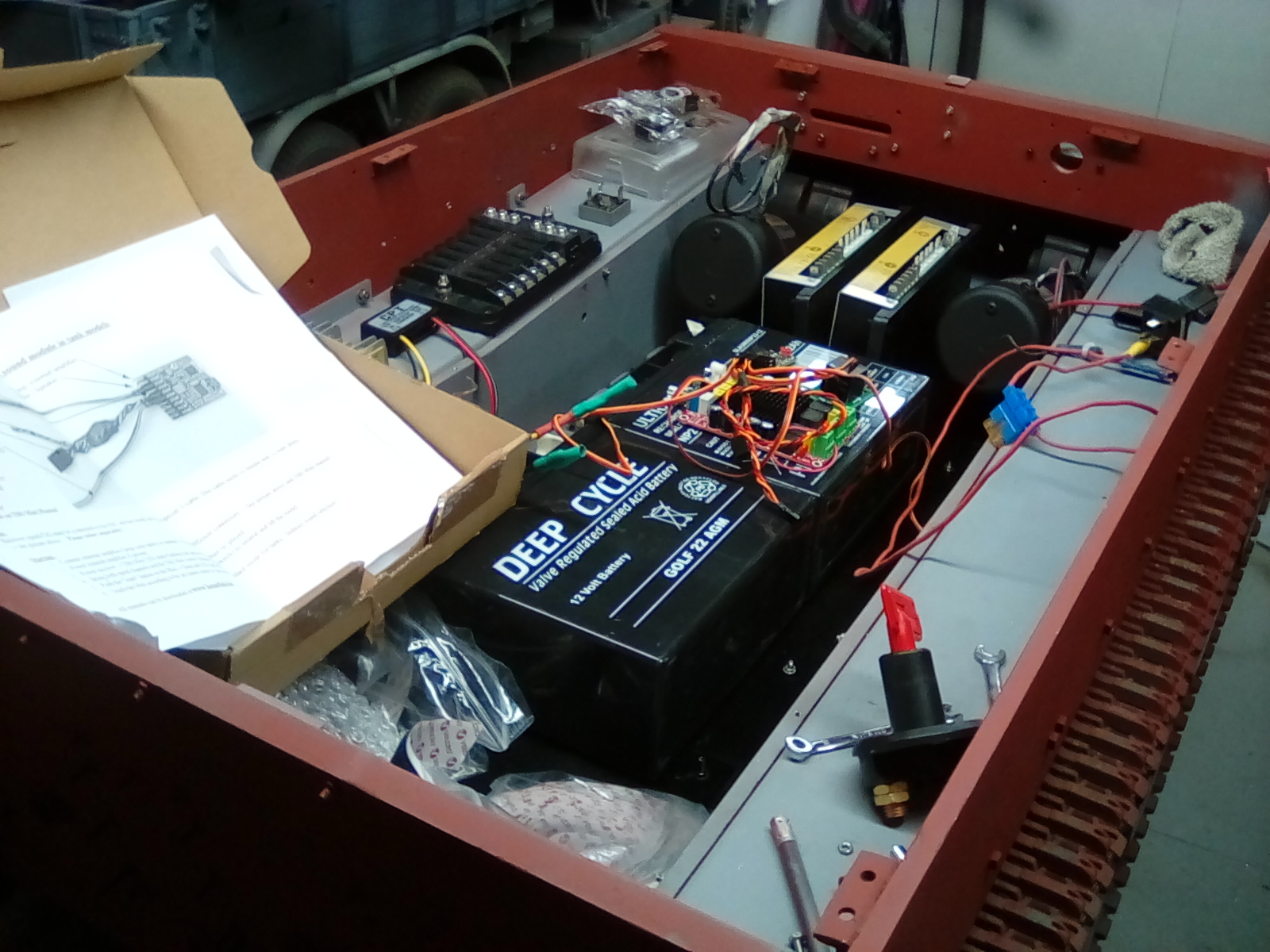

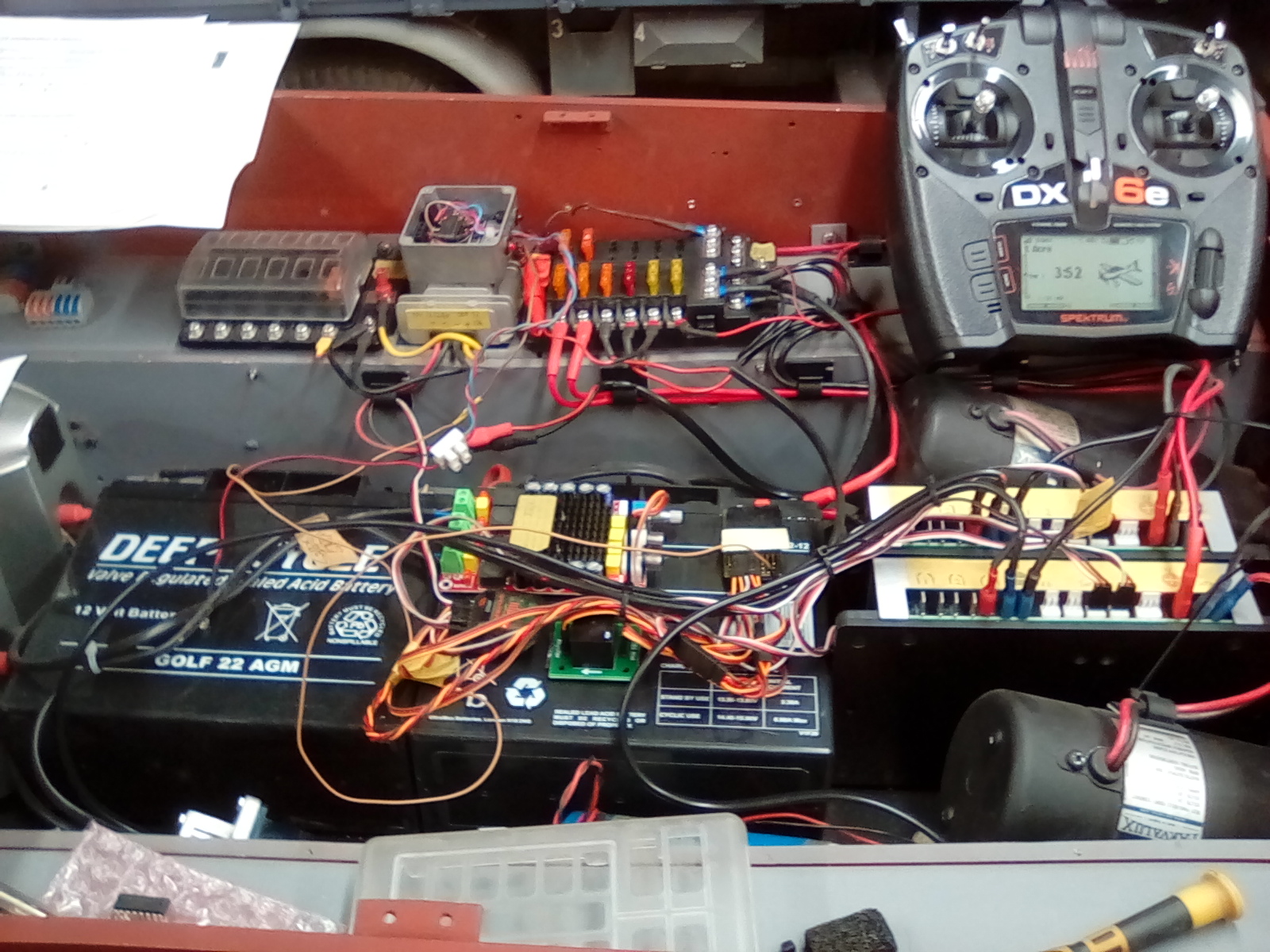

- It's a bit of a bird's nest right now but it's all just about wired.
-

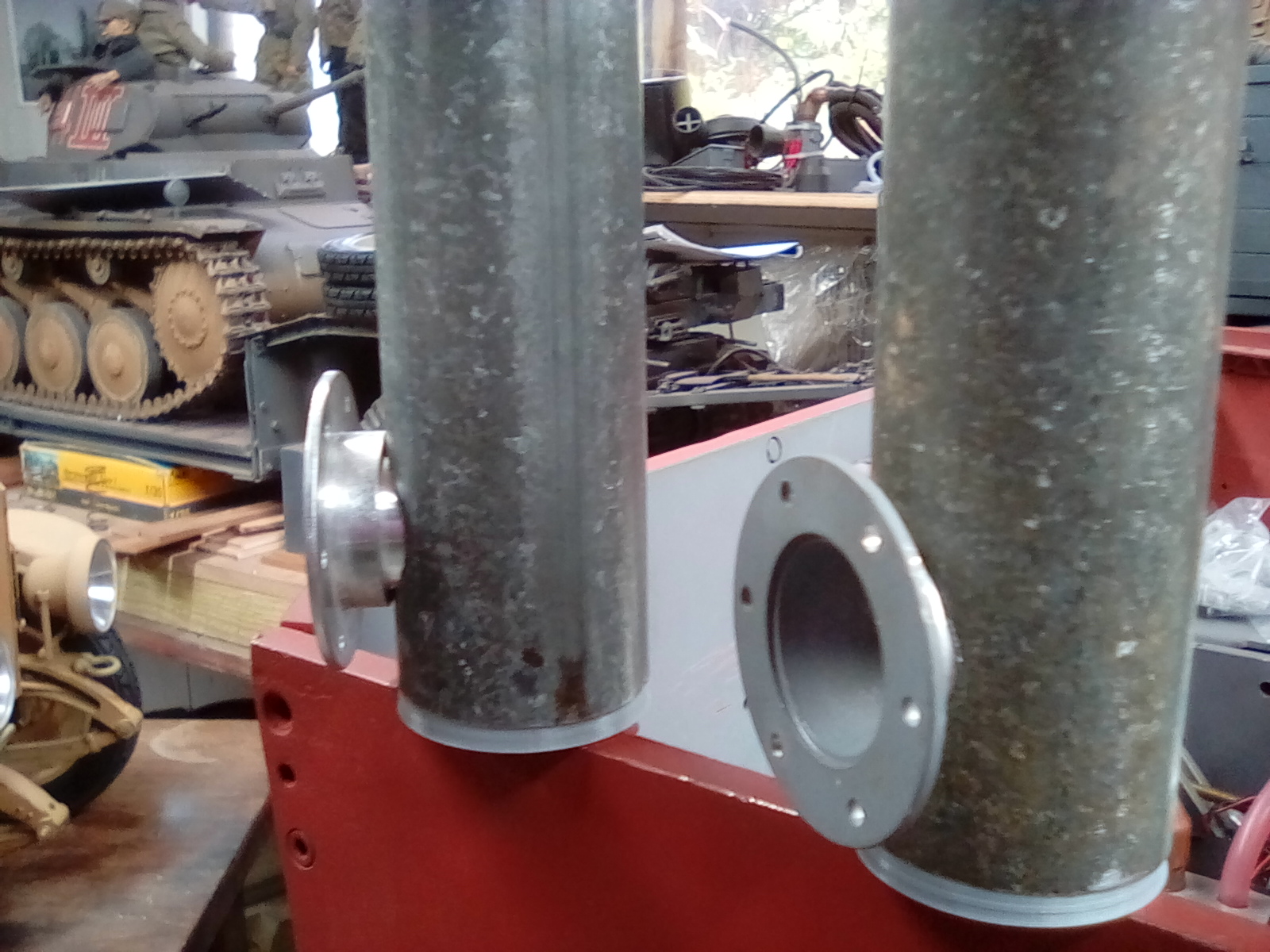

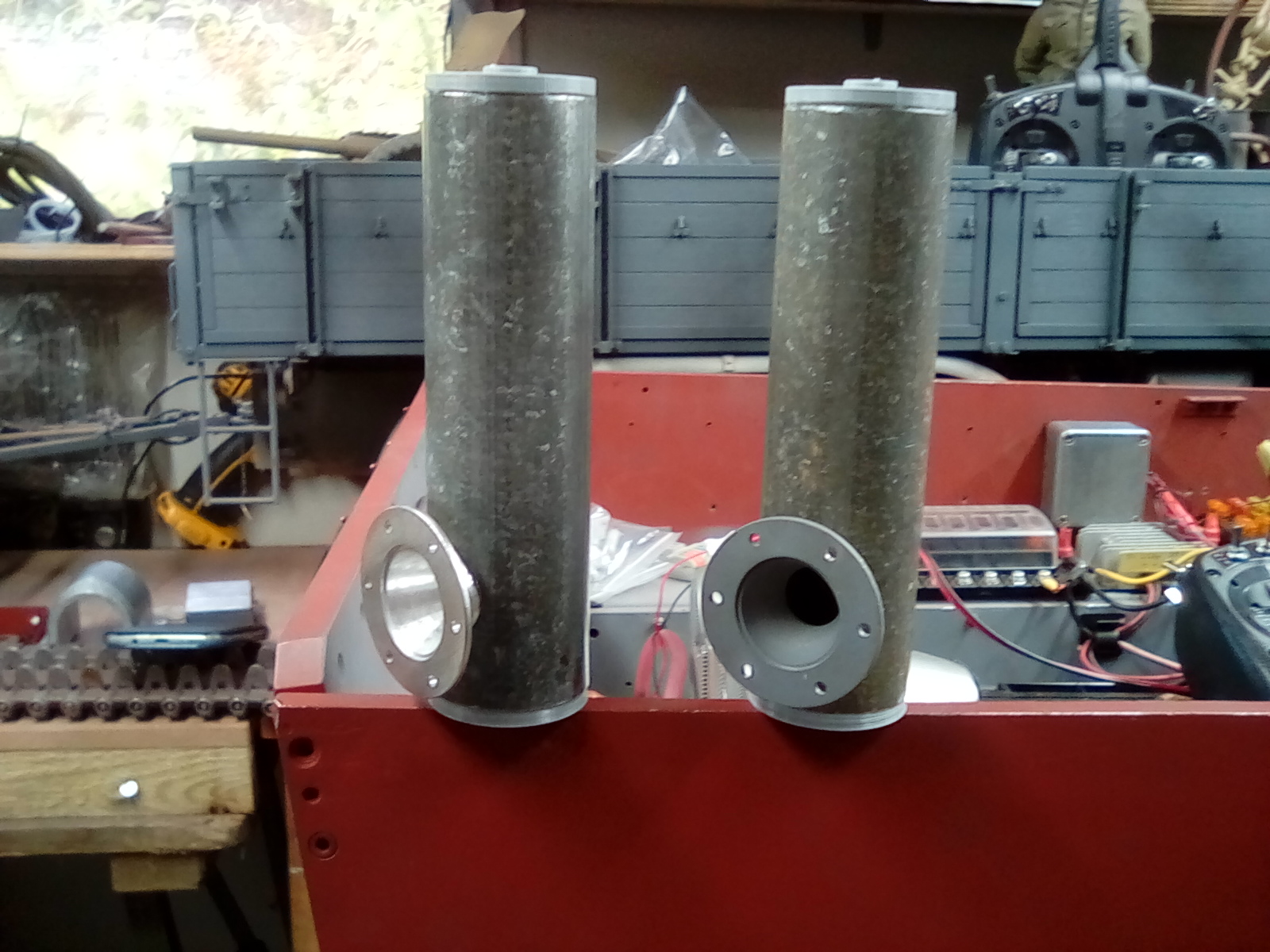

- The smoke stacks scratch built, thank you Vince for the end caps.
-
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
-
Brian Ostlind
- Posts: 1466
- Joined: Sat Oct 28, 2017 6:56 am
- Location: Oregon, USA
- Has liked: 975 times
- Been liked: 2068 times
-
Adrian Harris
- Posts: 5119
- Joined: Thu Jul 12, 2007 10:46 pm
- Location: Berkshire (UK)
- Has liked: 1475 times
- Been liked: 1674 times
Re: Tiger 1 range target refurbish ......again.
There's been a row about the BergePanzer on Facebook recently.
The general consensus was that it was a one off made by s.Pz.Abt 508 to load the 500kg payloads into Borgward remote demolition tanks, and to recover them if they got stuck.
Adrian.
The general consensus was that it was a one off made by s.Pz.Abt 508 to load the 500kg payloads into Borgward remote demolition tanks, and to recover them if they got stuck.
Adrian.
Contact me at sales@armortekaddict.uk for details of my smoker fan control module
