John's Late Tiger 1

[phil fitzpatrick]

Very nice John,
Your Radio parts are going to be great parts.
Cheers
Phil

[John Fitzsimons]

They will not be as perfect as your panzerwerk versions but I will do my best with items in the bits box. They are quite small but are based on the dimensions in the Trojca book. They should provide some added interest through the hatches. No special parts used. I have found most items in my bits box.

[John Fitzsimons]

Radio units complete.

Materials used. Sheet of plastic card. Some small cap head fasteners for nobs. Small rivets and screws.

[John Fitzsimons]

Next, the racks to hold the radio gear. Made from leftover brass scraps.

[John Fitzsimons]

Started work on my engine bay firewall. Lots more to add here.







Forward deck support. Items to add here also.

[phil fitzpatrick]

Hi John
Your Tiger Interior is coming on great,you have done a good job on
your radios they look real.
Cheers
Phil

[John Fitzsimons]

Thanks Phil, the radios are made from scraps. Cost nothing only time.

I have plenty of space for the hull ammo bins

I have fitted a smoker. Not overly impressed with the amount of smoke produced. I wonder if Adrians unit will work with my smoker.

[Paul Morris]

Hi John.

Got to agree with Phil, I thought you had made or bought castings of the radio's very well done must pay more attention ha ha as for smoke . . . maybe your fire wall is working too well? only kidding all looks great.
Cheers Paul.

[Adrian Harris]

Hi John.

> I wonder if Adrians unit will work with my smoker.

It looks like one of the older style smokers, so my unit should be suitable.

> Not overly impressed with the amount of smoke produced.

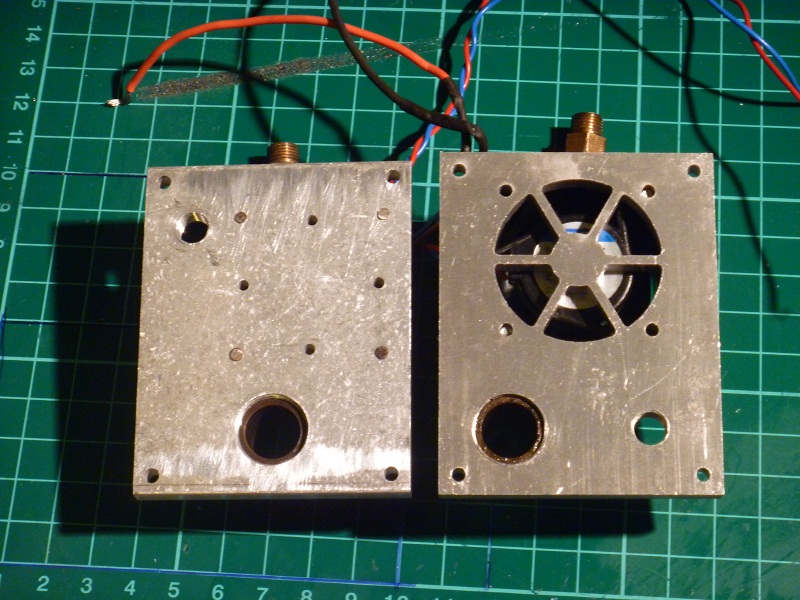

But it won't increase the smoke output. To do that, you need to increase the airflow through the lid. Here's a new lid I had waterjet cut:

Adrian.

[John Fitzsimons]

Paul,

I think smoke output might be normal but smoke comes to the top of the exhaust stack then is deflected downwards by the exhaust top cover. There are just 4 small holes in the top plate of the smoker through which the fan can pass air and these are partially blocked by the fan spacer. Would it be better to make bigger or additional holes. Looking at Adrian's videos his smoker is a bit more vigorous. Maybe better brand of baby oil.

The radios are based on dimensions provided by tiger 1 technical and operational history, volume 11 by Trojca. Lots of info there on all the radio equipment. Made from plastic card some cap heads, washers and rivets. The full length floor is made from 3mm aluminium sheet. Gives plenty of space for electrics. I have left access hole for suspension adjustment/inspection. The front roof support and firewall slide out and floor can be easily removed.

[John Fitzsimons]

Thanks Adrian, I might cut out a new top and experiment with vents.
Keep your unit in mind. I have a couple of these smokers.
