Hello together

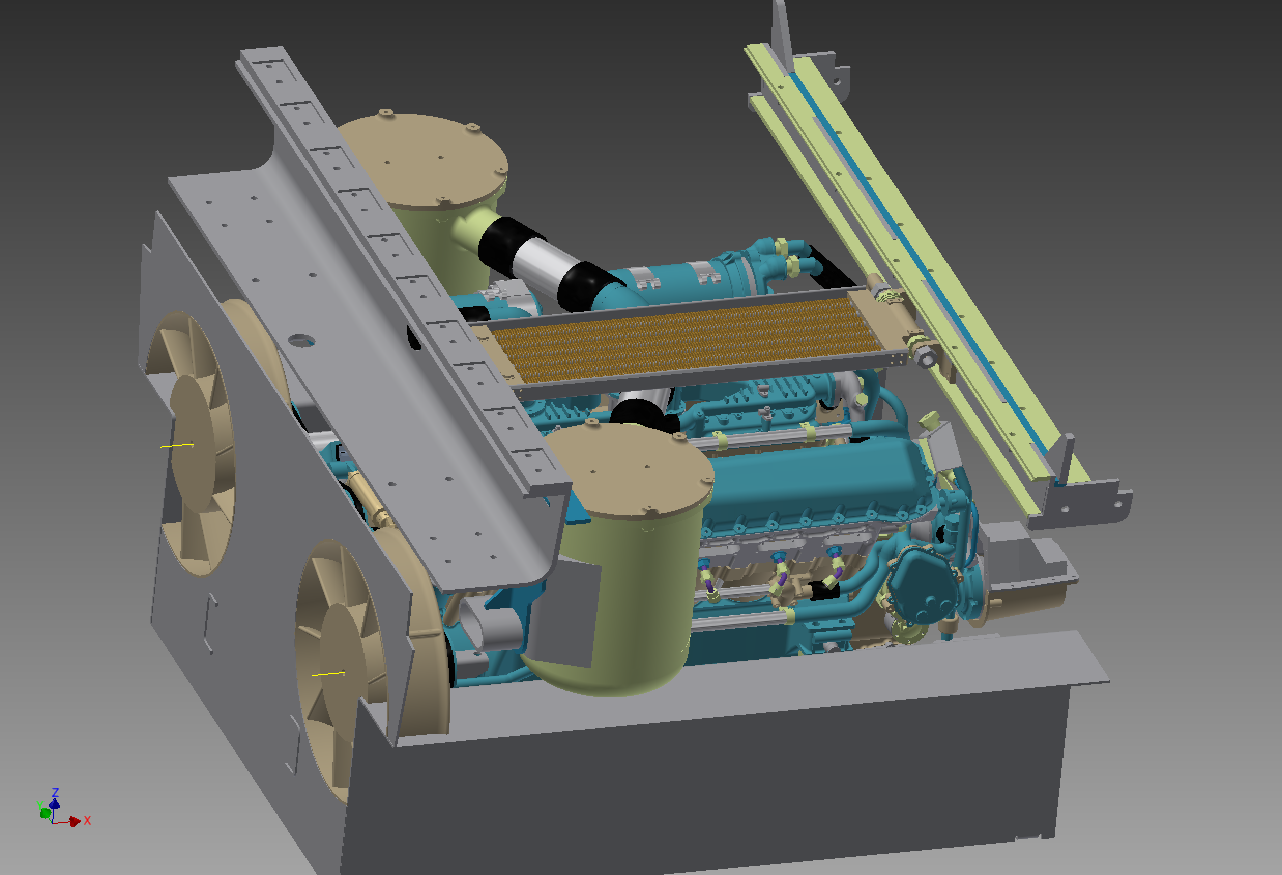

Here is my oil cooler design. The radiator fins are 804 brass washers (diameter 6 mm, thickness 0,5 mm).
I see no other choice.
All the best
Frank

Frank, that's a lot of work. Have you considered using threaded rod? You could enhance the depth of the threads on a lathe. I would think that using washers would present the problem of making sure each was true and evenly spaced. Any irregularity would look very obvious. Either way, your model is superb. Congratulations.

Or maybe acme or square profile threaded rod.

Vince

Like this:

As acme threaded rod of 6mm diameter (or 0.25 inches) might be hard to get, another idea would be to 3D print short sections of the cooler with a hole in the middle.
Glue them together with a metal rod in the middle hole for support.

Vince

Hello
Many thanks for you answers. A threaded rod is a little bit to rough for me. When I see pitures fro the original I believe that the fins are max. 1mm thick => in 1/6 = 0,16 mm.
So I will try the solution with the washers.
Regards
Frank

Hello together

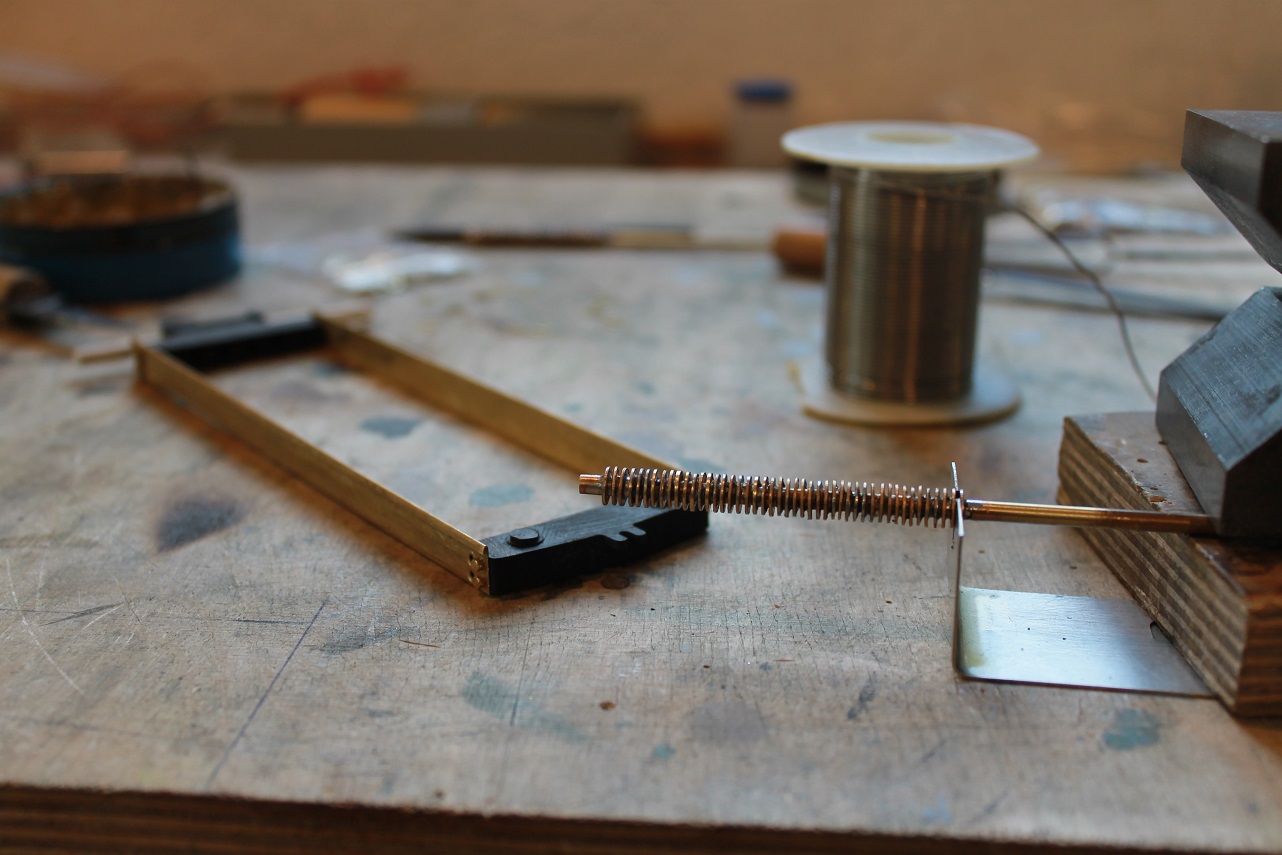

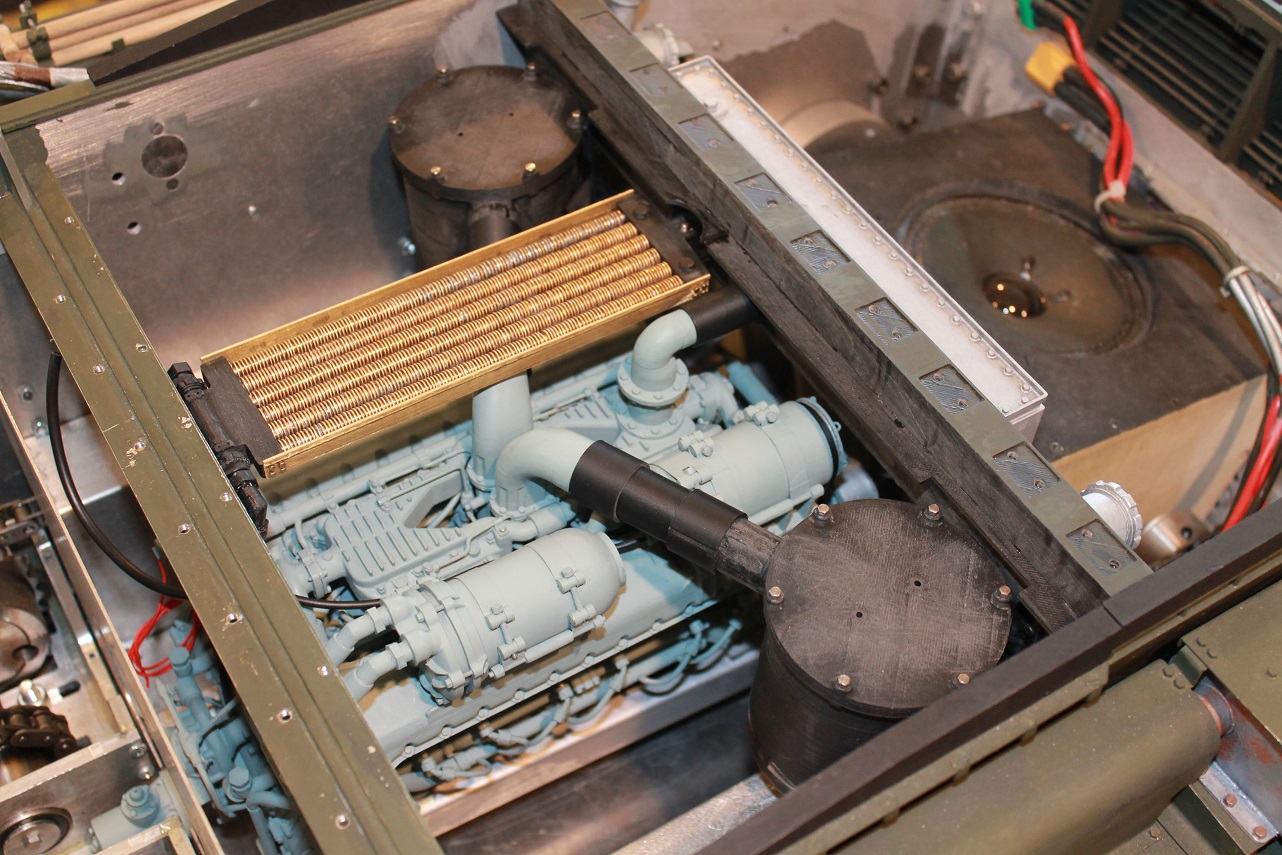

Now the oil cooler is ready. I hope you like it.
The soldering work was for someone how killed his hole family.
Regards
Frank

Hello Frank. If you enjoyed making it so much, would you care to do one for me in your spare time? No, oh well….. It looks superb, well done. What next?

Excellent work, Great remedy for the Radiator, very tedious in the making, regards simon manning.

Hello Frank
Yes, that is truly a work of art and skill, and we can all see that you do enjoy your craft.

Thank you for sharing
Liam

Hello together
Thanks for your comments.
Hello Stephen
Sascha have maybe a solution for the radiators wiht a resin printer.
The next item are the exauster pipes. I believe than is the engine mostly ready, except the compartment and the aux. engine.
Today the pipes from the scavenge pump to the oil cooler.
Regards
Frank

Hello together

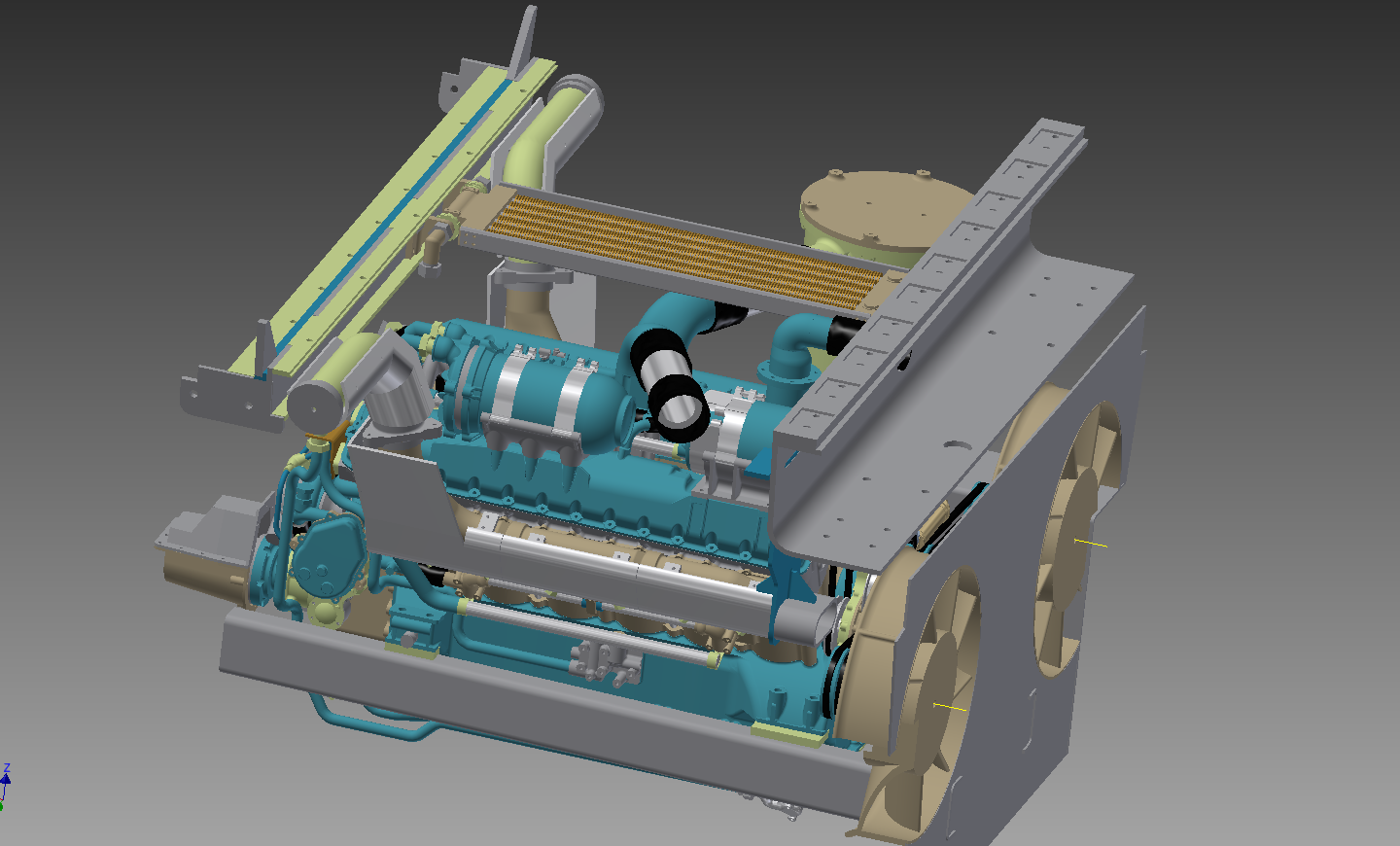

To day my exhauster design solution. Now it is printing time.
Regards
Frank

Hello together

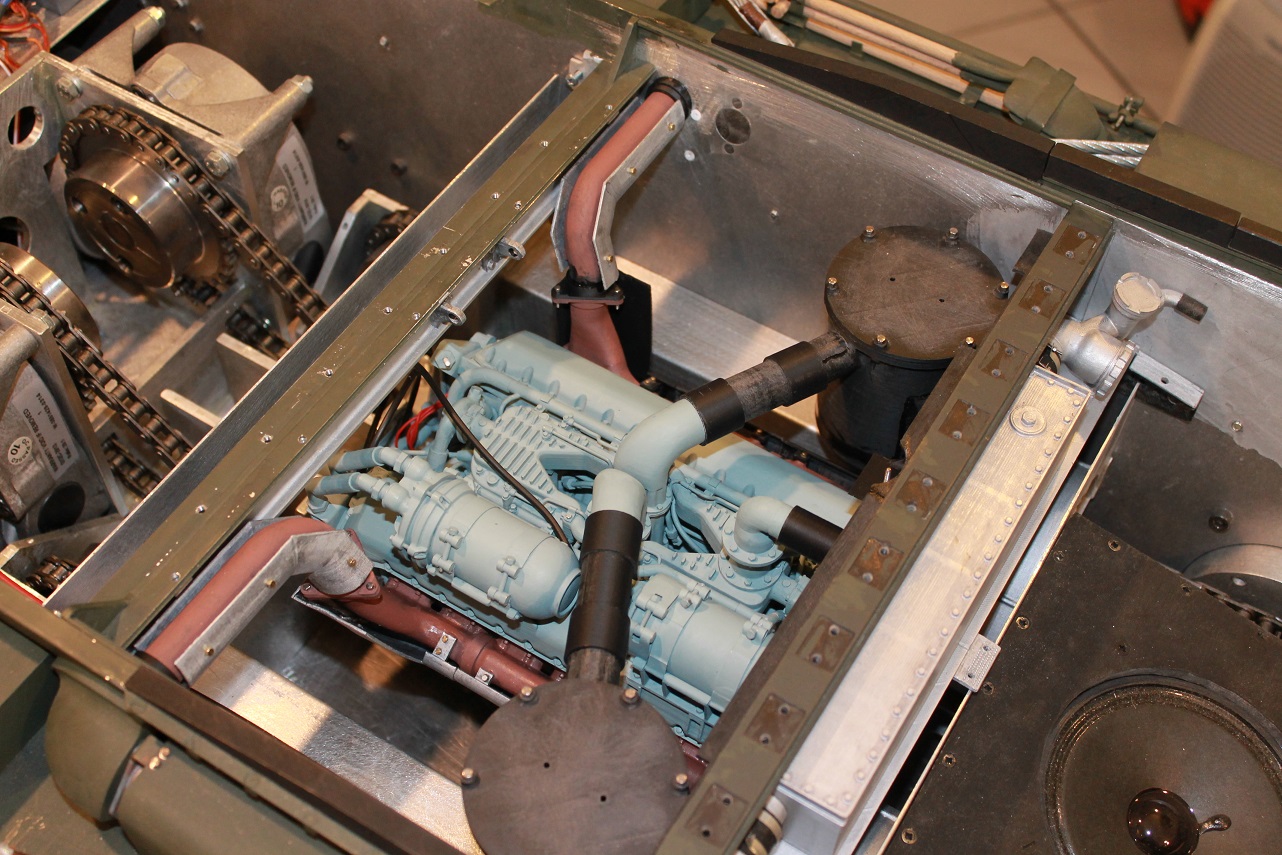

A little update with the exhauster pipes and the heat shields. The next parts are the oil pipes between the oil tank and the pressure pump.

Regards
Frank

Hello together
Here you can see, how I make my rivets. I need only a syringe with withe wood glue. For me the result is not to bad.

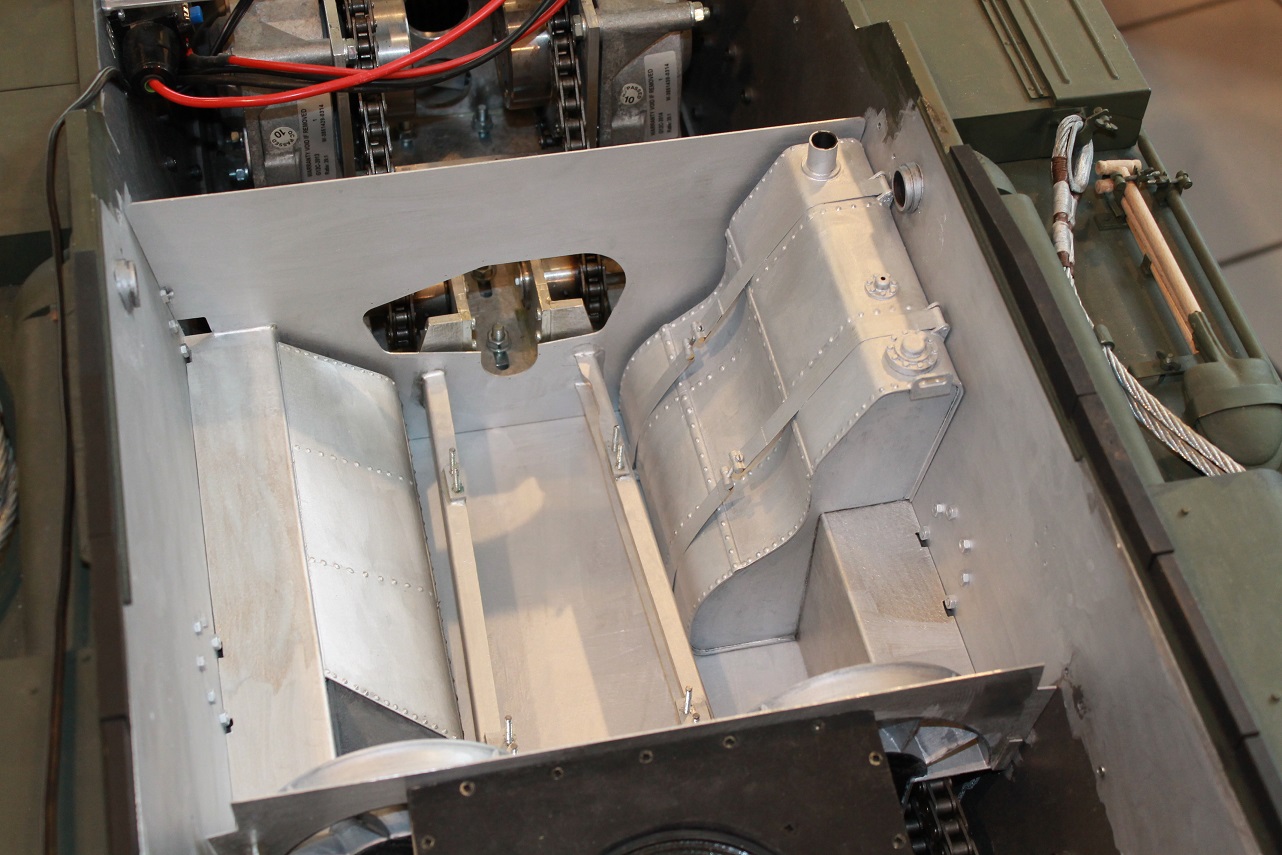

It was not easy to build both fule tanks - it needs many rework.
Regards
Frank

Hello together

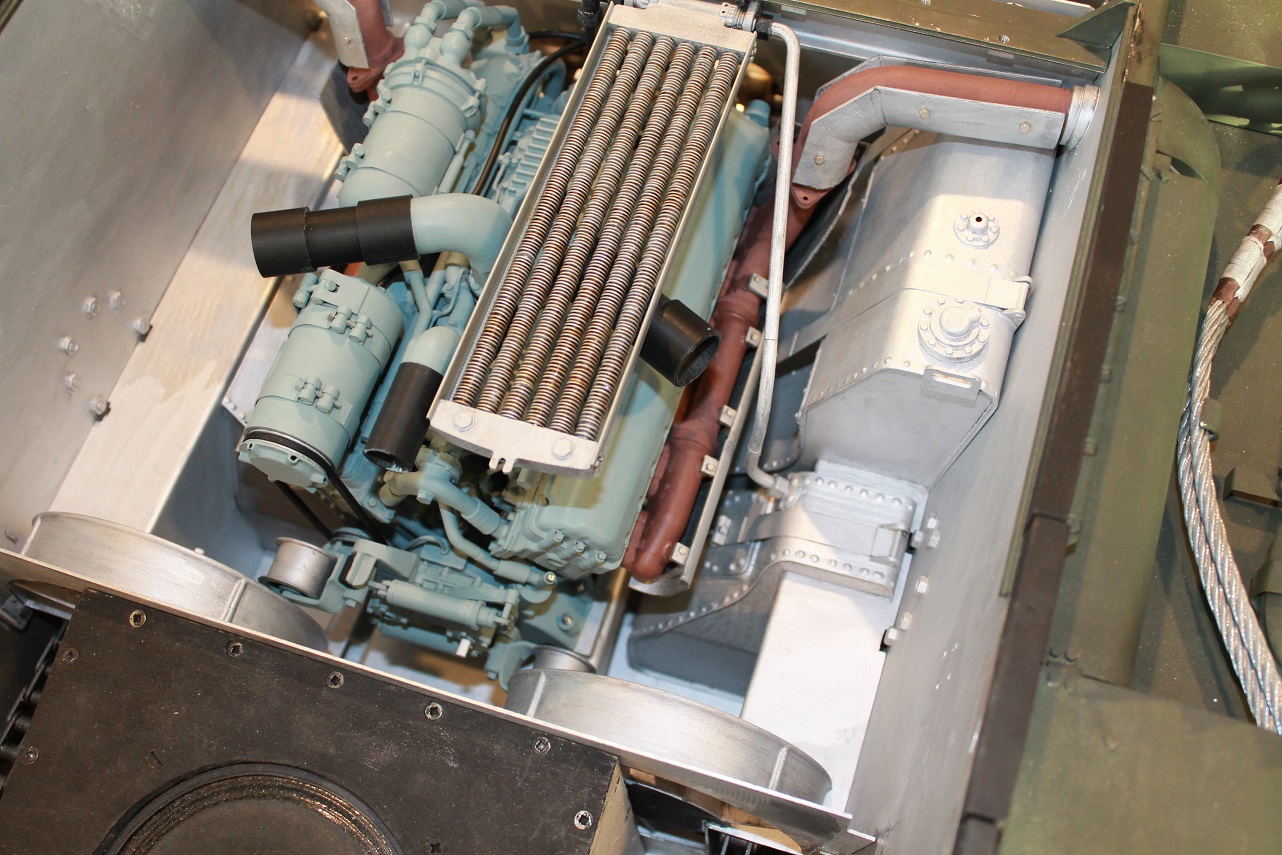

Now the oil tank it is at its place.
Regards
