David's carrier build.

Forum for discussion relating to the Universal Carrier
Post Reply
Dave Green
Posts: 47
Joined: Sun May 12, 2019 9:33 am
Location: Stourbridge
Has liked: 88 times
Been liked: 62 times

Re: David's carrier build.

Post by Dave Green »

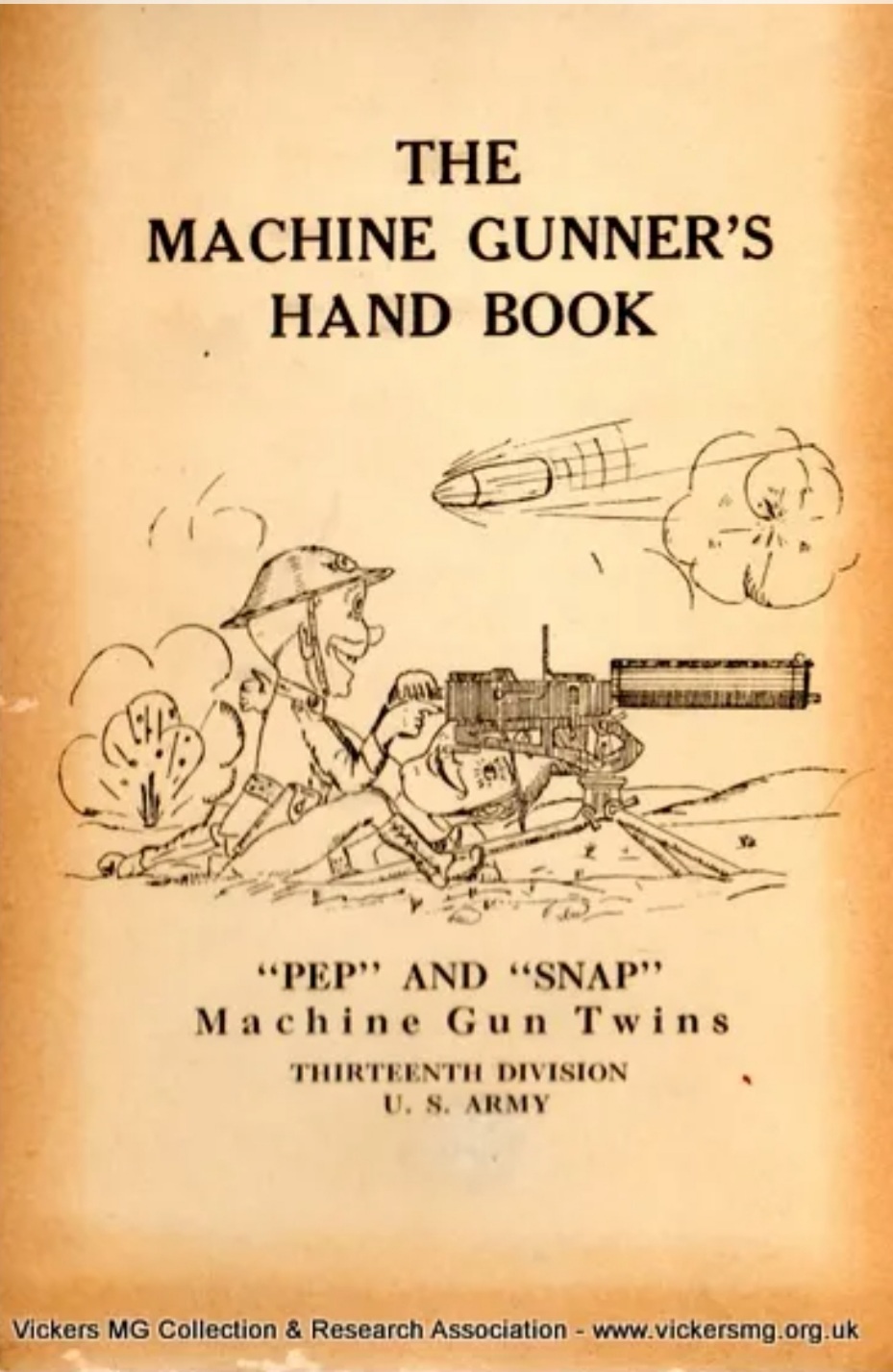

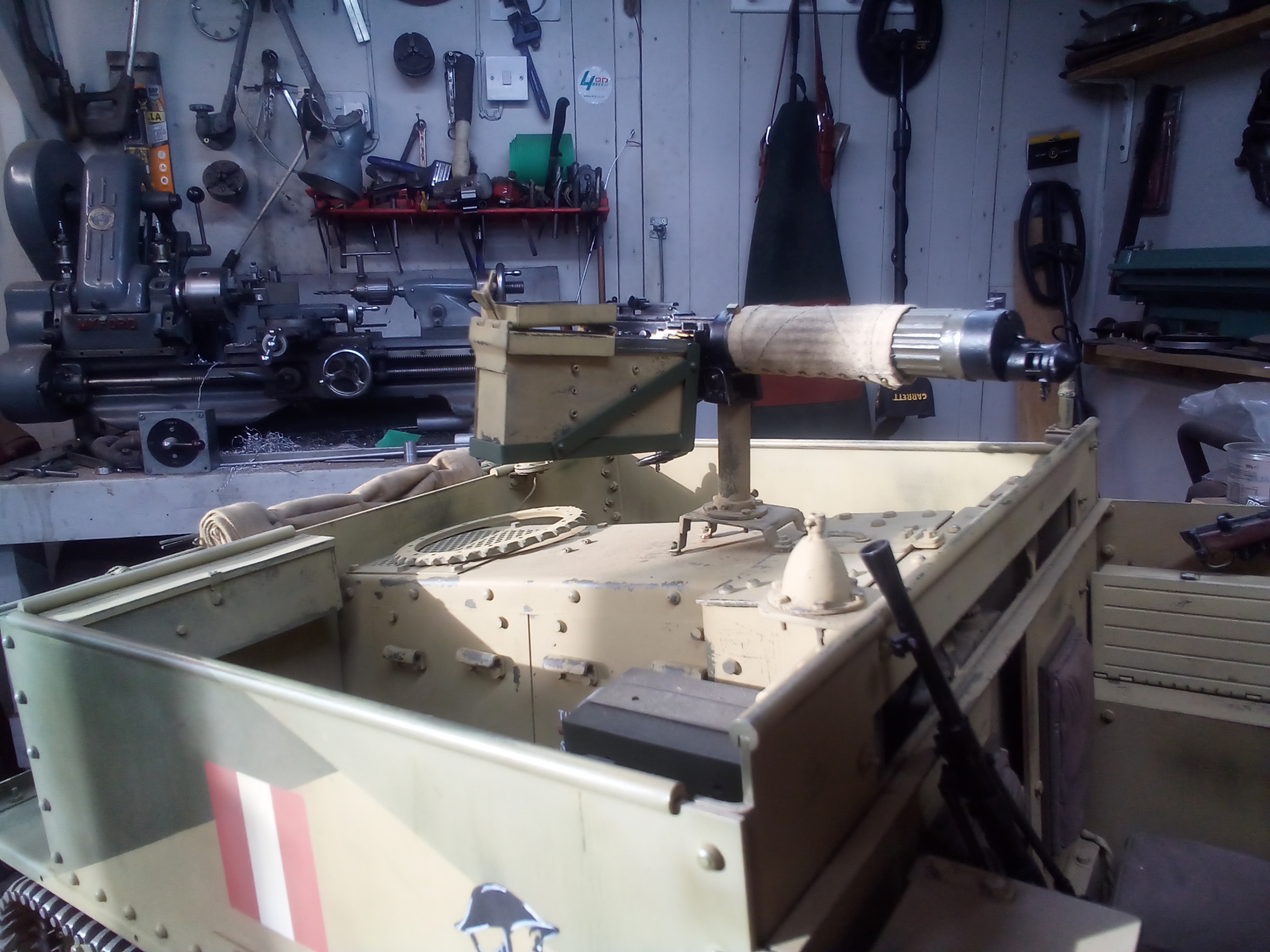

The graffiti guy came from the US 1918 Machine Gunners handbook. As there's a vickers on top it seemed a reasonable place to go.

The stencil for it was created by Paul Anderson of Noostadirect. I'm very pleased with his work and how Phil has applied it.
Attachments
Top
Phil Woollard
Posts: 4281
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2282 times
Been liked: 7196 times

Re: David's carrier build.

Post by Phil Woollard »

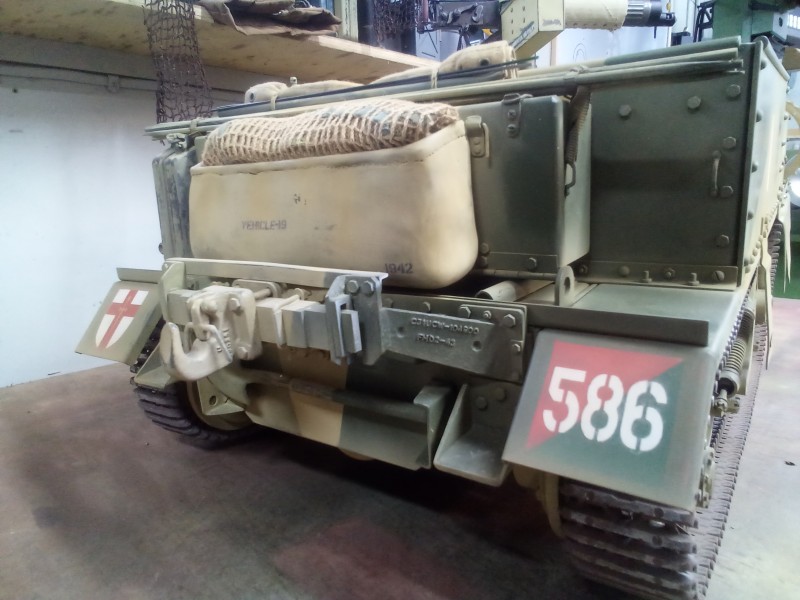

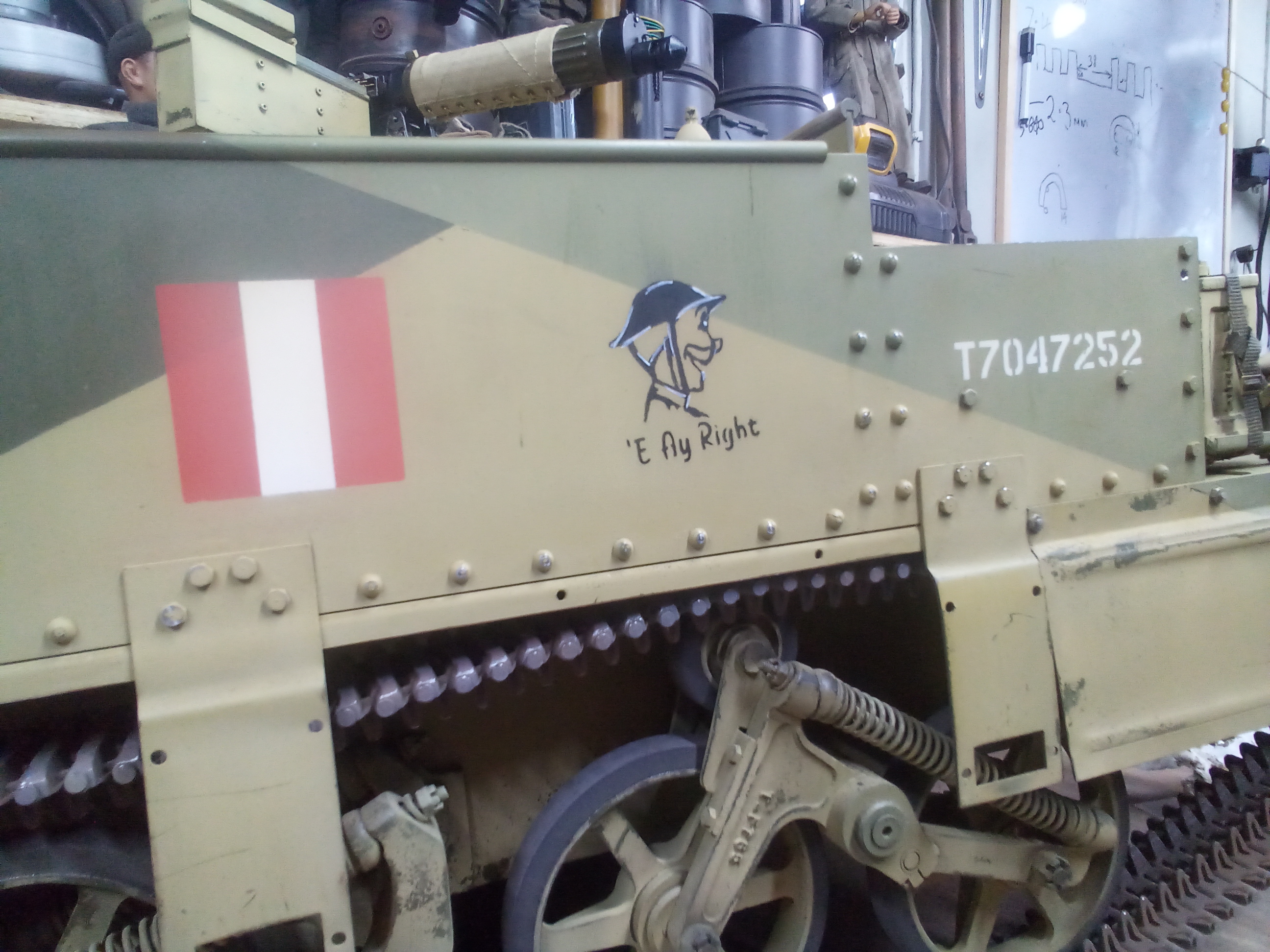

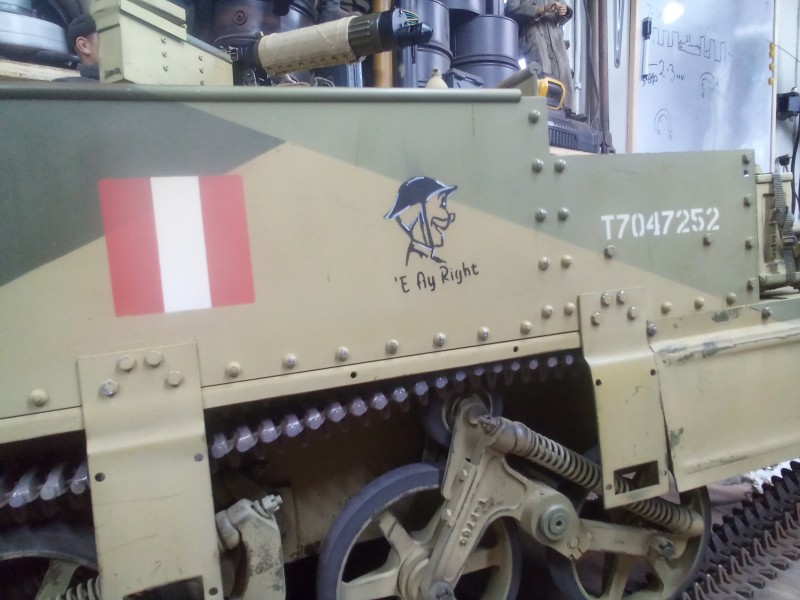

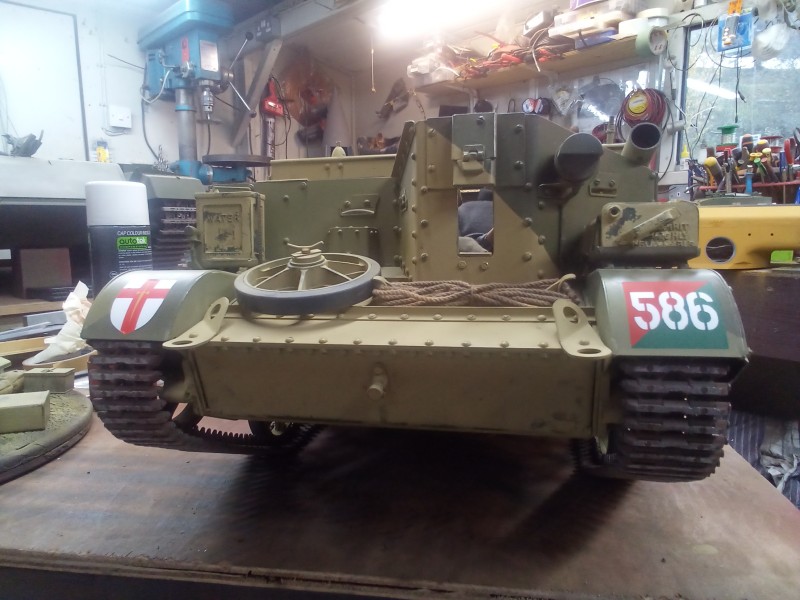

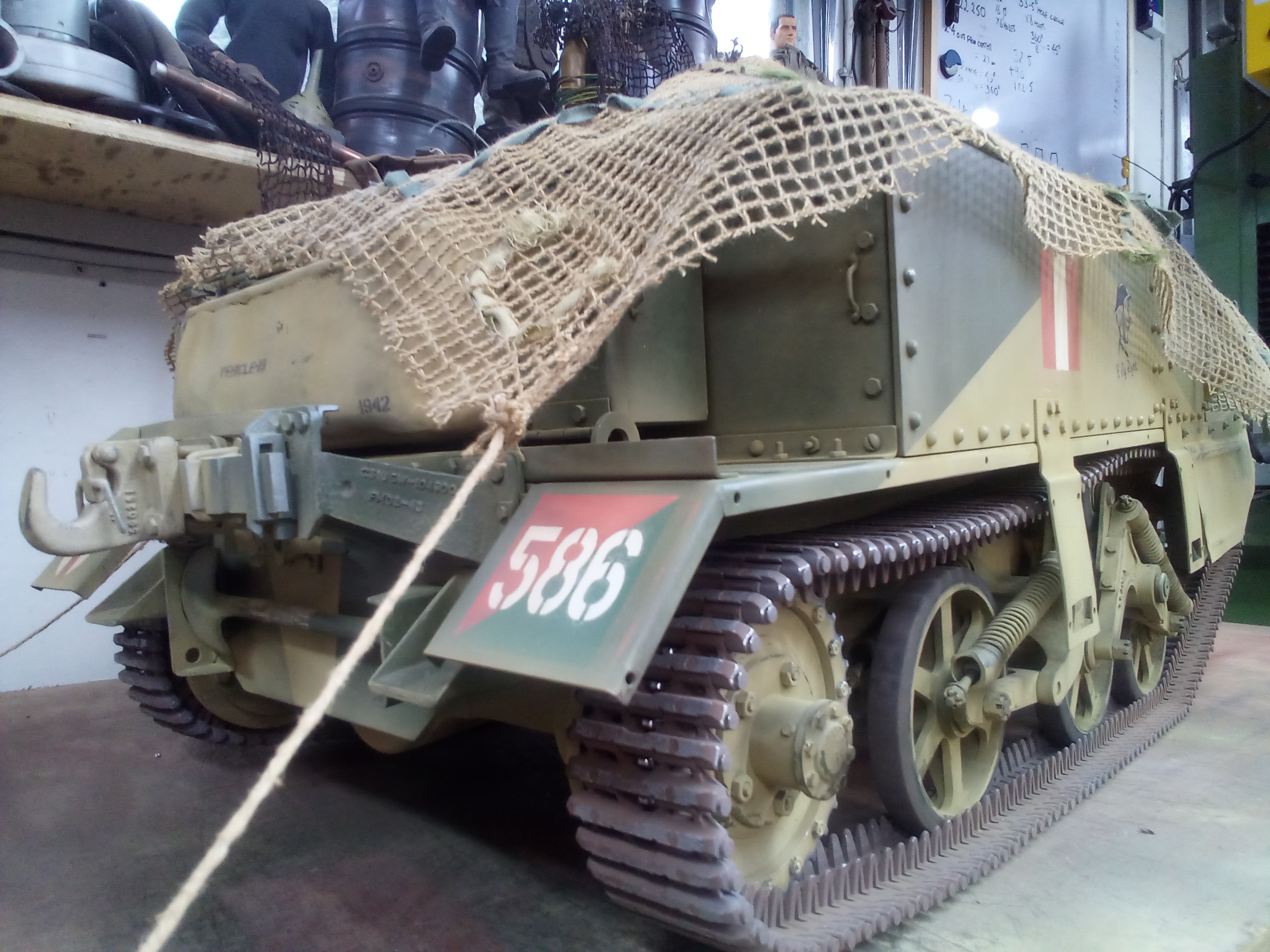

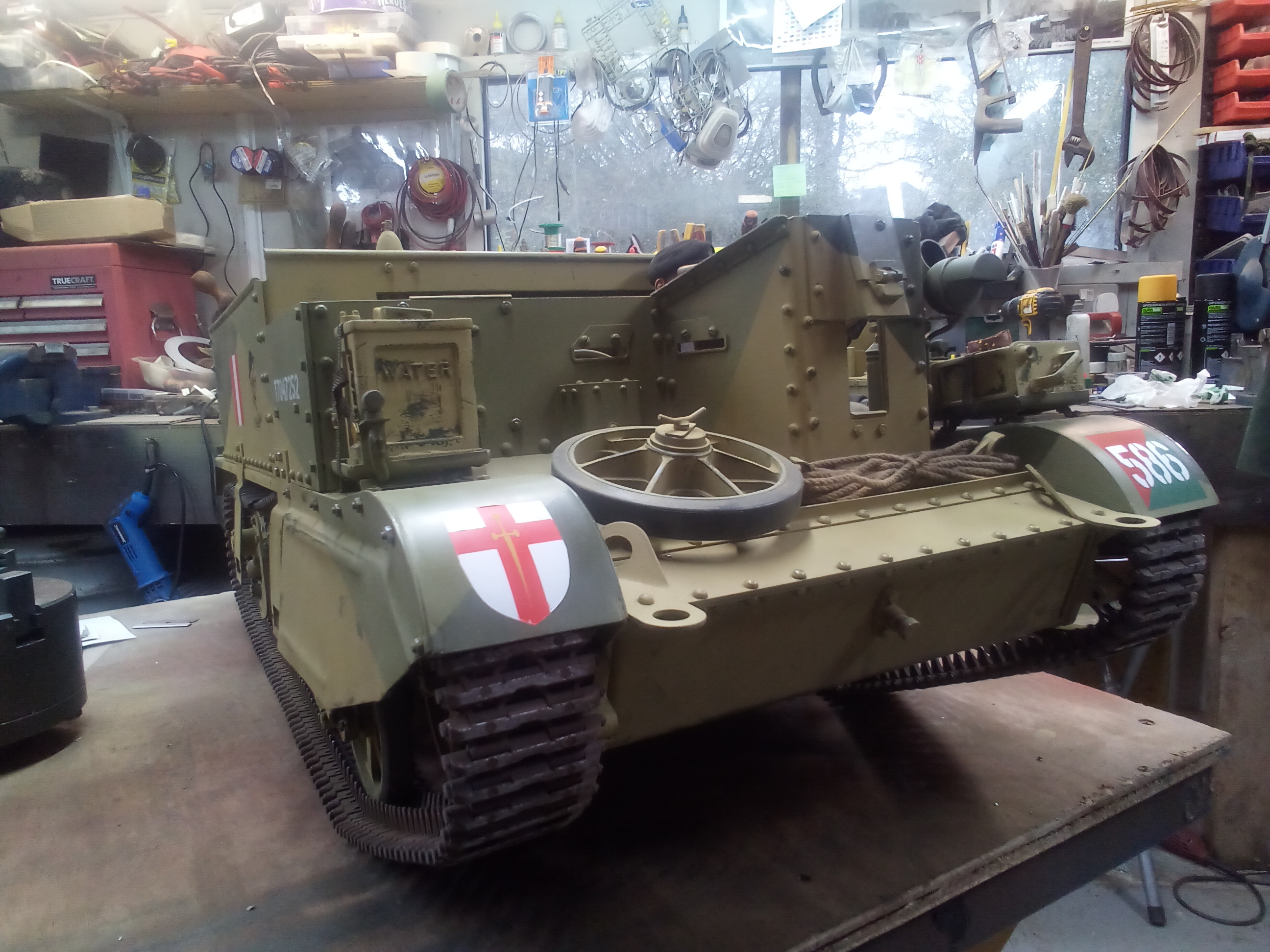

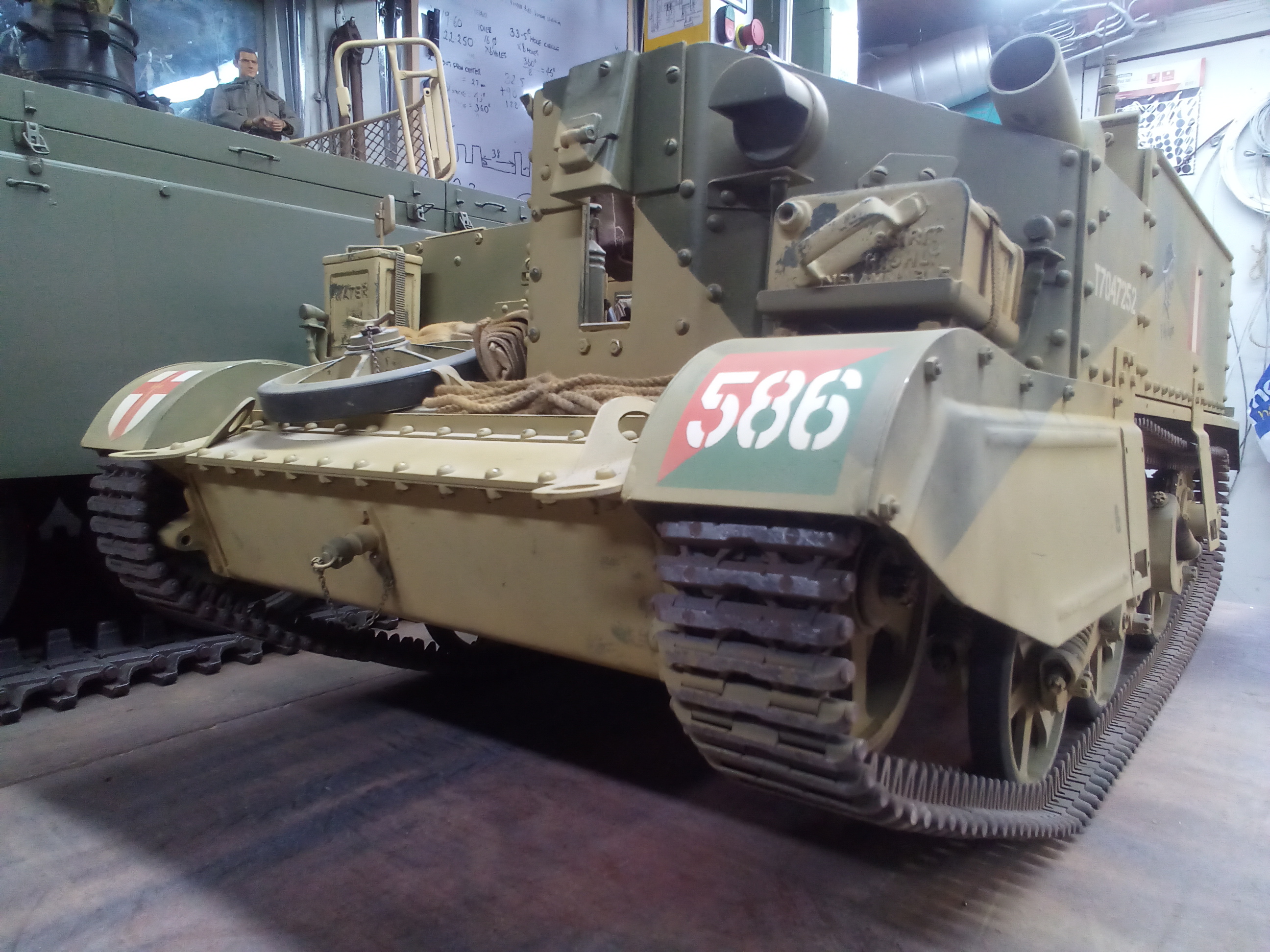

The front markings all done and the camouflage net goes off for a woman's touch.
Attachments
Rope not chain
Rope not chain
I'm not keen on these rifles as the wood grain effect is way over the top but I will see what I can do
I'm not keen on these rifles as the wood grain effect is way over the top but I will see what I can do

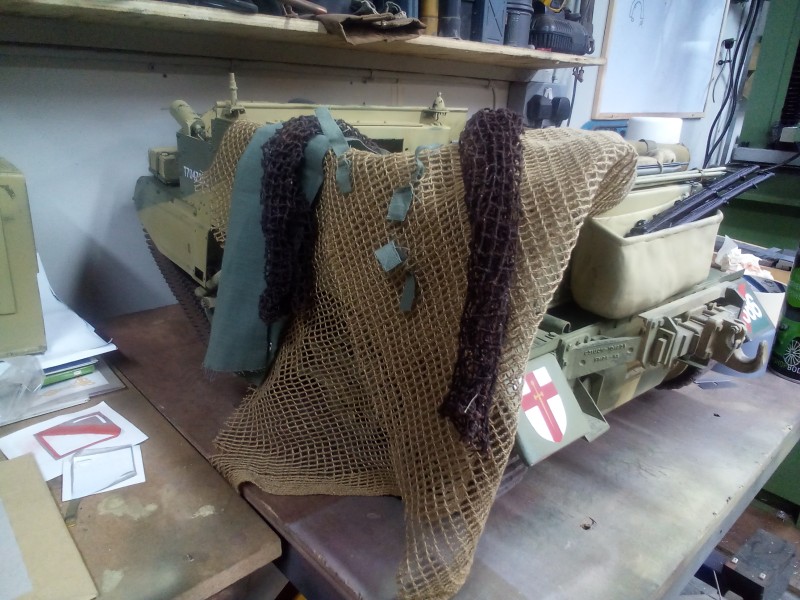

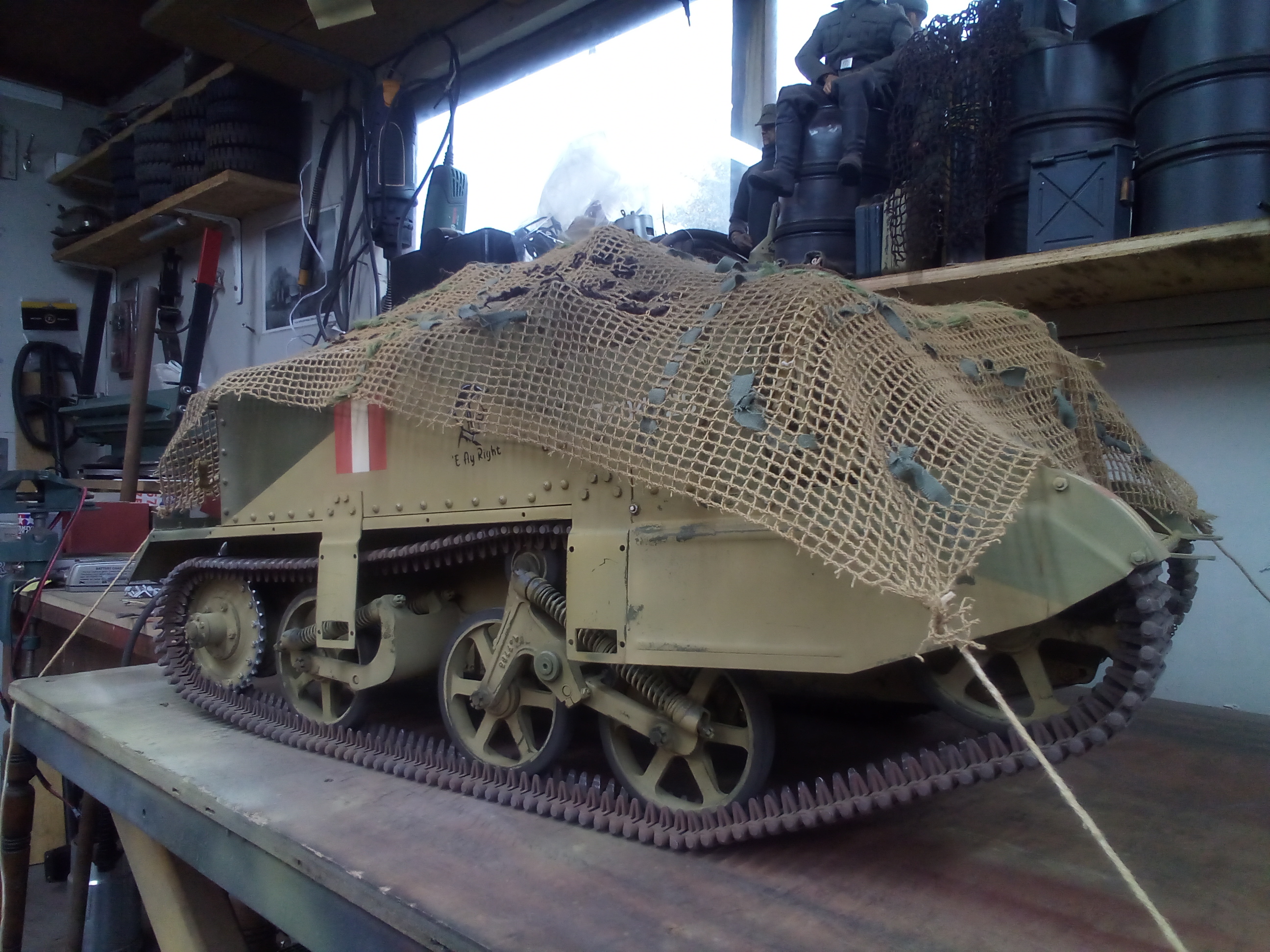

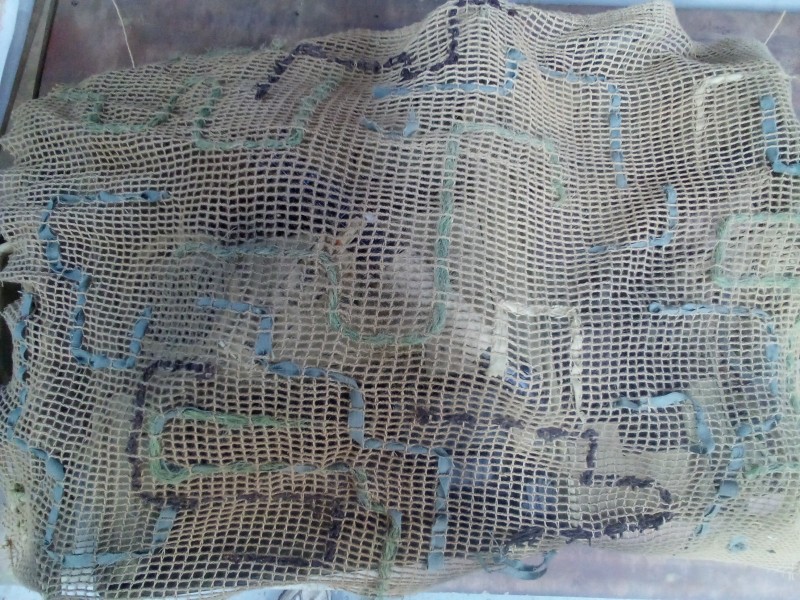

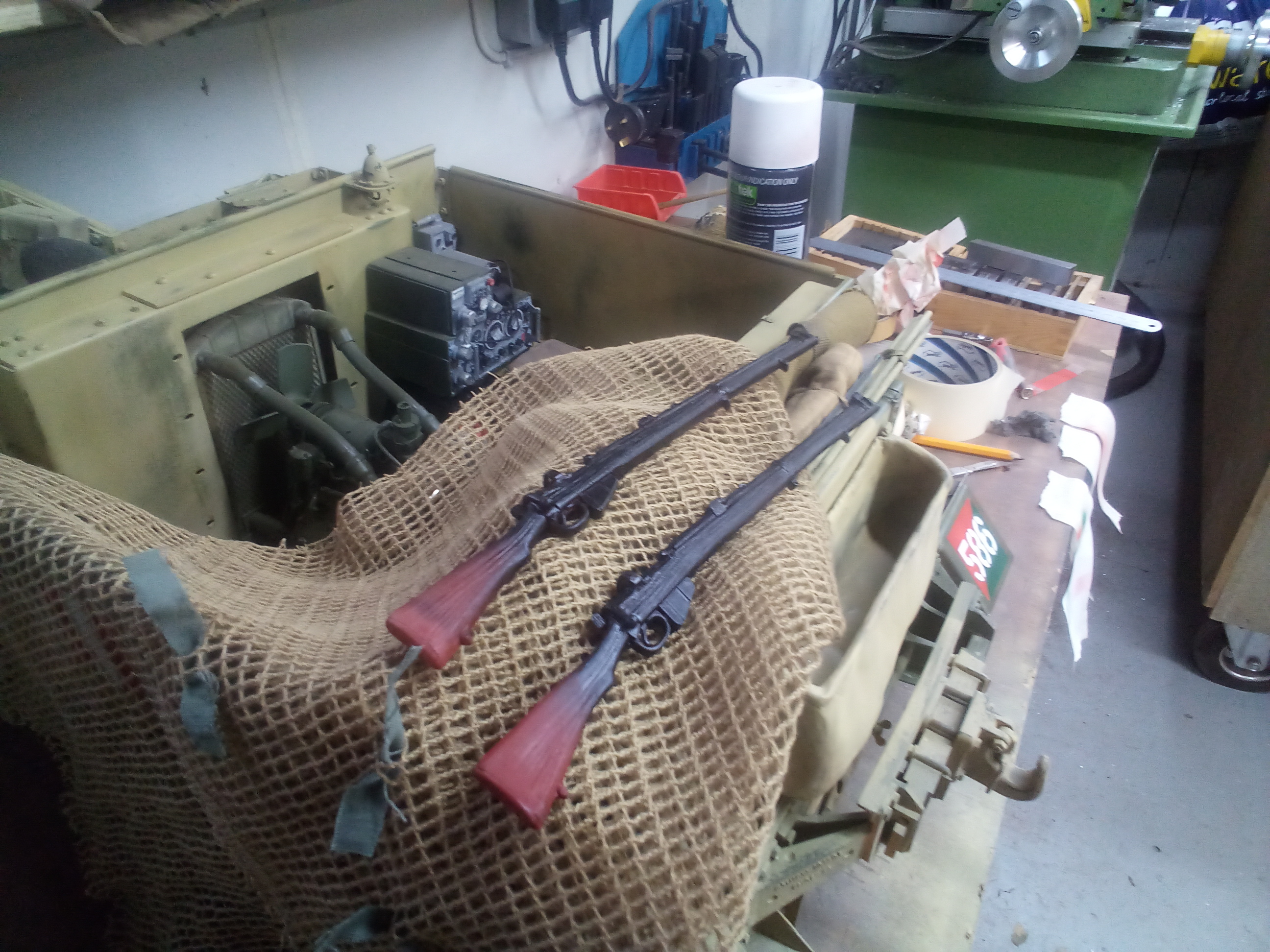

The camo net is off for a tidy up and the interlaced pieces of material added.
The camo net is off for a tidy up and the interlaced pieces of material added.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4281
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2282 times
Been liked: 7196 times

Re: David's carrier build.

Post by Phil Woollard »

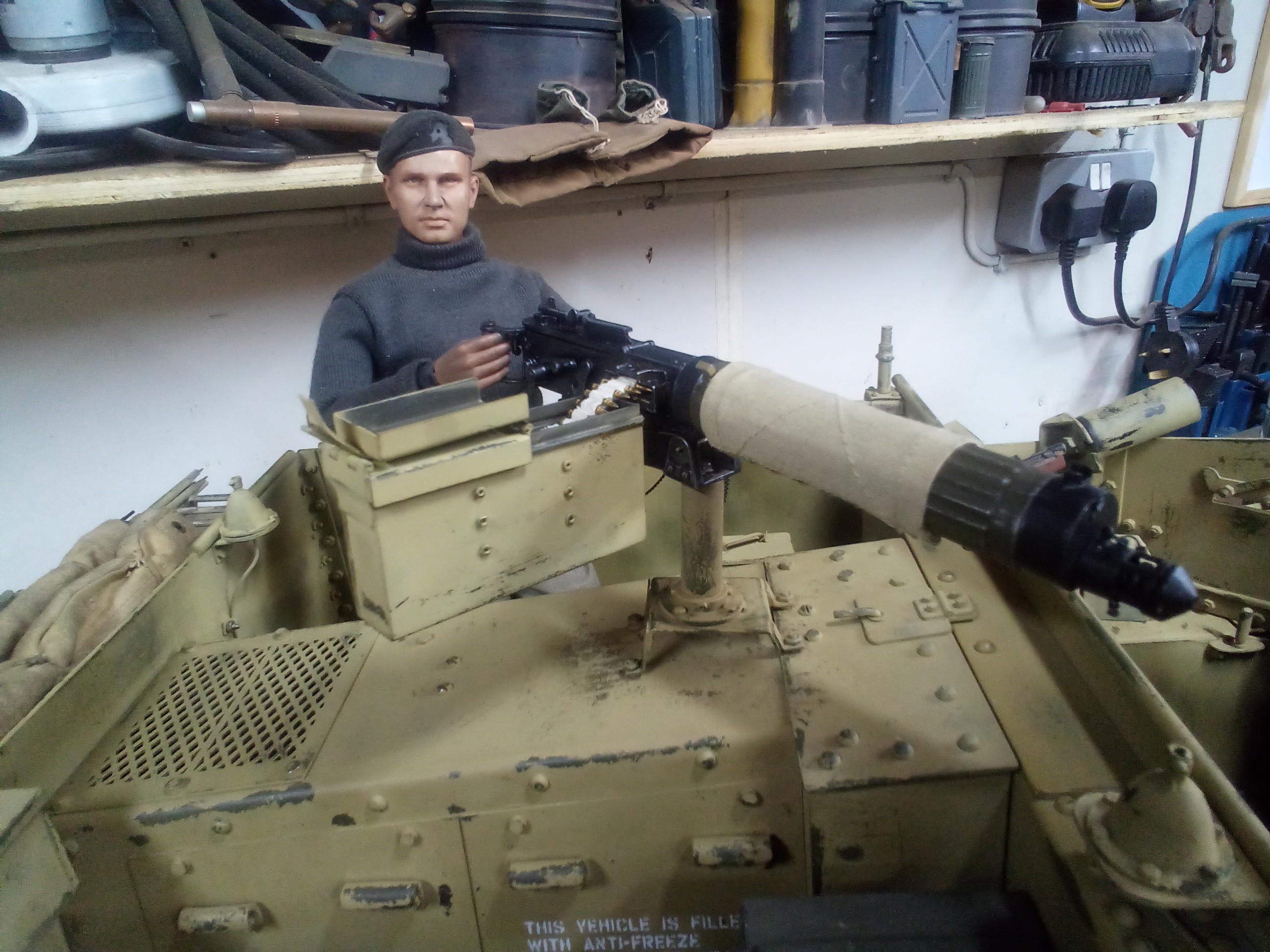

Weathering the medium arms.
Attachments

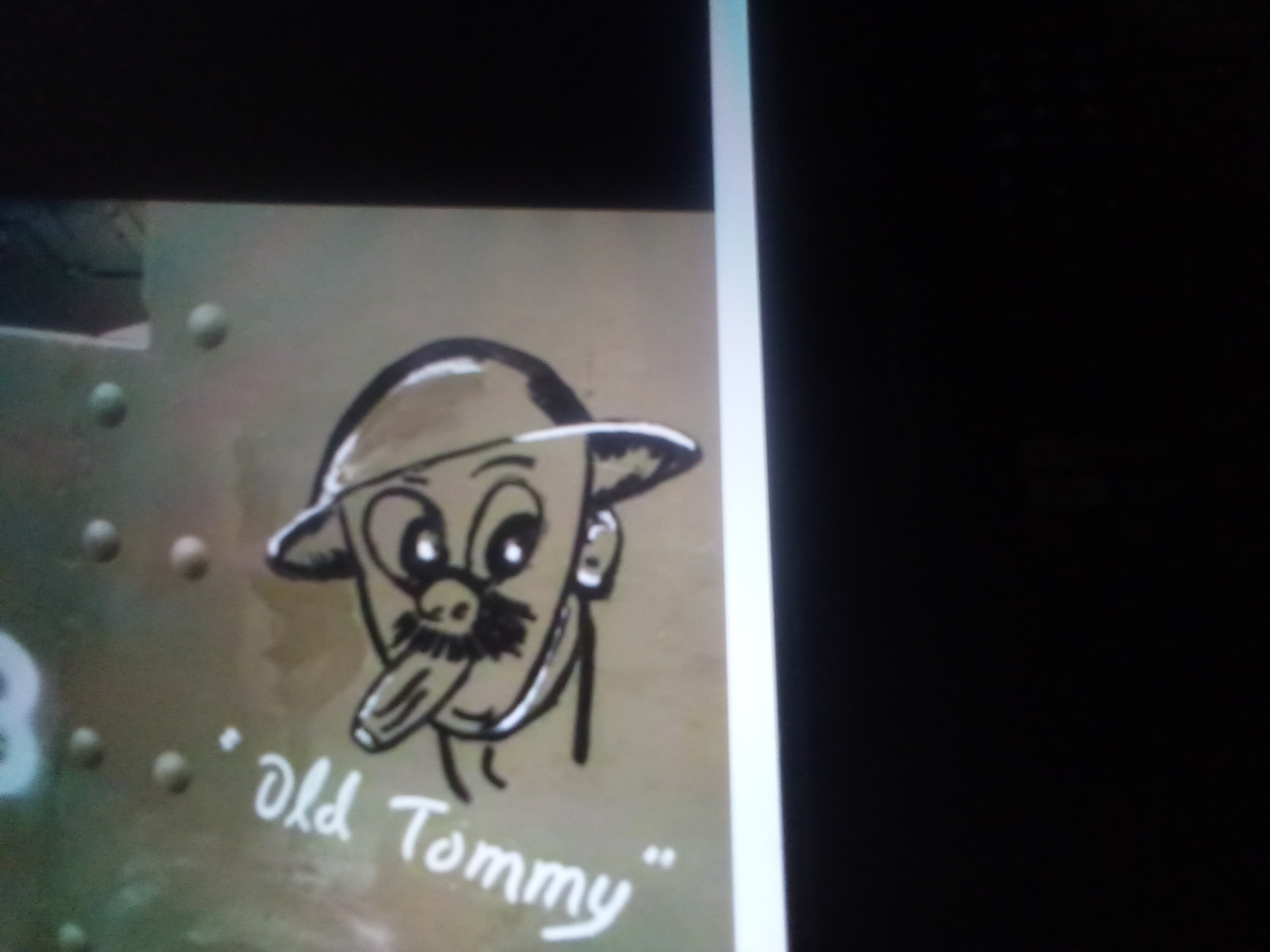

The graffiti highlight reference photo
The graffiti highlight reference photo

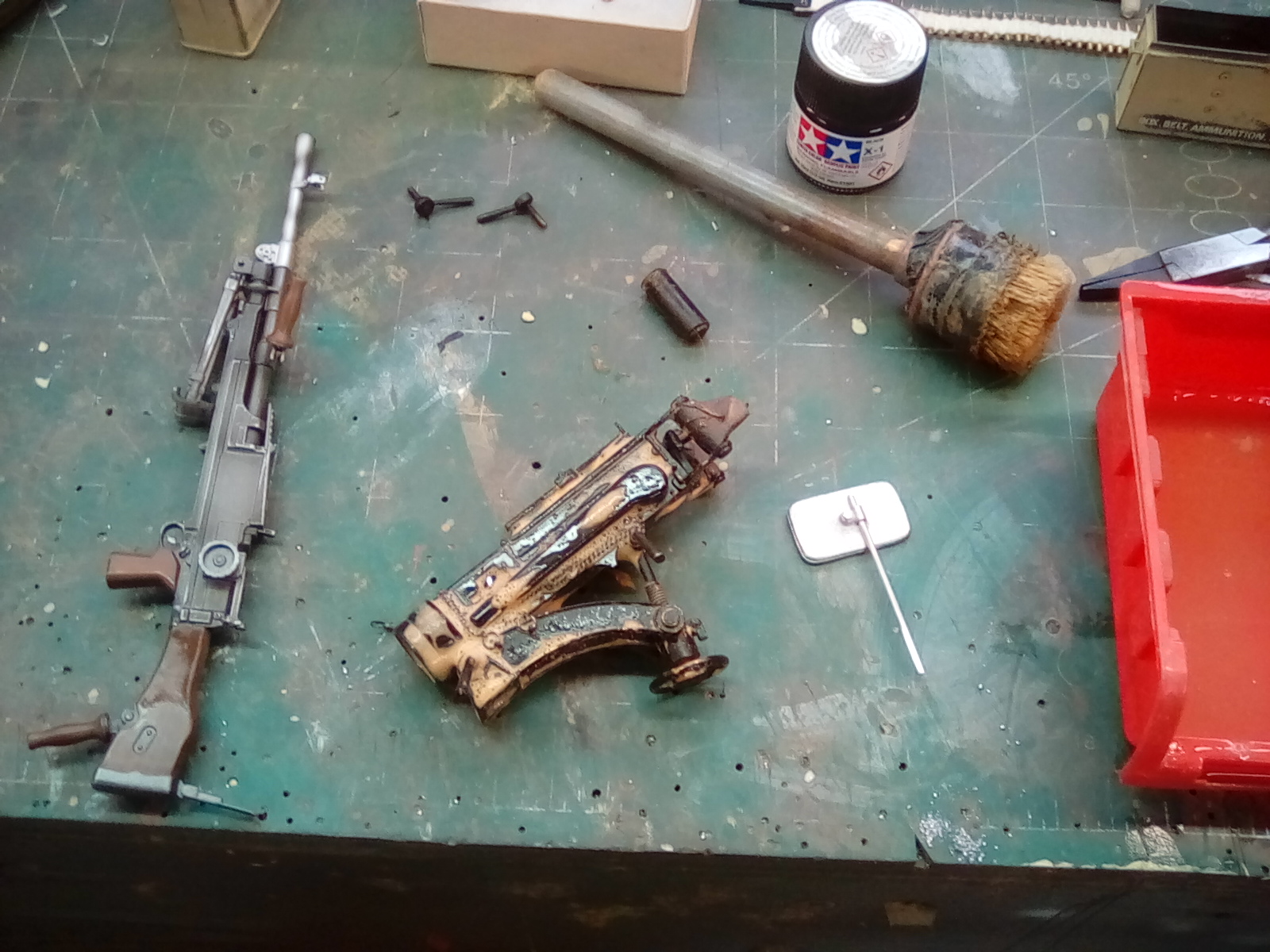

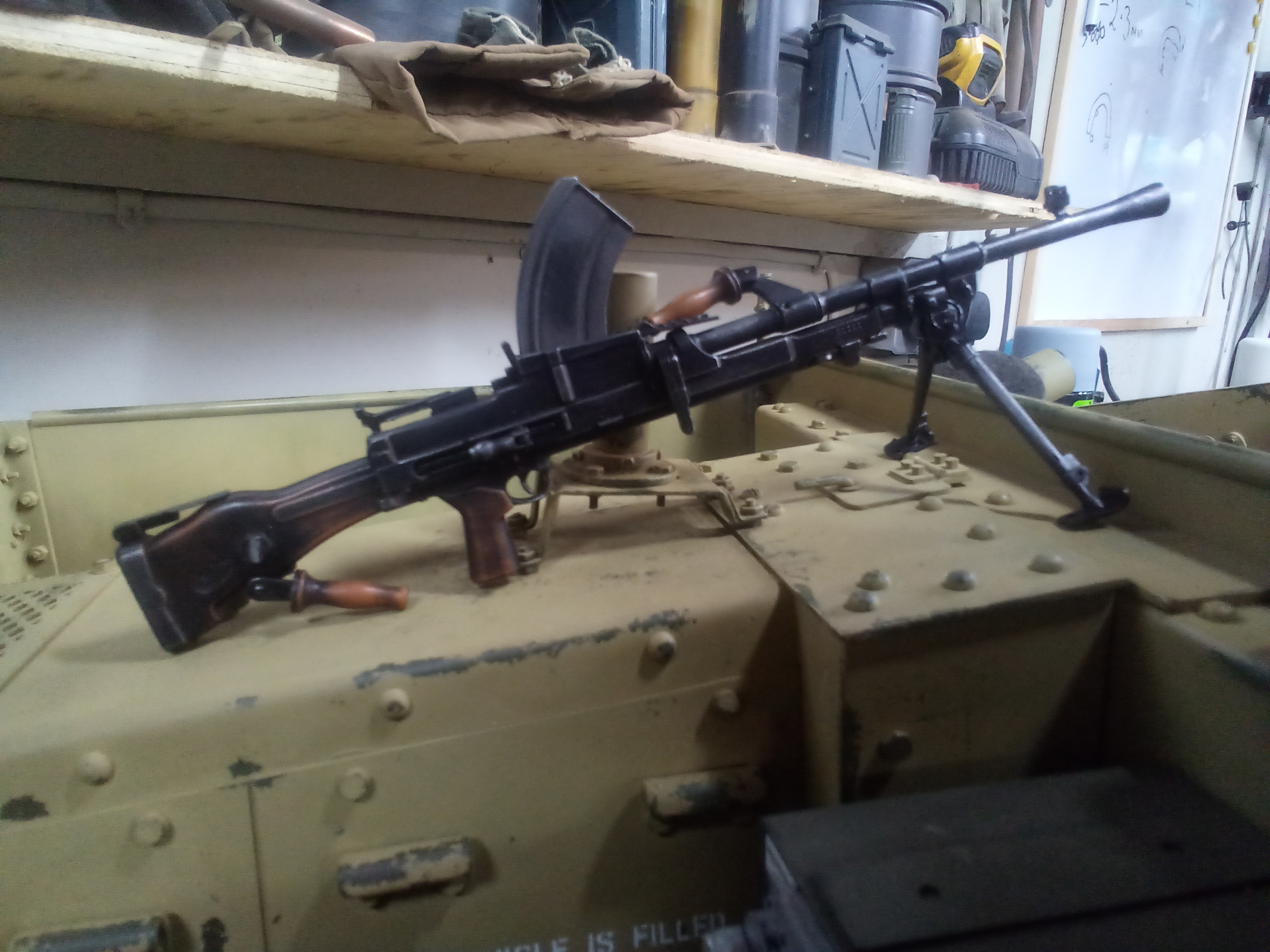

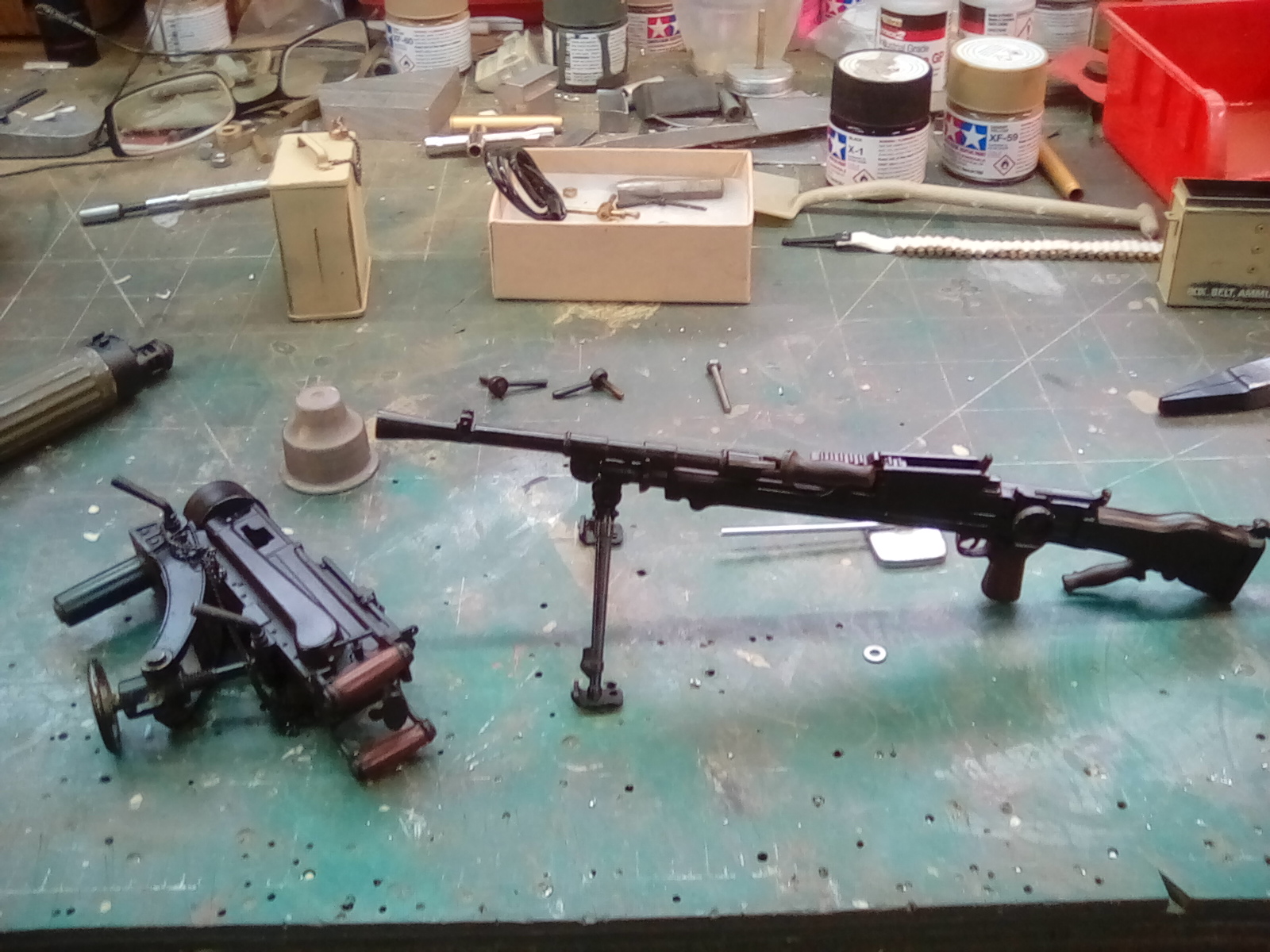

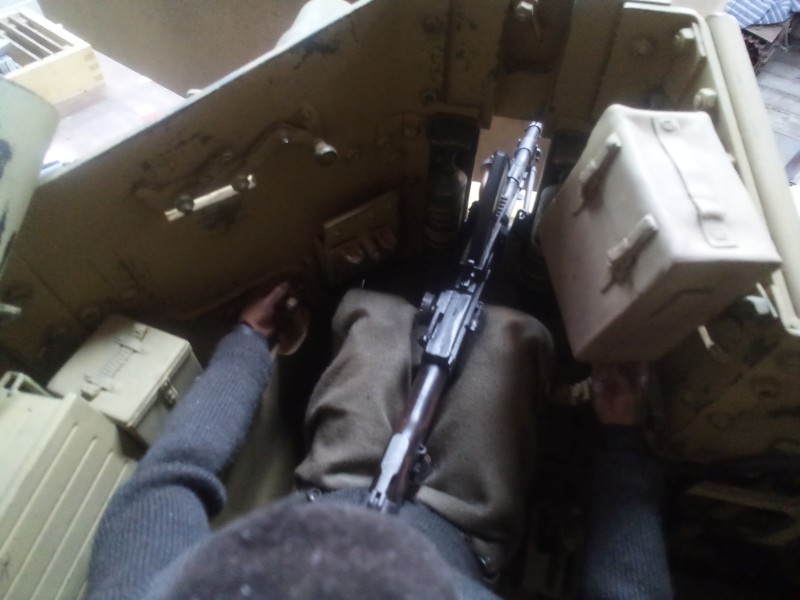

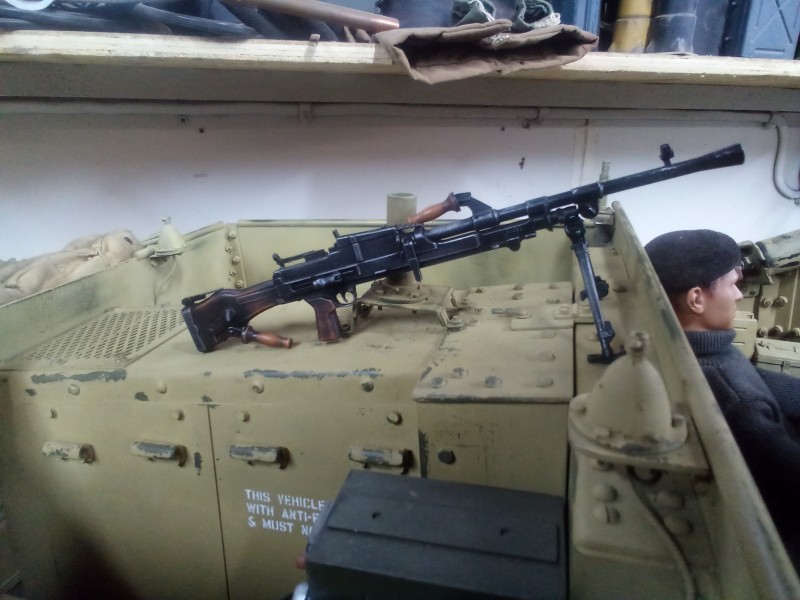

The bren gun looks so much better after some careful weathering
The bren gun looks so much better after some careful weathering

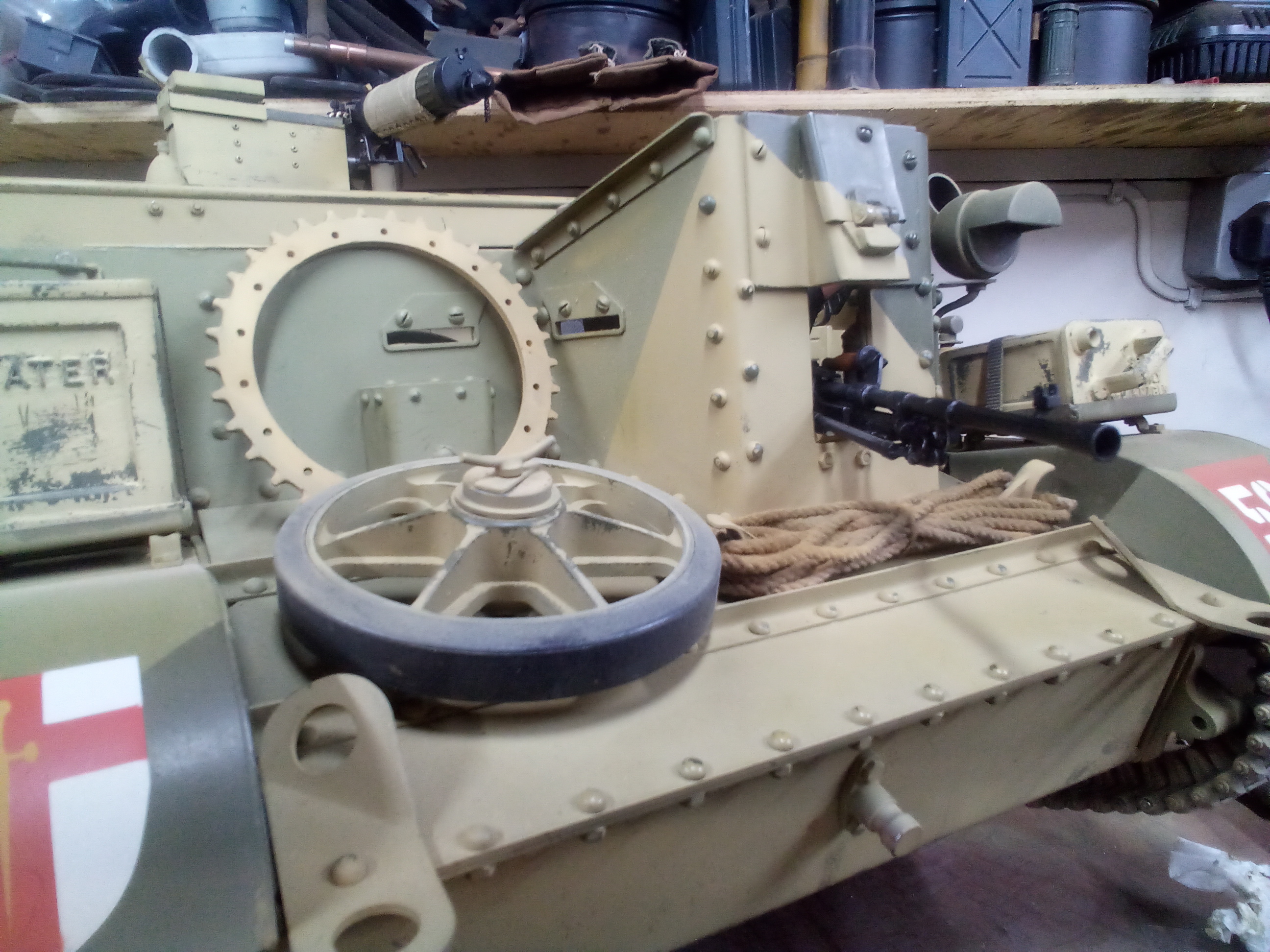

The water coolant can will be mounted fairly close by
The water coolant can will be mounted fairly close by

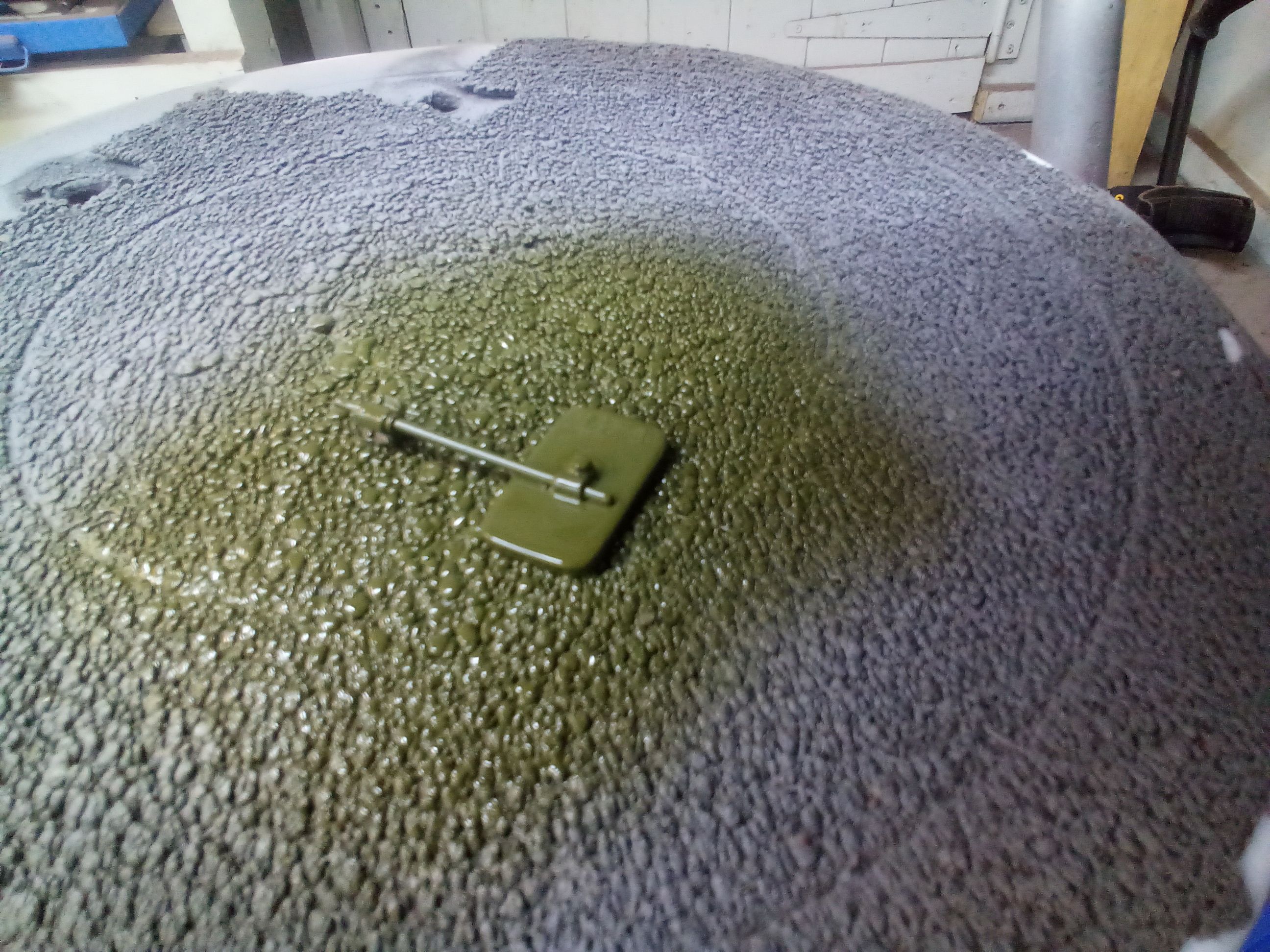

Rear view mirror for the driver
Rear view mirror for the driver

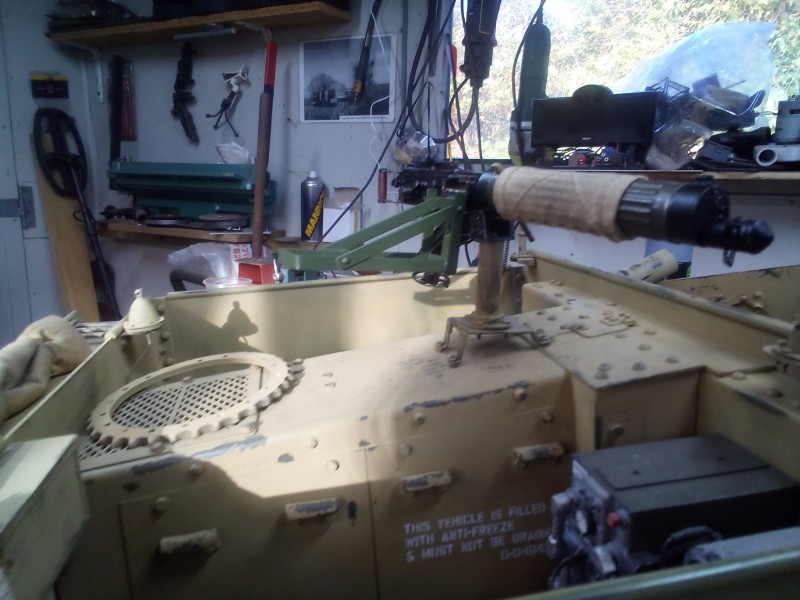

Highlights for the boss
Highlights for the boss
From what I have seen the ammo container holder was mounted at a slight angle and mounted level , I'm going for a slight angle
From what I have seen the ammo container holder was mounted at a slight angle and mounted level , I'm going for a slight angle
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4281
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2282 times
Been liked: 7196 times

Re: David's carrier build.

Post by Phil Woollard »

Here's a couple more photos from yesterday's work that got sent to the wrong device, I know how important these photo records are to the owners.
Attachments

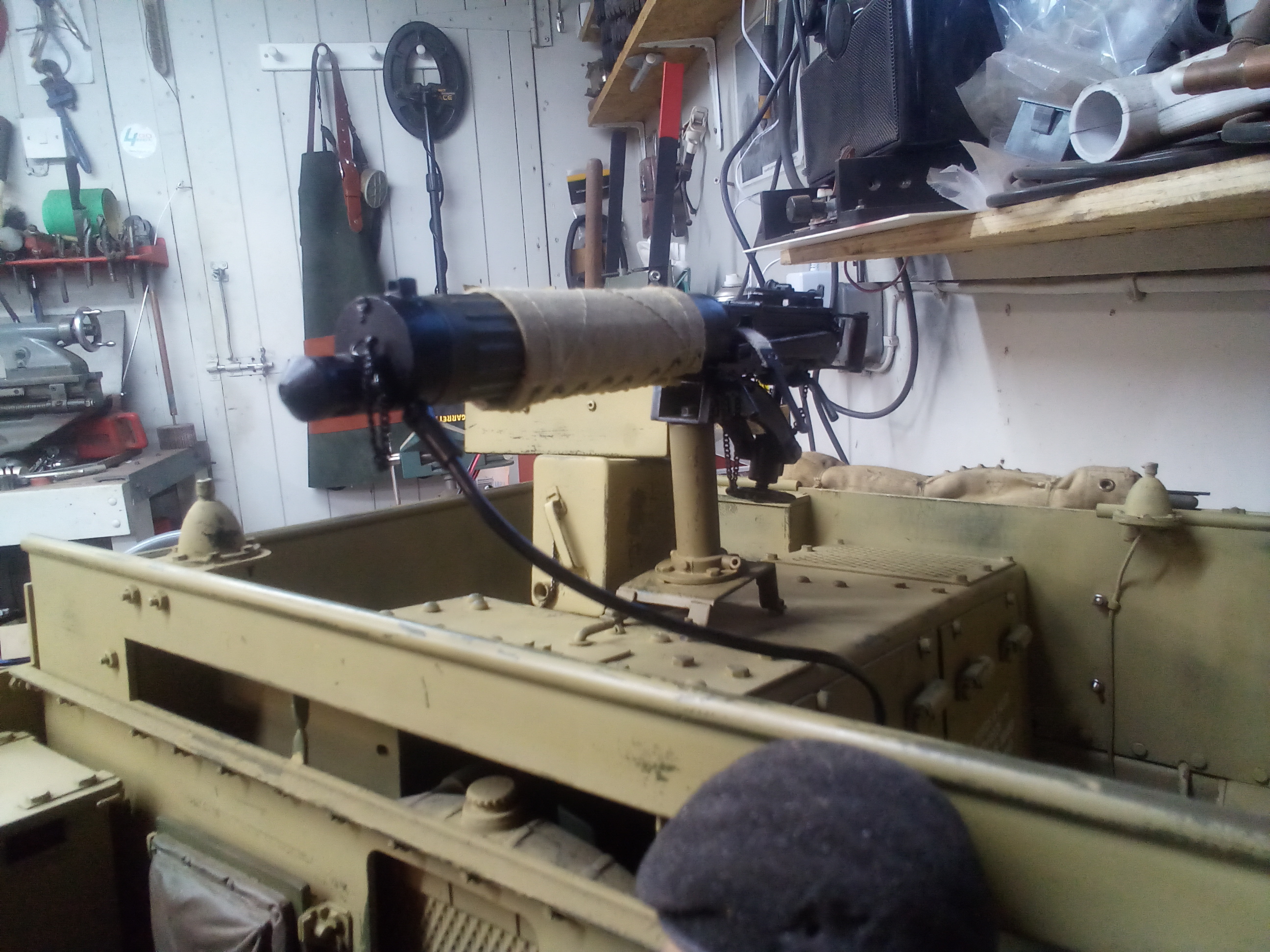

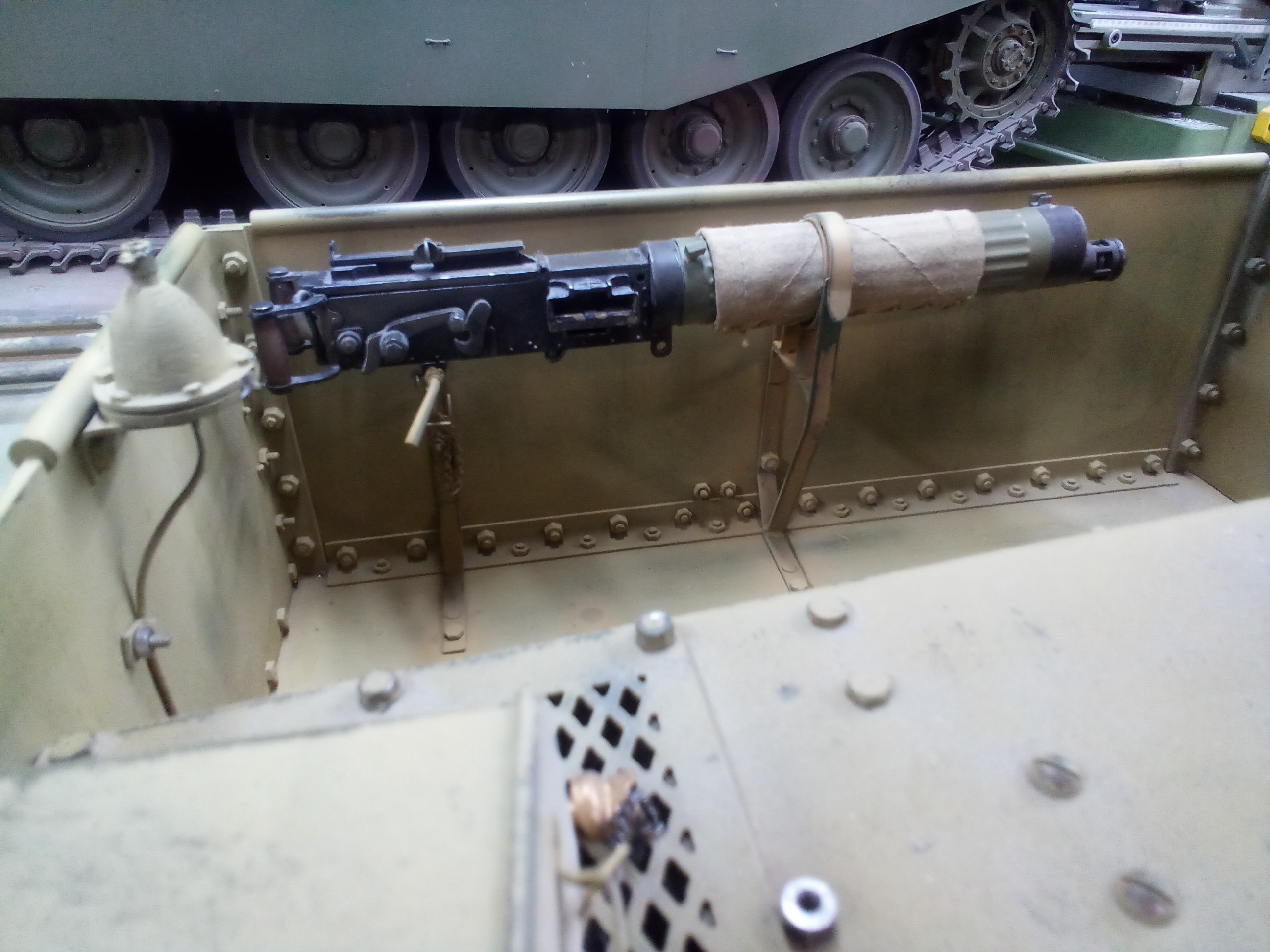

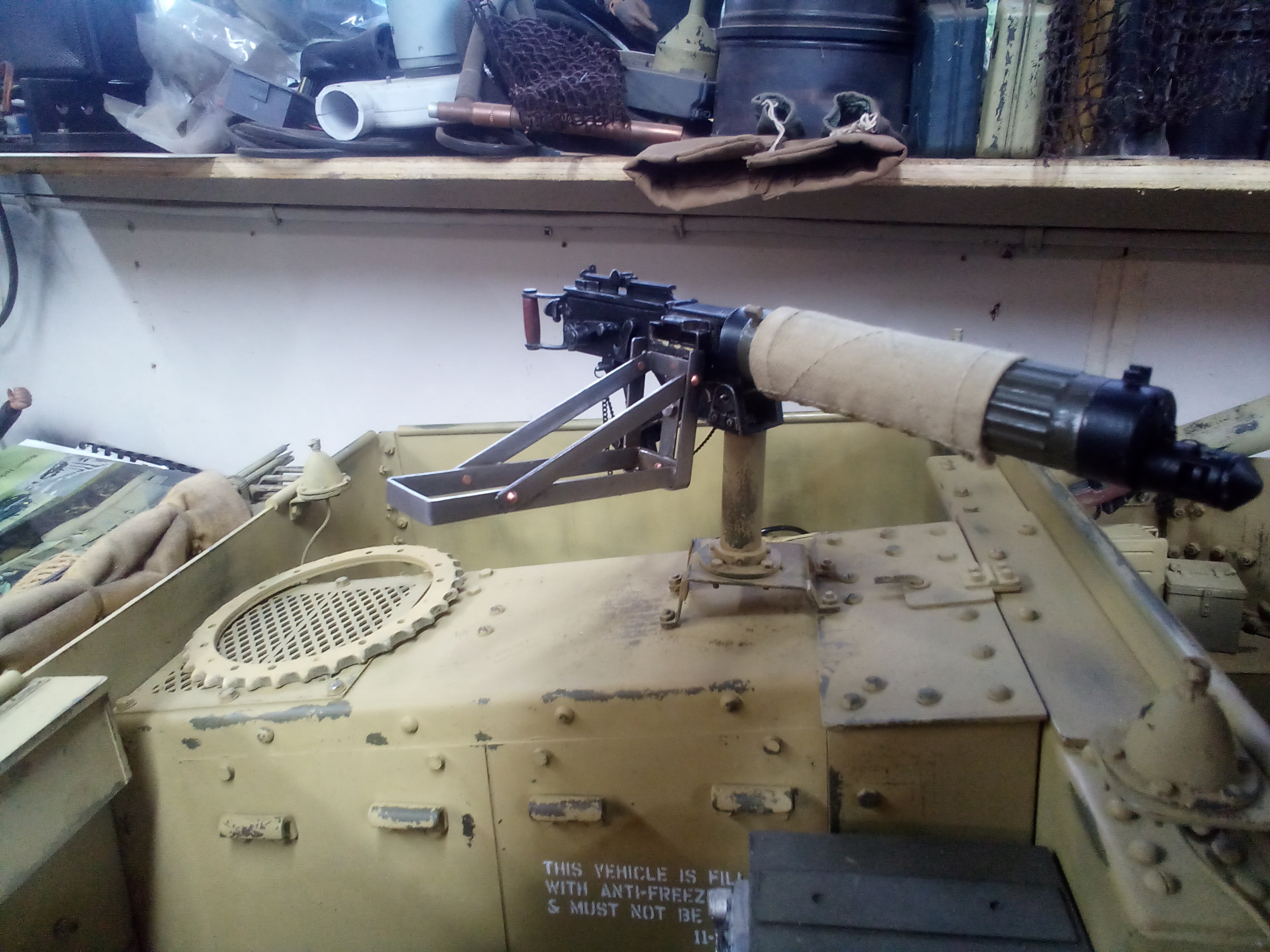

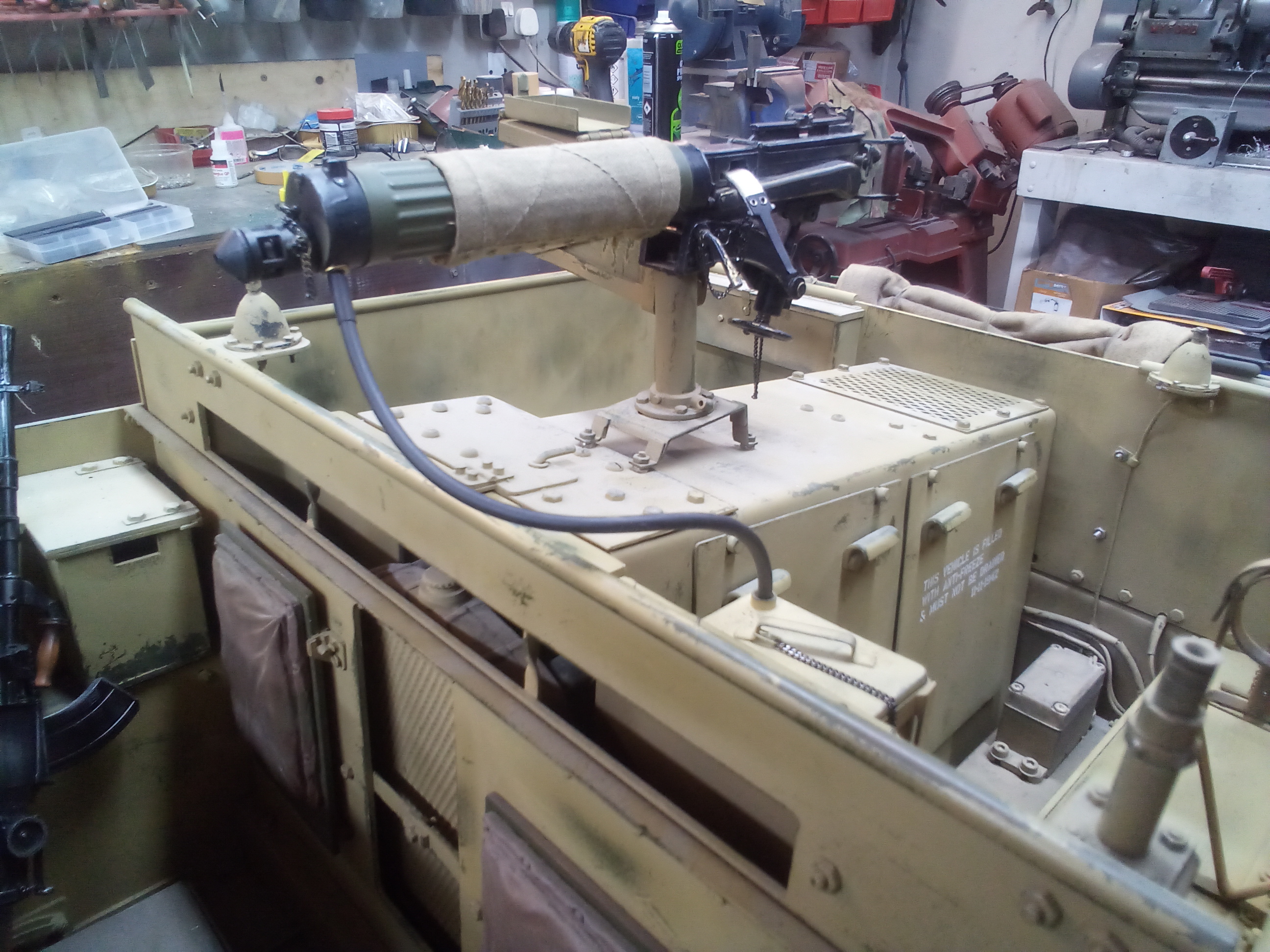

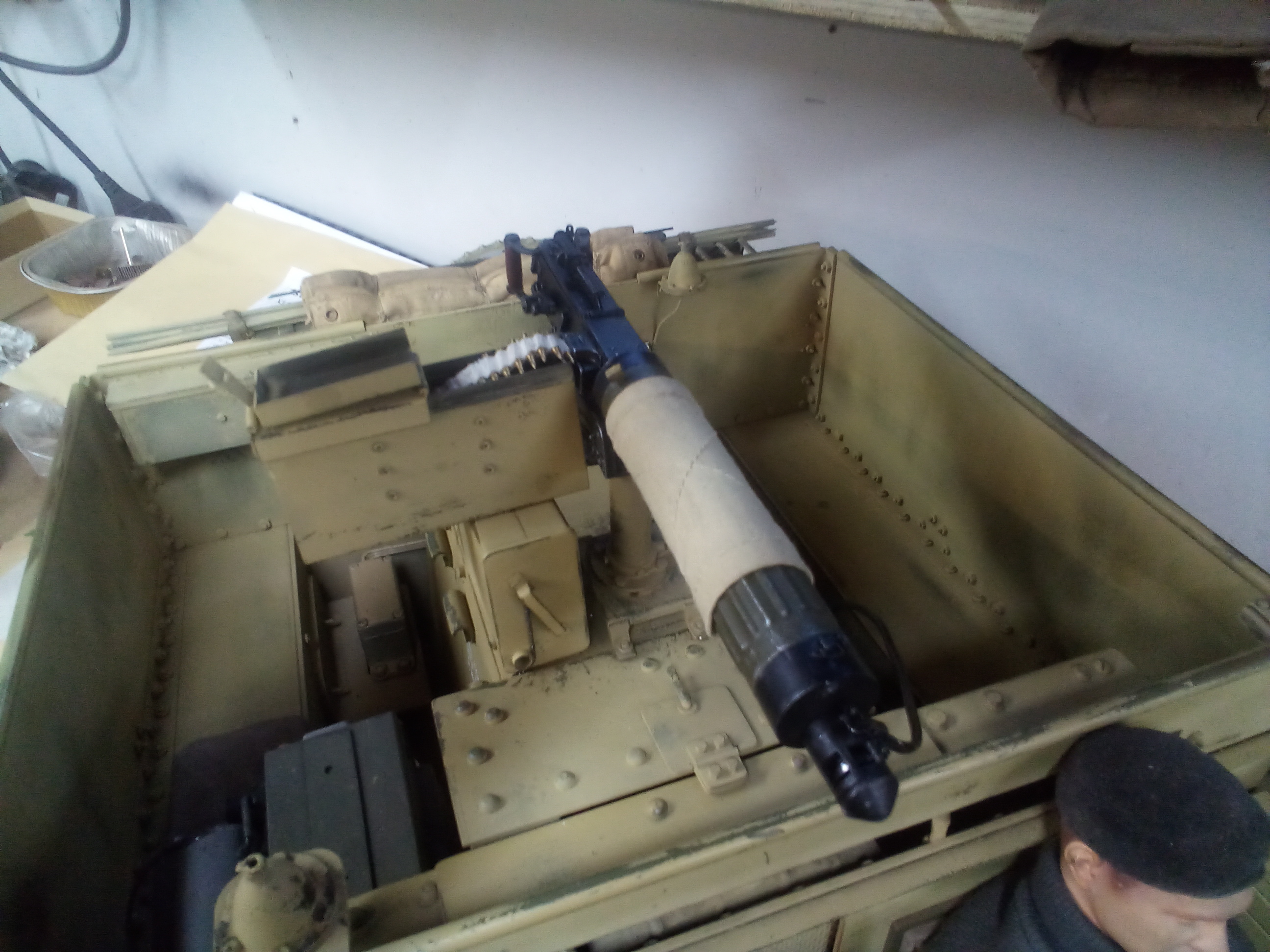

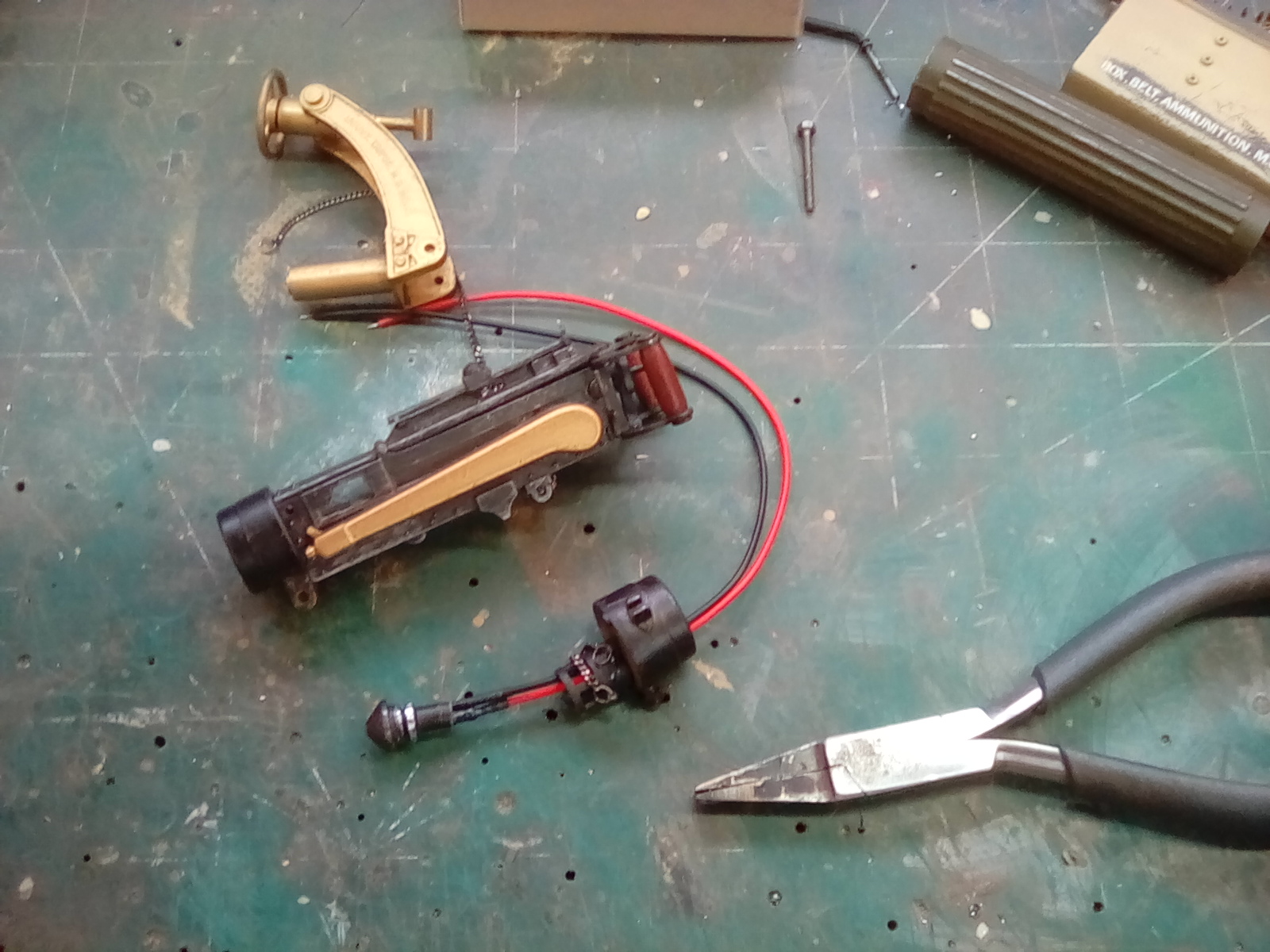

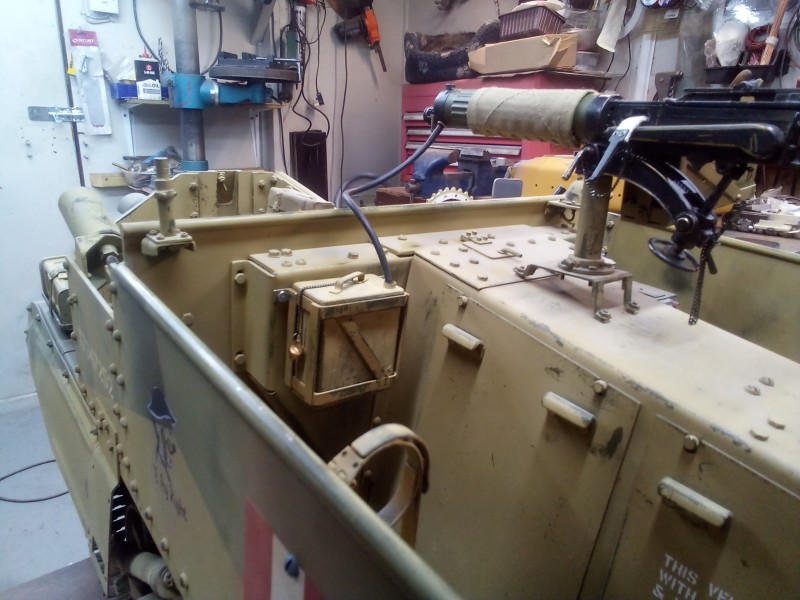

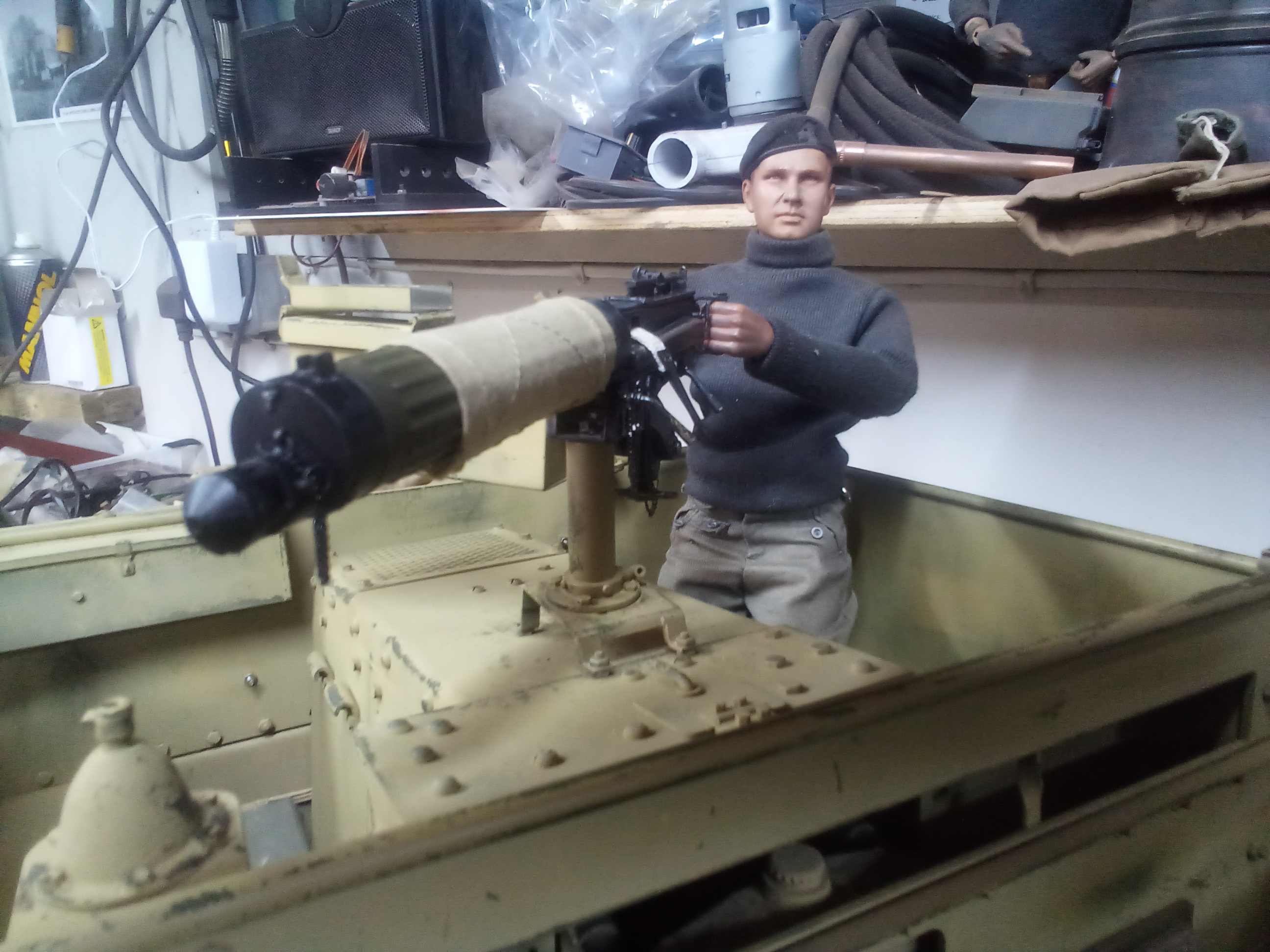

The Vickers is now fitted with a led although we can't have it flashing in time with the mg sound it's there anyway before it's all buttoned up.
The Vickers is now fitted with a led although we can't have it flashing in time with the mg sound it's there anyway before it's all buttoned up.

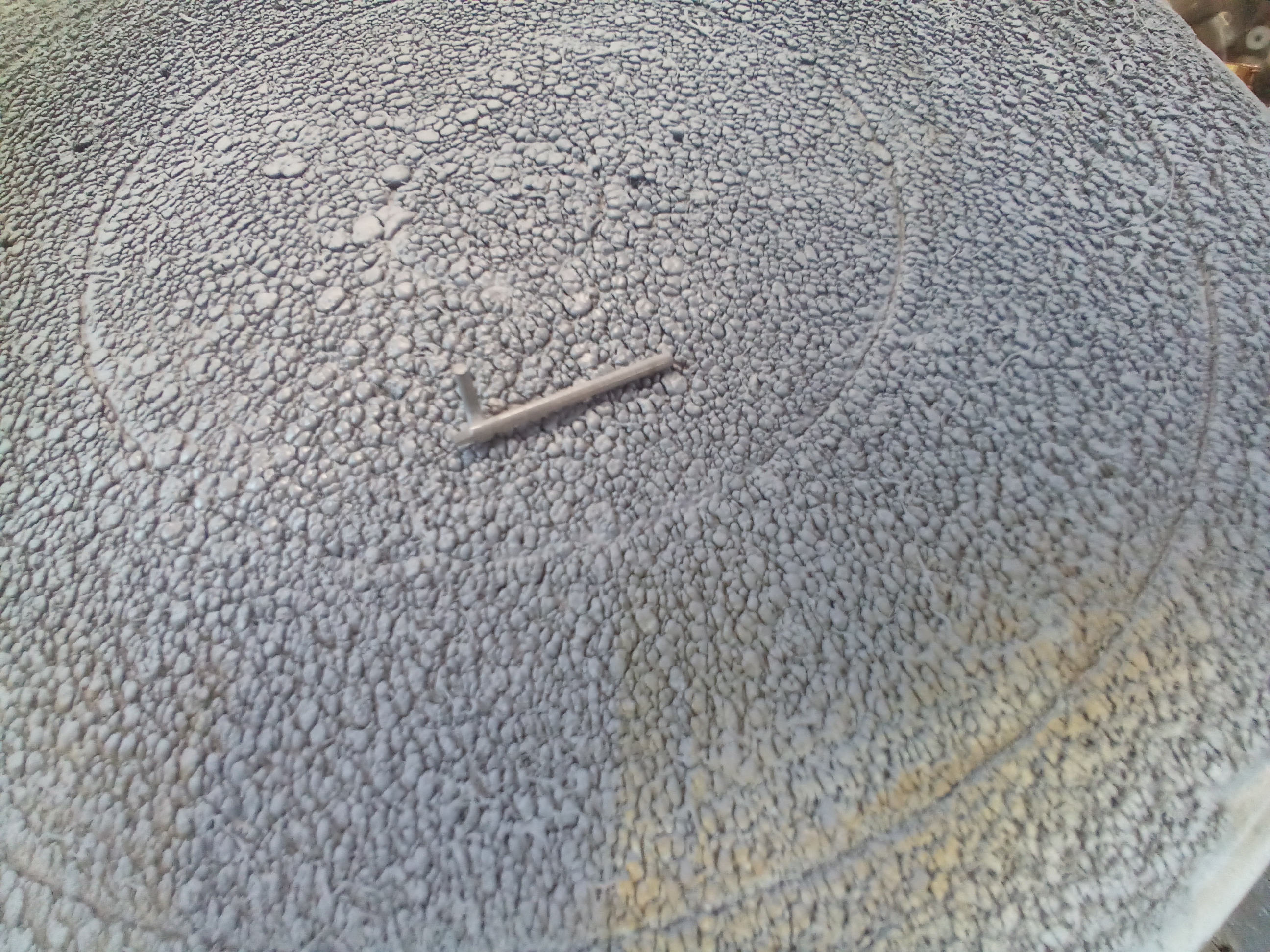

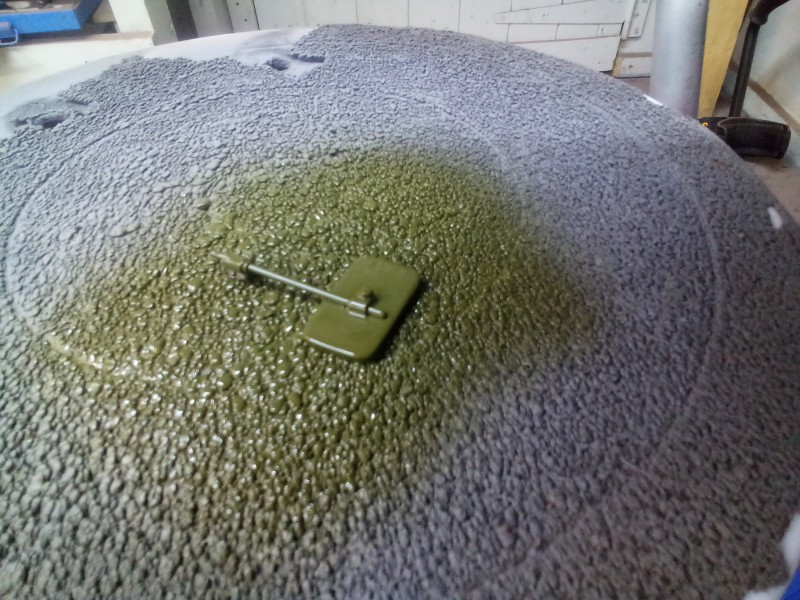

Scrubbing away the top coat.
Scrubbing away the top coat.
Although some parts are of a brass effect material on the Vickers they never look quite right.
Although some parts are of a brass effect material on the Vickers they never look quite right.

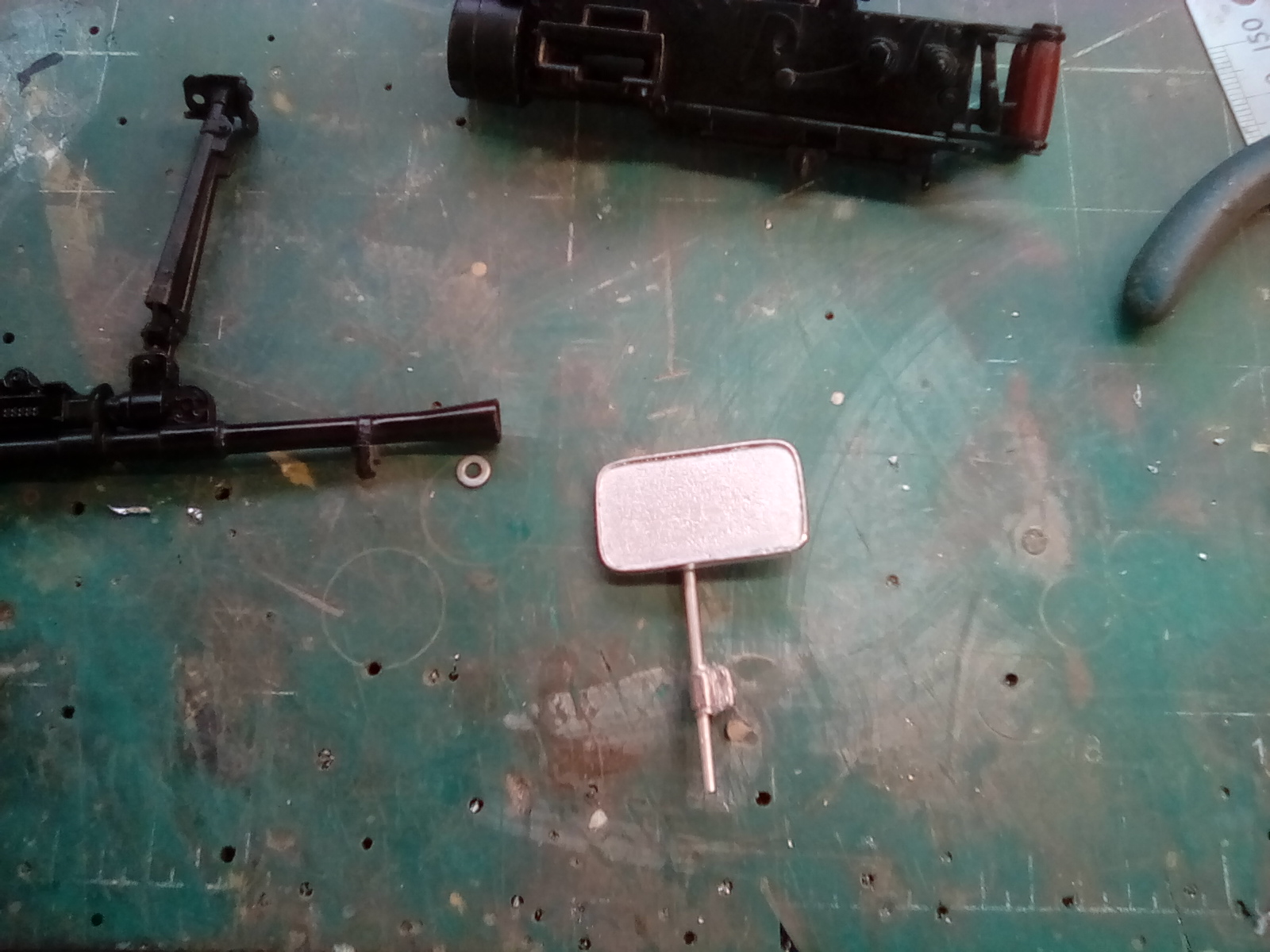

The Armorpax mirror has been fitted with a malleable ali arm, this will bend rather than fracture, remember "did" detail is delicate! Undergrowth, grandchildren, clothing and cats will damage the sticky outy bits!
The Armorpax mirror has been fitted with a malleable ali arm, this will bend rather than fracture, remember "did" detail is delicate! Undergrowth, grandchildren, clothing and cats will damage the sticky outy bits!
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4281
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2282 times
Been liked: 7196 times

Re: David's carrier build.

Post by Phil Woollard »

Getting on with the final jobs
Attachments

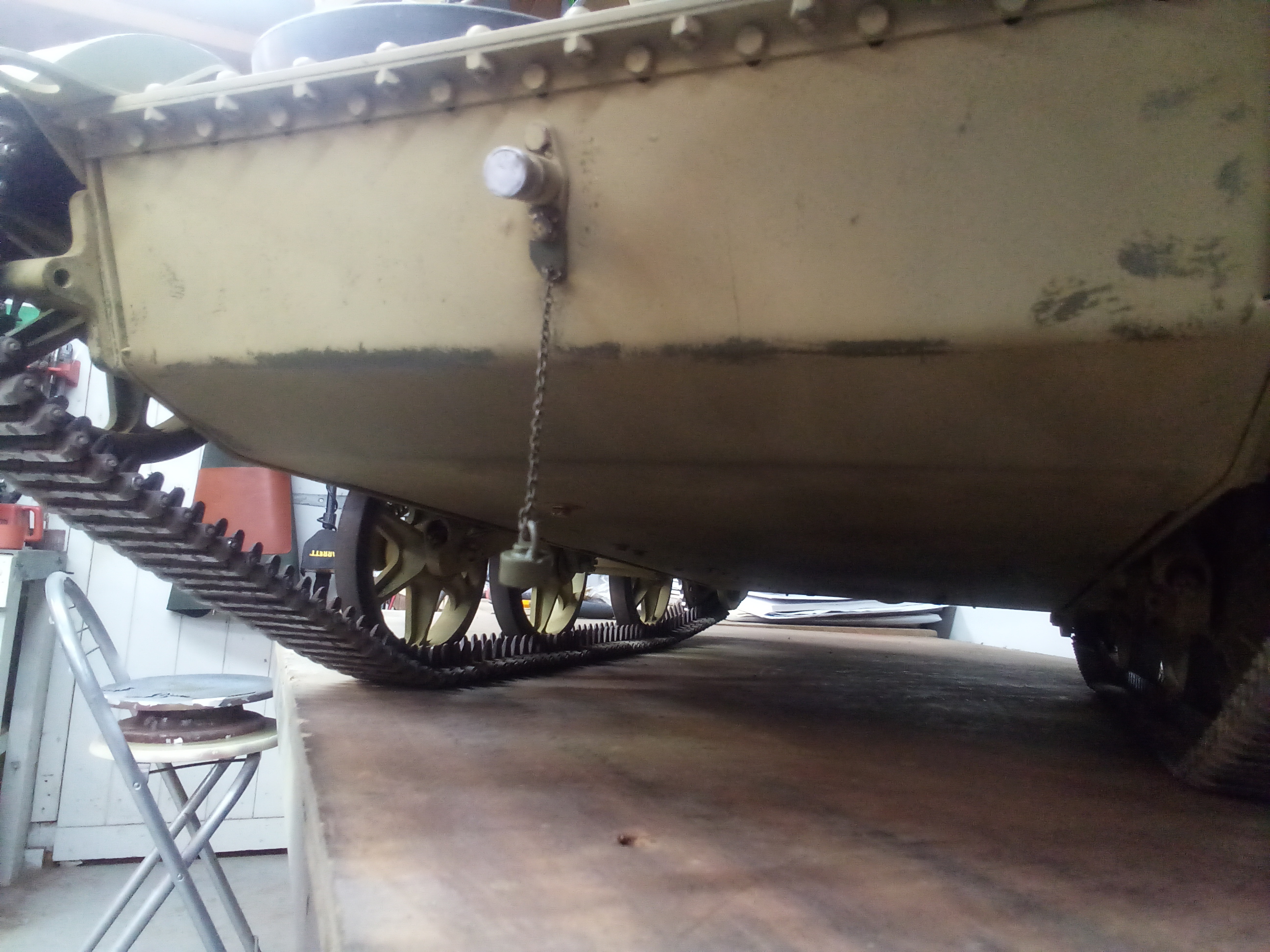

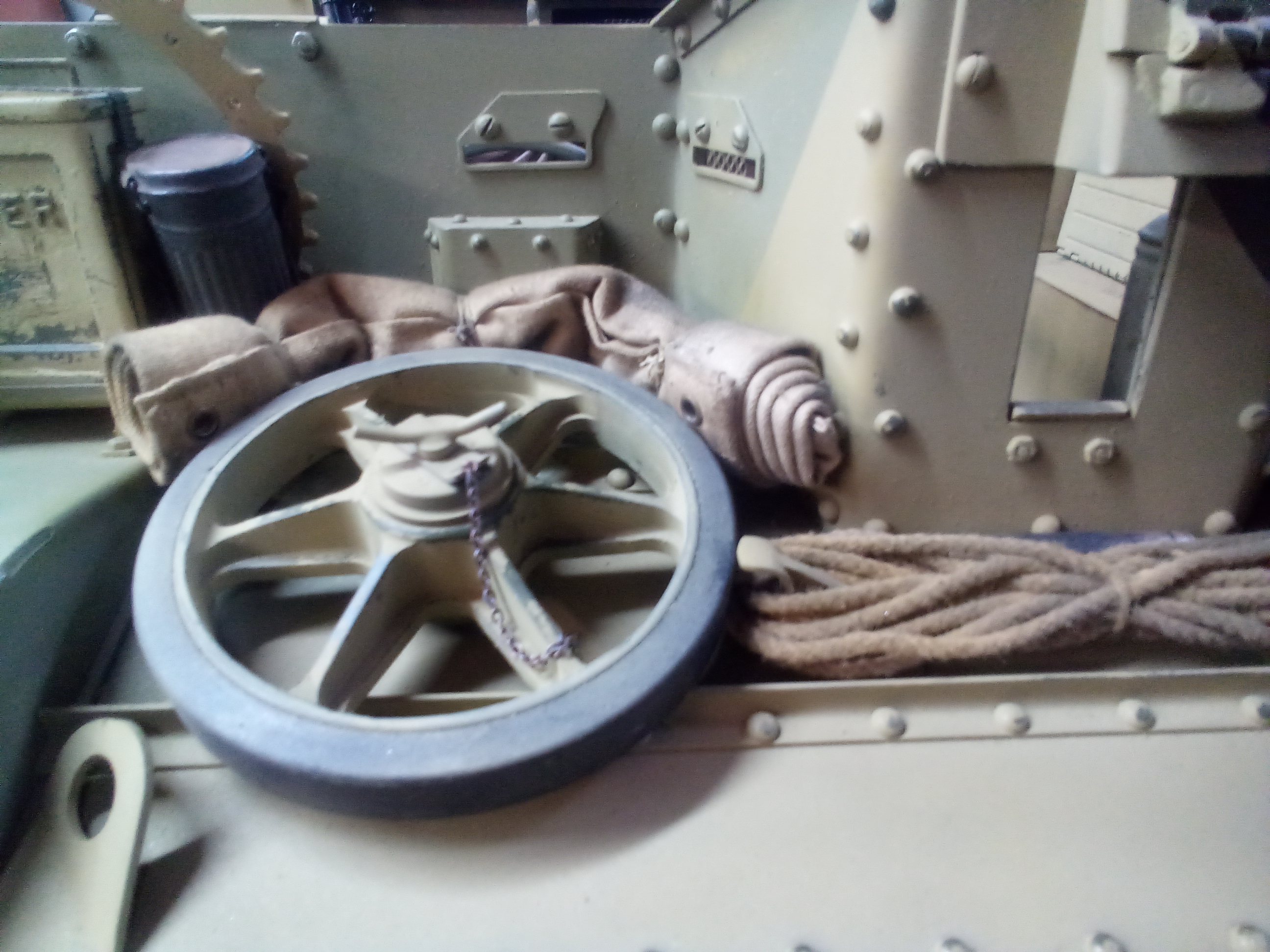

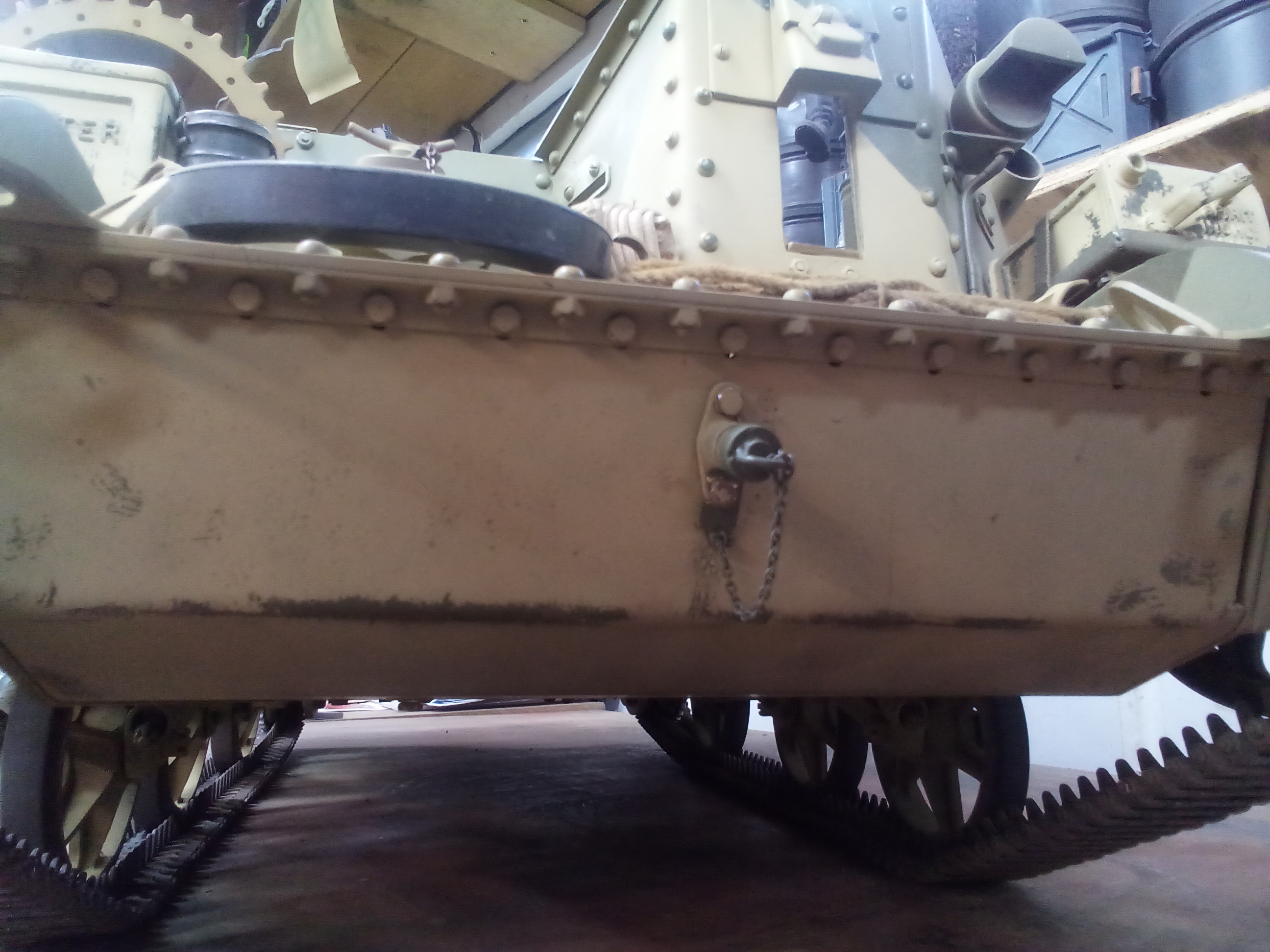

Chain added to the spare wheel holder
Chain added to the spare wheel holder
The starting handle end cap made and chain added
The starting handle end cap made and chain added
WW11 style
WW11 style

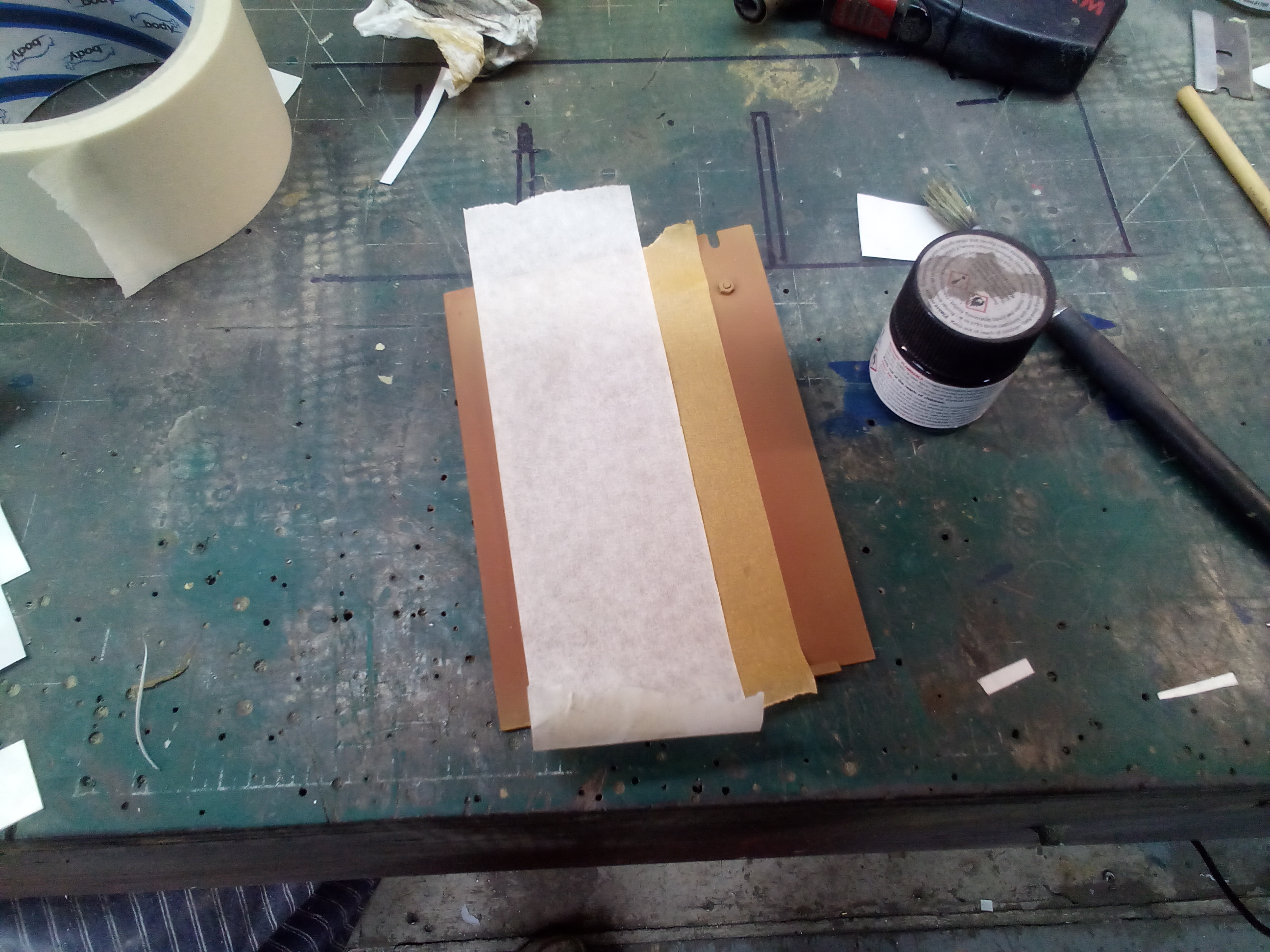

Just a matter of folding
Just a matter of folding
Solder and rivet construction
Solder and rivet construction
Ready for paint
Ready for paint
The final angle
The final angle
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4281
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2282 times
Been liked: 7196 times

Re: David's carrier build.

Post by Phil Woollard »

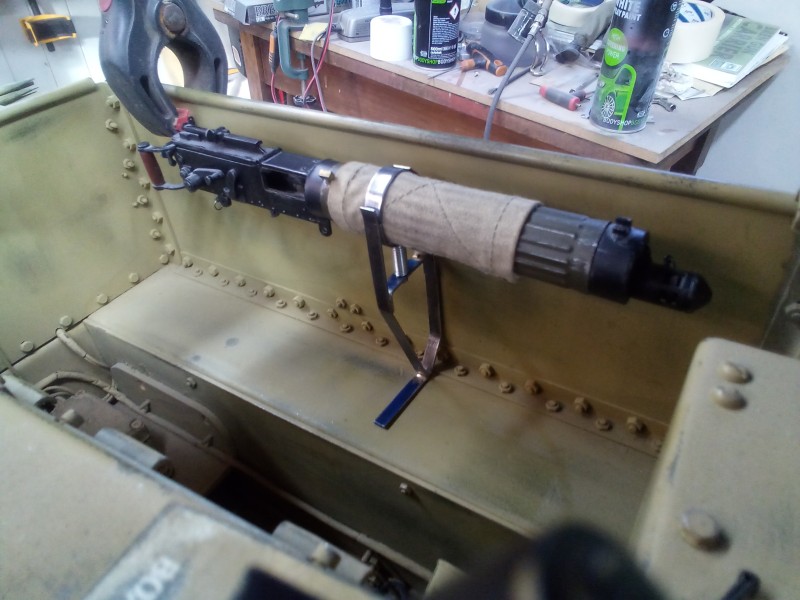

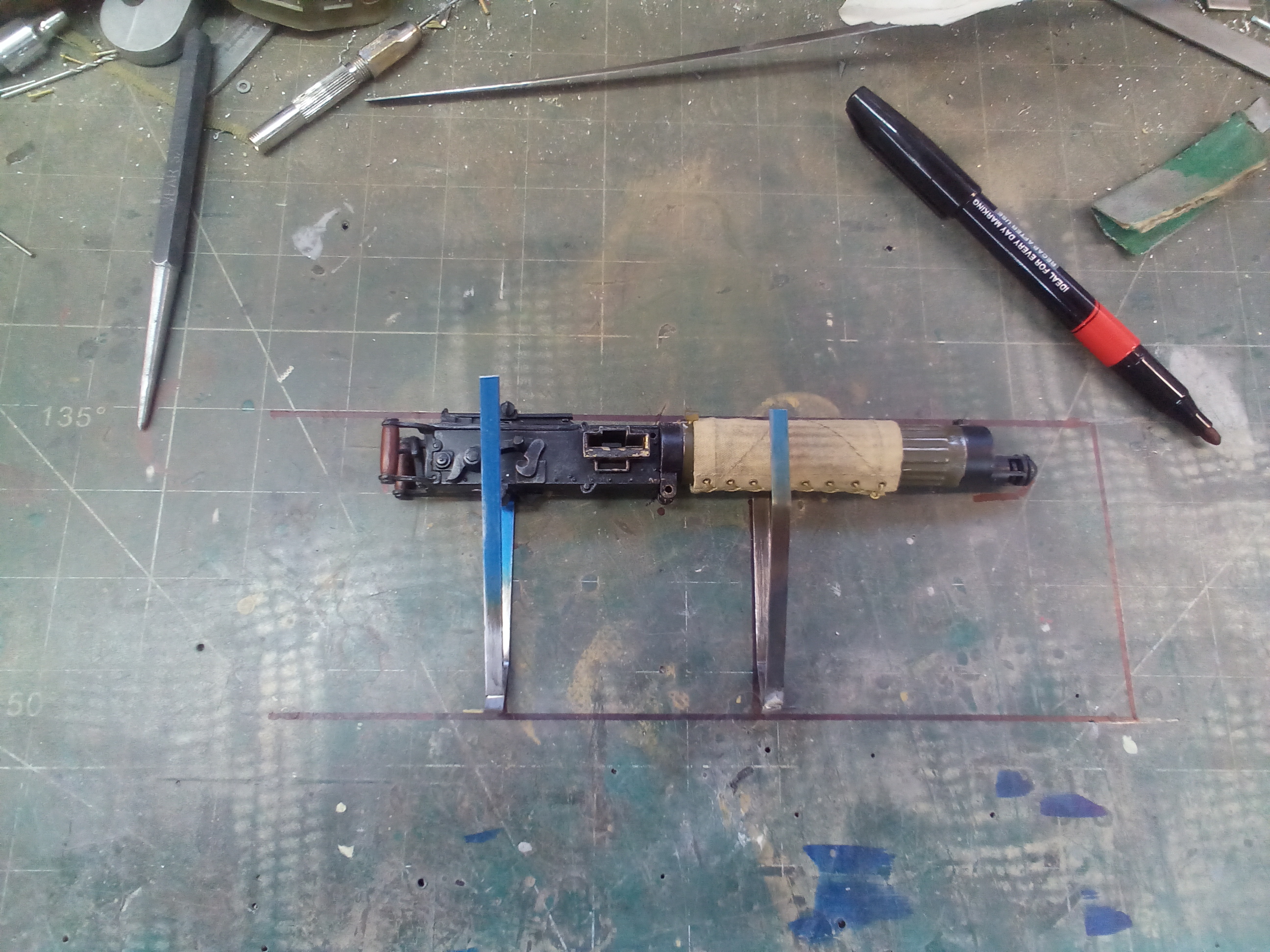

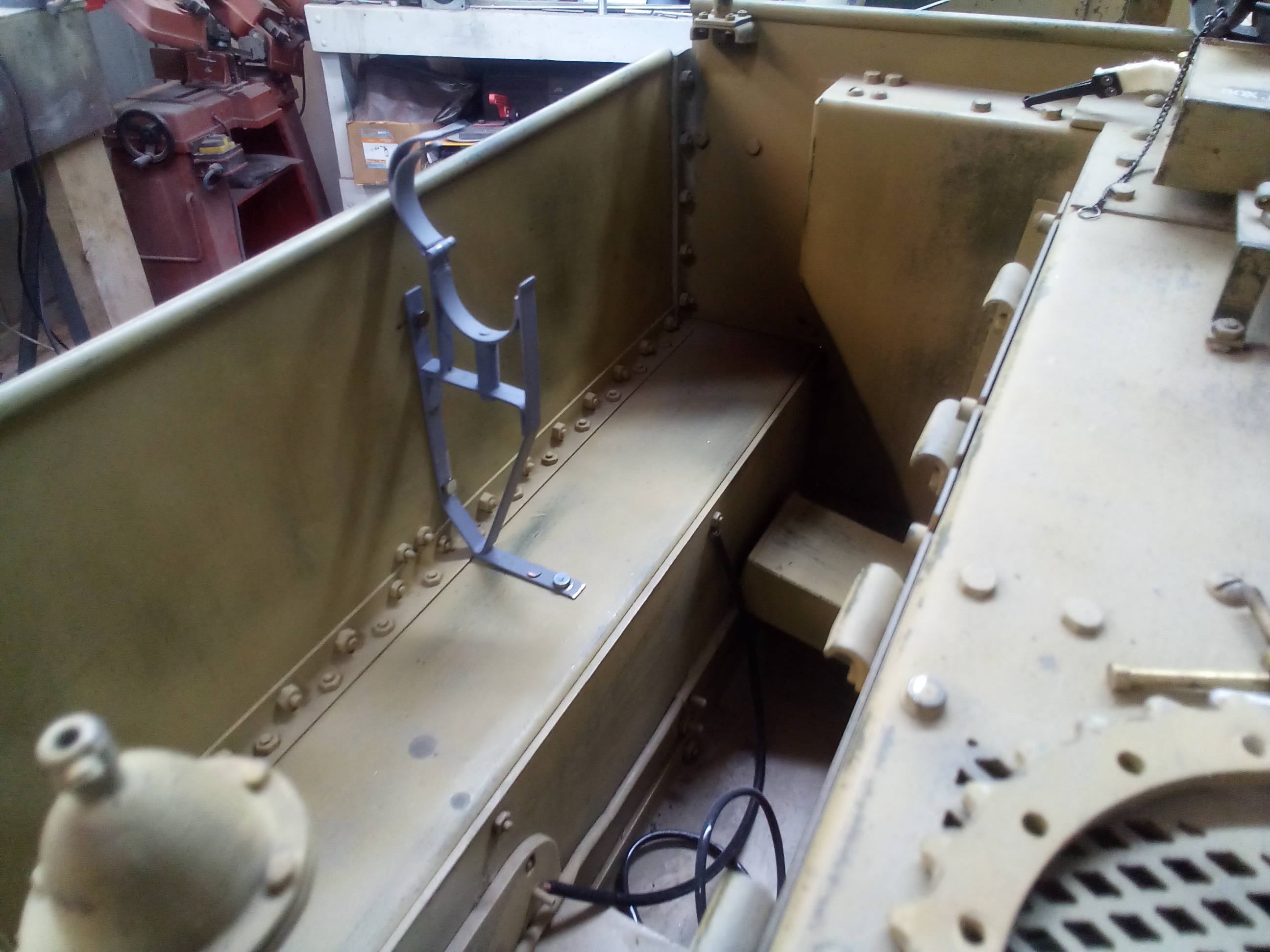

Getting on with the Vickers stowage racks
Attachments

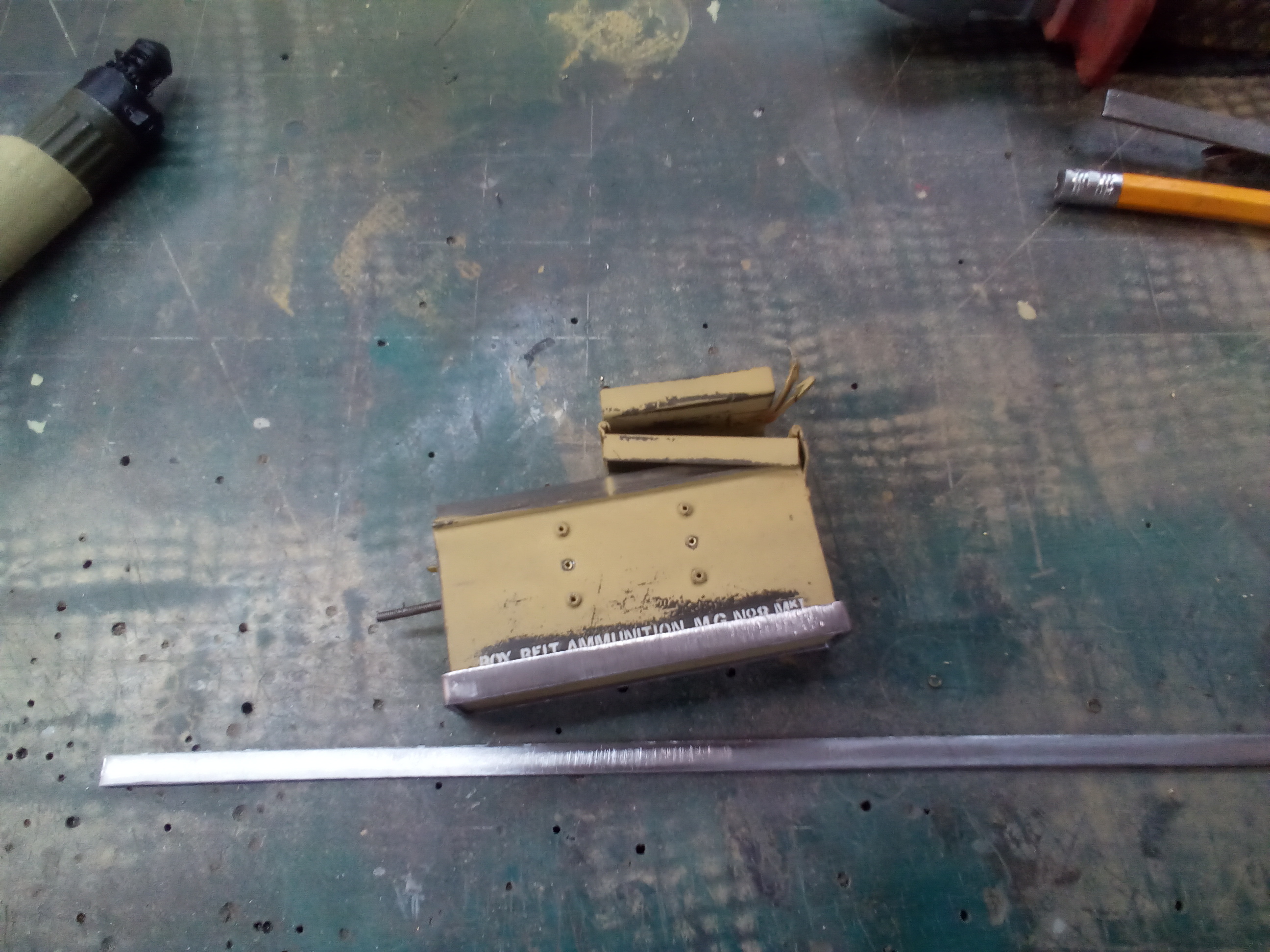

More of the strip steel I ordered, In fact I need to order some more
More of the strip steel I ordered, In fact I need to order some more

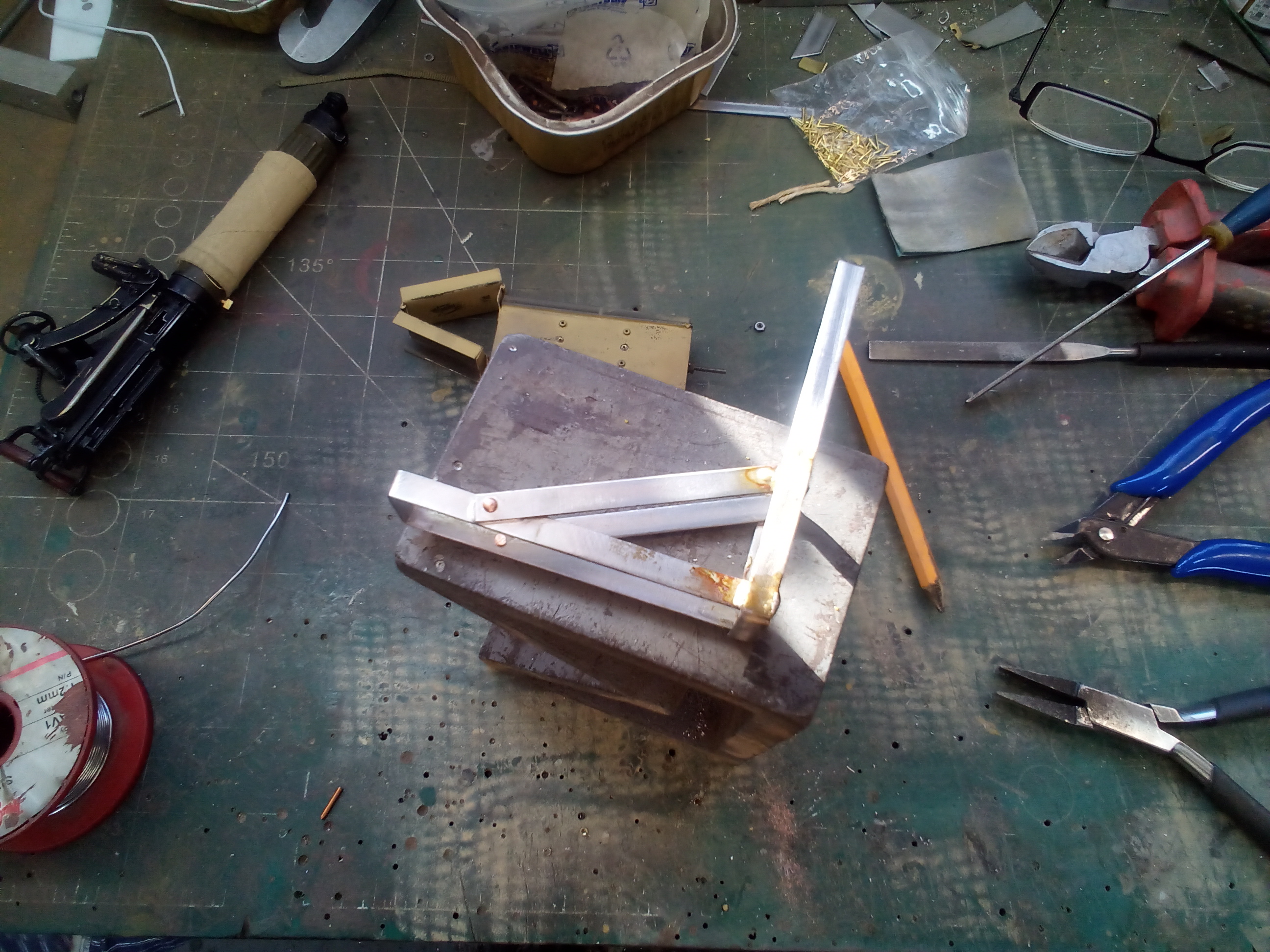

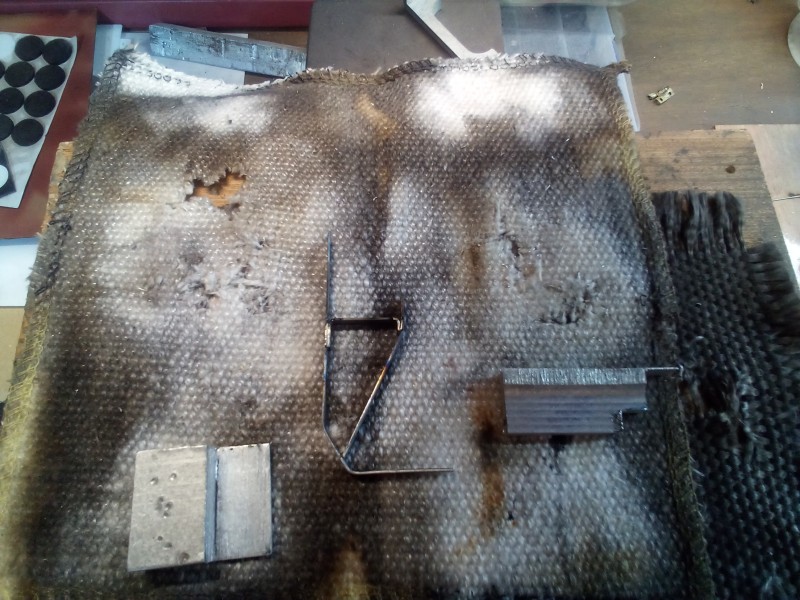

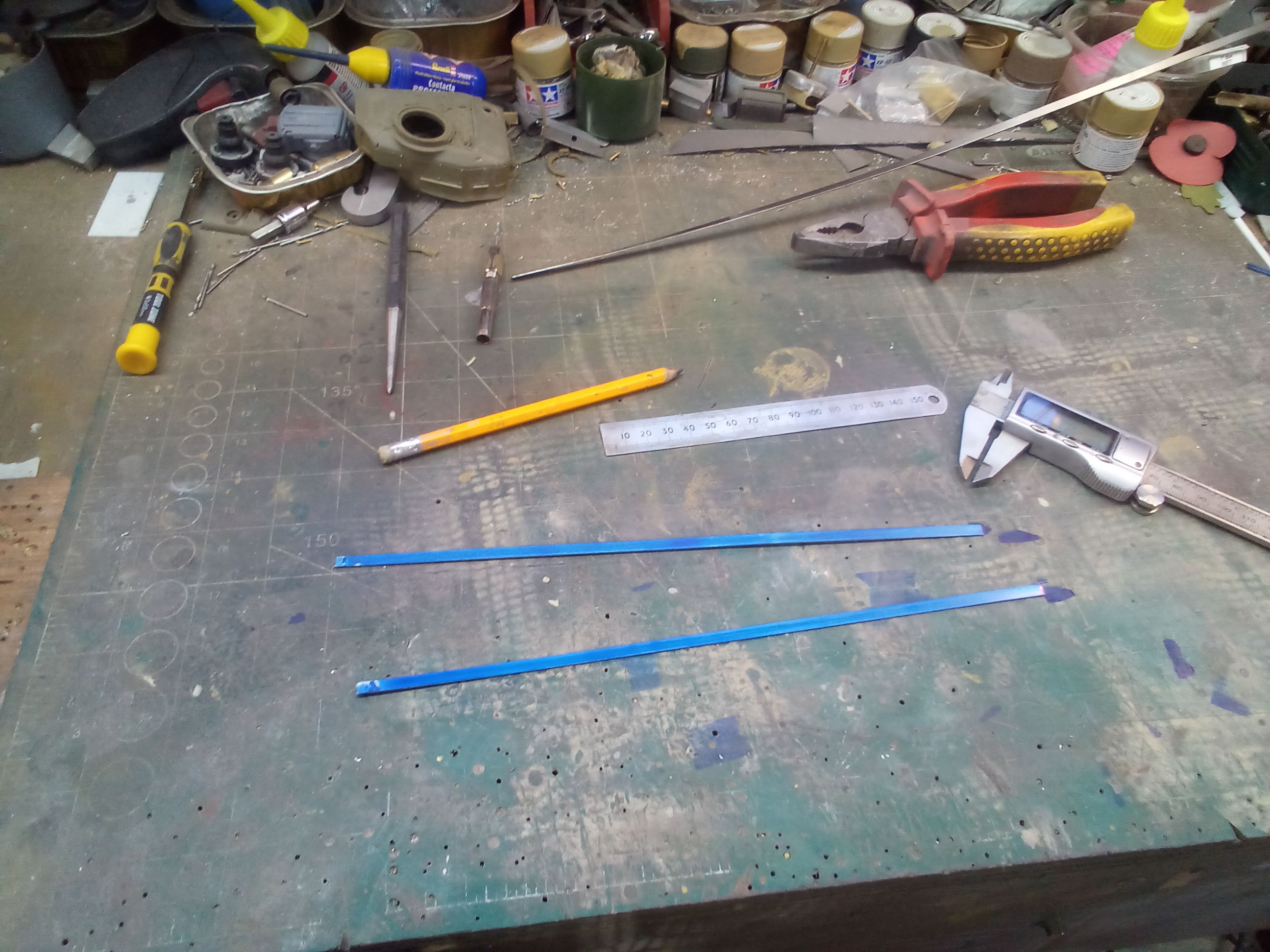

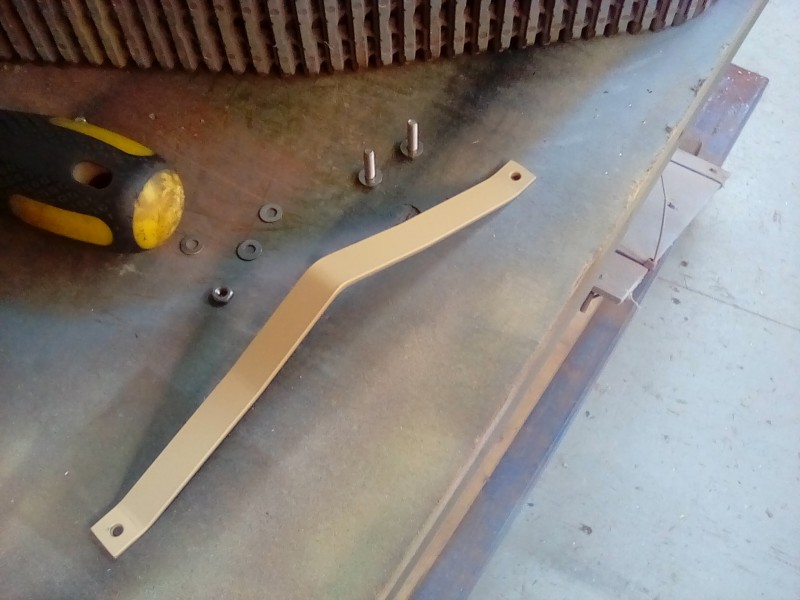

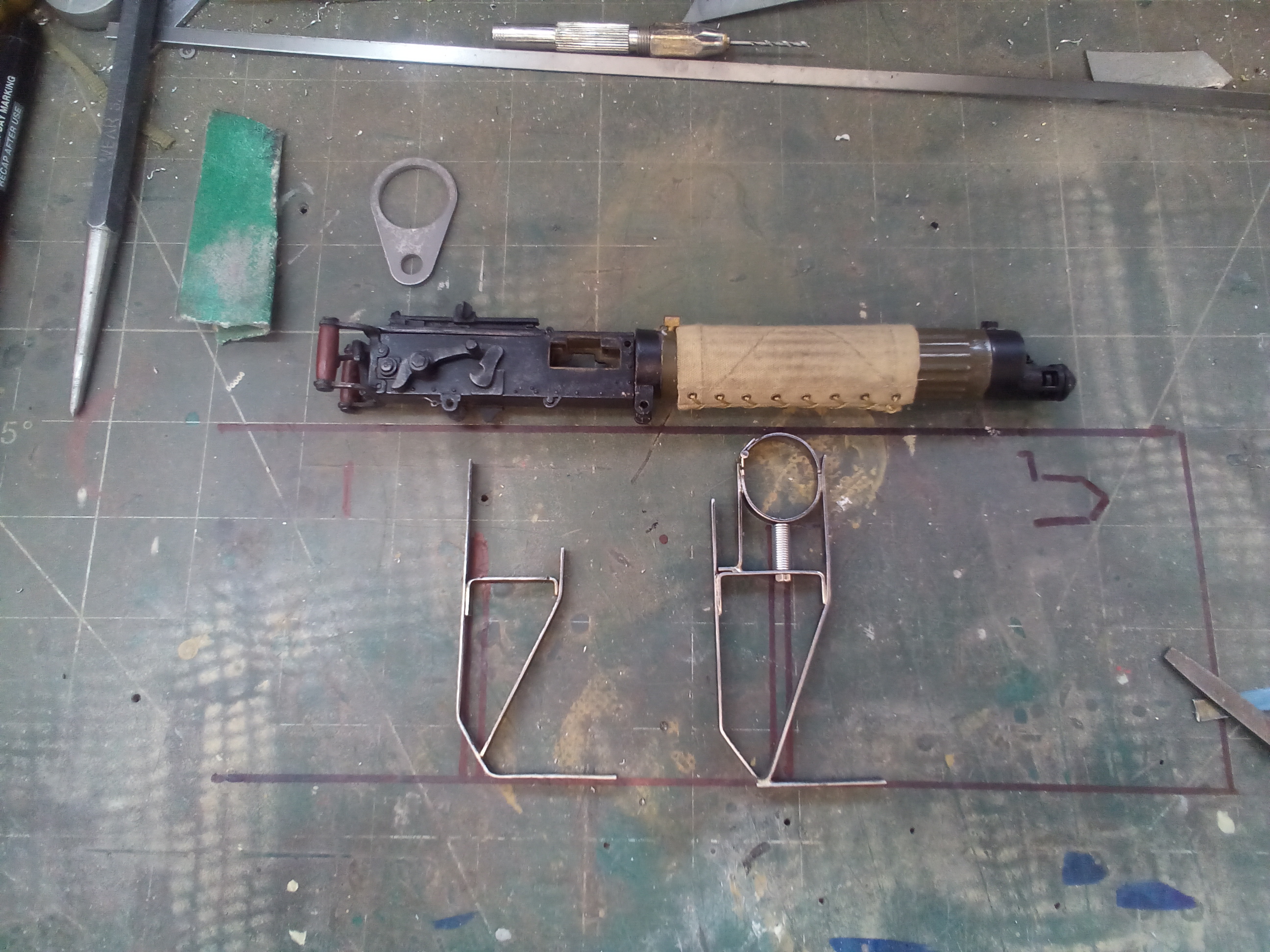

Marking out and bending up
Marking out and bending up
My heat mats don't last long
My heat mats don't last long
It's very satisfying making parts like this
It's very satisfying making parts like this

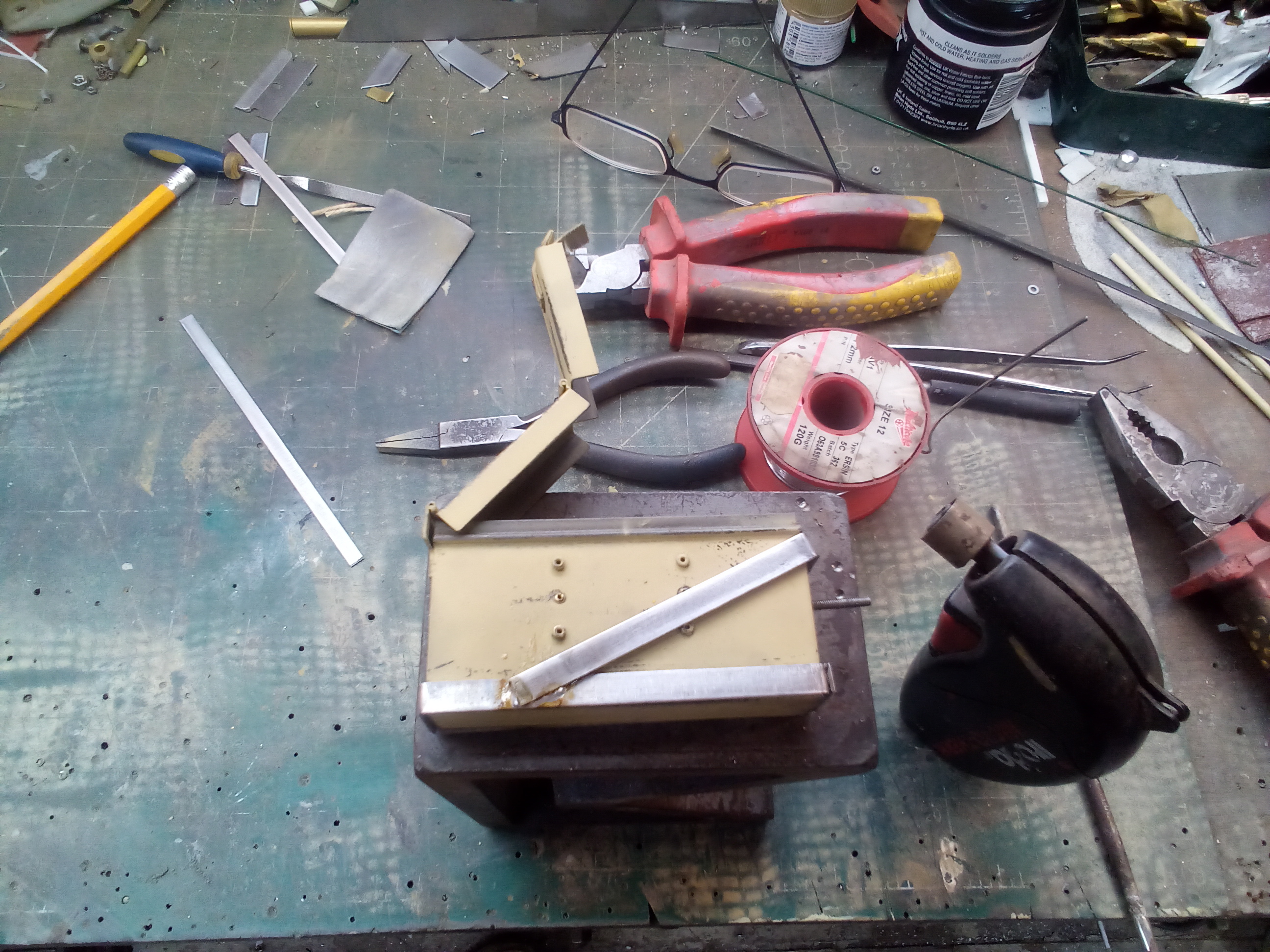

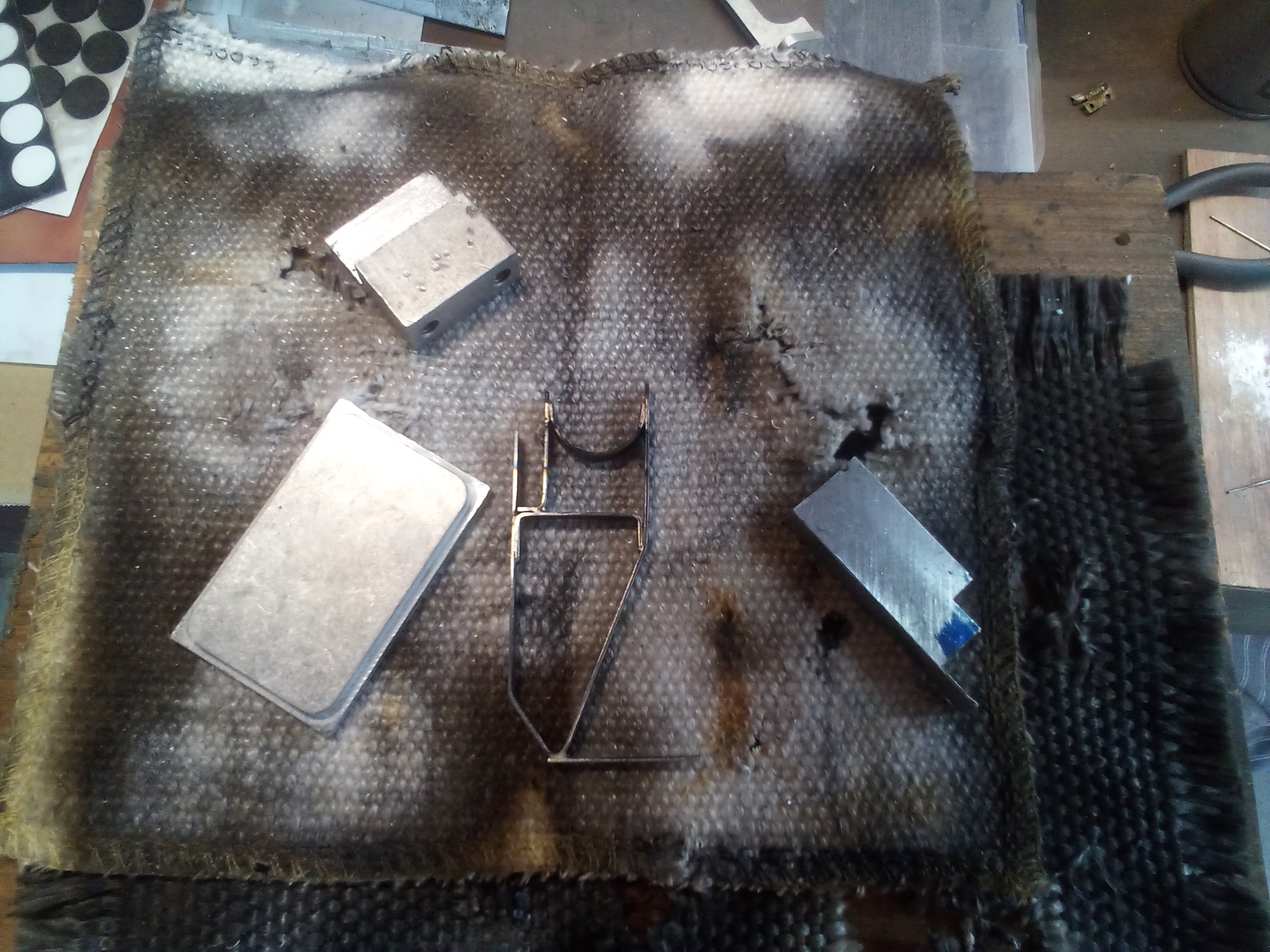

I've managed to silver solder a tiny working hinge to the metal strap
I've managed to silver solder a tiny working hinge to the metal strap
About half way there
About half way there
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4281
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2282 times
Been liked: 7196 times

Re: David's carrier build.

Post by Phil Woollard »

Lots done.
Attachments

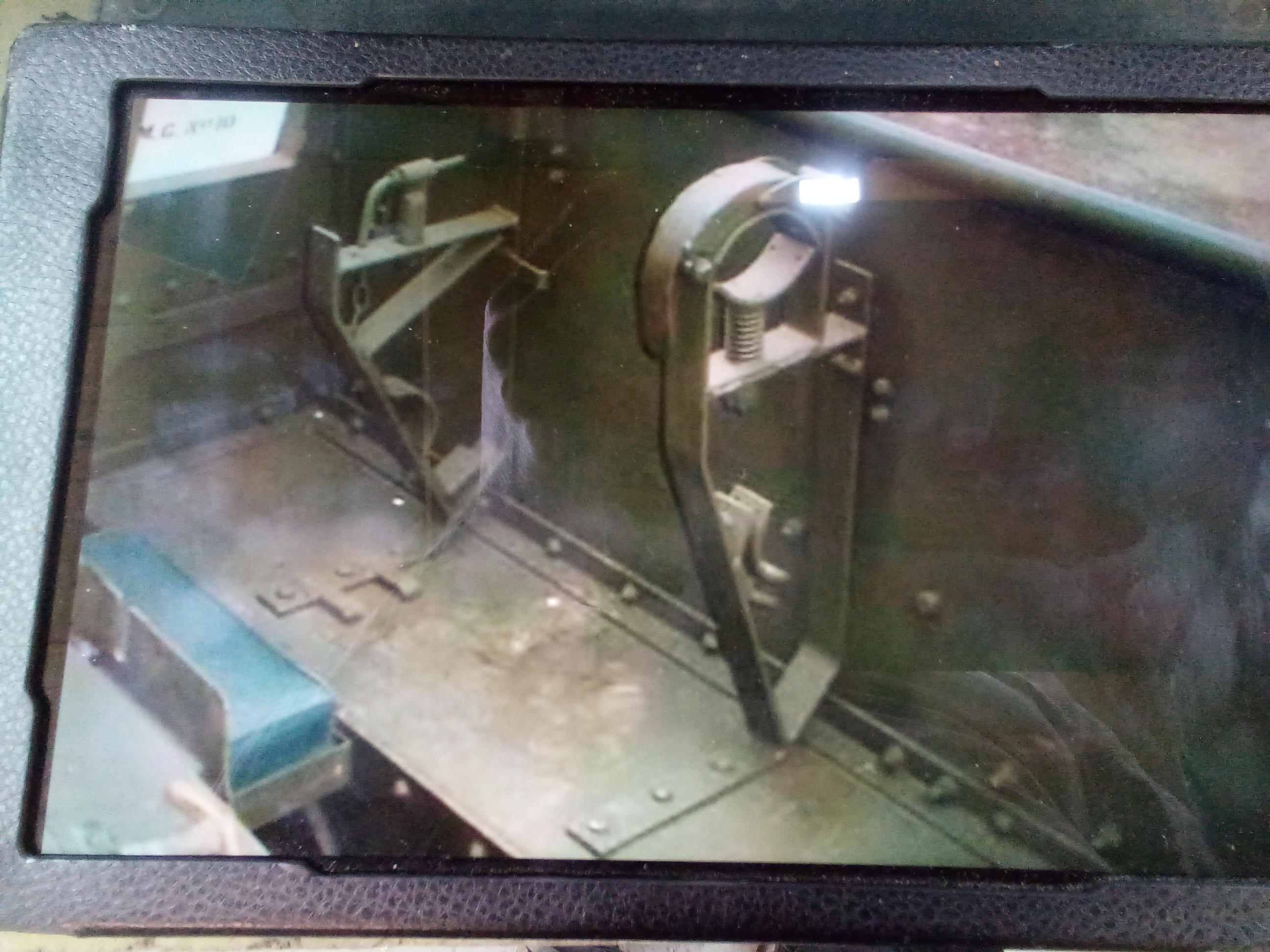

One bracket ready for weathering, these are not easy to fit
One bracket ready for weathering, these are not easy to fit

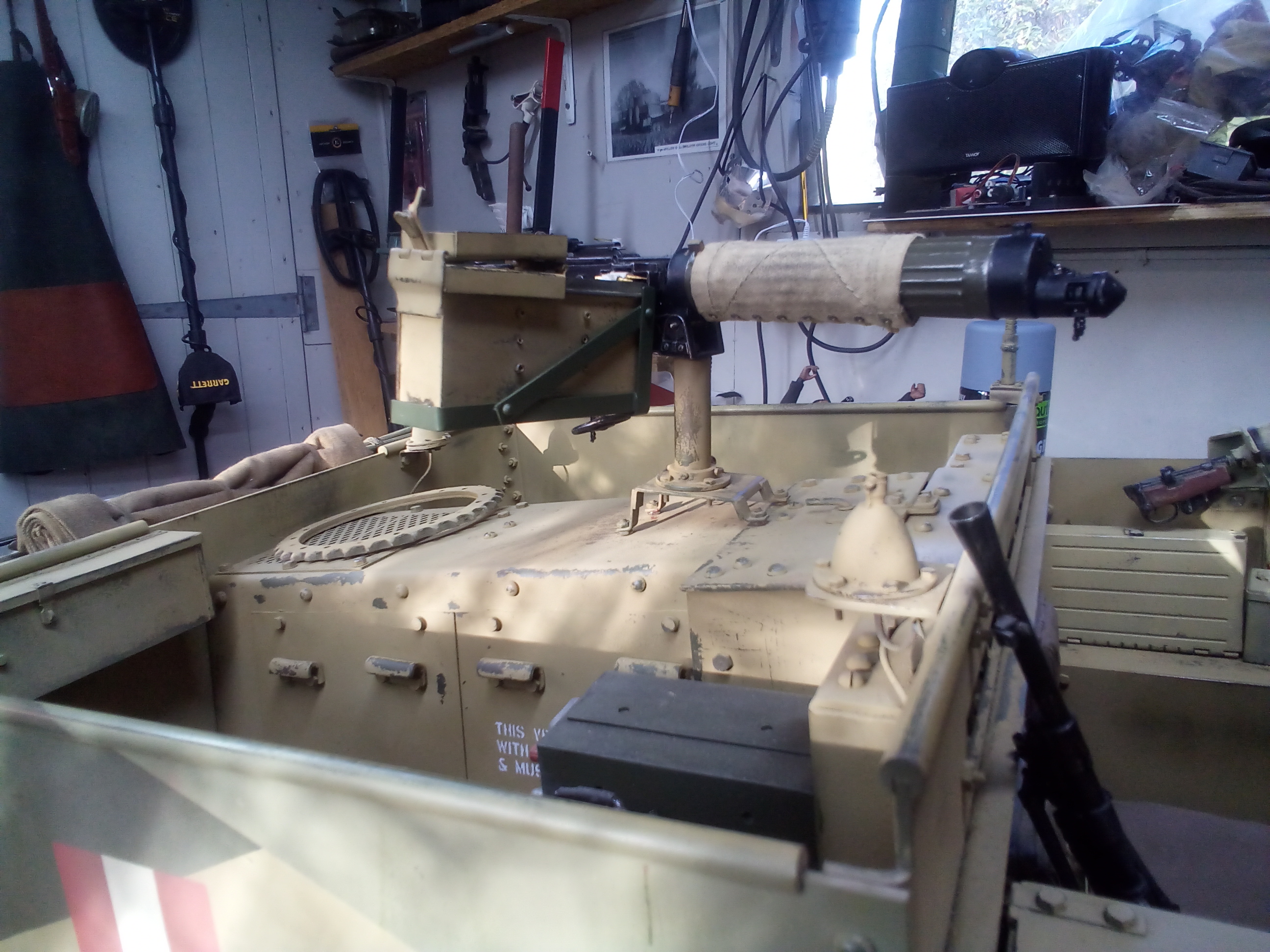

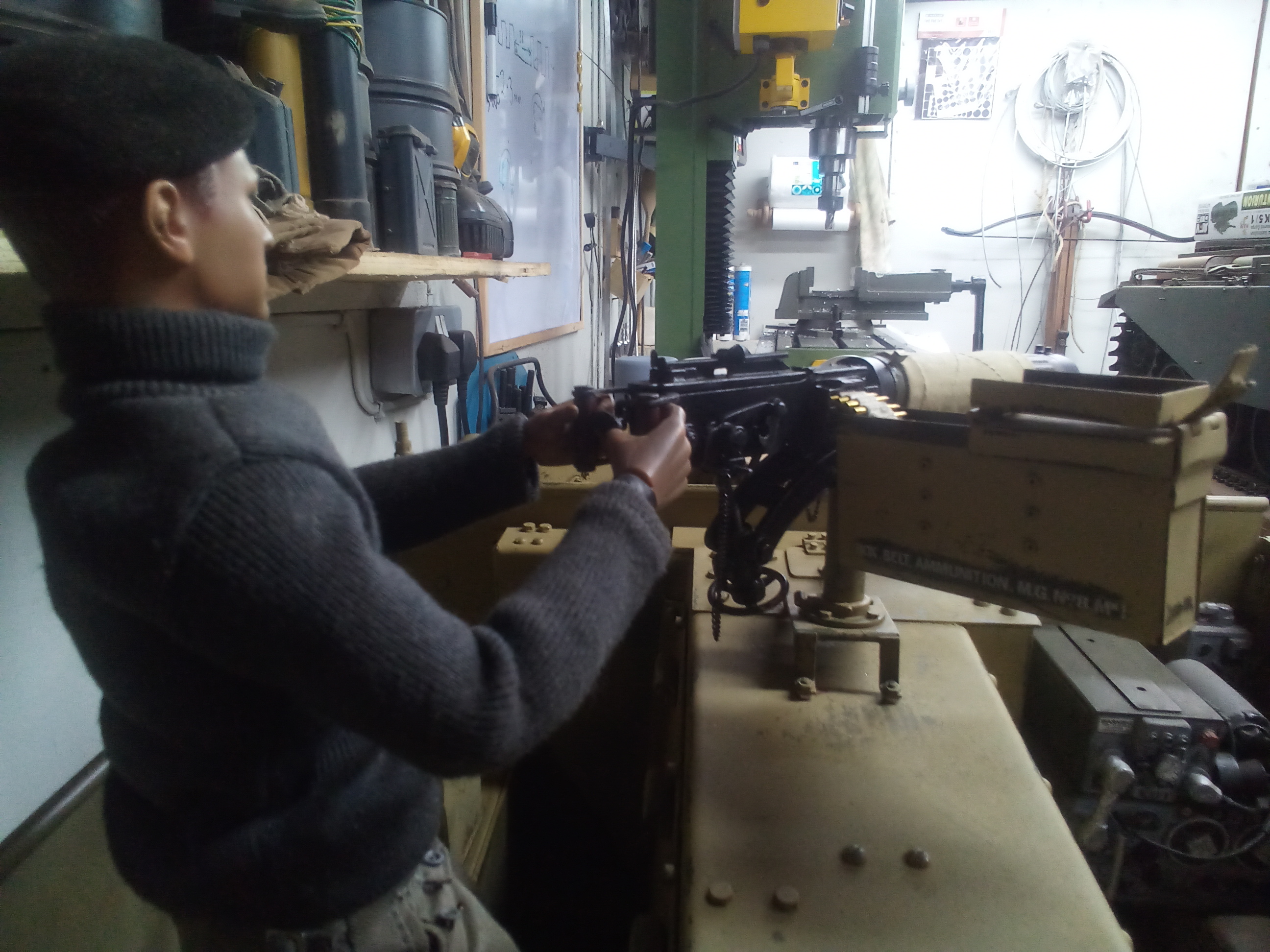

I wonder if the Vickers will live here much
I wonder if the Vickers will live here much

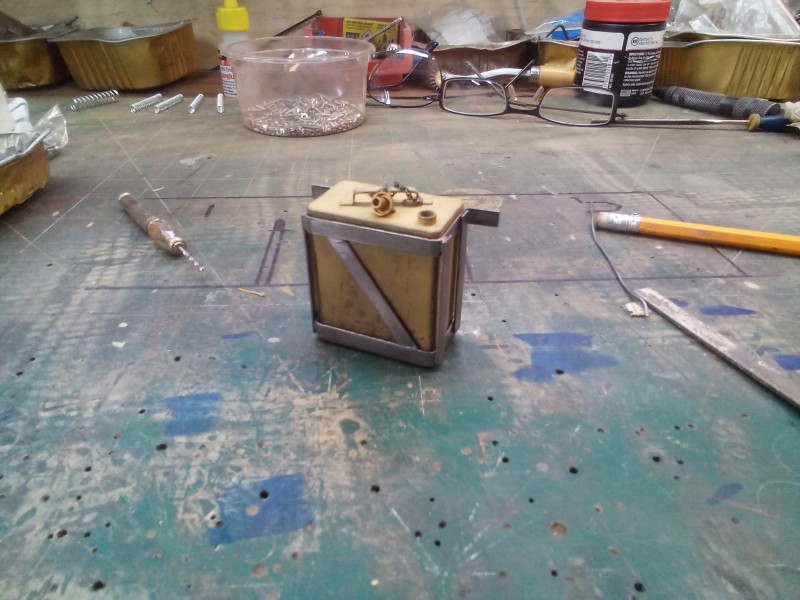

Using the can as the pattern
Using the can as the pattern

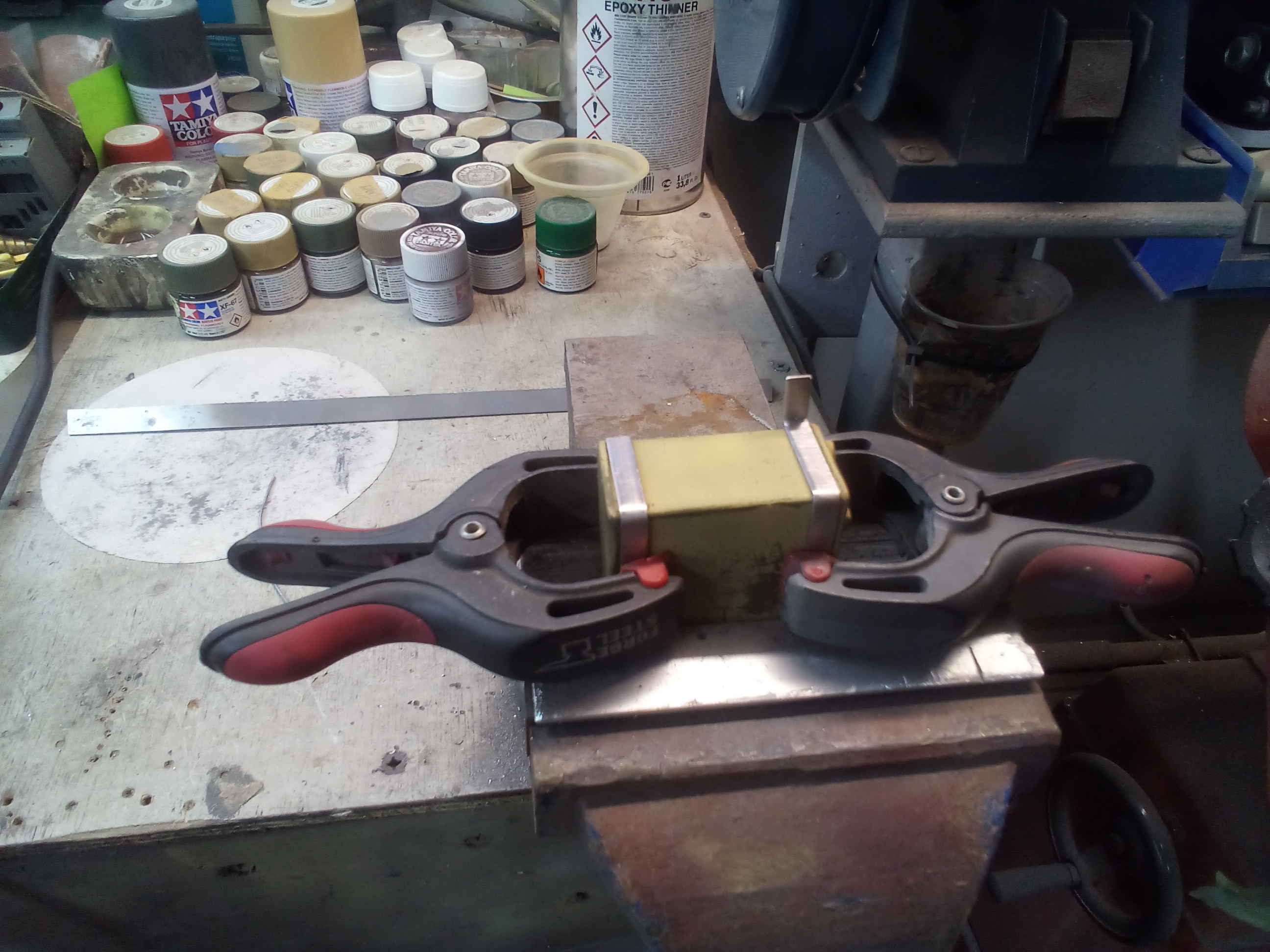

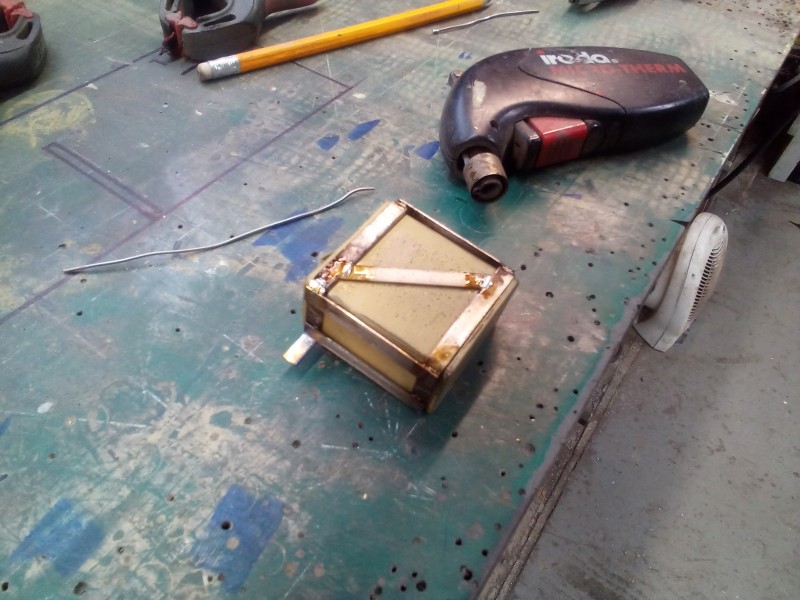

Soft solder today, it's fine for these parts
Soft solder today, it's fine for these parts
Nice and tight
Nice and tight

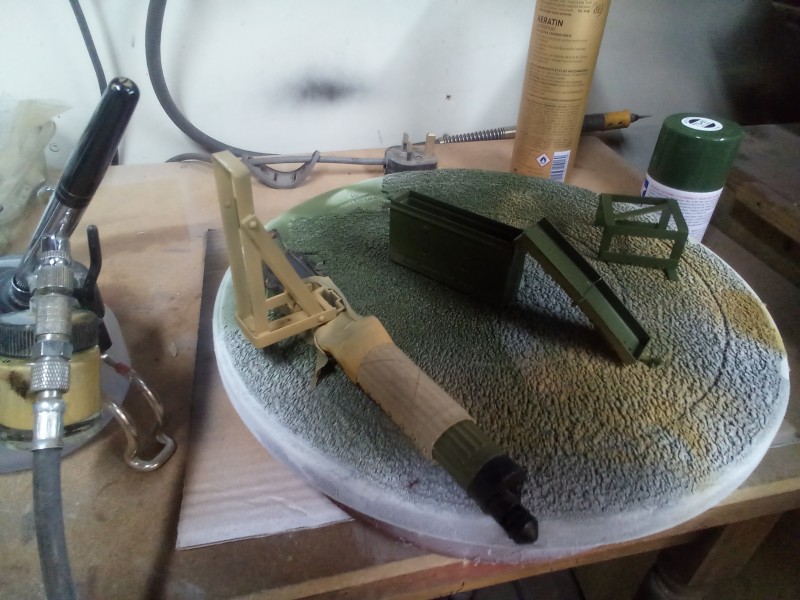

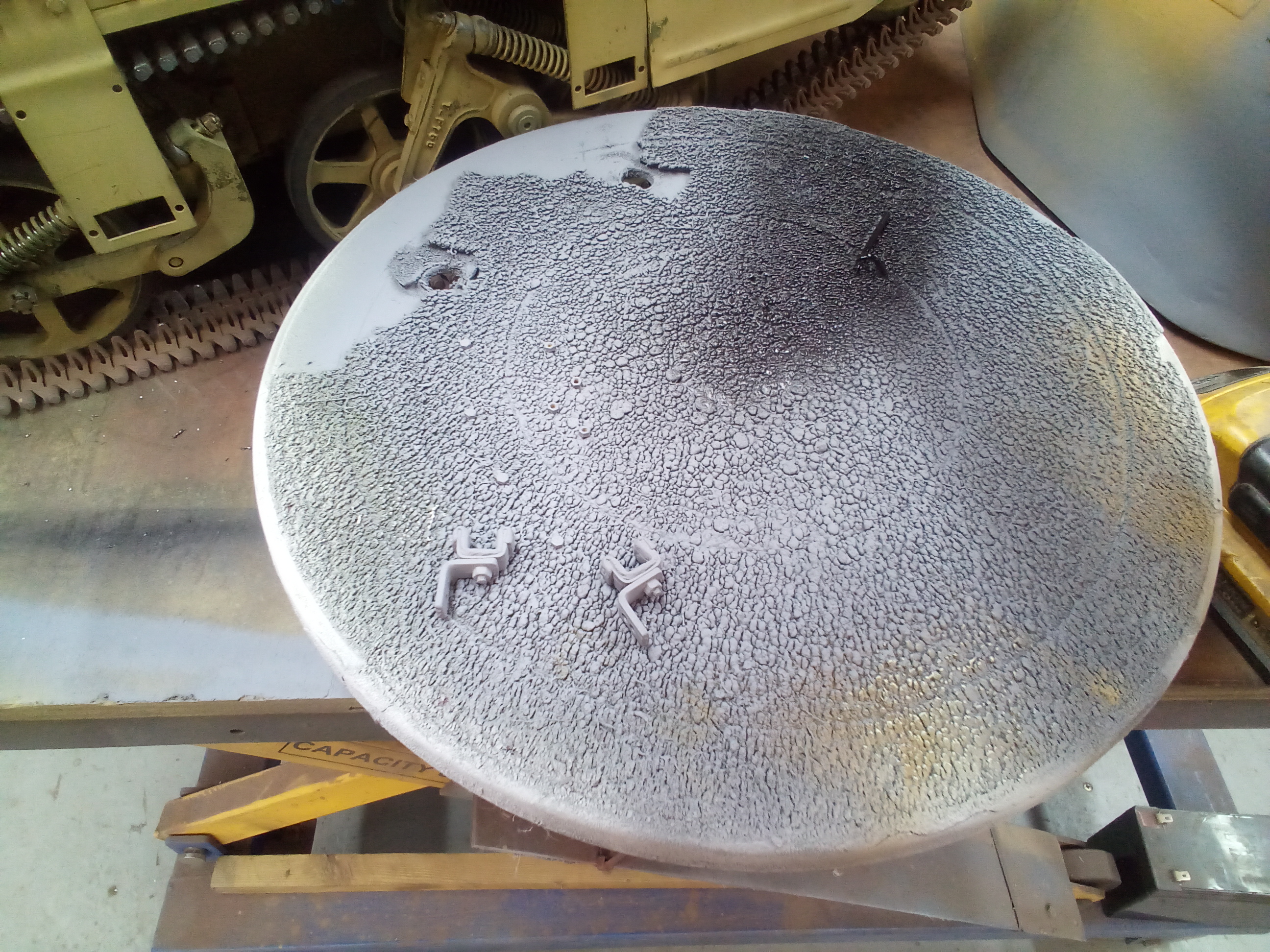

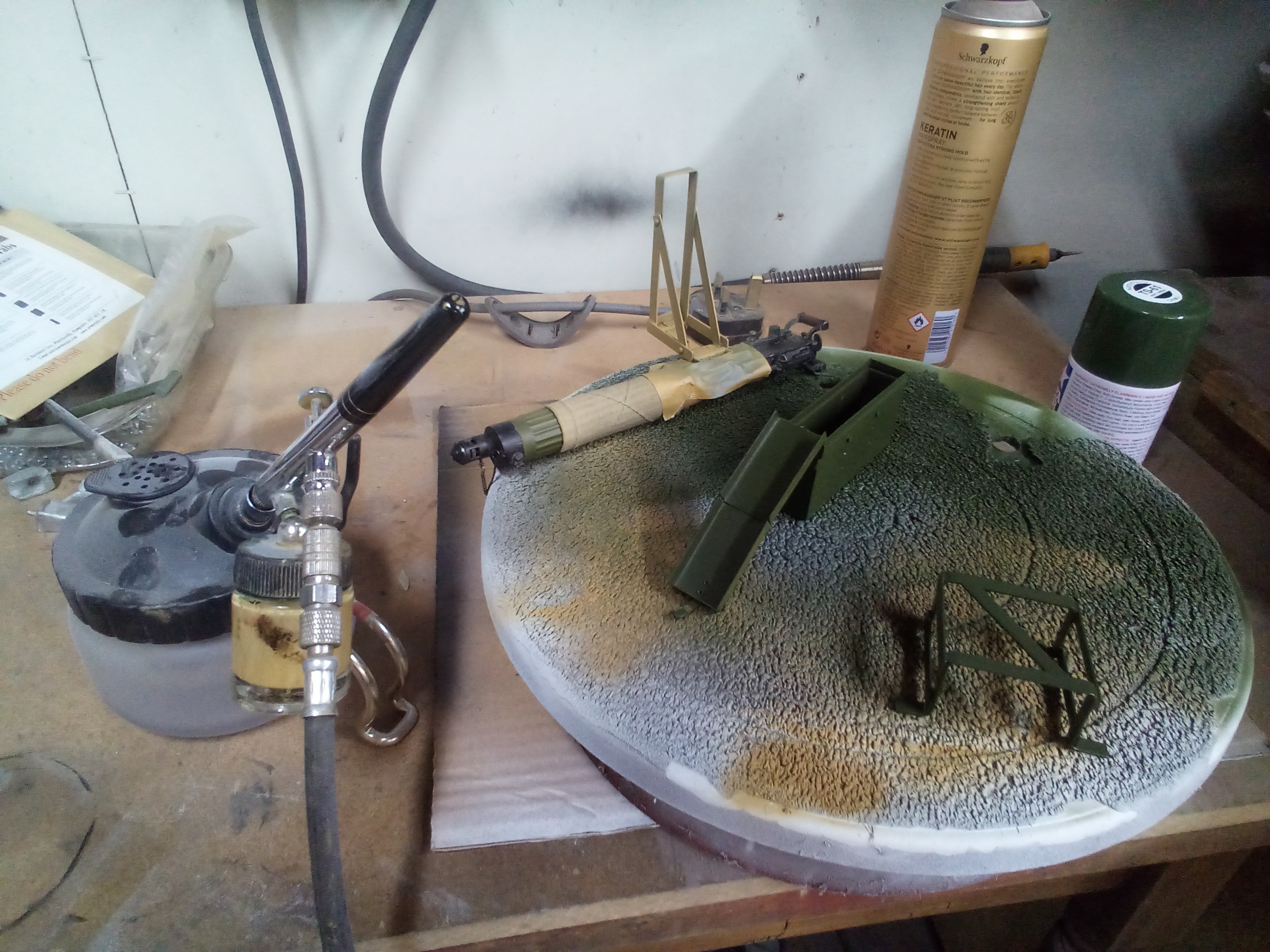

The hair spray technique
The hair spray technique
Painting and weathering again for some of these parts as more work disturbs the finish
Painting and weathering again for some of these parts as more work disturbs the finish

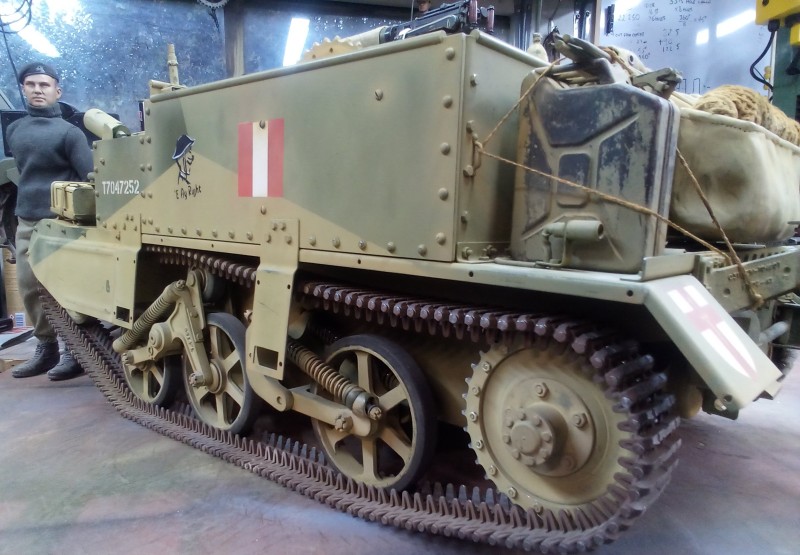

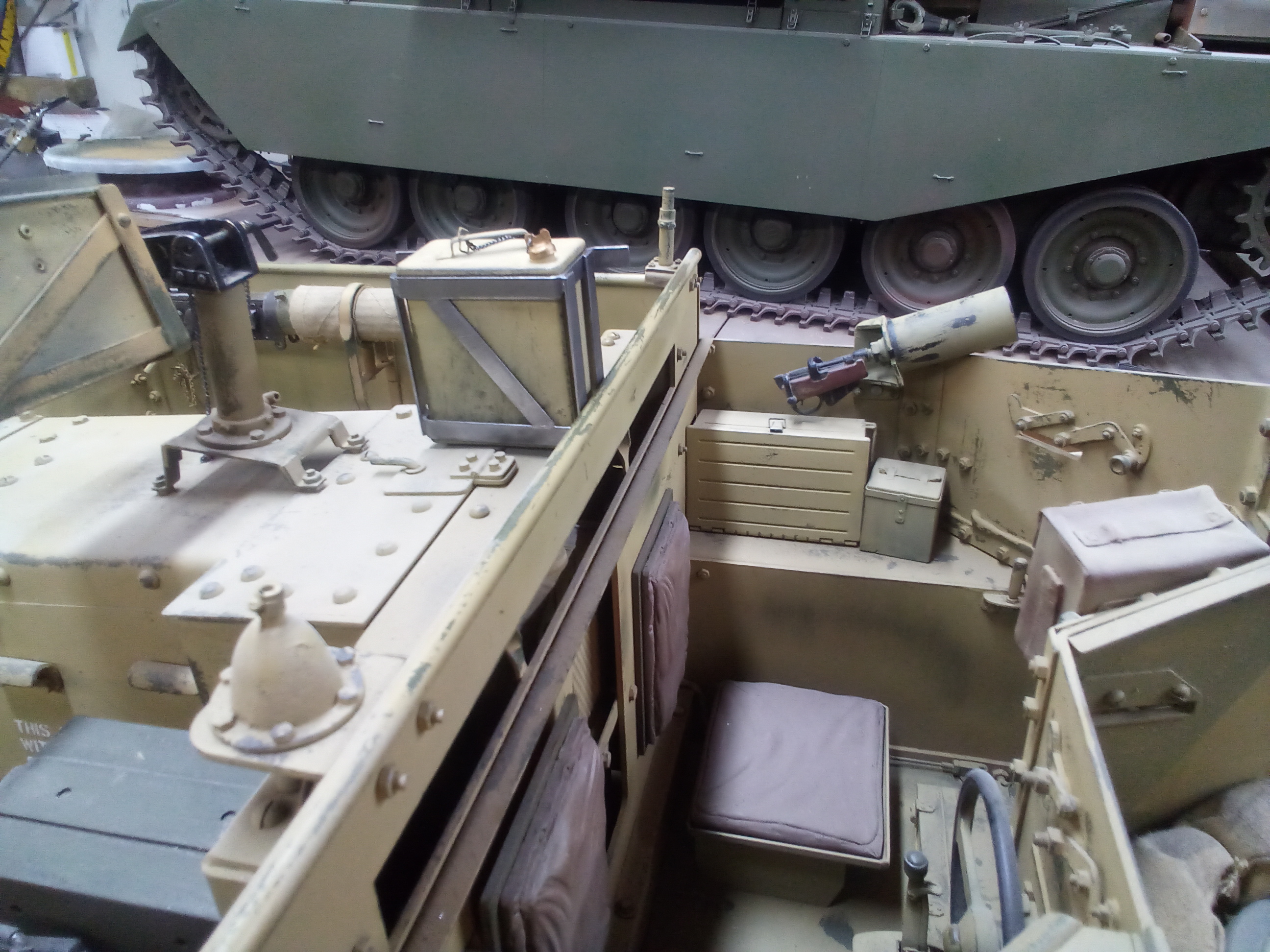

The two gallon water coolant can safely mounted
The two gallon water coolant can safely mounted
I have to make sure it's all demountable and robust enough to cope
I have to make sure it's all demountable and robust enough to cope
I'm pleased with the patina
I'm pleased with the patina
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Phil Woollard
Posts: 4281
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2282 times
Been liked: 7196 times

Re: David's carrier build.

Post by Phil Woollard »

Just a little done today.
Attachments

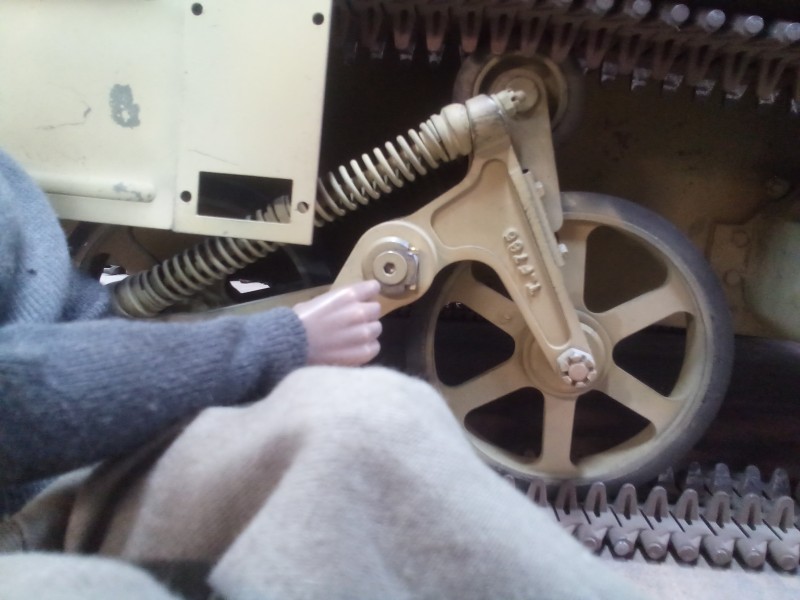

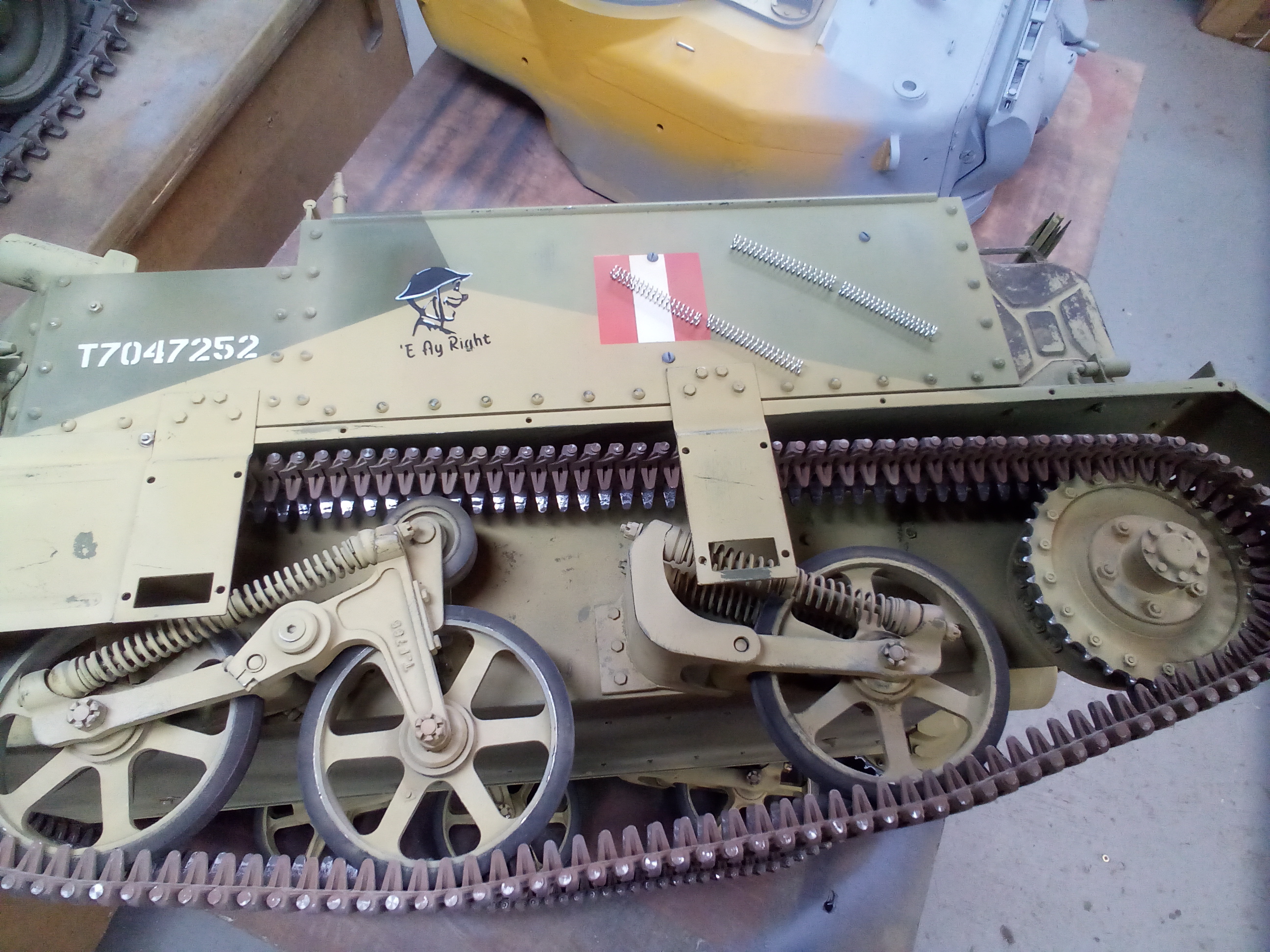

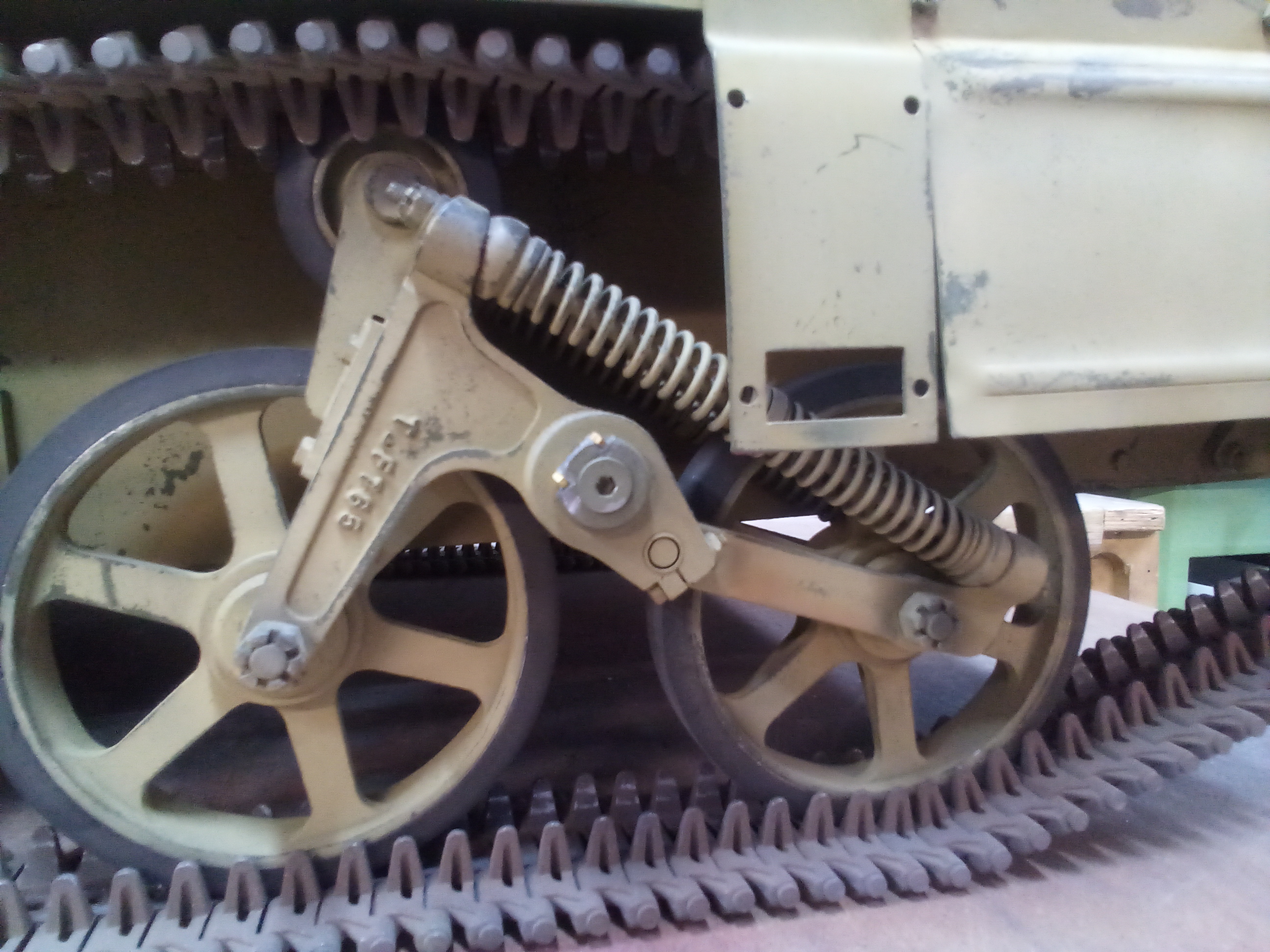

Four of these tiny assister springs for each set of the rear boggies, just like the 1/1 had.
Four of these tiny assister springs for each set of the rear boggies, just like the 1/1 had.
Those parts that came to day boss.
Those parts that came to day boss.

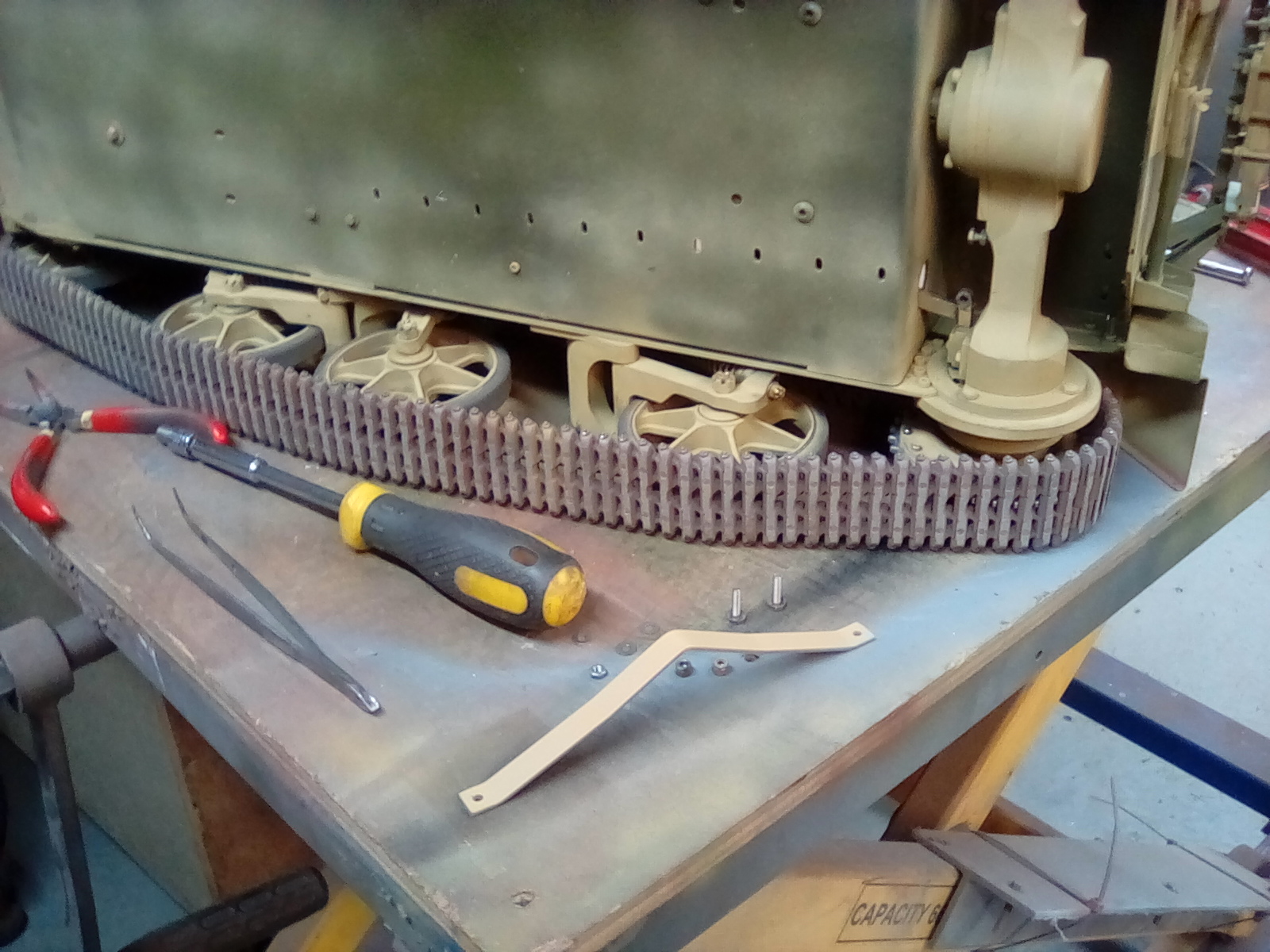

The assister springs installed which brings the ride angle back up to where it should be, and with less track on the road turning is that much easier .
The assister springs installed which brings the ride angle back up to where it should be, and with less track on the road turning is that much easier .
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
User avatar
Robert E Morey
Posts: 2349
Joined: Wed Jul 18, 2007 12:59 am
Location: Seattle, WA USA
Has liked: 161 times
Been liked: 830 times

Re: David's carrier build.

Post by Robert E Morey »

Love it Phil, the detail is over the top. The camo is very cool and adds a lot.
The new owner will be tickled pink.
Bob
Top
Phil Woollard
Posts: 4281
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2282 times
Been liked: 7196 times

Re: David's carrier build.

Post by Phil Woollard »

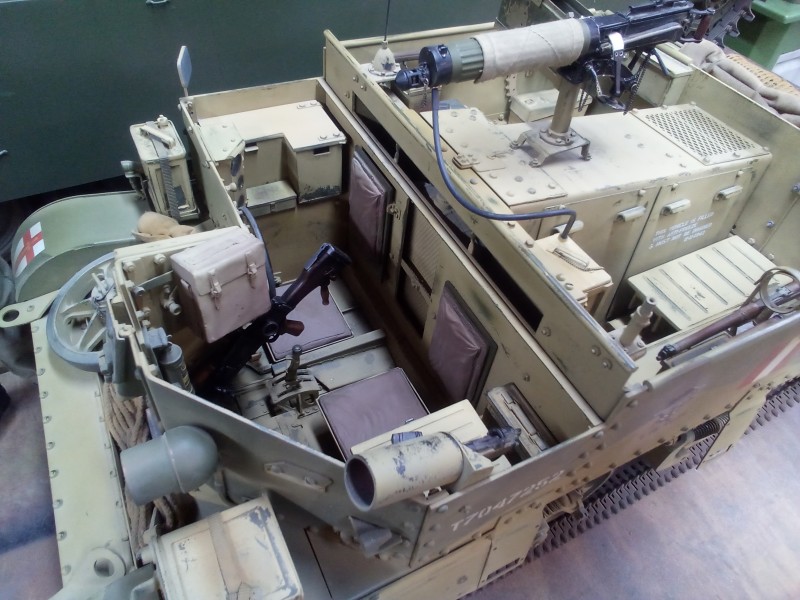

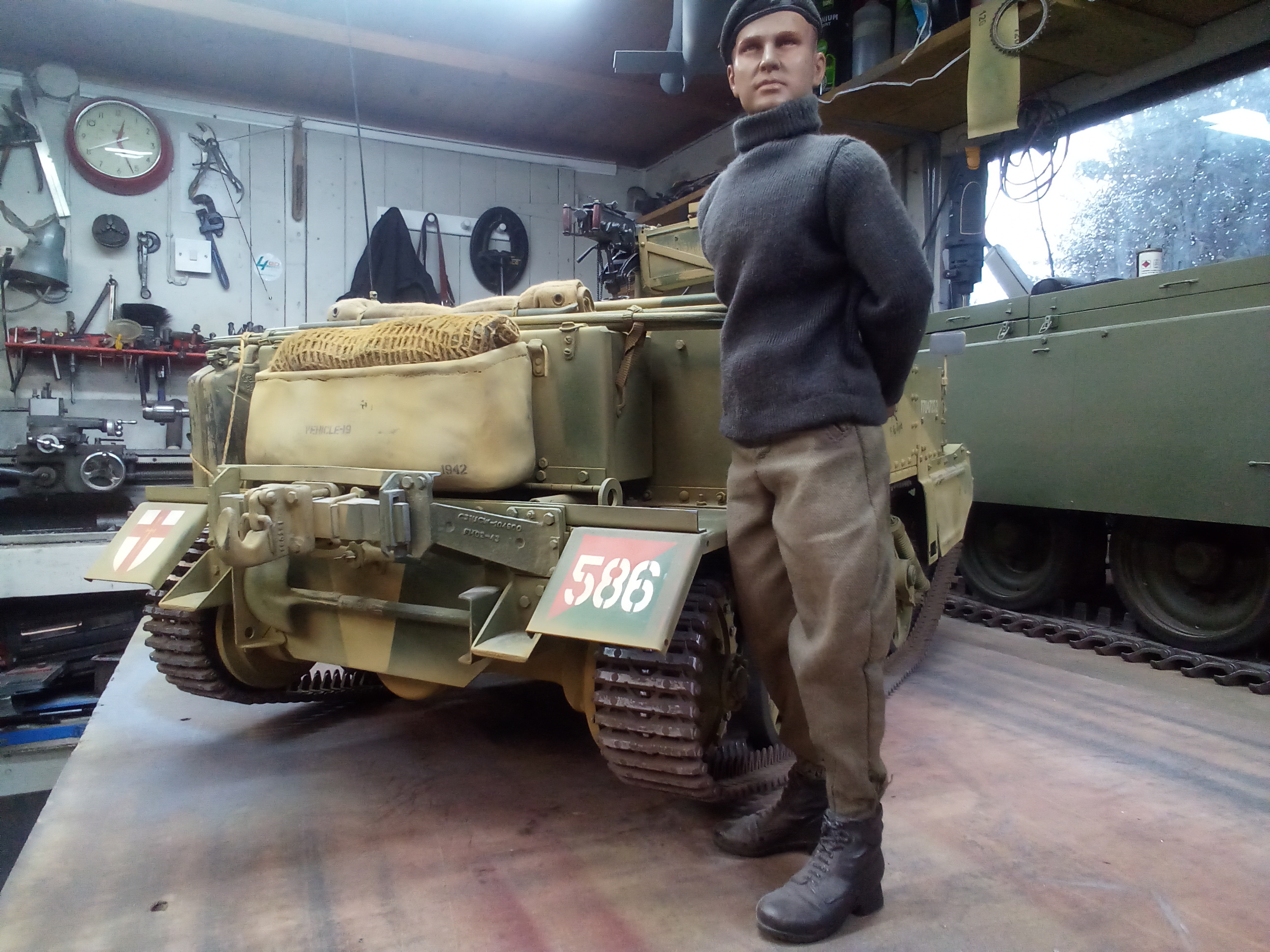

Well I think it's all done!
Attachments

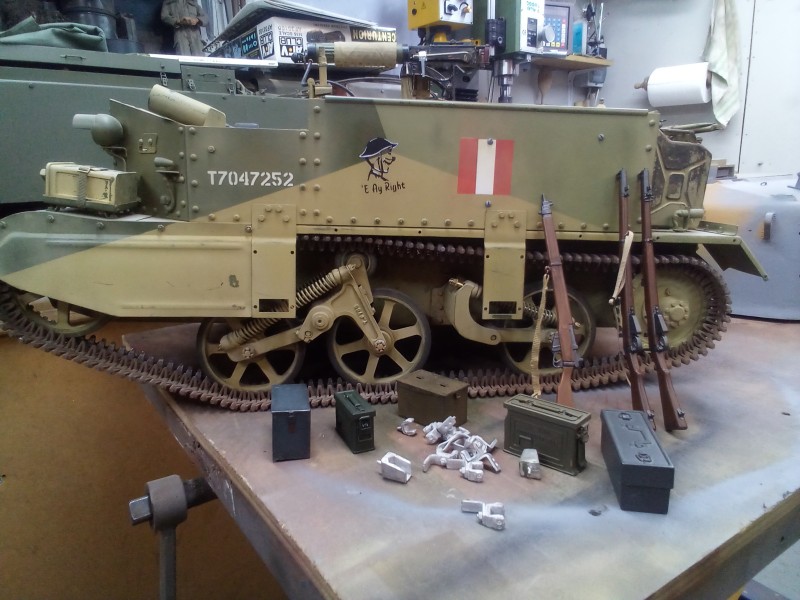

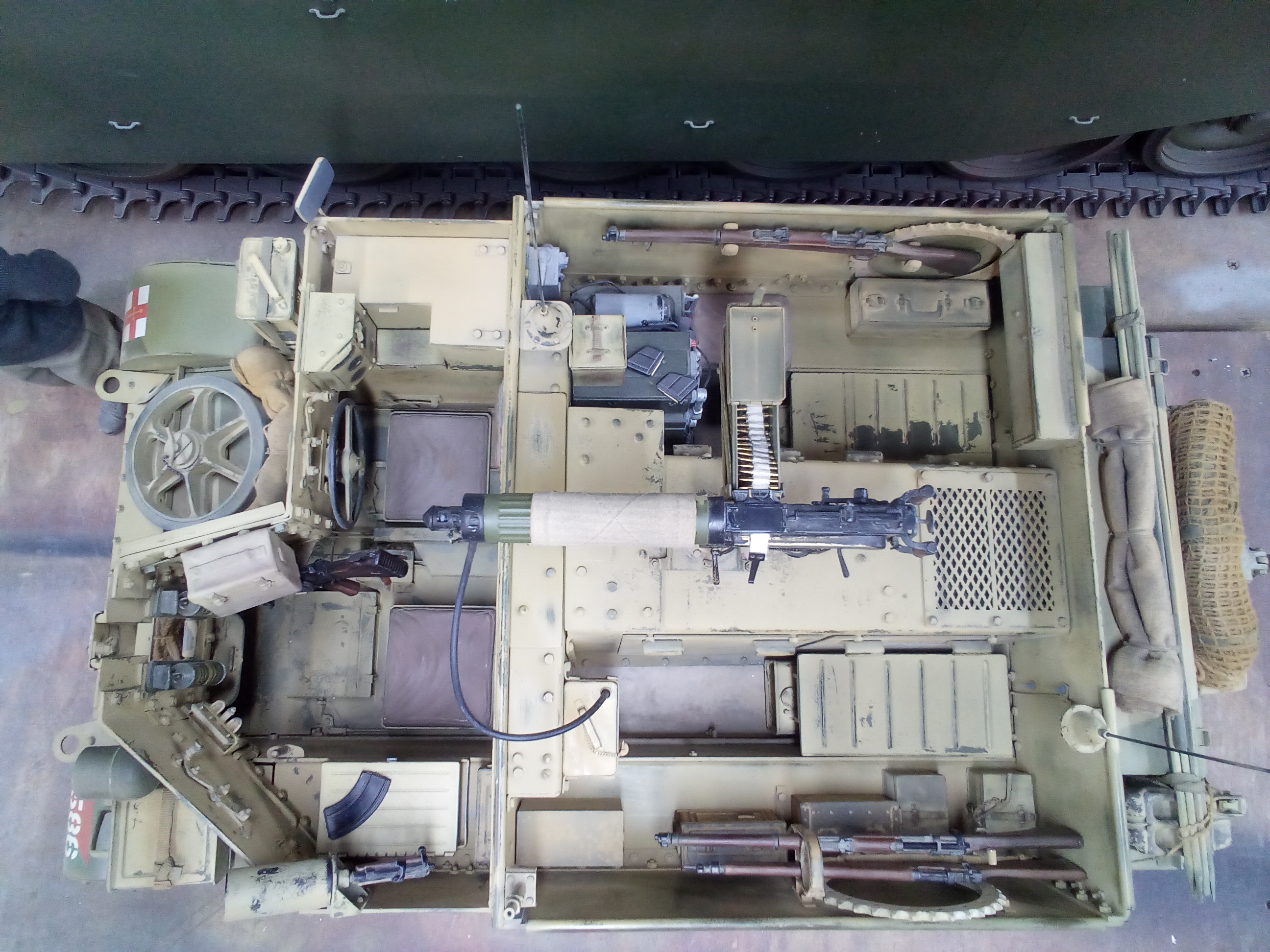

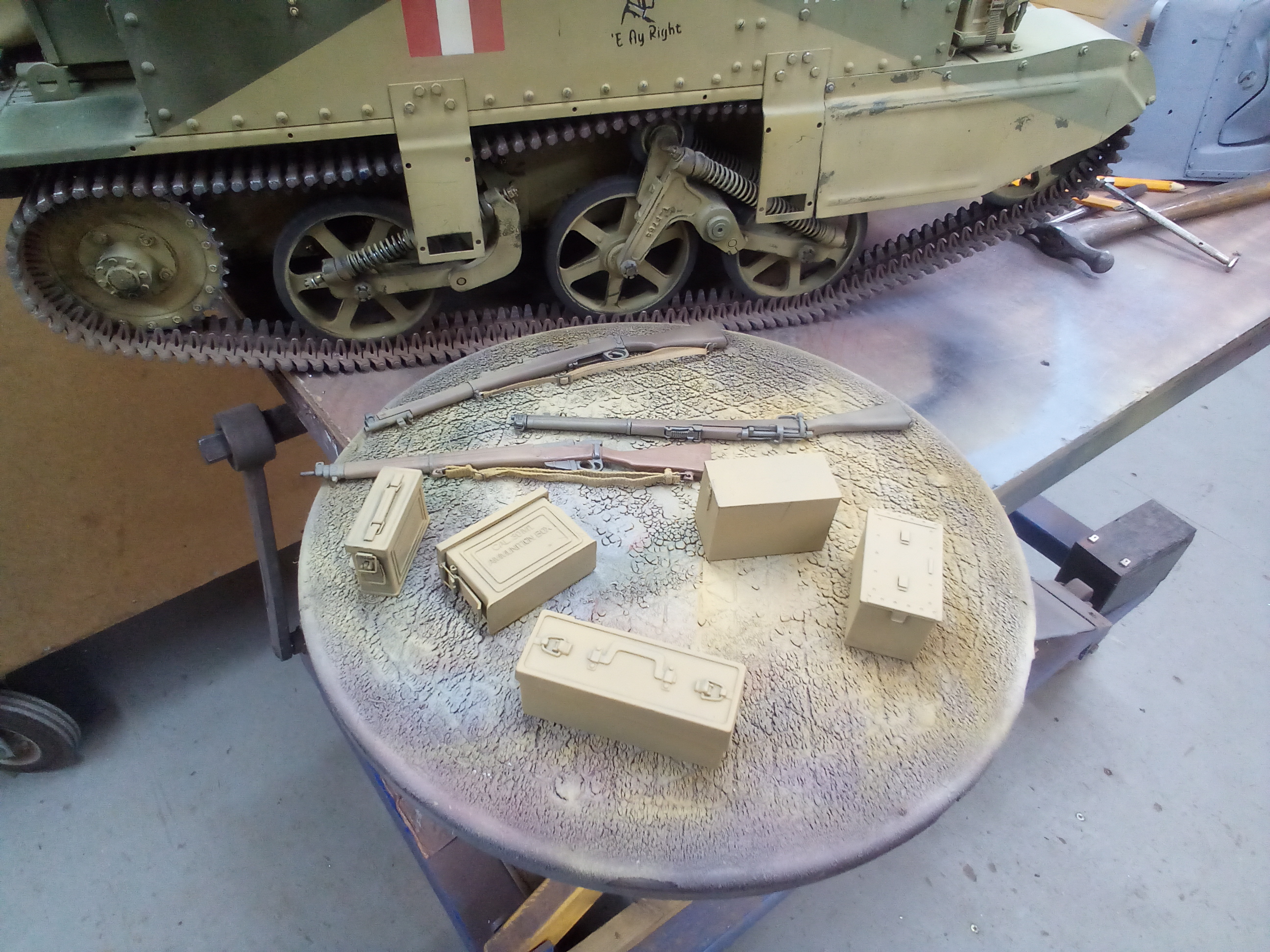

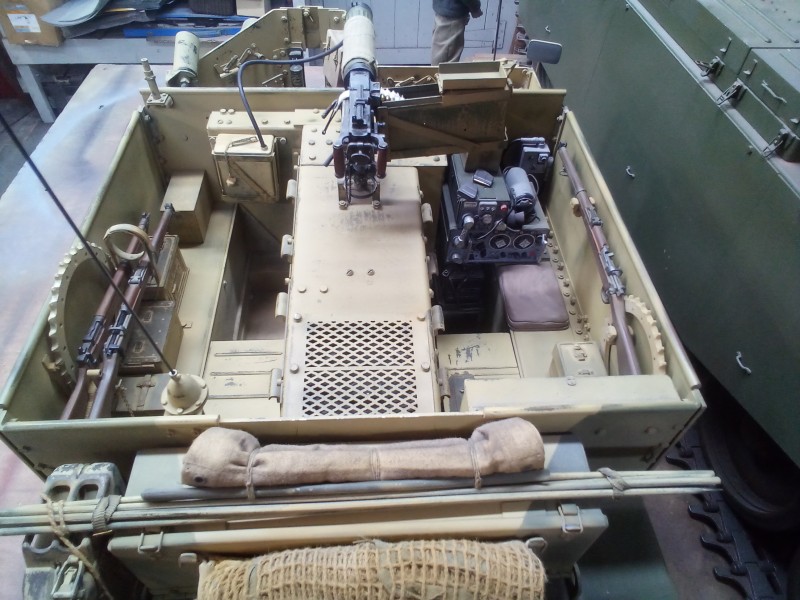

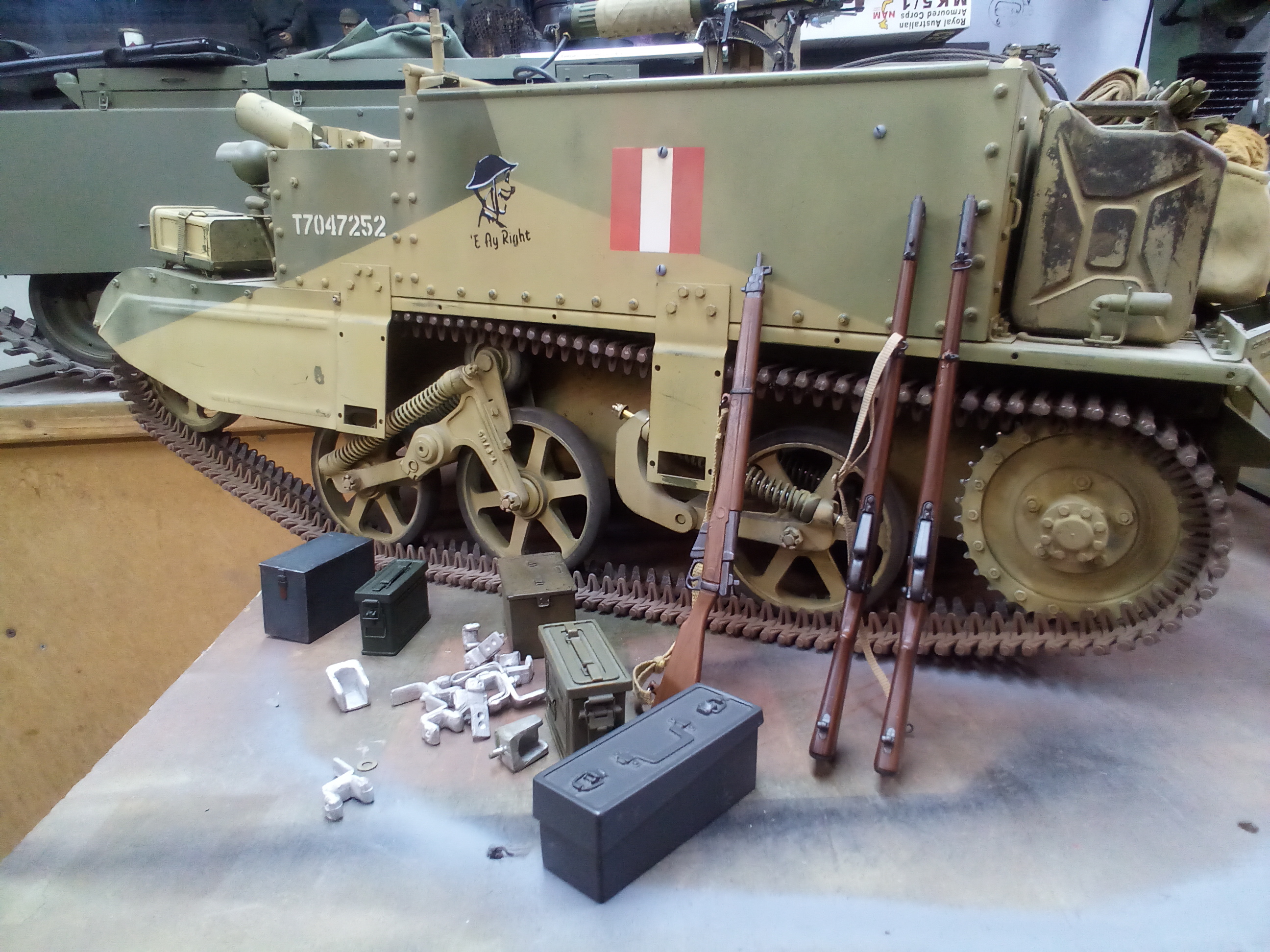

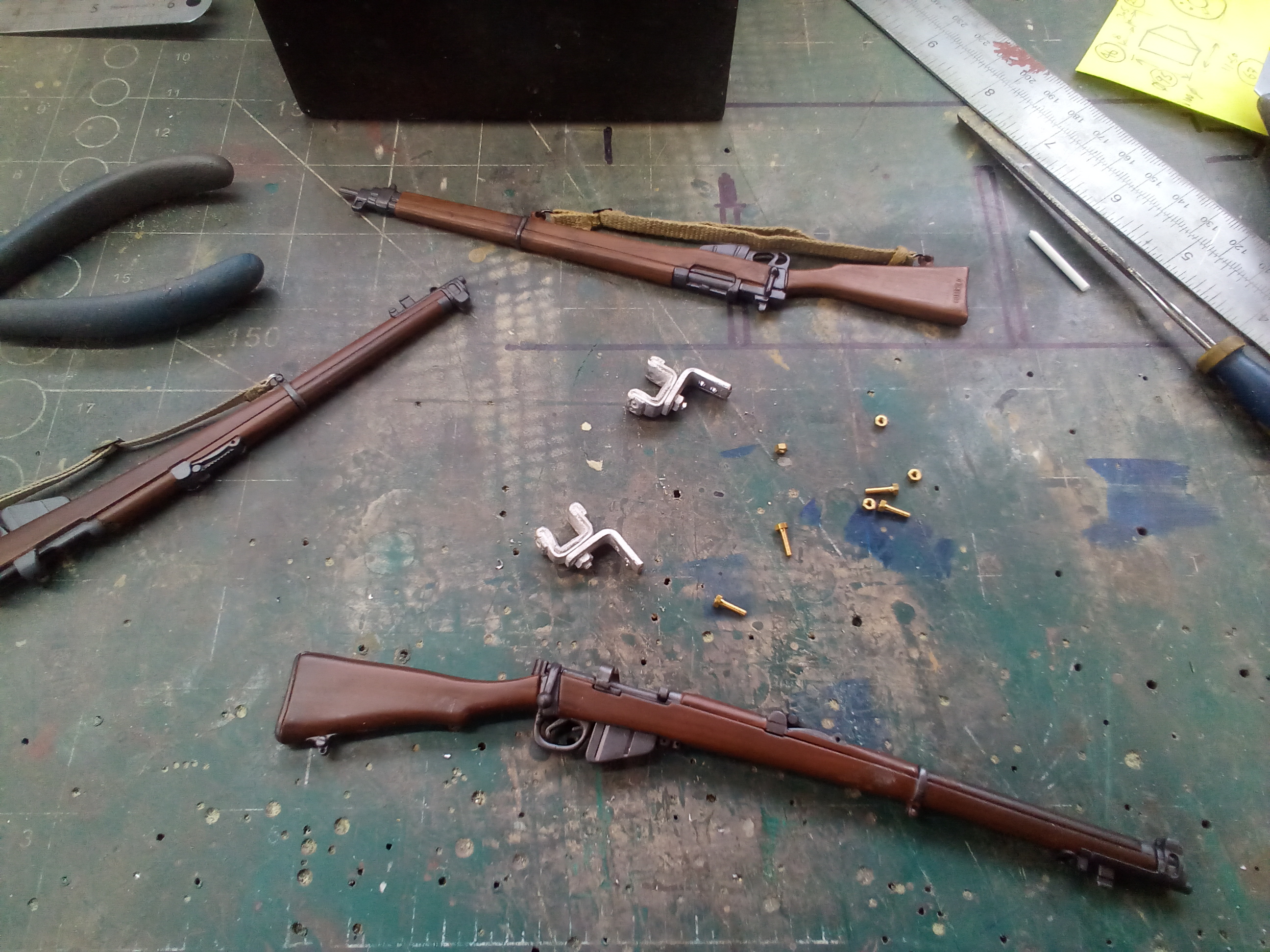

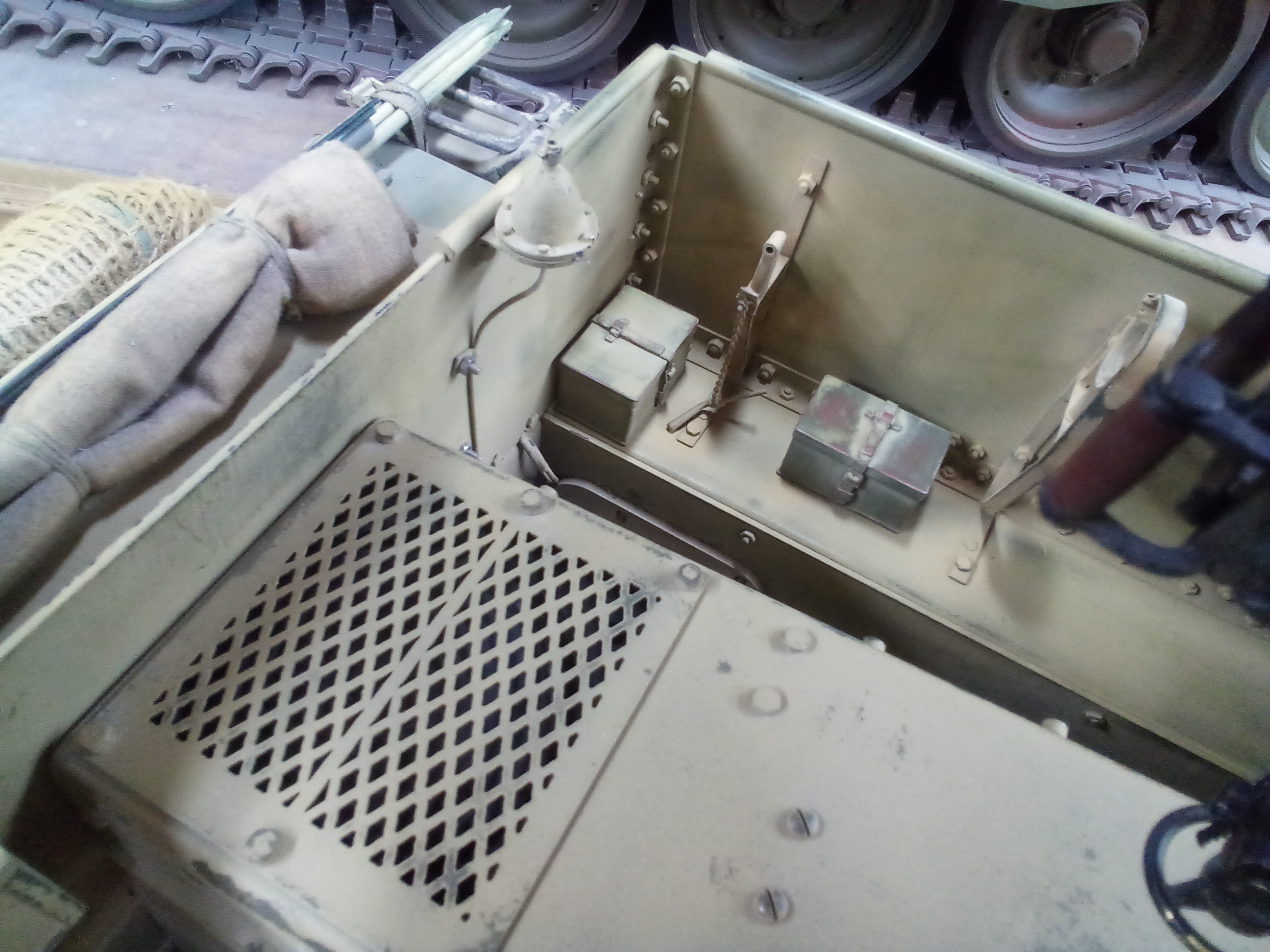

There's not much room for the small arms but I have a plan.
There's not much room for the small arms but I have a plan.
One of the rifles needed a new bolt for the action so good old Plasticard was used.
One of the rifles needed a new bolt for the action so good old Plasticard was used.
It's a pain adding fresh fixings at this stage as they all need primer and then topical finishing colour
It's a pain adding fresh fixings at this stage as they all need primer and then topical finishing colour

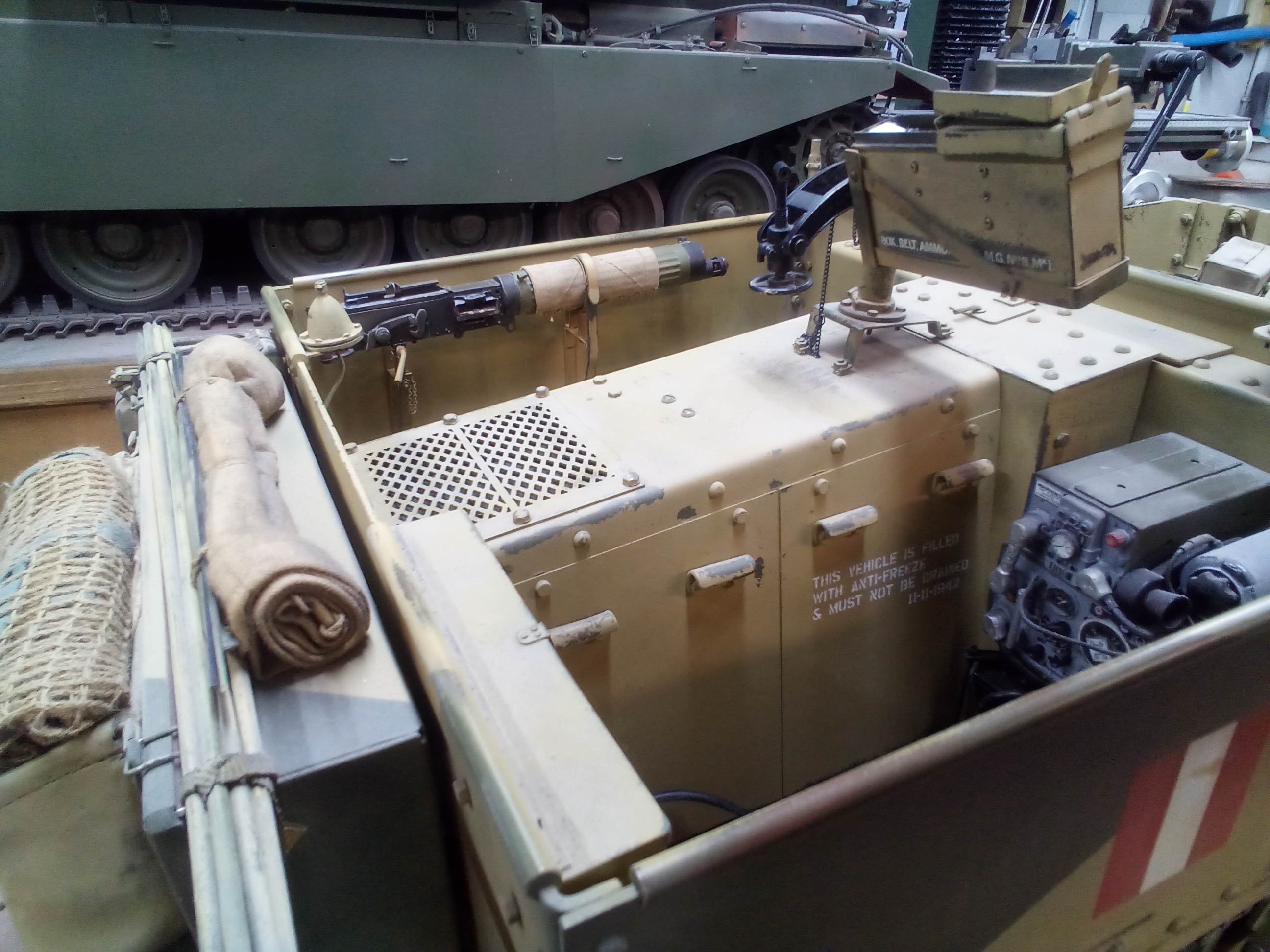

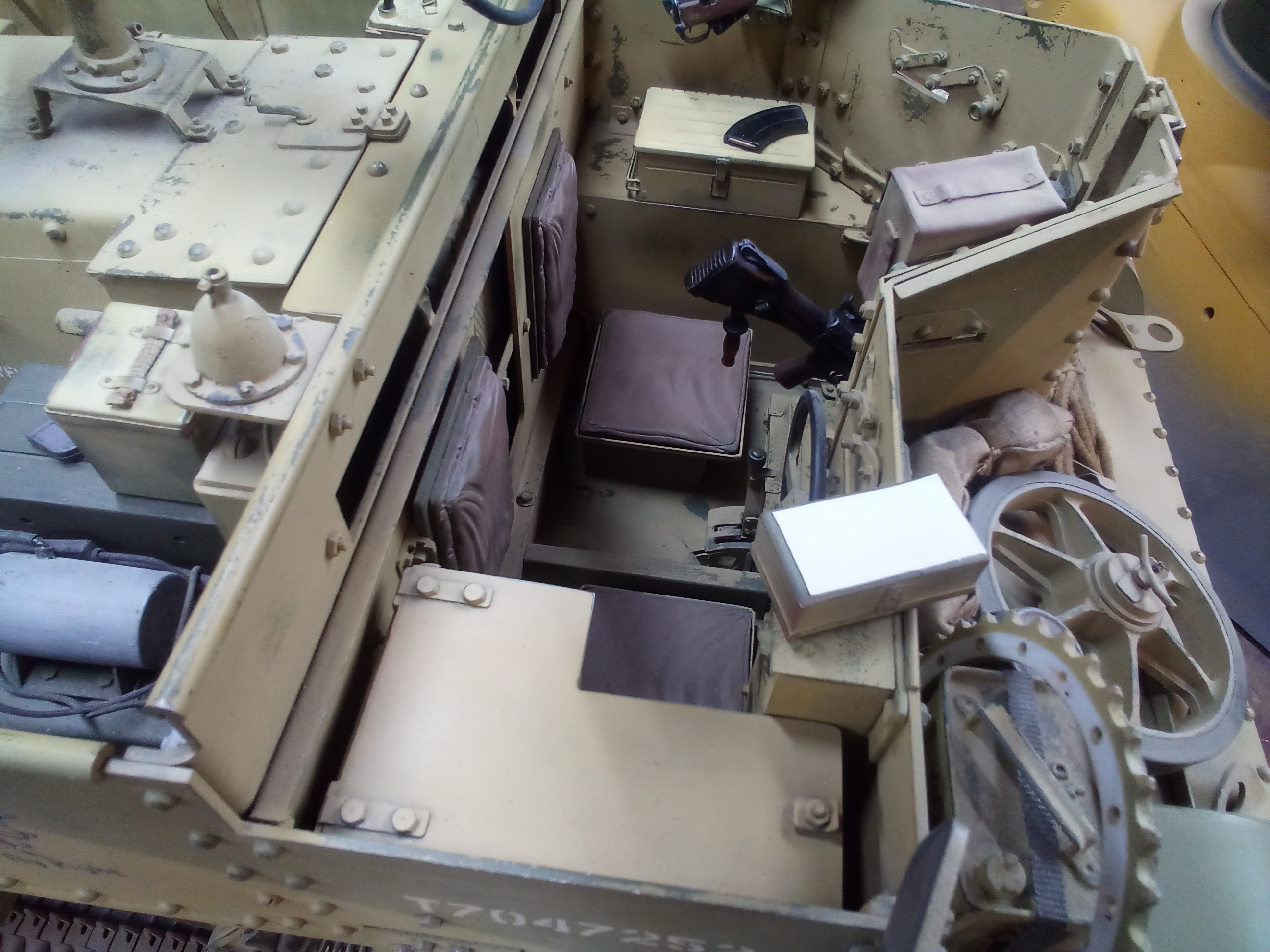

I've used double sided tape for most of the boxes, the boxes can then be moved around to suit .
I've used double sided tape for most of the boxes, the boxes can then be moved around to suit .
Boxes everywhere
Boxes everywhere

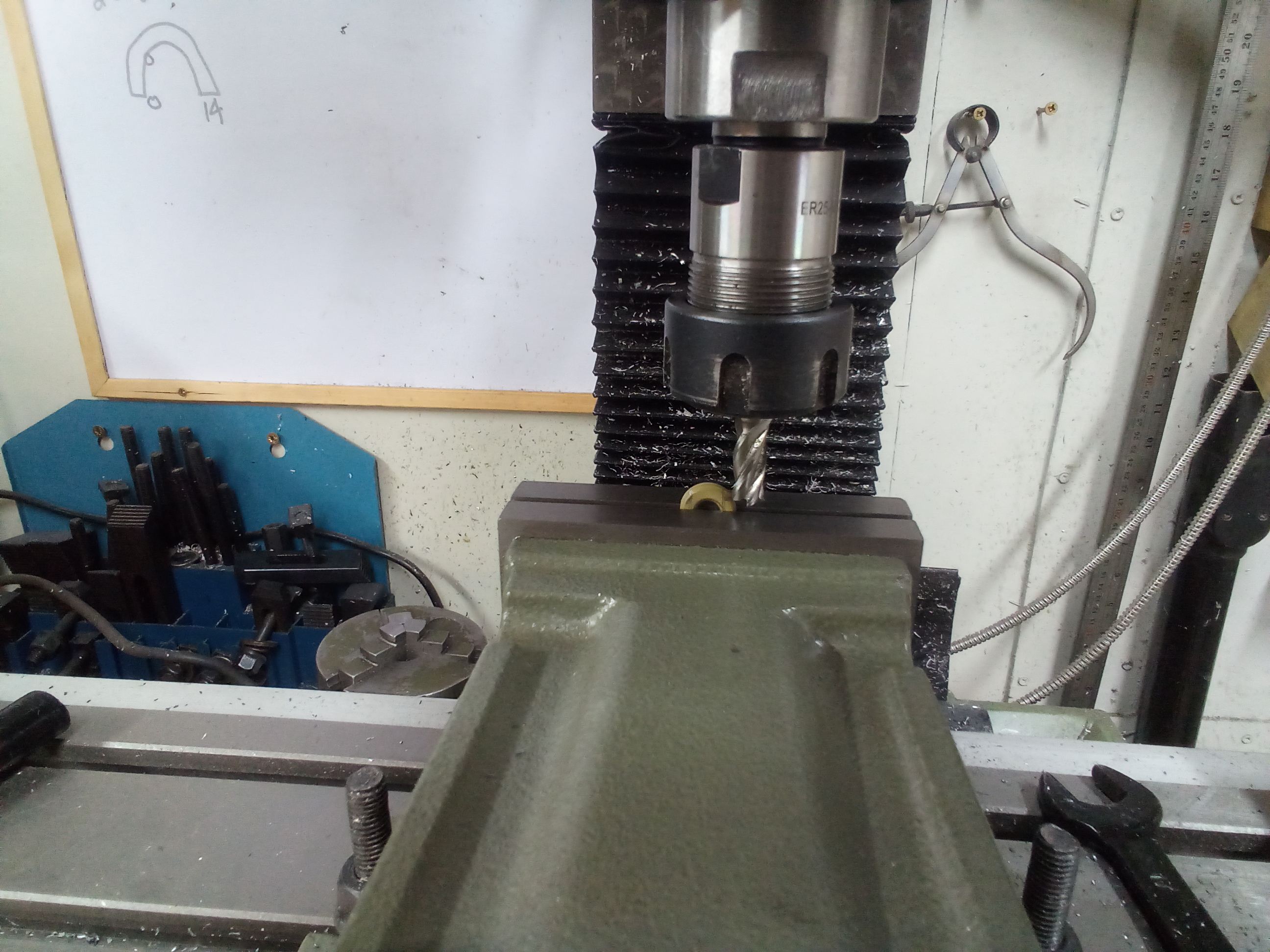

Milling the flats to take the tiny pivot axle pinch bolts.
Milling the flats to take the tiny pivot axle pinch bolts.
I've had to compromise, it's not functional so we still have to rely on the counter sunk hex head
I've had to compromise, it's not functional so we still have to rely on the counter sunk hex head

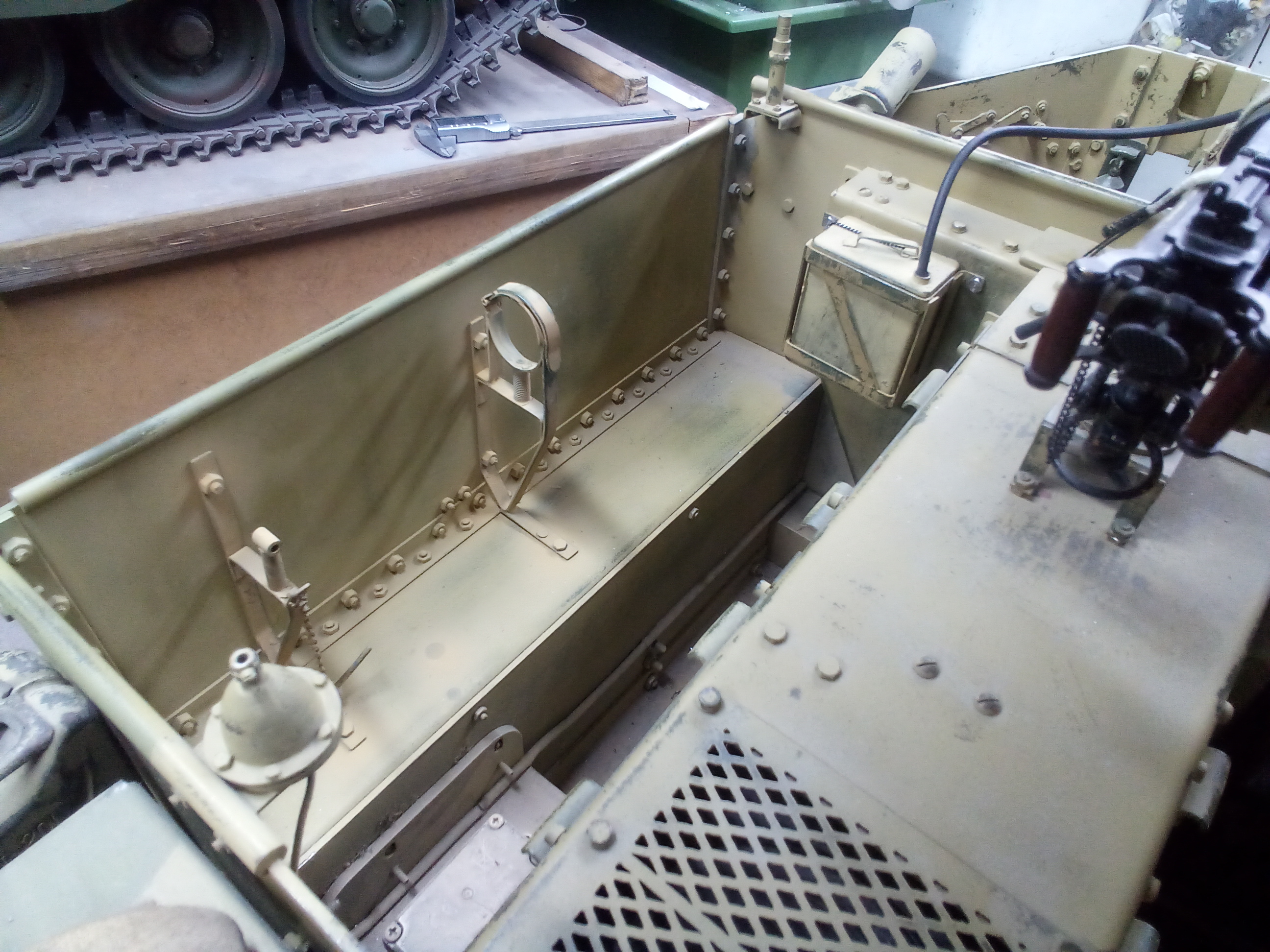

Just a bit of weathering to the inside of the engine covers especially where the fan belts would flick bits of grud
Just a bit of weathering to the inside of the engine covers especially where the fan belts would flick bits of grud
Last edited by Phil Woollard on Tue Dec 13, 2022 5:08 pm, edited 1 time in total.
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Jeffrey Goff
Posts: 805
Joined: Thu Jul 12, 2007 12:52 pm
Location: NORTHAMPTON
Has liked: 20 times
Been liked: 737 times

Re: David's carrier build.

Post by Jeffrey Goff »

Stunning build Phil, always a pleasure to watch and learn
regards Jeff
Top
Gary Richardson
Posts: 597
Joined: Tue Sep 07, 2021 5:37 pm
Location: Somerset
Has liked: 787 times
Been liked: 1878 times

Re: David's carrier build.

Post by Gary Richardson »

Hi Phil

A superb build with incredible attention to detail. I have nothing but admiration for your workmanship.

Regards
Gary
2021 Late Tiger 1 Abteilung 301 (Funklenk), 2022 Churchill Mk3 AVRE, 2x Czech Hedgehogs, 2024 Triple span Bailey Bridge, M26 Pershing, 17 Pounder and Limber.
Top
User avatar
AlastairCooke
Posts: 247
Joined: Tue Jul 16, 2019 9:59 am
Has liked: 16 times
Been liked: 769 times

Re: David's carrier build.

Post by AlastairCooke »

Phil,
Another excellent build... keep them coming! :)

Alastair
Alastair
Tiger 1 (2015 #01 with 2012 parts)
Top
Steve Norris
Posts: 1231
Joined: Thu Jul 12, 2007 11:42 am
Location: Manchester
Has liked: 8 times
Been liked: 701 times

Re: David's carrier build.

Post by Steve Norris »

Phil,
Another great build, if I can get mine anywhere near what you have done I will be well pleased.
P.s. please keep your detailed build posts coming as they are a great inspiration.
Regards
Steve
Top
Phil Woollard
Posts: 4281
Joined: Mon Mar 01, 2010 4:48 pm
Location: Cornwall
Has liked: 2282 times
Been liked: 7196 times

Re: David's carrier build.

Post by Phil Woollard »

Maybe the last post for this great little big kit. A quick upgrade tip for the steering.
Reference the servos link, it's so simple and sometimes the simplest things can be the best, it's made from 10x2 mm steel stock, the vee bend in the middle section allows the differential clearance and also allows the flex either side in both directions which is our servo saver......so simple like me!
Attachments
The kit 35kg servos must go. <br />For the boss..... just in case you ever need it, the little sound card with the yellow heat shrink around it has the sound function programming button in white on the right.
The kit 35kg servos must go.
For the boss..... just in case you ever need it, the little sound card with the yellow heat shrink around it has the sound function programming button in white on the right.

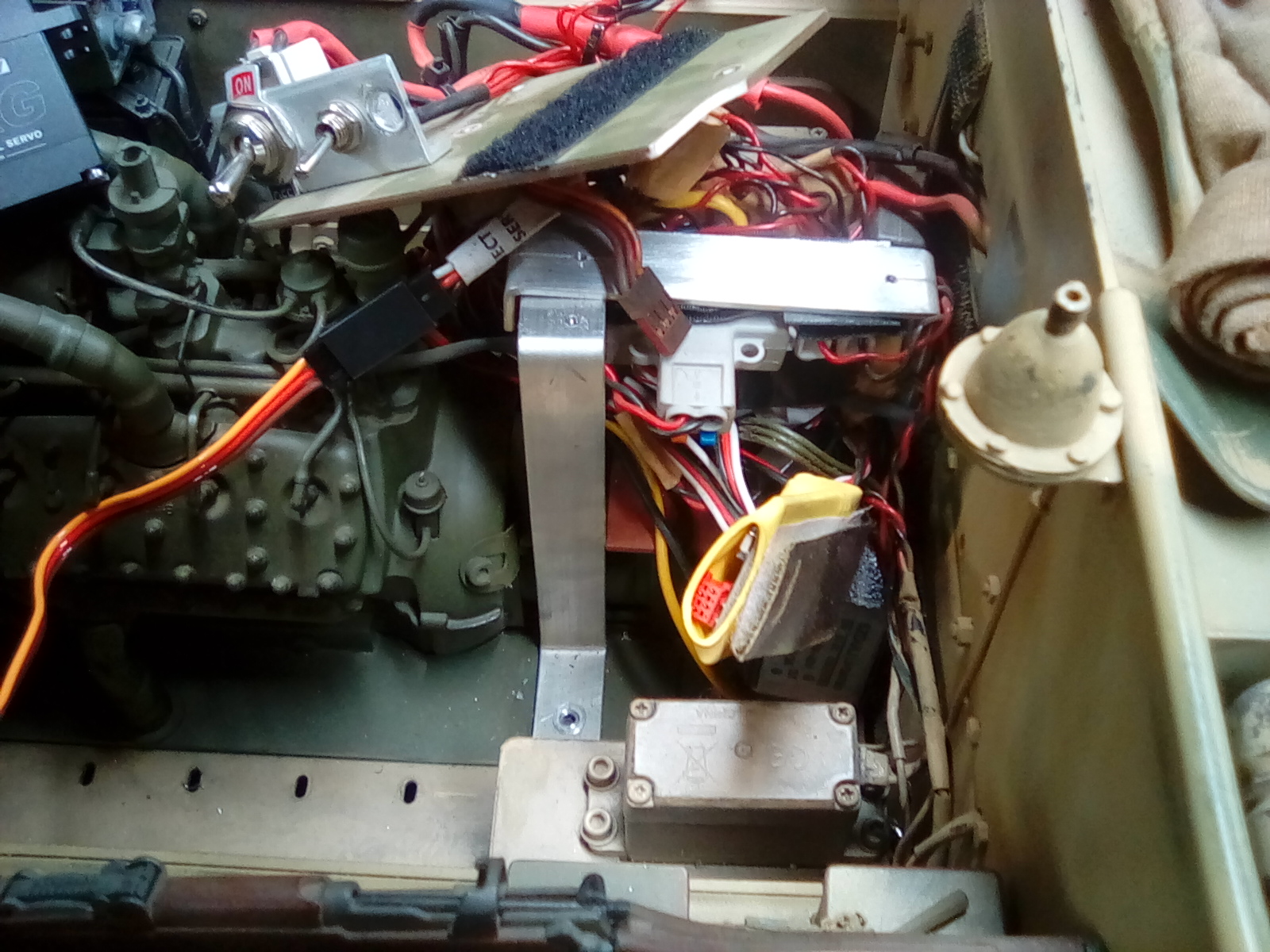

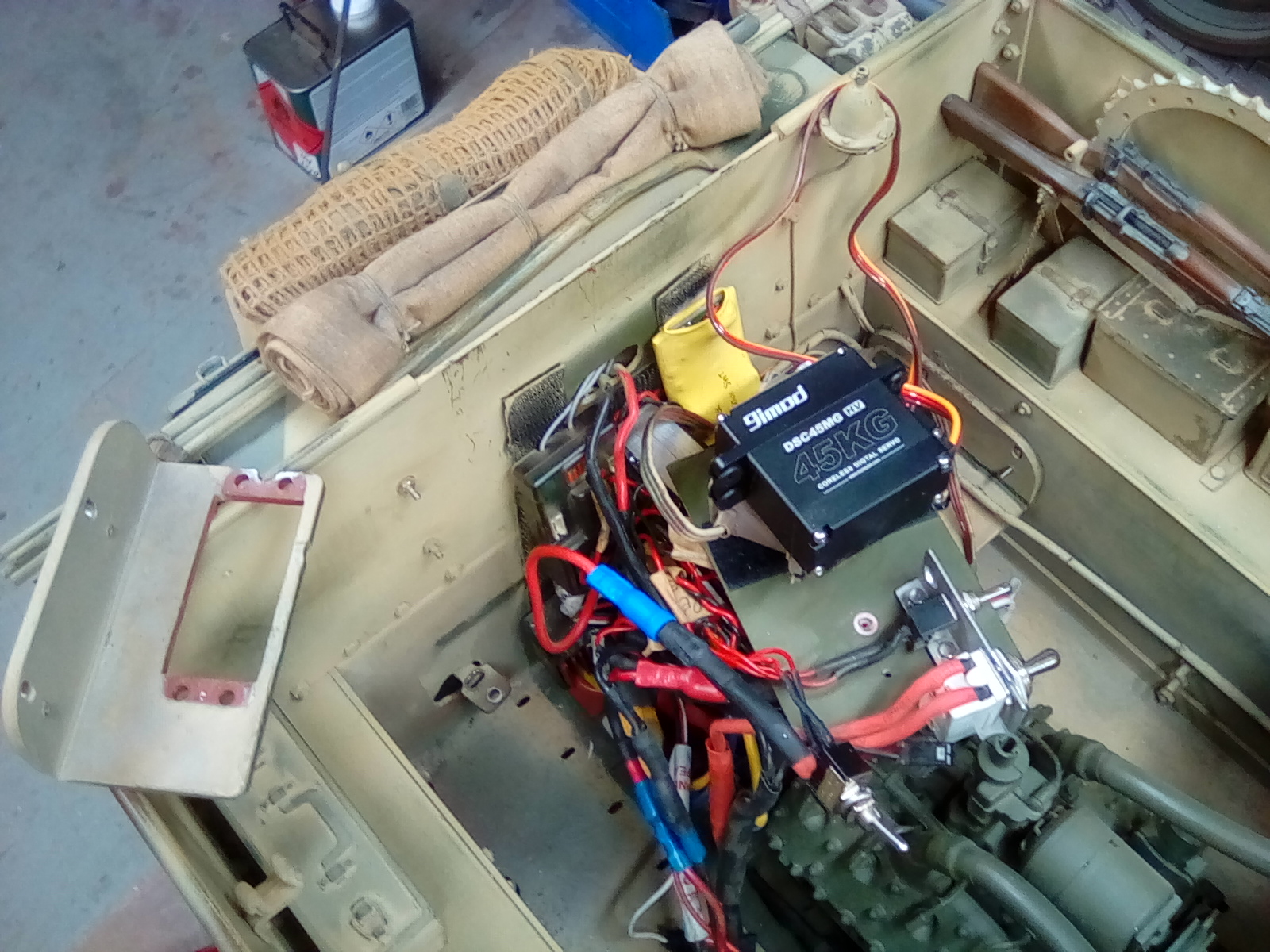

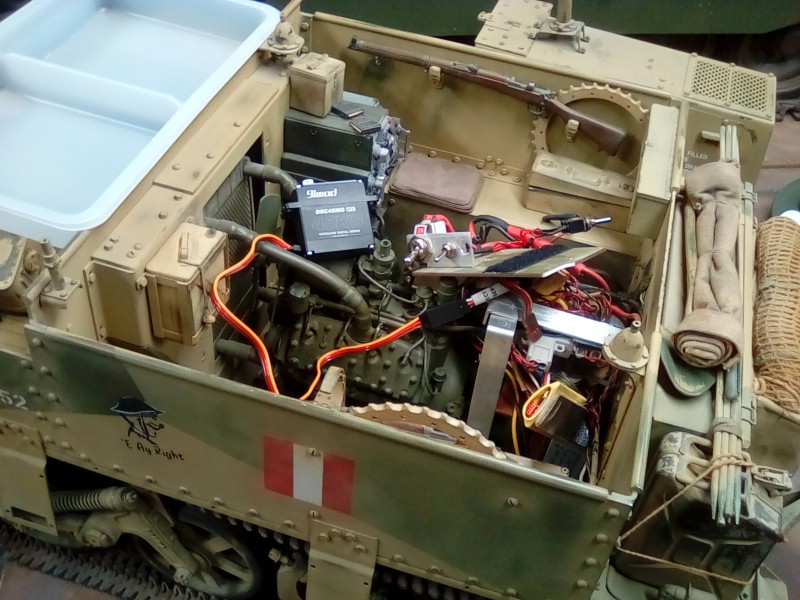

My lovely neat wiring all pulled apart to change out the servos.
My lovely neat wiring all pulled apart to change out the servos.

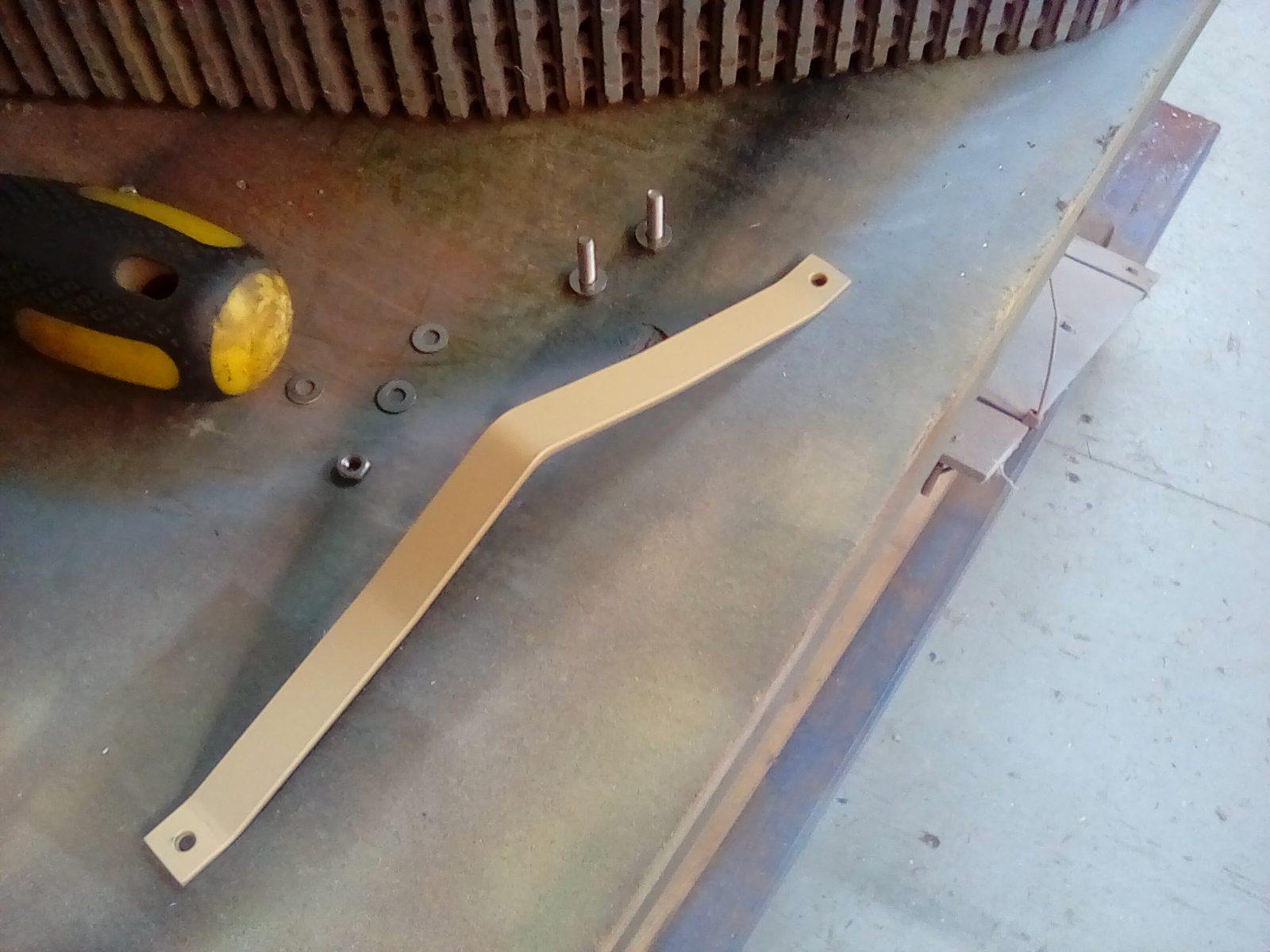

The servo link arm with built in &quot;servo saver&quot; lives above the rear axle and so can't be seen. I would have liked to fit the twin exhausts under here but they would have caused ground clearance issues just like the real thing.
The servo link arm with built in "servo saver" lives above the rear axle and so can't be seen. I would have liked to fit the twin exhausts under here but they would have caused ground clearance issues just like the real thing.
For those that have gone down the differential braking route up grade, we decided that the all up weight was compromising the steering some what , she's heavy now for such a small vehicle, so we have installed 45kg steering servos which gave us another 10kg / side of force but still in my opinion not quite enough! My quick fix idea was to join or link the steering servos together giving us potentially 90kgs of force, this has worked far better than I expected!
For those that have gone down the differential braking route up grade, we decided that the all up weight was compromising the steering some what , she's heavy now for such a small vehicle, so we have installed 45kg steering servos which gave us another 10kg / side of force but still in my opinion not quite enough! My quick fix idea was to join or link the steering servos together giving us potentially 90kgs of force, this has worked far better than I expected!
Mechanical engineer.
2 Youtube channels, Phil Woollard and Magpiespyro. Facebook/ Phil Woollard.
Commission builds considered. Pm for my email.
Top
Post Reply
