Chang · Post by **Chang** » Tue Sep 29, 2020 10:59 pm

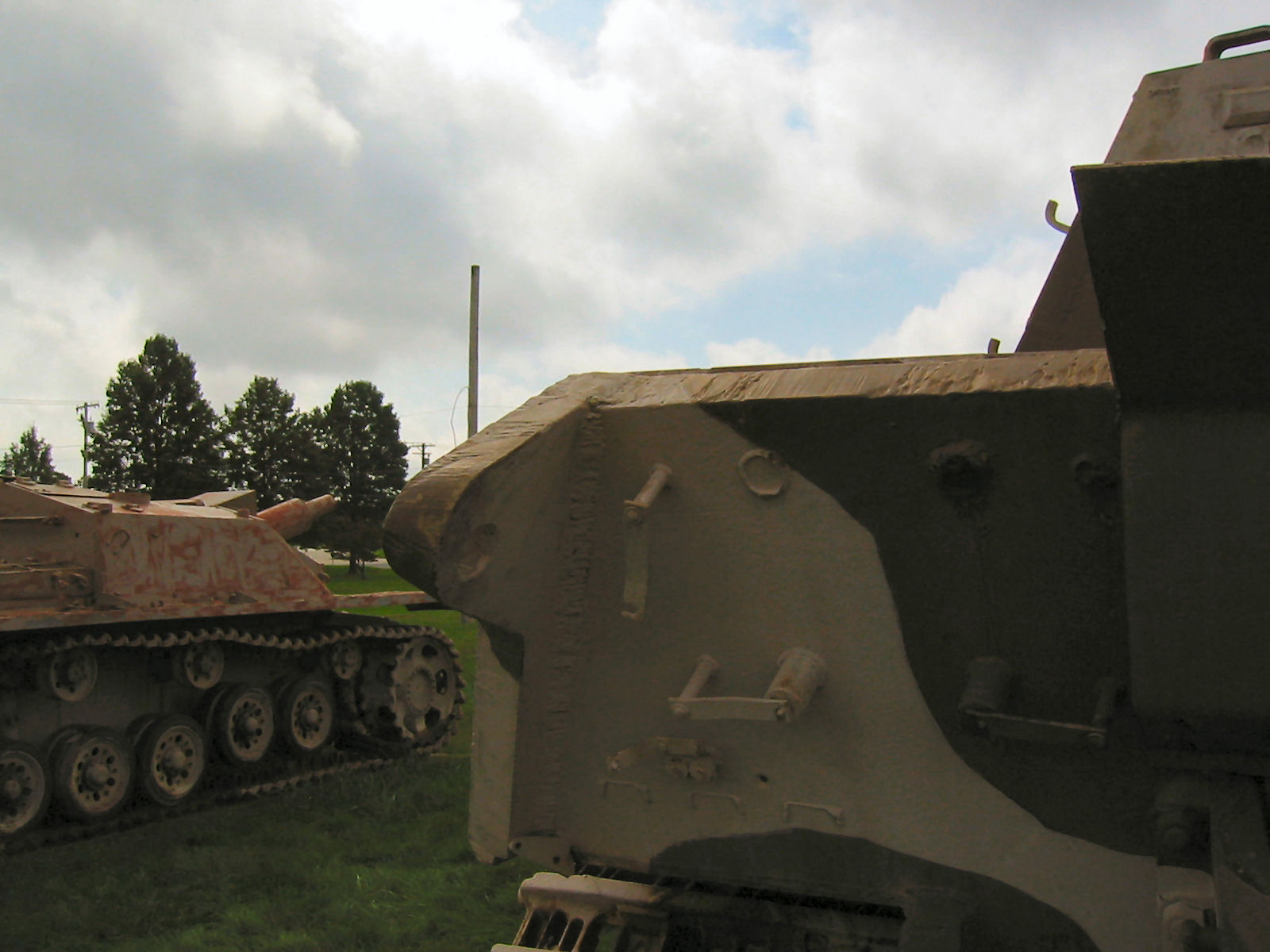

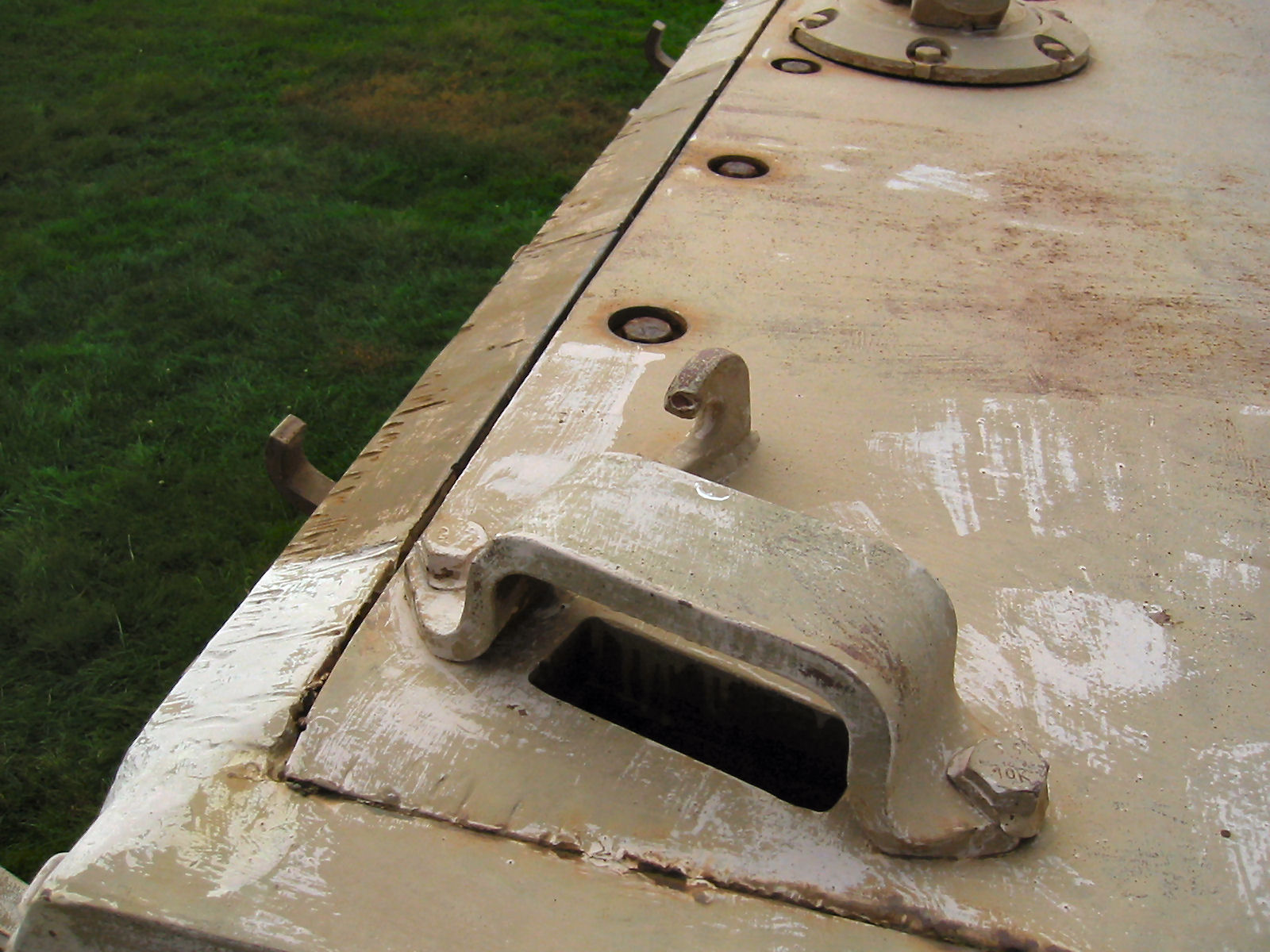

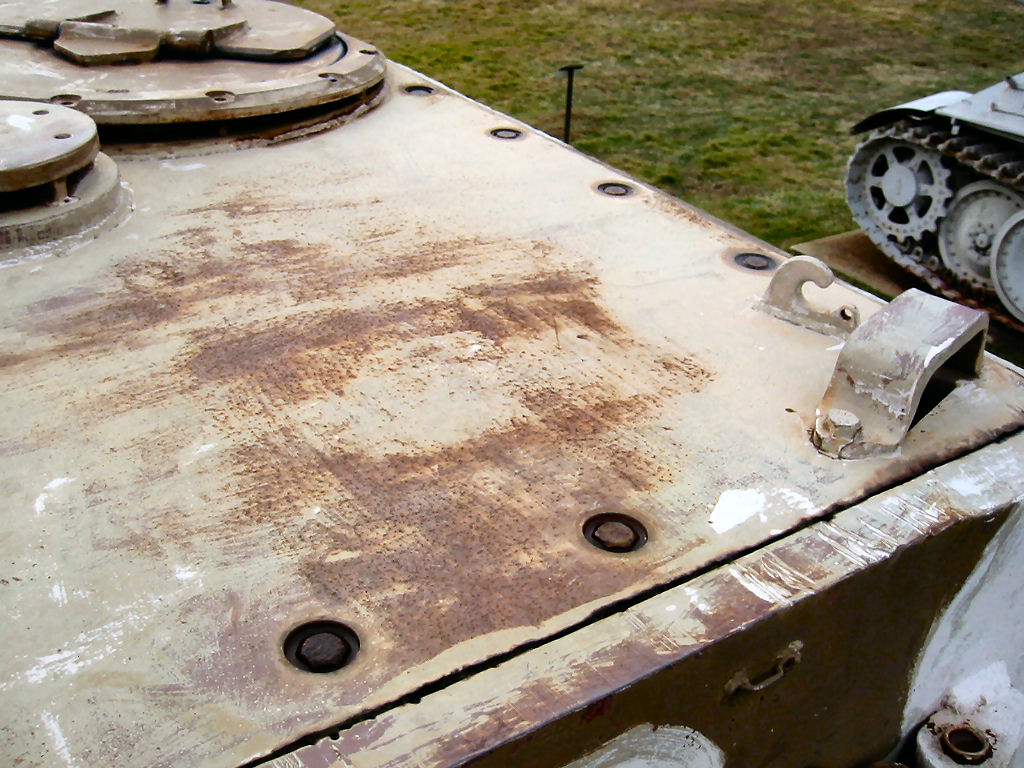

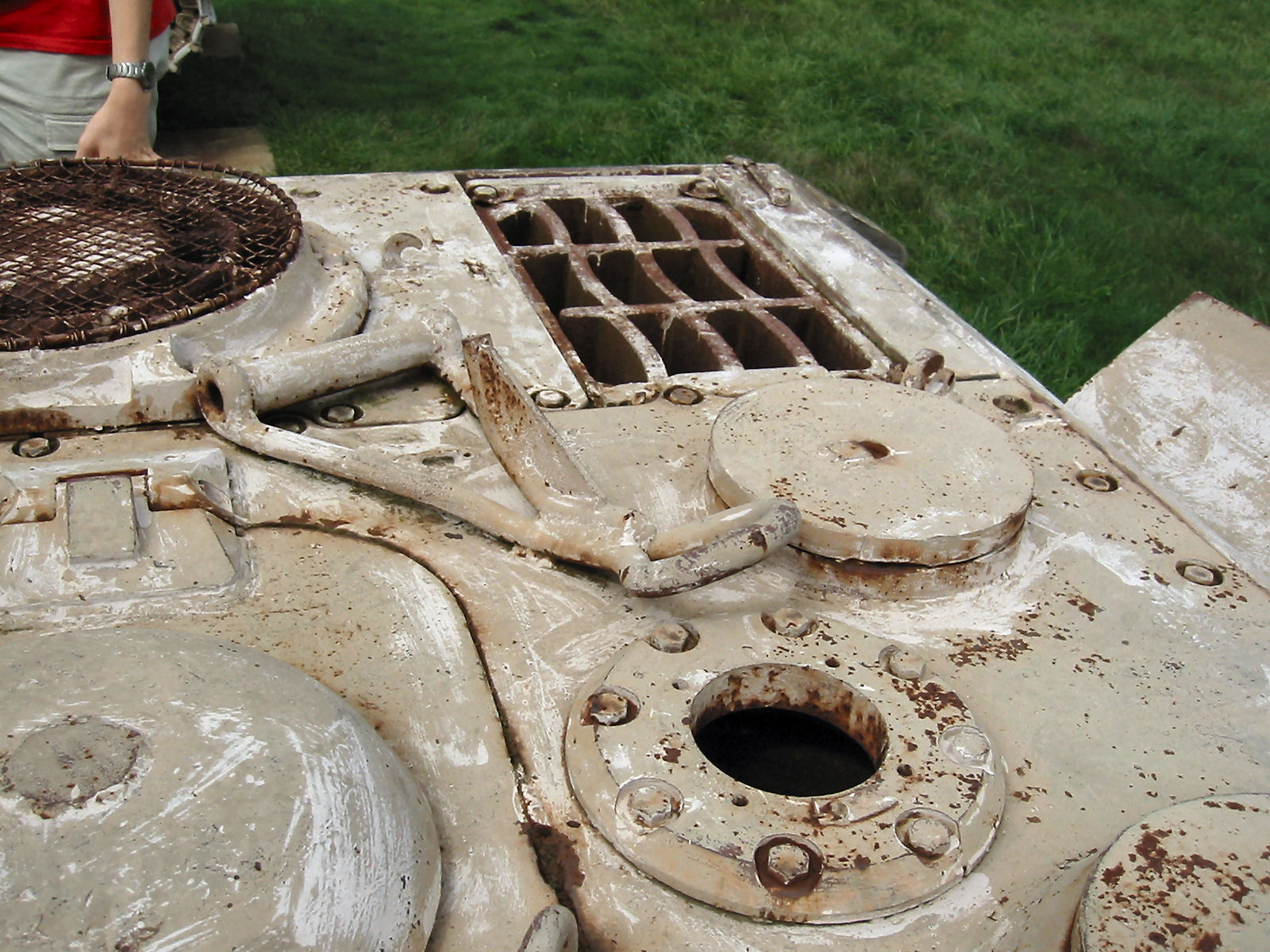

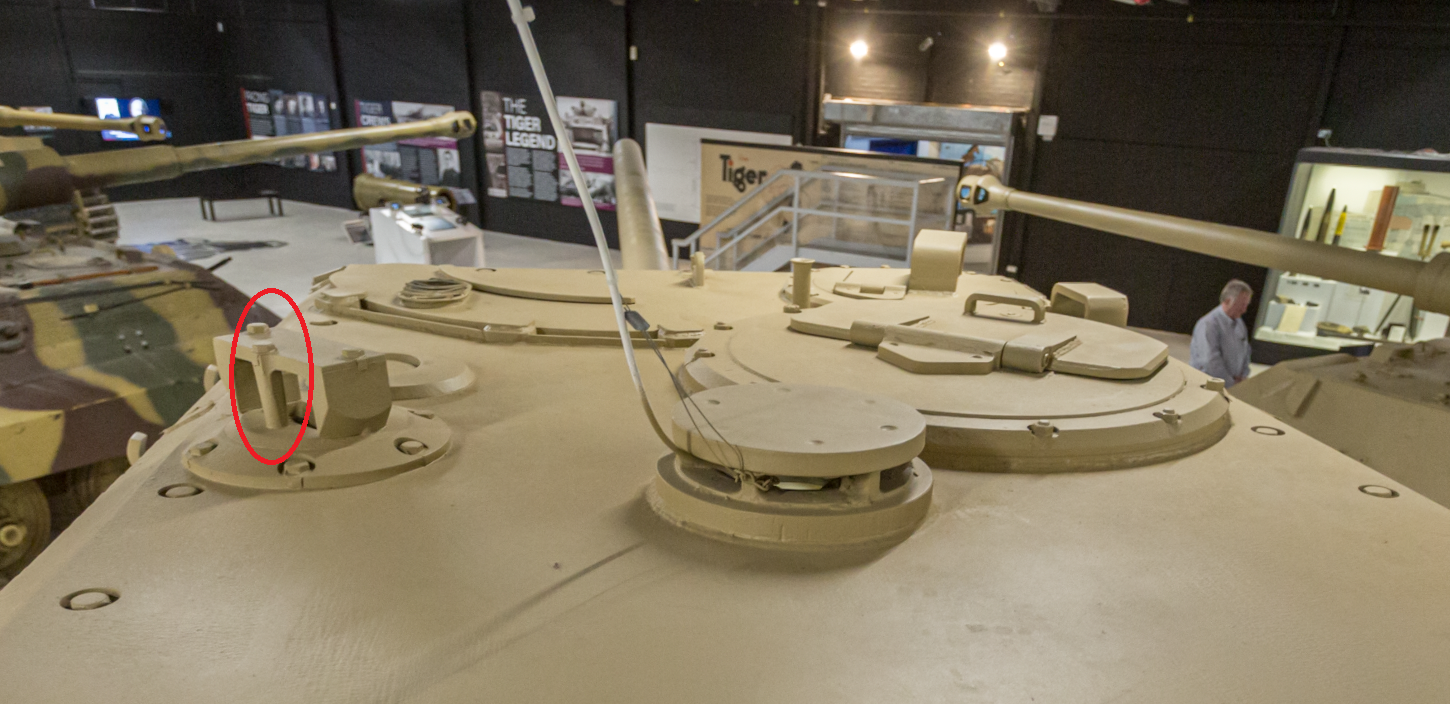

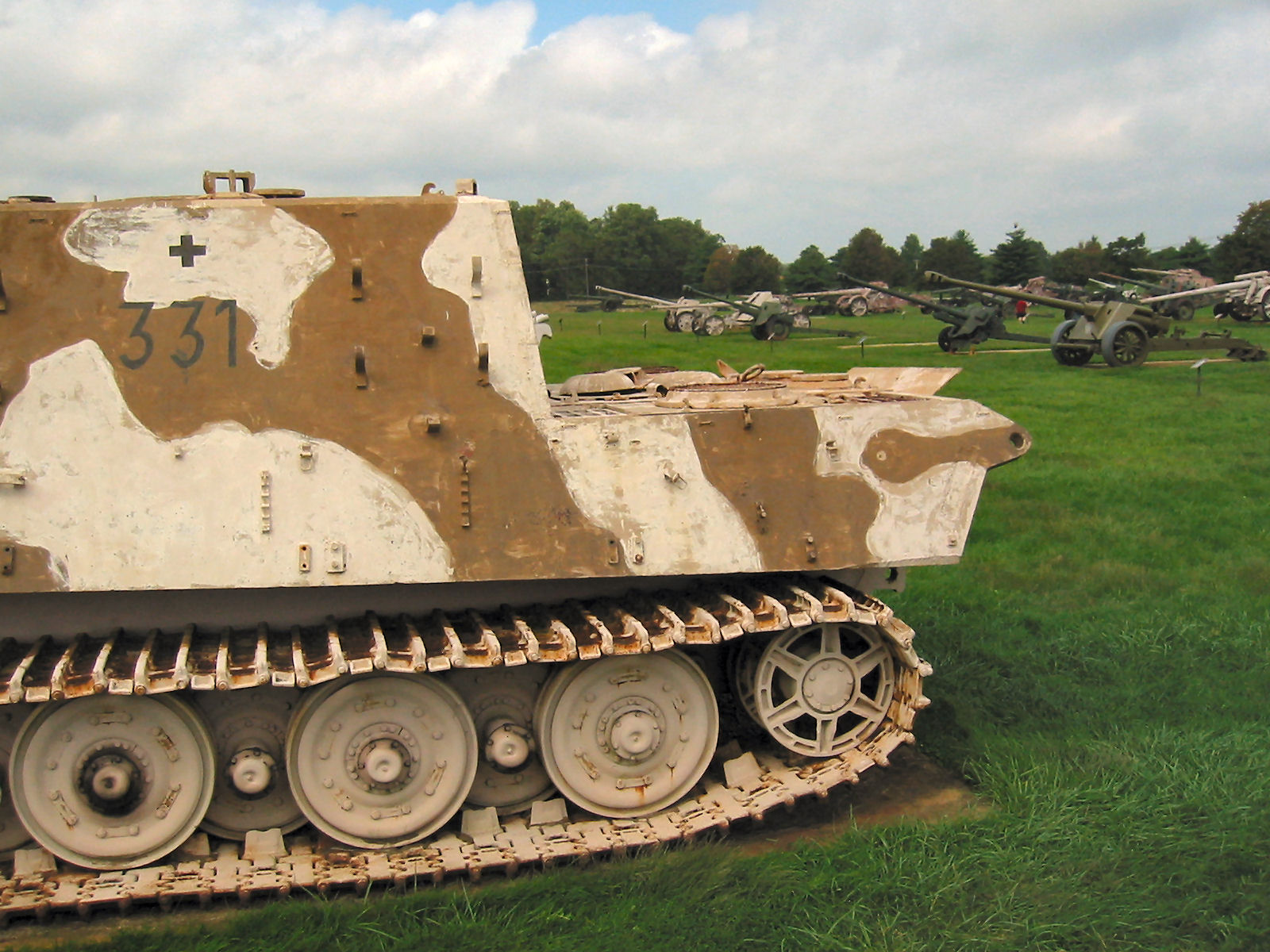

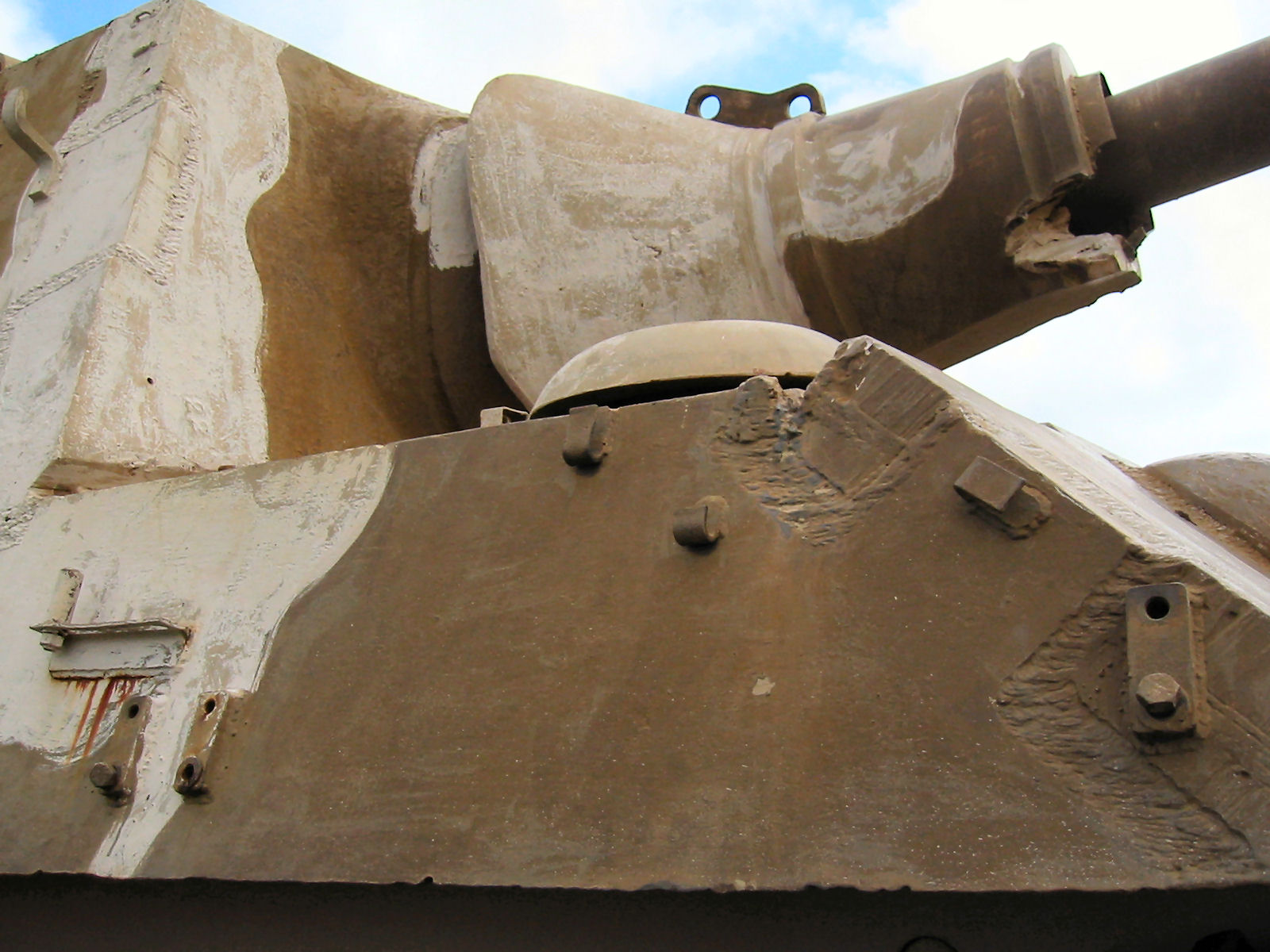

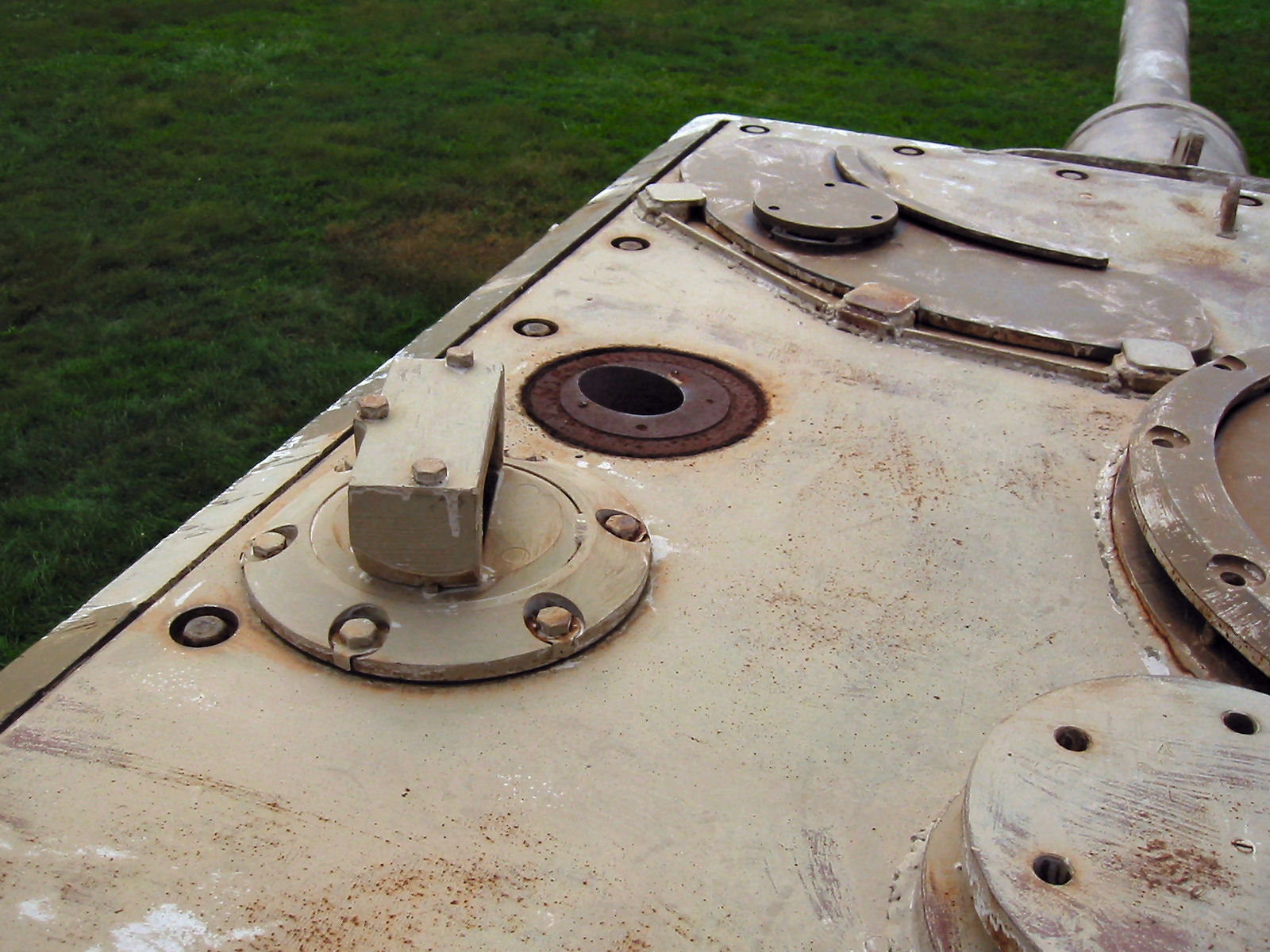

I thank Marco for the Bovington JT roof photos. They are very clear. Therefore, it raise another question that intrigue me quite a while:

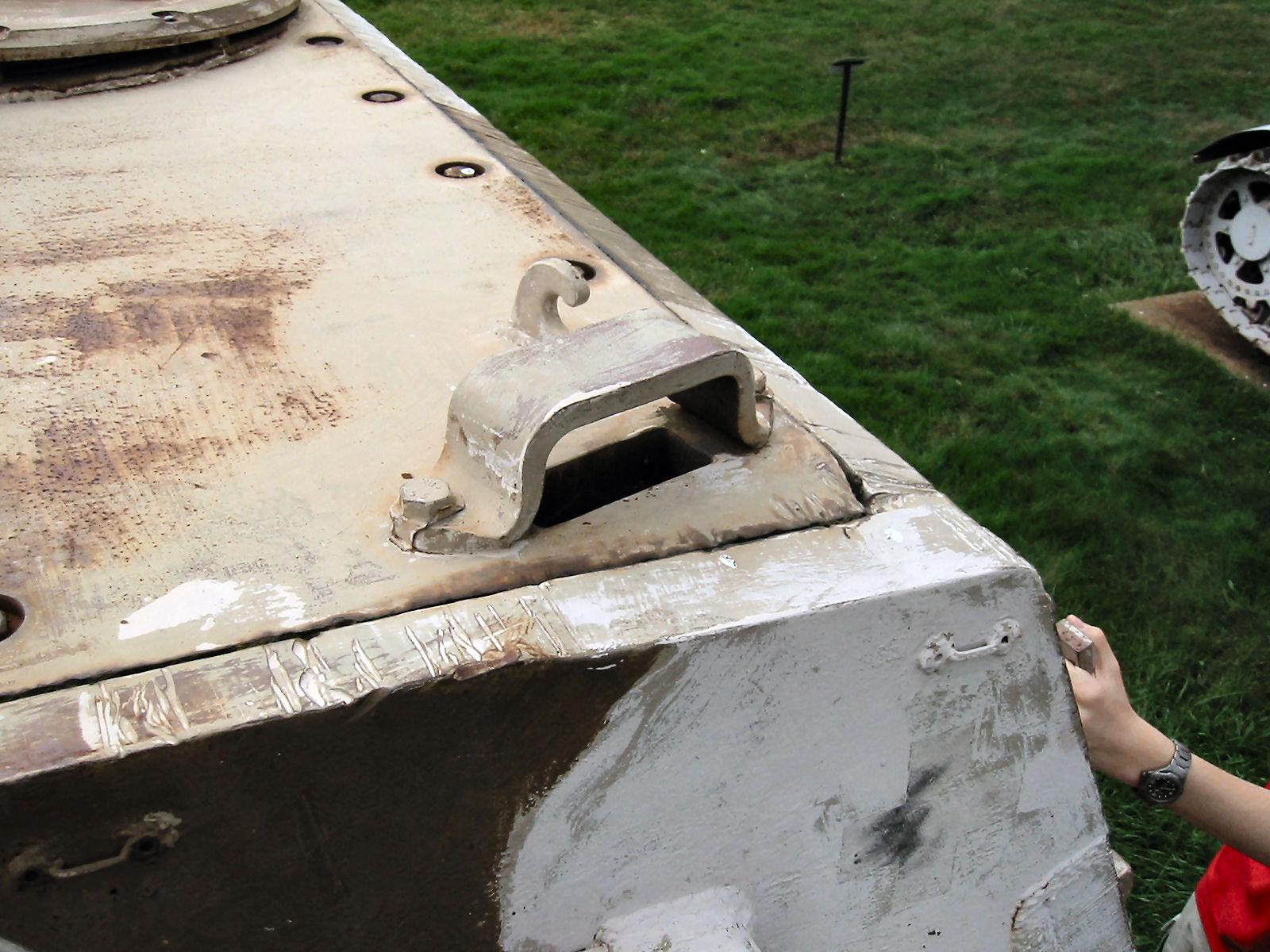

The short vertical bar welded on the central front (or to me, at back) of the left side periscope guard. What is it and what for?
(Sorry Marco for borrowing your photo)

Also to each and every JT lover, if you know the answer, please share with us.

Regards,
Lerh Chang

Chang · Post by **Chang** » Sun Oct 11, 2020 4:58 pm

Not a photo, but a line drawing of KT (same as JT) from bottom. Does anybody know what these four plates are for? Do they have anything to do with four bump stops?

: KTe.jpg (86.69 KiB) Viewed 4625 times

Regards,
Lerh Chang

Scott Boyd · Post by **Scott Boyd** » Sun Oct 11, 2020 9:33 pm

I believe they are just floor reinforcing plates...King Tiger has them to.

Chang · Post by **Chang** » Tue Oct 13, 2020 11:35 am

Only KT and JT have these reinforced plates. Neither Tiger 1 nor Panther has them (at least that is what I know).
Does anybody have any more info?

I have only seen two KT builders (Steve Norris & Martin Hofmann) had added these plates, and many other details.
download/file.php?id=6660&mode=view

: Steve Norris' King Tiger

viewtopic.php?f=16&t=4317

: Steve Norris' King Tiger

download/file.php?id=12074&mode=view

: Martin Hofmann' King Tiger

Scott Boyd · Post by **Scott Boyd** » Thu Oct 29, 2020 5:10 am

I’ve made all the access hatches using my 3D printer. I like the extra realism of these ad-on pieces to the Armortek kits

Don Gray · Post by **Don Gray** » Fri Oct 30, 2020 8:10 pm

Scott Boyd wrote: ↑
Thu Oct 29, 2020 5:10 am
I’ve made all the access hatches using my 3D printer. I like the extra realism of these ad-on pieces to the Armortek kitsA2C8B0EA-A19D-41CB-9AFF-E7F2683D88E9.jpeg

Very nicely done! You never know when your tank destroyer is going to flip over... Can't be too safe

Mike Fala · Post by **Mike Fala** » Mon Mar 22, 2021 8:26 pm

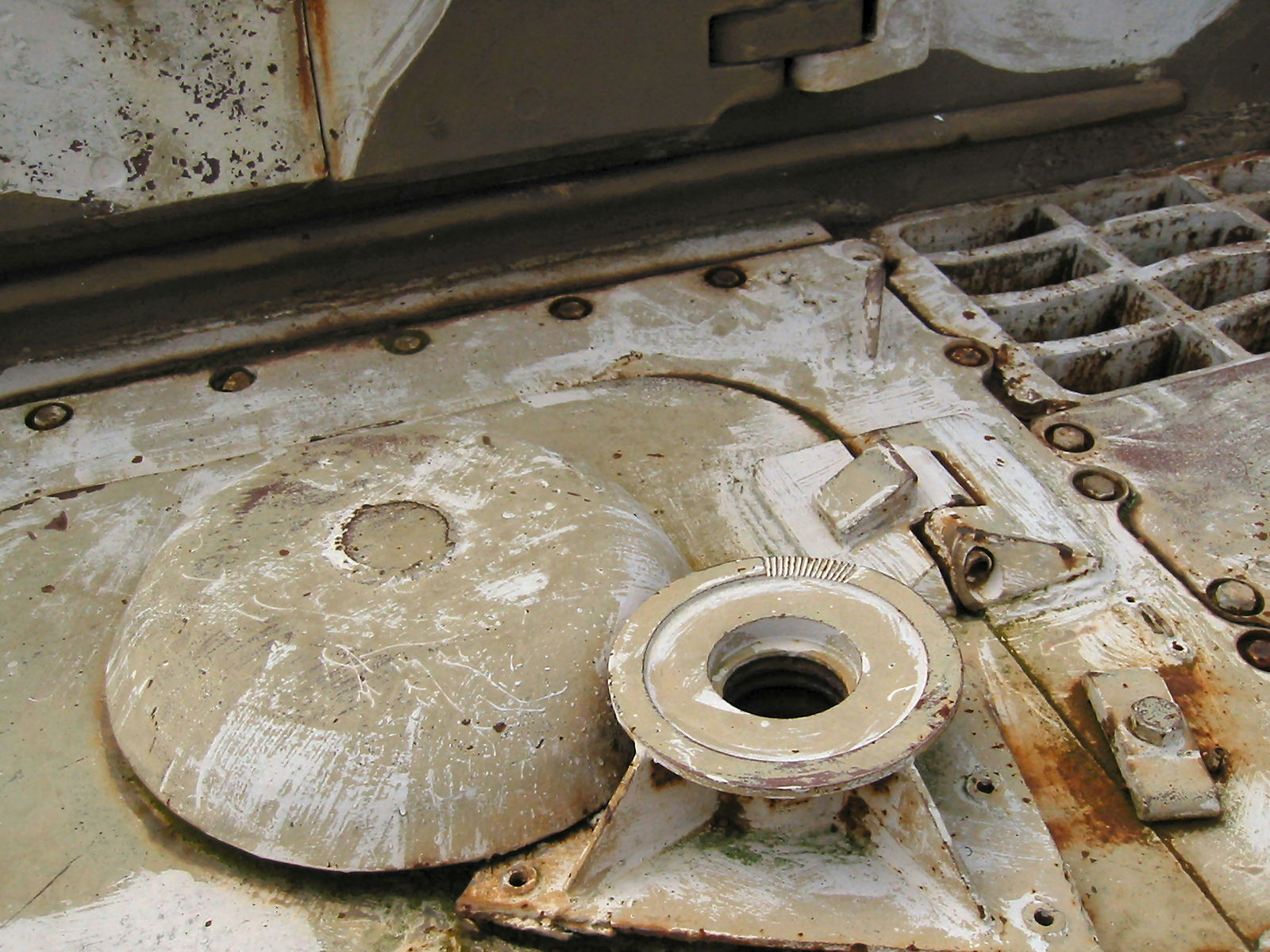

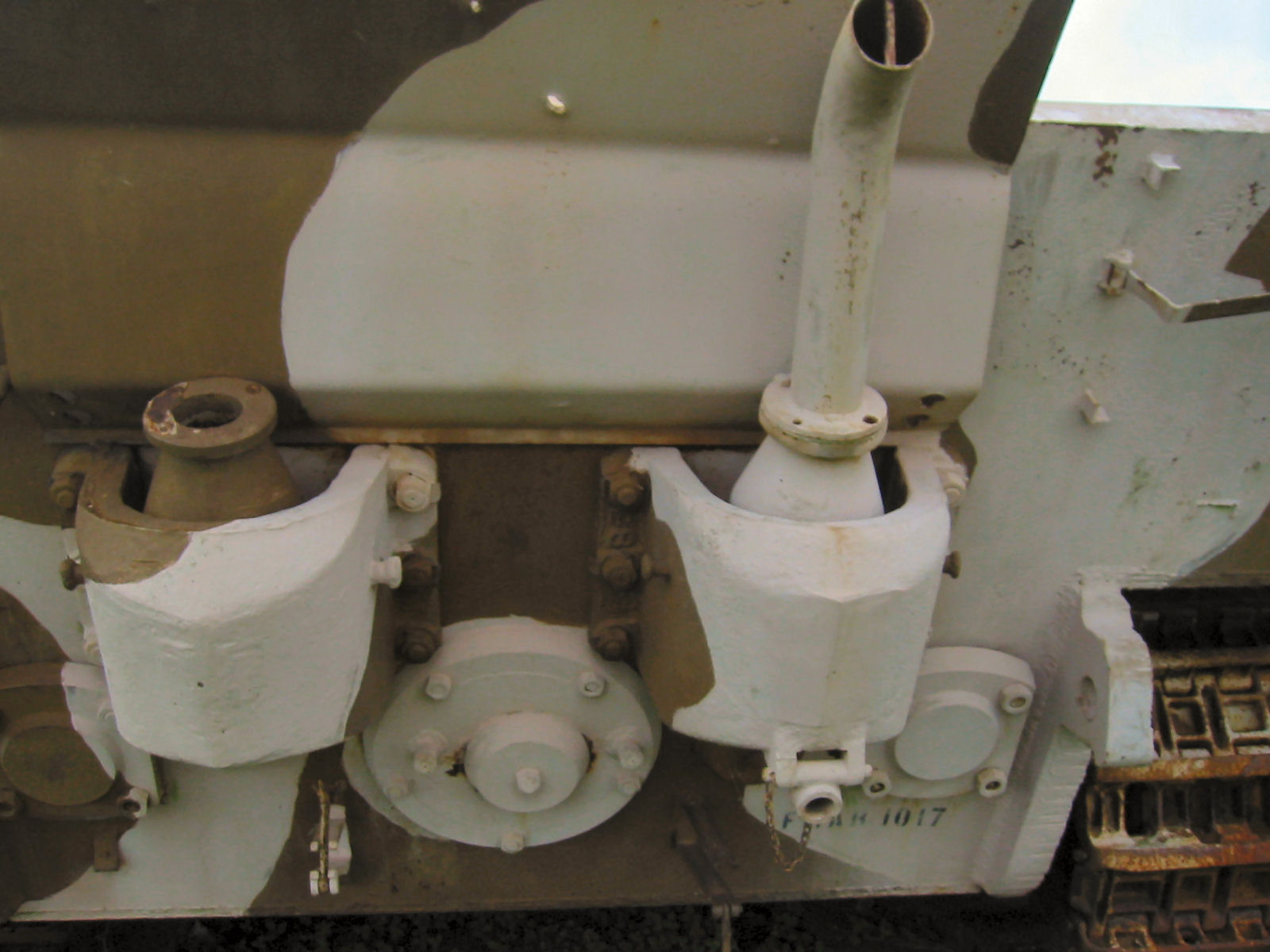

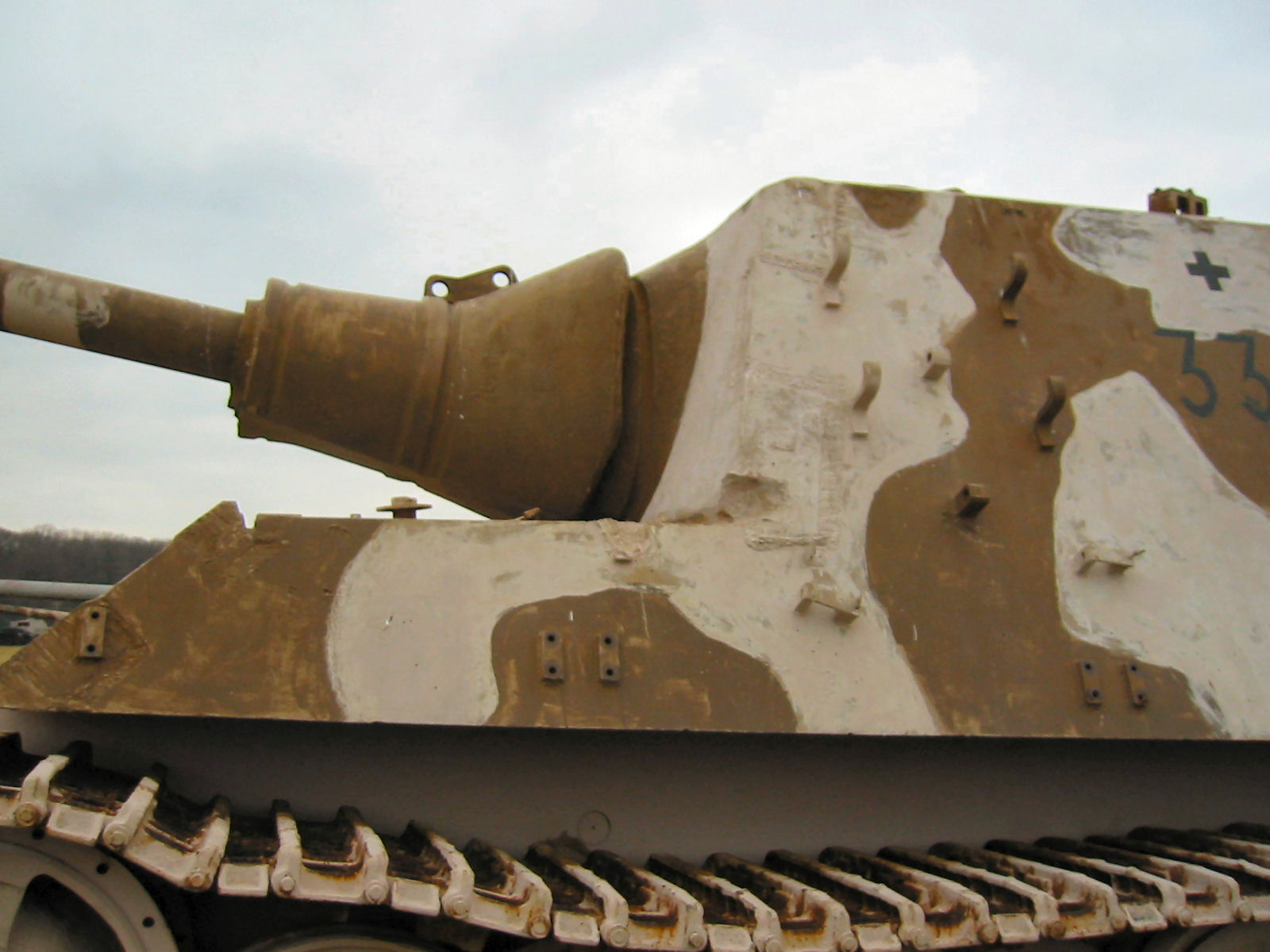

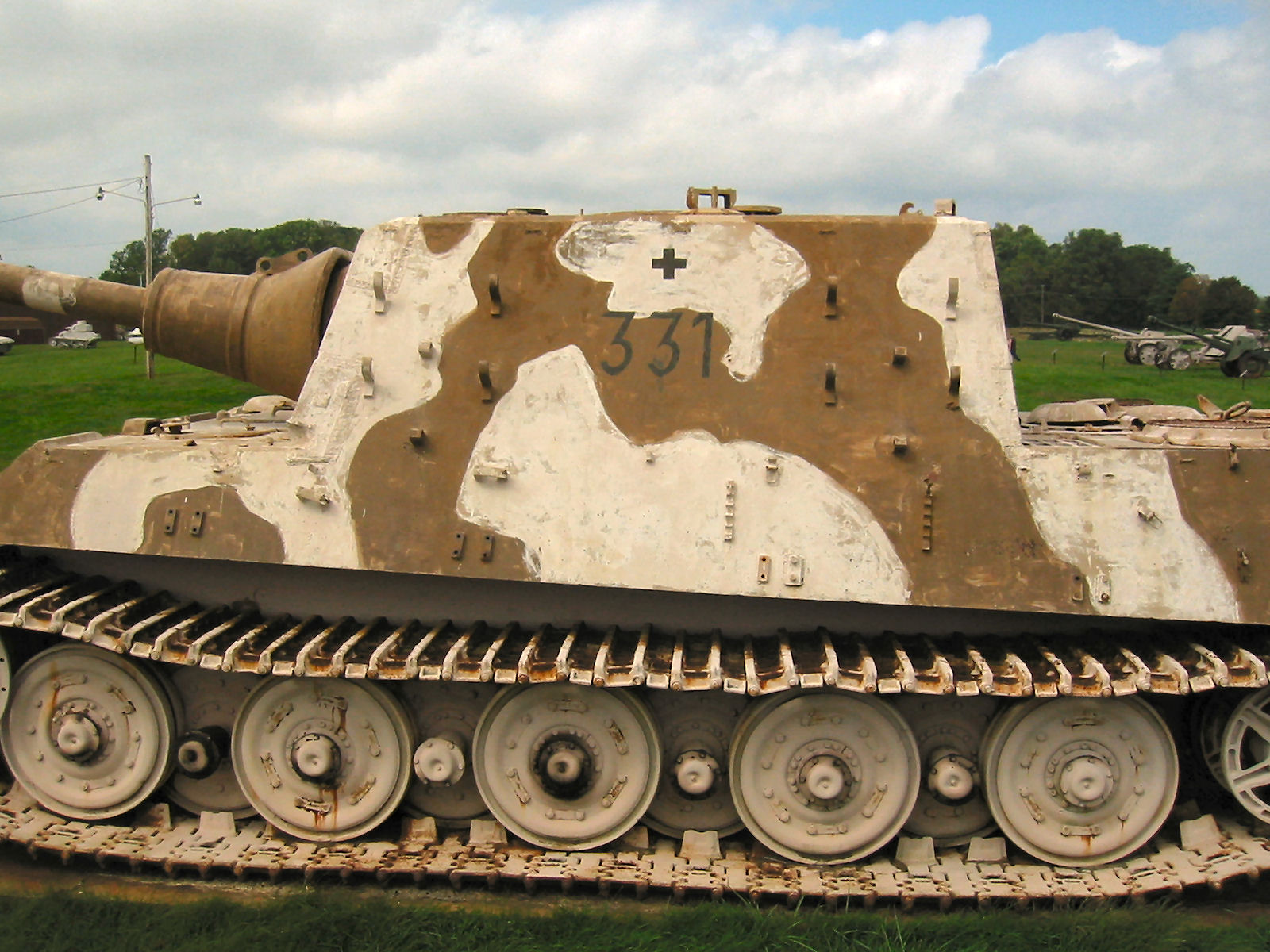

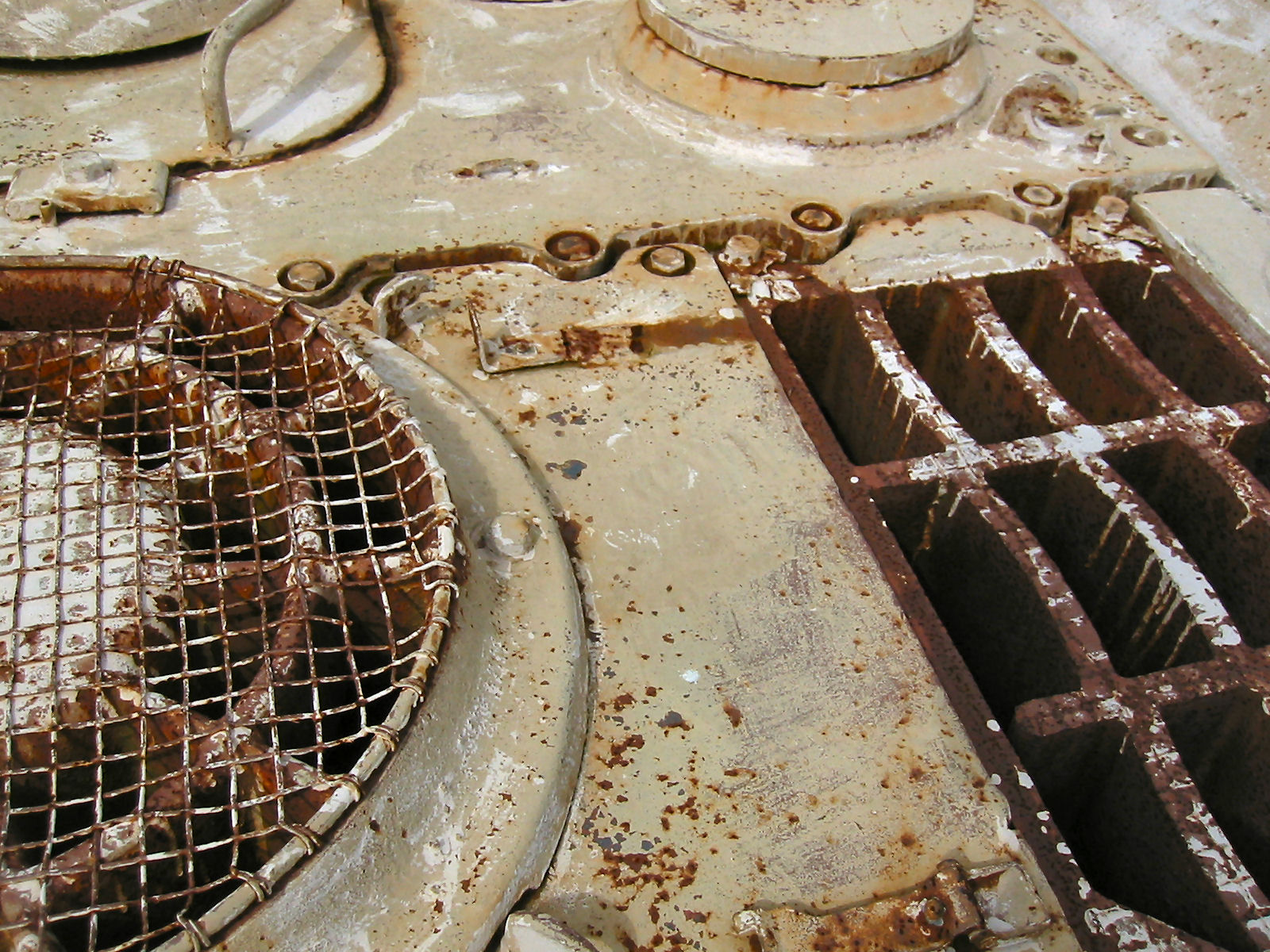

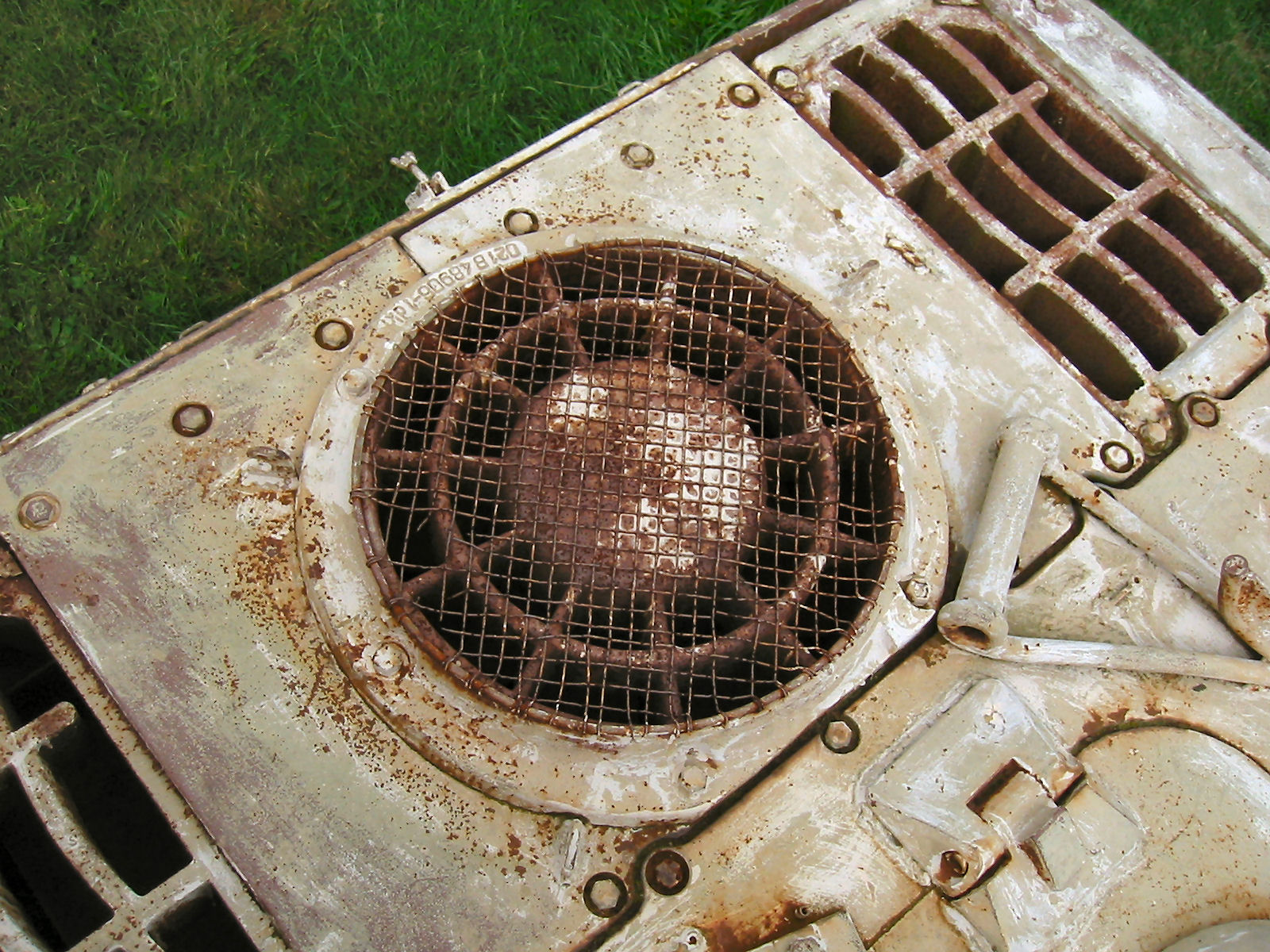

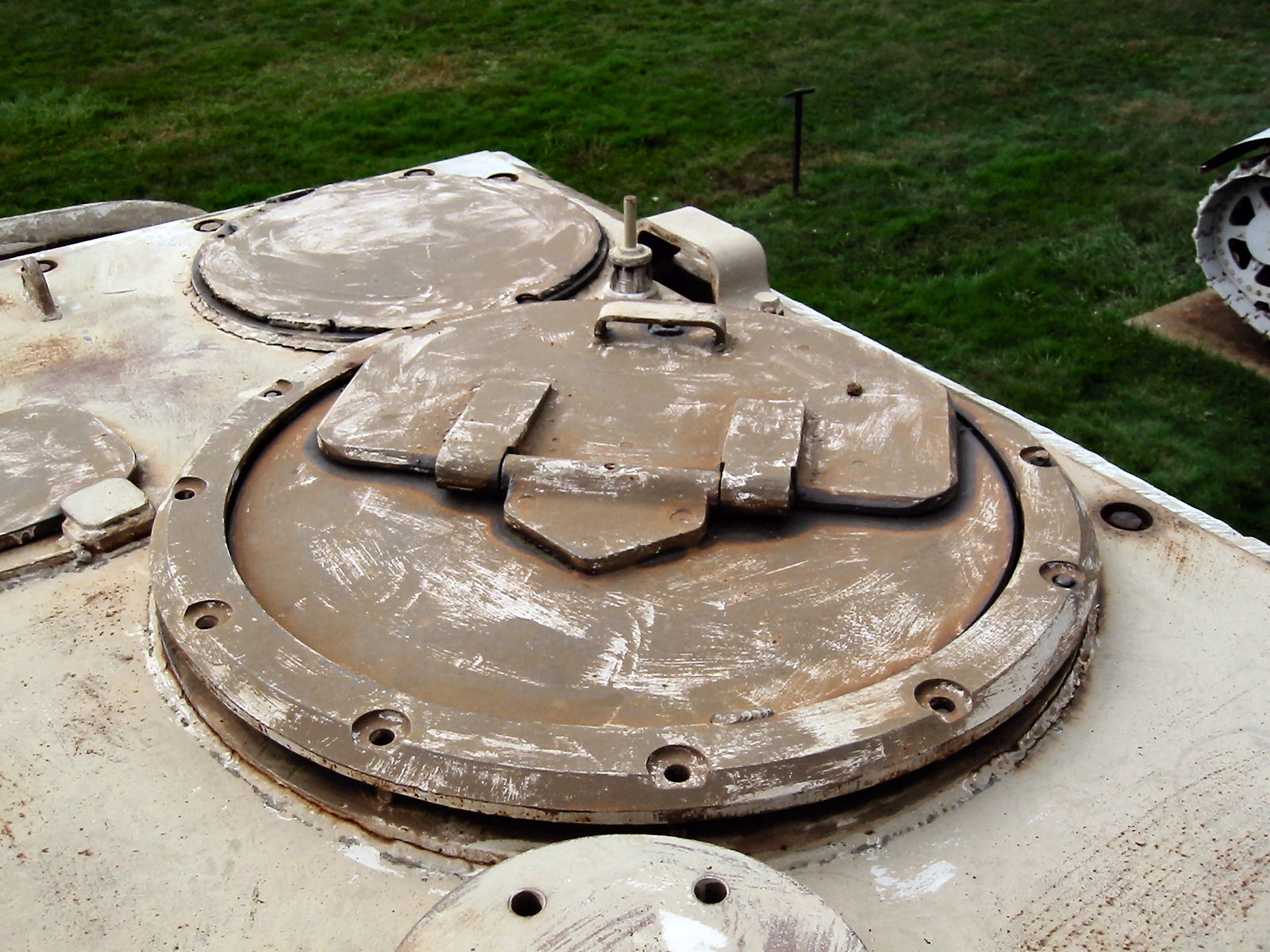

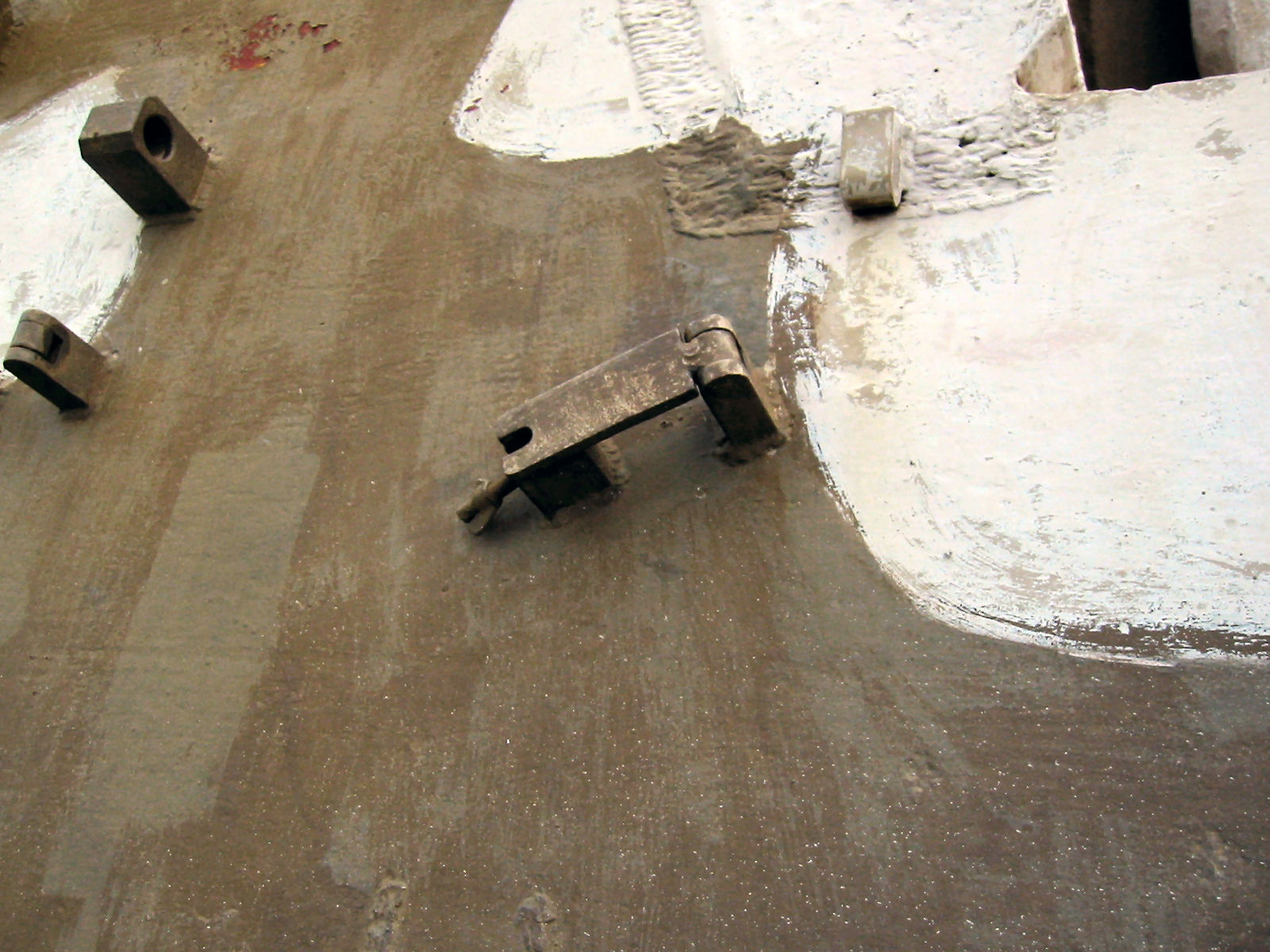

Some close up pics

Mike Fala · Post by **Mike Fala** » Mon Mar 22, 2021 8:30 pm

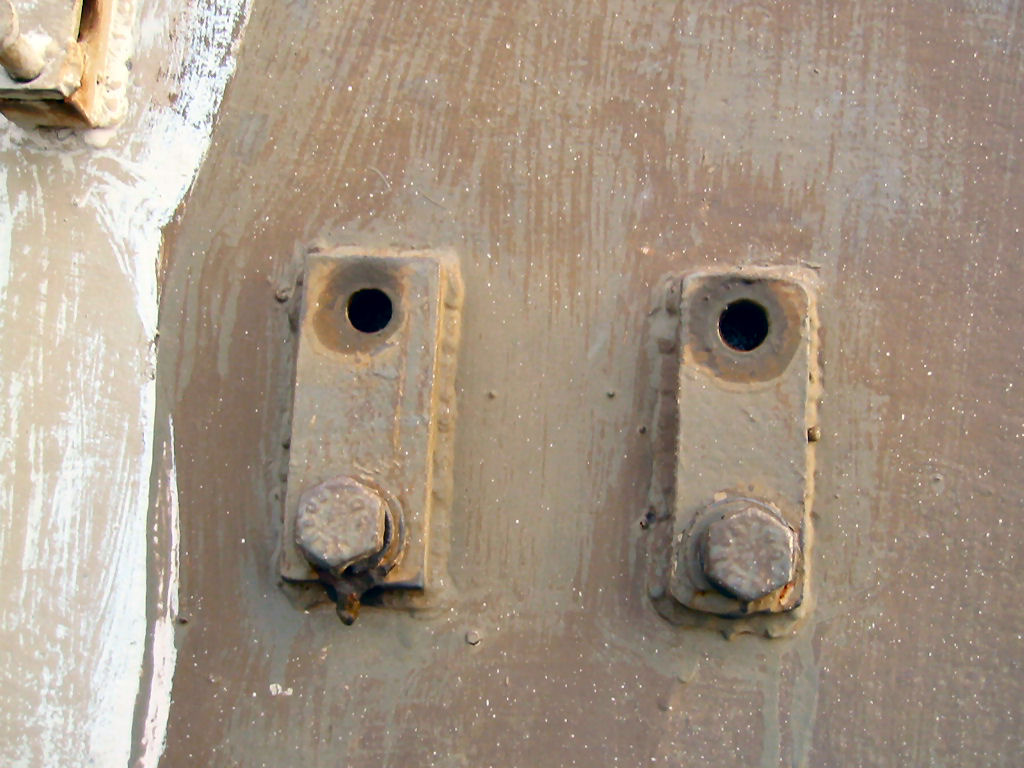

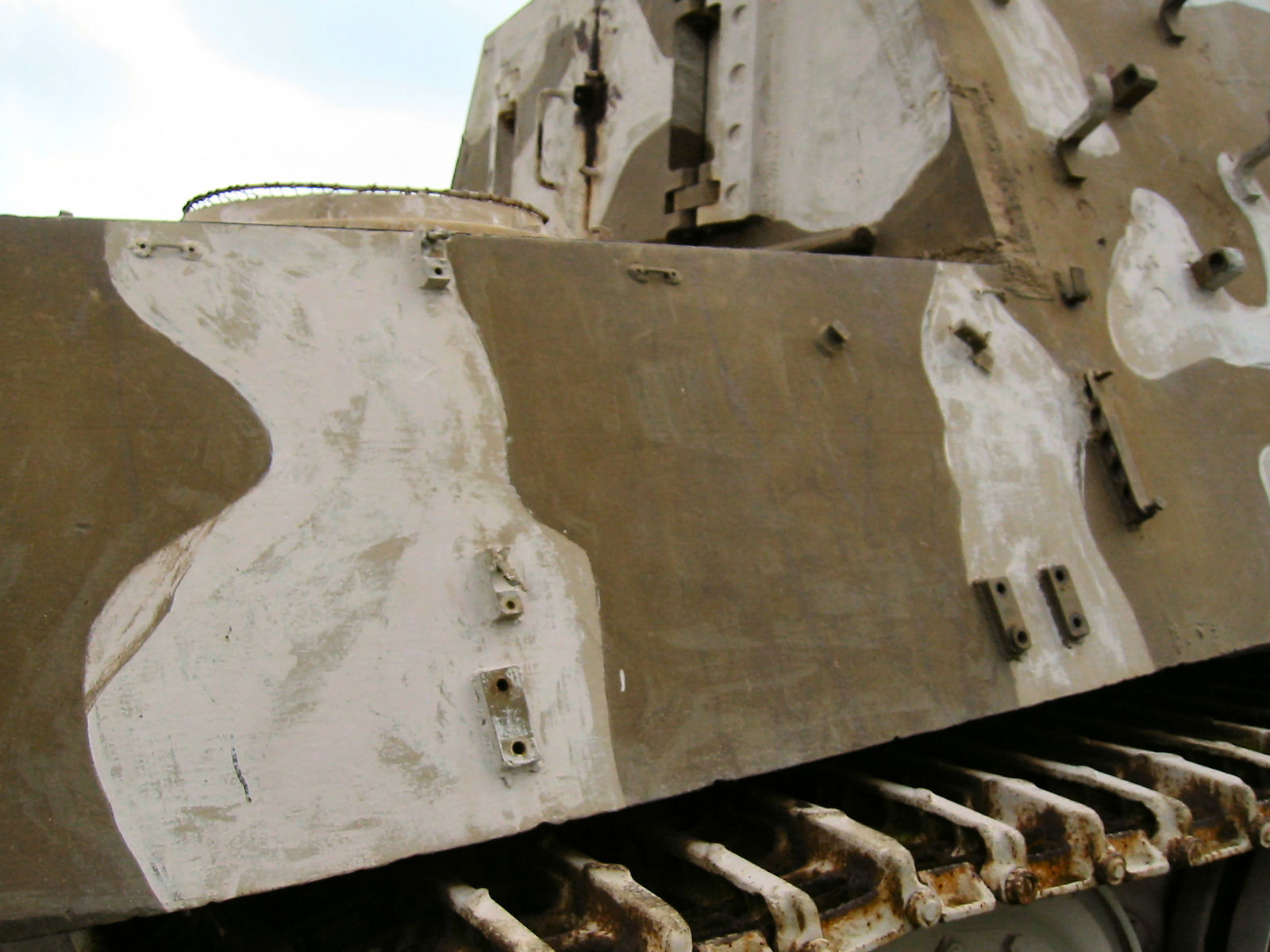

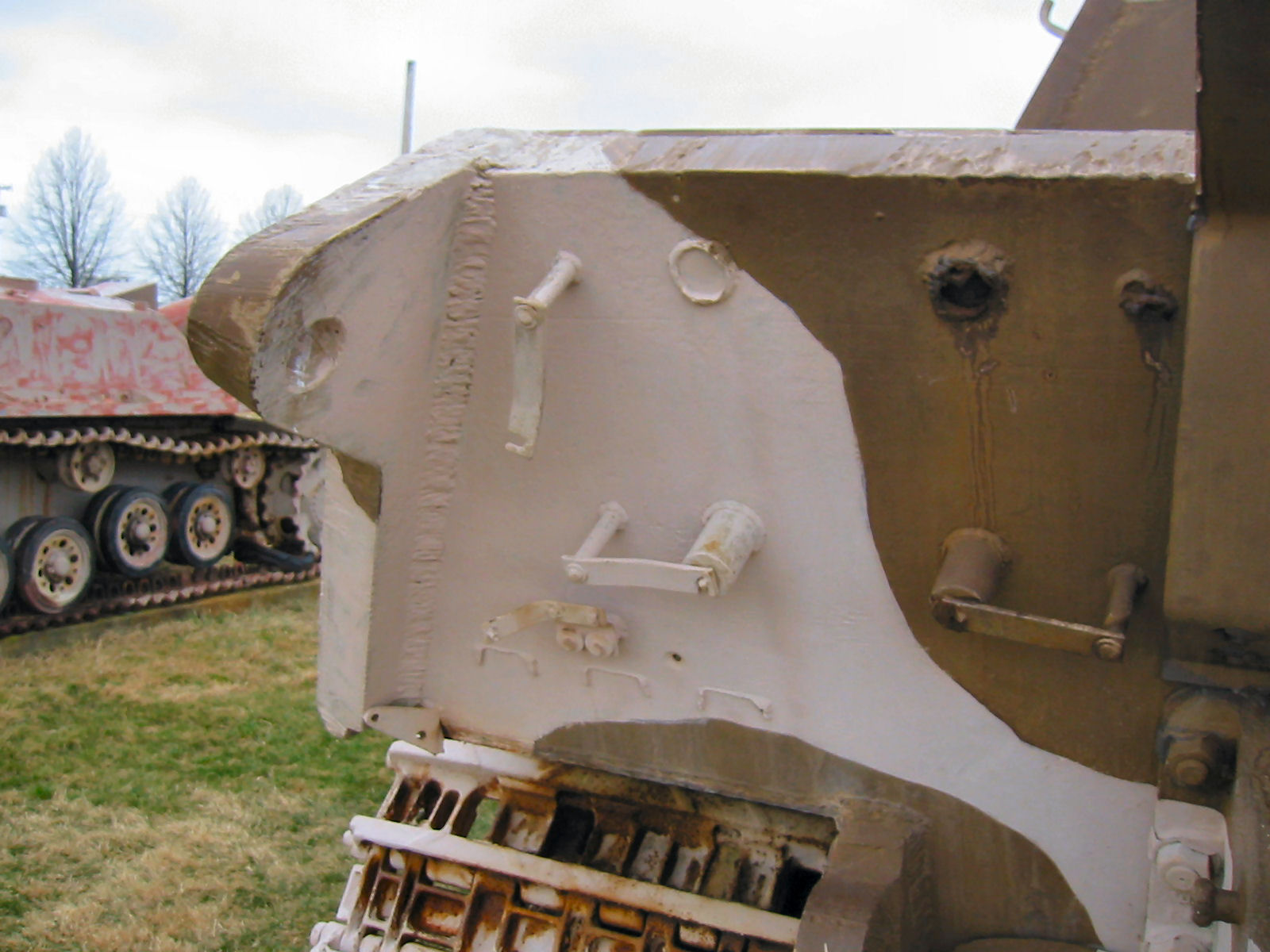

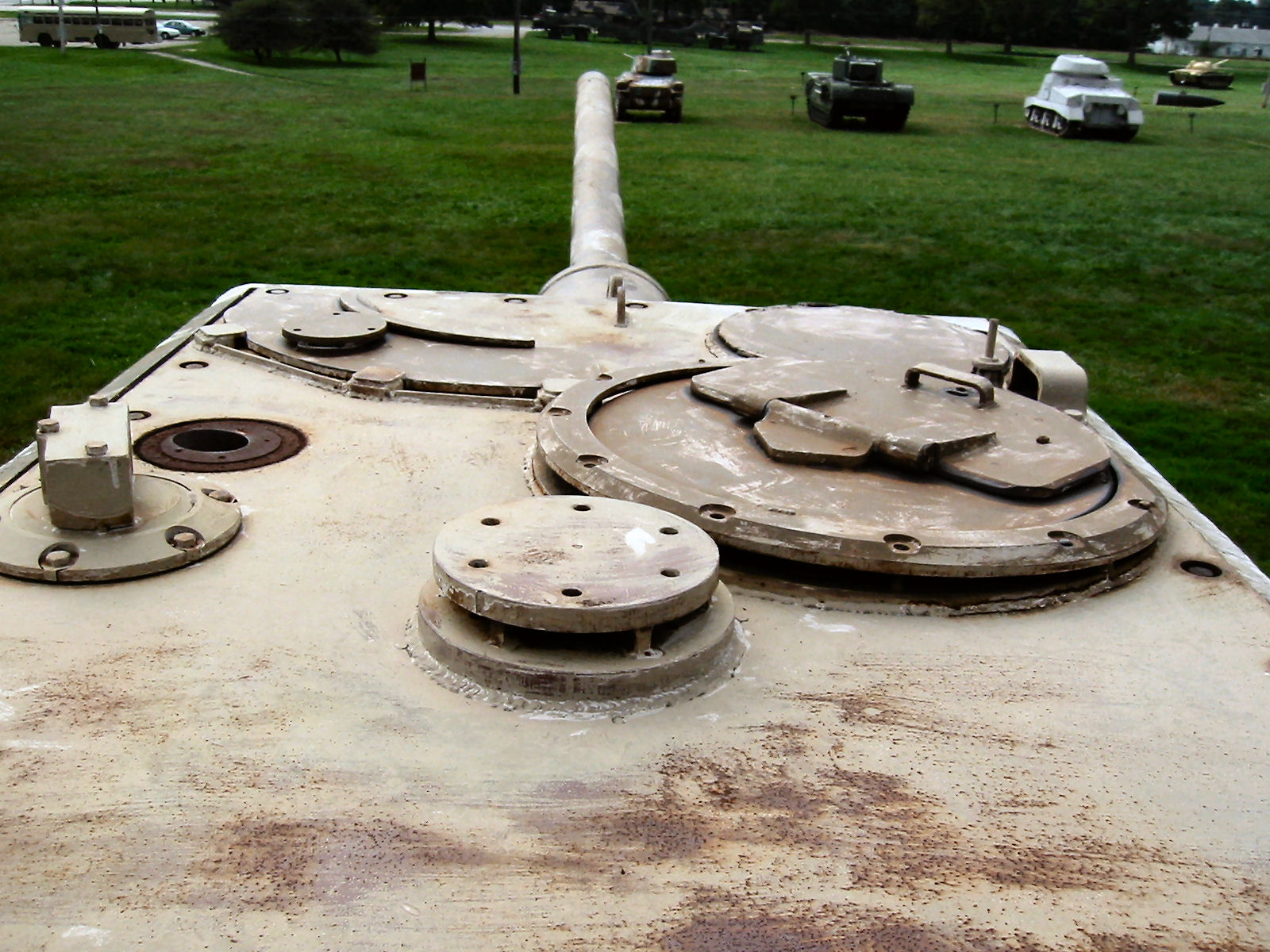

Some more close ups

Mike Fala · Post by **Mike Fala** » Mon Mar 22, 2021 8:32 pm

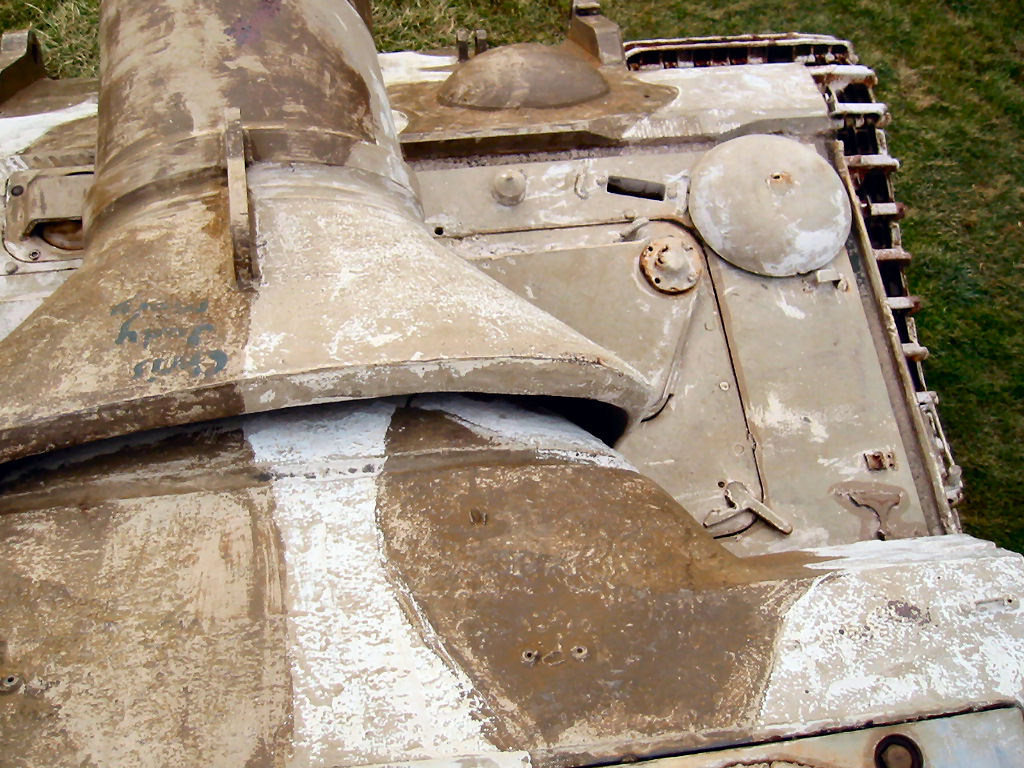

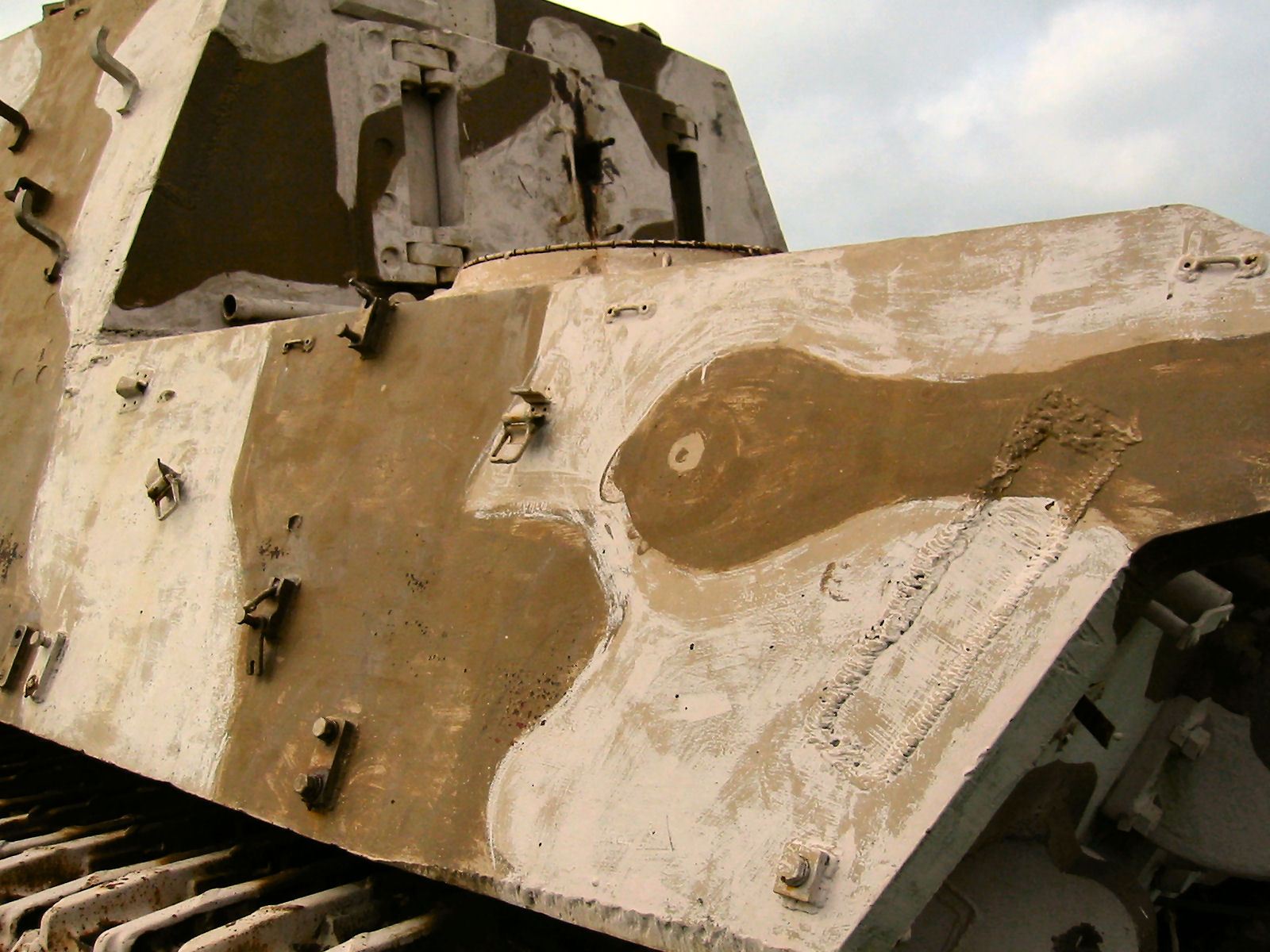

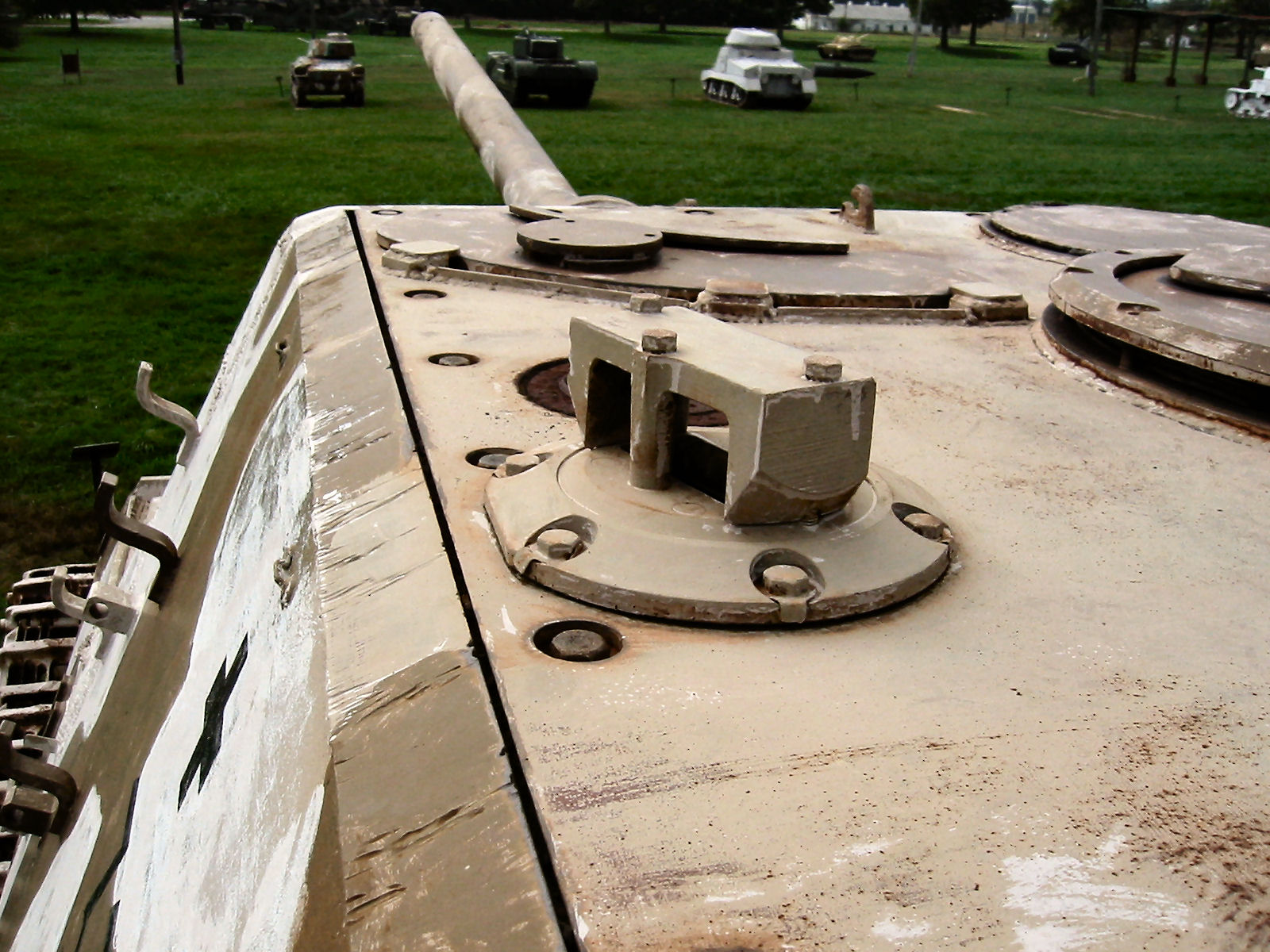

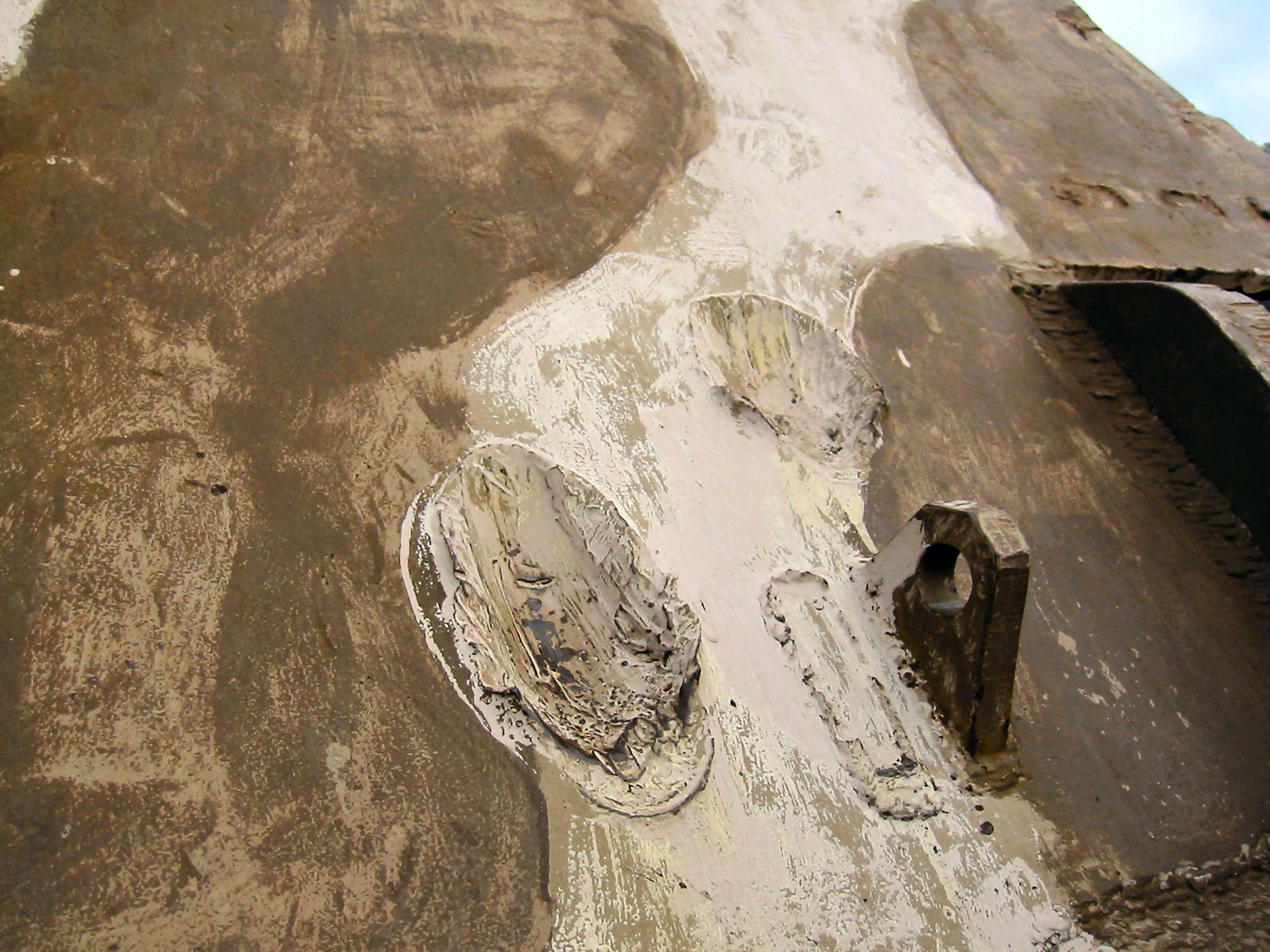

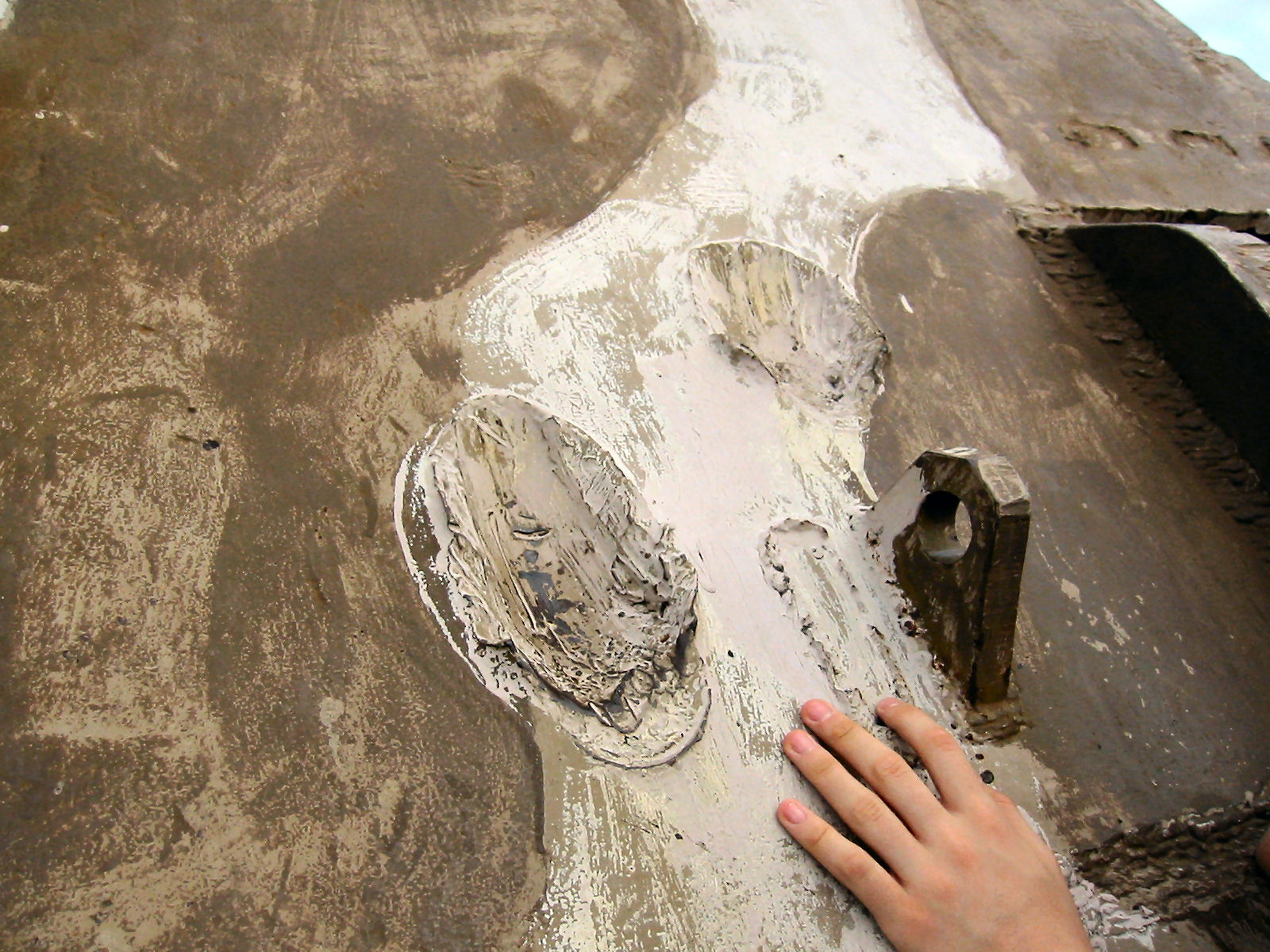

And more...

Mark Heaps · Post by **Mark Heaps** » Mon Mar 22, 2021 9:00 pm

Possibly a downwards pointing arrow edited in to the photo ???

Brian Ostlind · Post by **Brian Ostlind** » Wed Apr 14, 2021 11:39 pm

Some people are speculating this JT never had a roof.

free geojson data

John Clarke · Post by **John Clarke** » Thu Apr 15, 2021 1:01 am

What, a sort of cabriolet!
Hood down, wind in the tutonic blonde hair and flys in the teeth :

Chang · Post by **Chang** » Mon Aug 16, 2021 7:36 pm

Why did the museum let the historical remains exposed and unpainted outdoor? Look so sad at those surface rust!

Chang · Post by **Chang** » Mon Aug 16, 2021 8:18 pm

That's what I feel sad about. A cheap simple surface etch-primer paint on the surface can stop the 24/7 never stopped rust completely.

Robert E Morey · Post by **Robert E Morey** » Sat Nov 27, 2021 6:13 pm

Amazing pictures. I'm impressed how big the breach and gun are. Truely a destroyer sized 5" gun on wheels+tracks.
