15 t jack for my early Tiger I

Stewart Ashton · Post by **Stewart Ashton** » Sun May 31, 2009 5:02 pm

Great workmanship as usual Roland.

Regards Stewart

Georg Steffen · Post by **Georg Steffen** » Sun May 31, 2009 9:35 pm

Hi Roland,
since my visit a few month ago with a delicious cup of tea

and a
delicious strawberry cake, nothing surprise me.

To all Tiger "Comanders": " i saw the " eye of the tiger"" (the 88)
WOW
and now this jack

CanÂ´t wait to see him really lifting Rolands Tiger

Best regards
Georg

Per Sonnervik · Post by **Per Sonnervik** » Mon Jun 01, 2009 6:51 am

Hi Roland,

Great and inspirational work there. Now IÂ´m waiting for a working scale model of a Maybach for your Tiger.

"SuperToll" ist the word.

/Per

Roland Mann · Post by **Roland Mann** » Mon Jun 01, 2009 7:44 am

Thank you all for your friendly comments. I feel very happy these days. The jack is now rivetted. First lift on the rear Tiger corner was easy. When I released the handle, it turned back very rapid by the weight of the Tiger. OK the locking claw is not in place yet and will stop the handle next time.
One full turn of the handle wil give a lift of 3,5 mm. The weight of the jack is now 236 g. Still growing.

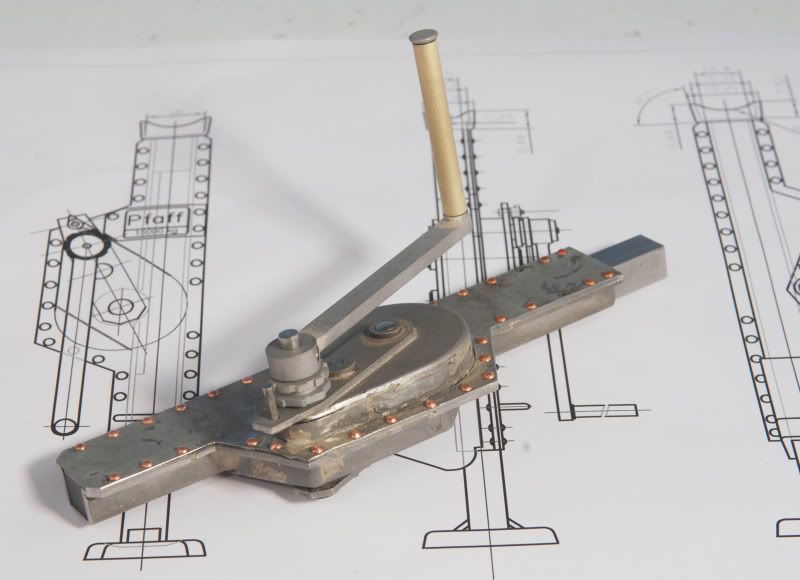

[img][img]http://i95.photobucket.com/albums/l134/ ... C_0462.jpg[/img][/img]

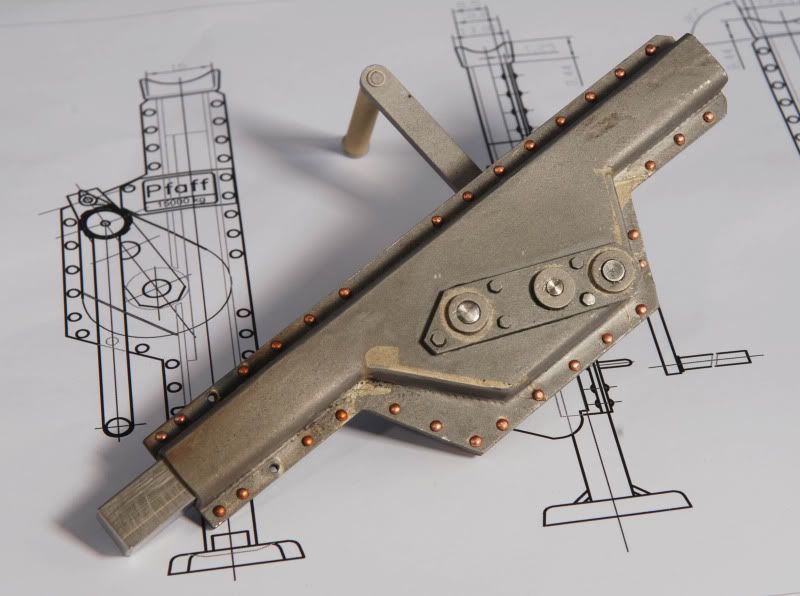

[img][img]http://i95.photobucket.com/albums/l134/ ... C_0463.jpg[/img][/img]

Hi Per how do you know I was thinking about building the Maybach since I ordered my Tiger. Still thinking about .

Roland

Graham Ord · Post by **Graham Ord** » Mon Jun 01, 2009 5:13 pm

I have done similar but without a double set of gears.

http://www.armortek.co.uk/gallery/main. ... &g2_page=8

and also the description in Panzer 4, "Jack by Graham"

Roland Mann · Post by **Roland Mann** » Mon Jun 01, 2009 7:09 pm

Hi Graham,

yes a very nice one yours. What version is it. It looks like a 20 t one and a later version as well. Recognisable from the parted gear box half for maintenance. This is still the way they built the jacks today by PFAFF.

You are very firm in using you machine equipment. I can see it from your various works in your Gallery. Keep it going.

Roland

Graham Ord · Post by **Graham Ord** » Tue Jun 02, 2009 4:26 pm

Hi Roland
Its not any paticular type, I just enjoyed making it.

Roland Mann · Post by **Roland Mann** » Mon Jun 15, 2009 10:00 pm

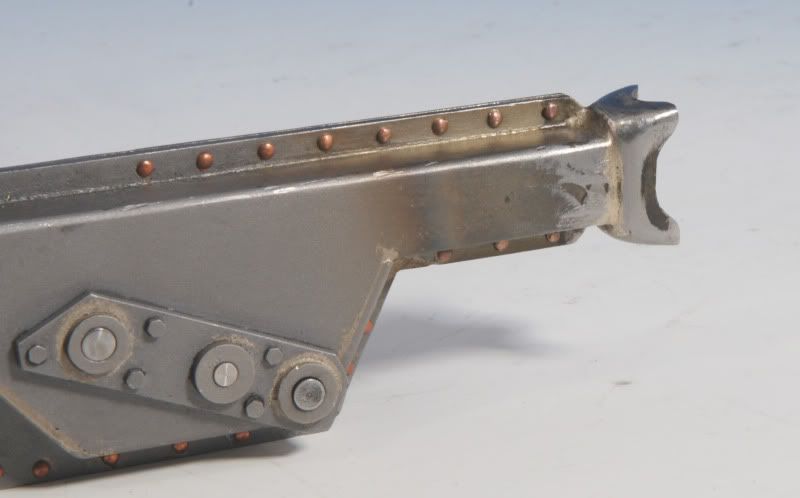

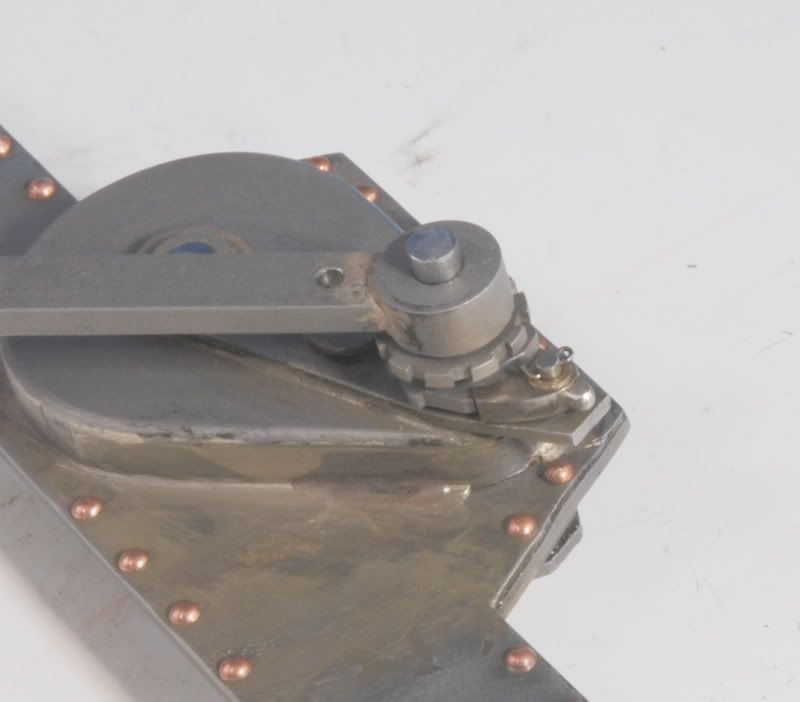

Done the next steps on my jack. Most time consuming was the head. The handle was easy. The locking arrangement difficult because of its small size.

Paul Morris · Post by **Paul Morris** » Tue Jun 16, 2009 7:19 am

Adrian Harris · Post by **Adrian Harris** » Tue Jun 16, 2009 7:34 am

That's a superb piece of miniature engineering Roland

It would be probably be a good idea to include your fingers in the next photos as it is hard to believe that it is only 1/6th scale

Adrian.

Roland Mann · Post by **Roland Mann** » Tue Jun 16, 2009 8:54 pm

Thank you Adrian. A good idea to show my hand in the photo next time. Not too long the trapez foot is ready to silver solder in place.

Hi Paul, long time no speak. Any way, thank you. Showing my jack in the forum was bit of an argument regarding your comments on precise scaling. At least you can understand my ambition.

Best regards - Roland

Robert E Morey · Post by **Robert E Morey** » Fri Jun 19, 2009 4:06 am

Really cool jack Roland, thanks for sharing the photos. I agree a coin or hand in the photo to show true scale would be neat. Really great work! You are a master.
Bob

Roland Mann · Post by **Roland Mann** » Sun Jun 21, 2009 3:11 pm

Hi Adrian & Robert,

and here is what you have proposed. Not completly ready but very close. The missing parts are in production and will soon complete the jack.

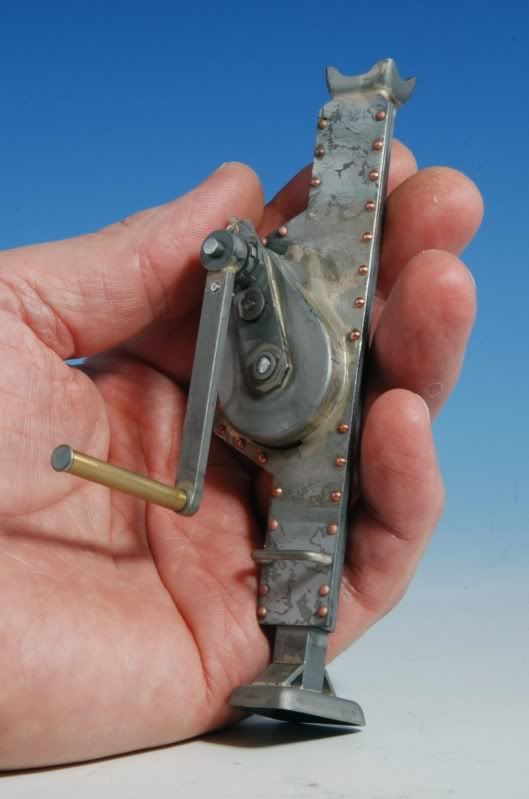

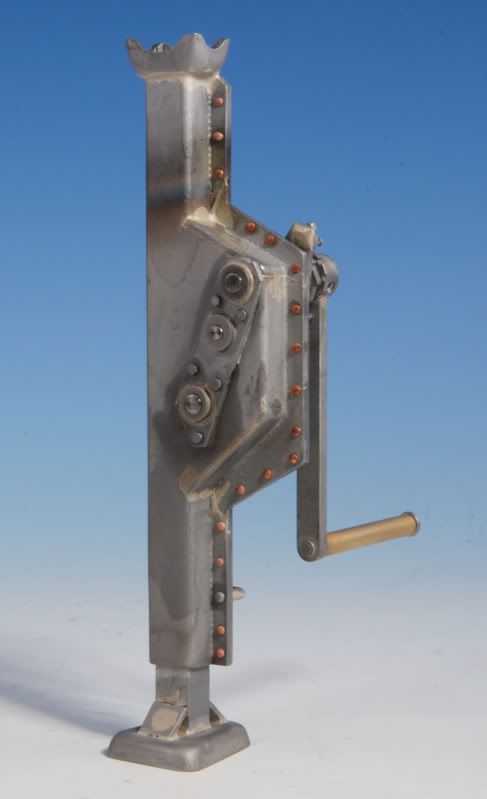

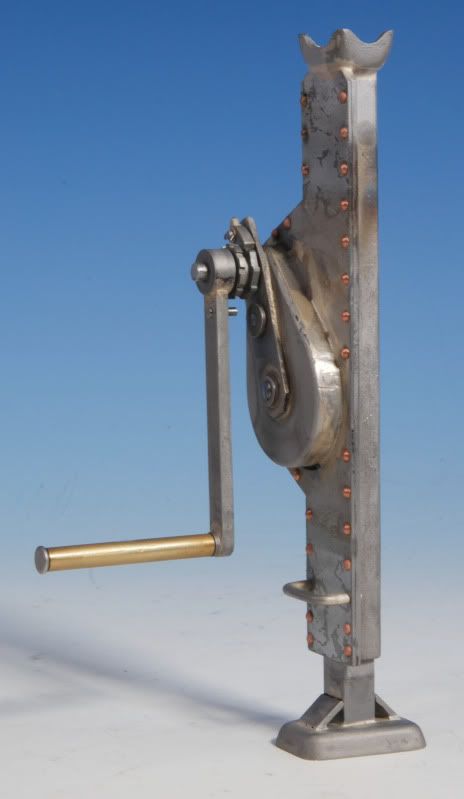

[img][img]http://i95.photobucket.com/albums/l134/ ... ertig4.jpg[/img][/img]

[img][img]http://i95.photobucket.com/albums/l134/ ... ertig2.jpg[/img][/img]

[img][img]http://i95.photobucket.com/albums/l134/ ... yhands.jpg[/img][/img]

Regards Roland

Tim Bowman · Post by **Tim Bowman** » Sun Jun 21, 2009 3:51 pm

Hi Roland

Just beautiful!

Tim

chris quick · Post by **chris quick** » Sun Jun 21, 2009 5:33 pm

Hi Roland

SUPER!

Chris

15 t jack for my early Tiger I

JACK

JACK

post deleted
